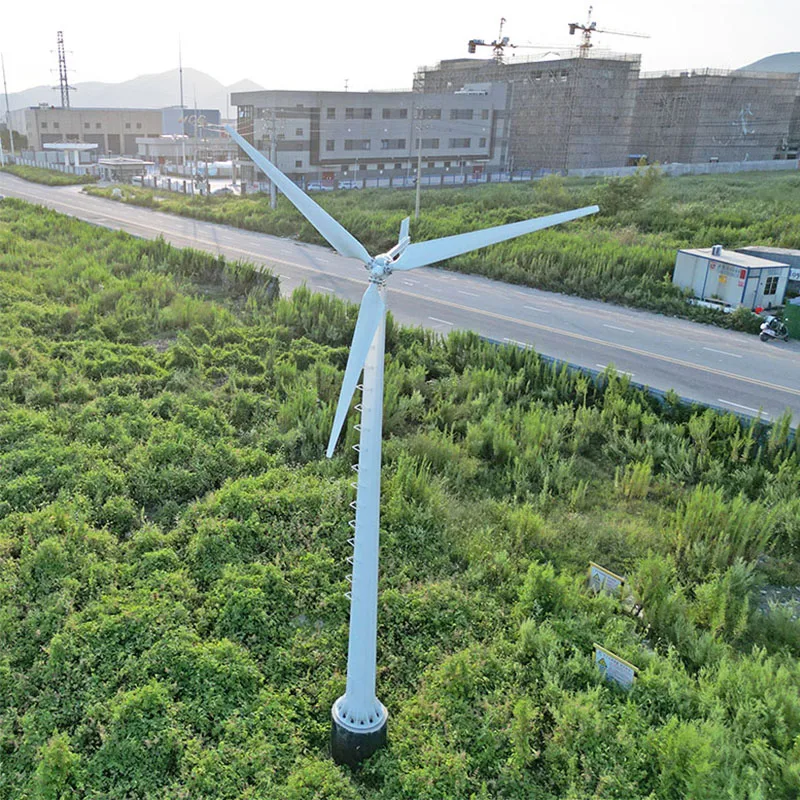

Competitive price 10 kilowatt wind turbine horizontal axis wind mill generator for farm
- Category: >>>
- Supplier: Jiangsu DHC Environmental Si-Tech Co. Ltd.
Share on (1601200769162):
Product Overview
Description
Product Description
Competitive price 10 kilowatt wind turbine horizontal axis wind mill generator for farm
Our horizontal wind turbine have wind alignment devices that can rotate as the wind direction changes. For small horizontal wind generators, this type of wind alignment device uses a tail rudder, while for large wind turbines, a transmission device composed of wind direction sensing elements and servo motors is used.
Technical Parameter
Model | ES-G-3K | ES-G-5K | ES-G-10K | ES-G-20K | |||
Rated power | 3kw | 5kw | 10kw | 20kw | |||
Rated voltage | 120V/220V/240V/380V | 120V/220V/240V/380V | |||||
Start-up wind speed | 2.5m/s | 2.5m/s | |||||
Rated wind speed | 10m/s | 11m/s | |||||
Safe wind speed | ≤50m/s | ≤45m/s | |||||
Blade diameter | 4.8m | 5.4m | 6.5m | 9.5m | |||
Blade number | 3 | ||||||
Blade material | Reinforced FRP | ||||||
Fuselage material | Reinforced die -cast aluminum + steel | Reinforced die-cast aluminum+steel | |||||
Magnetic steel material | NdFeB | ||||||
Generator type | Three-phase AC permanent magnet synchronous generator | ||||||
Control mode | Electromagnetic brakes | ||||||
Wind direction adjustment | Automatically adjusts the windward angle | ||||||
Service life | ≥ 20 years | ||||||
Protection grade | IP54 | ||||||
Net weight | 215kg | 230kg | 400kg | 680kg | |||
Gross weight | 250kg | 265kg | 485kg | 800kg | |||
Packing size (cm) | 95*52*60+ 260*30*38 | 95*52*62+ 274*30*36 | 110*58*55+ 330*50*56 | 125*74*66+ 145*90*6+ 460*60*70 | |||
Competitive price 10 kilowatt wind turbine horizontal axis wind mill generator for farm
The casing of the horizontal wind turbine is made of alloy aluminum or A3 steel, with small volume, light weight, beautiful appearance, and low operating vibration.

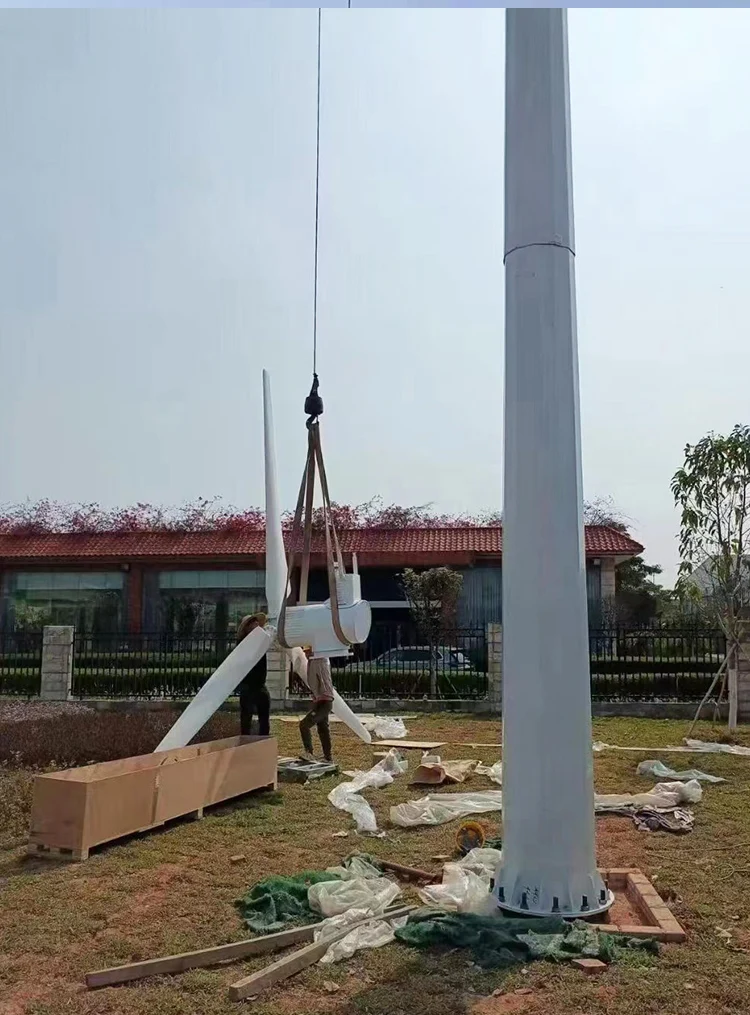

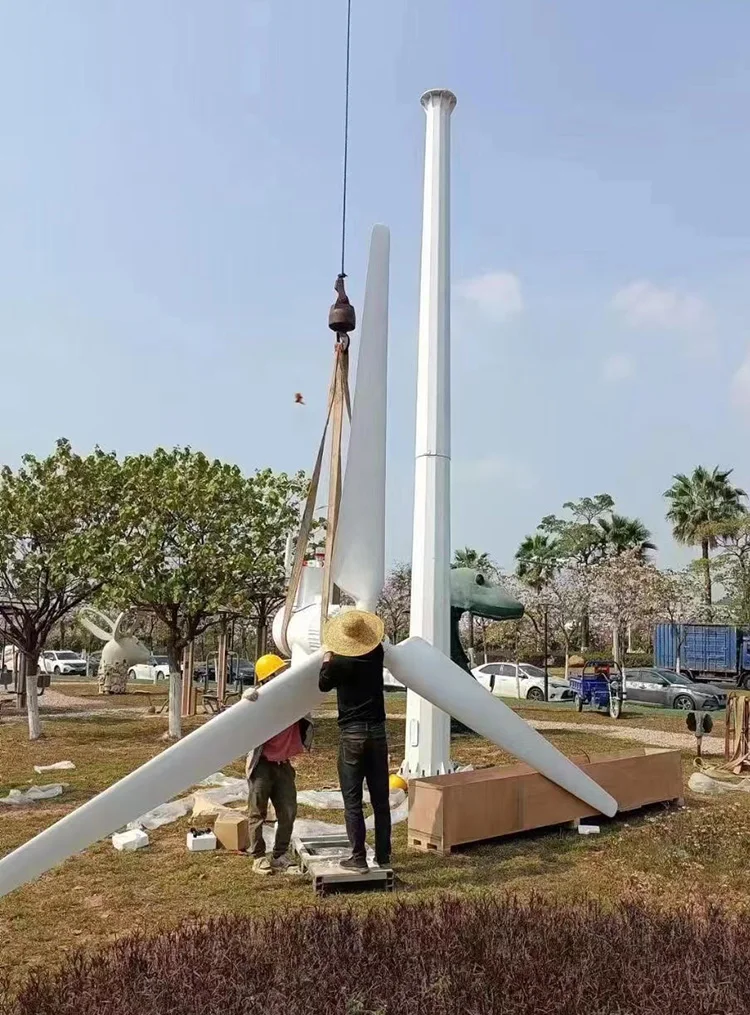

Adopting flange installation, horizontal wind generator has good strength and is convenient for installation and maintenance.
The horizontal wind turbine adopts nylon blades or reinforced fiberglass wind turbine blades, combined with optimized aerodynamic shape and structural design, with low starting wind speed, high wind energy utilization coefficient, and higher power generation efficiency compared to vertical axis fans.
Adopting flange installation, horizontal wind generator has good strength and is convenient for installation and maintenance.
The horizontal wind turbine adopts nylon blades or reinforced fiberglass wind turbine blades, combined with optimized aerodynamic shape and structural design, with low starting wind speed, high wind energy utilization coefficient, and higher power generation efficiency compared to vertical axis fans.
Details Images
Competitive price 10 kilowatt wind turbine horizontal axis wind mill generator for farm

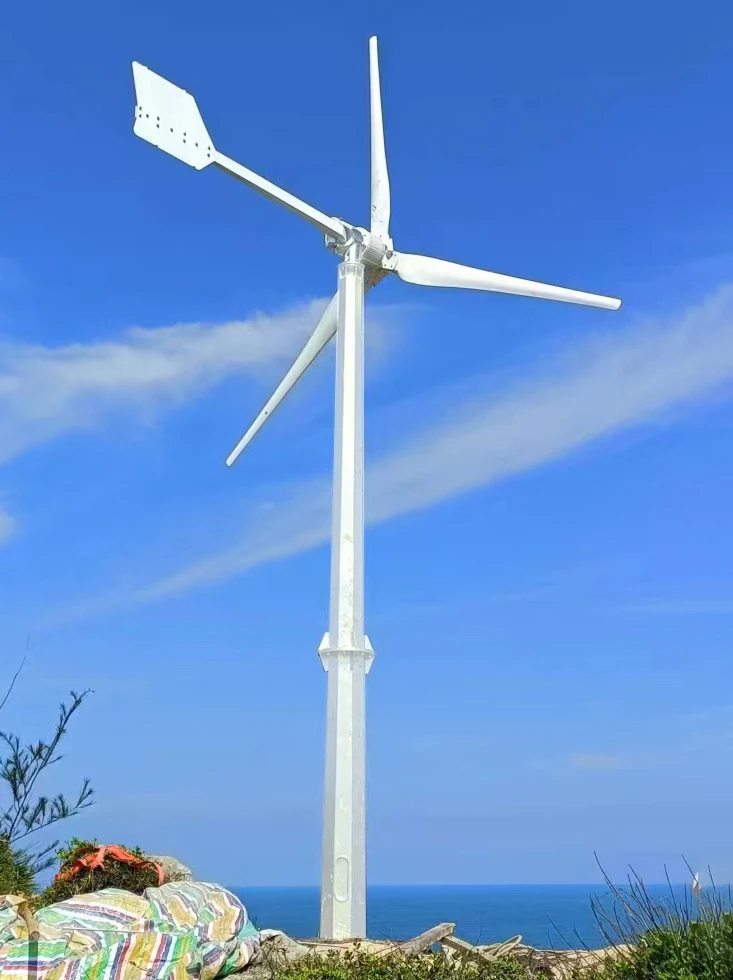

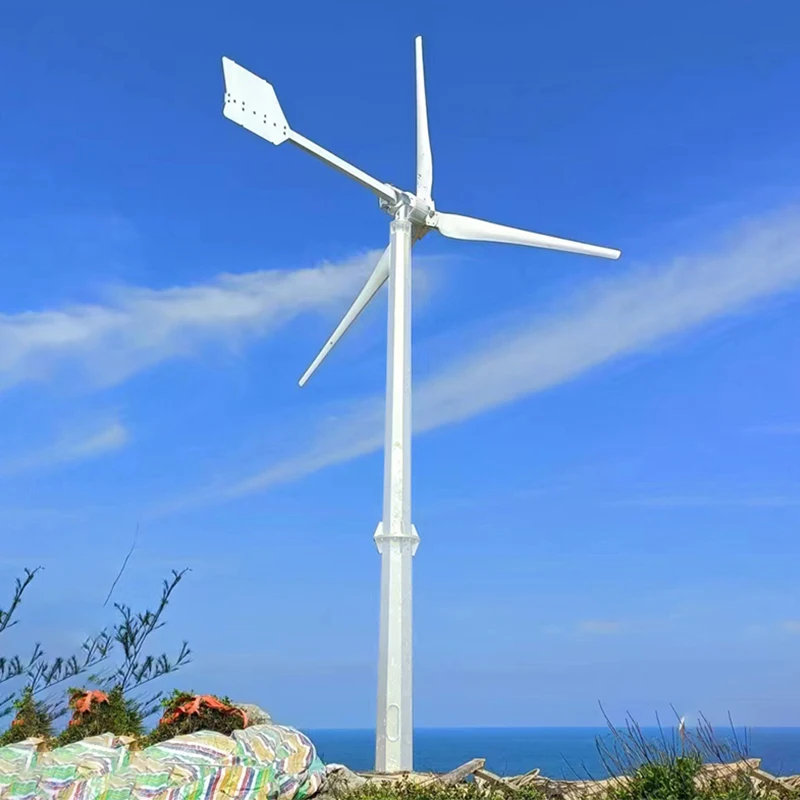

The tail rudder of horizontal wind generator adopts automatic windward and automatic yaw design, usually of straight or folded tail type, with strong typhoon resistance and safe and reliable operation.
The solar wind turbine uses a patented permanent magnet rotor AC generator. The special stator and rotor design can effectively reduce the resistance torque of the generator.
Optional maximum power tracking intelligent controller, effectively regulating current and voltage.
The solar wind turbine uses a patented permanent magnet rotor AC generator. The special stator and rotor design can effectively reduce the resistance torque of the generator.
Optional maximum power tracking intelligent controller, effectively regulating current and voltage.

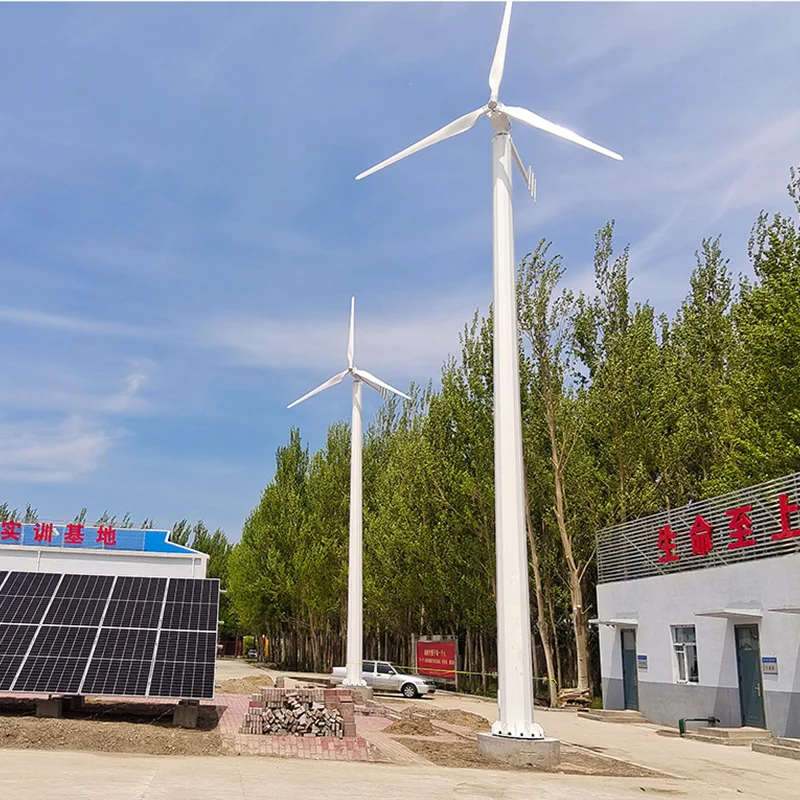

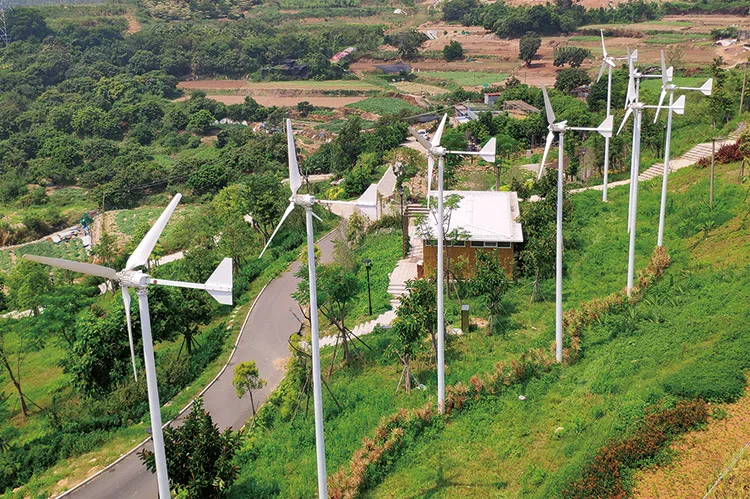

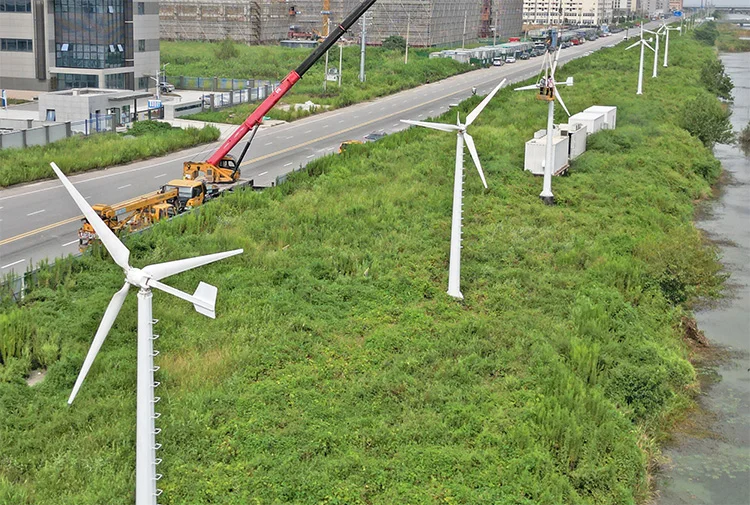

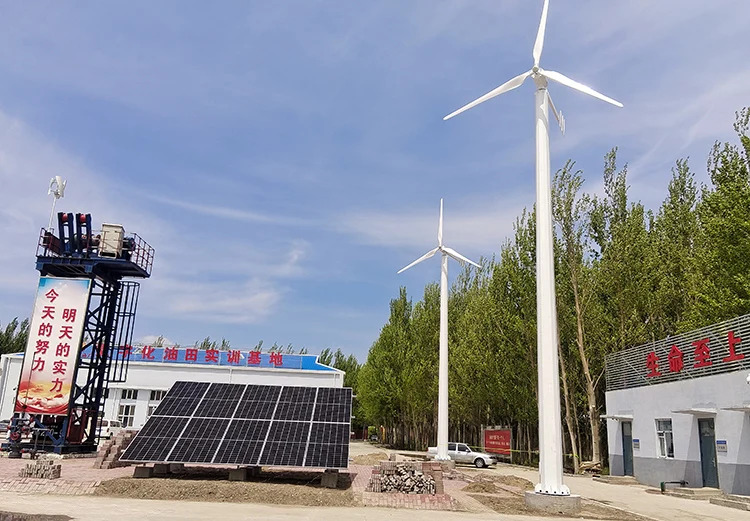

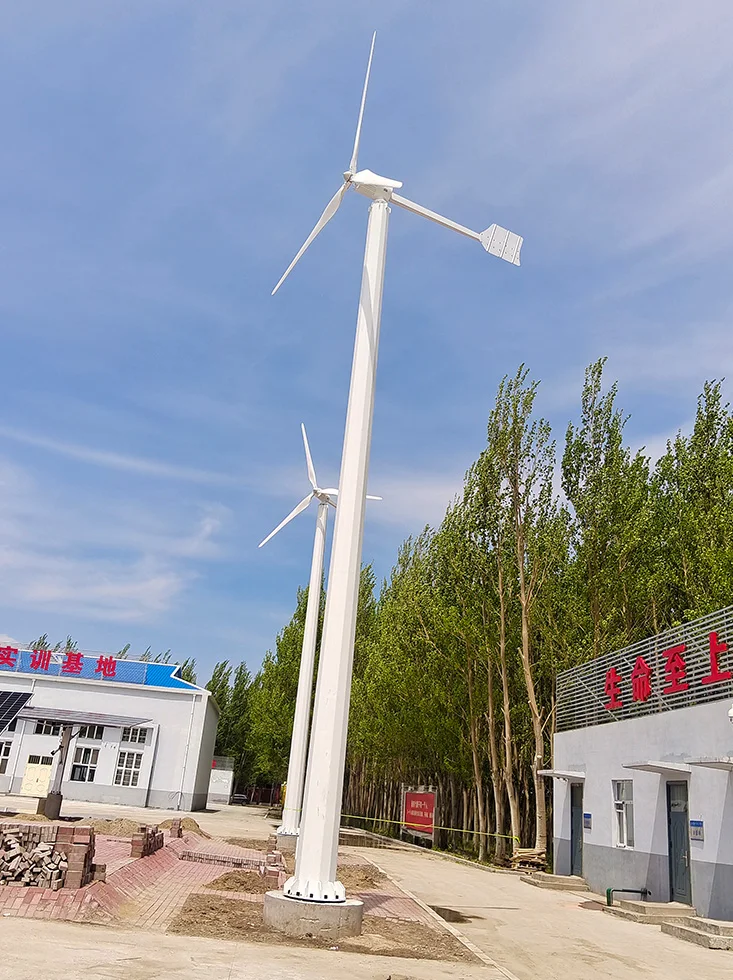

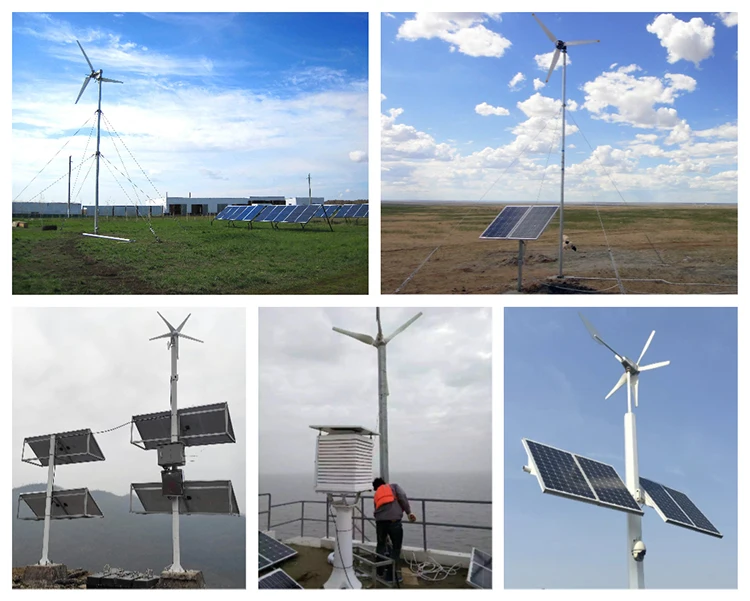

Project Cases
Project Case Display
Our company is committed to providing customers with one-stop services for wind and solar hybrid systems. The main products include 100w-100kw small and medium-sized wind generator, solar panel, photoelextric water heater and heating furnace, solar energy storage system, portable power station, etc.
Our company's products sold worldwide. The company has won the unanimous recognition of consumers with satisfactory quality and perfect after-sales service. We has a professional team, which can help you solve questions.
Recommend Products
All types of our wind generator
We mainly have several types of wind turbine generator above, as well as solar wind turbine system.
The working principle of a wind turbine is relatively simple. The wind rotor rotates under the action of the wind, which converts the kinetic energy of the wind into the mechanical energy of the wind rotor shaft, and the generator rotates to generate electricity under the drive of the wind rotor shaft.
The working principle of a wind turbine is relatively simple. The wind rotor rotates under the action of the wind, which converts the kinetic energy of the wind into the mechanical energy of the wind rotor shaft, and the generator rotates to generate electricity under the drive of the wind rotor shaft.
