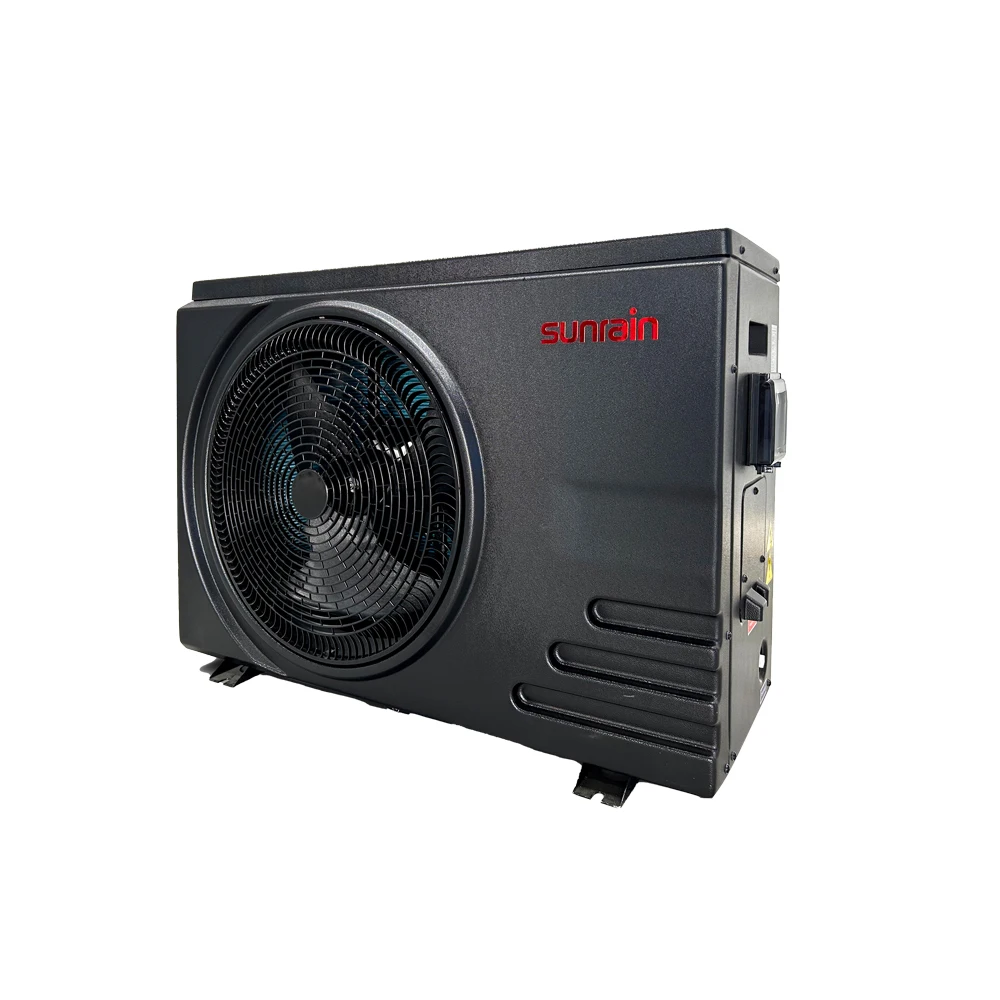

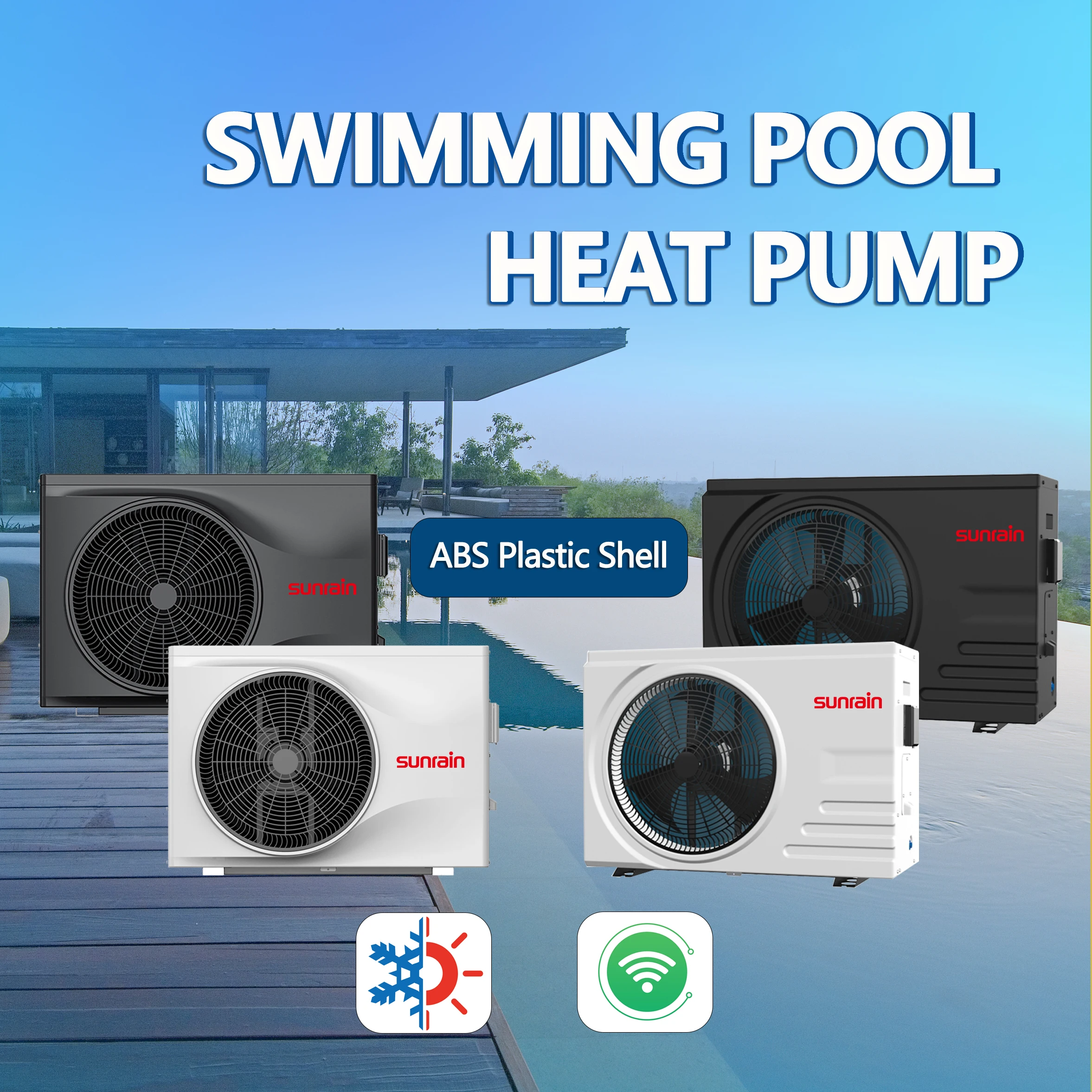

Sunrain Europe Popular Factory Direct Wifi R32 DC Inverter Swimming Pool Heat Pump Heater and Cooler
- Category: >>>
- Supplier: Jiangsu Sunrain Solar Energy Co. Ltd.
Share on (1601200769207):
Product Overview
Description
Product Description
Sunrain High Efficiency R32 DC Inverter Pool Heat Pump
Sunrain BYC-TC series swimming pool heat pump with eco friendly R32 refrigerant, is ideal for residential and commercial pool heating and cooling, causing no depletion of ozone layer. With ABS casing, the pool heat pump has an excellent anti-corrossion quality and is very durable. IOT tech enables you to control the heat pumps any time and anyhere via your mobilephone. In addition, high end Mitsubishi compressor is used for long term and stable performance of the air to water heat pump water heater. No matter how big or how small your pool is, we have a wide range of heating capacity for your choice, from 7kw to 35 kw.
Main Features
Eco friendly R32 refrigerant

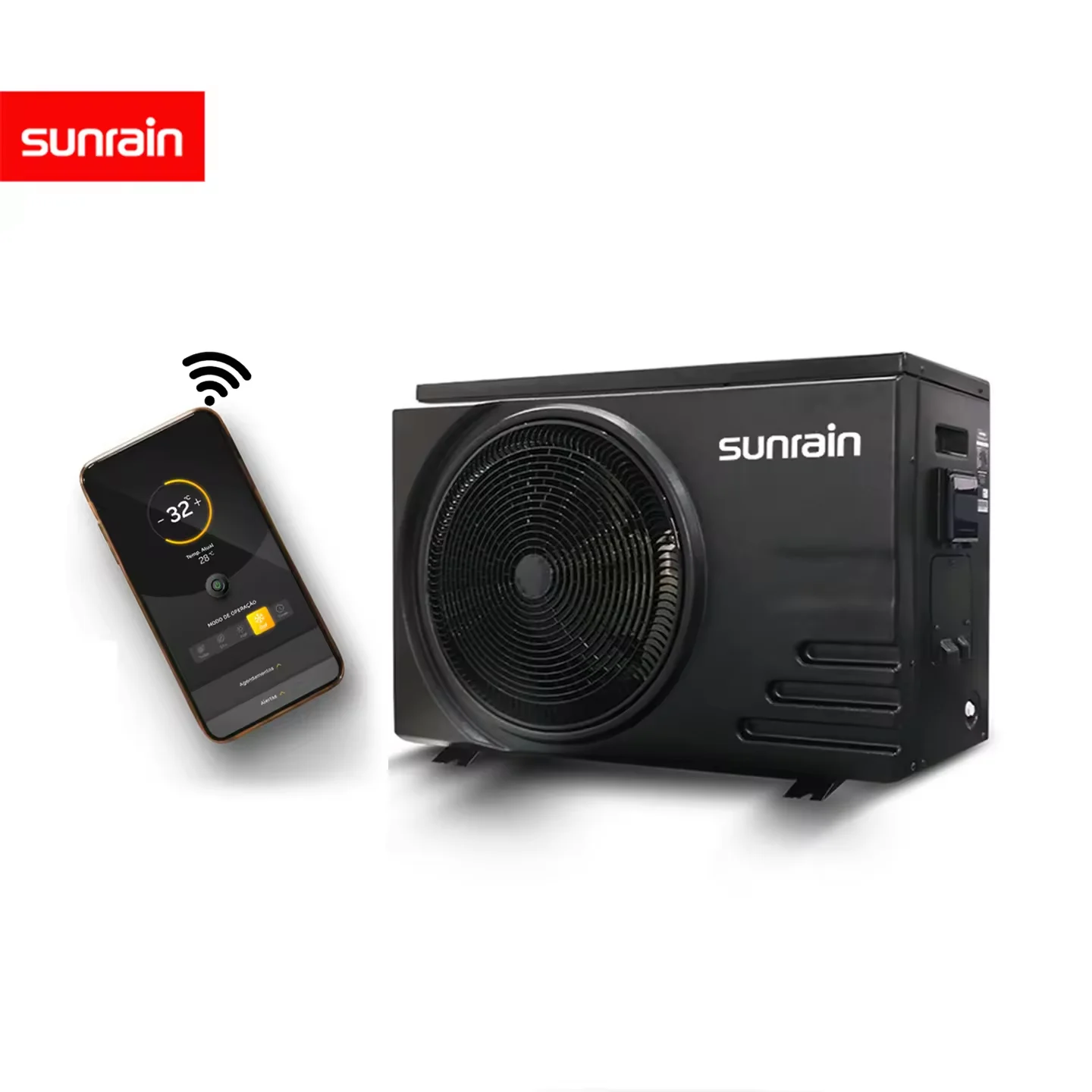

Convenient Wifi
Cost saving inverter compressor
Anti-corrossive ABS casing
3 Different Colors For Choice

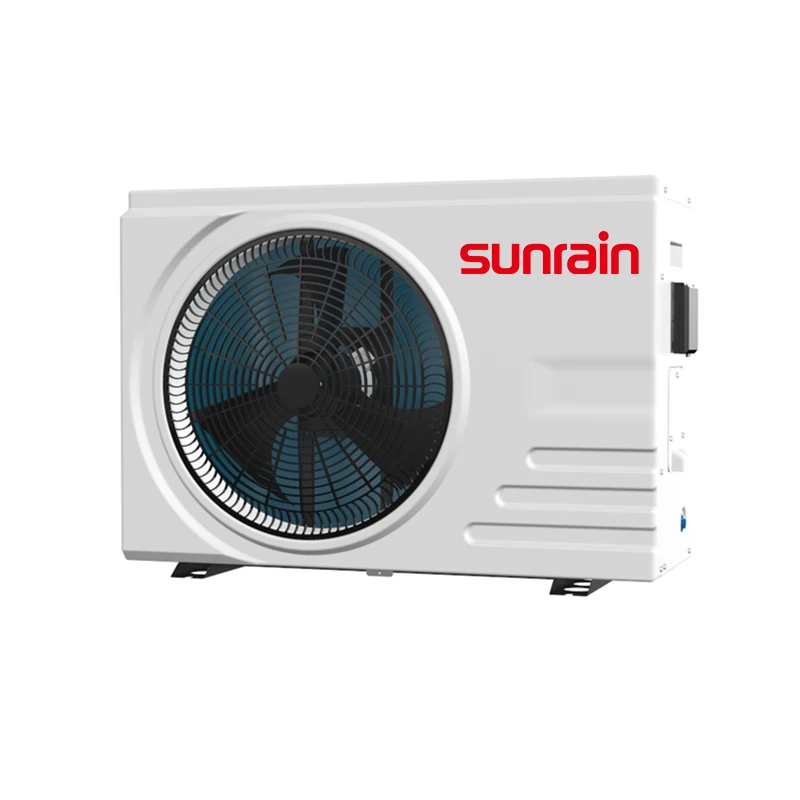

White

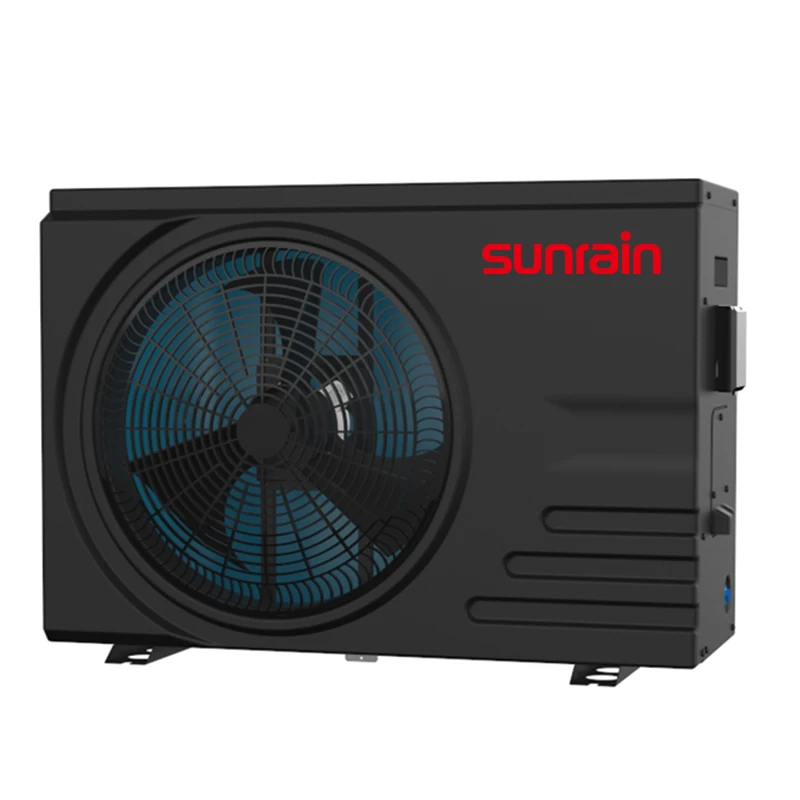

Black

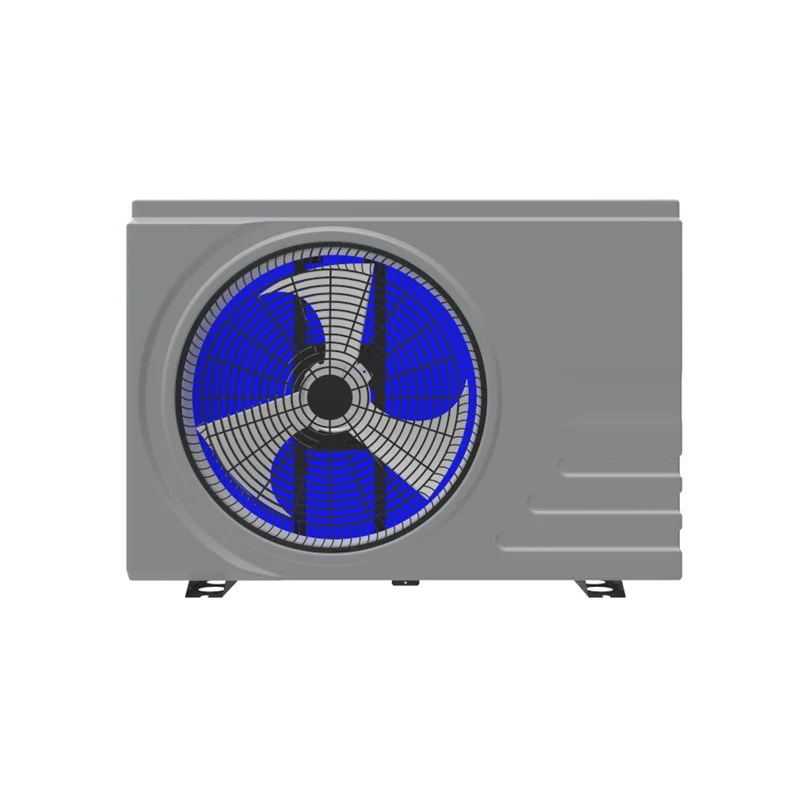

Gray

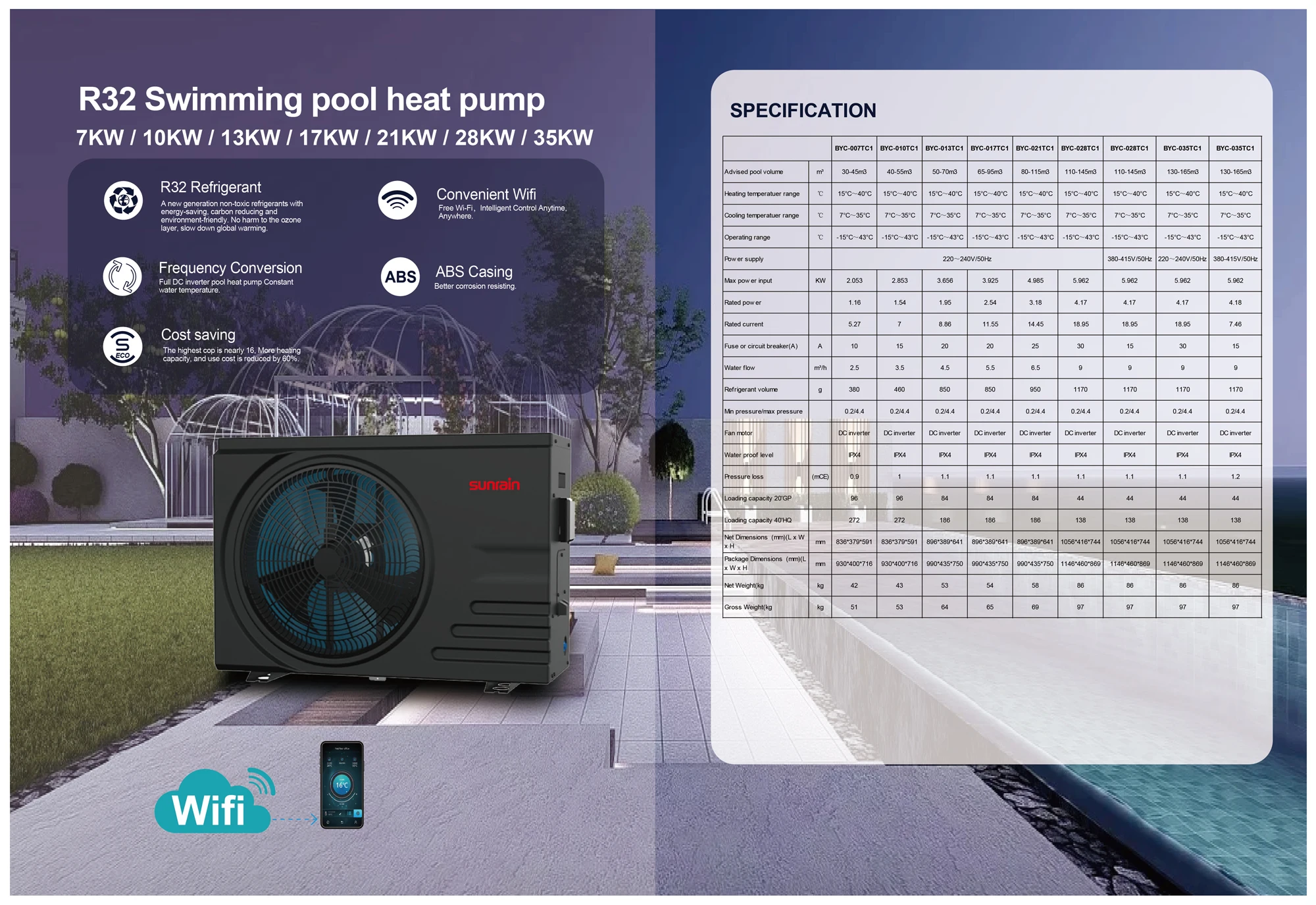

Product Parameters
BYC-010TC1 | BYC-013TC1 | BYC-021TC1 | BYE-028TC1 | |||
Operating range | ℃ | -15°C～43°C | -15°C～43°C | -15°C～43°C | -15°C～43°C | |
Air 26℃ Water 26℃ | capacity(KW) | 10.21～2.49 | 13.12～3.25 | 21.01～5.52 | 28.23～7.56 | |
power input(KW) | 1.47～0.17 | 1.88～0.22 | 3.03～0.36 | 4.06～0.48 | ||
COP | 14.68～7.02 | 14.79～7.12 | 15.36～6.94 | 15.77～6.95 | ||
Air 15℃ Water 26℃ | capacity(KW) | 7.62～1.76 | 9.73～2.23 | 15.74～3.59 | 20.68～4.77 | |
power input(KW) | 1.54～0.23 | 1.95～0.29 | 3.18～0.47 | 4.17～0.63 | ||
COP | 7.58～4.95 | 7.63～4.98 | 7.57～4.95 | 7.59～4.96 | ||
Air 35℃ Water 27℃ | capacity（KW) | 5.36～1.38 | 6.88～1.82 | 11.07～2.86 | 14.52～3.64 | |
power input(KW) | 1.51～0.21 | 1.88～0.27 | 3.11～0.44 | 4.04～0.55 | ||
EER | 6.51～3.54 | 6.62～3.65 | 6.57～3.56 | 6.61～3.59 | ||
Power supply | 220～240V/50（60）Hz | |||||
Max power input | KW | 2.853 | 3.656 | 4.985 | 5.962 | |
Rated power | KW | 1.54 | 1.95 | 3.18 | 4.17 | |
Rated current | A | 7 | 8.86 | 14.45 | 18.95 | |
Water flow | m³/h | 3.5 | 4.5 | 6.5 | 9 | |
Min pressure/max pressure | Mpa | 0.2/4.4 | 0.2/4.4 | 0.2/4.4 | 0.2/4.4 | |
Water proof level | IPX4 | IPX4 | IPX4 | IPX4 | ||
Net Dimensions (mm)(L x W x H | mm | 836*379*591 | 896*389*641 | 896*389*641 | 1084*399*737 | |
Package Dimensions (mm)(L x W x H | mm | 930*400*716 | 990*435*750 | 990*435*750 | 1146*460*869 | |
Net Weight(kg | kg | 43 | 53 | 58 | 86 | |
Gross Weight(kg | kg | 53 | 64 | 69 | 97 | |

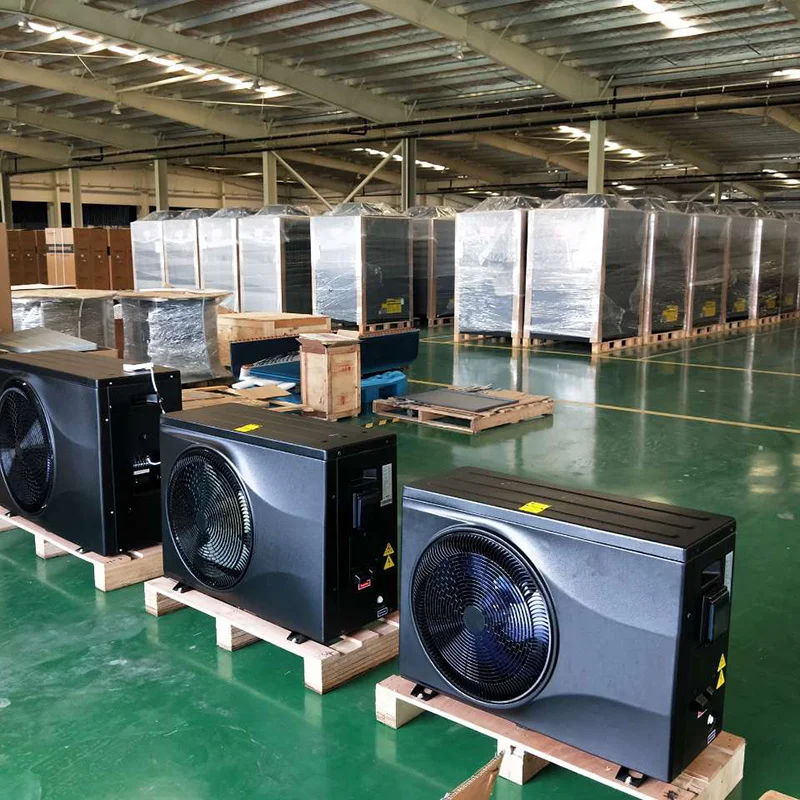

Packing&Shipping

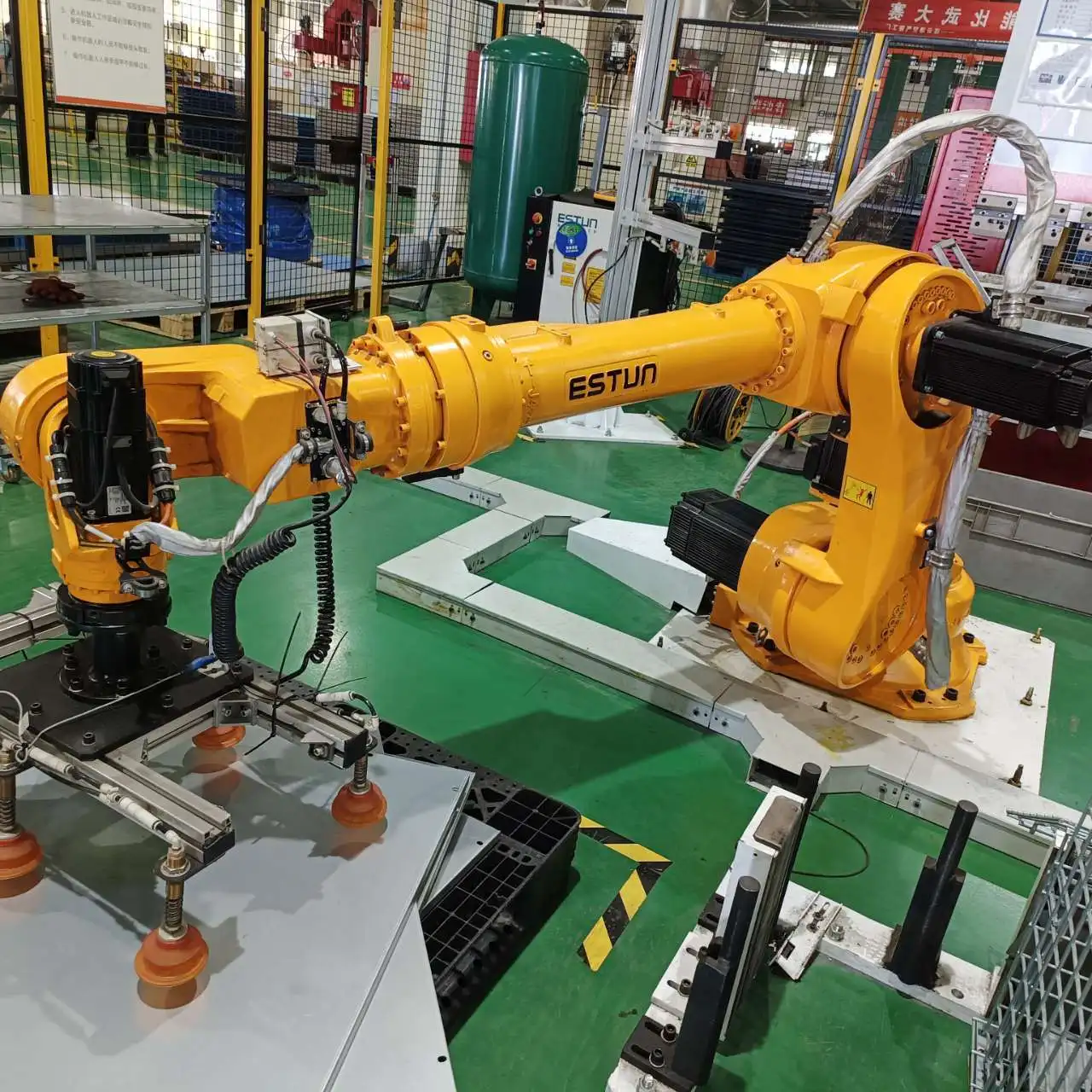

Company Introduction
Jiangsu Sunrain is a listed company engaged in renewable energy products for more than 26 years. We have 6 production bases with annual turnover of more than 6 billion. Sunrain can supply a full range of air source heat pumps and heat pump components, like air to water heat pump water heaters, all in one heat pumps, split heat pump water heaters system, swimming pool heat pumps, commercial heat pump and monoblock heat pump for domest heating. It is more safe and flexible to do business with Sunrain.
After Sales Service
a. 2 years warranty for the whole heat pump
b. Free spare parts provided
c. OEM ODM project solution service available
b. Free spare parts provided
c. OEM ODM project solution service available
