Product Overview

Description

H7 H8 Machine Chucking Reamer DIN212 ISO521.

• Tolerance H7 H8

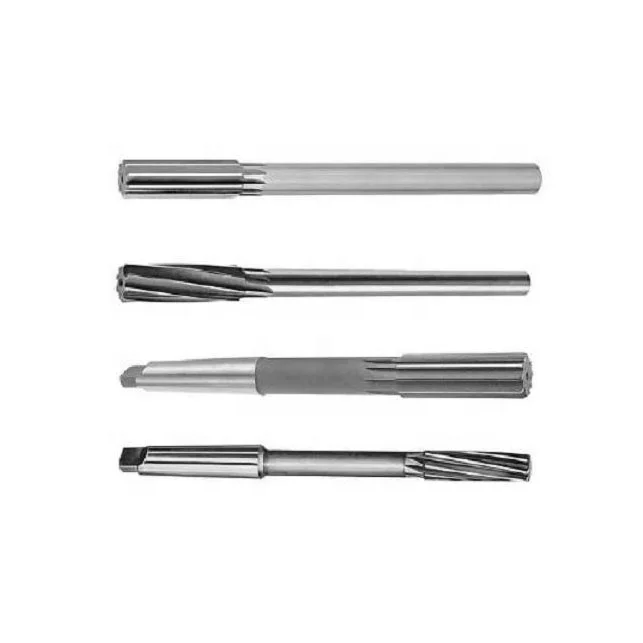

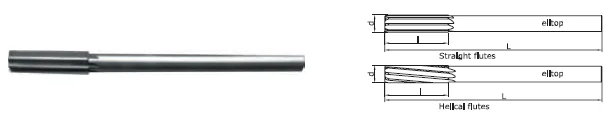

• Available in straight/spiral Flute.


• High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance


• Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications


• Round shanks allow use with a wide variety of toolholding systems

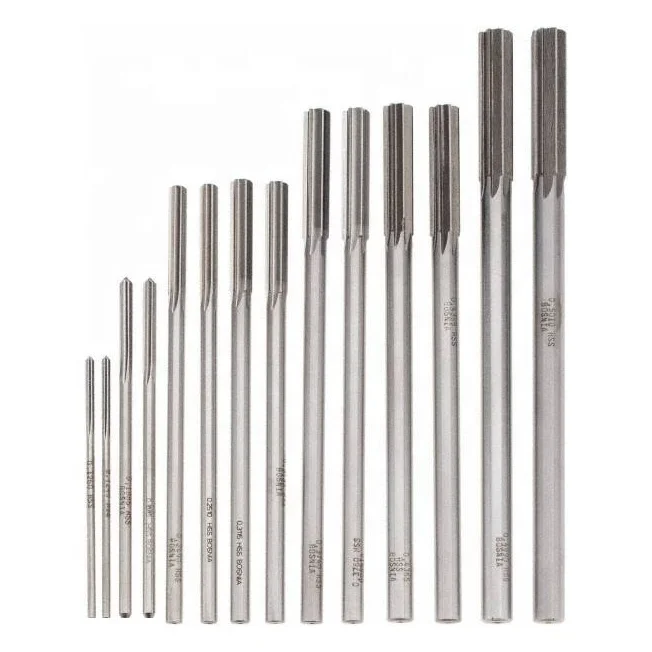

• Straight flute tools allow chips to collect in the flutes as they cut and are well suited for most applications in shallow cuts


• Right-hand cut tools have a cutting action that engages when they are run in a clockwise direction

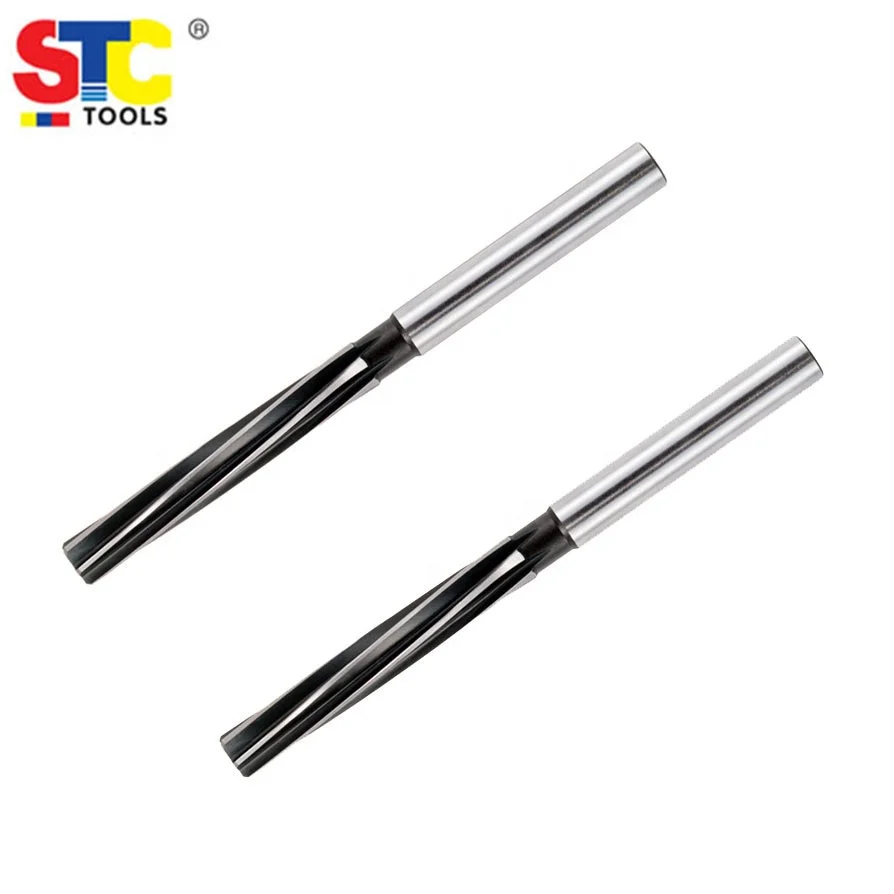

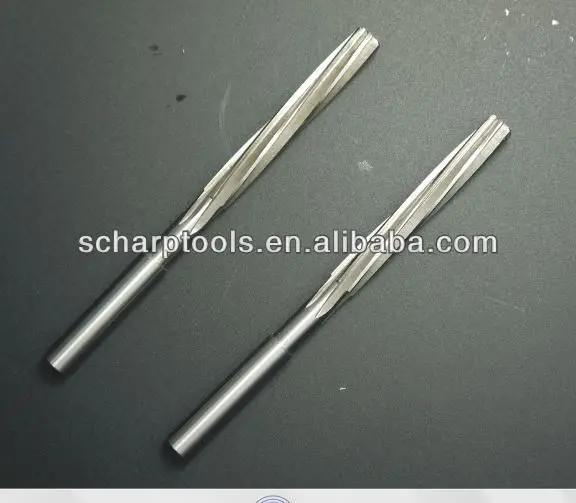

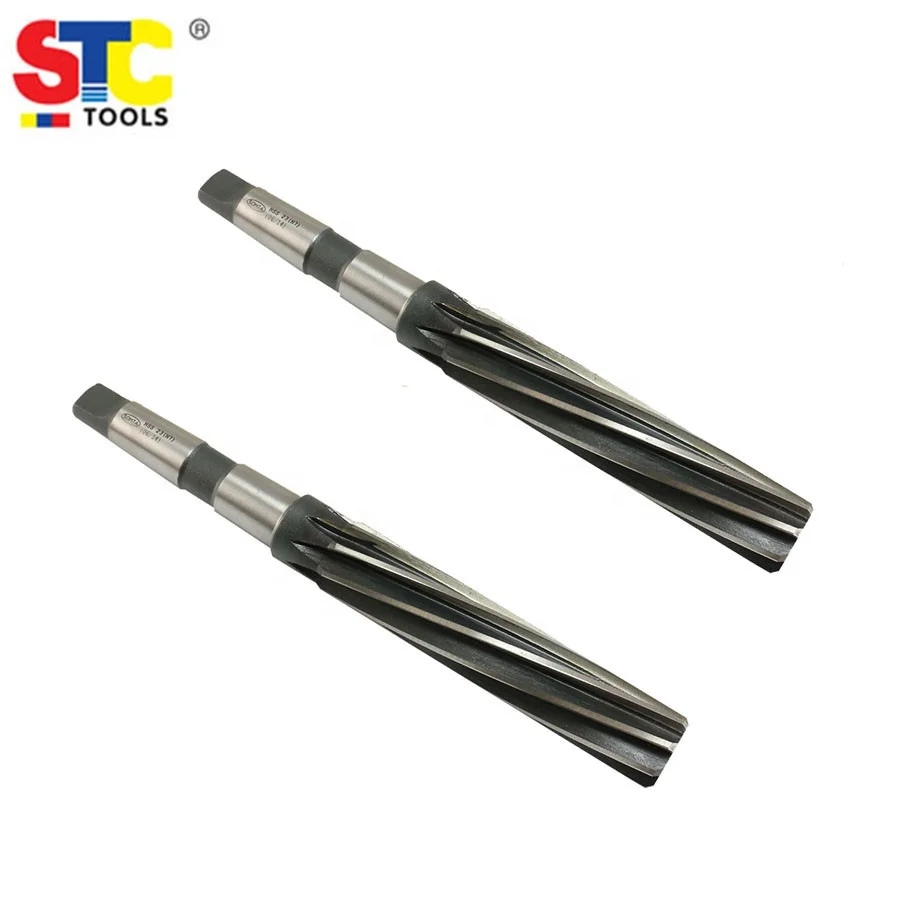

• Spiral flute available

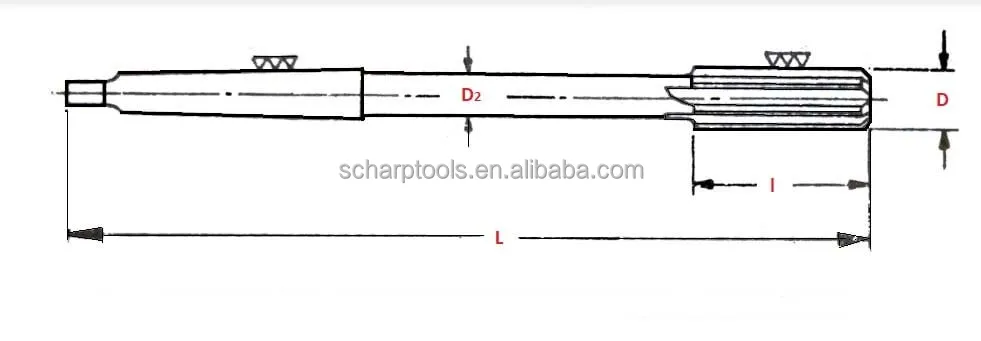

D	L	l	l1	d	Z
mm	mm	mm	mm	mm
2	49	11	24	2,0	4
2,2	53	12	26	2,2	4
2,5	57	14	27	2,5	4
2,8	61	15	28	2,8	6
3	61	15	29	3,0	6
3,2	65	16	30	3,2	6
3,5	70	18	31	3,5	6
4	75	19	32	4,0	6
4,5	80	21	33	4,5	6
5	86	23	34	5,0	6
5,5	93	26	36	5,5	6
6	93	26	36	6,0	6
7	109	31	40	7,0	6
8	117	33	42	8,0	6
9	125	36	44	9,0	6
10	133	38	46	10,0	6
11	142	41	46	10,0	6
12	151	44	46	10,0	8
13	151	44	46	10,0	8
14	160	47	50	12,5	8
15	162	50	50	12,5	8
16	170	52	50	12,5	8
