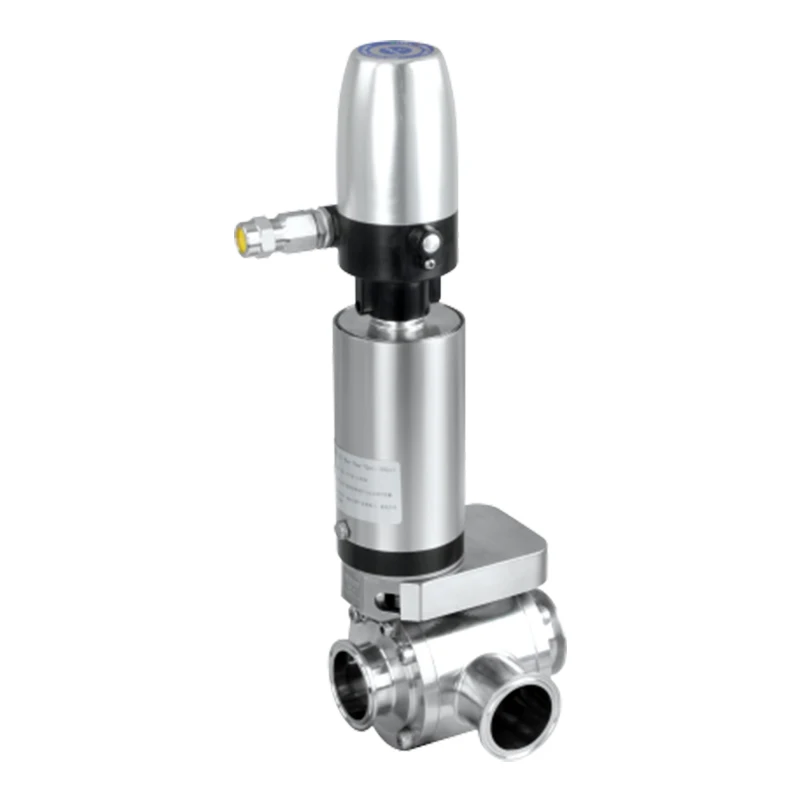

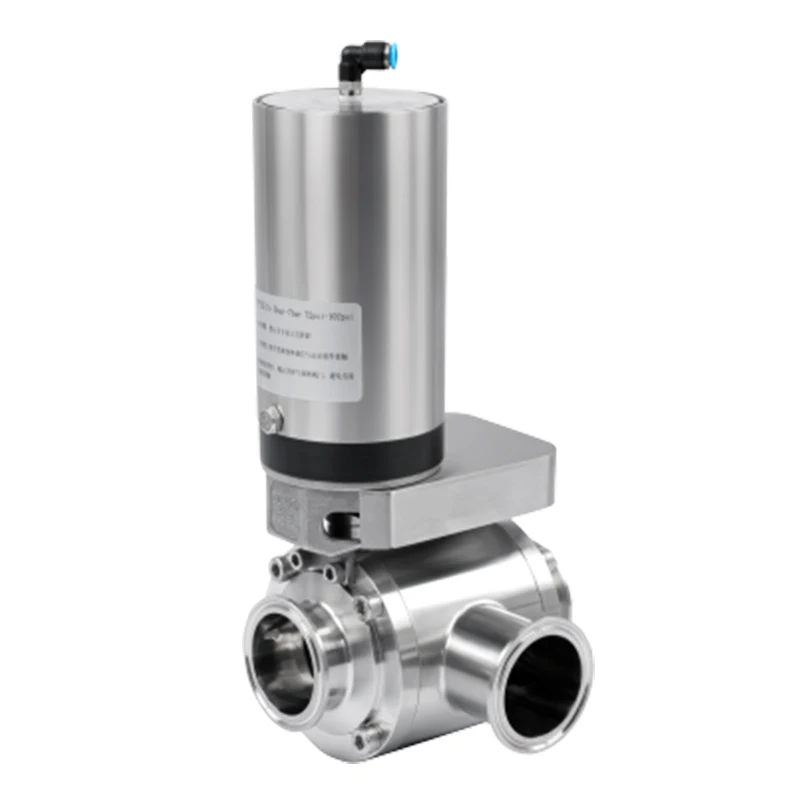

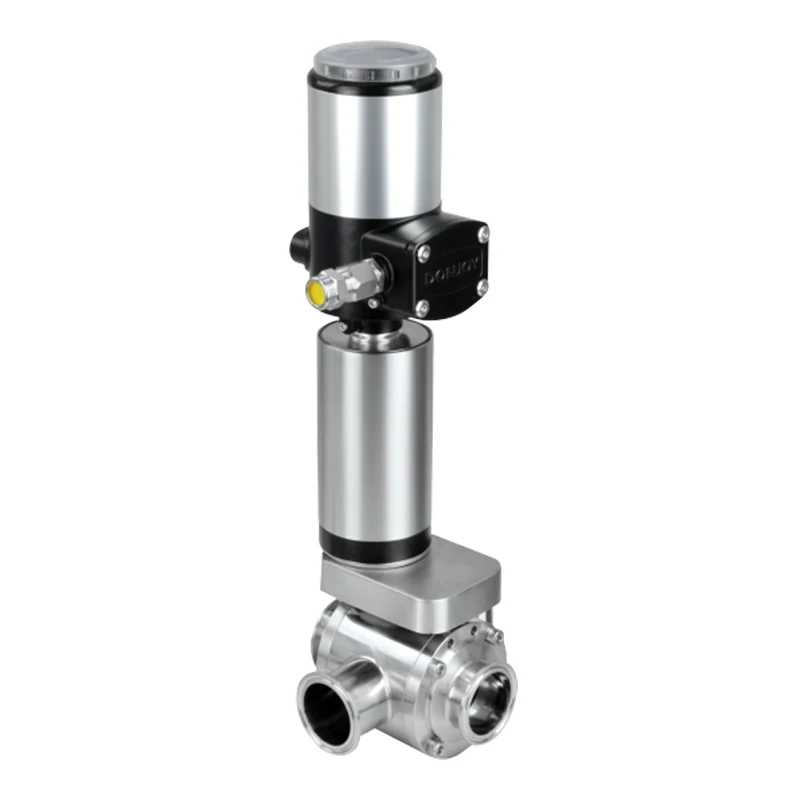

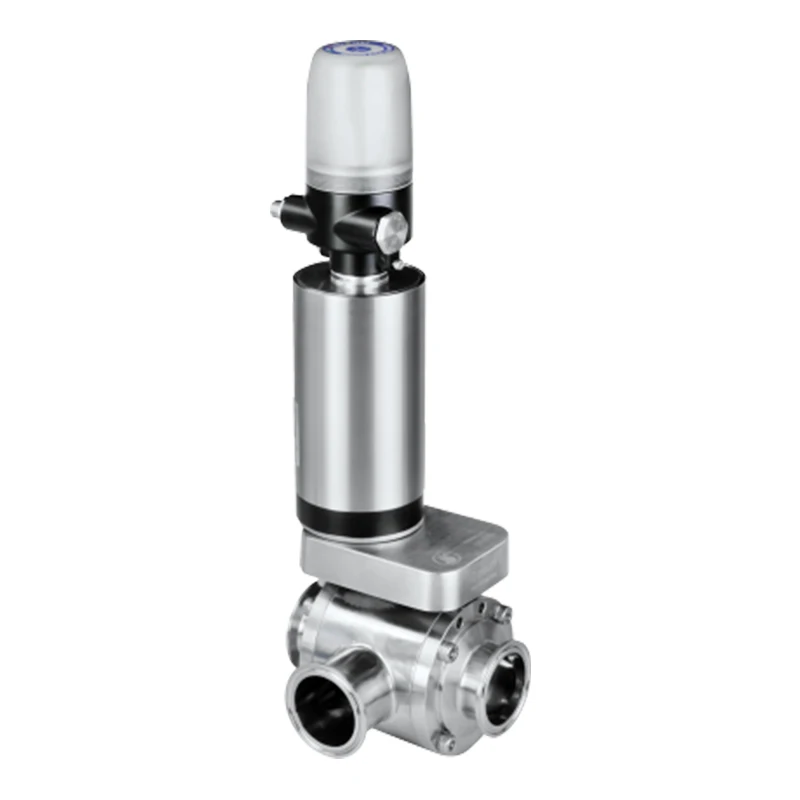

DONJOY Sanitary SS304 316L Synchronous Three Way Butterfly Valve Manual Pneumatic No Retention Liquid Transport Equipment

Max.working pressure

10Bar

Max.Working Temperature

130℃

Valve Body Material

SS304/ SS316L

Seal Material

EPDM (standard) FPM/SILICON/NBR

Availably  size

1.5"-4", DN25-DN100

Availably connection

Clamp / weld / thread / flange

Connection standard

DIN SMS ISO IDF RJT BS4825 ASME
BPE 3A DIN11864 DIN11853

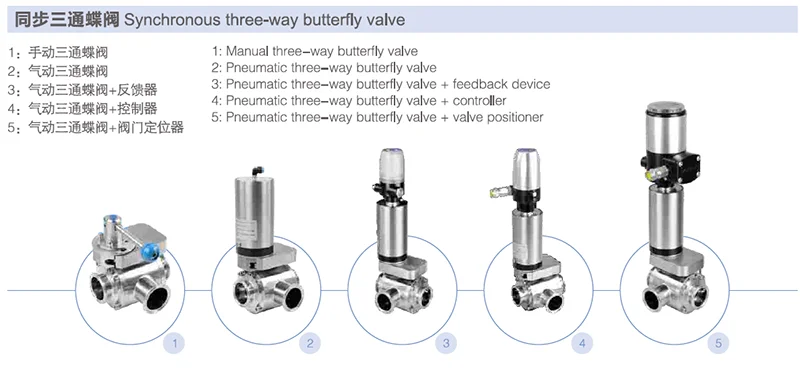

Operated

Manual, Pneumatic

Control

Sensor, C-TOP, C-top controller(AS-I)

Handle option

Pull handle

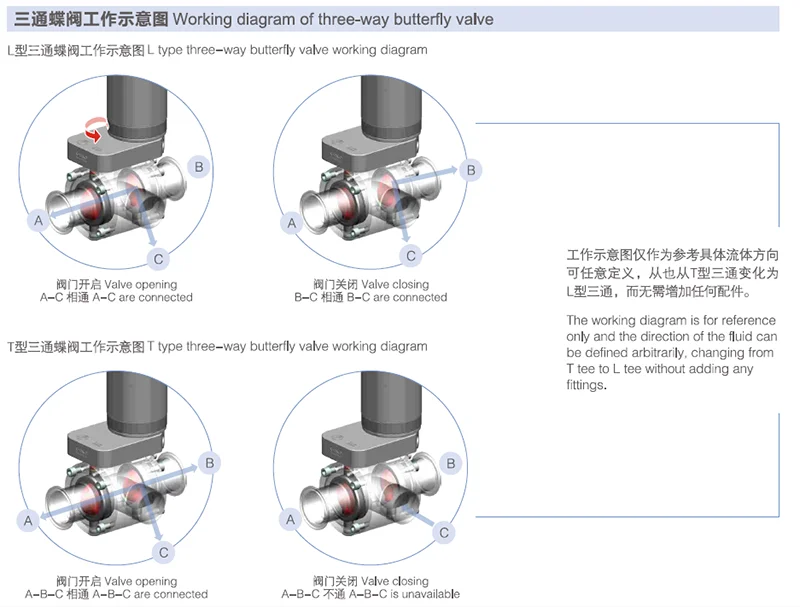

One drive device can realize L-type and T-type
three-way applications, opening and closing
synchronization, low torque, long life, no retention,
no dead angles, very flexible function combination,
it is efficient, economical and simple.

Actuator application

Stainless steel actuator/ Horizontal pneumatic actuator

Certificate
