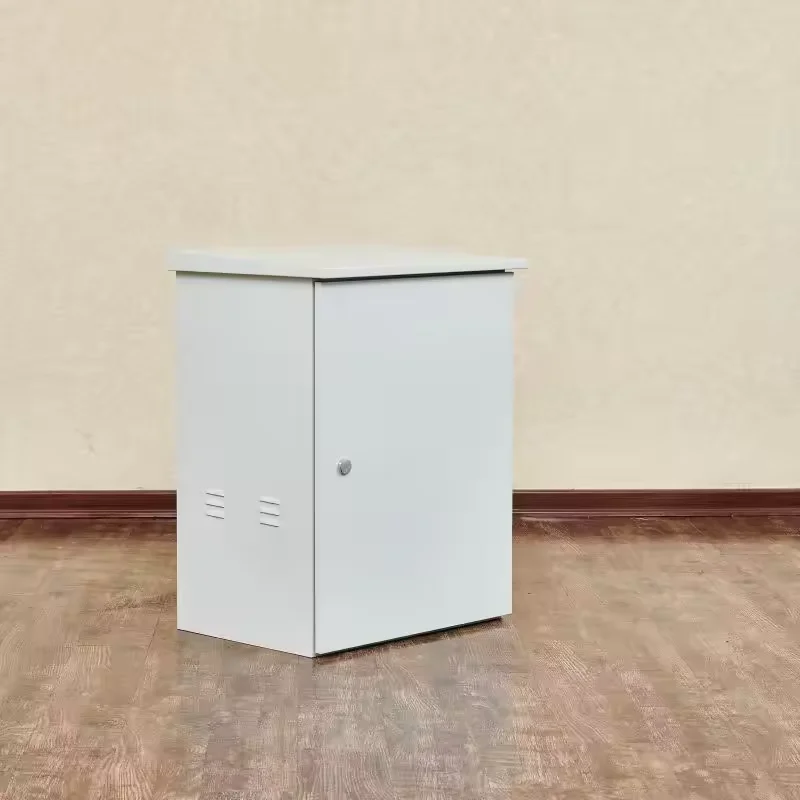

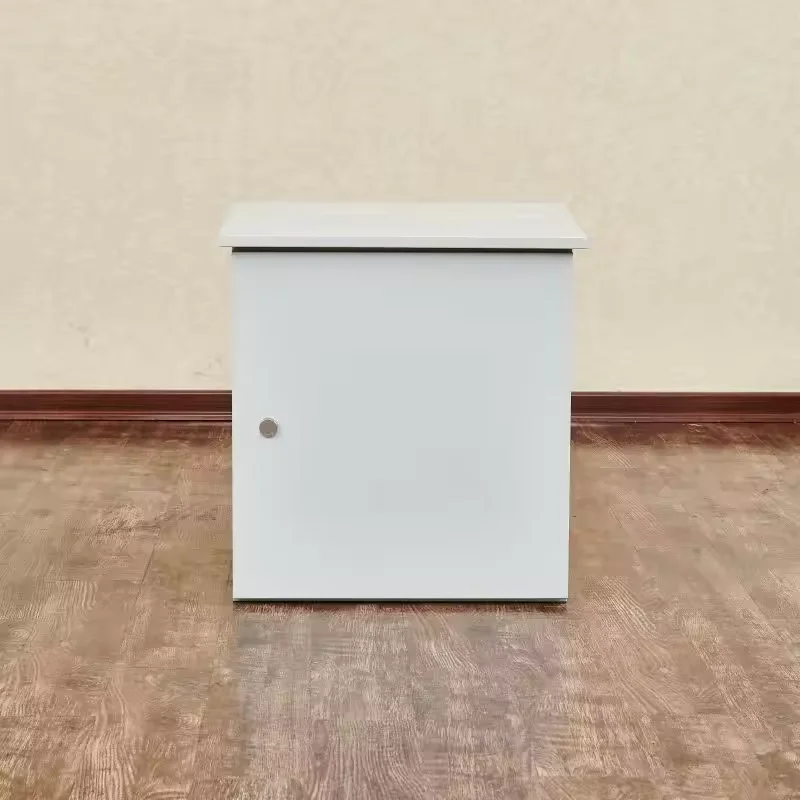

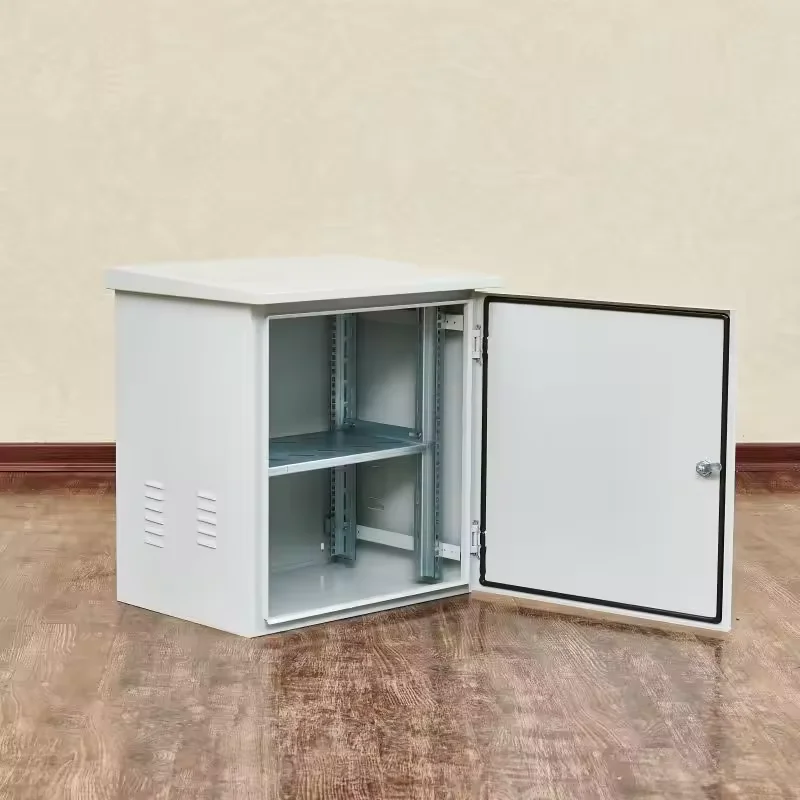

Manufacturer High Quality 19inch 600*600*600 12U outdoor waterproof cabinet, Distribution Box, Electric Control box, IP65
- Category: >>>
- Supplier: Xianghe Songyang Electrical Equipment Co. Ltd.
Share on (1601200857160):
Product Overview
Description
Product Description
Specification
Colour： | RAL7035(grey) or custom color |
Width： | 600mm |
Height： | 600mm |
Depth： | 600mm |
Install mode: | Floor standing |
Material： | SPCC Cold rolled steel sheet or stainless steel |
Casing thickness： | The overall plate thickness is 1.0mm and the vertical beam is 1.5mm |
Surface treatment： | Pickling phosphating powder powder spraying |
Protection Level： | IP65 |
-> Sealing ring: polyurethane foam sealant strip to ensure protection grade -> The groove box side is matched with the sealing ring to prevent water and dust from falling into the cabinet -> Herringbone rain proof eaves design, prevent rainwater from entering, and ensure the safety of internal equipment | |

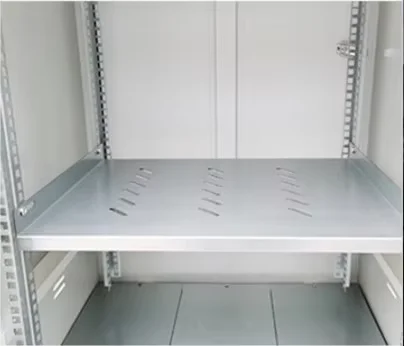

Configuration: | 1 TRAY (1.2mm galvanized sheet) |

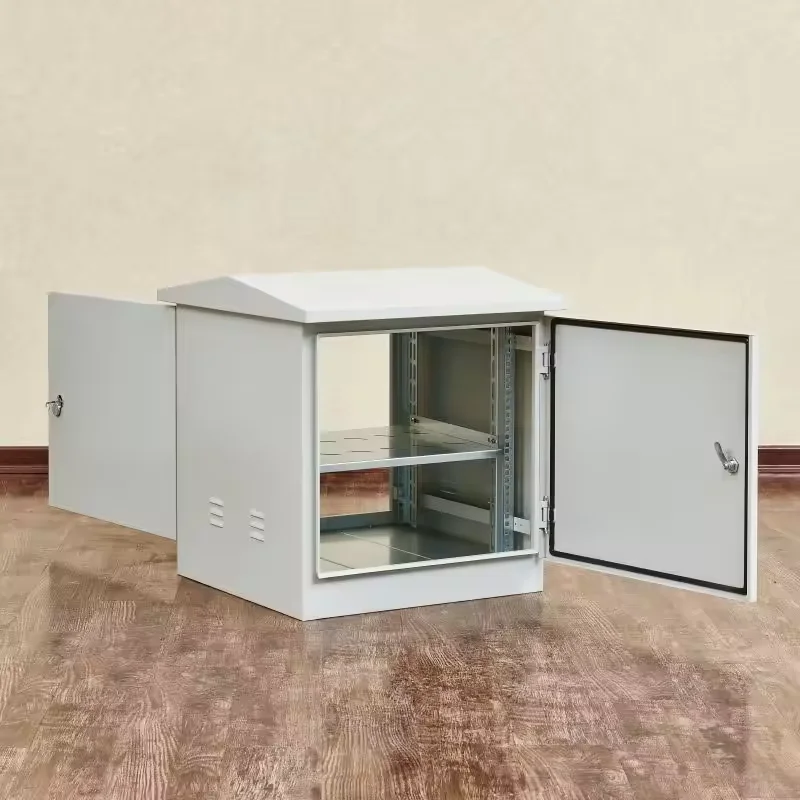

4 pcs 19 inch mounting columns, front door rain lock(lock cabinet door at upper and lower points), equipped with two keys, cabinet interior containing one 1.2mm load-bearing trays. The top design has a double slope angle, which has a good rainproof effect. Load bearing hinge, easy to install, easy to change cabinet door can open 130° | |
Package： | Carton, Full box packaging, no need to assemble. |
Single volume (CBM): | 0.253638 |
OEM: | Accept |
Delivery time: | 7-15 Days |
Customization: | SCustomized size and logo according to customer requirements Customized Material to stainless steel The overall plate thickness can also be customized to 1.2 or 1.5 |
MOQ: | 10 PCs |
Company Profile
Certifications
222
Our Advantages
Packing & Delivery
Why Choose Us

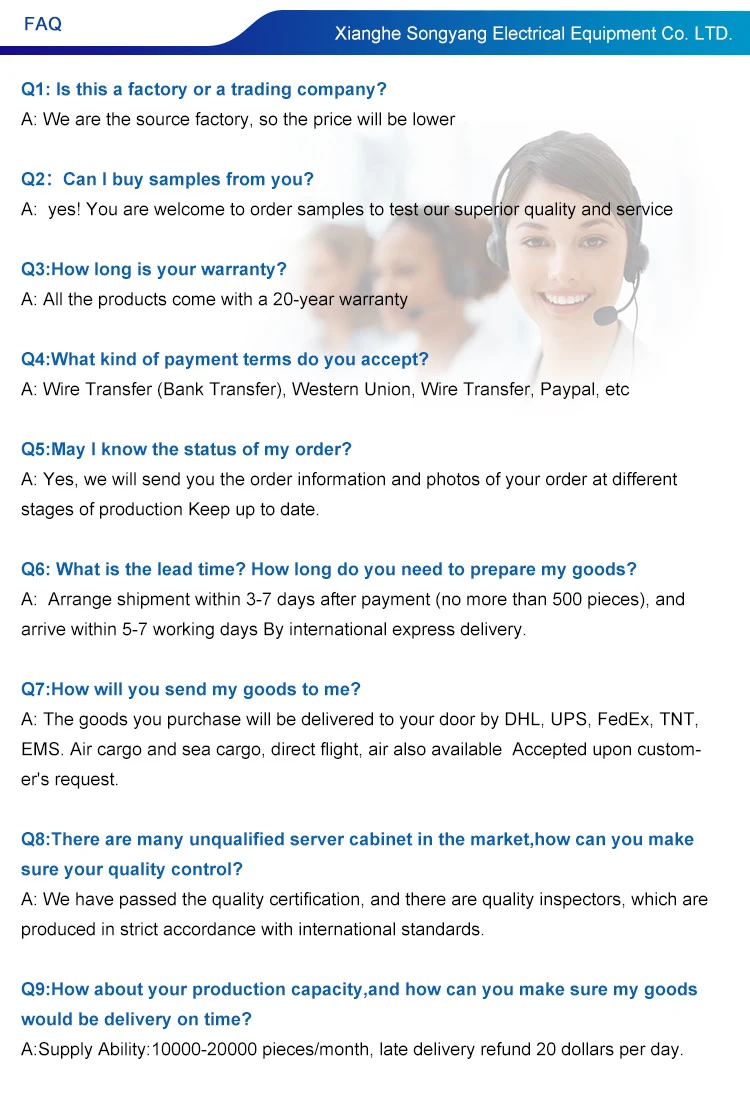

FAQ
