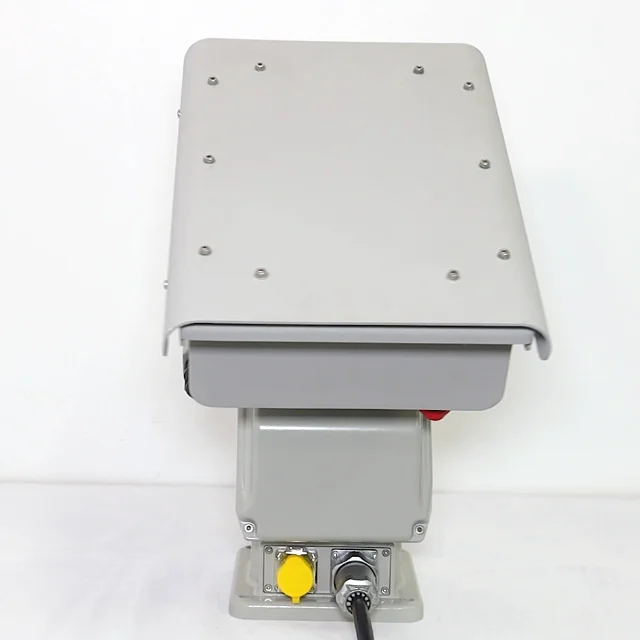

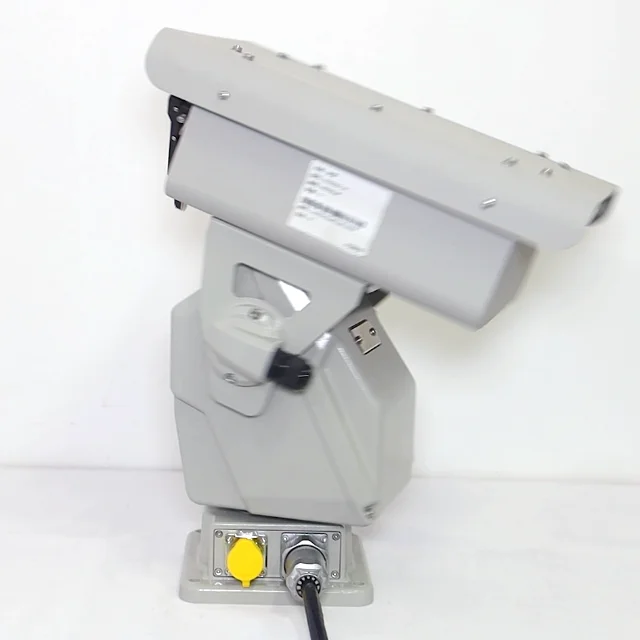

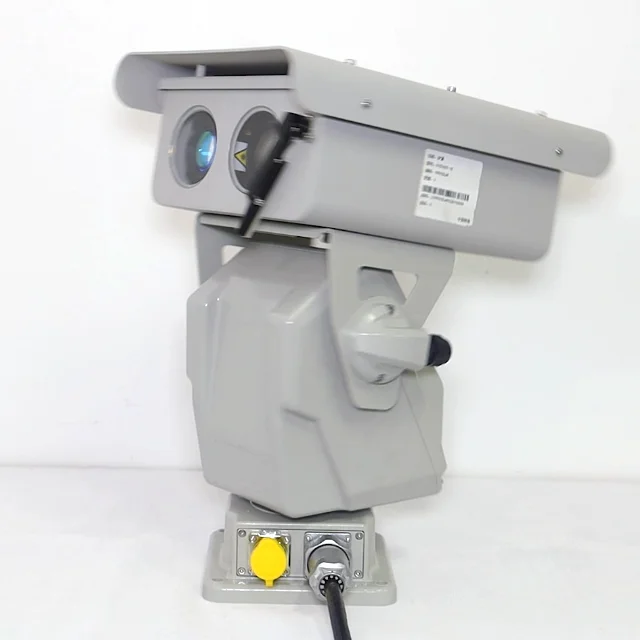

Professional 15kg Heavy Duty CCTV Camera Motorized Pan Tilt Mount Head
- Category: >>>
- Supplier: Tianjin Jiajie Shengchuang Technology Co. Ltd.
Share on (1601200897900):
Product Overview
Description
Products Description
J-PT-2140 Mid-load PTZ
● Solid and reliable all-metal shell in line with IP66 standards for all-weather outdoor use
● Low noise will not interfere with audio recording, will not disturb the surrounding
● The use of stepper motor position closed-loop control, to avoid the traditional stepper motor position after the opening of the loop out of the problem of position loss
● Customizable conversion board for quick installation of various loads

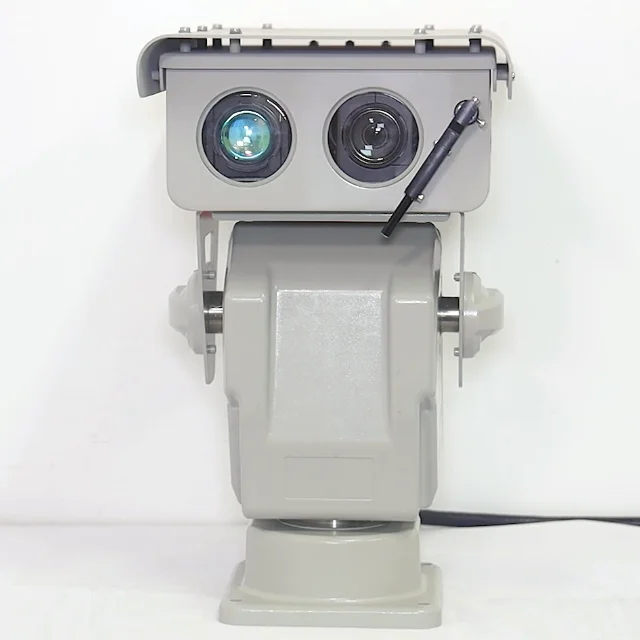

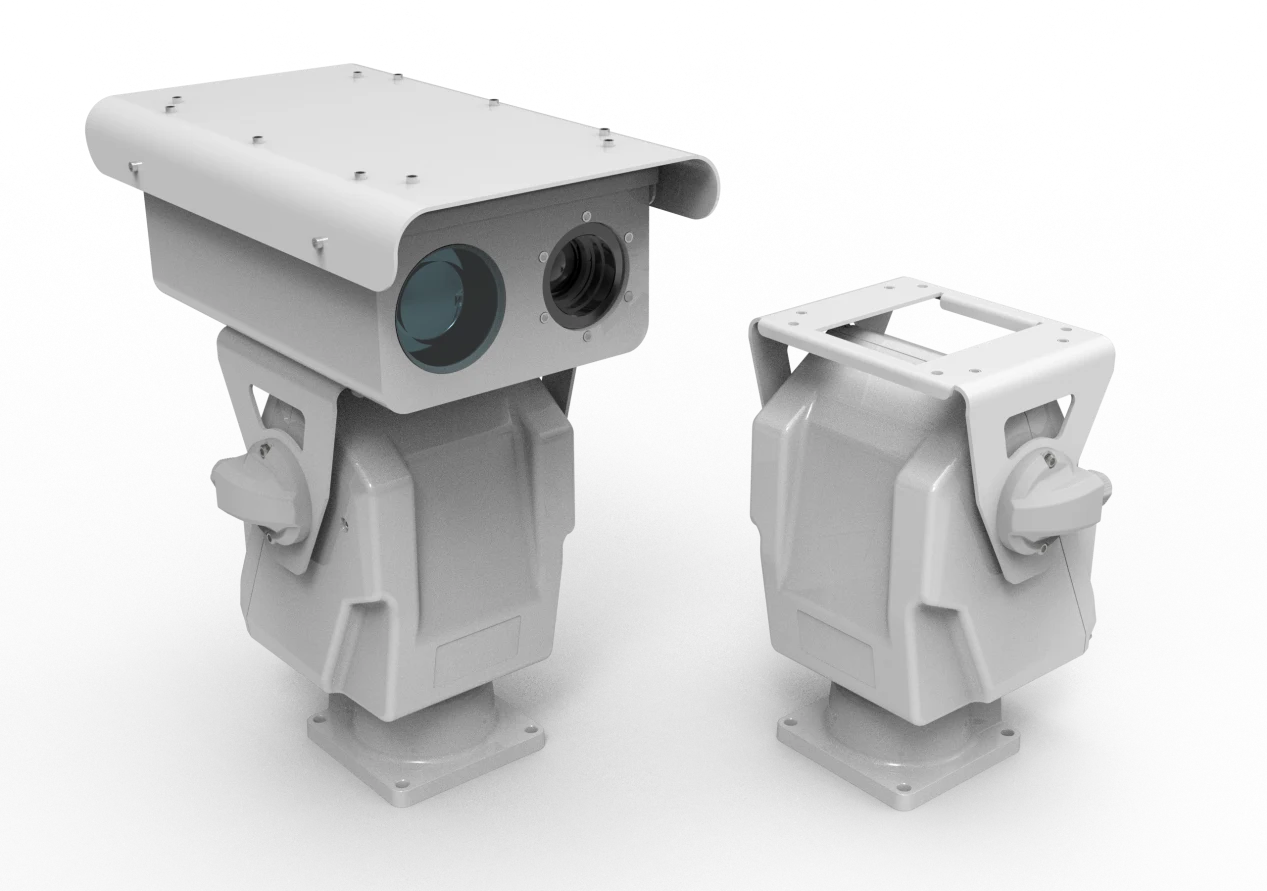

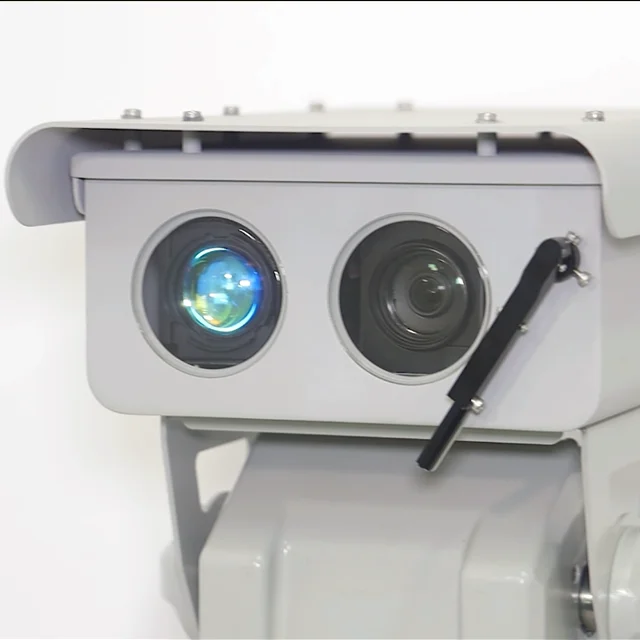

● Matching small double housing can be used for medium and short distance dual light monitoring
● Low noise will not interfere with audio recording, will not disturb the surrounding
● The use of stepper motor position closed-loop control, to avoid the traditional stepper motor position after the opening of the loop out of the problem of position loss
● Customizable conversion board for quick installation of various loads
● Matching small double housing can be used for medium and short distance dual light monitoring
Specification
The hardware part | ||

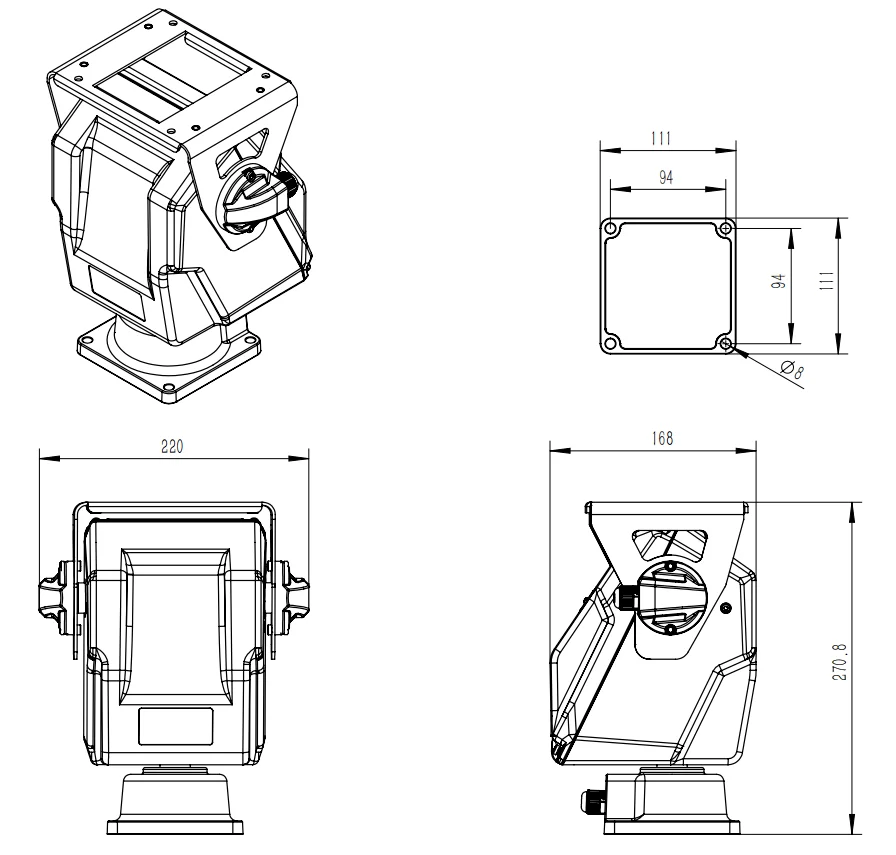

Max dimensions | H 270mm* L 168mm* W 220mm | |
Load bearing form top | Overhead load | |
Transmission form | Long - life worm gear worm drive | |
Self-locking load | 10Kg | |
Installation method | Upright installation, base fixed at four points （94mm*94mm） | |
Supply voltage | 24V | |
Camera communication port | Reserved 100Mbps( 1000Mbps is optional) | |
Horizontal slip ring life | 3 million revolutions | |
Power protection | TVS 6000V lightning-proof, surge proof, in line with GB/T17626.5 Level 4 | |
Rotation range | Pan 360° continuous rotation, tilt -70°~+45° | |
Power consumption | ≤5W (Standby), ≤50W (Operation) | |
Speed range | Pan 0.01° ~55° /s, tilt 0.01° ~18° /s | |
Angular resolution | 0.01° | |
Angle error | ≤ 0.05° | |
Body material | Aluminum alloy | |
Operating temperature and humidity | -20℃~65℃, < 90% RH | |
Protection level | IP66 | |
Self weight | 6kg | |
The software Part | ||
Control communication interface | 485/422 | |
Communication protocol | PELCO-D | |
Baud rate | 9600bps | |
Self-check | No self-check is required. It will start working within 5 seconds after power-on | |
Basic motion function | Manual control 64 level speed adjustable, proportional variable speed (camera support required) | |
Number of preset bits | 199 | |
Positioning function | Absolute angle positioning (adjustable positioning speed) 3D positioning (It needs to be done with the camera) | |
PanScanning mode | Preset bit point by point scanning (adjustable preset bit dwell time, preset bit scan speed) Pan two-point scanning(adjustable scanning speed and scanning dwell time) | |
Watch position | Watch position on or off (can be adjusted back to position time) | |
Special functions | Pan-tilt and camera coordinate query or real-time return. With position holding function, abnormal external force caused by the offset can be quickly restored. Vertical jitter suppression is optional | |
