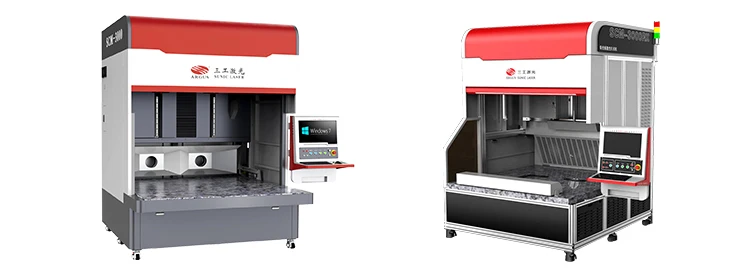

ARGUS USA coherent rf metal laser tube CO2 galvo laser engraving machine wood Halloween decorations cutter
- Category: >>>
- Supplier: Wuhan Sunic International Trading Co. Ltd.Wuhan Ltd.
Share on (1601200899145):
Product Overview
Description
Main Features
1.This machine adopts 3D dynamic galvanometer control system. Original imported 250/350/500W metal RF laser tube. Laser power and cutting speed can be adjustable, maximally energy saving.
2. 3D dynamic galvanometer head, one time scan area could reach to 1500*1500mm. 3D dynamic galvo control system and automatic up&down Z axis ensure the best processing results.
3. Equipped with foot switch for easy operation. Exhaust fans ensure good exhaust suction effects and environment friendly processing.
4. Fully enclosed laser optical system,no adjustment or maintenance needed,can be used directly after installation.
5. Professional industrial thermostatic circulation of water cooling system ensures more stable running and lower consumption.
3. Equipped with foot switch for easy operation. Exhaust fans ensure good exhaust suction effects and environment friendly processing.
4. Fully enclosed laser optical system,no adjustment or maintenance needed,can be used directly after installation.
5. Professional industrial thermostatic circulation of water cooling system ensures more stable running and lower consumption.
6. Equipped exhaust fans ensure good exhaust suction effects and environment friendly processing.
7. Strict multiply protection control system can be applied in wild operation temperature, to make sure the stable continuous working of 24h of laser marking system.
8. High precision and speed performance with jeans washing working, 20% higher efficiency than the similar models in the market.
7. Strict multiply protection control system can be applied in wild operation temperature, to make sure the stable continuous working of 24h of laser marking system.
8. High precision and speed performance with jeans washing working, 20% higher efficiency than the similar models in the market.

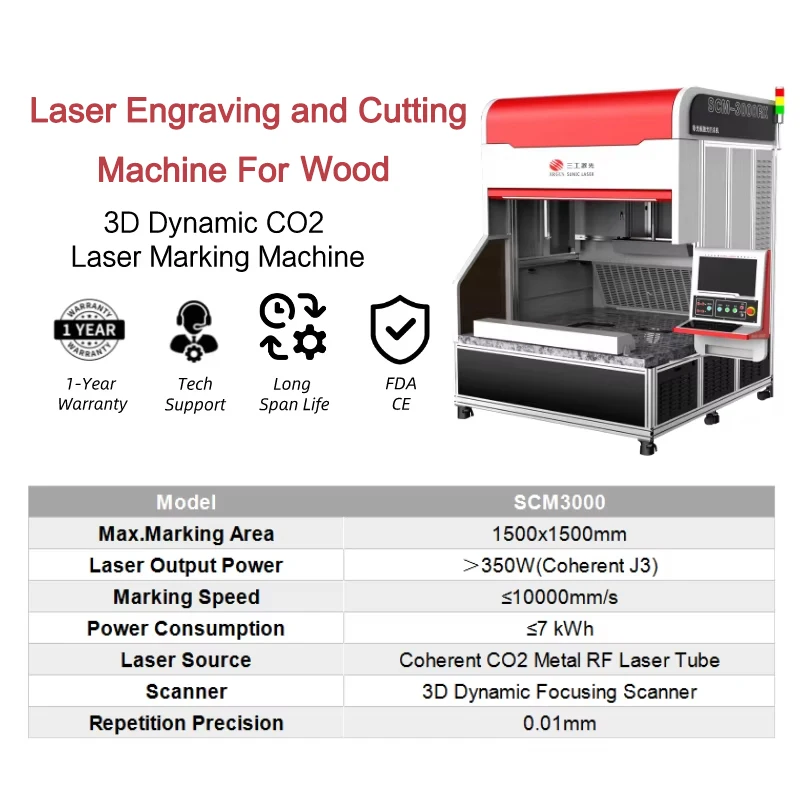

Product Parameter
Model | SCM3000 | |||
Max working Area | 1500x1500mm | |||
Laser power | 150W/250W/350W/500W | |||
Power Consumption | ≤ 7 kWh | |||
Life Span | Over 20000 Hours | |||
Marking Speed | ≤10000mm/s | |||

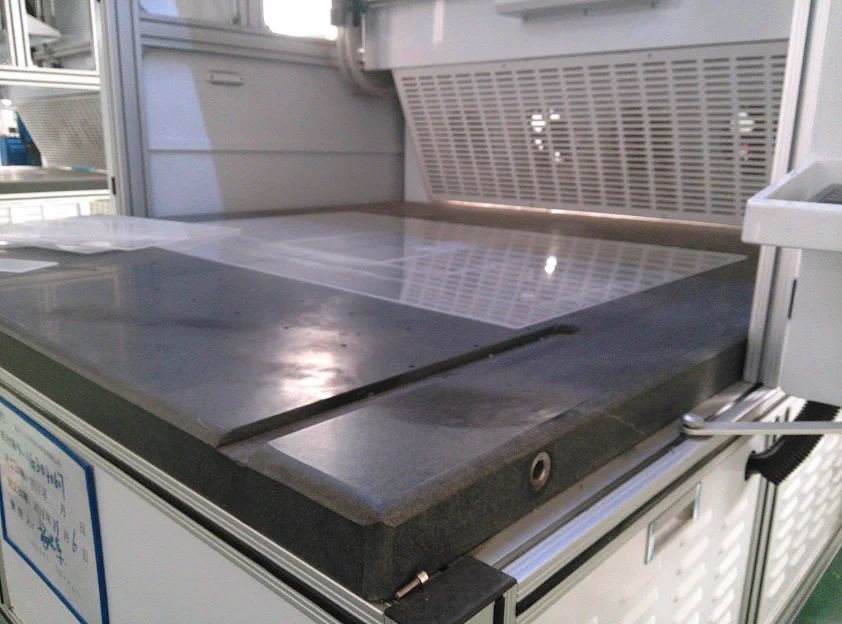

Worktable | MDF/Strip/Honeycomb Worktable | |||
Laser Source | US Coherent RF Metal Laser Source | |||
Laser Wavelength | 10.64μm | |||
Laser Frequency | 20kHz~200kHz | |||
Focusing method | 3D Dynamic Focusing System | |||
Repetition Precision | 0.01mm | |||
Min.Line Width | 0.5mm(1100x1100mm), 0.7mm(1500x1500mm) | |||
System Support | Windows 7 | |||
Output Compatibility | Auto CAD, Photoshop, CorelDRAW etc | |||
File Formats | PLT, DXP, BMP, JPG, AI etc | |||
Software Character | Integrated Function of Dotting Design, Vector Drawing, Marking, Scribing and Cutting | |||
Power Supply | 380V/50Hz~60Hz | |||
Cooling Way | Circulation of Water Cooling |

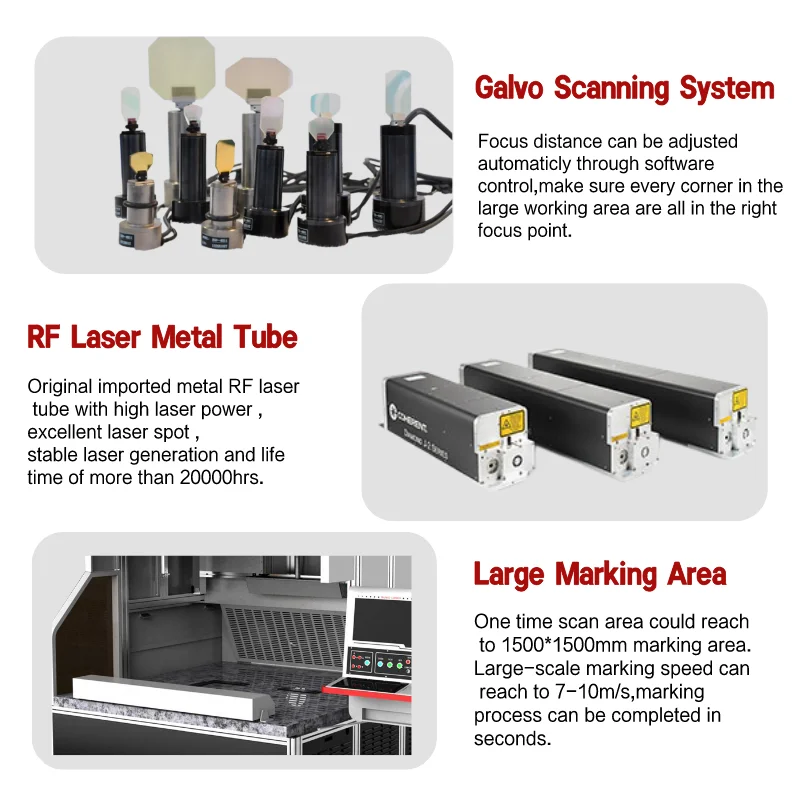

3D dynamic Galvo head ,
one time scan area could
reach to 800*800mm.
3D dynamic galvanometer
control system ensure the
best processing results .
one time scan area could
reach to 800*800mm.
3D dynamic galvanometer
control system ensure the
best processing results .

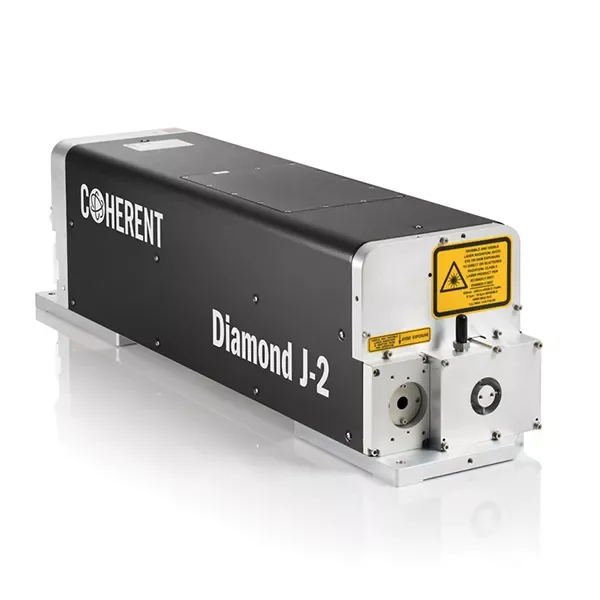

RF Laser Metal Tube
Original imported metal RF
laser tube with high laser
power , excellent laser spot .
Stable laser generation and life
time of more than 20000hrs.
Sunic Laser self - developed software supports multiple formats to meet your needs . Application under Windows interface, AutoCAD, PLT , Al Photoshop compatible , ect supportive.
Marking Area
Large marking area : Max
marking area 1500*1500mm
Can realize marking , cutting ,
punching , carving process.
Can realize marking , cutting ,
punching , carving process.

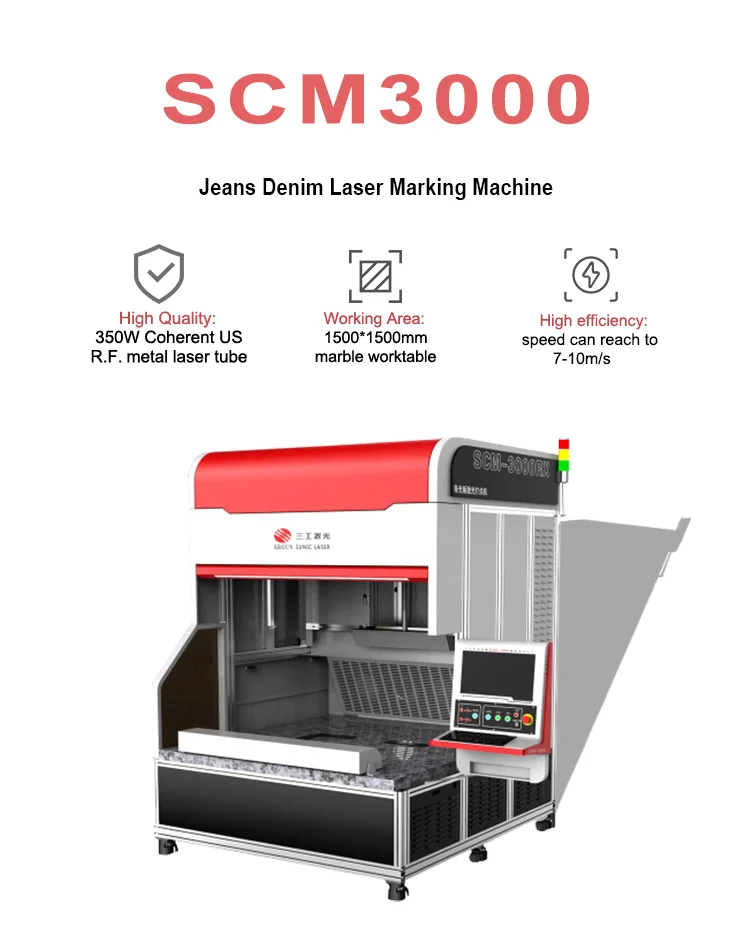

Top 1 Jeans Denim Laser Marking Machine SCM3000 Model
1.Permanent：Mark will not subside because of environmental reasons (touch,acidic or reducing gas,high or low temperature etc), 20% higher efficiency than the similar models in the market.
2.Non-contact：Laser marking is a non-mechanical “light knife” for processing, the work piece will not produce stress after marking.The working surface will not produce corrosion, non-toxic, non-polluting.
3.High precision for engraving & marking：CO2 Dynamic laser marking machine can engrave fine pattern, the minimum line width can reach to 0.2mm. Engraving&Marking result is clear, durable and beautiful.
4.Low operating costs：Low energy consumption, no consumptive materials, and therefore lower operating costs.
5.High efficiency：CO2 Dynamic Laser Marking Machine’s Engraving & Marking speed can reach to
7-10m/s, three times than that of traditional laser marking machine, marking process can be completed
in seconds.
6.Large marking area：With the high power laser tube and the 3D Scanner technology, the CO2 Dynamic Laser Marking Machine can work on large size materials such as the clothes/leather/LGP processing.

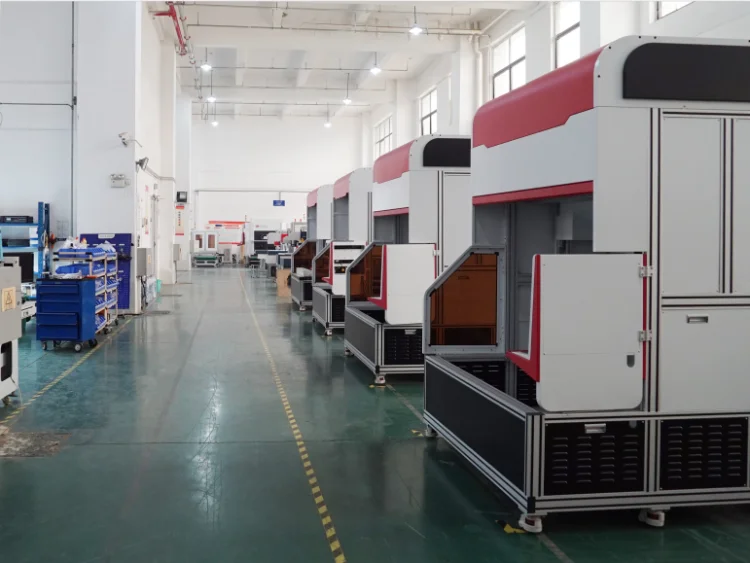

About Sunic Group
Wuhan Sunic Group are a professional laser machines and solar panel products lines equipment manufacturer since 1998.We are specialized in design, research, manufacture, sales and service for laser machines. Sunic Group would like to be customer's technical consultant, support in laser&solar equipment to make further development and progress together.
We supply customized solution for different materials processing , such as invitation cards, wedding cards, pop up cards, Pop up books,candy box,paper products,acrylic, PMMA, LGP, jeans wash,leather, Fabric,textiles,wood,MDF,laminate materials,marble, package film, metalp, plastic products and so on.
What kind of laser machine and model should I choose?
You can tell us your processing material, working size and detail requirement, detail work by picture or video so that we can judge whether our machine can meet your need.
What kind of materials does the laser machine can process?
We have different laser machines, such as Fiber laser, CO2 Laser, UV Laser, Green Laser. Normally fiber laser can process metal and plastic. CO2 laser is for processing non-metallic materials, such as Acrylic, PMMA, Wood, Glass, Leather, Jeans, Paper, Textiles Garments and so on. UV laser and green laser are also called cold laser source, they are usually used for plastic, glass, crystal and some special processing job.
Is it easy to operate?
We will send you manual and guide video in English, I can teach you how to operate the machine. lf you still can not learn how to use it, we can help you by Team viewer online help software. Or we can talk by phone email or other contact ways.
What s your guarantee. in case the machine breaks down?
The machine has one year guarantee. If it breaks down, generally speaking our technician will figure out what the problem may be, according to client's feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
How will you do the after- sale service?
We will firstly check your problems online through Teamviewer, E-mail, Whatsapp or other contact way, if it is easy to handle it, we will guide you onlinet to fix it or send you the spare parts for replacement.
What is your equipment lead time?
Fiber laser marking machine lead time is around 7 working days.CO2 laser engraving&cutting machine lead time is around 2-3 weeks. 3D dynamic CO2 laser marking machine lead time is around 10 working days.
How will you do the package and shipping?
All of our equipment are packed in export standard cases. Express, air shipping, sea shipping are all available.
