Product Overview

Description

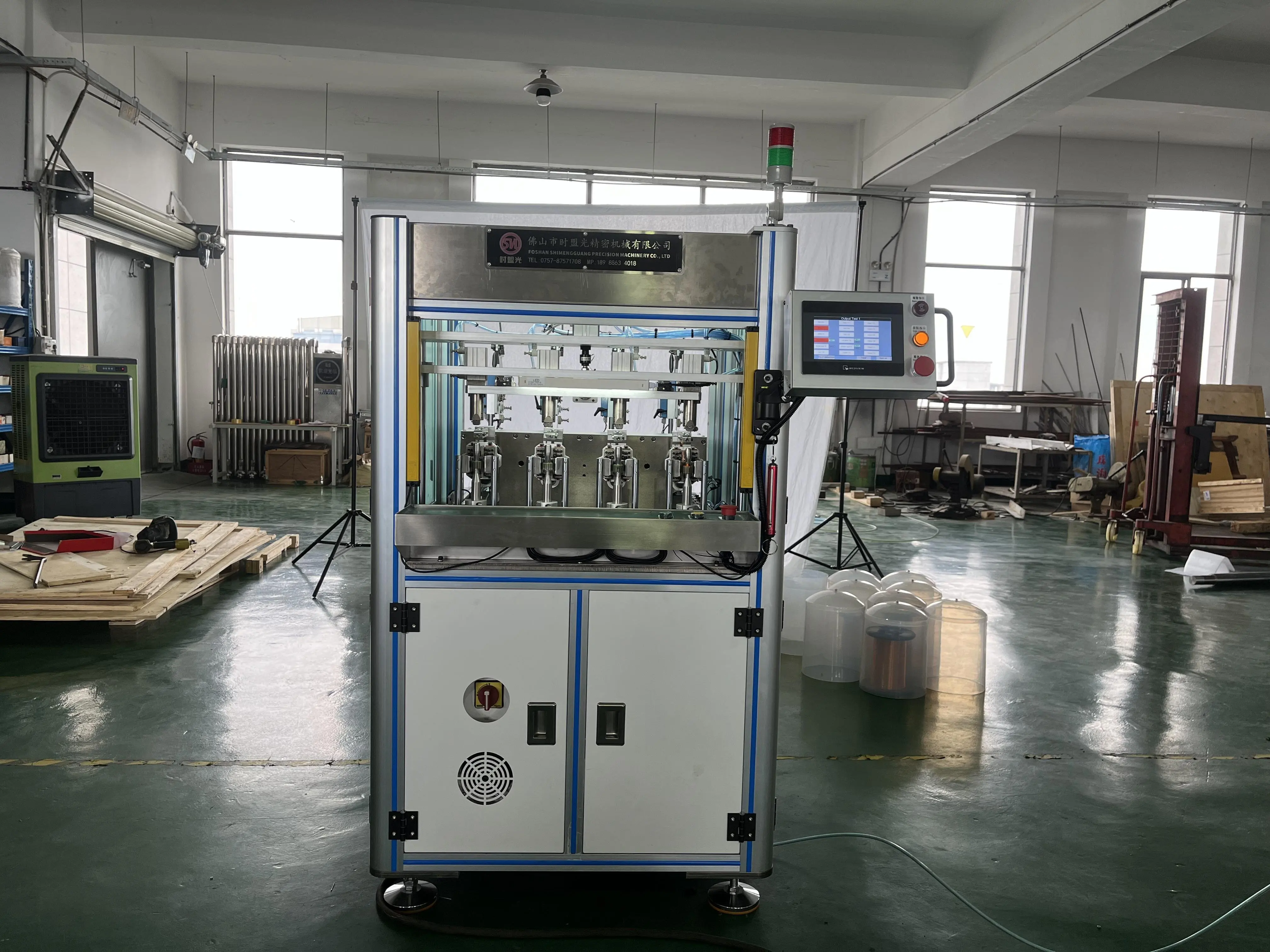

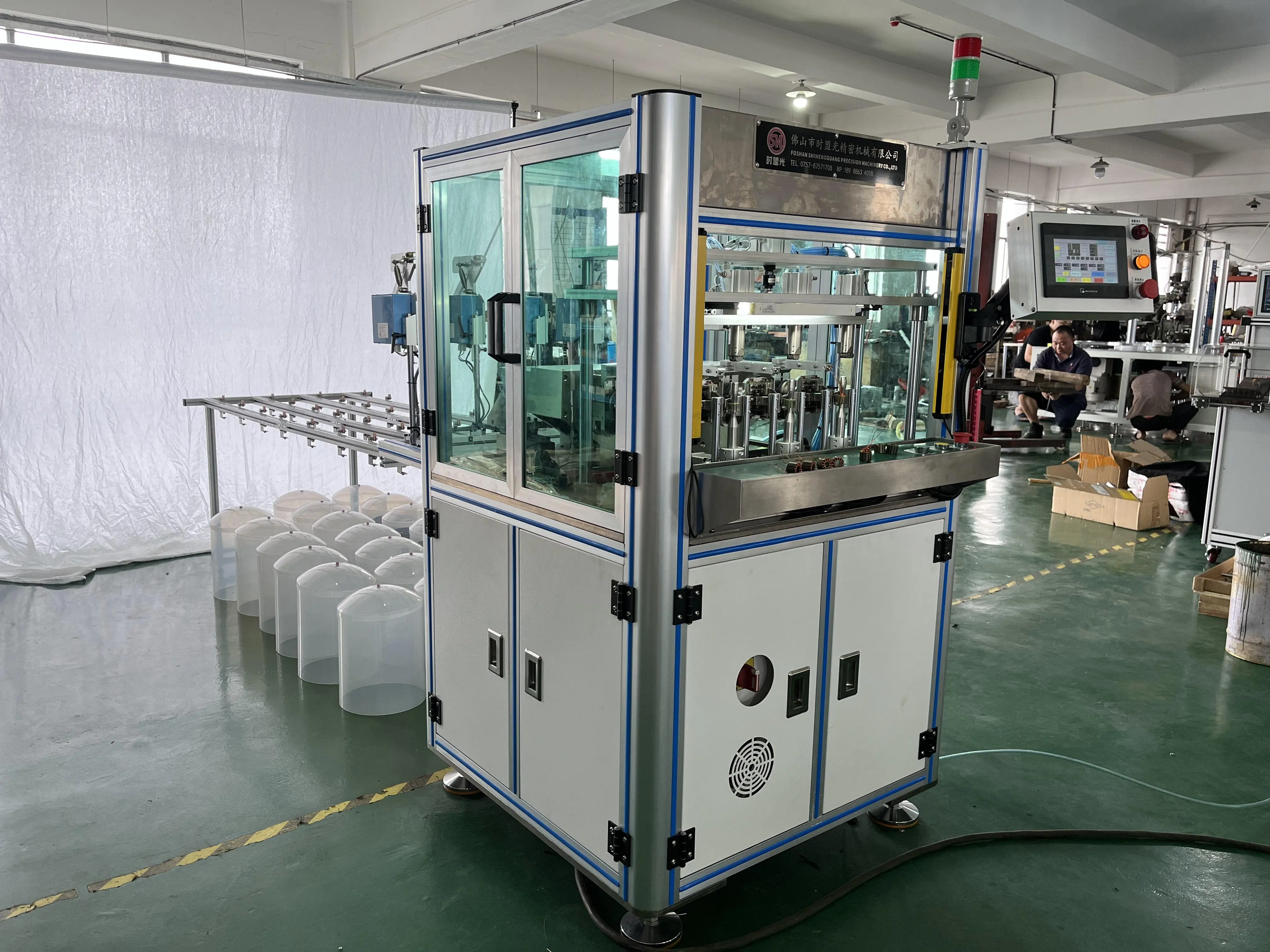

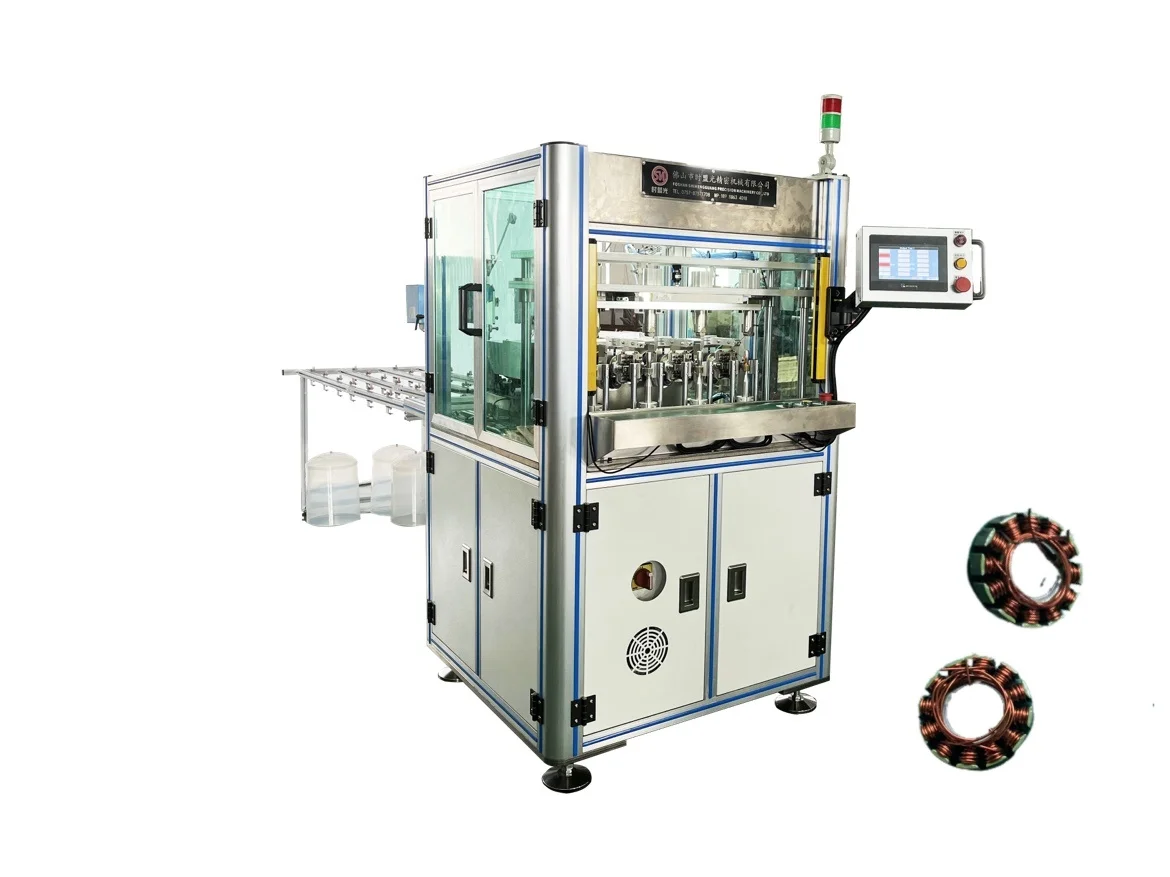

Four Station Flying Fork Outer Winding Machine

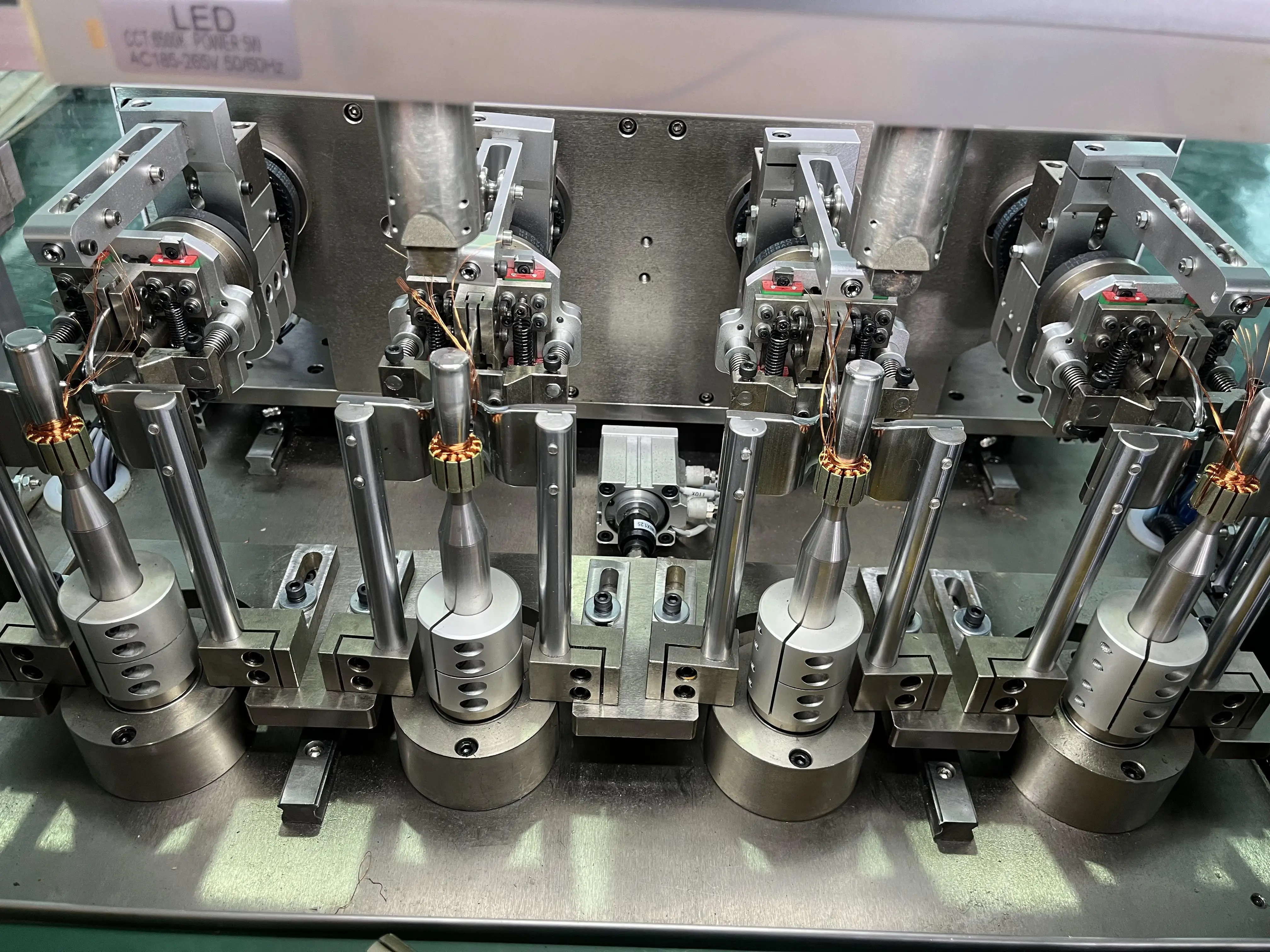

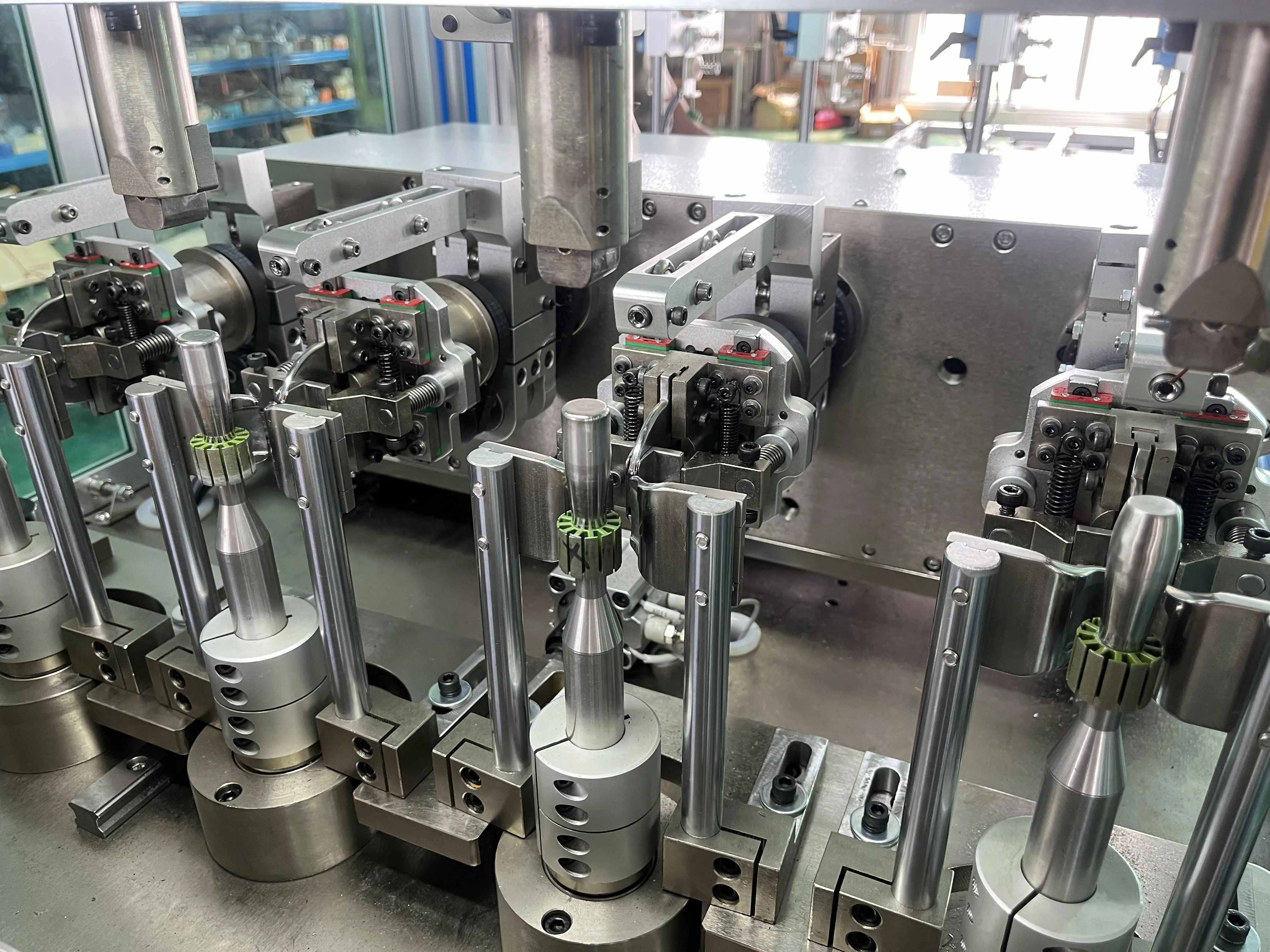

Model: SMG-WR501 Introduction to Equipment Functions and Principles： The device is automatically controlled by a servo motor to perform automatic winding, wire arrangement, and wire cutting cycles on the stator. Mainly composed of mechanical parts and their control motors and electrical appliances. The auxiliary components include the rack section, the wire laying frame section, the wire cutting and clamping section, and the press fitting section.

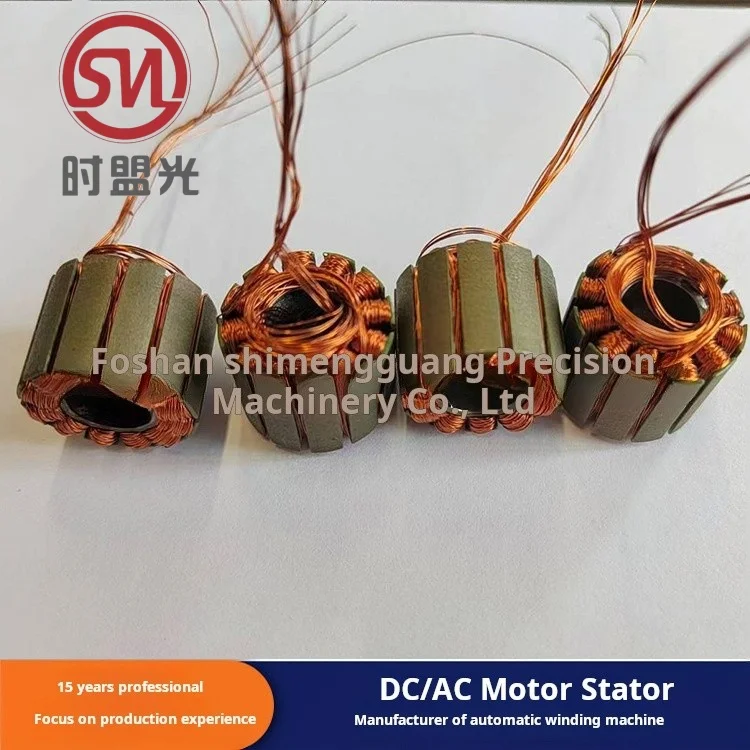

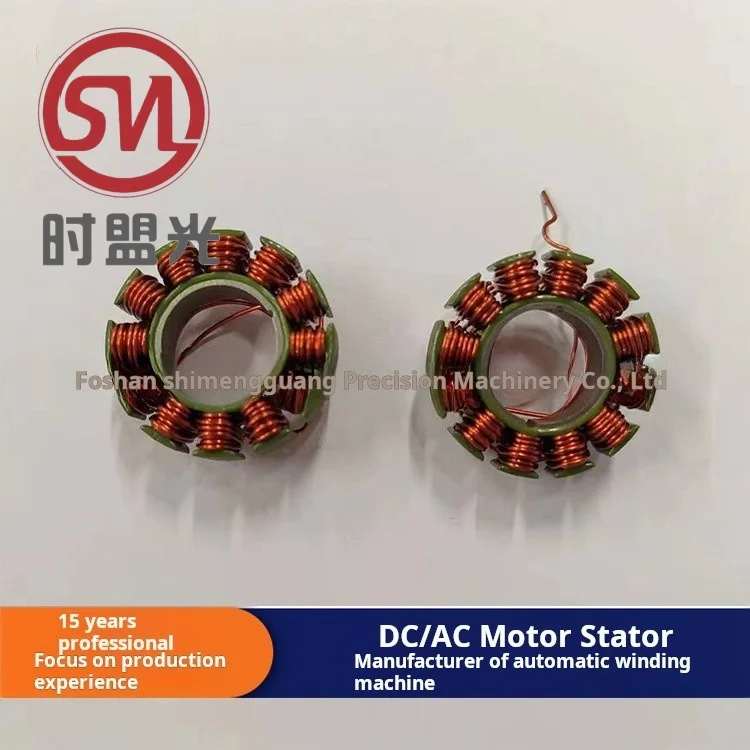

Product Range: Stator winding of water pump, magneto, high-speed rail door machine, industrial large fan motor, electric vehicle motor, etc.
Production Description: This winding machine is designed for a slightly larger stator, suitable for thick wire, multi-wire winding. The machine adopts servo precision positioning, automatic winding, automatic wiring, automatic transposition, automatic clipping to achieve automatic production.






Wire diameter
∅ 0.2mm- ∅ 1.5mm or multi wire winding
Stator O.D.
≤∅ 345 mm
Stator stack height
≤ 60 mm
Slot number
Any (According to stator)
Source Pressure
0.5-0.7 Mpa
Motor
6.0 Kw
Voltage
380V/220V±10% 50Hz
Machine Dimension
1350*1350*1950 mm
Machine Weight
800Kg










Application


Foshan Shimengguang Precision Machinery Co., Ltd. is a professional motor equipment manufacturer dedicated to research and development, design, manufacturing, sales, and service. Our main products include brushless motors, servo motors, stepper motors, variable frequency motors, blower brushless motors, water pump motors, inner wound stator motors, outer wound stator motors, induction motors, series excitation motors, new energy motors, and various types of micro motor production and manufacturingequipment.
