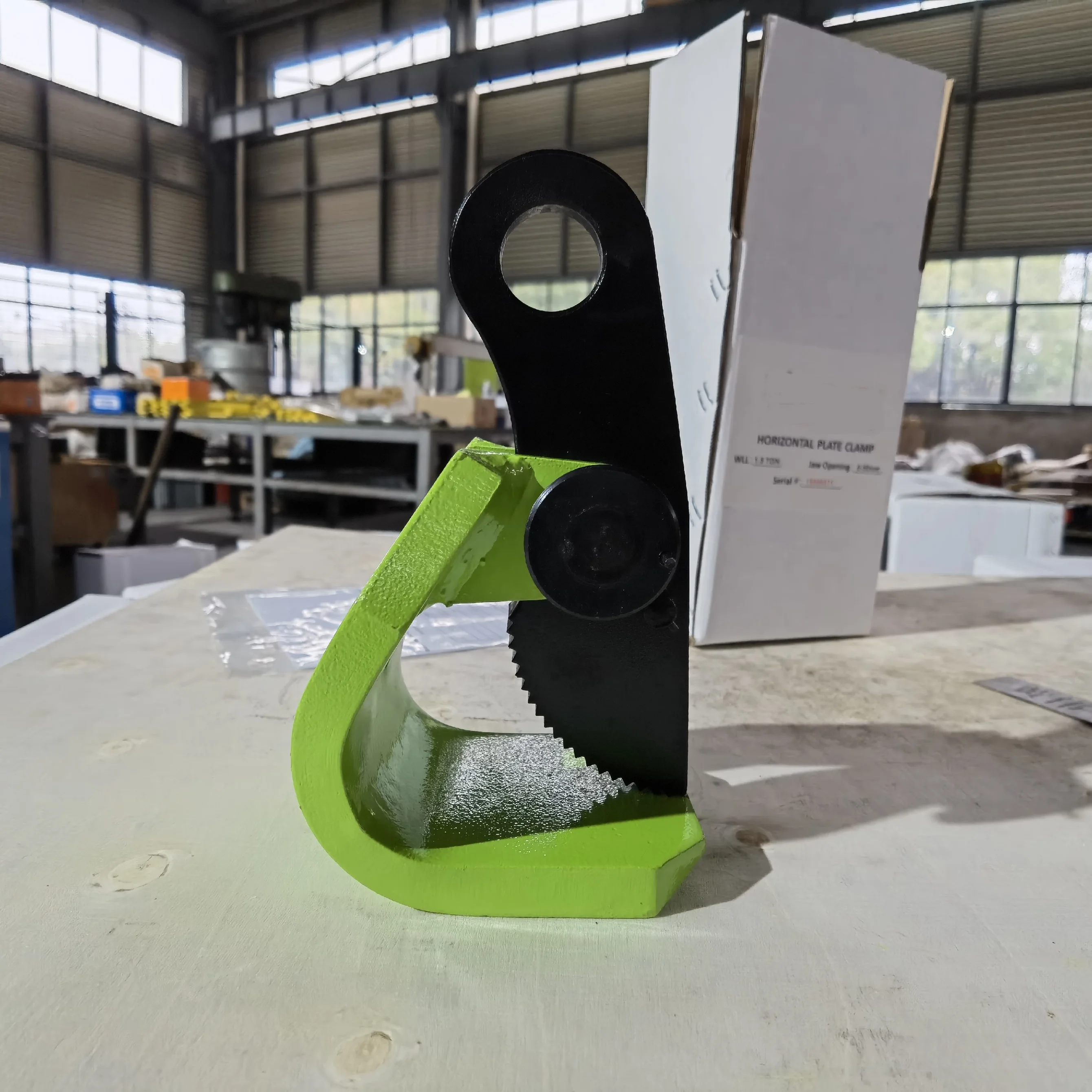

Z2LIFTING Horizontal steel plate clamps Lifting clamps 1.5T 5T
- Category: >>>
- Supplier: Hangzhou Zhezhong Chain Co. Ltd.
Share on (1601200926905):
Product Overview
Description
Product Description

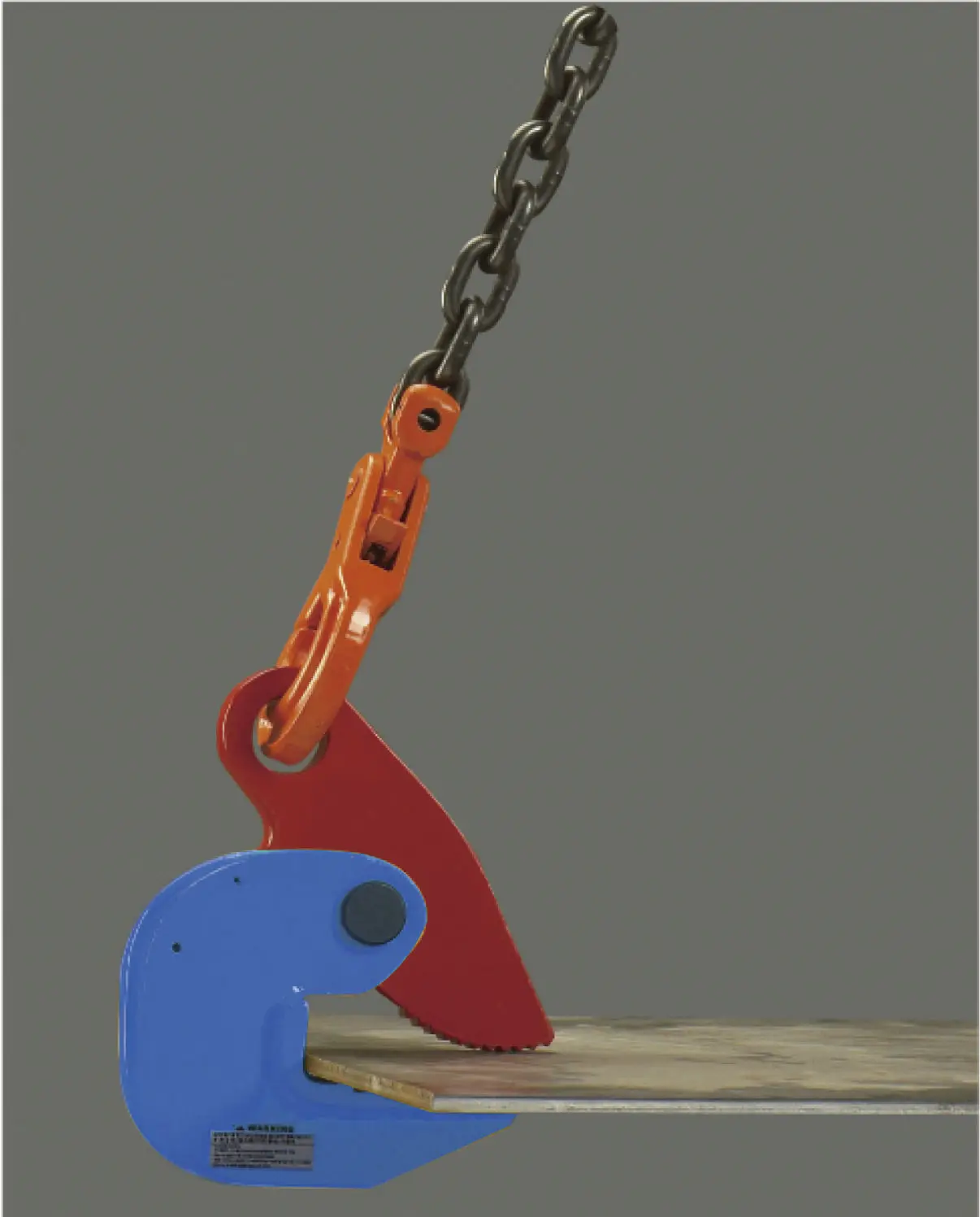

The HPC Horizontal Plate Clamps are for use in the lifting and transfer in horizontal position of non-sagging materials or of bundles of non-sagging material. These clamps must be used in pairs or more.

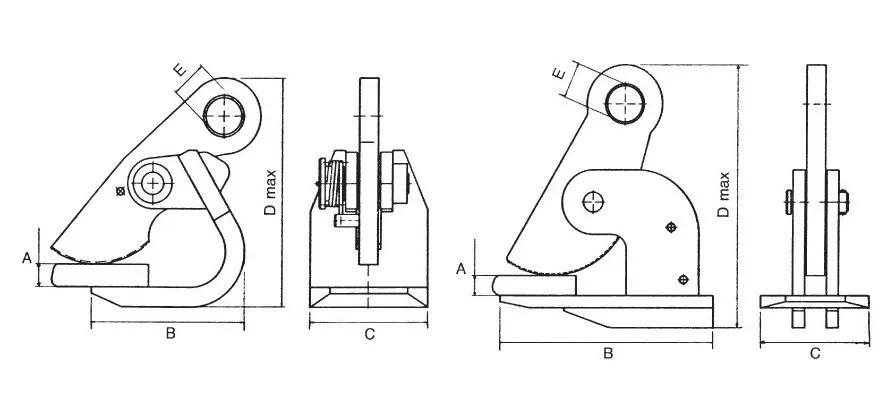

Product Code | WLL (per pair) | Jaw Openings (Max) | A | B (max) | C | D | E | Net Weight (per pair) |
ZHPC15 | 1.5T | 50mm | 0-50mm | 127mm | 100mm | 218mm | 30mm | 8.6kg |
ZHPC30 | 3T | 50mm | 0-50mm | 220mm | 110mm | 270mm | 36mm | 17kg |
ZHPC50 | 5T | 60mm | 0-60mm | 260mm | 130mm | 315mm | 40mm | 27.4kg |

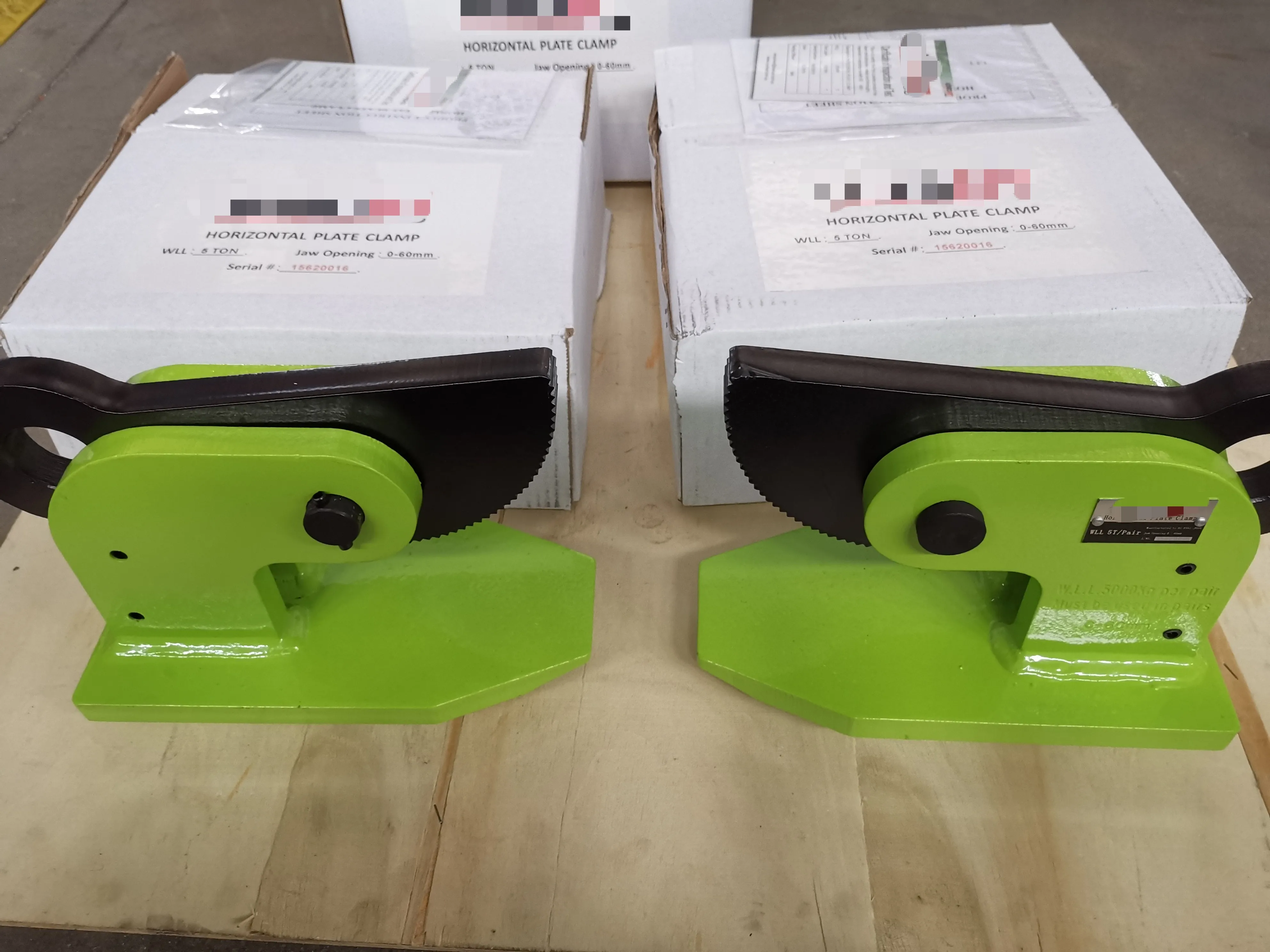

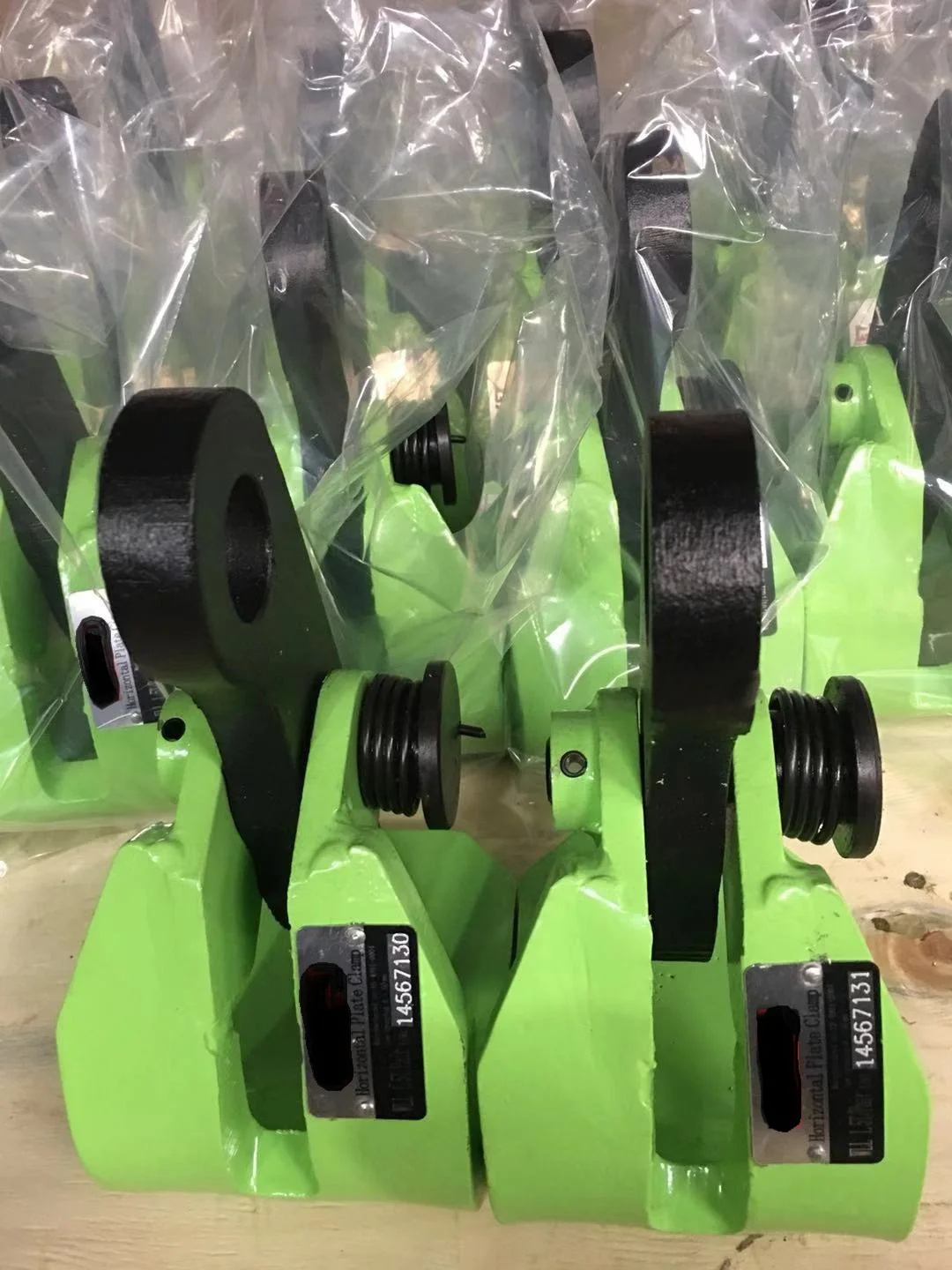

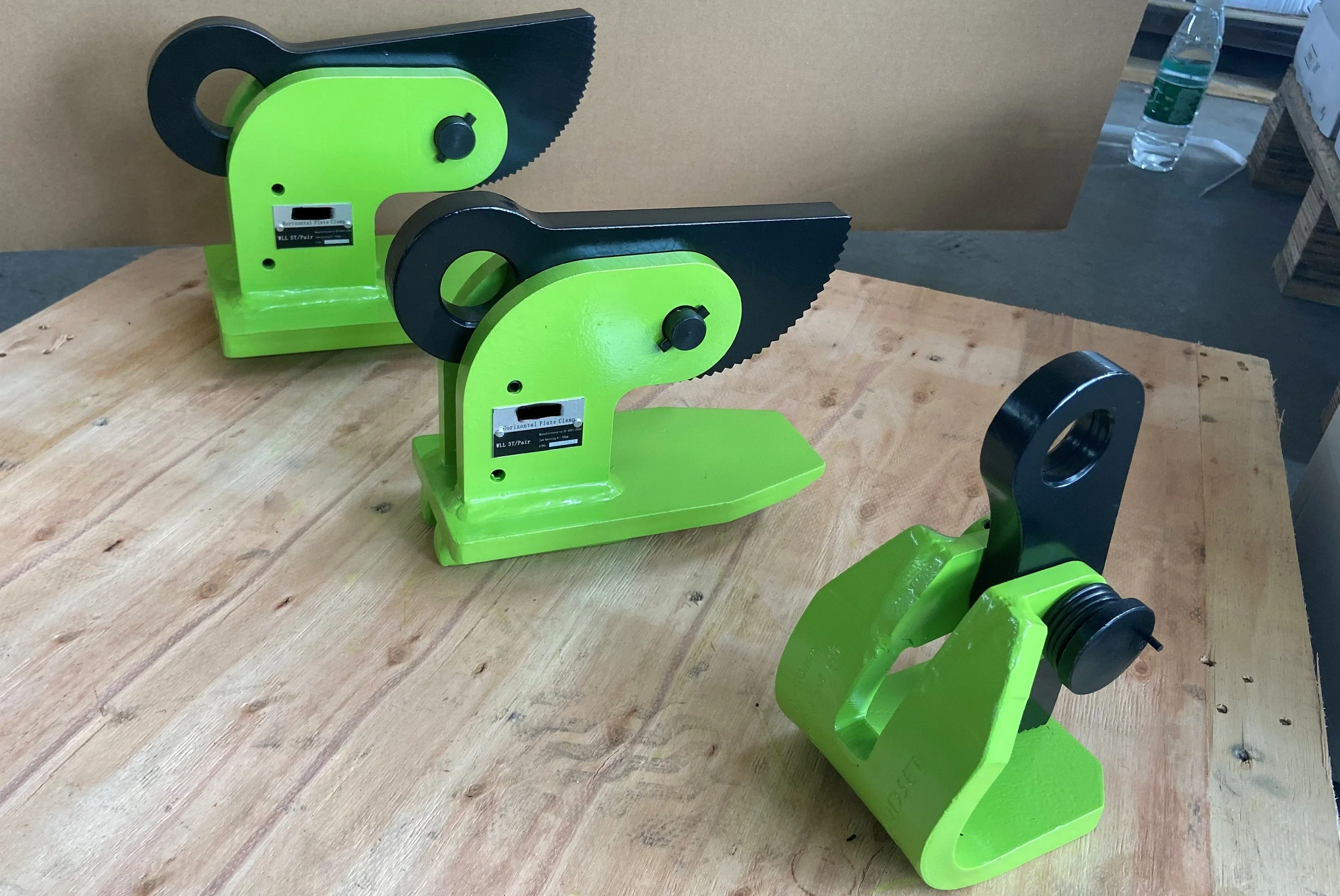

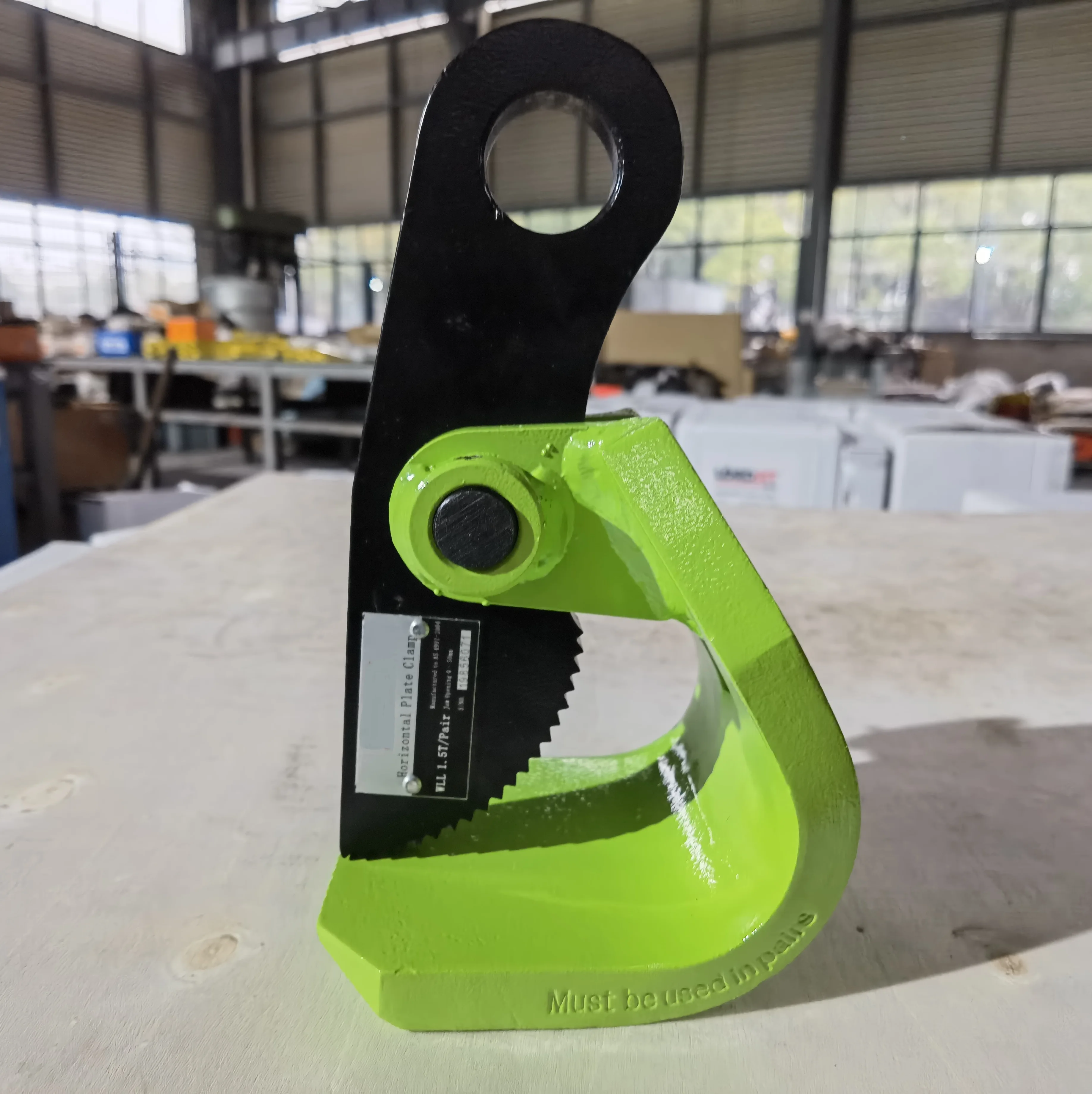

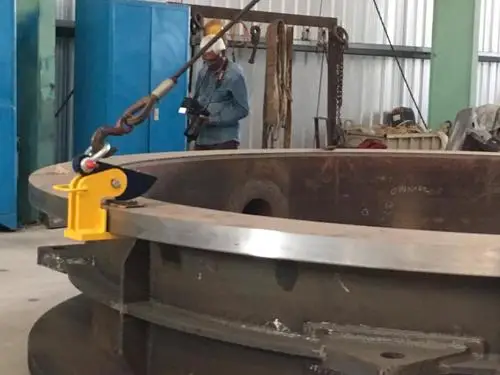

Products Show
Packing
Packing Details : Carton
Our Company
About us
2006 Hangzhou Zhezhong Chain Co.,Ltd established in Hangzhou City of China We have the most advanced automatic machines intra industry, and senior engineering group that all had decades of years experience. Based on the good machines, skilled engineers, strict quality control systems and excellent management group, Z2 Lifting is producing and had already supplied quantity of high quality chains.
Exibition
2015 CHINA HOMELIFE POLAND
2018 NATIONAL HARDWARE SHOW
Asia-Pacific Sourcing 2019
FAQ
Q: How long is your delivery time?
A: Generally it is 30-45 days.
Q: What is your terms of payment ?
A: 50% T/T in advance, balance before shippment. Or L/C
If you have another question, pls feel free to contact us as below:
