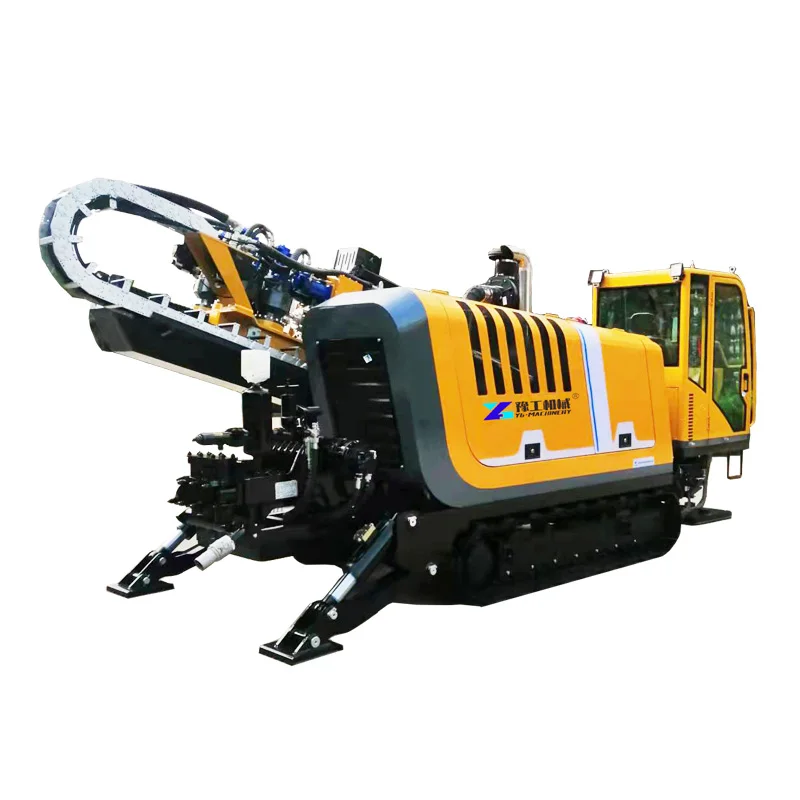

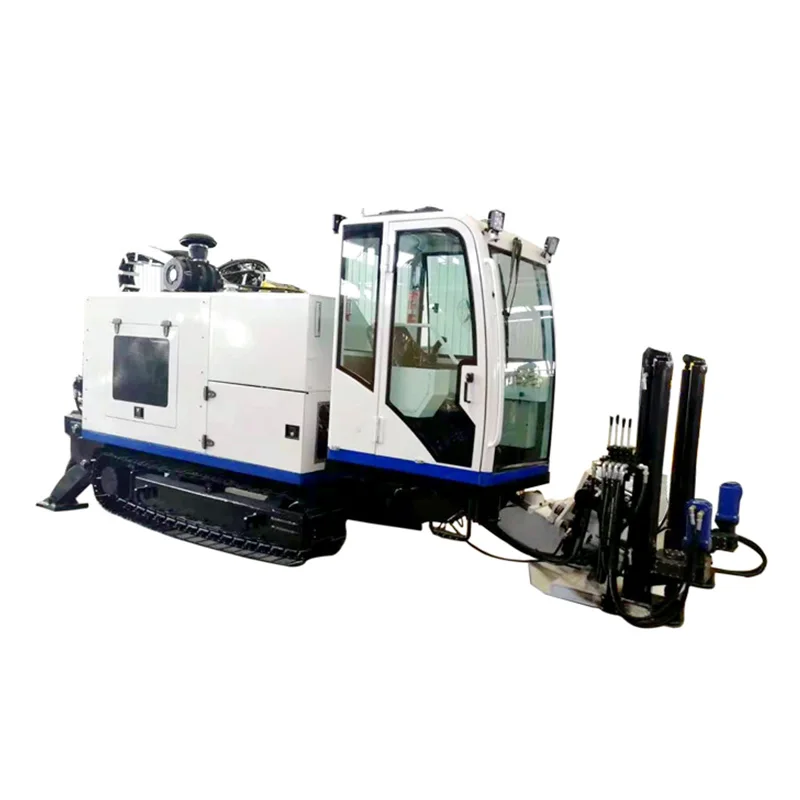

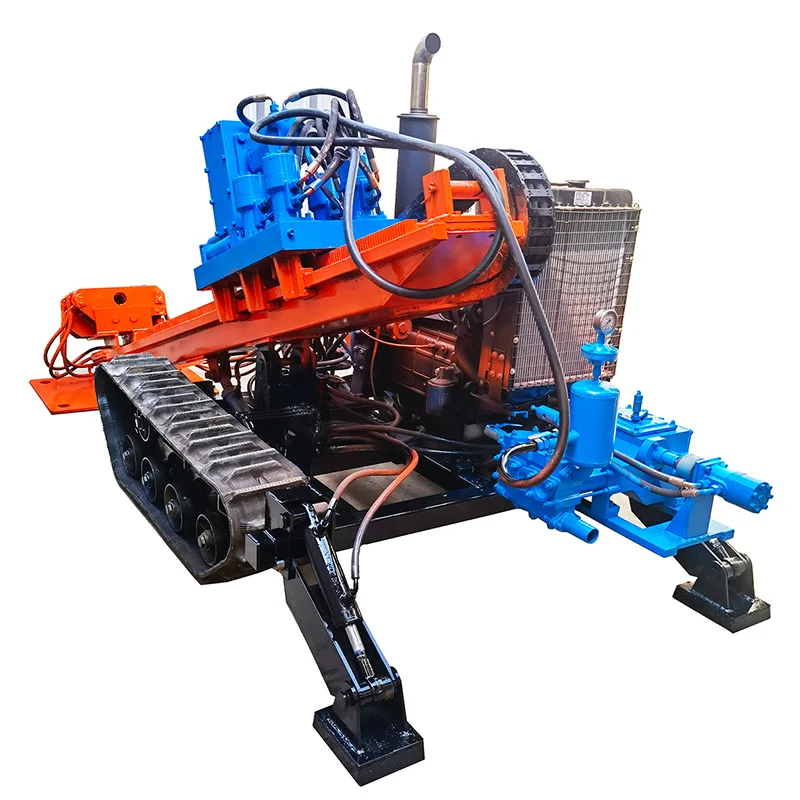

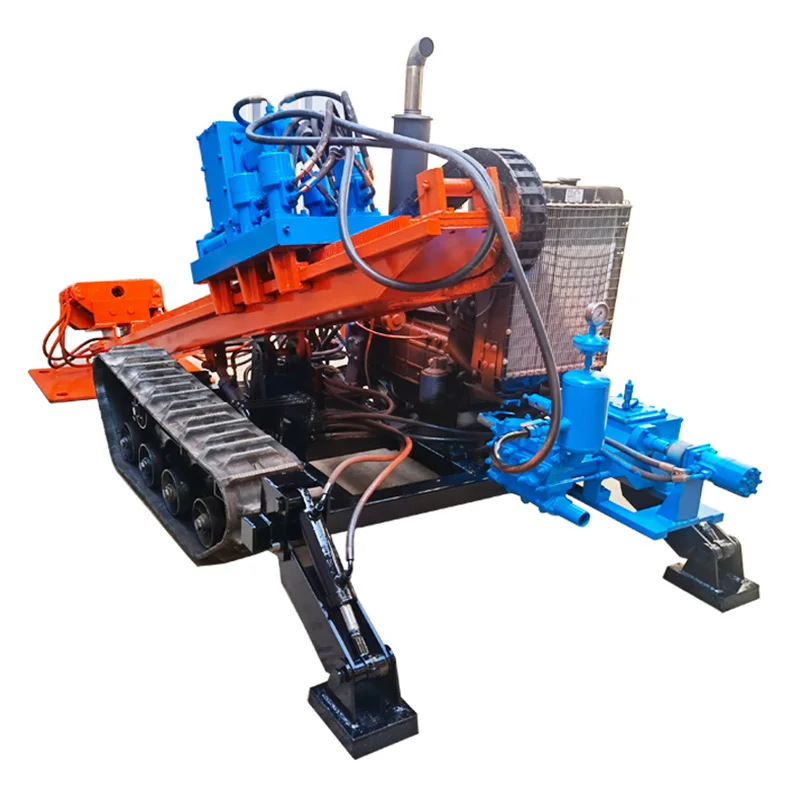

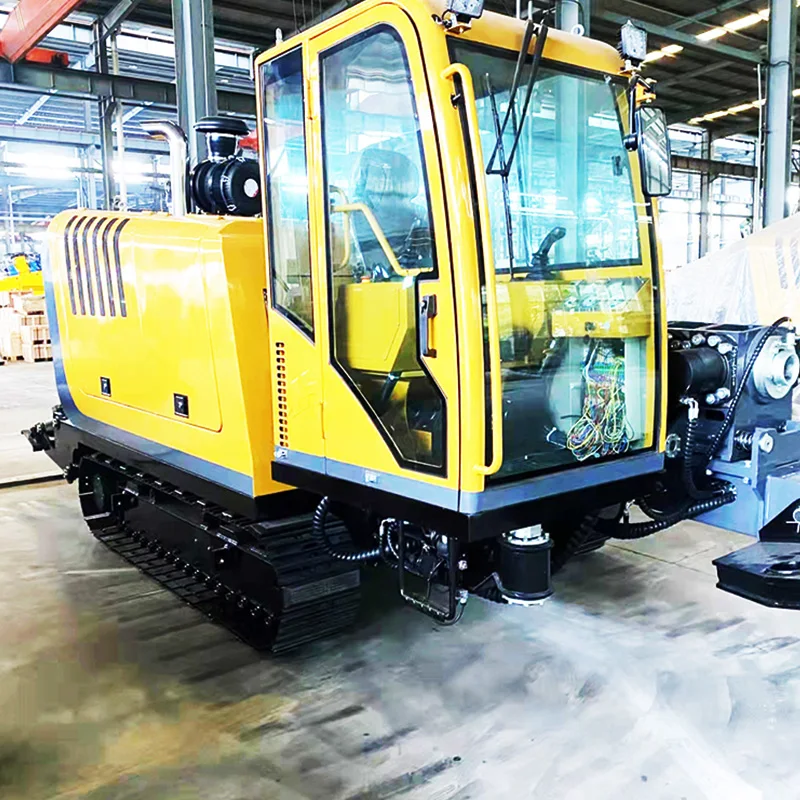

960KN thrust force Hydraulic Trenchless pipe laying hdd machine drilling rig horizontal directional drilling machine
- Category: >>>
- Supplier: Zhengzhou Yugong Construction Machinery Co. Ltd.
Share on (1601200928574):
Product Overview
Description
Product Description
Horizontal directional drilling rig is is a construction machine that lays a variety of underground utilities (pipes, cables, etc.)
without excavating the ground surface. It is widely used in flexible pipelines such as water supply, electricity,
telecommunication, natural gas, gas, and oil. In laying construction, it is suitable for sandy soil, clay, etc., not suitable for
high groundwater level and pebble formation.
This kind of equipment is generally suitable for steel pipes and PE pipes with a pipe diameter of φ100~φ1200mm, and the maximum
laying length can reach 1500m. It is suitable for various soil conditions from soft soil to hard rock, and has broad application
prospects.
without excavating the ground surface. It is widely used in flexible pipelines such as water supply, electricity,
telecommunication, natural gas, gas, and oil. In laying construction, it is suitable for sandy soil, clay, etc., not suitable for
high groundwater level and pebble formation.
This kind of equipment is generally suitable for steel pipes and PE pipes with a pipe diameter of φ100~φ1200mm, and the maximum
laying length can reach 1500m. It is suitable for various soil conditions from soft soil to hard rock, and has broad application
prospects.
Model | YGDD-16 | YGDD-25 | YGDD-35 | YGDD-45 | YGDD-48/96 |
Diesel engine | 55KW | 132KW | 154KW | 194KW | 194KW |
Max pull/thrust force | 160KN | 270KN | 350KN | 450KN | 960KN |
Maximum torque of power head | 4500N.m | 8000N.m | 13500N.m | 19500N.m | 25000N.m |
Max drilling Diameter | 600mm | 1000mm | 1200mm | 1400mm | 1500mm |
Drilling Distance | 200m | 300m | 450m | 700m | 800m |
Drill rod length | 2m/pc | 3m/pc | 3m/pc | 3m/pc | 3m/pc |
Drill rod diameter | 50mm | 60mm | 73mm | 83mm | 89/103mm |
Drill angle | 10-28° | 10-24° | 10-24° | 10-24° | 10-24° |
Maximum mud flow | 160L/min | 250L/min | 320L/min | 600L/min | 600L/min |
Machine weight | 2200kg | 10000kg | 11000kg | 11500kg | 12000kg |
Dimension | 3.8*1.6*1.8m | 6.0*2.06*2.3m | 6.7*2.25*2.4m | 7*2.3*2.35m | 7.5*2.3*2.6m |
Specification

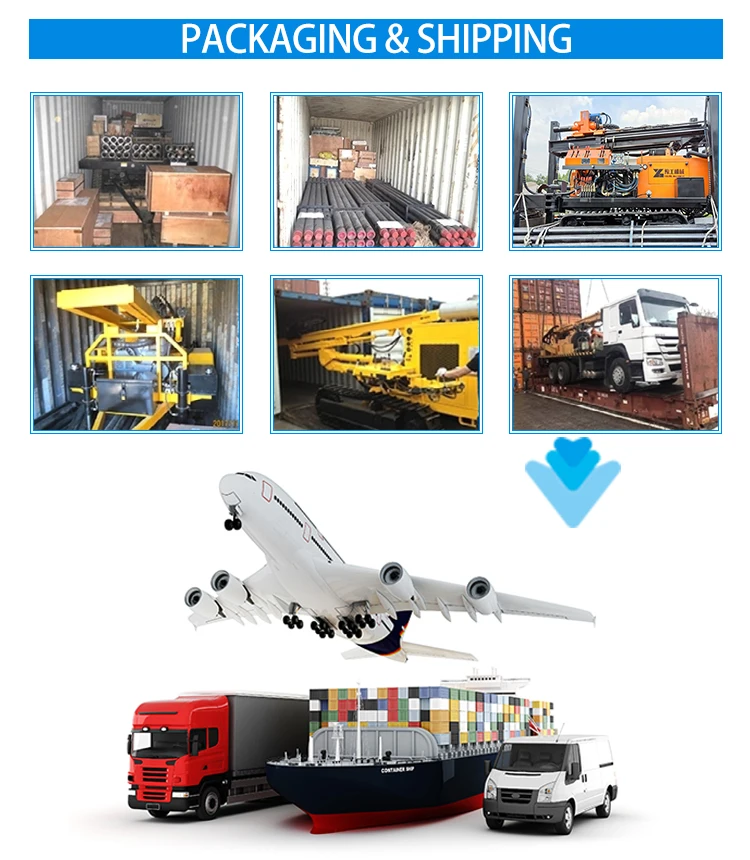

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

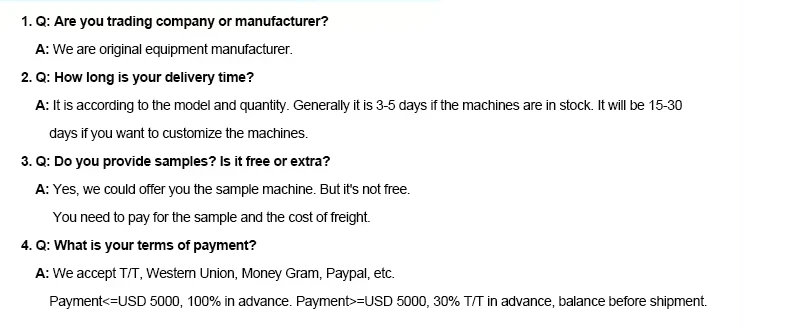

FAQ
