LR5201X 2Z Track Roller Bearing LR5201 X 2Z

Product Overview

Description

Our service about track rollers

1.high precision low friction

2.factory price oem service

3.short delivery time

4.large stock is available

5.samples are offered

6.many brands can be chose and oem service

7.various payment terms(L/C,T/T,WU,MoneyGram,Paypal)

8.find the perfect transportation ways for you(small order,UPS/DHL/FEDEX and so on)

9.provide industrial packaging,commercial packing or as your requirement.

10.we are bearing manufacturers,provide you with all kinds of ball and roller bearings

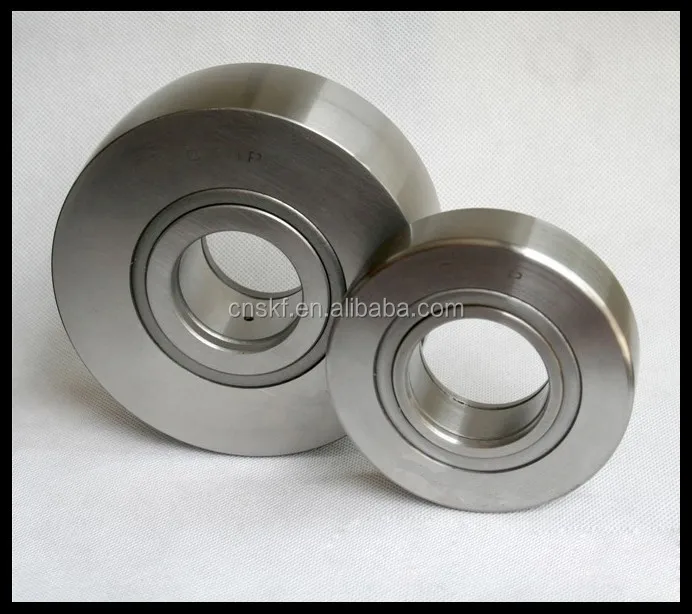

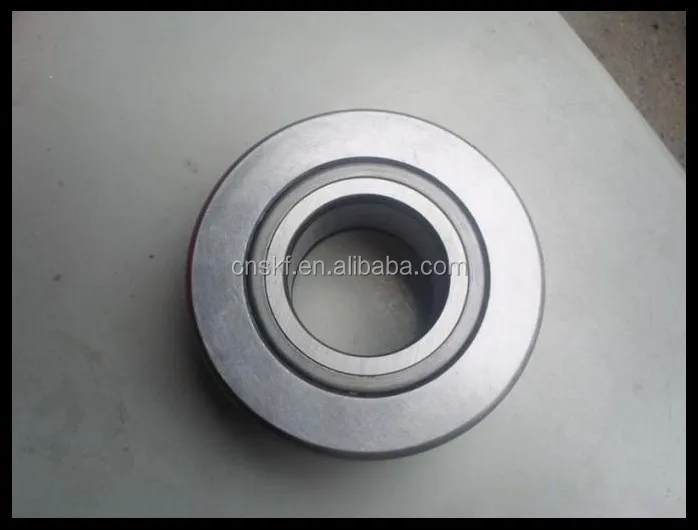

 LR5201-X-2Z Track Roller Bearing Manufacturer LR5201.X.2Z

Ball bearing track rollers are self-retaining, single or double row ball bearings with particarly thick-walled outer rings. In addition to high radial forces, these bearings can also support axial forces in both directions.



The outer rings have a crowned or cylindrical outside surface. Designs with a crowned outside surface are used where they are inclined in relation to the mating track and edge stresses must be avoided.

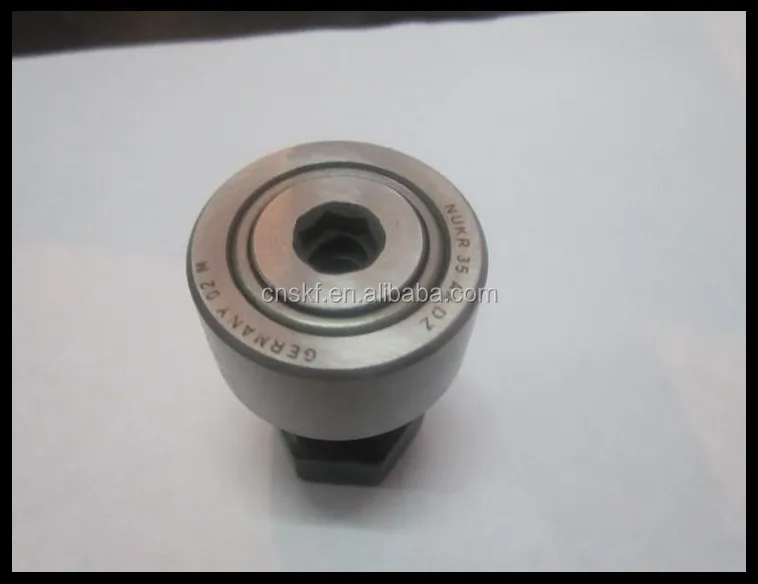

Ball bearing track rollers are available with an inner ring, with a stud and with a plastic tyre on the outer ring.

Yoke type track rollers with a crowned outside surface and stud type track rollers have a radius of curvature of R = 500 mm.



Product Name	LR5201-X-2Z Track Roller Bearing Manufacturer LR5201.X.2Z
Size	12x35x15.9 mm
MOQ	1PC
Payment	L/C,T/T,WU,MoneyGram,Paypal
Sample	OK

Type	Dimensions (mm)				Mass
	d	D	B	C	(g)
LR5200-X-2Z	10	32	14	14	70
LR5200-2Z	10	32	14	14	70
LR5201-X-2Z	12	35	15.9	15.9	80
LR5201-2Z	12	35	15.9	15.9	80
LR5202-X-2Z	15	40	15.9	15.9	110
LR5202-2Z	15	40	15.9	15.9	110
LR5203-X-2Z	17	47	17.5	17.5	170
LR5203-2Z	17	47	17.5	17.5	170
LR5204-X-2Z	20	52	20.6	20.6	230
LR5204-2Z	20	52	20.6	20.6	230
LR5205-X-2Z	25	62	20.6	20.6	340
LR5205-2Z	25	62	20.6	20.6	340
LR5206-X-2Z	30	72	23.8	23.8	510
LR5206-2Z	30	72	23.8	23.8	510
LR5207-X-2Z	35	80	27	27	660
LR5207-2Z	35	80	27	27	660
LR5208-X-2Z	40	85	30.2	30.2	750
LR5208-2Z	40	85	30.2	30.2	750
LR5302-2Z	15	47	19	19	150
LR5303-2Z	17	52	22.2	22.2	210
LR5304-2Z	20	62	22.2	22.2	340
LR5305-2Z	25	72	25.4	25.4	500
LR5306-2Z	30	80	30.2	30.2	670
LR5307-2Z	35	90	34.9	34.9	970
LR5308-2Z	40	100	36.5	36.5	1200
