Product Overview
Description

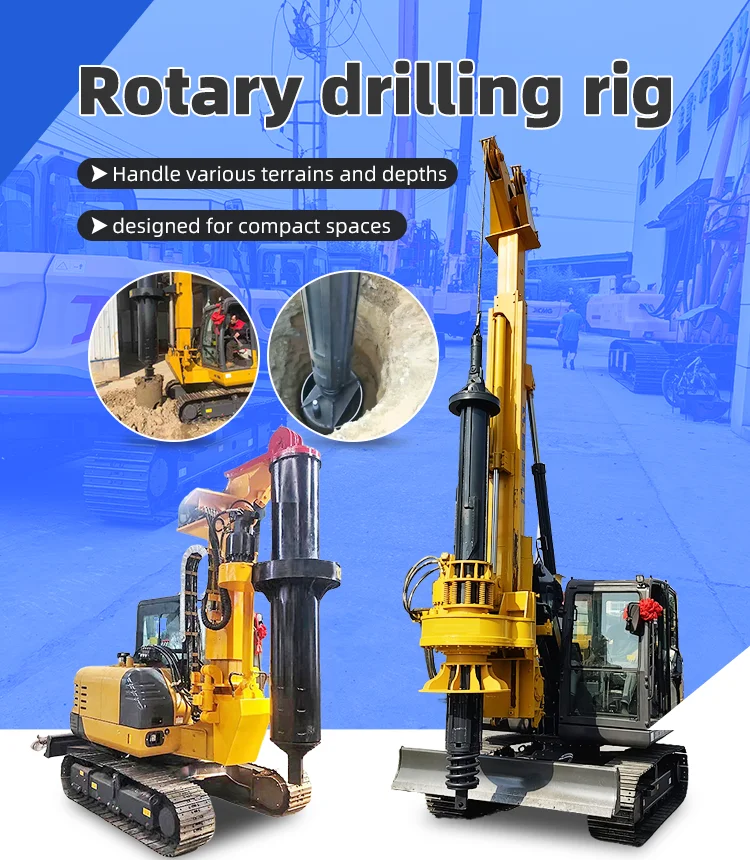

Rotary Drilling Rig Remote Control Driving Pile Driver
Main Application
According to its function, rotary drilling rigs can be divided into single-mode rotary drilling rigs and multi-functional rotary drilling rigs. It is a comprehensive drilling rig that can be used in a variety of bottom layers, with the characteristics of fast hole-making speed, less pollution, and strong mobility. It is mainly suitable for the construction of soil layers such as sand, clay, and silty soil. It is widely used in various foundation construction such as cast-in-place piles, continuous walls, and foundation reinforcement.
Product Description
Equipment use process
The rotary drilling rig is in place → the casing is buried → the drill bit touches the ground lightly and then rotates to start drilling! When the drill bit is full of soil and sand, it is lifted out of the hole → the rotary drilling rig rotates back and dumps the soil and sand inside on the earthmoving vehicle or the ground → close the drill valve, rotate the rotary drilling rig back to its original position, lock the drilling rig rotating body → put down the drill bit → drilling is completed, the hole is cleaned and the depth is measured → the steel cage and the guide tube are put in → concrete is poured → the casing is pulled out and the pile head is cleaned and backfilled to form a pile.
Specification
Dimensions (mm) | 7900*2260*3100 |
Vehicle mass (kg) | 8000 |
Wheelbase (mm) | 3150 |
Wheel base (mm) | Front 1400 After 1060 |
Drilling depth (m) | 13 |
Drilling diameter (mm) | 600-1600 |
Rotation angle | 180 degree |
Walking speed (km/h) | 50 |
Gear pump model | CBJT2080 |
Hydraulic system working pressure (mpa) | 20-25 |
Hydraulic system displacement (ml/r) | 80 |
engine model | 4108 |
Engine power (kw) | 88 |

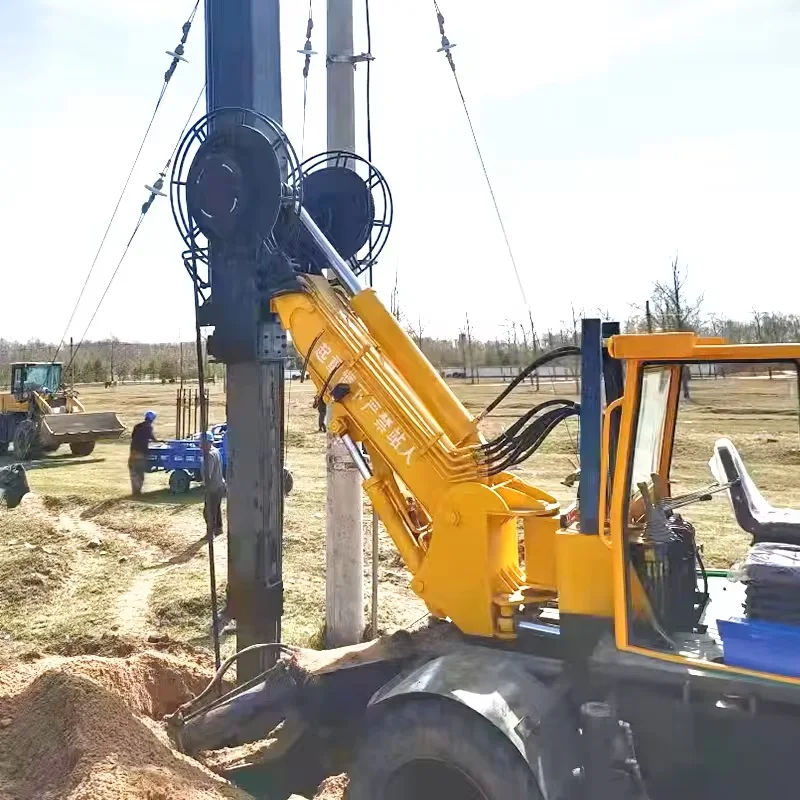

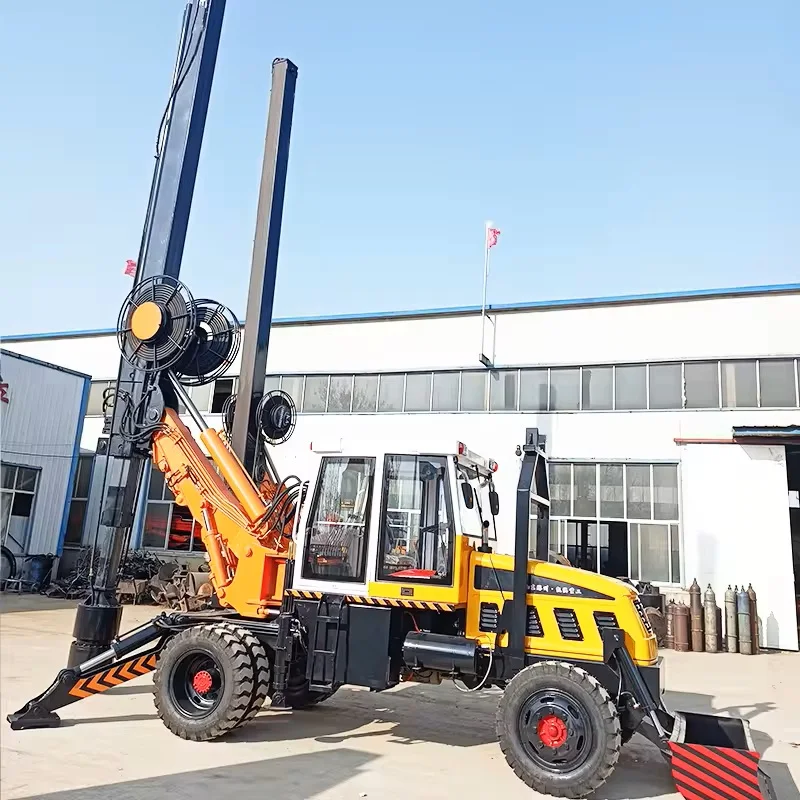

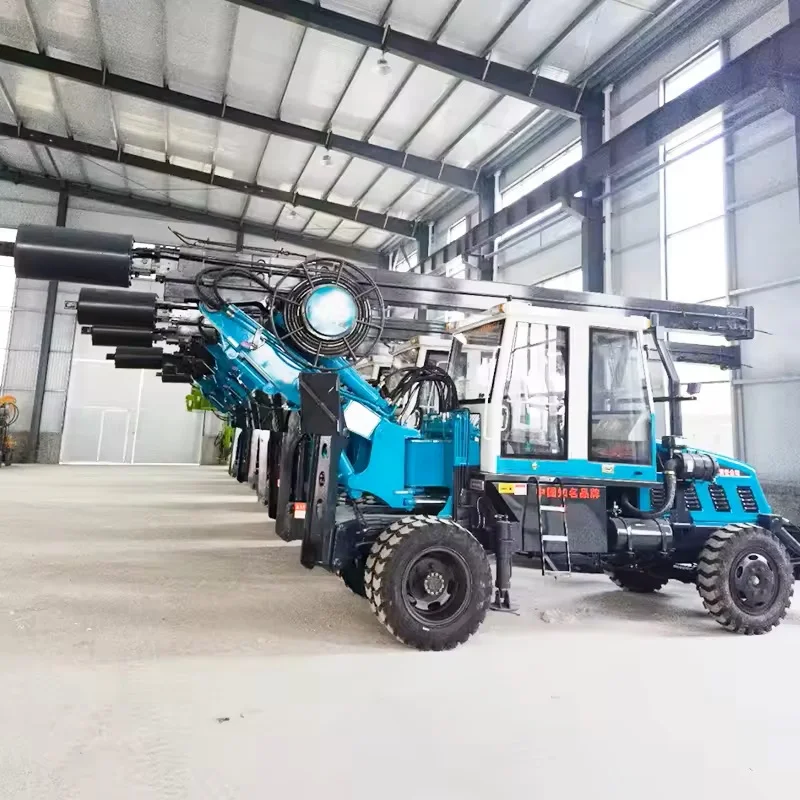

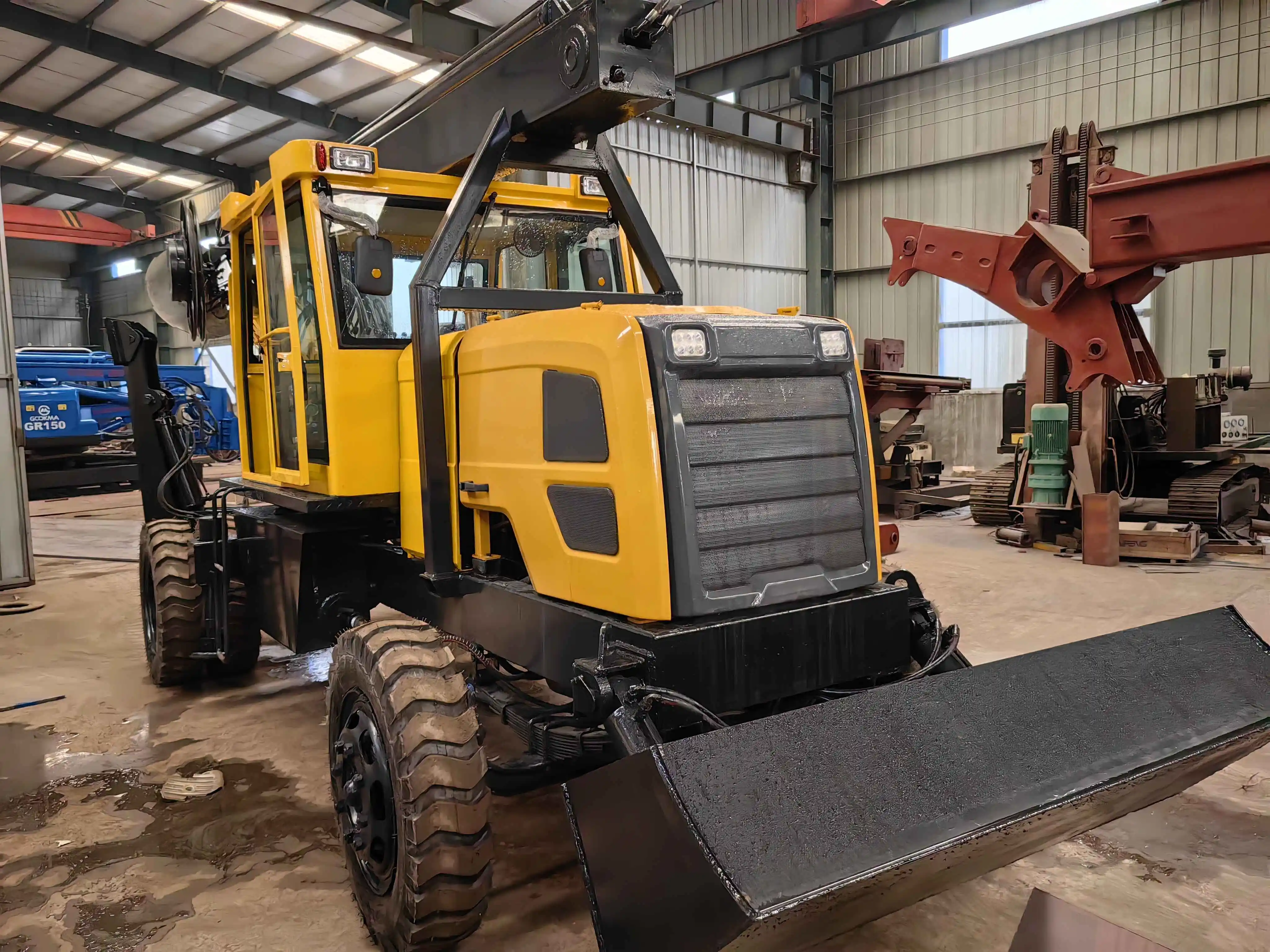

Wheeled Rotary Rig

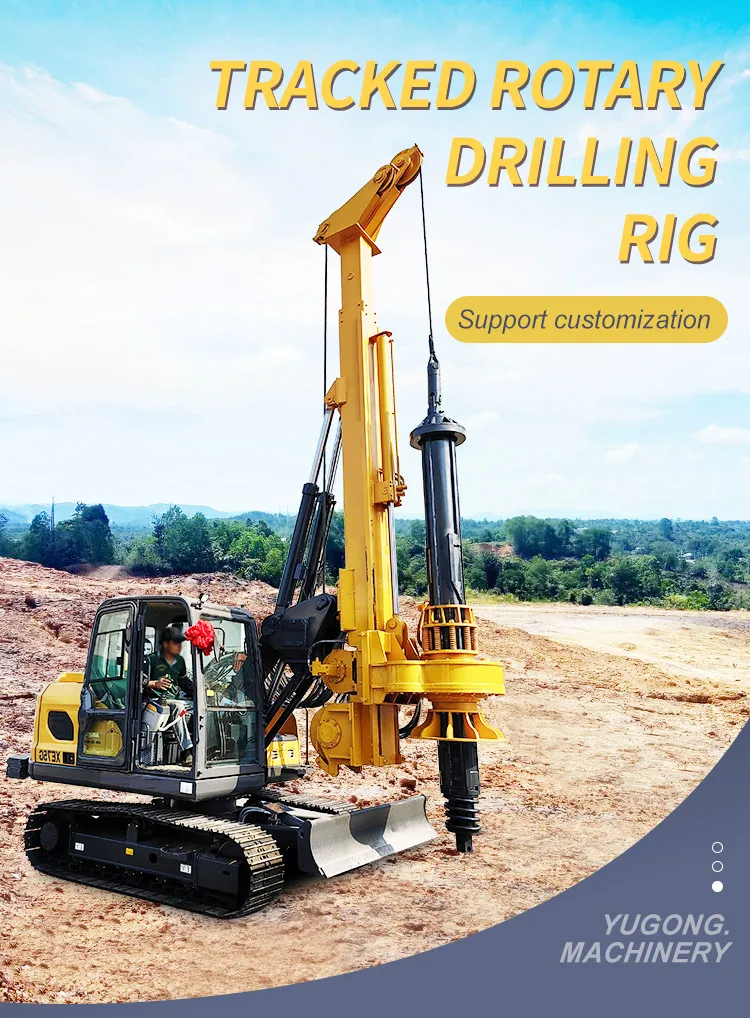

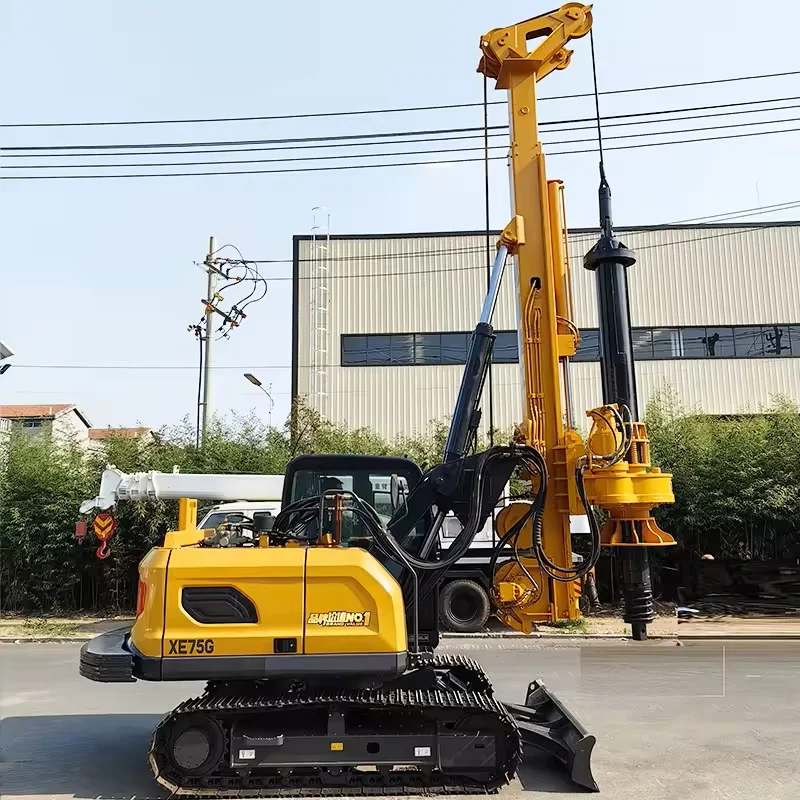

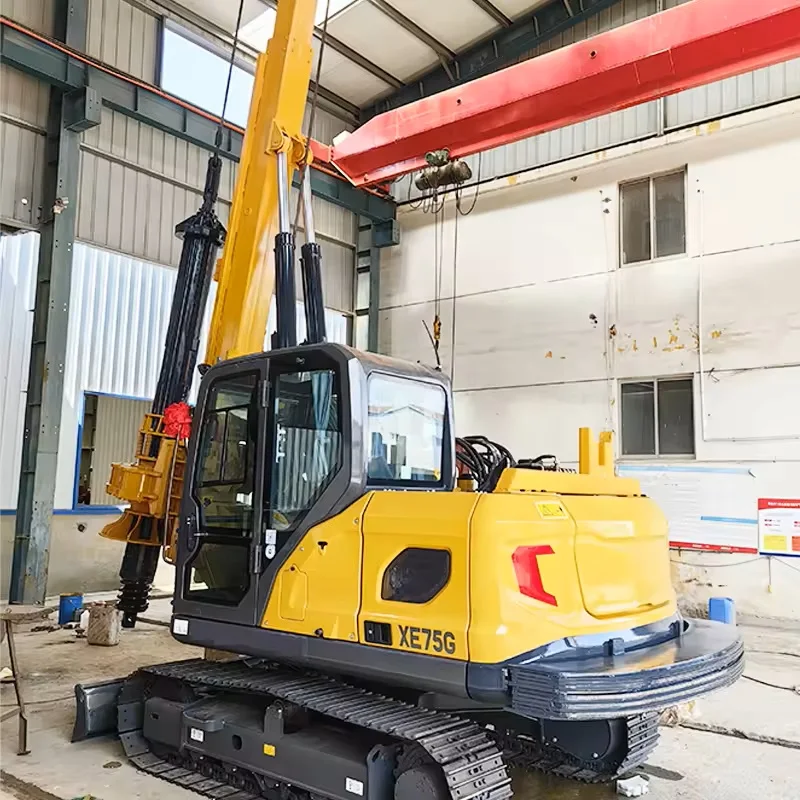

Crawler Rotary Rig
Rotary drilling rig has the advantages of flexible maneuverability, small tonnage, simple operation, 360-degree free rotation, wide application range, high construction efficiency, stable performance, ultra-fast piling speed, fast movement, convenient
special field, small investment and fast return.
special field, small investment and fast return.

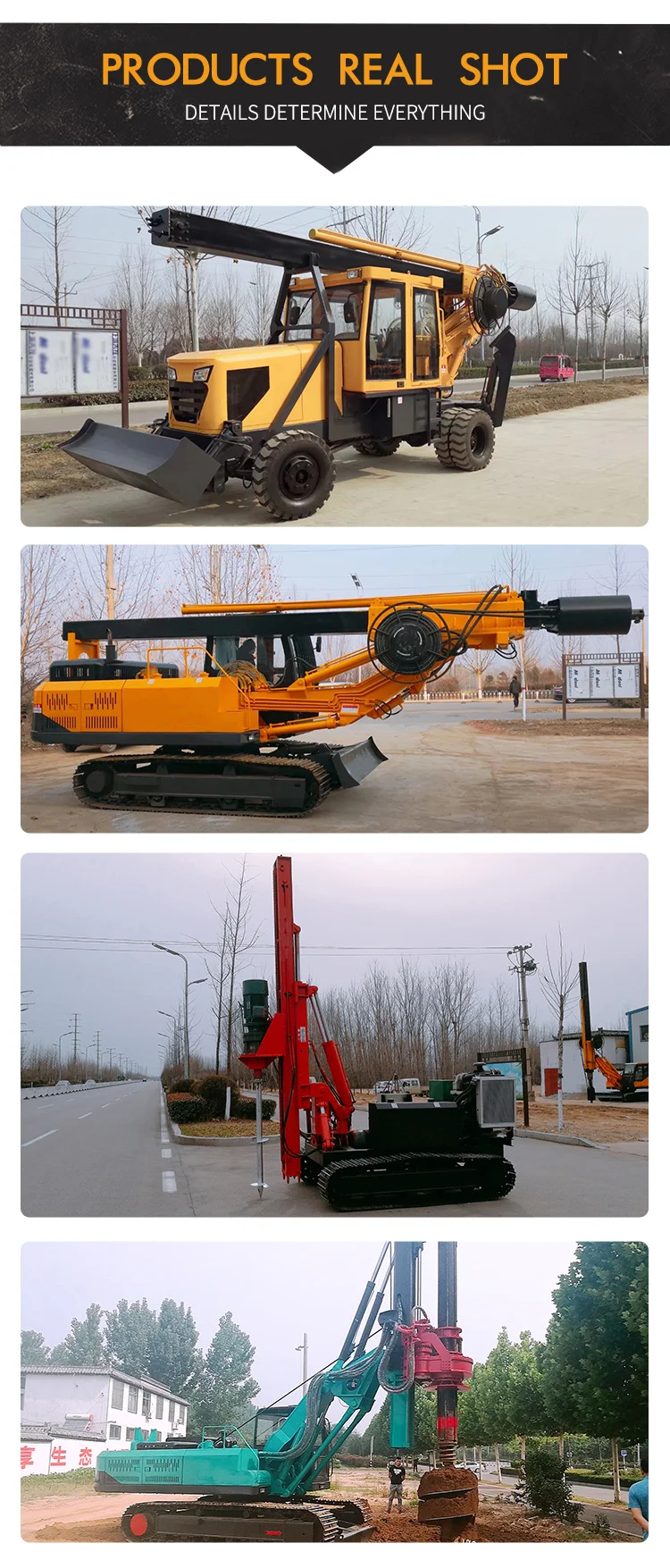

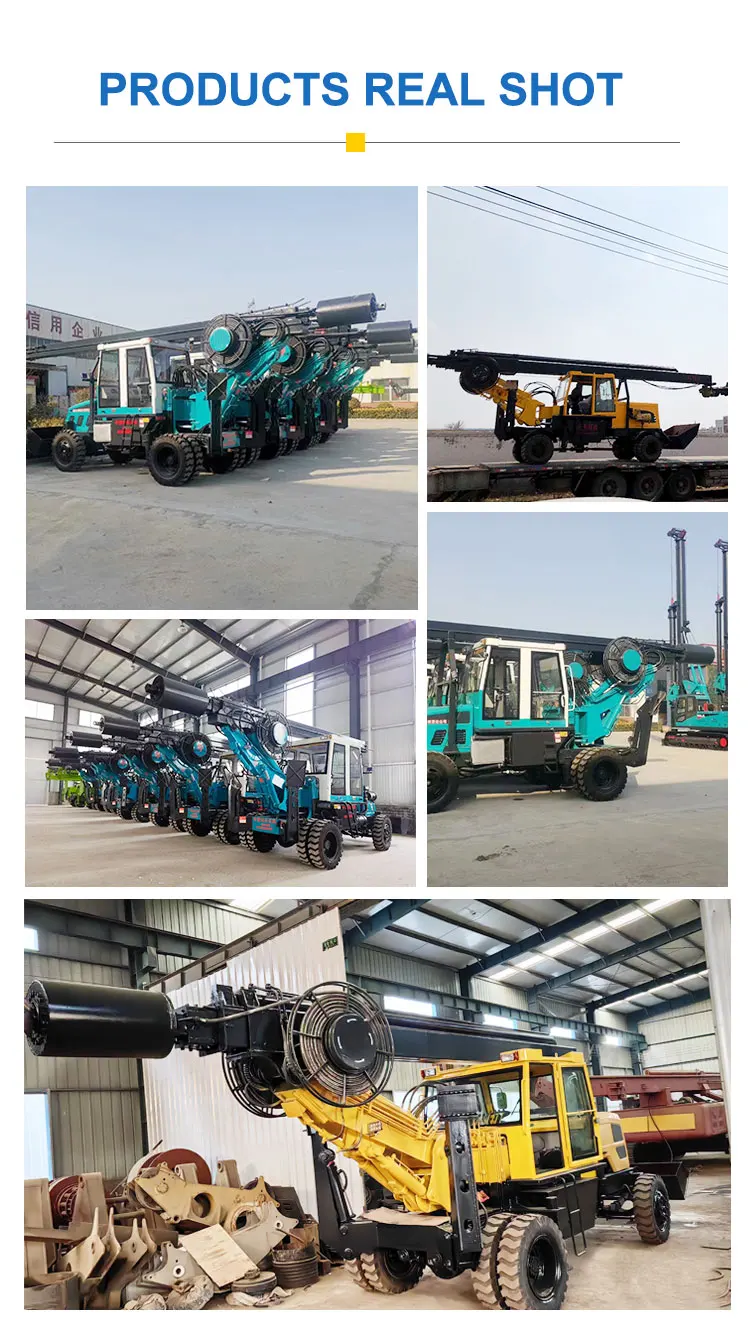

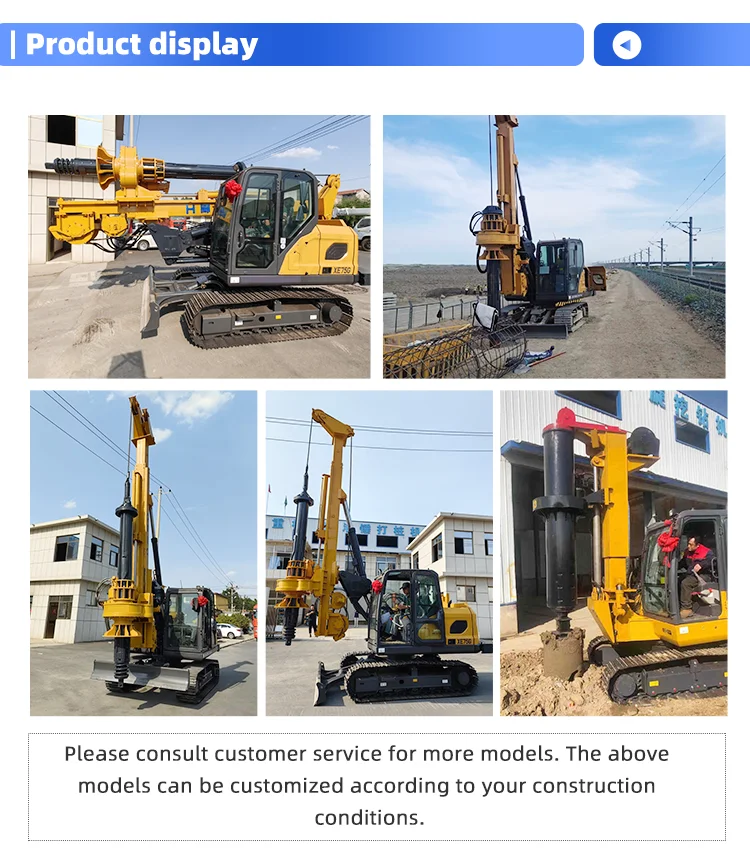

Details Images
