Saifan SF9025 Woodworking Automatic Stringer Wood Pallet Nailing Machine
- Category: >>>
- Supplier: Qingdao High-Class Service Import & Export Co. Ltd.
Share on (1601200987302):
Product Overview
Description
Product Description

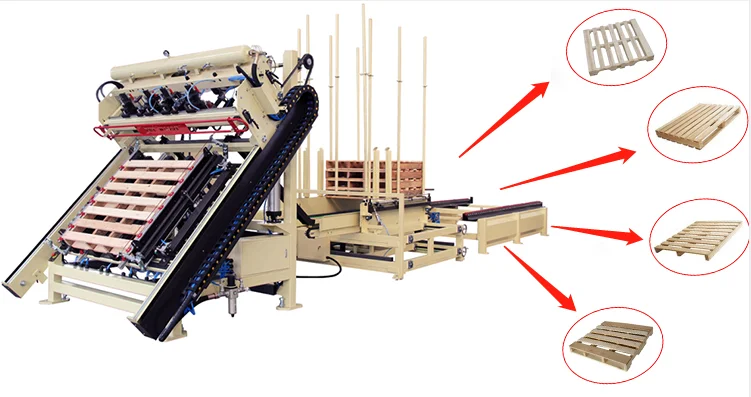

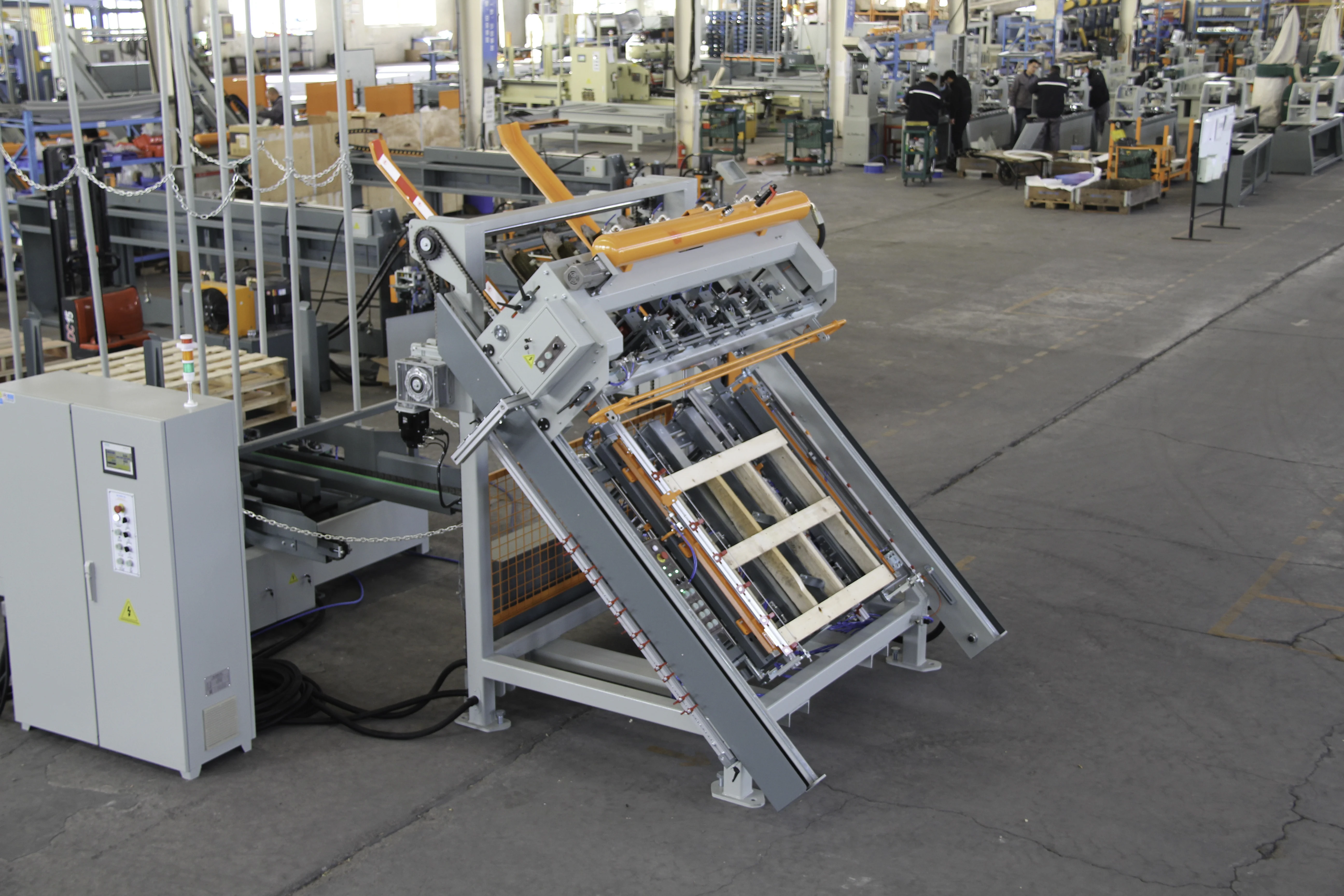

SF9025 Automatic vertical stringer wood pallet nailing machine
For stringer pallet, double wing pallet (face and bottom wing should be same length) nailing, 2-4pc stringer is adjustable, one operator. Contains nailing head + stacking table + out-feeding conveyor.
Product Paramenter
Pallet specifications | SF9025 semi-automatic vertical stringer pallet nailing machine |
Pallet length | 700-1300mm |
Pallet width | 700-1300mm |
Pallet height | 90-170mm |
Equipment efficiency | 20S per pallet cycle |

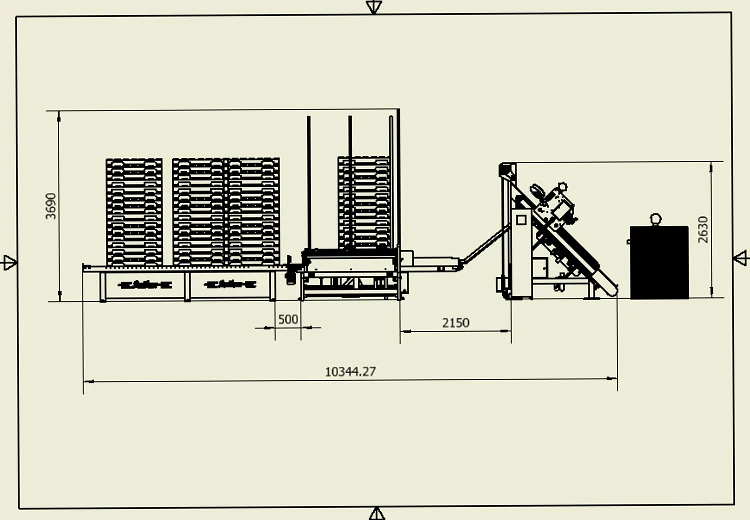

Equipment overall size | 10mx3.2mx3.66m (length x width x height) |
Machine weight | 3700kg |
Nailing gun | 4pc Taiwan N70 1-3pcs nails adjustable, Photoelectricity testing for the nailing position. |
Coil nails | 3000 nails/coil Nail diameter 2.3-2.8mm, length 45-70mm |
Gantry servo motor power | 1.3KW |
Stacker feeding motor | 0.75KW * 2 |
Total power | 3kw |
Voltage | 380v 50hz 3phase |
Air pressure | 7-8kg / cm2 |
Electric components | Schneider brand |
Pneumatic components | Taiwan Airtac brand |
Sensor | Germany IFM |
Dynamical | Japan Yaskawa Servo-motor |
Pneumatic parts | AirTAC |
PLC | Siemens |
Touch Screen | Siemens |
Details Images
Adjust the bottom board, click 'stringer tightening','right side push' and 'bottom board positioning cylinder',loosen the bottom board positioning parts, place the wood board, and tighten the positioning parts when the wood board and the stringer are on the same level.
Click on 'hold down cable' and hold 'Gantry for ward Jog' to make the nail gun fall directly above the third wood board
Click on 'Stringer tightening' and 'Right Side Push', adjust the mold of stringer C as per required size with a crank,then teighten the screws
Click 'nail gun down', hold the button 'Gantry reverse jog' to the limit
Turn 'Gantry','Stacker' and 'change-over switch' to automatic mode, and then turn 'Gantry' and 'Stacker' to manual mode, then click 'stringer clamps','side clamp open/close' and 'stringer popup tabs'
Loosen the pallet guardrail, put the pallet guardrail into a suitable position, it is convenient to protect the debbugged pallet, and lock the guardrail after adjustment

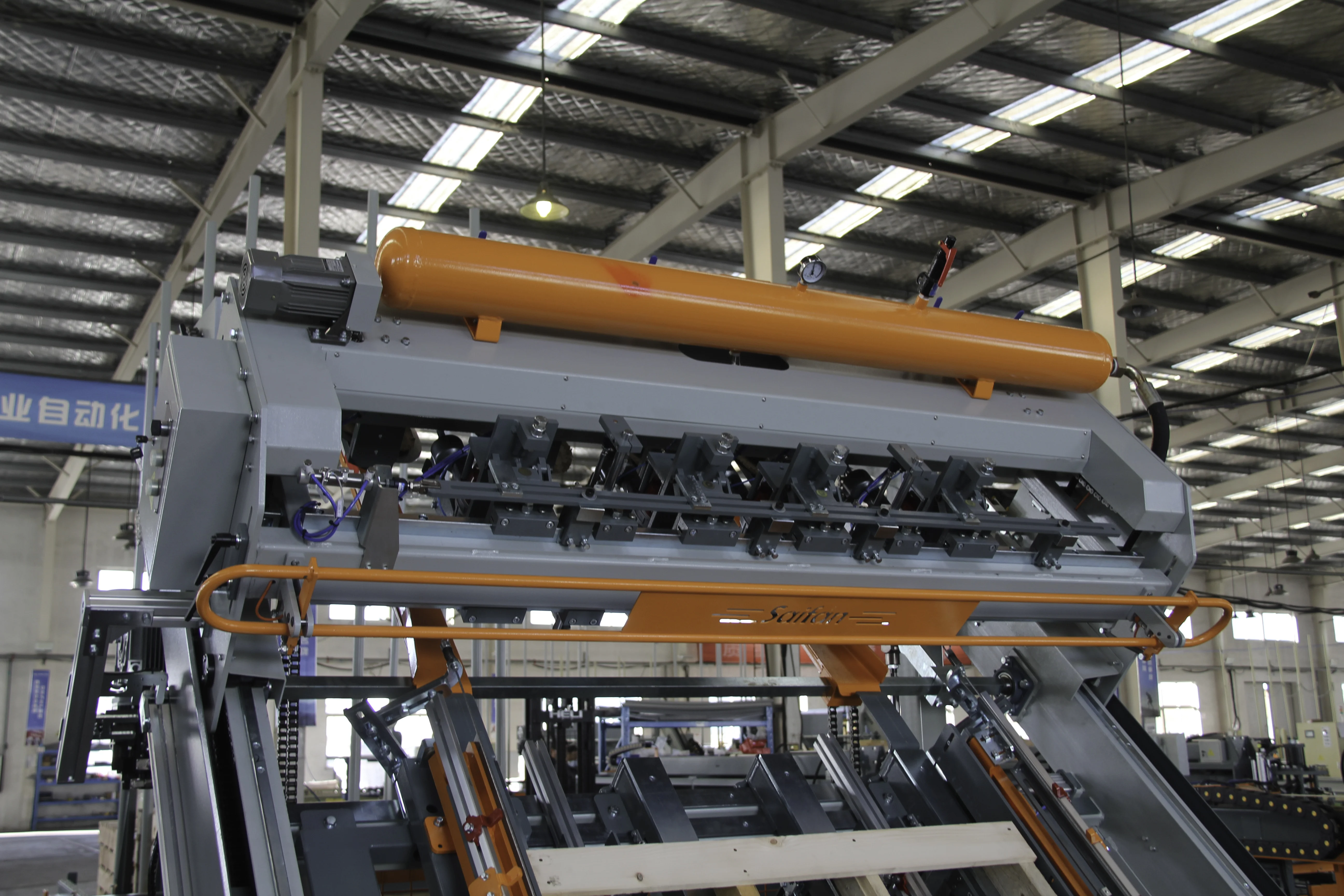

Adjust the nail gun, loosen the jacking screw, to have the nail gun pointed to the center of the stringer, and tighten the jacking screw
Place the 2nd, 3nd wood board, then adjust the 2nd wood board to the required size and tighten it
Turn 'Gantry' and 'stacker' to automatic mode, change 'Knob' to the bottom board, place the wood board and then nailing start, change 'Knob' to top board and then reverse the pallet

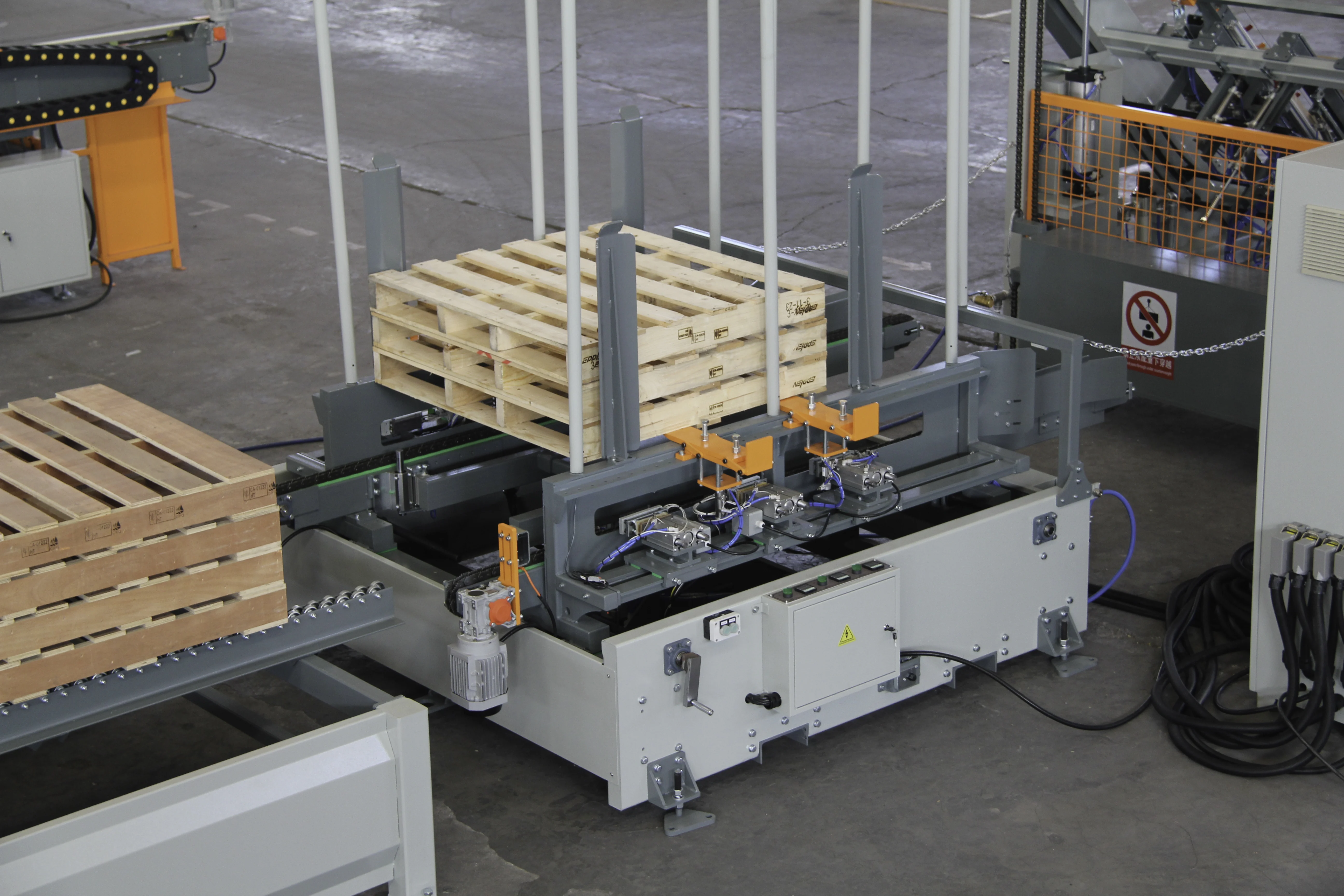

Nail the panel, debug the palletizing, loosen the pallet support, put the pallet support iin a suitable position, it is convenient to place the debugged pallet, and lock the pallet support after adjustment

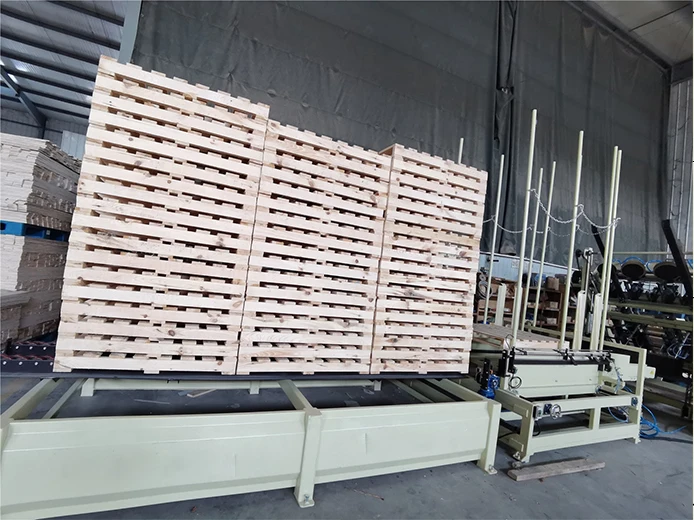

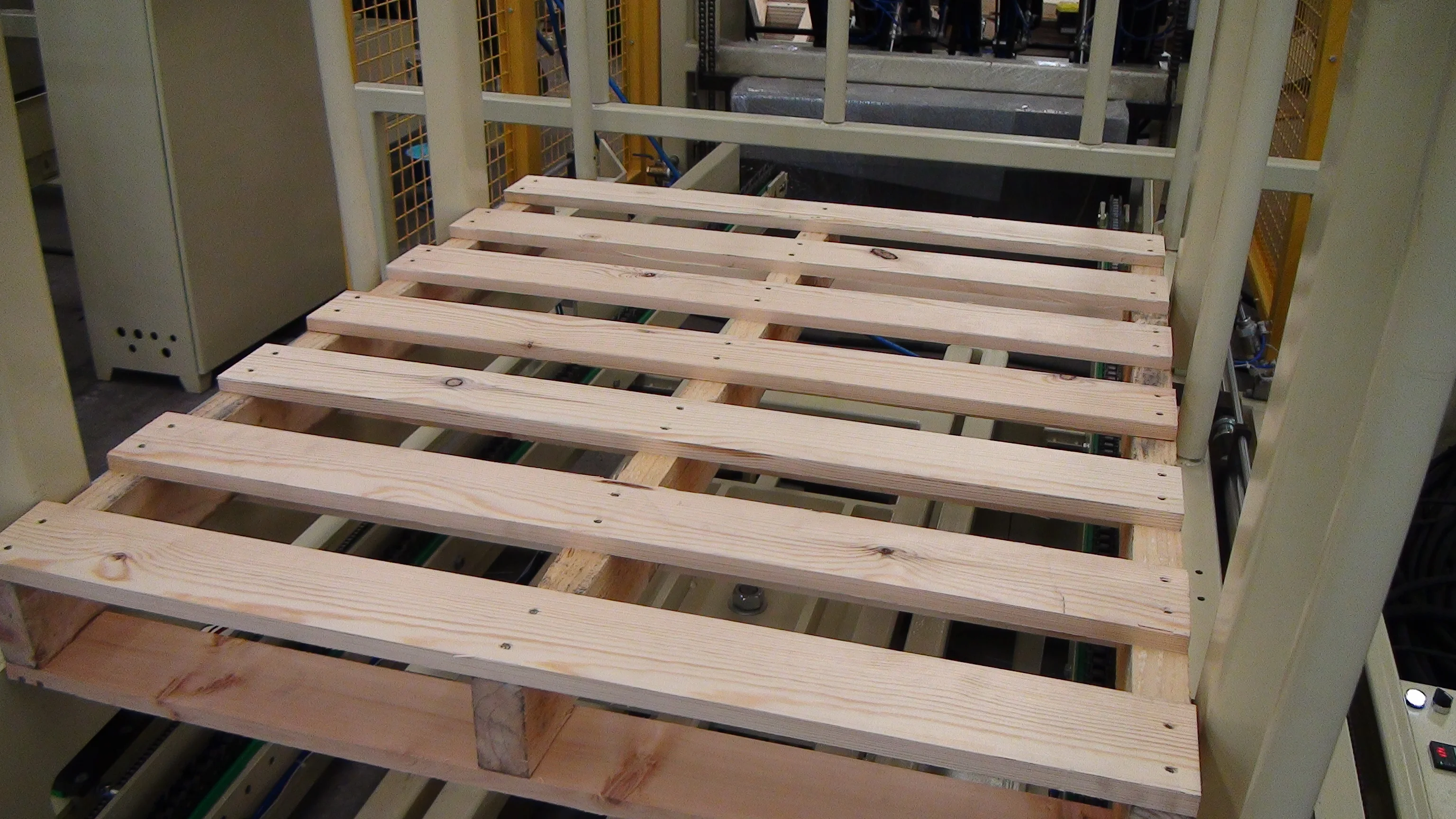

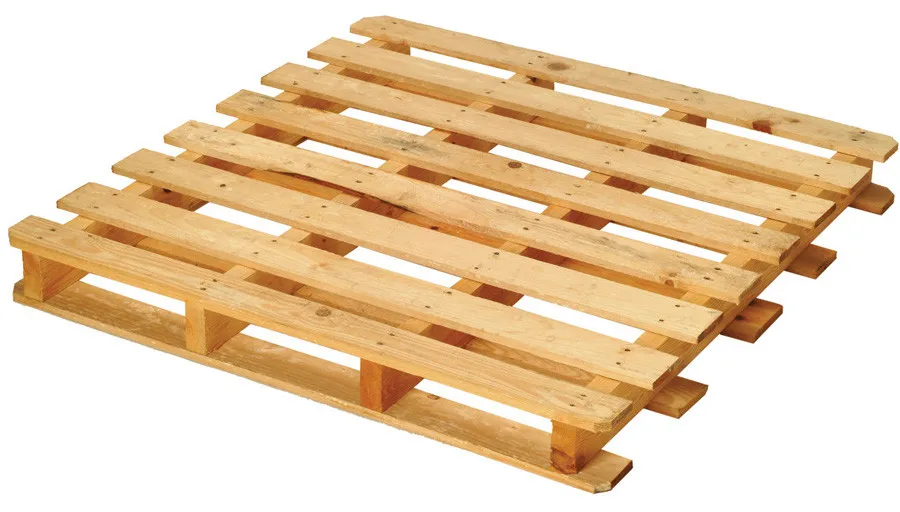

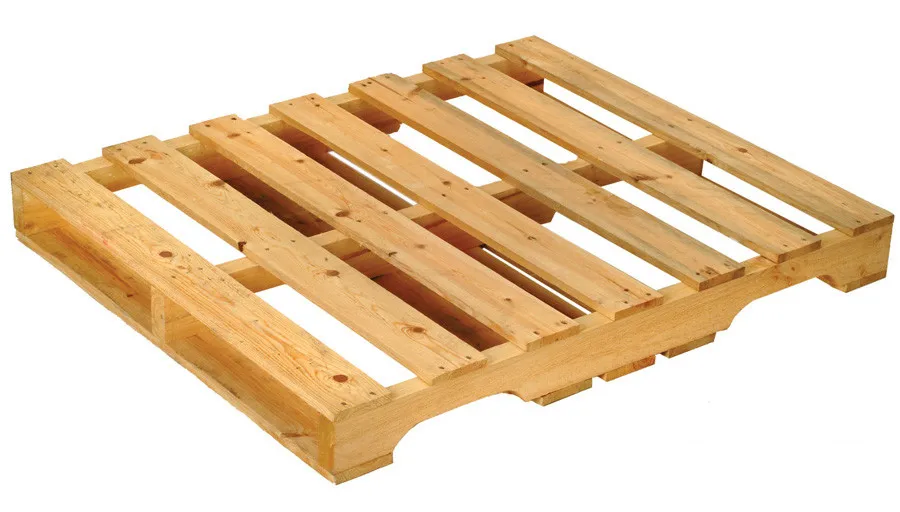

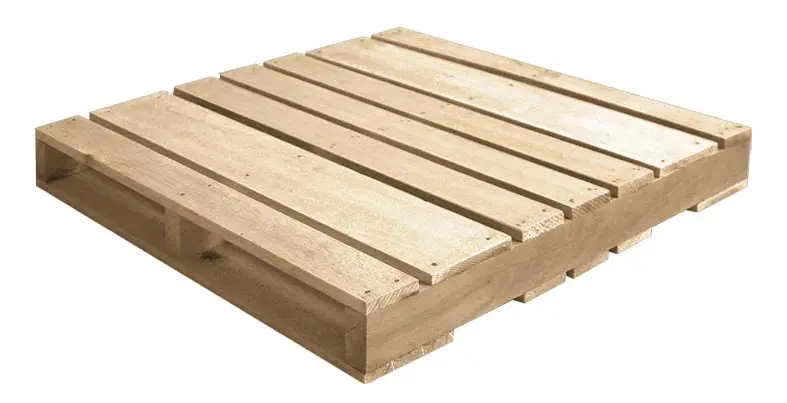

Final Product
Company Profile
VR
Our Company：
HICAS group is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.
HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter.
1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback
HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter.
1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback
Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. Do you offer installation?
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
6. Can you customized the machine?
Our machines can be customized made according to buyers’ request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish, French, German.
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer’s account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines have been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.
6. Can you customized the machine?
Our machines can be customized made according to buyers’ request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish, French, German.
9. Can the shipping cost be cheaper?
The shipping price changes at any time, and the price is different in different regions. You can consult customer service for details.
The shipping price changes at any time, and the price is different in different regions. You can consult customer service for details.
