China Top Brand New 10 Ton Pneumatic Road Roller XP103
Contact
Products Description

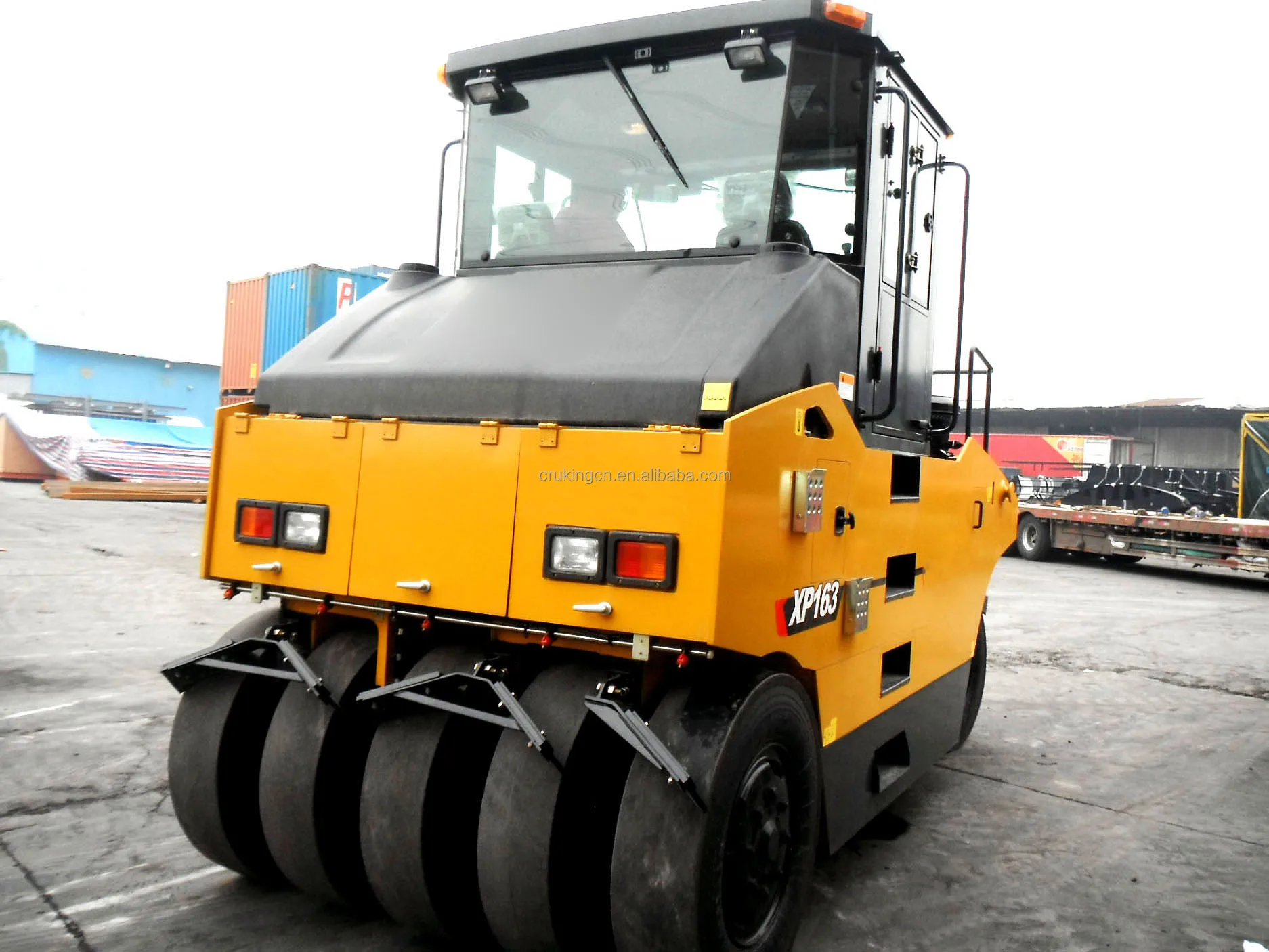

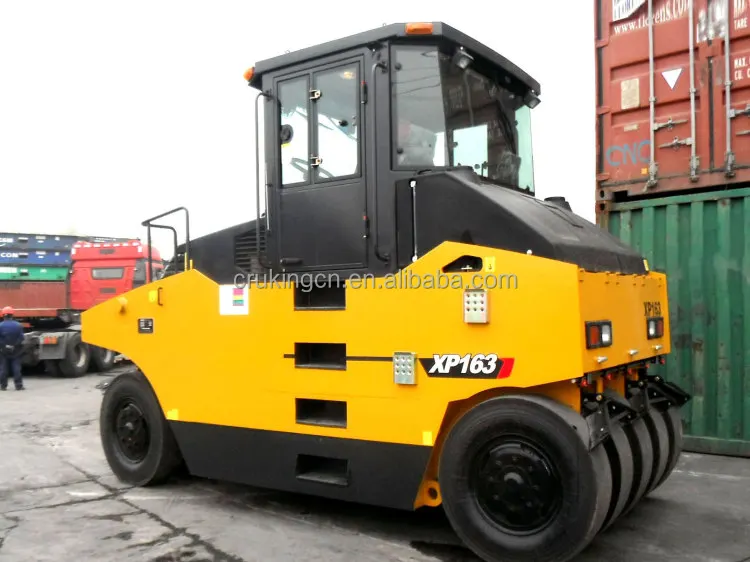

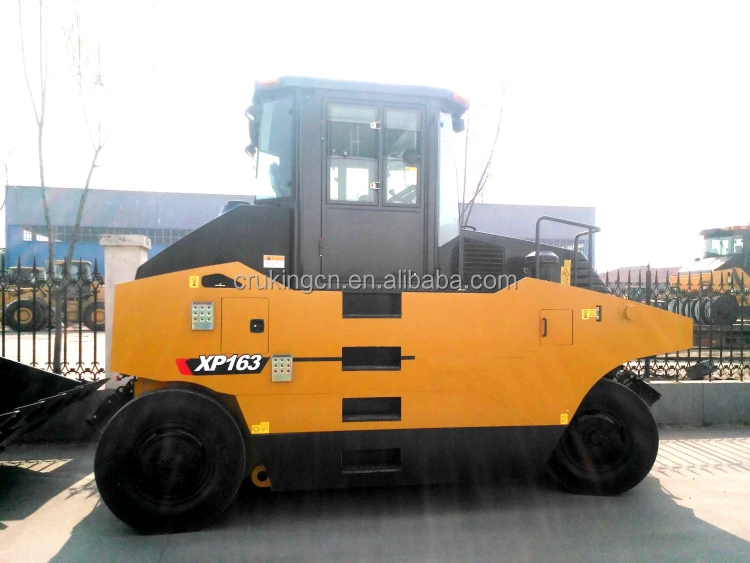

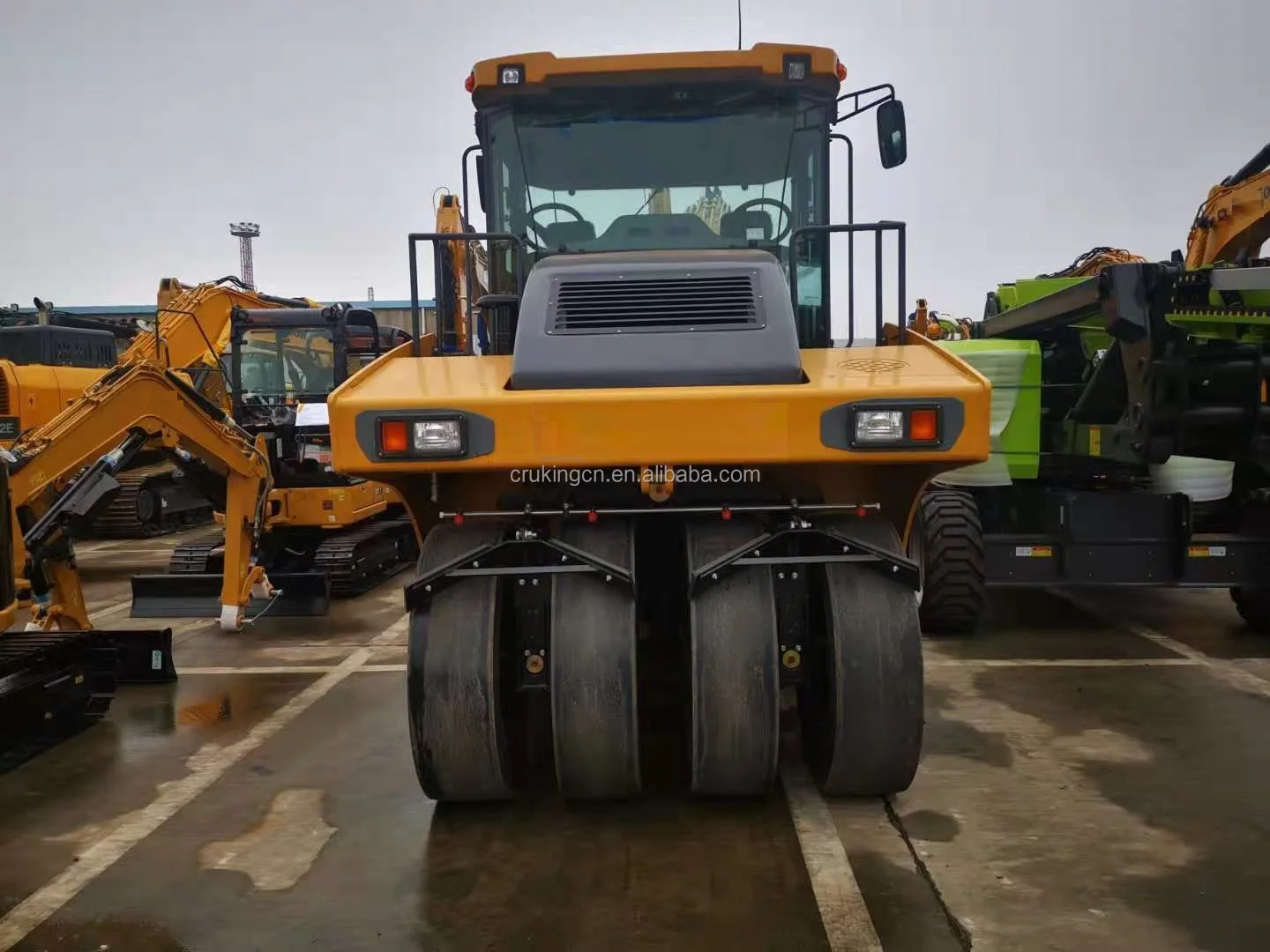

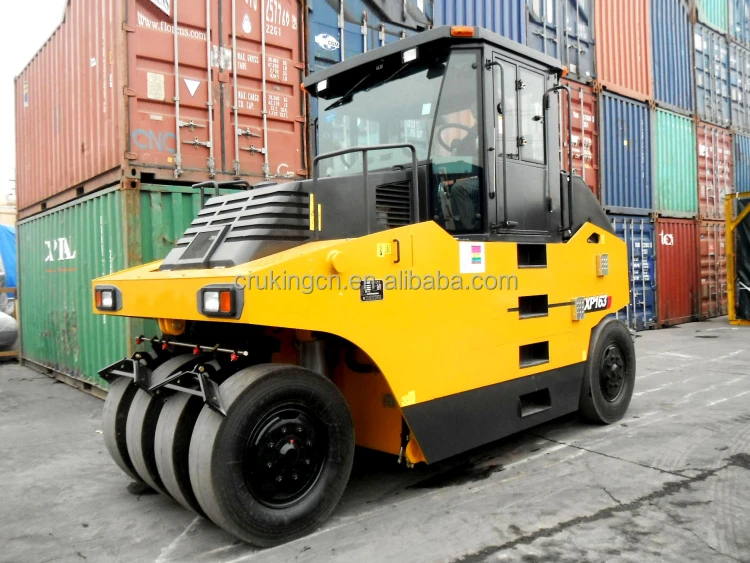

XP103 tyre roller is a large-tonnage tyre roller produced according to market requirements, which will take pneumatic tyres as working device for compacting paved materials. The tyre roller is mainly applicable for compacting operation of asphalt pavement, foundation layer, secondary foundation layer, dam and filling engineering. It is an ideal set of compacting equipment for building high grade highway, airport, port, dam and industrial construction site.
Product Paramenters
Pneumatic Roller | Unit | XP103 |
Maximum operating weight | kg | 10000 |
Water tank capacity | L | 650 L |
Counterweight total | kg | 650 |
Engine manufacturer | - | SDEC |
Engine Model | - | SC4H125.2G3 |
Rated Power | kW/rpm | 92 /1800 |
Speed range（forward） | ||
Speed（1） | km/h | 0-4 |
Speed（2） | km/h | 0-8.7 |
Speed（3） | km/h | 0-18.4 |
Speed range（backward） | ||
Speed（1） | km/h | 0-4 |
Speed（2） | km/h | 0-8.7 |
Max. gradeability | % | 30 |
Track radius, out | mm | 7253 |
Ground clearance | mm | 300 |
Wheel base | mm | 3700 |
Steering angle | ° | ±35° |
Braking distance | m | 5.9 |
Working width | mm | 2055 |
Tire numbers | - | Front 4/Rear 5 |
Tire overlap | mm | 30 |
Ground pressure | kPa | 150～ 300 |
tyre size | - | 9.00-20-12PR |
Number of tire layers | - | 12 |
tyre presure | kPa | 600～ 650 |
Overall dimensions | mm | 4780*2098*3340 |
