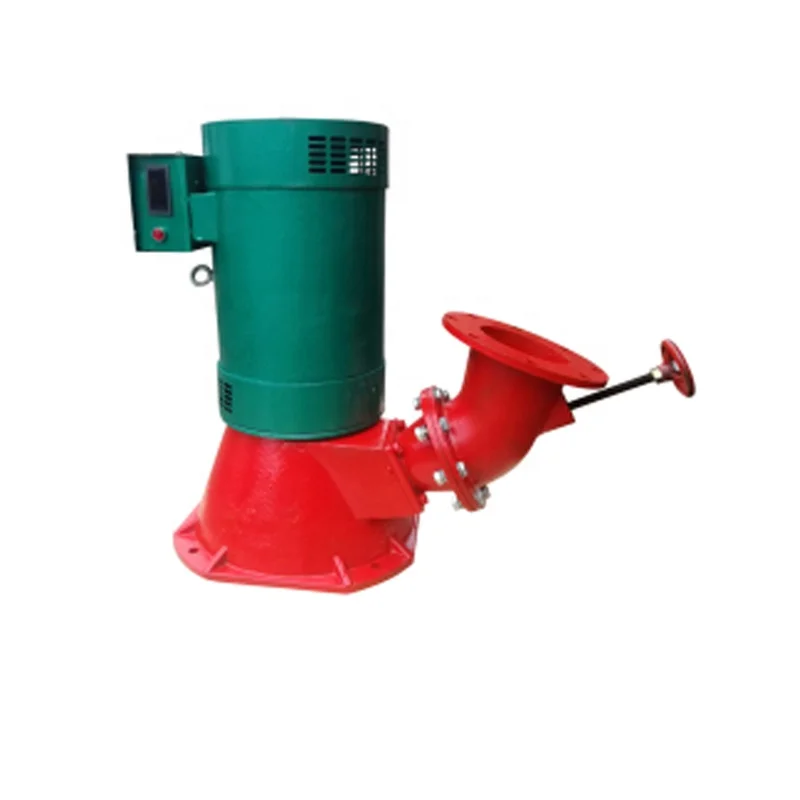

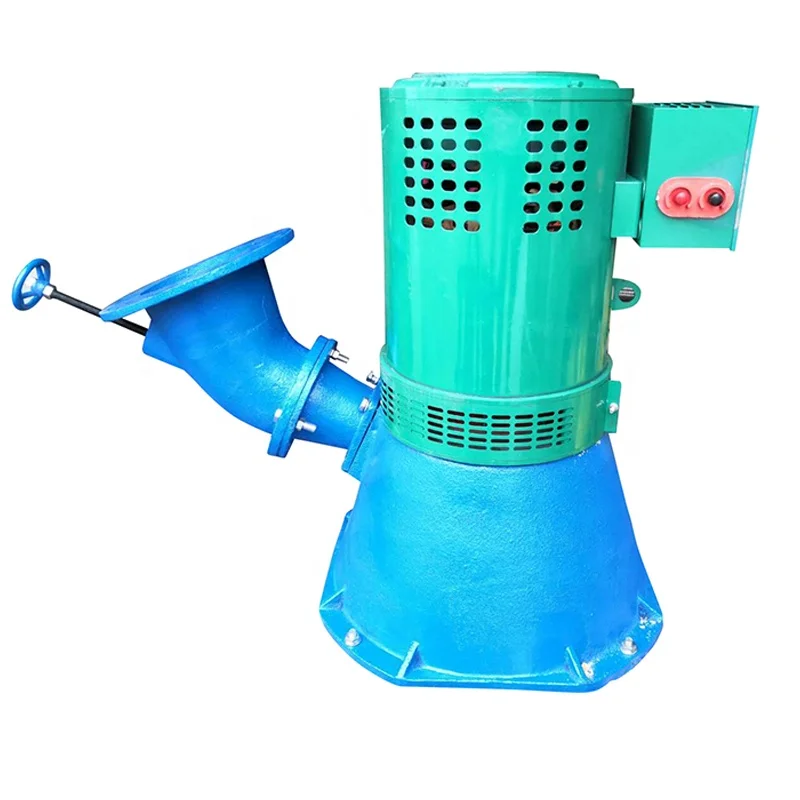

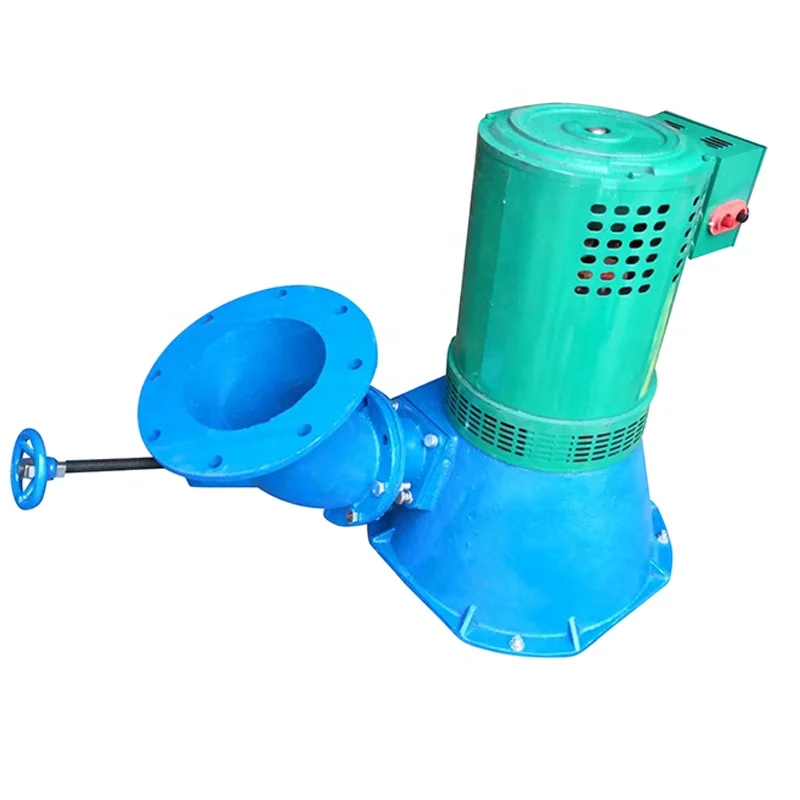

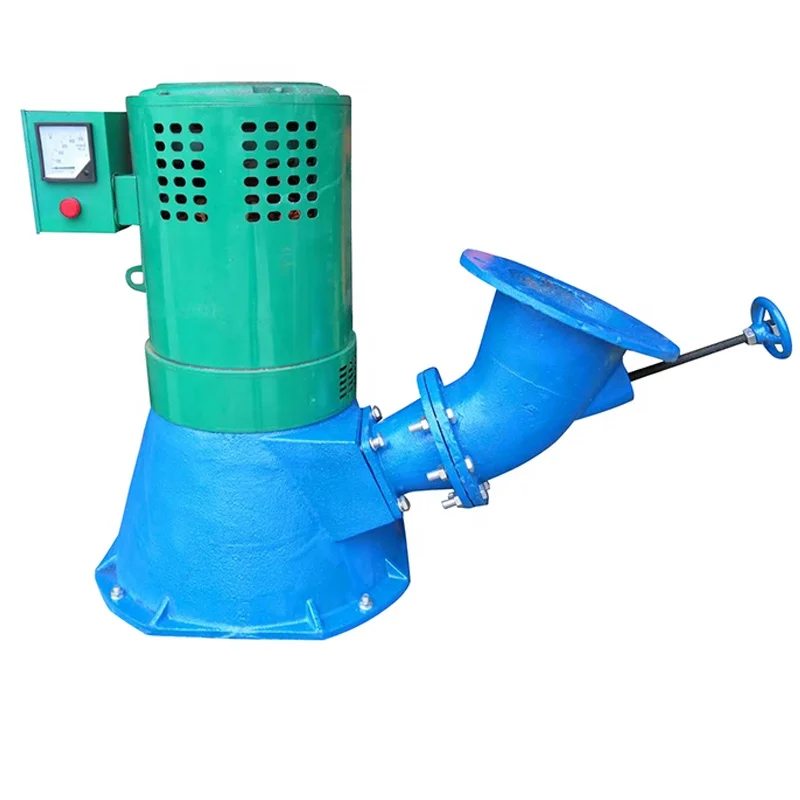

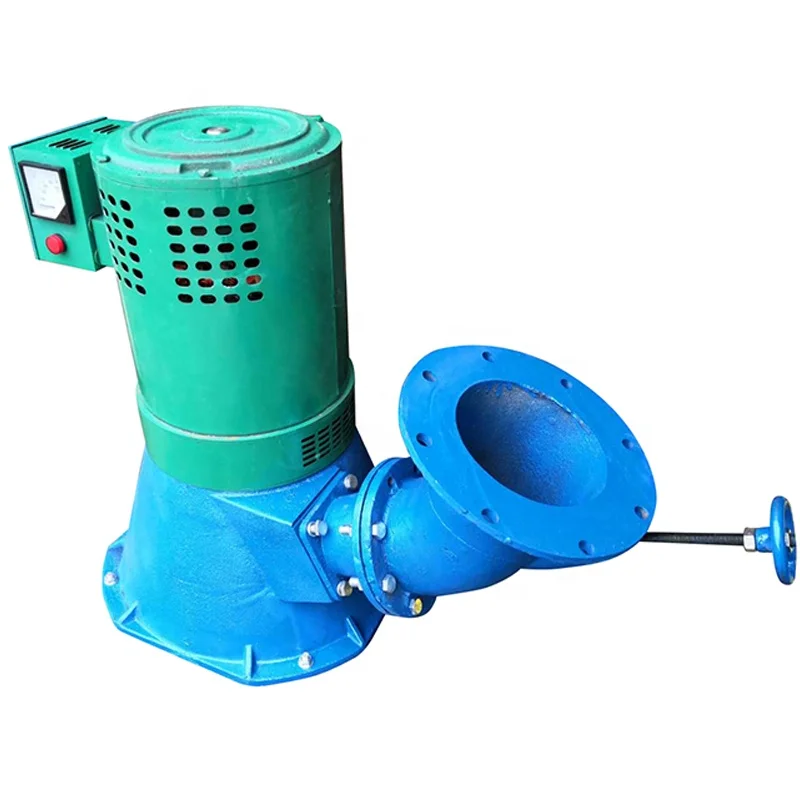

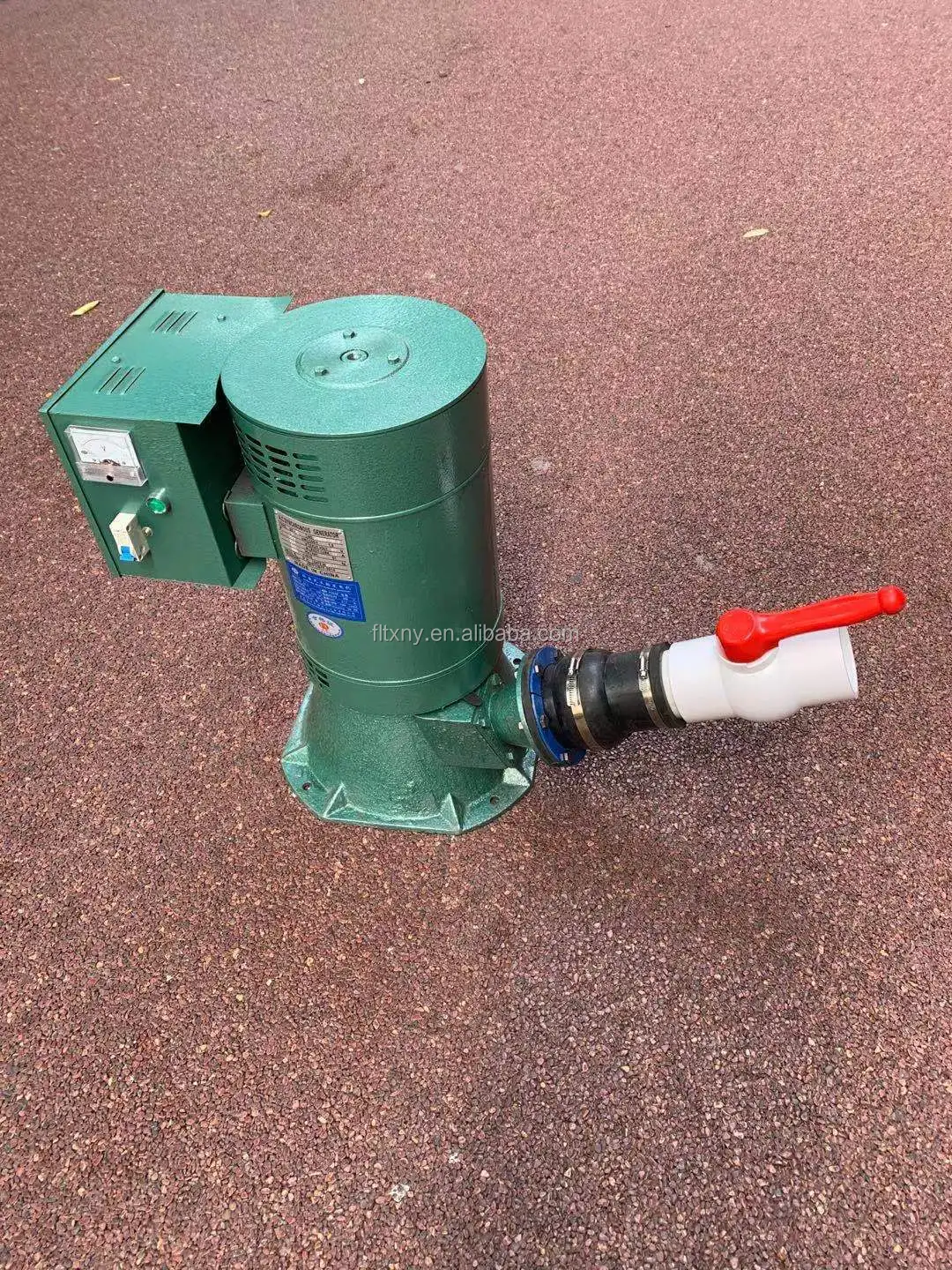

10kw water turbine generators hydro power generator water turbine
- Category: >>>
- Supplier: Wuxi Flyt New Energy Technology Co. Ltd.Wuxi Ltd.
Share on (1601201023468):
Product Overview
Description
1.With the best NdFeB Permanent Magnet, high-grade pure copper winding, the generator can product power stably and high
efficiently. 2. Specially-designed rotor and rotator, low resistancemoment in start-up, good at cooling 3. Gearless, direct
-drive, and low rare earth Permanent Magnet Generator, easy and safe for operating and maintainance. 4. Die casting alluminum
alloy case, anti- corrosion, acid and alkali resistant, anti salt corrosion Application: This unit can be used in remote areas for
temporary power. Customers have connected this unit to collapsible hose (fire hose) for temporary power while camping. Suitable
for household lighting, TV, electric furnace and other pure resistance household appliances NOT suitable for household appliances

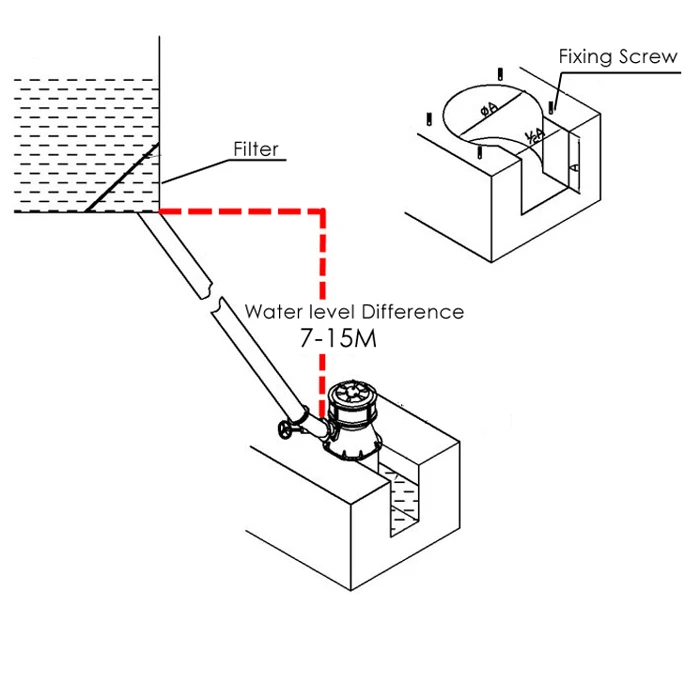

such as refrigerators, washing machines, pumps, etc. Installation Procedure: After the unit foundation be poured with concrete is
solidified, the unit is installed in place and then watered in sequence. The water level must be measured with a level gauge to
ensure that the unit is fixed in a horizontal position. The gap between the unit and the floor should be sealed with cement, and
no water seepage is allowed. After the unit is installed, check again and turn the turbine shaft of the turbine by hand. If the
machine is flexible, the installation is finished. Installation requirements: The bottom plane of the turbine in close contact
with the foundation plane. NOTE: 500w hydro generator only can be used with the following two conditions:. 1) The vertical Water
level difference between the unit foundation and the hydro generator must be in this range:7-15M 2) The water flow must can fully
fill the water tube that is above 7.5cm diameter all the time
efficiently. 2. Specially-designed rotor and rotator, low resistancemoment in start-up, good at cooling 3. Gearless, direct
-drive, and low rare earth Permanent Magnet Generator, easy and safe for operating and maintainance. 4. Die casting alluminum
alloy case, anti- corrosion, acid and alkali resistant, anti salt corrosion Application: This unit can be used in remote areas for
temporary power. Customers have connected this unit to collapsible hose (fire hose) for temporary power while camping. Suitable
for household lighting, TV, electric furnace and other pure resistance household appliances NOT suitable for household appliances
such as refrigerators, washing machines, pumps, etc. Installation Procedure: After the unit foundation be poured with concrete is
solidified, the unit is installed in place and then watered in sequence. The water level must be measured with a level gauge to
ensure that the unit is fixed in a horizontal position. The gap between the unit and the floor should be sealed with cement, and
no water seepage is allowed. After the unit is installed, check again and turn the turbine shaft of the turbine by hand. If the
machine is flexible, the installation is finished. Installation requirements: The bottom plane of the turbine in close contact
with the foundation plane. NOTE: 500w hydro generator only can be used with the following two conditions:. 1) The vertical Water
level difference between the unit foundation and the hydro generator must be in this range:7-15M 2) The water flow must can fully
fill the water tube that is above 7.5cm diameter all the time
Power | Water head | Flow Rate | Install pipe diameter | Install Water Head | Weight |
3.0kw | 15-70m | 0.003-0.015 m3/s | 50 mm | 40m | 80 kg |
10-60m | 0.005-0.017 m3/s | 65 mm | 30m | ||
10-50m | 0.008-0.025 m3/s | 80 mm | 20m | ||
5.0kw | 10-50m | 0.008-0.025 m3/s | 80 mm | 40m | 140 kg |
10-40m | 0.011-0.033 m3/s | 100 mm | 30m | ||
10-40m | 0.014-0.042 m3/s | 150 mm | 20m | ||
8.0kw | 10-70m | 0.008-0.025 m3/s | 80 mm | 60m | 150 kg |
10-70m | 0.011-0.033 m3/s | 100 mm | 45m | ||
10-70m | 0.014-0.045 m3/s | 150 mm | 30m | ||
10.0kw | 10-70m | 0.011-0.033 m3/s | 100 mm | 60m | 160 kg |
10-70m | 0.011-0.033 m3/s | 150 mm | 40m | ||
10-70m | 0.015-0.055 m3/s | 150 mm | 30m | ||
15kw | 10-100m | 0.015-0.055 m3/s | 150 mm | 50m | 200 kg |
10-100m | 0.025-0.11 m3/s | 200 mm | 30m | ||
20kw | 10-100m | 0.025-0.11 m3/s | 150 mm | 50m | 220 kg |
10-100m | 0.03-0.15 m3/s | 200 mm | 30m | ||
30kw | 10-100m | 0.025-0.11 m3/s | 200 mm | 50m | 240 kg |
10-100m | 0.03-0.15 m3/s | 250 mm | 30m |
ADVANTAGES OF OFF-GRID SOLAR SYSTEMS
1. NO ACCESS TO THE UTILITY GRID
Off-grid solar systems can be cheaper than extending power lines in certain remote areas.
Consider off-gird if you’re more than 100 yards from the grid. The costs of overhead transmission lines range from $174,000 per mile (for rural construction) to $11,000,000 per mile (for urban construction).
2. BECOME ENERGY SELF-SUFFICIENT
Living off the grid and being self-sufficient feels good. For some people, this feeling is worth more than saving money.
Energy self-sufficiency is also a form of security. Power failures on the utility grid do not affect off-grid wind systems.
On the flip side, batteries can only store a certain amount of energy, and during cloudy times, being connected to the grid is actually where the security is. You should install a backup generator to be prepared for these kinds of situations.
1. NO ACCESS TO THE UTILITY GRID
Off-grid solar systems can be cheaper than extending power lines in certain remote areas.
Consider off-gird if you’re more than 100 yards from the grid. The costs of overhead transmission lines range from $174,000 per mile (for rural construction) to $11,000,000 per mile (for urban construction).
2. BECOME ENERGY SELF-SUFFICIENT
Living off the grid and being self-sufficient feels good. For some people, this feeling is worth more than saving money.
Energy self-sufficiency is also a form of security. Power failures on the utility grid do not affect off-grid wind systems.
On the flip side, batteries can only store a certain amount of energy, and during cloudy times, being connected to the grid is actually where the security is. You should install a backup generator to be prepared for these kinds of situations.
10kw water turbine generators hydro power generator water turbine
Characteristics:
1.Turbine and generator are separated, which is more easy to maintain;
2.Unlike vertical turbine, this turbine is horizontal. The turgo turbine is water lubricated, while the radial turbine has a
separate oil lubrication system ensuring a more reliable system. The turbine has 2 bearings, generator has 2 bearing, which is
more reliable.
3.The axial force is well balanced by axial force balancing device, therefore it is more reliable.
4.The automatic voltage rectifier is installed within induction generator, the voltage and frequency is more stable than permanent
magnetic generator.
Characteristics:
1.Turbine and generator are separated, which is more easy to maintain;
2.Unlike vertical turbine, this turbine is horizontal. The turgo turbine is water lubricated, while the radial turbine has a
separate oil lubrication system ensuring a more reliable system. The turbine has 2 bearings, generator has 2 bearing, which is
more reliable.
3.The axial force is well balanced by axial force balancing device, therefore it is more reliable.
4.The automatic voltage rectifier is installed within induction generator, the voltage and frequency is more stable than permanent
magnetic generator.
500W
600w
800w,1000w,1500w,2000w,3000w,4000w
5000w-40kw
The shipping method and costs are not the best for all countries, please contact us to check the best shipping way to your address and we will try to give you the biggest discount.
1,Competitive Price
--We are the factory/manufacturer so we can control production costs and then sell at the lowest price.
2,Controllable quality
--All products will be produced in our factory so we can show you every detail of the production and let you check the quality of the order.
3. Multiple payment methods
-- We accept online Alipay, bank transfer,Paypal ,LC, Western union etc.
4,Various forms of cooperation
--We are not only offer you our products, if it is needed, we could be your partner and design product according to your requirement. Our factory is your factory!
5.perfect after-sales service
--As a manufacturer of wind turbine and generator products for over 4 years,we are very experiences to dealing all kinds of problems. So whatever happens,we will solve it at the first time.
