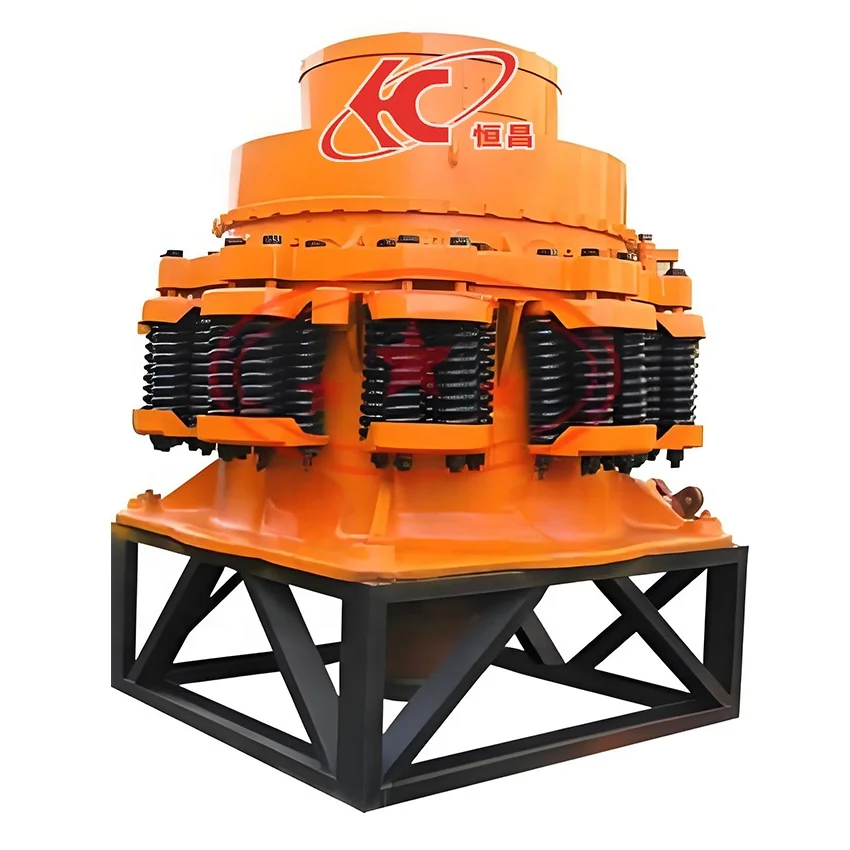

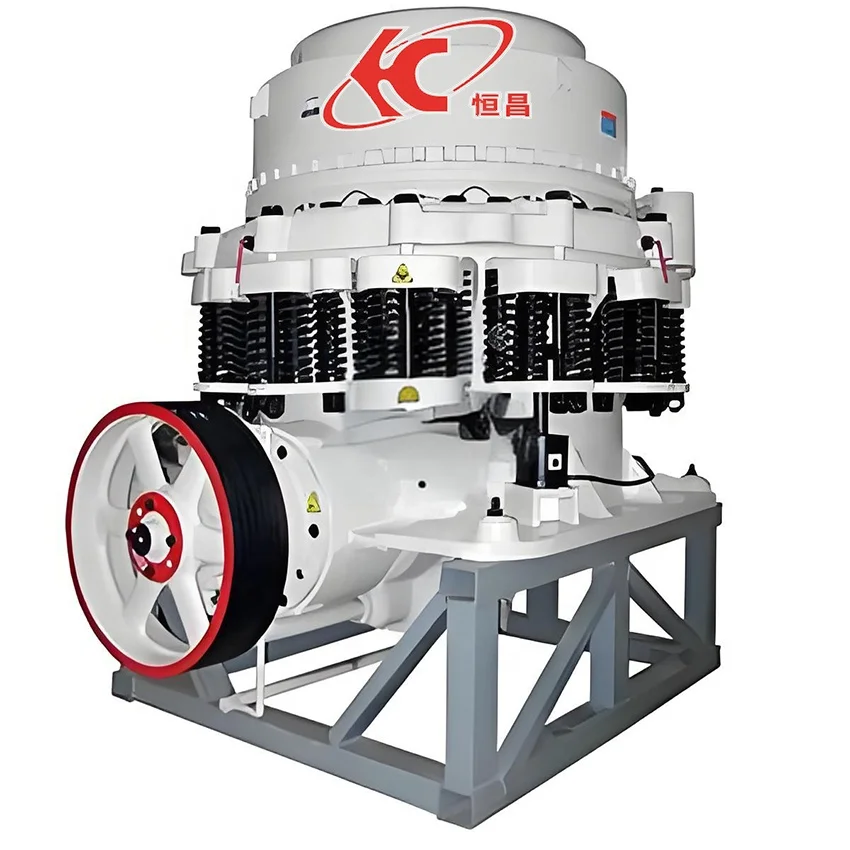

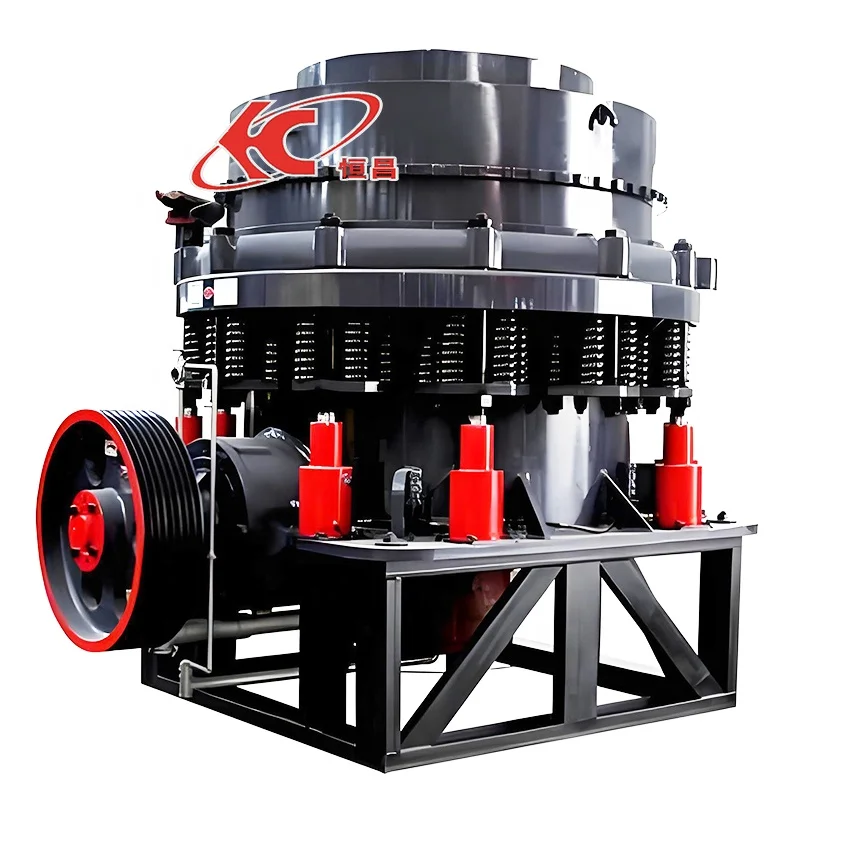

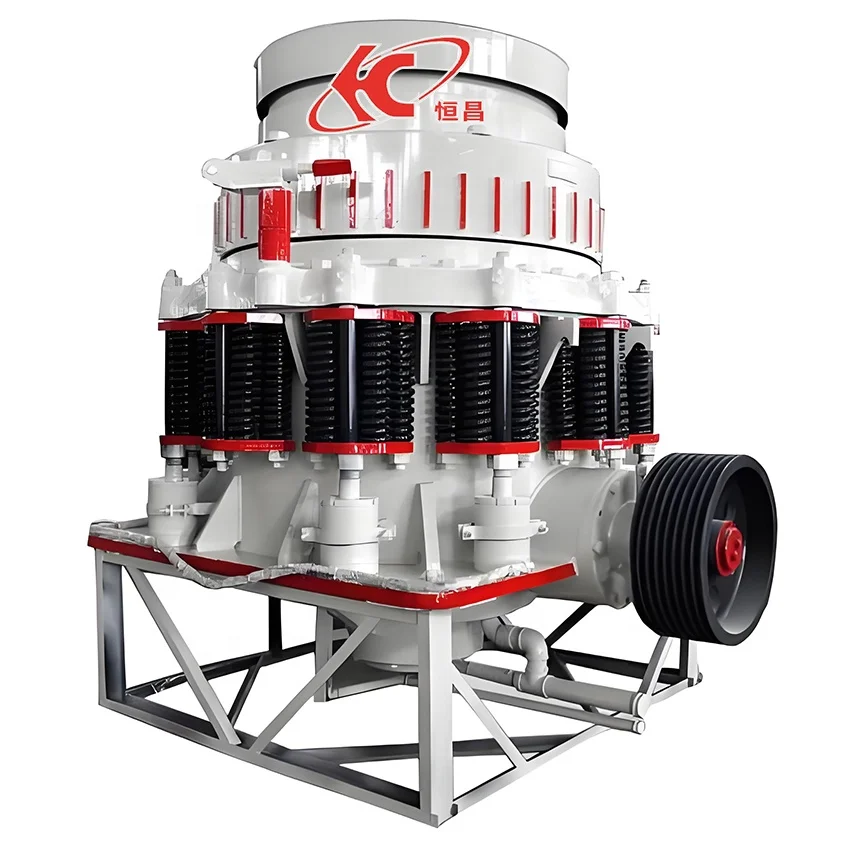

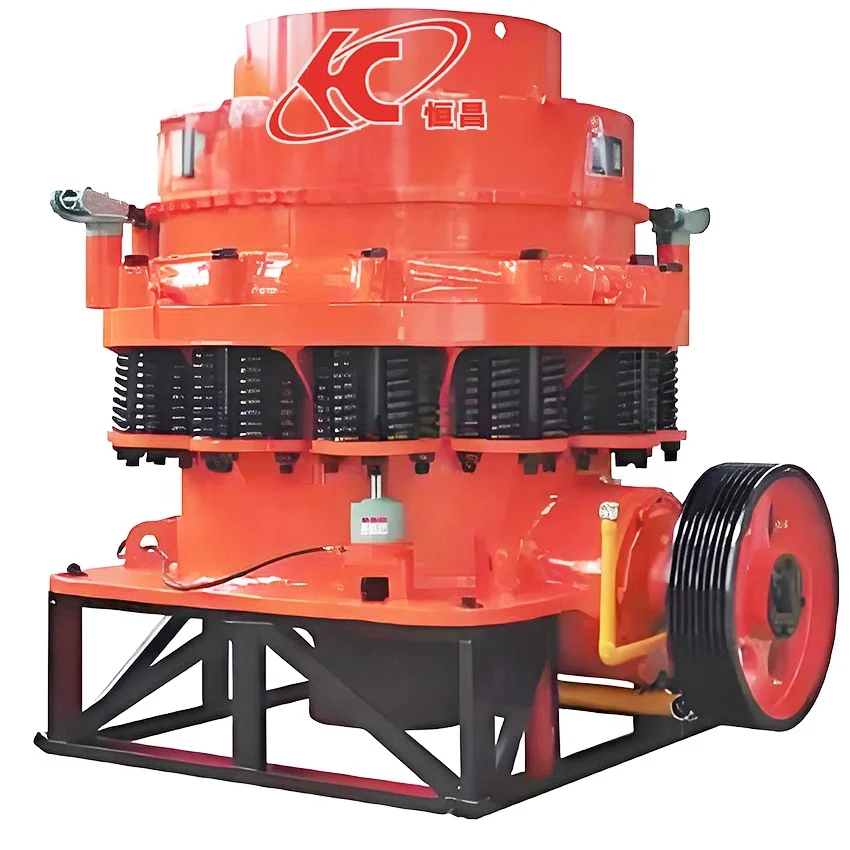

high performance asphalt limestone granite pebble spring cone crusher machine price
- Category: >>>
- Supplier: Gongyi Hengchang Metallurgical Building Material Equipments Plant
Share on (1601201036405):
Product Overview
Description
Product Description
China good price 30-50tph crushing machine granite riverstone basalt stone quarry rock ore mini cone crusher machine

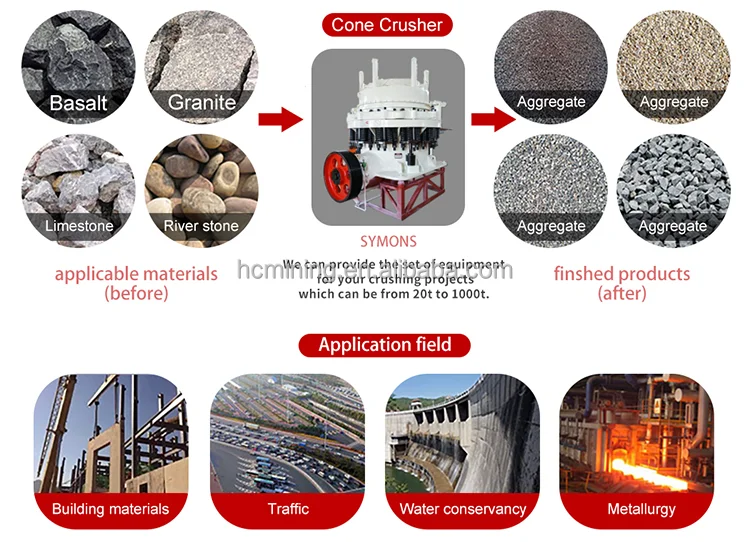

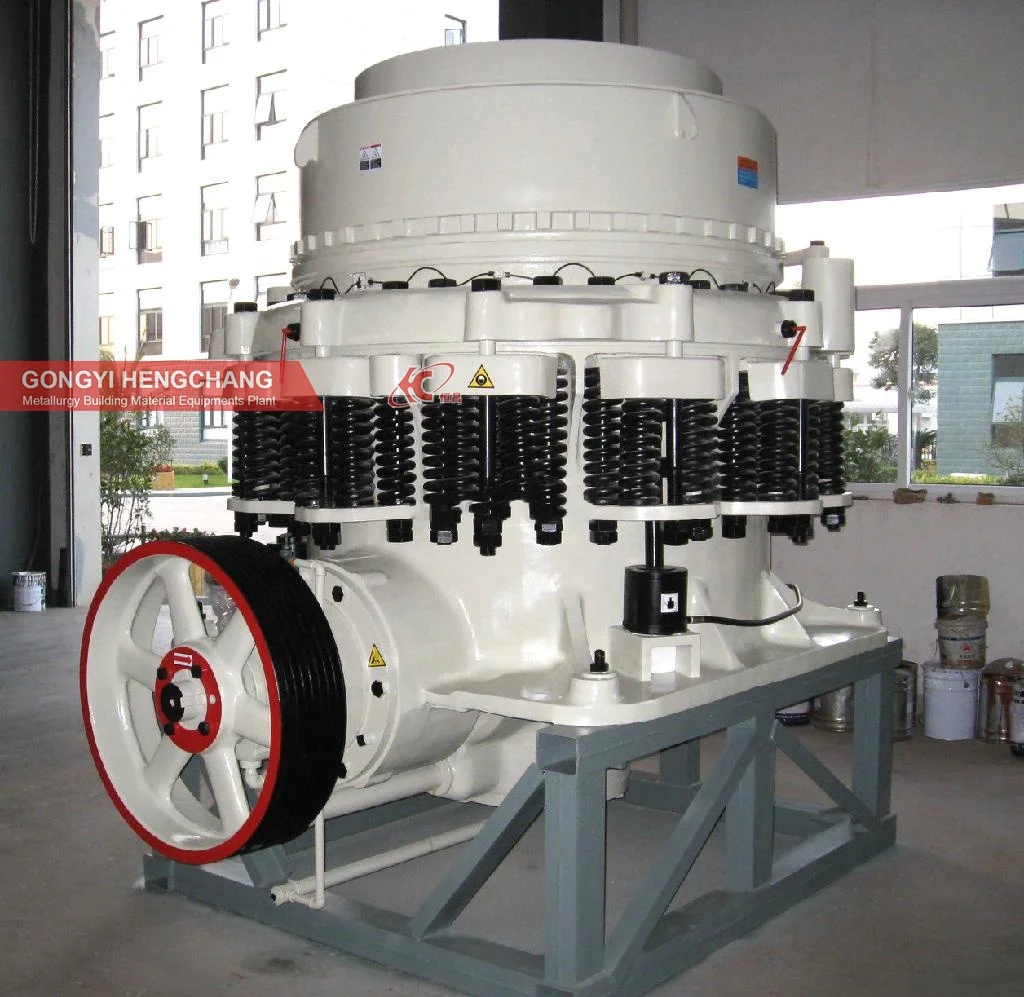

Spring cone crusher can crush materials of above medium hardness, such as iron ores, copper ores, limestone, quartz, granite,gritstone, etc.

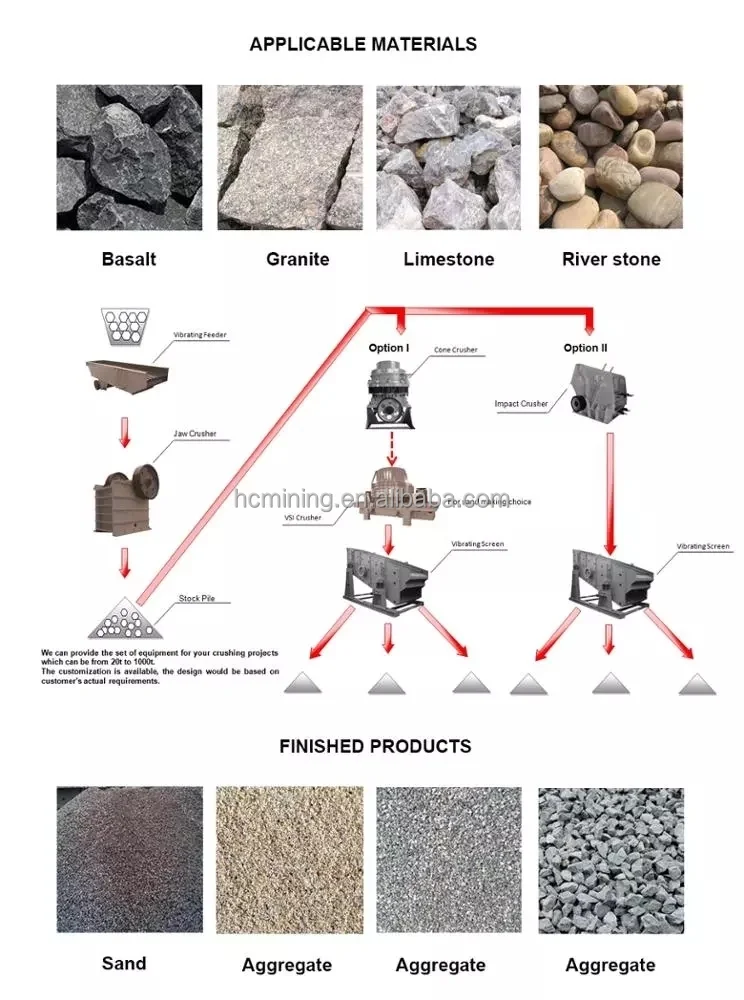

And it is widely used in metallurgy, building, hydropower, transportation, chemical industry, etc. When used in production line, it can be used as secondary, tertiary or quaternary crushing.
Product Application
Tips : How to choose a suitable crusher ? Please provide me below informations :
1.Capacity : How many tons production per hour ?
1.Capacity : How many tons production per hour ?
2.Material : What's the stone you want to crusher and what's the max size ?
3.Final products : What is the size of the final products and how many types size range ? 0-10,10-20,20-30mm?
4.Othe equipment : What's other equipment you want ? Vibrating feeder ,Conveyors , Vibrating screen ?
3.Final products : What is the size of the final products and how many types size range ? 0-10,10-20,20-30mm?
4.Othe equipment : What's other equipment you want ? Vibrating feeder ,Conveyors , Vibrating screen ?
Not find same as you want ? Please Click here !
Technology Introduction

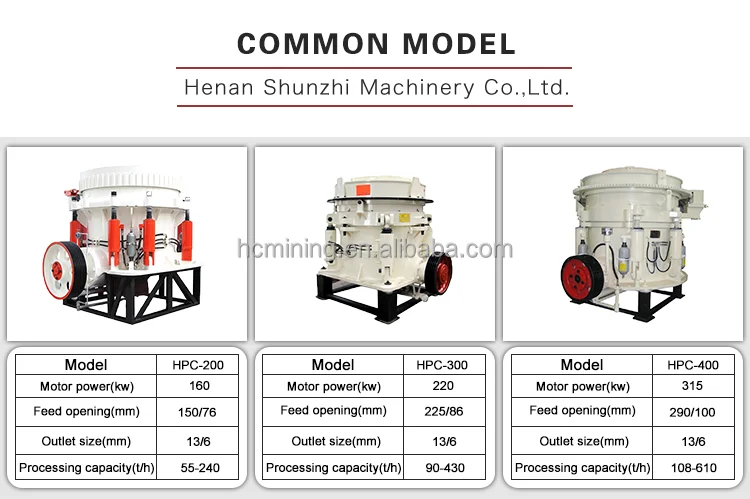

Type | Cavity (coarse/fine) | Close Side feed opening(mm) | Min CSS (mm) | Capacity (tPh) | Power KW(HP) |
HPC300 | C1 Extra Coarse | 230 | 25 | 220-440 | 250(350) |
C2 Coarse | 210 | 20 | 190-380 | ||
M Medium | 150 | 16 | 175-320 | ||
F1 Fine | 105 | 13 | 110-260 | ||
F2 Extra Fine | 80 | 10 | 100-240 | ||
HPC500 | C1 Extra Coarse | 330 | 38 | 425-790 | 400(500) |
C2 Coarse | 290 | 30 | 380-700 | ||
M Medium | 210 | 22 | 330-605 | ||
F1 Fine | 130 | 16 | 270-535 | ||
F2 Extra Fine | 95 | 13 | 200-430 | ||
HPC800 | C1 Extra Coarse | 350 | 38 | 545-1200 | 630(850) |
C2 Coarse | 300 | 32 | 495-1050 | ||
M Medium | 265 | 25 | 470-950 | ||
F1 Fine | 220 | 17 | 385-730 | ||
F2 Extra Fine | 150 | 14 | 310-600 | ||
F3 Extra Fine | 90 | 10 | 260-550 |

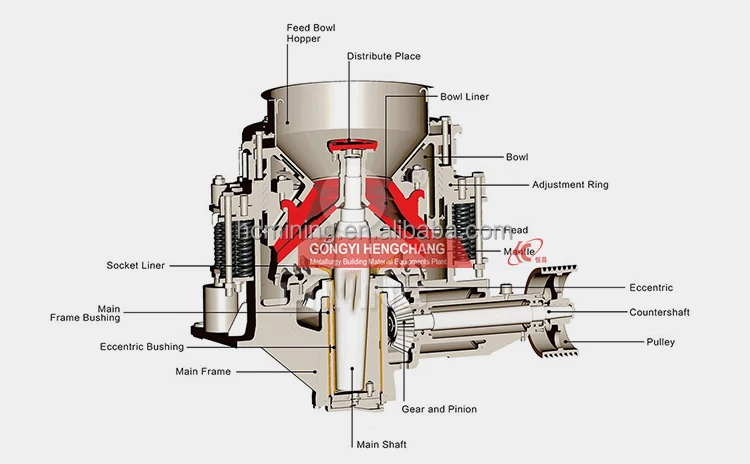

Working Principle
In the working process of the cone crusher, the motor drives the eccentric sleeve to rotate through the drive, and the moving cone is rotating and swinging under the forced motion of the eccentric shaft. The moving cone is close to the section of the static cone and becomes the crushing chamber. The material is broken by the multiple extrusion and impact of the moving cone and the static cone. When the moving cone is away from the section, it has been crushed to the required size, and the material is falling under its own gravity and discharged from the cone bottom.
Company Profile

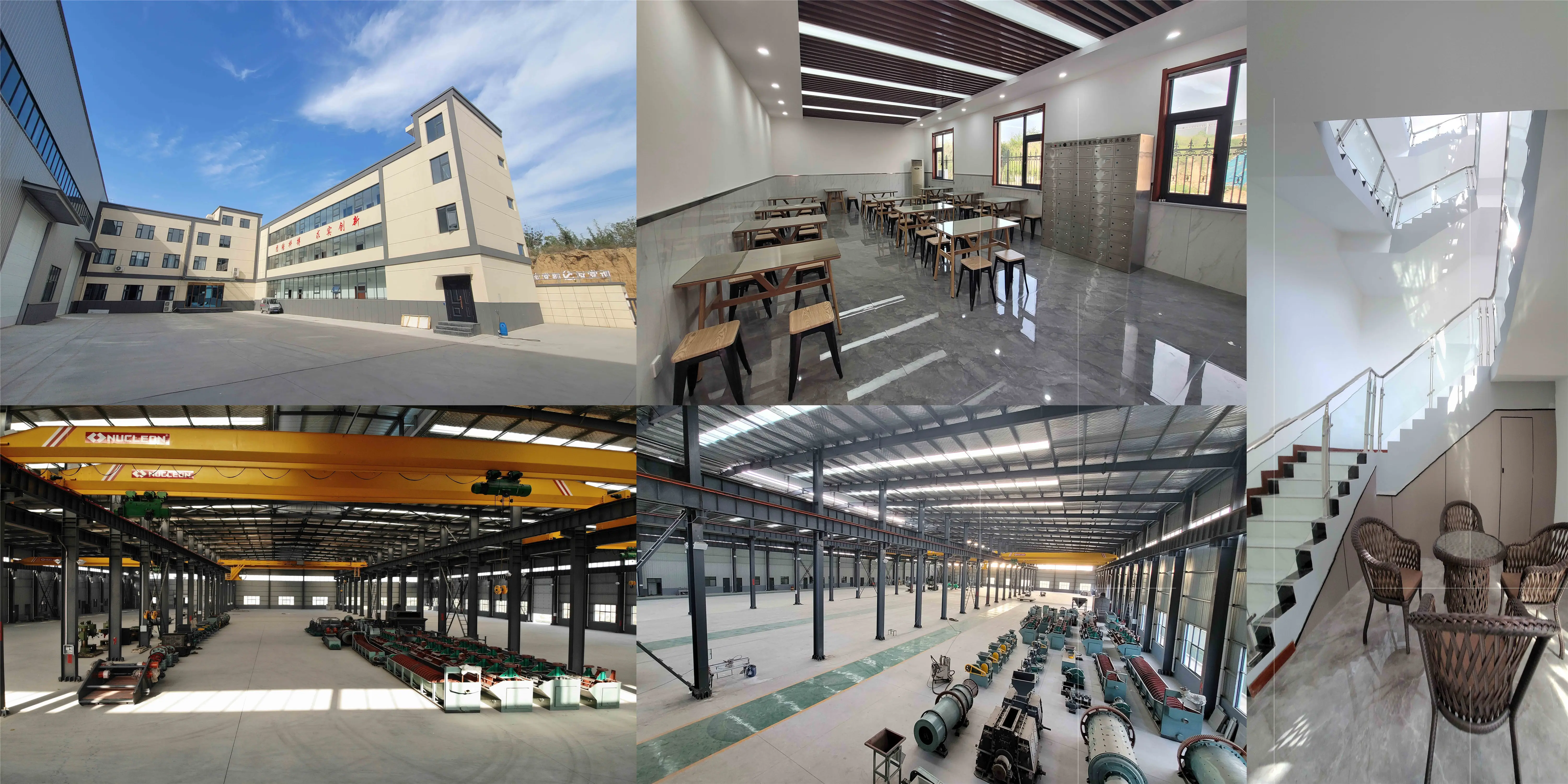

Hengchang headquarters is located in the industrial park in Gongyi City. It covers a total area of 150,000 square meters,including 100,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing
lathe, riveting machine, welding equipment and assembly equipment. We have more than 300 workers, including more than 20 middle and senior technicians. Hengchang is mainly focus on 4 series products: stone crusher machines, sand making equipment,powder
grinding mills, mineral processing equipment and their spare parts. Every year, Hengchang can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
lathe, riveting machine, welding equipment and assembly equipment. We have more than 300 workers, including more than 20 middle and senior technicians. Hengchang is mainly focus on 4 series products: stone crusher machines, sand making equipment,powder
grinding mills, mineral processing equipment and their spare parts. Every year, Hengchang can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
Customer Visit & Our Service
(A) Pre-sale services: Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their
investments. 1. Select equipment model; 2. Design and manufacture products according to clients' special requirement; 3. Train
technical personnel for clients; 4. Services during the sale;
investments. 1. Select equipment model; 2. Design and manufacture products according to clients' special requirement; 3. Train
technical personnel for clients; 4. Services during the sale;
(B)Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate
the troubles rapidly;
the troubles rapidly;
6.Provide perfect service;
7.Provide technical exchanges...
(C).After-sale services:Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate
the troubles rapidly;
6.Provide perfect service;
7.Provide technical exchanges..
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate
the troubles rapidly;
6.Provide perfect service;
7.Provide technical exchanges..

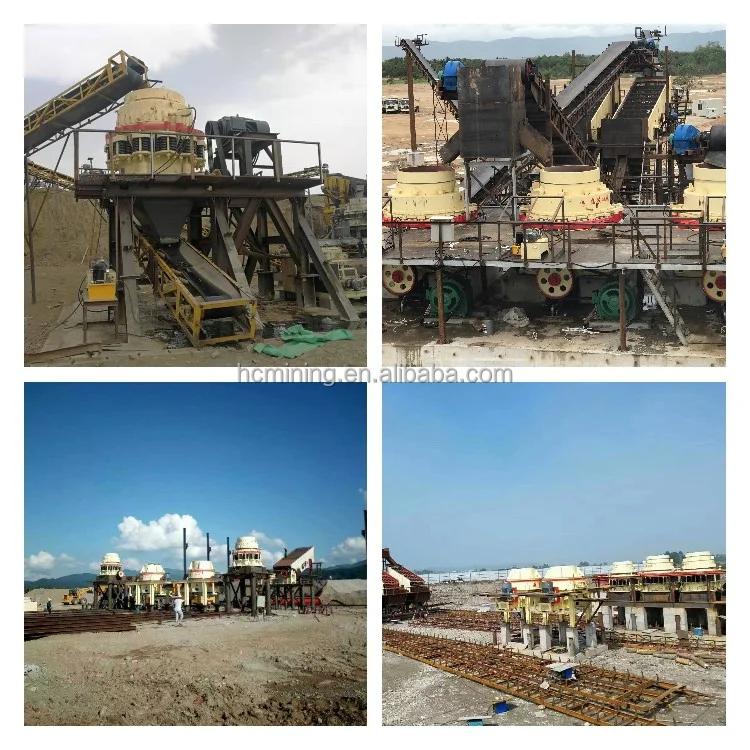

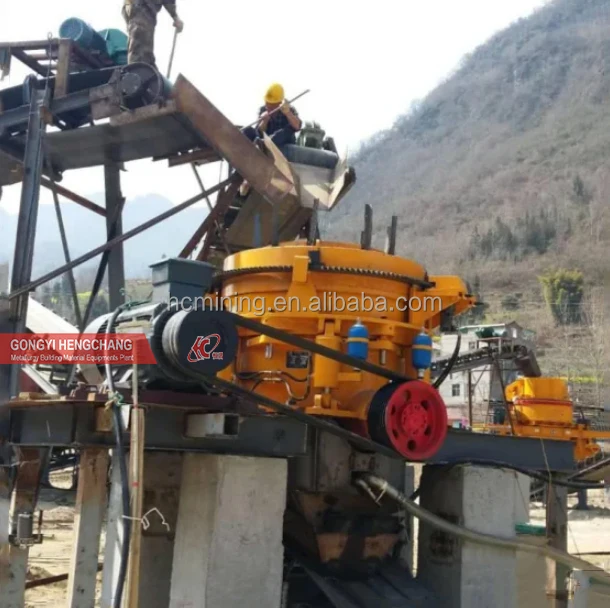

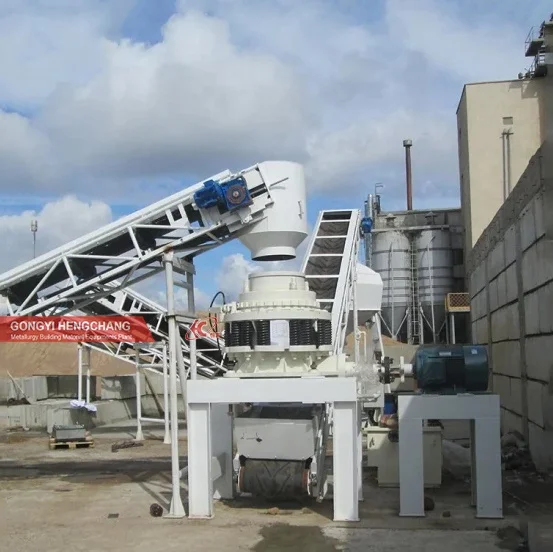

The Customer Site
Our machine has been sold to Germany, Australia, Japan, Mexico, Philippines, Indonesia, Russia, Uganda, Uzbekistan, Zimbabwe, etc. and our products are well received by customers. Welcome to inquiry!

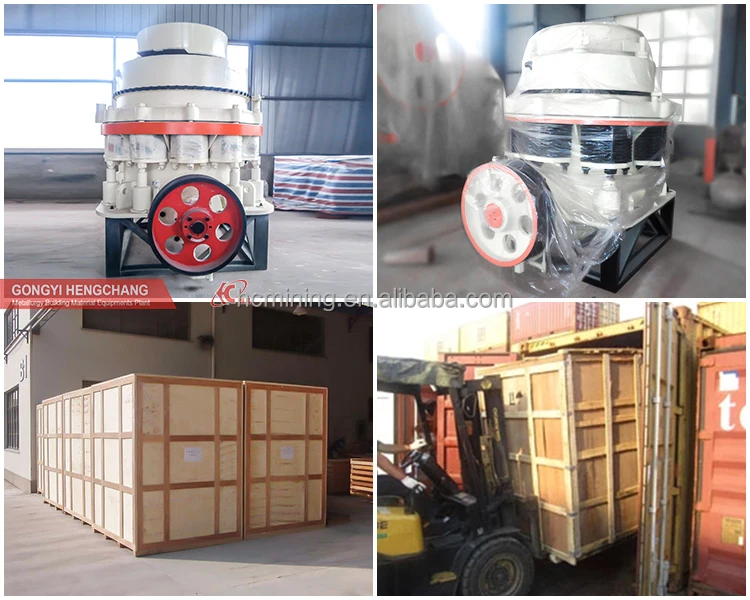

Packing and delivery
Packaging Details:We will make different packaging according to different machine sizes standard international export packing,container, wooden box.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
FAQ
Q: If I don't know how to operate this machine? How can I do?
A: Our machine has been tested OK and fully assembled before shipping, customer just needs to make2~4 hours wear-in and then can work.
Q: What can I get the price?
A: We usually quote within 2 hours after we get your inquiry . If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
Q :How can I get the sample to check your quality?
A :After price confirmation, you can require for samples to check our product’s quality.
Q :What is your term of delivery?
A :We accept EXW, FOB Qingdao. You can choose the one which is the most convenient or cost effective for you.
Best quality vegetable spiral type oil press/ vegetable seeds edible oil presses.
Q: Can I be a distributor of Hengchang ?
A: Of course you can.
A: Our machine has been tested OK and fully assembled before shipping, customer just needs to make2~4 hours wear-in and then can work.
Q: What can I get the price?
A: We usually quote within 2 hours after we get your inquiry . If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
Q :How can I get the sample to check your quality?
A :After price confirmation, you can require for samples to check our product’s quality.
Q :What is your term of delivery?
A :We accept EXW, FOB Qingdao. You can choose the one which is the most convenient or cost effective for you.
Best quality vegetable spiral type oil press/ vegetable seeds edible oil presses.
Q: Can I be a distributor of Hengchang ?
A: Of course you can.
