Product Overview
Description

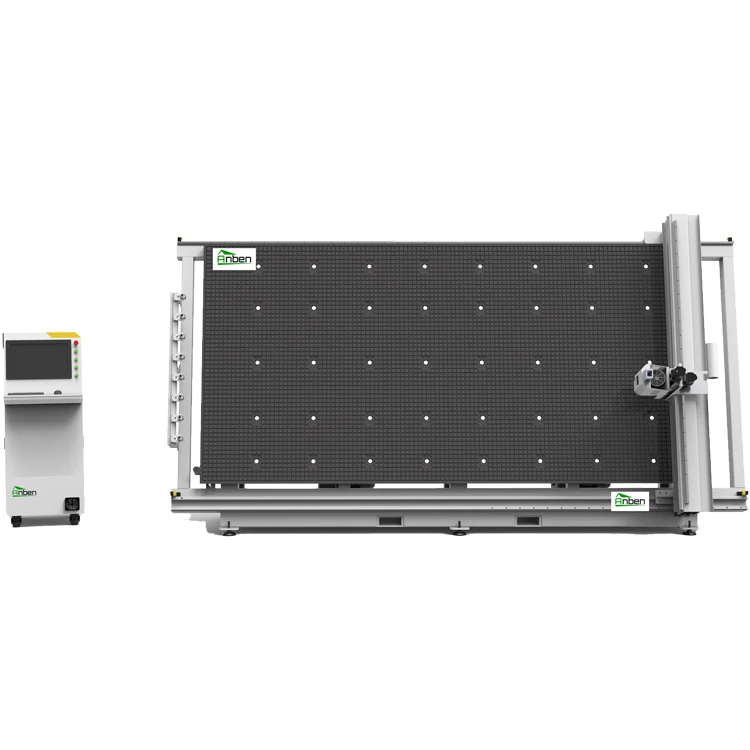

Vertical cnc router for long size ACP aluminium composite panel 2100*4200mm and 2100*6200mm.
Parameters
| Description | Parameter |
| Working area(X*Y*Z) | 2100*4200*200mm |
| Cutting accuracy | ±0.03/1000mm |

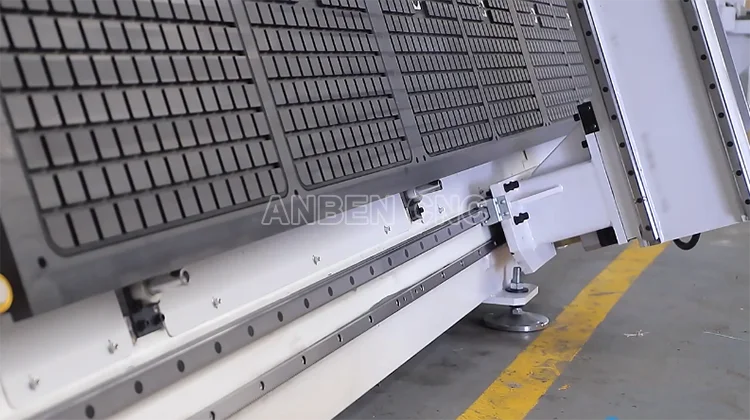

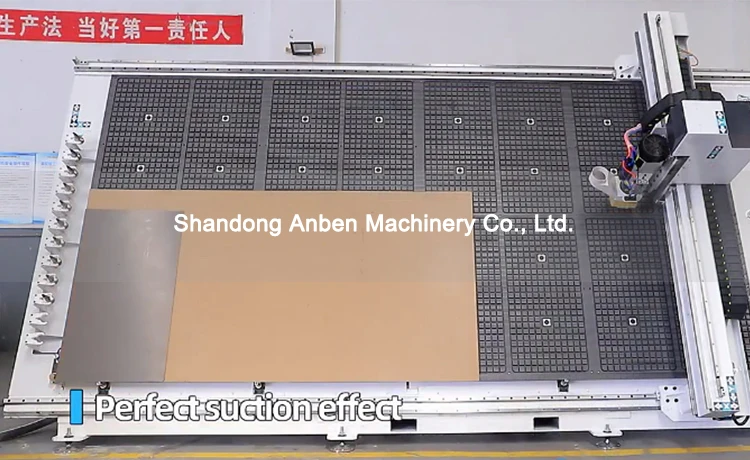

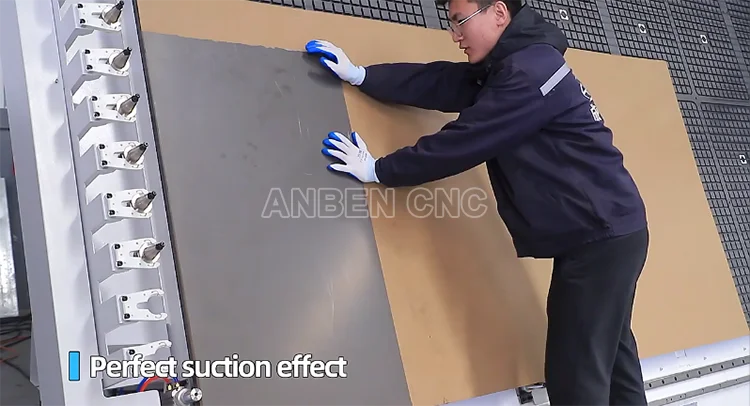

| Table Surface | Vacuum adsorption table |
| Material positioning method | Repeat positioning by positioning the cylinder. |
| Frame | Heavy-duty Industrial class square tube strong structure |
| X, Y Structure | Rack and Pinion Drive, Germany ASK #25 Rail Linear Bearings |
| Max. Rapid Travel Rate | 50000mm/min |
| Max. Working Speed | 30000mm/min |
| Z Structure | Taiwan Ball Screw |

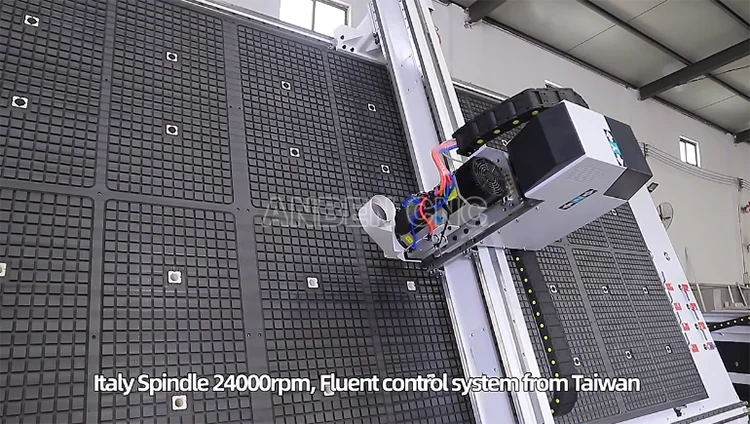

| Spindle Power | Italy HSD 9KW air cooling spindle |

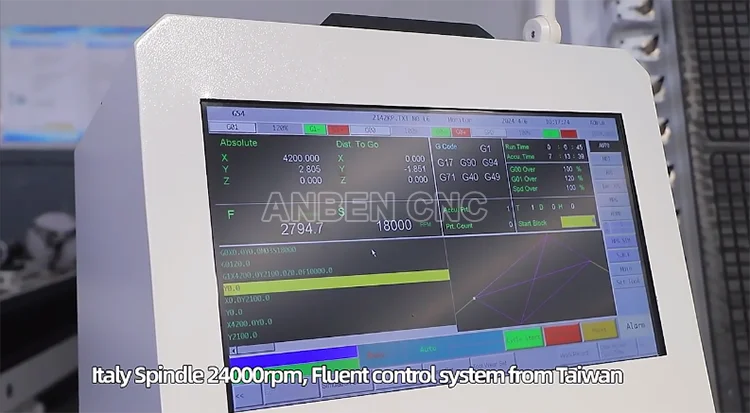

| Operating System | Taiwan SYNTEC 60W-E control System |
| Drive Motors | Japan Yaskawa Drive and yaskawa 850W servo motors |
| VFD | 11KW Delta VFD |
| Spindle Speed | 0-24000RPM |
| Working Voltage | AC380V, 50Hz,3PH (Option: 220V) |
| Command Language | G Code |
| Control box | Place the computer's big control box |
| Collet | ER25 |
| Software Compatibility | Art cam/Power millTyep 3 |
| Lubrication system | Automatic lubrication system |

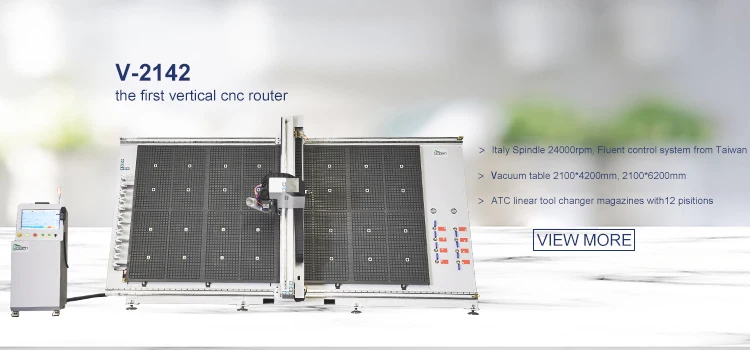

New product V-2142
Popular Products
Application
1. Mold: wood,wax, wood, gypsum,foams,wax.
2. Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3. The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4.Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper engraving and milling process.
