UVC LED Chip 6565 275nm 10 15V Ceramic Substrate UVC LED Chip Sterilization
UVC LED Chip 6565 275nm 10-15V Ceramic Substrate UVC LED Chip Sterilization
UVC LED Chip 6565 275nm 10-15V Ceramic Substrate UVC LED Chip Sterilization
UVC LED Chip 6565 275nm 10-15V Ceramic Substrate UVC LED Chip Sterilization
UVC LED Chip 6565 275nm 10-15V Ceramic Substrate UVC LED Chip Sterilization
UVC LED Chip 6565 275nm 10-15V Ceramic Substrate UVC LED Chip Sterilization
UVC LED Chip 6565 275nm 10-15V Ceramic Substrate UVC LED Chip Sterilization

UVC LED Chip 6565 275nm 10 15V Ceramic Substrate UVC LED Chip Sterilization

Share on (1601201043550):


Price:$4.00 - $5.00

Quantity:


Product Overview

Description



Details Images




Specification


Type
UVC SMD LED
Model
ZL-6565N2U06-275
Description
SMD6565 UVC LED
Origin
Guangdong, China
Brand Name
ZL
Dominant Wavelength
270 - 280nm

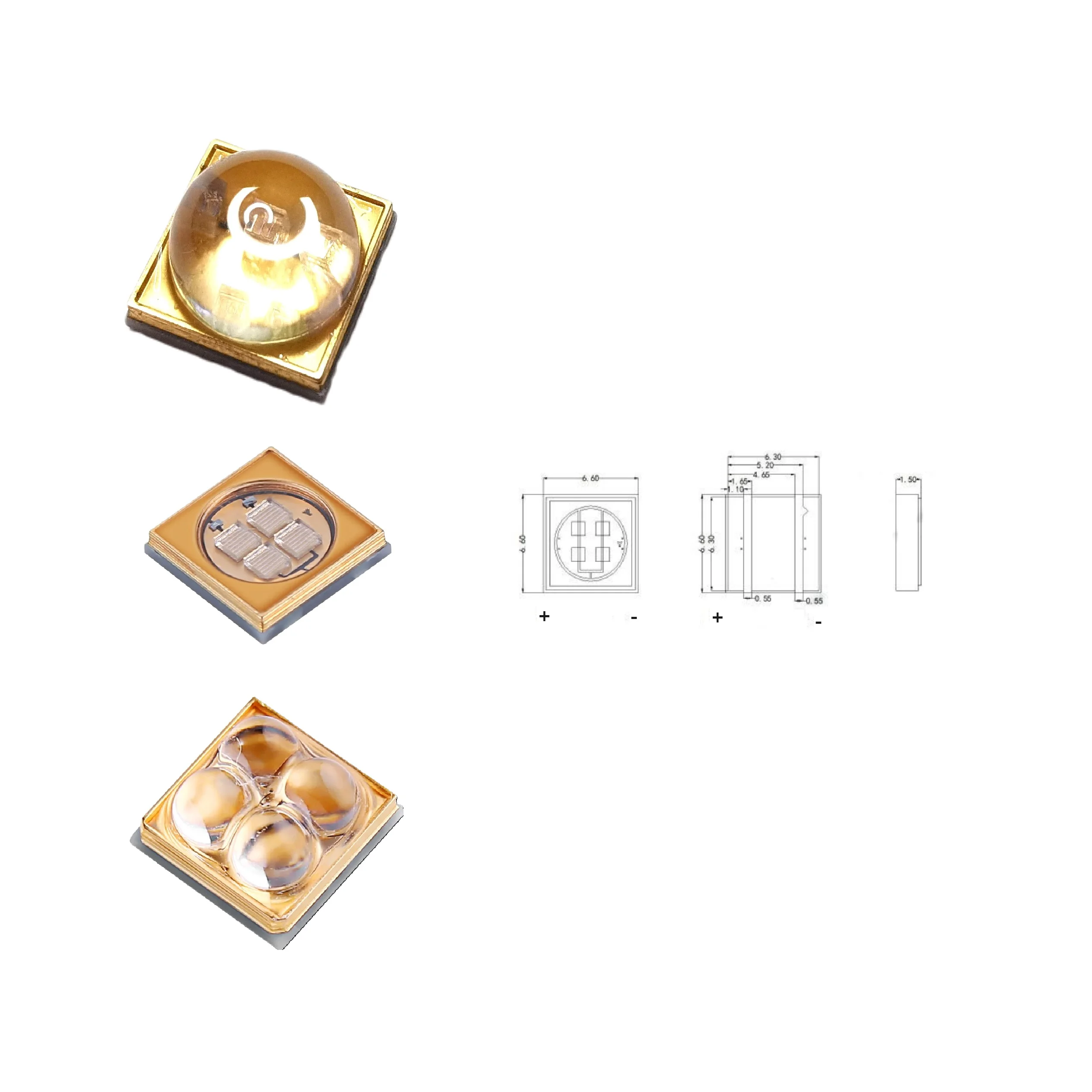

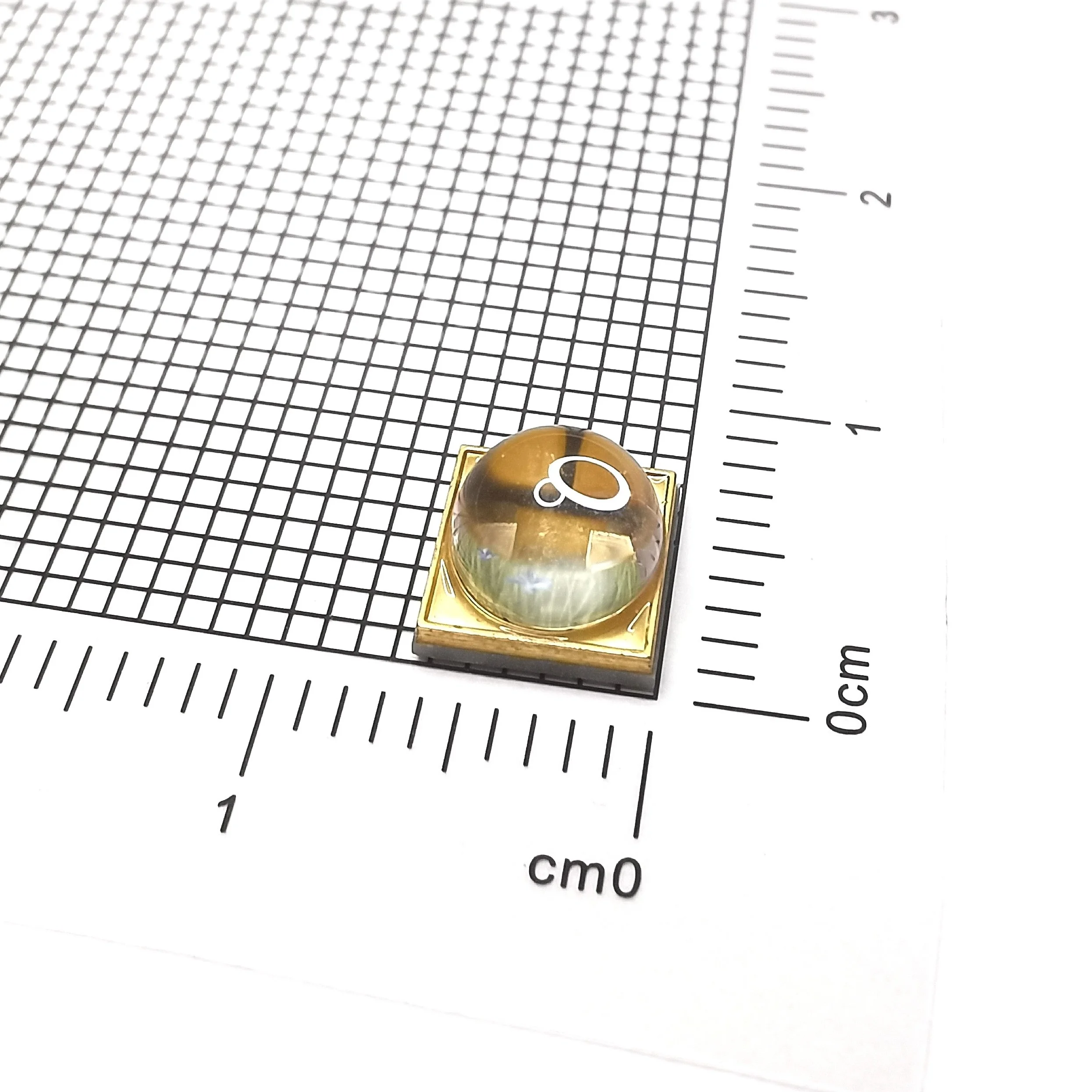

Encapsulation Size
 6.50*6.50*4.5mm
Encapsulation
Ceramic Substrate
Forward Voltage
10 ~ 15V
Peak Forward Current
240 ~ 300mA
Optical Power
60 ~ 80mW
Operating Temperature Range
 -20℃ to +80℃
Storage Temperature Range
 -40℃ to +100℃
 Lead Soldering Temperature
260℃
View Angle
60 deg
Customization
Available
Application
Sterilization，Purifier
Packaging Details
1000pcs/bag, ESD bag, Carton box
