Milk Pasteuriser/Small Milk Processing Line/Milk Pasteurizer and Homogenizer
$1,280.00-1,500.00

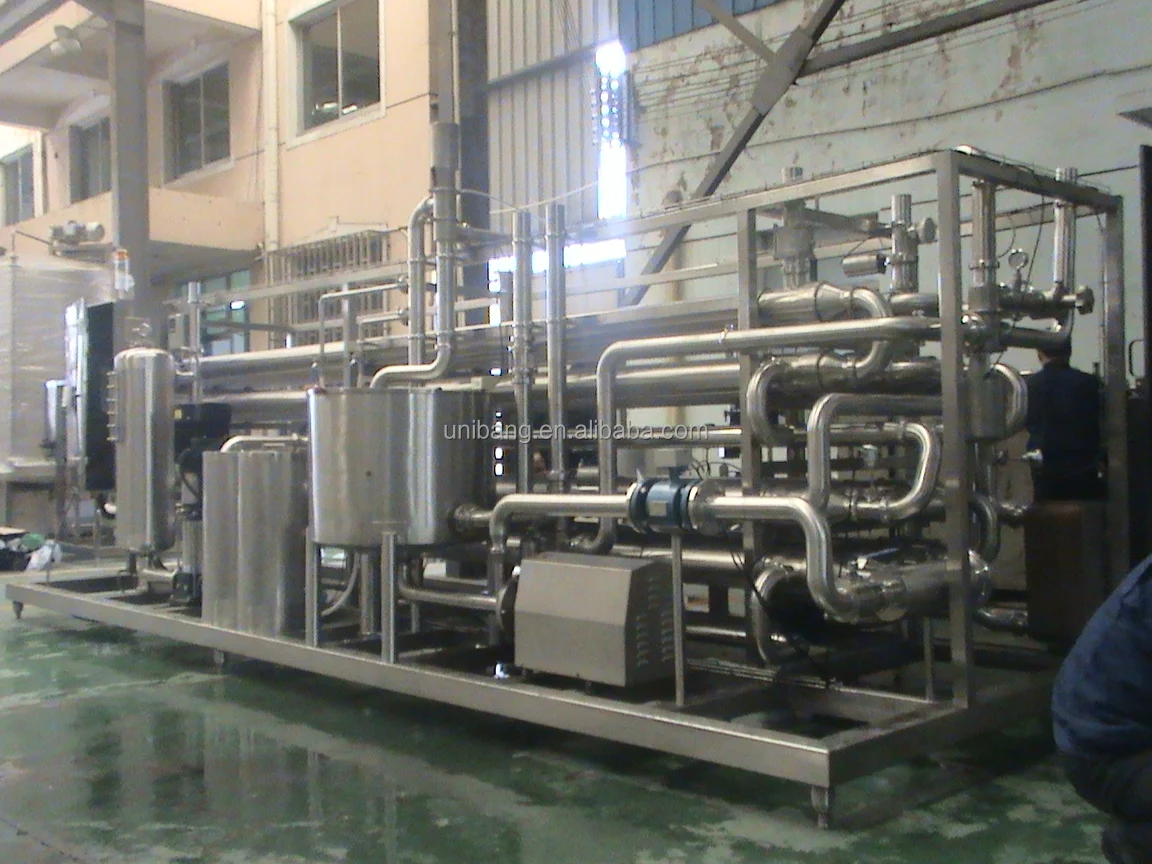

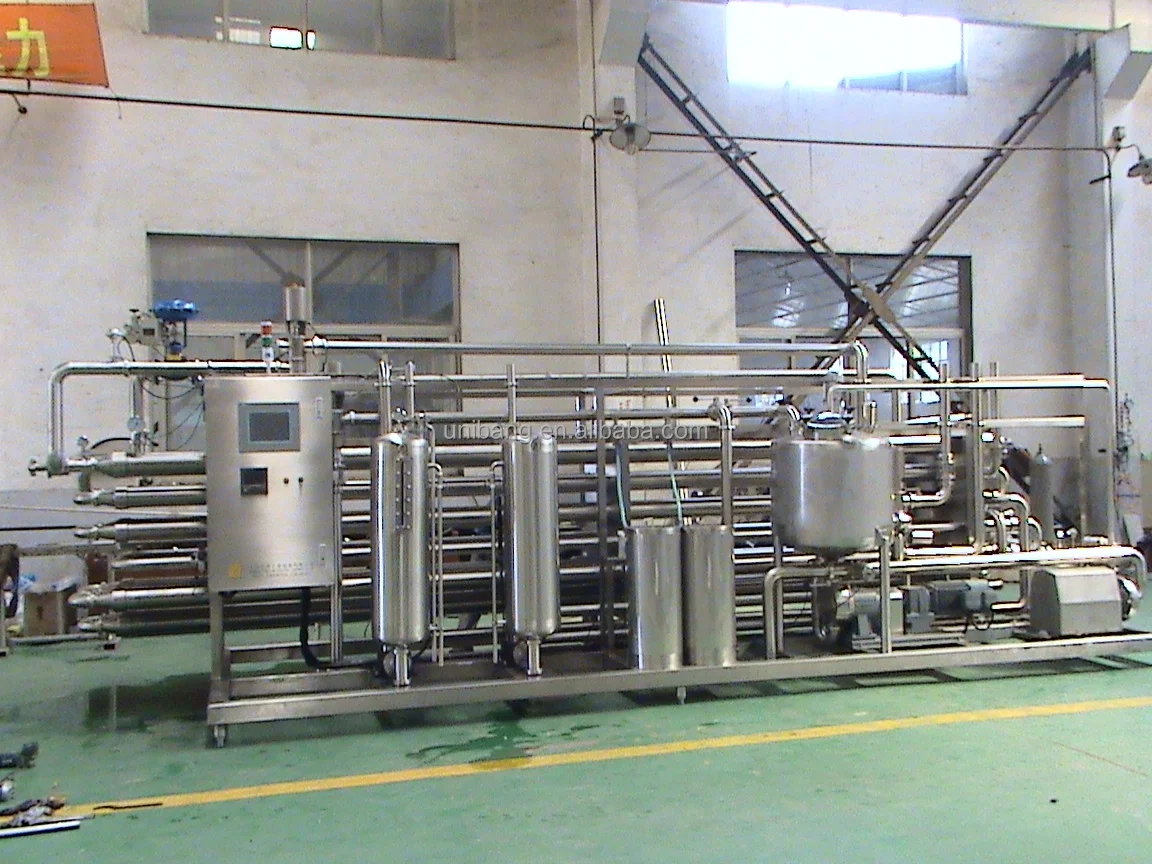

Tubular Pasteurizer 1000L Milk Production Line Milk Processing Plant 2000L UHT sterilizer beverage Pasteurisation for Cider
- Category: >>>
- Supplier: Shanghai Unibang International Trading Co. Ltd.
Share on (1601201047388):
Product Overview
Description
Product Description

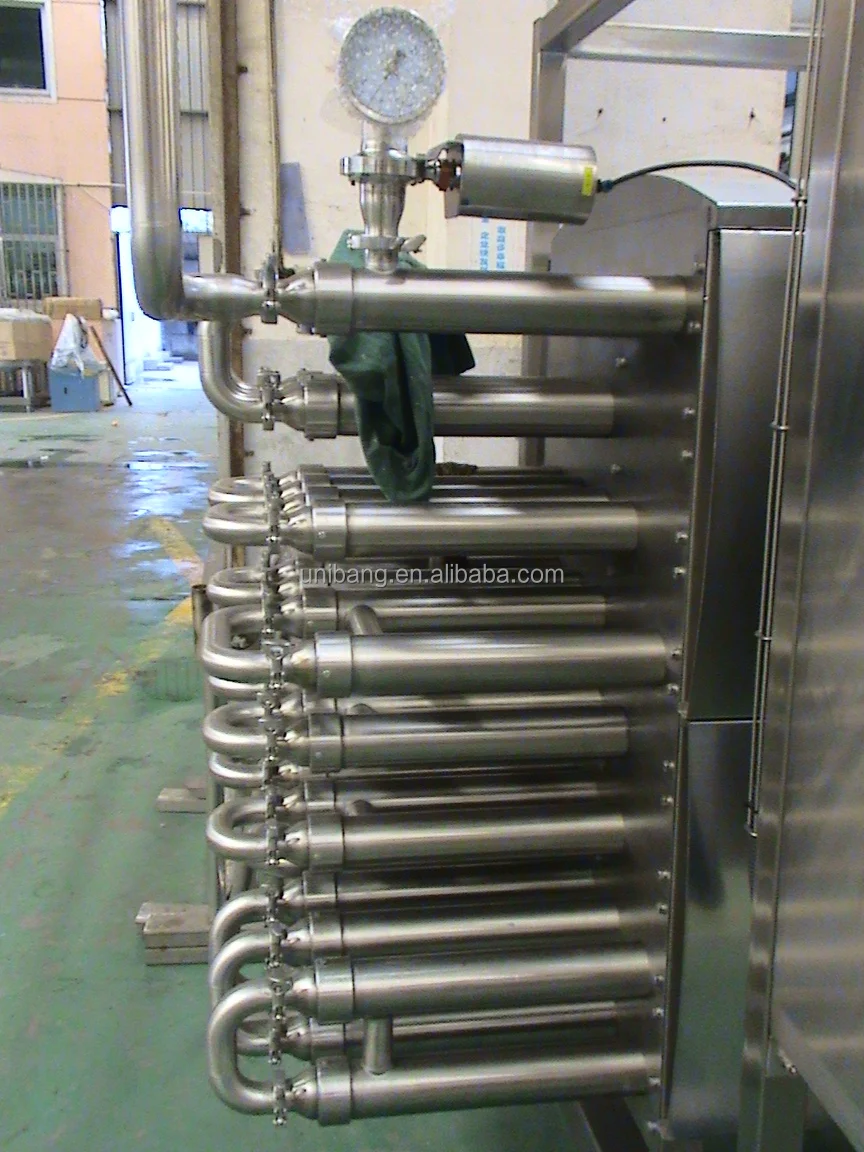

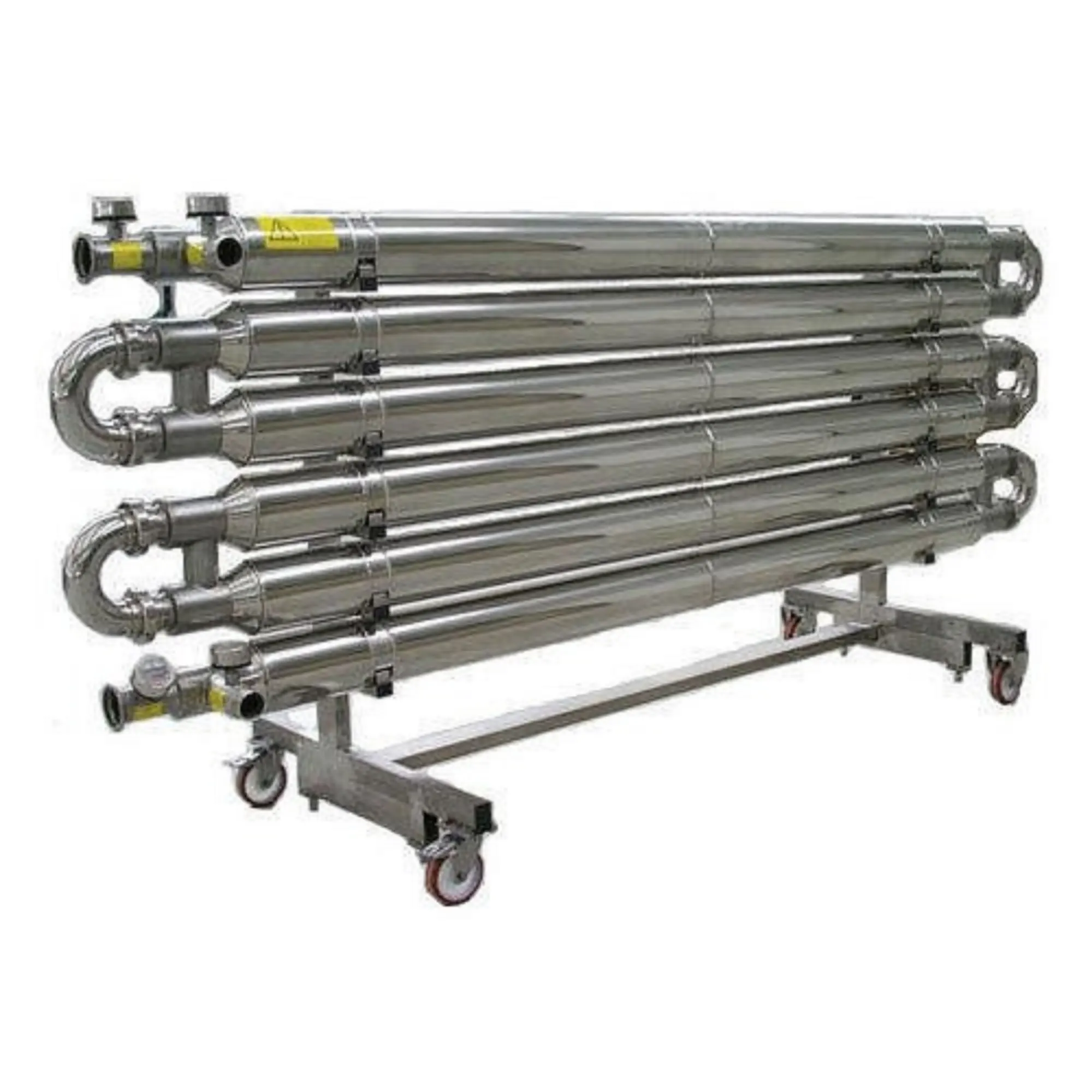

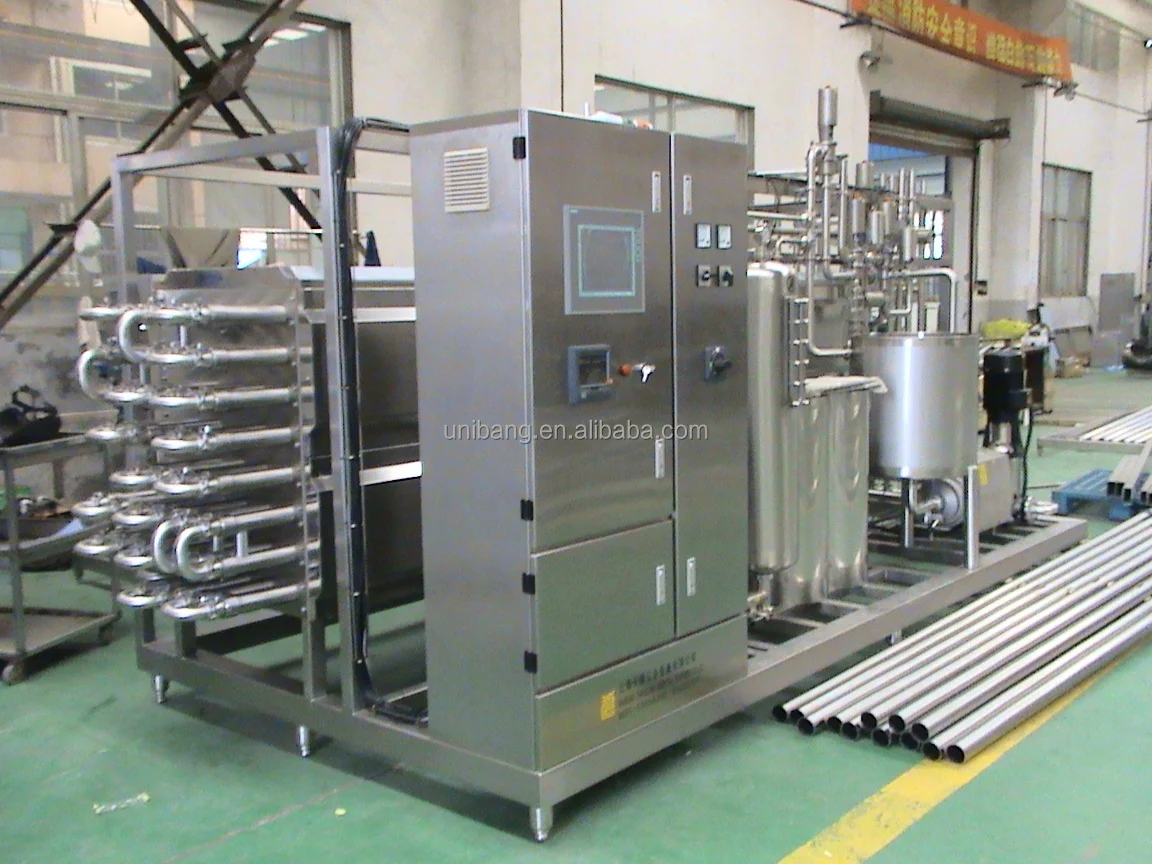

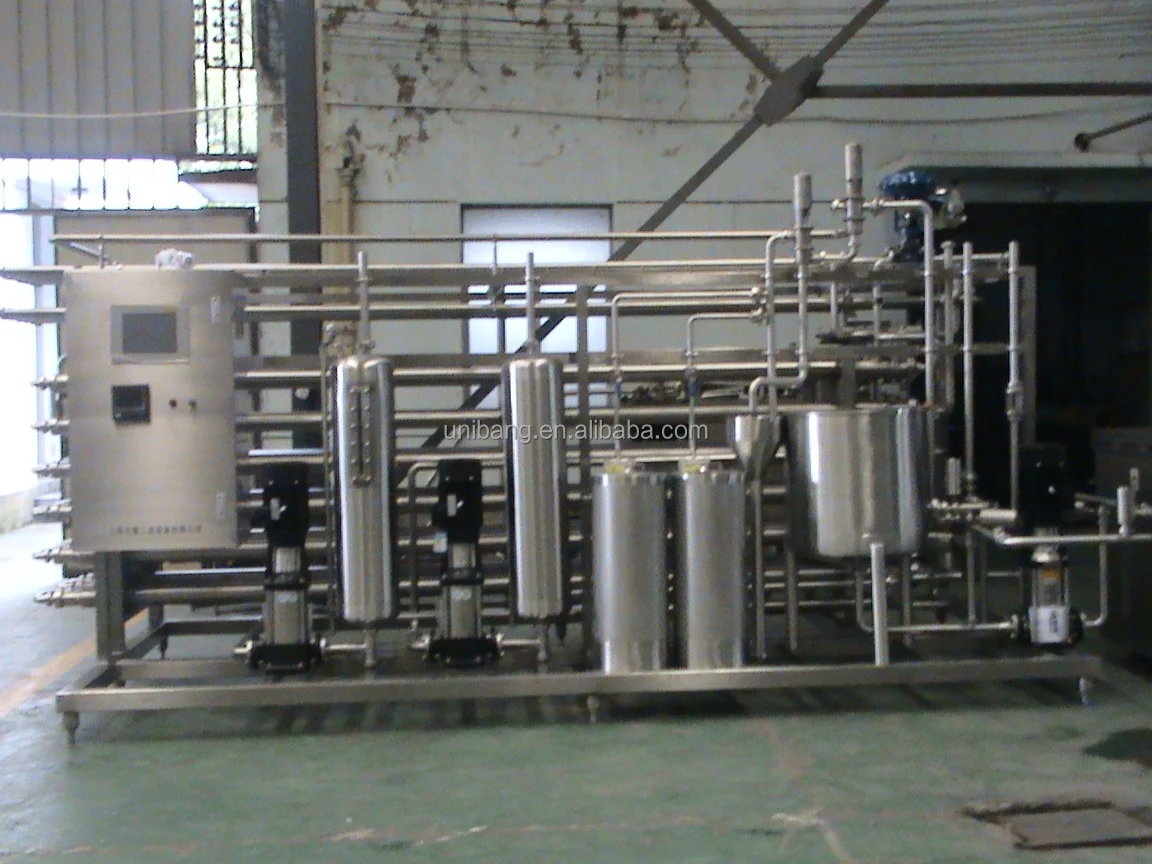

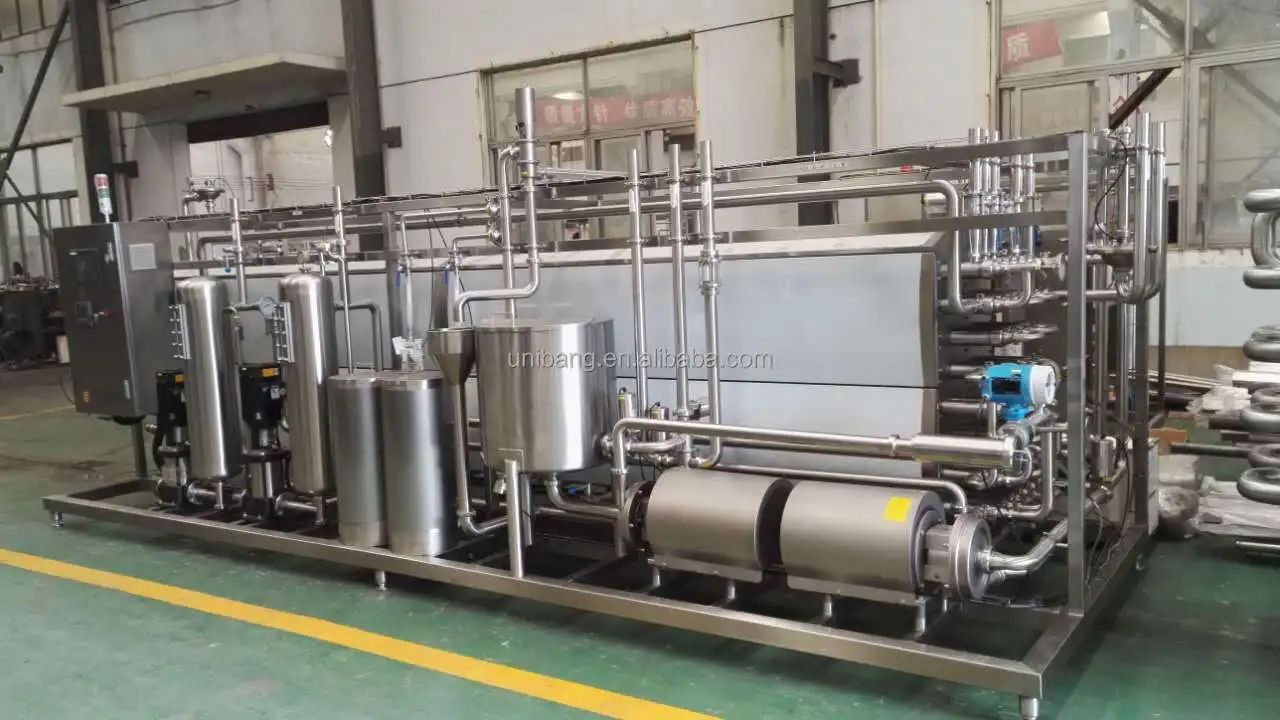

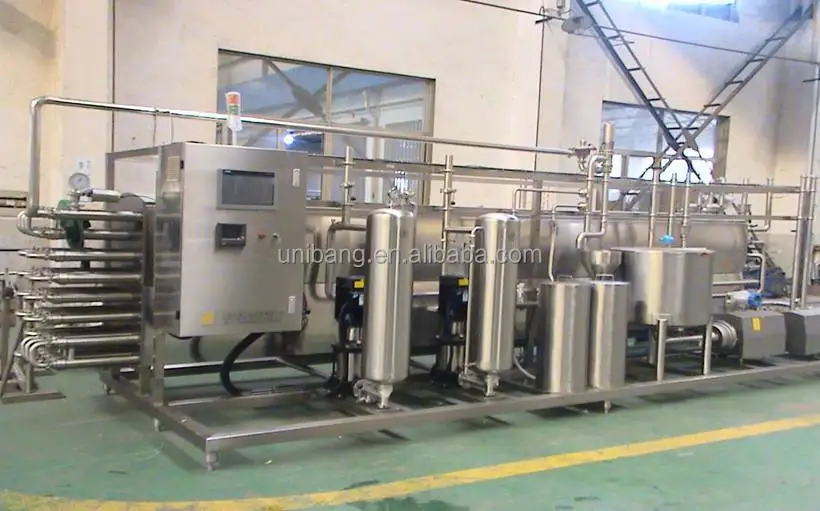

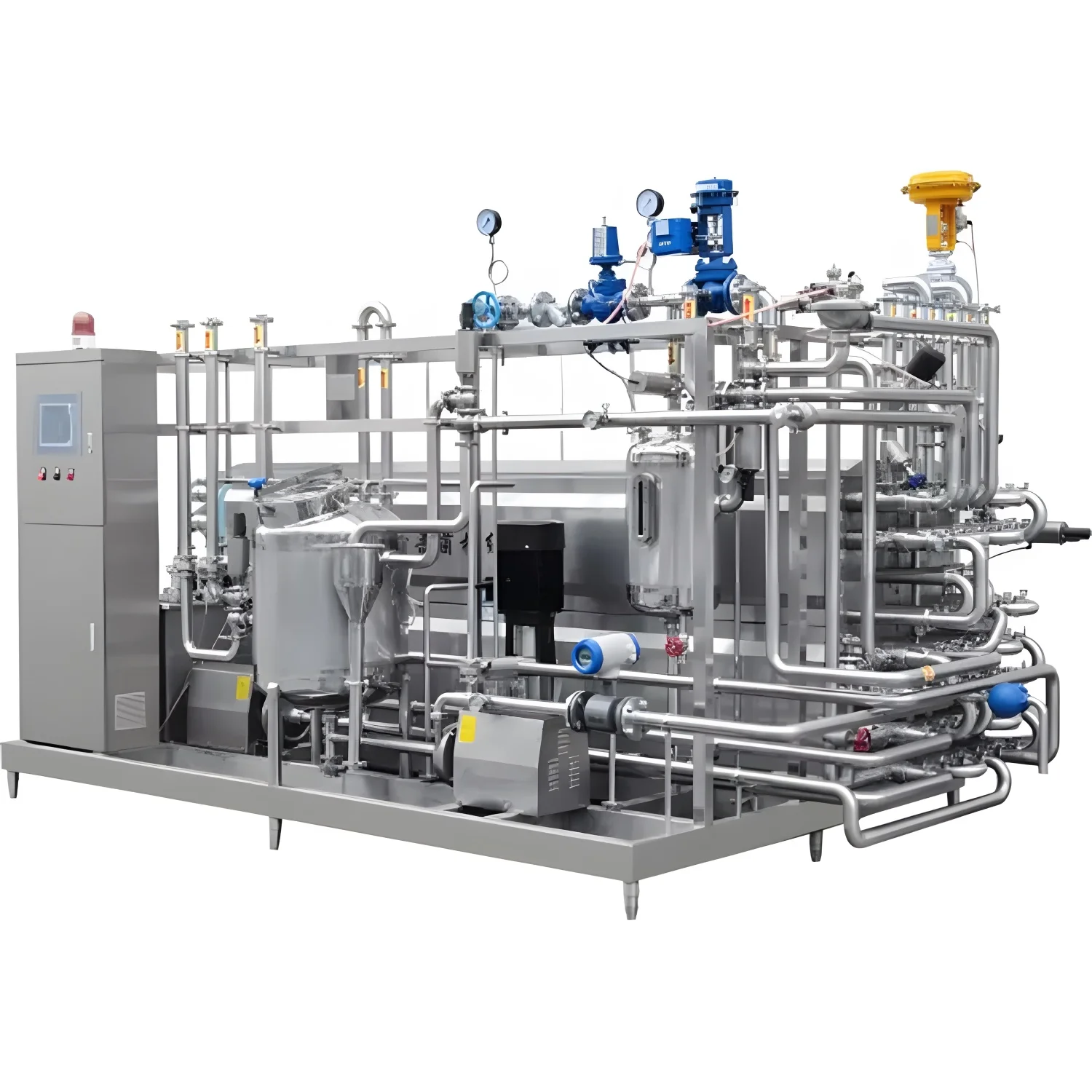

TUBULAR PASTEURIZER
What is tubular pasteurizer?
Tubular pasteurizer, mainly used in various concentrated fruit pulp and various sauces and other products sterilization and
cooling, touch screen operation automatic control with self-cleaning and reverse cleaning system.
cooling, touch screen operation automatic control with self-cleaning and reverse cleaning system.
Widely used in milk, juice, tea drinks, milk drinks, ketchup, seasoning, beer, cream, ice cream, egg products, solid powder and
other products of the original formula determination and update, product taste discrimination, color evaluation,
stabilizer/emulsifier application, new product research and development and sample production.
other products of the original formula determination and update, product taste discrimination, color evaluation,
stabilizer/emulsifier application, new product research and development and sample production.

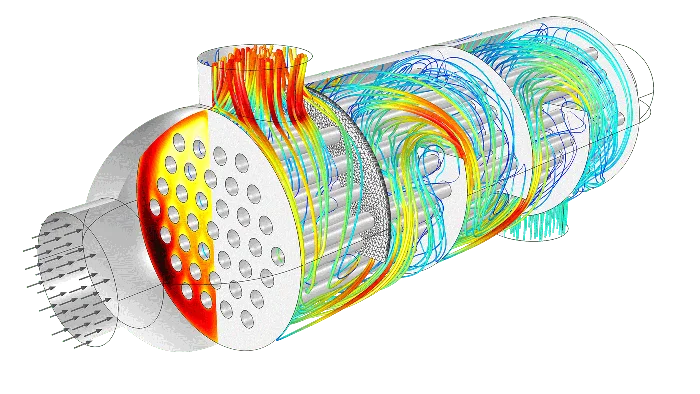

What is the pasteurization process in tubular heat exchanger?
Tubular Heat Exchangers are incredibly efficient for energy usage in juice pasteurisation. During pasteurisation juice is heated to a high temperature and then quickly cooled before bottling or packaging to keep it fresh for longer. This process makes the jucice
safer to drink by killing the bacteria.
Tubular Sterilizer Features
1. It Can adapt to a wide range of viscosity, but also can be used for fiber and particle sterilization;
2. Use instant processing to maintain the original flavor of the product;
3. Automatic or semi-automatic control mode, convenient for users to use;
4. The product can be uniformly heat treated, at the same time, the heat recovery can reach 85%;
5. When the product is in the equipment, it will start the automatic cleaning function, so that the product does not stick to the tube;
6. Equipped with PID temperature control system, can monitor the temperature in real time;
7. It is easy to install and disassemble, convenient for later maintenance and repair.
Sterilization Processing Techniques
* Fresh Milk Sterilizing Technology :
5℃inlet→ 45℃Cream Separator →65℃ homogenizer →85-95℃ Sterilizing, holding : 30S →5℃ Storage Tank / Filling Machine
* Ice Cream Sterilizing Technology :
45℃ inlet→65℃ homogenizer →85℃ Sterilizing, 30S →8℃ Aging Tank
* Yoghurt Sterilizing Technology :
5℃ inlet→65℃ homogenizer →95℃ Sterilizing, 300S →4℃ Storage Tank ( 43℃ fermentation tank )
* Coconut Milk （Coconut water）Sterilizing Technology :
5℃ inlet→65℃ homogenizer →98℃ Sterilizing, 30S →4℃ Storage Tank /Filling machine
* Beer Sterilizing Technology :
4℃ inlet→74℃ Sterilizing, 30S →4℃ Storage Tank
* Juice Sterilizing Technology :
25℃inlet→85-95℃ Sterilizing, holding : 30S →25/50℃ Storage Tank / Filling Machine
The sterilization machine process is designed according to user requirements
Please contact us for more information
5℃inlet→ 45℃Cream Separator →65℃ homogenizer →85-95℃ Sterilizing, holding : 30S →5℃ Storage Tank / Filling Machine
* Ice Cream Sterilizing Technology :
45℃ inlet→65℃ homogenizer →85℃ Sterilizing, 30S →8℃ Aging Tank
* Yoghurt Sterilizing Technology :
5℃ inlet→65℃ homogenizer →95℃ Sterilizing, 300S →4℃ Storage Tank ( 43℃ fermentation tank )
* Coconut Milk （Coconut water）Sterilizing Technology :
5℃ inlet→65℃ homogenizer →98℃ Sterilizing, 30S →4℃ Storage Tank /Filling machine
* Beer Sterilizing Technology :
4℃ inlet→74℃ Sterilizing, 30S →4℃ Storage Tank
* Juice Sterilizing Technology :
25℃inlet→85-95℃ Sterilizing, holding : 30S →25/50℃ Storage Tank / Filling Machine
The sterilization machine process is designed according to user requirements
Please contact us for more information
Buying Guides
Tubular | ||||||||||||||
Name | Unit | TG-PUT-15 | TG-PUT-20 | TG-PUT-25 | TG-PUT-30 | TG-PUT-55 | TG-PUT-105 | |||||||
production capacity | t/h | 2 | 3 | 4 | 5 | 10 | 20 | |||||||
heat exchanging area | m2 | 15 | 20 | 25 | 30 | 55 | 105 | |||||||
temperature of material inlet | ℃ | 5 | 5 | 5 | 5 | 5 | 5 | |||||||
temperature of material outlet | ℃ | 5 | 5 | 5 | 5 | 5 | 5 | |||||||
sterilizing temperature | ℃ | 85-95 | 85-95 | 85-95 | 85-95 | 85-95 | 85-95 | |||||||
heat preservation period | S | 15 | 15 | 15 | 15 | 15 | 15 | |||||||
ice water consumption | multiple | 3 | 3 | 3 | 3 | 2 | 2 | |||||||
cooling water consumption | multiple | 2 | 2 | 2 | 2 | 2 | 2 | |||||||
energy consumption | kw | 10 | 10 | 12 | 14 | 16 | 20 | |||||||
outline dimensions | mm | 3500*1900*1880 | 3500*1900*1880 | 4500*1950*1880 | 4500*2000*1880 | 6500*2000*1880 | 6500*2000*1880 | |||||||
Related Products
Specification
item | Tubular Sterilizer |
Applicable Industries | Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, dairy factory, juice factory, beverage factory, ketchup factory |
Showroom Location | UAE |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 1 Year |
Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump |
Condition | New |
Place of Origin | China |
Shanghai | |
Brand Name | CONLON |
Voltage | 380V/3PH/50Hz |
Power | 10KW |
Weight | 1600KG |
Dimension(L*W*H) | 6500x1800x2200mm |
Warranty | 1 Year |
Key Selling Points | Multifunctional |
Name | Milk Processing Plant |
Application | Dairy Procesing |
Raw material | Fresh Liquid Milk |
Final product | Flavoured Milk Yogurt |
Function | Industrial Milk Production |
Processing Types | Complete Processing Line |
After-sales Service Provided | Engineers |
Capacity | 500-10000L |
Type | Fully Automatic |
Advantage | Easy Operation High Efficiency |
Company Profile
Shanghai Unibang International Group Co.,Ltd.
Established in 1996 at Shanghai, Shanghai UNIBANG international Group Co.,ltd has been 28 years old , She is a famous machinery manufacturer and distributor at domestic and overseas .
we have excellent engineers and experiences in designing and concentrating on Pasteurizer, Homogenizer, Filling machines, Conveyor System and Packing machine, all the equipment are widely used in Snack & Nuts & Dry Fruits & Bakery & Dairy & Juice beverage etc food industries . And all the equipments have been exporting to more than 70 countries all over the world( Such as USA, Australia, New Zealand , Argentina, Colombia , Spain , Japan ,Thailand , Middle-East Countries etc .)
we have excellent engineers and experiences in designing and concentrating on Pasteurizer, Homogenizer, Filling machines, Conveyor System and Packing machine, all the equipment are widely used in Snack & Nuts & Dry Fruits & Bakery & Dairy & Juice beverage etc food industries . And all the equipments have been exporting to more than 70 countries all over the world( Such as USA, Australia, New Zealand , Argentina, Colombia , Spain , Japan ,Thailand , Middle-East Countries etc .)
We have ability to supply the whole processing line from A to Z for your food. And there are 3 branch companies in UNIBANG Group
as following:
* Globule Sanitary Conveyor Pty Ltd.
(Snack & Nuts & Dry Fruits & Meat & Seafood Packing machine & Bundling Form Sealing Machine )
* Shanghai Changlong Industrial Equipment Co.,Ltd.
(Dairy & Juice Beverage Heat exchanger & Pasteurizer &UHT & Homogenizer.)
(PET & Glass & Can Bottle Filling & Carbonated Mixer system)
* Shanghai Hongli Conveyor Co.,Ltd.
(Spiral Cooling Tower & Spiral Lift & Modular Belt &Chains& Conveyor Components )
as following:
* Globule Sanitary Conveyor Pty Ltd.
(Snack & Nuts & Dry Fruits & Meat & Seafood Packing machine & Bundling Form Sealing Machine )
* Shanghai Changlong Industrial Equipment Co.,Ltd.
(Dairy & Juice Beverage Heat exchanger & Pasteurizer &UHT & Homogenizer.)
(PET & Glass & Can Bottle Filling & Carbonated Mixer system)
* Shanghai Hongli Conveyor Co.,Ltd.
(Spiral Cooling Tower & Spiral Lift & Modular Belt &Chains& Conveyor Components )
FAQ
Q1:Which city are you in? How can I get to your factory? Are you a Group company or factory?
A1: We are in Shanghai. China . It will take 1 hour from PVG and HongQiao Airports to our factory .
We are manufacturer with Group branch office .
Manufacturing scope is mainly for Dairy, Juice and Beverage Heat Exchanger, UHT Pasteurizing Equipment, CIP cleaning system and pre-treatment processing line design &producing &installation .
We have been offering turnkey solutions with more than 20 years experience.
Q2: Why is your price higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.
Q3: What is the equipments delivery time?
A3: Normally 30-60 working days depends on different machines,
Heat Exchanger making period : within 15 working days .
Plate UHT Pasteurizer making period : within 30 working days .
Aseptic UHT sterilizer making period : within 50 working days .
Homogenizer and CIP cleaning system making period : within 40 working days .
PET & Glass & Can Bottle Filling machine& Carbonated Mixer system : within 40 working days .
Q4: How to install your machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed.
Or you can arrange engineers to study in our factory. You are responsible for air tickets, accommodation and our engineer fee USD300/-day/person.
Q5: How long time for installation and testing ?
A5: Subject to machines and the situation in your factory. If everything is
ready, it will take about 5 days for installation, and 5-10 days for testing and training .
Q6: How about the spare parts?
A6: We will send one year enough easy-broken spare parts together with the machines for free,
Q7: What is your guarantee?
A7: We have one year guarantee sine the equipment is Acceptable debugging and supplying life-long technical support. Our service
also including machine maintain and spared parts .
Q8: What is your payment term?
A8: Single equipment payment item : 50%T/T as advance payment, then 50%T/T before shipping .
Turnkey project of Processing line payment item : 40%T/T as advance payment, then 60%T/T before shipping .
A1: We are in Shanghai. China . It will take 1 hour from PVG and HongQiao Airports to our factory .
We are manufacturer with Group branch office .
Manufacturing scope is mainly for Dairy, Juice and Beverage Heat Exchanger, UHT Pasteurizing Equipment, CIP cleaning system and pre-treatment processing line design &producing &installation .
We have been offering turnkey solutions with more than 20 years experience.
Q2: Why is your price higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.
Q3: What is the equipments delivery time?
A3: Normally 30-60 working days depends on different machines,
Heat Exchanger making period : within 15 working days .
Plate UHT Pasteurizer making period : within 30 working days .
Aseptic UHT sterilizer making period : within 50 working days .
Homogenizer and CIP cleaning system making period : within 40 working days .
PET & Glass & Can Bottle Filling machine& Carbonated Mixer system : within 40 working days .
Q4: How to install your machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed.
Or you can arrange engineers to study in our factory. You are responsible for air tickets, accommodation and our engineer fee USD300/-day/person.
Q5: How long time for installation and testing ?
A5: Subject to machines and the situation in your factory. If everything is
ready, it will take about 5 days for installation, and 5-10 days for testing and training .
Q6: How about the spare parts?
A6: We will send one year enough easy-broken spare parts together with the machines for free,
Q7: What is your guarantee?
A7: We have one year guarantee sine the equipment is Acceptable debugging and supplying life-long technical support. Our service
also including machine maintain and spared parts .
Q8: What is your payment term?
A8: Single equipment payment item : 50%T/T as advance payment, then 50%T/T before shipping .
Turnkey project of Processing line payment item : 40%T/T as advance payment, then 60%T/T before shipping .
