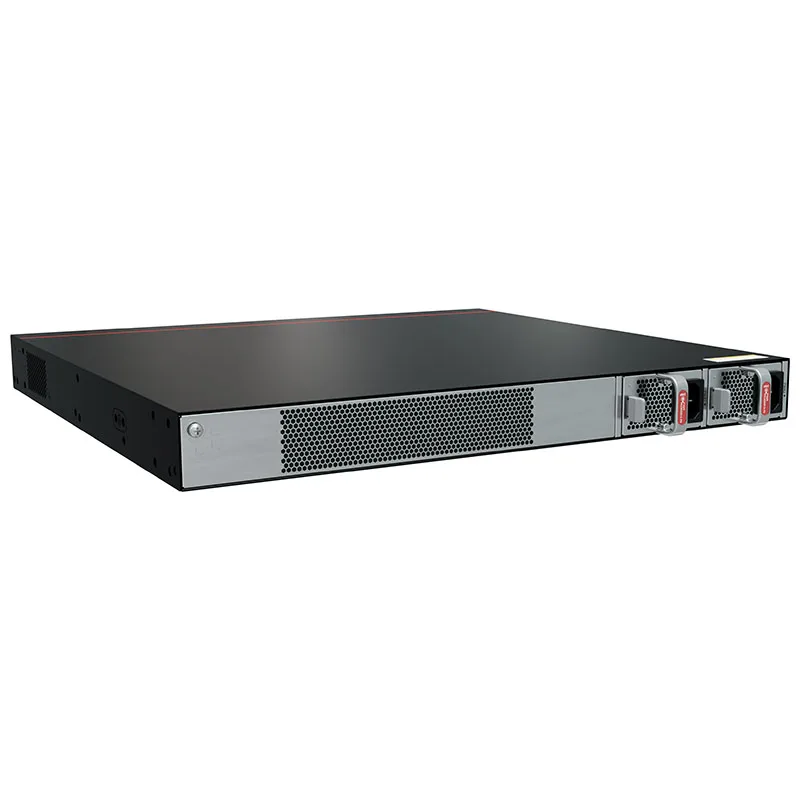

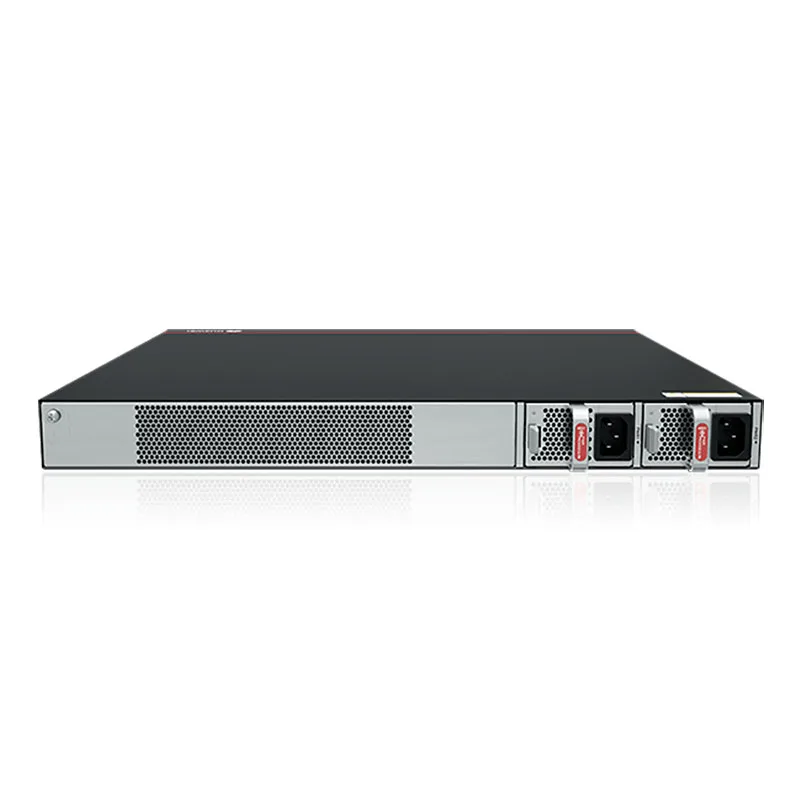

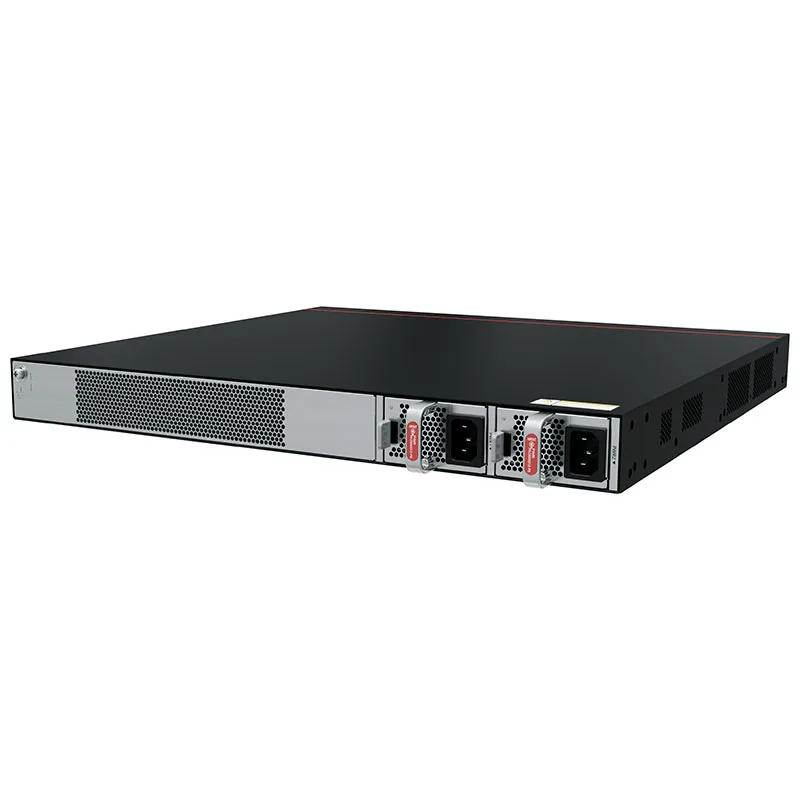

Hua Wei 24*Ge SFP 8* Dual Purpose 10/100/1000 4*10ge SFP 2 X 12ge Stack Ports S5735 S24st4xe V2 Poe All Optical Gigabit Switch
- Category: >>>
- Supplier: Beijing Shandian Technology Co. Ltd.
Share on (1601201053082):
Product Overview
Description
PRODUCT DESCRIPTION
HUA WEI CloudEngine S5735-S-V2 Series Switches
S5735-S24ST4XE-V2 :

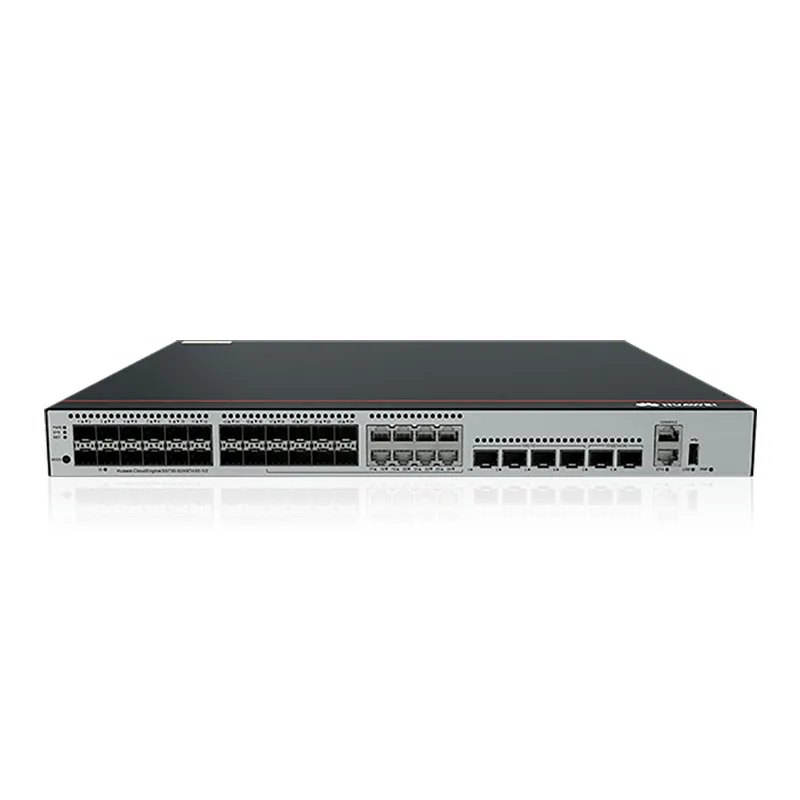

24*GE SFP ports, 8 of which are dual-purpose 10/100/1000 or SFP, 4*10GE SFP+ ports, 2*12GE stack ports, without power module
Networking Application
Large-Scale Enterprise Campus Network
CloudEngine S5735-S-V2 series all- optical switches can be deployed at the access layer of a campus network to build a high performance and highly reliable enterprise network.
Small- or Medium-scale Enterprise Campus Network
CloudEngine S5735-S-V2 series all- optical switches can be deployed at the aggregation layer of a campus network to build a high-performance, multi-service, and highly reliable enterprise network.
Small-scale Enterprise Campus Network
With powerful aggregation and routing capabilities of CloudEngine S5735-S-V2 series all- optical switches make them suitable for use as core switches in a small-scale enterprise network. Two or more S5735-S-V2 switches use iStack technology to ensure high reliability. They provide a variety of access control policies to achieve centralized management and simplify configuration.
Application on a MAN
CloudEngine S5735-S-V2 series all- optical switches can be deployed at the access layer of a MAN(Metropolitan Area Network) to build a high-performance, multi-service, and highly reliable ISP MAN network.
Application in Public Cloud

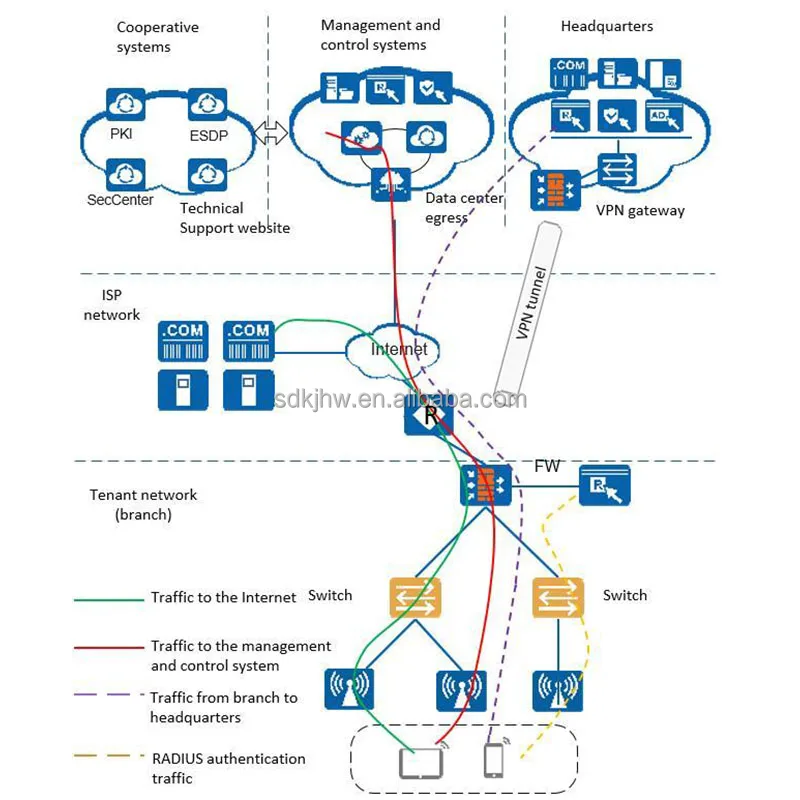

CloudCampus Solution is a network solution suite based on Hua wei public cloud.CloudEngine S5735-S-V2 series all- optical switches can be located at the access layer.
The switches are plug-and-play. They go online automatically after being powered on and connected with network cables, without the need for complex configurations, and use bidirectional certificate authentication to ensure management channel security. The switches provide the NETCONF and YANG interfaces, through which the management and control system delivers configurations to them. In addition, remote maintenance and fault diagnosis can be performed on the management and control system.
CloudEngine S5735-S-V2 series all- optical switches can be deployed at the access layer of a campus network to build a high performance and highly reliable enterprise network.
Small- or Medium-scale Enterprise Campus Network
CloudEngine S5735-S-V2 series all- optical switches can be deployed at the aggregation layer of a campus network to build a high-performance, multi-service, and highly reliable enterprise network.
Small-scale Enterprise Campus Network
With powerful aggregation and routing capabilities of CloudEngine S5735-S-V2 series all- optical switches make them suitable for use as core switches in a small-scale enterprise network. Two or more S5735-S-V2 switches use iStack technology to ensure high reliability. They provide a variety of access control policies to achieve centralized management and simplify configuration.
Application on a MAN
CloudEngine S5735-S-V2 series all- optical switches can be deployed at the access layer of a MAN(Metropolitan Area Network) to build a high-performance, multi-service, and highly reliable ISP MAN network.
Application in Public Cloud
CloudCampus Solution is a network solution suite based on Hua wei public cloud.CloudEngine S5735-S-V2 series all- optical switches can be located at the access layer.
The switches are plug-and-play. They go online automatically after being powered on and connected with network cables, without the need for complex configurations, and use bidirectional certificate authentication to ensure management channel security. The switches provide the NETCONF and YANG interfaces, through which the management and control system delivers configurations to them. In addition, remote maintenance and fault diagnosis can be performed on the management and control system.
TECHNICAL SPECIFICATION

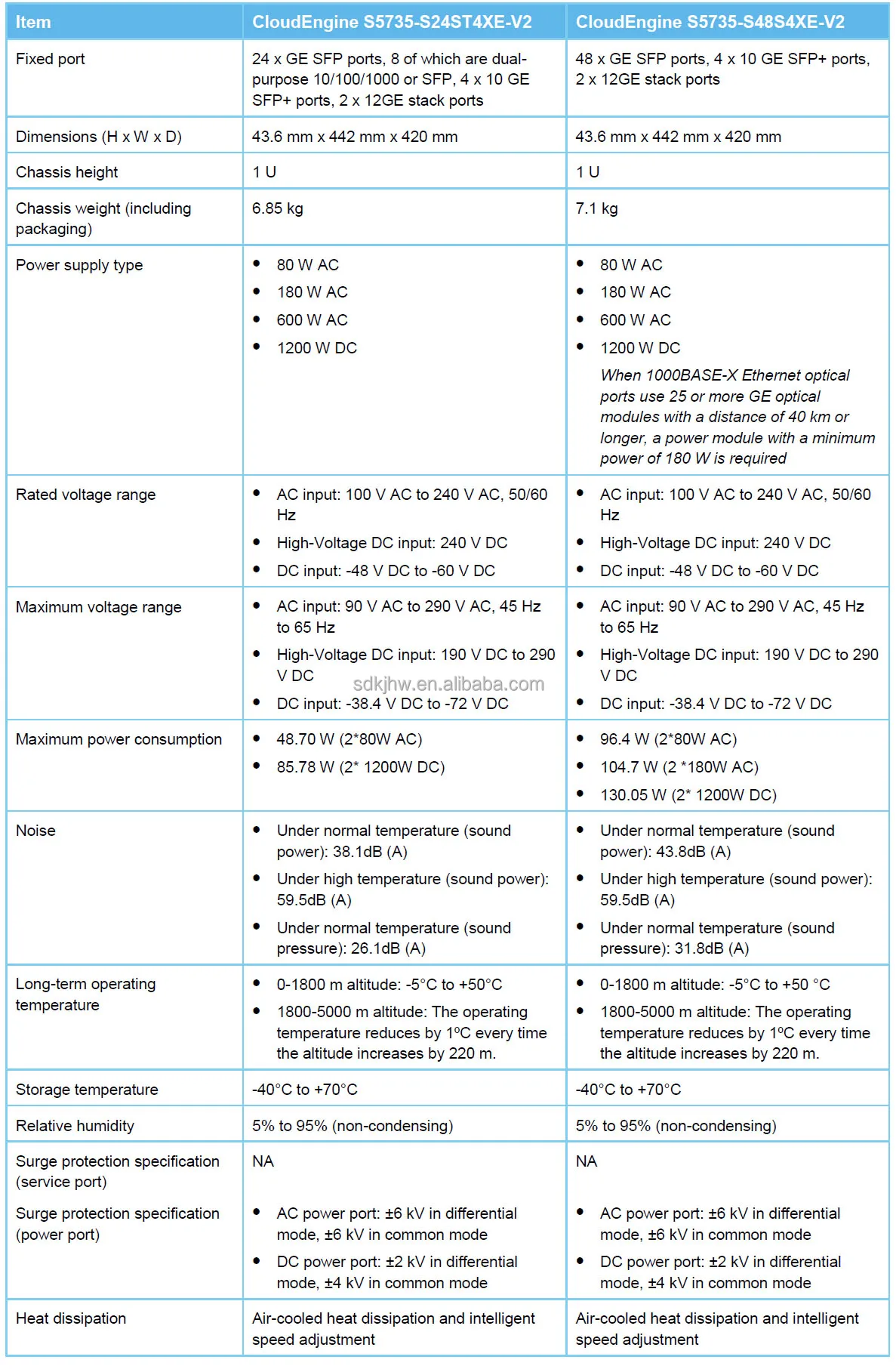

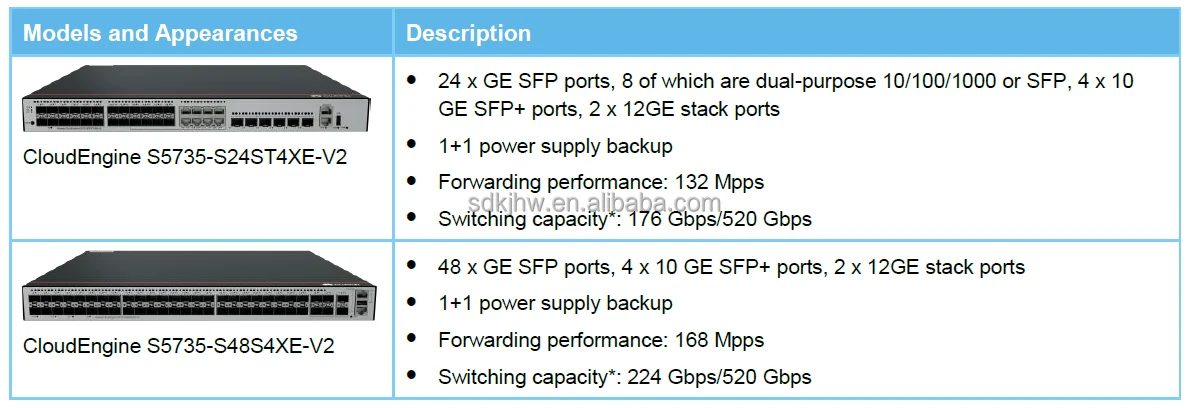

1.Hardware Specifications
2.Ordering Information
Model | Product Description |
CloudEngine S5735- S24ST4XE-V2 | CloudEngine S5735-S24ST4XE-V2 (24*GE SFP ports, 8 of which are dual-purpose 10/100/1000 or SFP, 4*10GE SFP+ ports, 2*12GE stack ports, without power module) |
CloudEngine S5735- S48S4XE-V2 | CloudEngine S5735-S48S4XE-V2 (48*GE SFP ports, 4*10GE SFP+ ports, without power module) |
PAC80S12-CN | 80 W AC Power Module |
PAC180S12-CN | 180 W AC&240 V DC Power Module |
PAC600S12-PB | 600W AC &240 V DC Power Module |
PDC1K2S12-CE | 1200 W DC Power Module |
N1-S57S-M-Lic | S57XX-S Series Basic SW, Per Device |
N1-S57S-M-SnS1Y | S57XX-S Series Basic SW, SnS, Per Device, 1Year |
N1-S57S-F-Lic | N1-CloudCampus, Foundation, S57XX-S Series, Per Device |
N1-S57S-F-SnS1Y | N1-CloudCampus, Foundation, S57XX-S Series, SnS, Per Device, 1Year |
N1-S57S-A-Lite-Lic | N1-CloudCampus,Advanced-Lite,S57XX-S, Per Device |
N1-S57S-A-Lite-SnS-3Y | N1-CloudCampus,Advanced-Lite,S57XX-S,SnS,Per Device,3 Year |
N1-S57S-FToA-Lite-Lic | N1-Upgrade-Foundation to Advanced-Lite,S57XX-S,Per Device |
N1-S57S-FToA-Lite- SnS-3Y | N1-Upgrade-Foundation to Advanced-Lite,S57XX-S,SnS,Per Device,3 Year |
N1-S57S-M-SnS1Y | S57XX-S Series Basic SW,SnS,Per Device,1Year |
N1-S57S-F-Lic | N1-CloudCampus,Foundation,S57XX-S Series,Per Device |
N1-S57S-F-SnS1Y | N1-CloudCampus,Foundation,S57XX-S Series,SnS,Per Device,1Year |
N1-S57S-A-Lic | N1-CloudCampus,Advanced,S57XX-S Series,Per Device |
N1-S57S-A-SnS1Y | N1-CloudCampus,Advanced,S57XX-S Series,SnS,Per Device,1Year |
N1-S57S-FToA-Lic | N1-Upgrade-Foundation to Advanced,S57XX-S,Per Device |
N1-S57S-FToA- SnS1Y | N1-Upgrade-Foundation to Advanced,S57XX-S,SnS,Per Device,1Year |
COMPANY PROFILE
Why Choose Us
Exhibition
Certifications

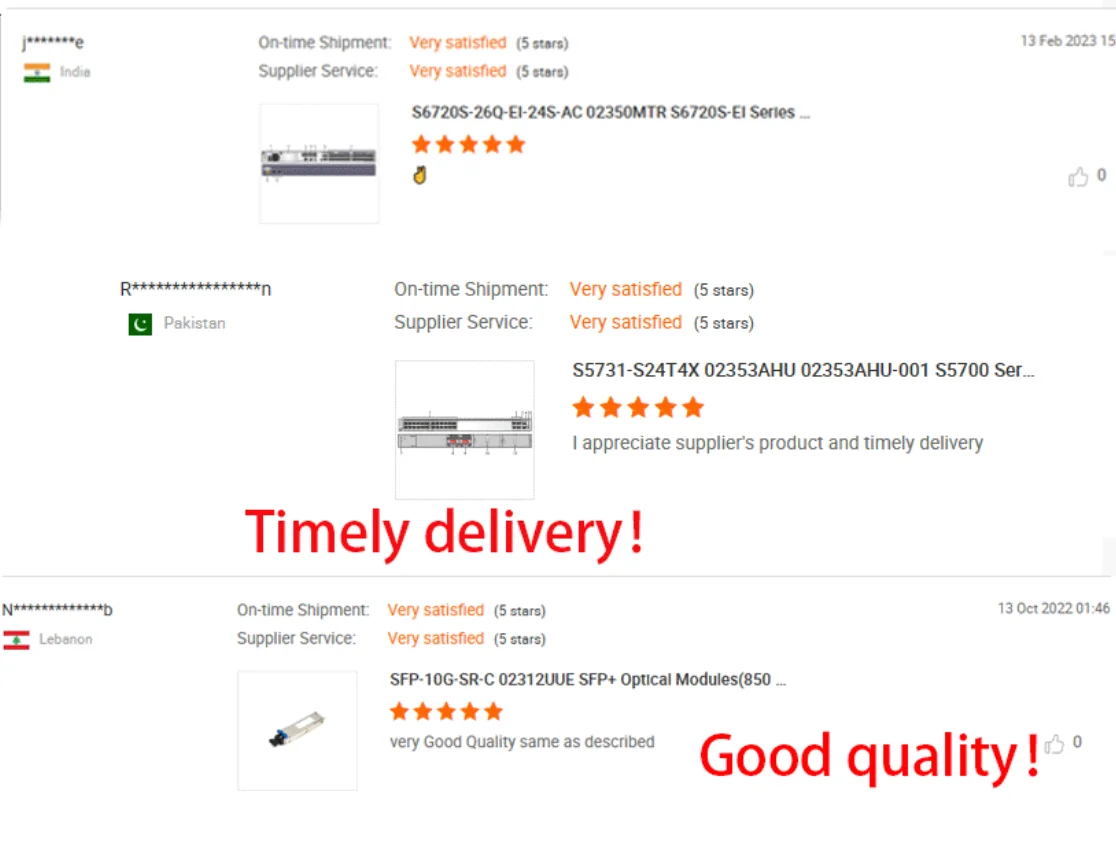

Client Evaluation
