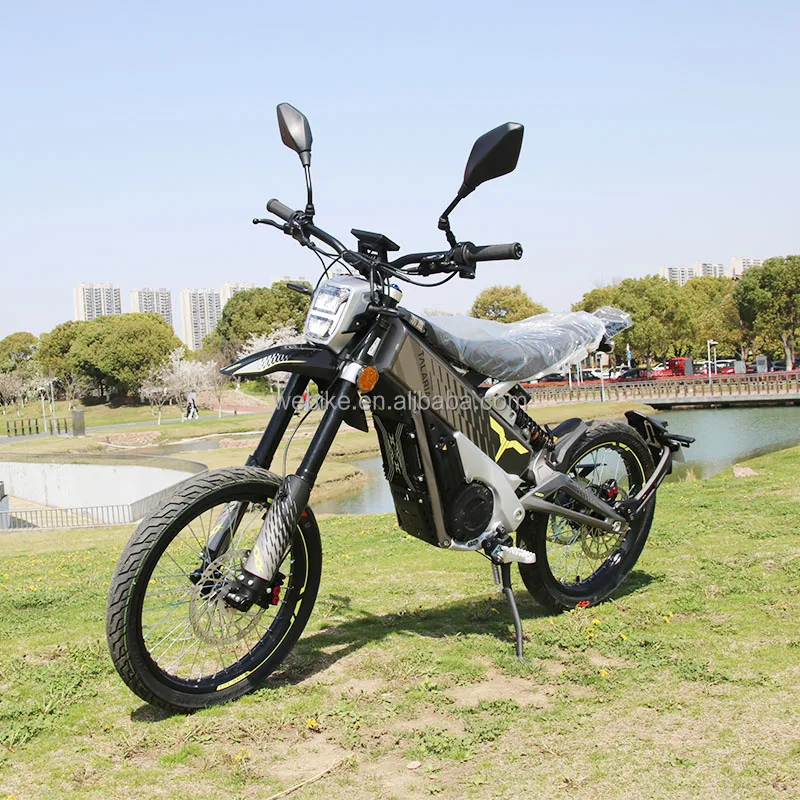

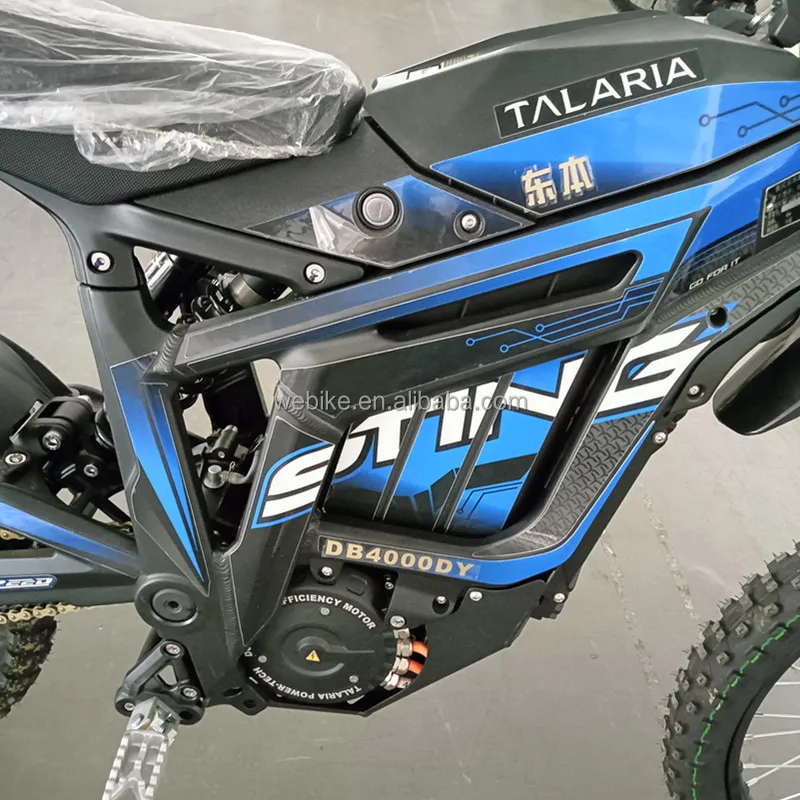

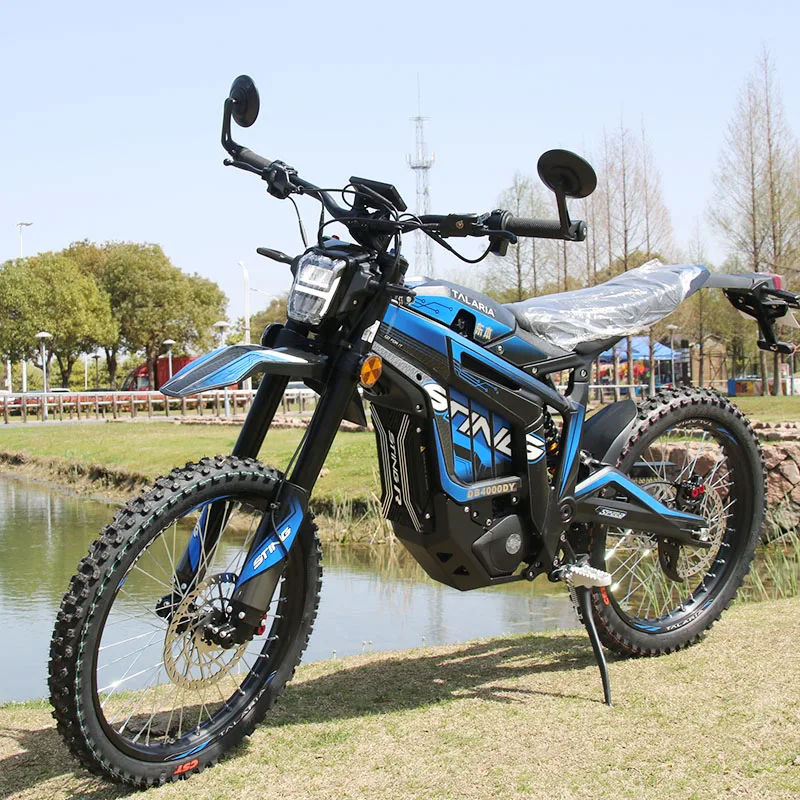

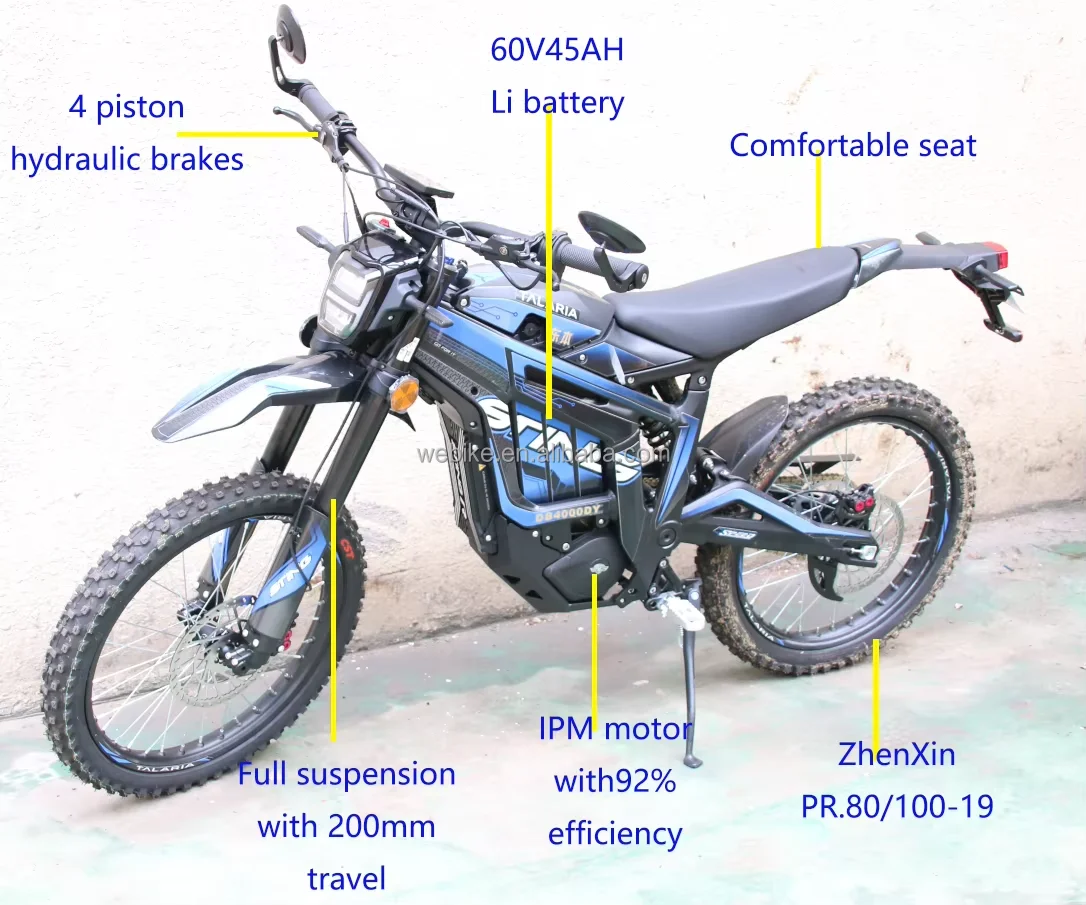

1 | Model No | MX4(8000W) |
2 | Frame material | Frame material:6061 T4 & T6 All Aluminum |
3 | Frame process | 6,000 tons of pressure forging |
4 | Lighting system | LED |
5 | Front Shock Absorber | SING customized high-performance hydraulic |
6 | Rear shock absorber: | Rear shock absorber:Specialized Off-Road Performance Shock Absorber |
7 | Tire brand and size | zhengxin FR.: 70/100-19; RR.: 80/100-19 |
8 | Maximum speed | 85KM/H |
9 | Driving range | 120KM |
10 | Net weight | 66KG (including battery) |
11 | Vehicle data | 1880MM x 770MM x 1088MM |
12 | Seat height | 840MM |
13 | Wheelbase | 1225MM |
14 | Handle Length | 760MM |
15 | Minimum ground clearance | 260MM |
16 | Maximum load | 100KG |
17 | Gradeability | 45° |
18 | Motor type | air-cooled ipm (inner permanent magnet) |
19 | Controller Type | FOC Vector Control |
20 | Rated voltage | 60V (DC) |
21 | Rated power | 4000W |
22 | Peak power | 8000W |
23 | Maximum torque | 45N.m |
24 | Rear wheel torque | 376N.m (44T) |
25 | Maximum efficiency | 92% |
26 | Battery data | 60V / 45Ah |
27 | Cell | LG Brand 21700 Cell |

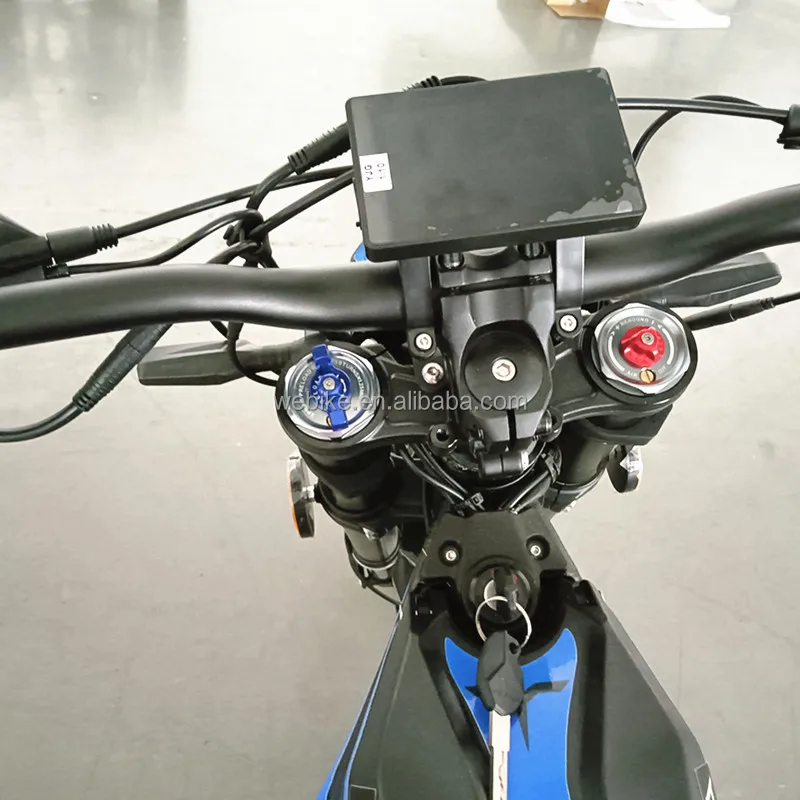

28 | Instrument | 3.5-inch TFT full-color LCD screen |
29 | Energy recovery | 4 levels of energy recovery |
