Electric Soil Sifter Vibrating Screen for Coke

Product Overview

Description

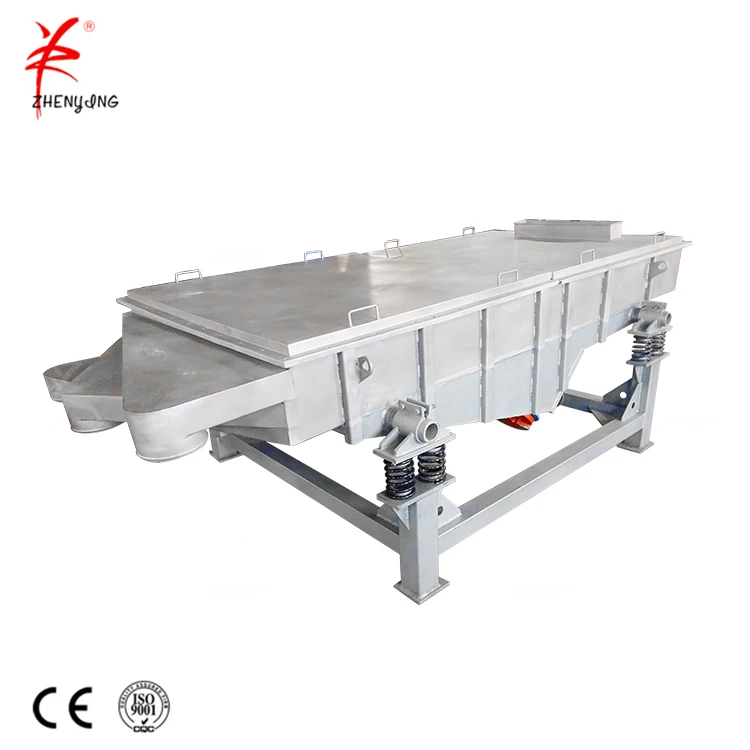

Electric Soil Sifter Vibrating Screen for Coke

Please click here → vibrating screen  for the video.



Quick-opening for screen.









Cleaning system including bouncing ball and PU ring.



Screen frame with special designed outlets .



Special design on outlets.



Description

This Electric Soil Sifter Vibrating Screen for Coke use excellent vibrant motor aElectric Soil Sifter Vibrating Screen for Cokes power source, so that the materials can be thrown up on the sieve and forward to make a straight movement. It can be equipped with single or multi-screen to achieve the grading, removing impurity, removing dust, testing, washing selecting, dehydration etc.





Features

1. High sieving efficiency, high utilization ratio of screen, with bouncing balls set under the screen which eliminates mesh blockage, increasing precision of sieving.

2. Continuous working.

3. Fully enclosed structure avoids dust overflow, reaching the request of sanitation.

4. Rubber springs may be used on customers’ requests, which would considerably reduce running noise, improving labors’ working environment.

5. Simple and rational tensioning mode of screen, easy to replace.

6. The screen frame may be replaced as per different mesh numbers, saving running cost.





Parameter

Model	Screen Specification (mm)	Layers	Mesh Size (mm)	Particle Size (mm)	Vibrating Frequency (r/min)	Double Amplitude (mm)	Power (KW)	Vibrating Direction Angle (°)
ZYSZ525	500×2500	1--6	0.074-10	0.06-15	960, 1450	4--8	2×0.4, 2×0.75	45-60
ZYSZ1020	1000×2000	1--6	0.074-10	0.07-20	960	4--8	2×0.75, 2×1.5	45-60
ZYSZ1025	1000×2500	1--6	0.074-10	0.07-15	960,1450	5--8	2×0.4, 2×0.75	45-60
ZYSZ830	800×3000	1--6	0.074-10	0.1-20	960	6--8	2×0.75, 2×1.5	45-60
ZYSZ1030	1000×3000	1--6	0.074-10	0.1-20	960	6--8	2×0.75, 2×1.5	45-60
ZYSZ1224	1200×2400	1--3	0.074-10	0.1-23	960	6--8	2×0.75, 2×1.5	45-60
ZYSZ1230	1200×3000	1--3	0.074-10	0.1-23	960	6--8	2×1.5	45-60



Production flow:

For our Electric Soil Sifter Vibrating Screen for Coke model.



Our products
1.Sieving machine;
2.Conveying machine;
3.Feeding machine;
4.Related equipments and spare parts.

Shipping mark:

Our standard: ZHENYING MACHINE NO.1/1

If you have any special needs please tell us (like "made in China" sprayed on the case).
