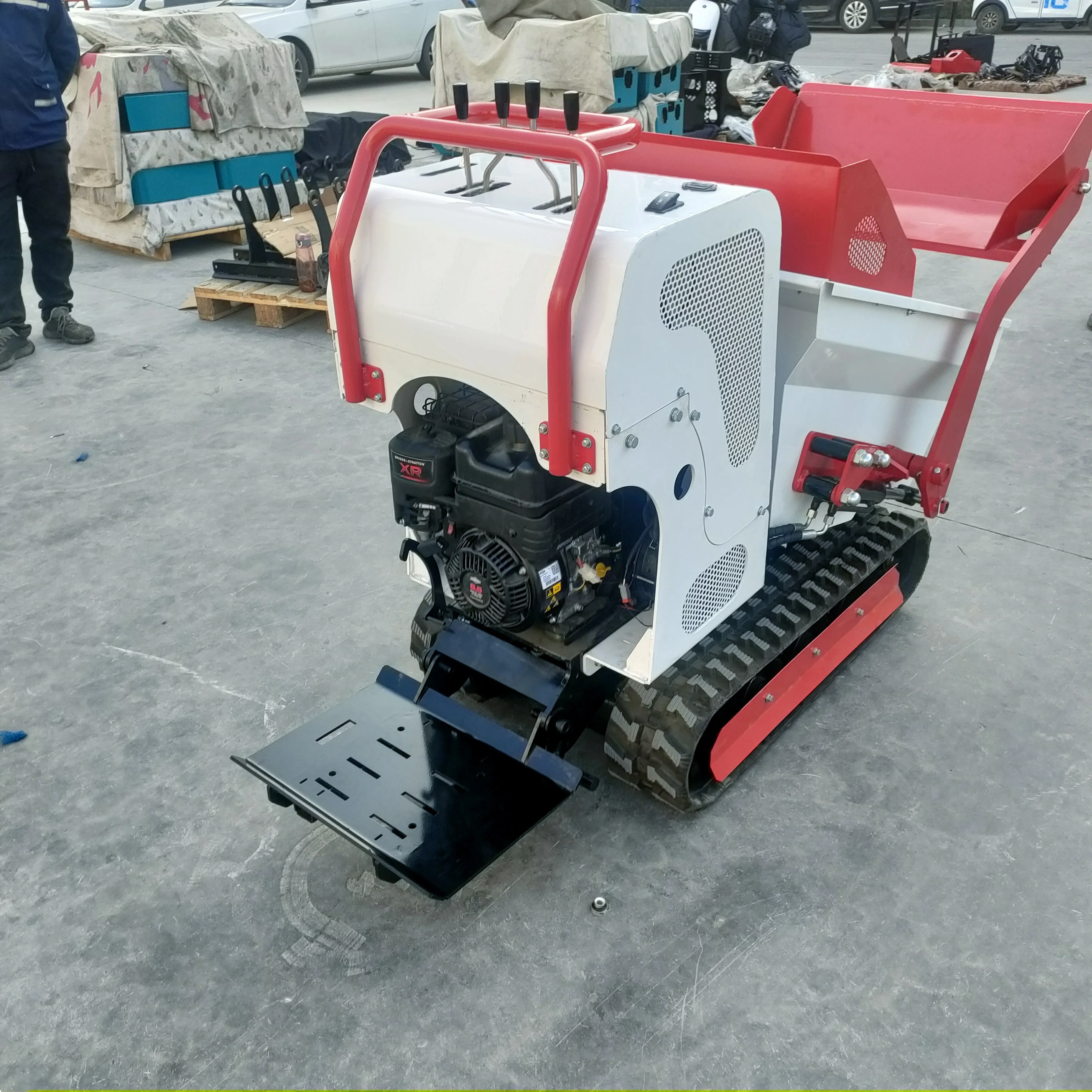

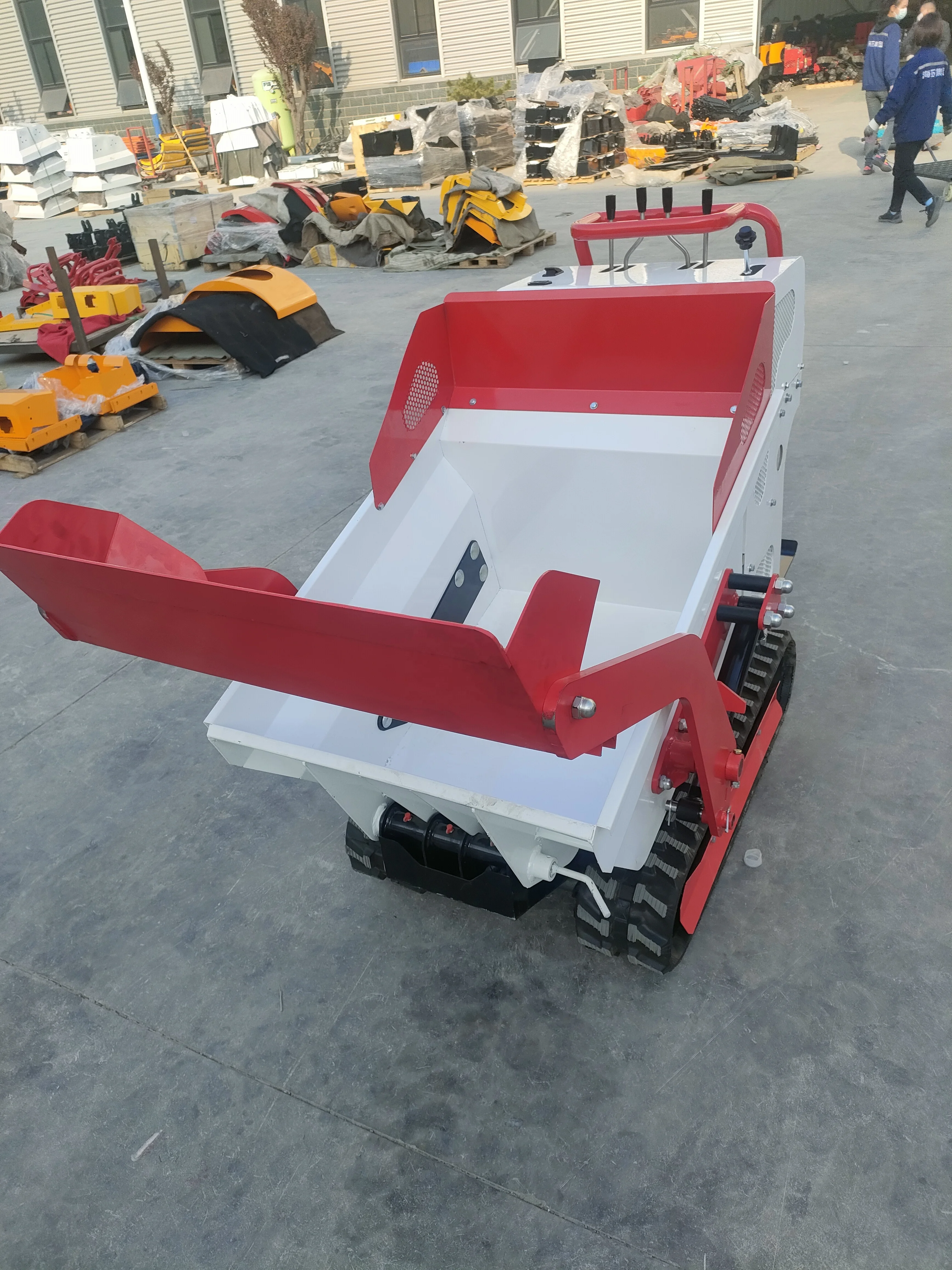

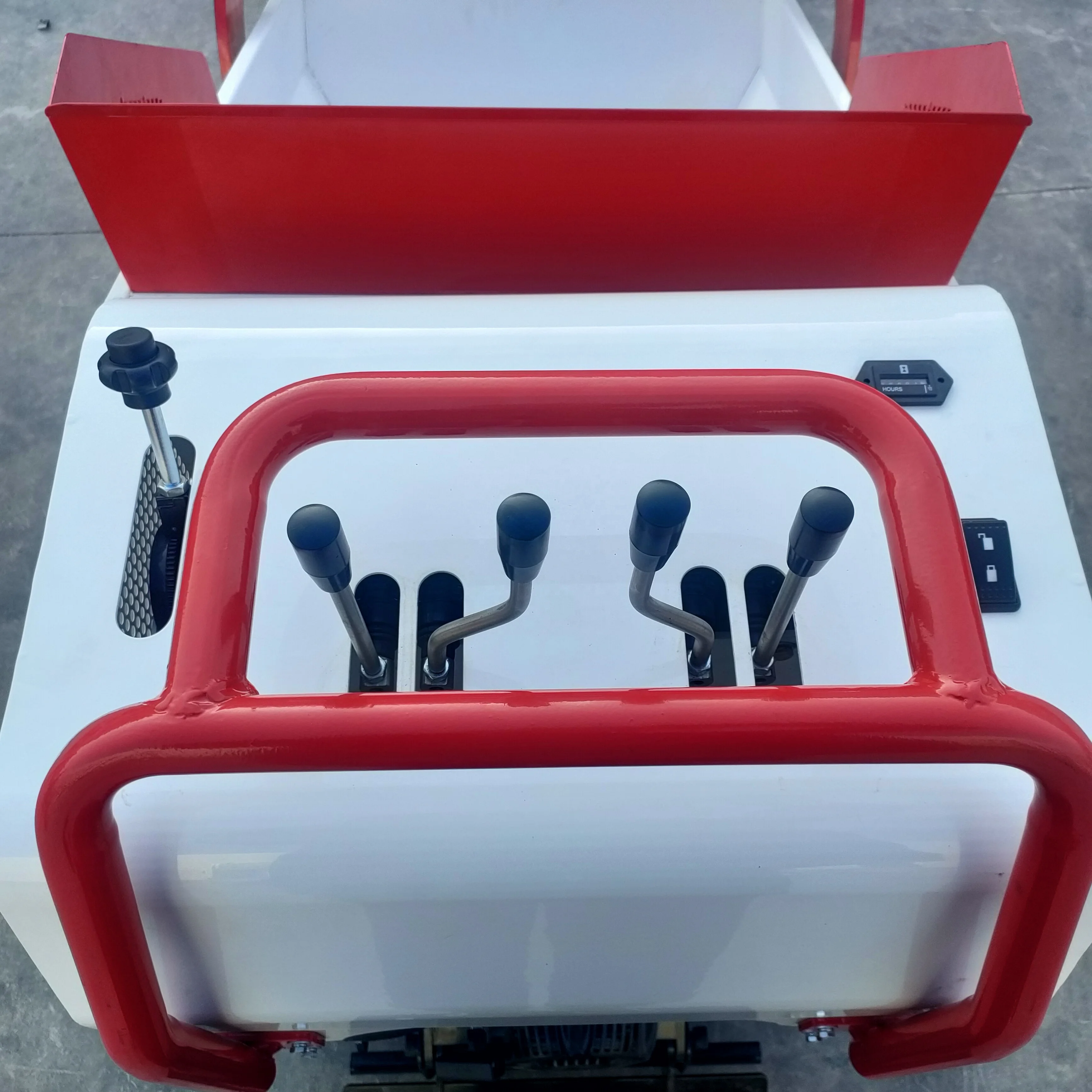

Multi functional Mini Dumper 500kg Mini Small Crawler Dumper Hydraulic Truck Mini Micro Dumper

Share on (1601201128792):


Price:$1,580.00 - $1,900.00

Quantity:


Product Overview

Description



Product Description










Production Parameter

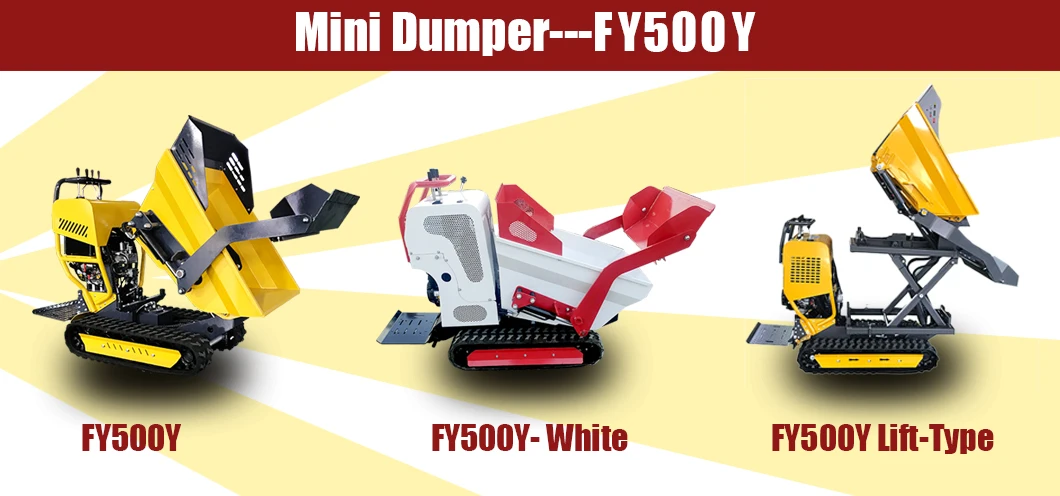

FY500Y
AttributeSpecification
Machine Weight400Kg
Max Load500Kg

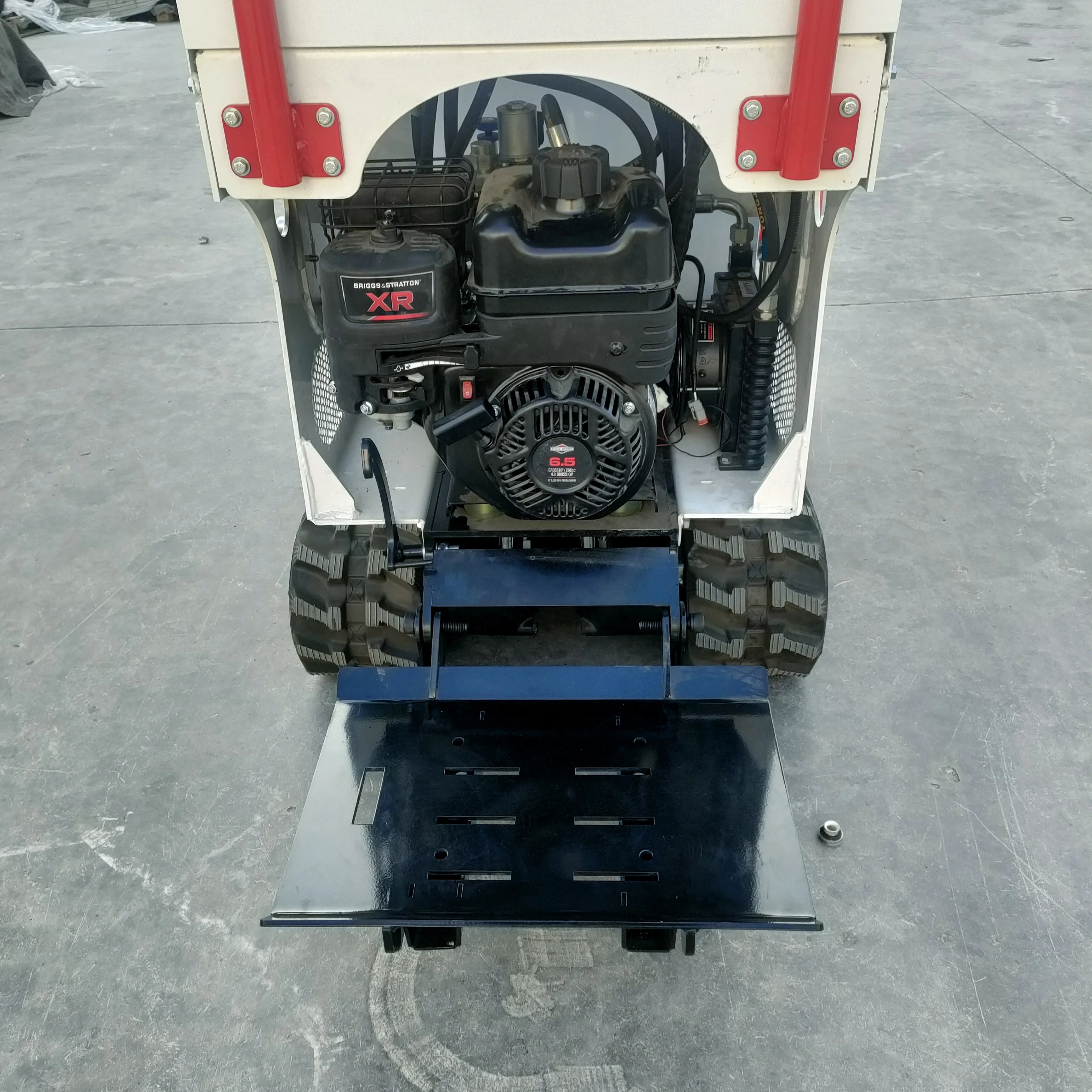

Engine Parameters
BrandBriggs&Stratton, RATO, KOOP
Model130G
Displacement (cc)208
Total Power (HP)*@3600rpm6.5 (4.8KW/3600)
Fuel Capacity (L)3.1
Oil Capacity (L)0.6
Net Weight (kg)16.0
Integrated Valve Block
BrandNorthern Hydraulics
Travel Motor
BrandLikco Hydraulics
Displacement200cc
Max Working Pressure20MPa
Max Torque805Nm
Travel Speed1.7/3.5 (km/h)
Min Turning Radius0.95m
Track Center Distance520mm
Min Ground Clearance85mm
Climbing Ability20°
Hydraulic Oil Tank Capacity7L
Hydraulic Oil Type46# anti-wear hydraulic oil

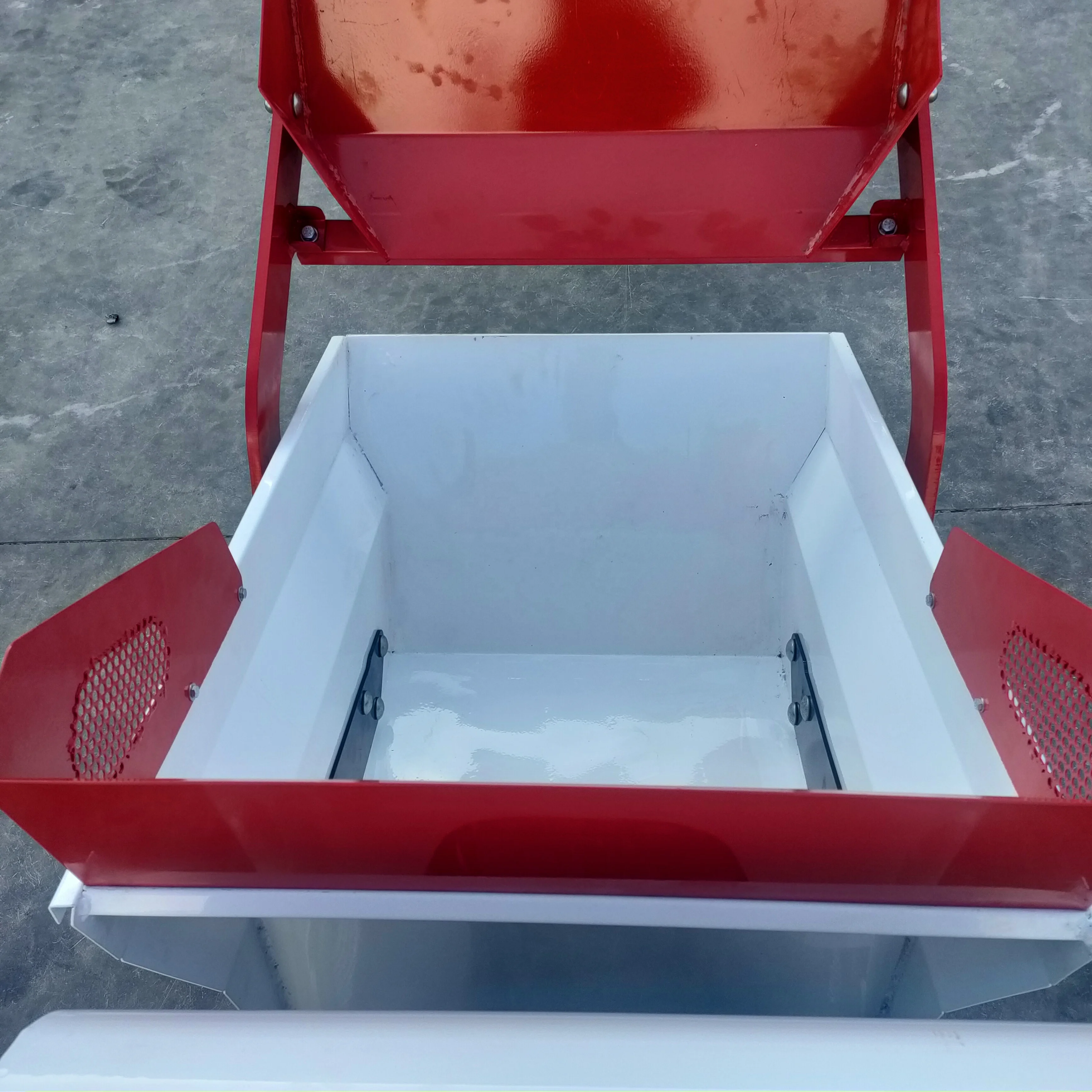

Cargo Box Volume (m³)0.22 (1040*730*590)
Dimensions (LxWxH, mm)1517x870x1278









Optional Accessories








Company Profile










Overview










FAQ







Q1. Are you a manufacturer?


A: Yes, we are a factory with more than 3 years of manufacturing experience.





Q2. How can we guarantee quality?


A: There will be a pre-production sample check before mass production and a final inspection before shipment.





Q3. What are your terms of delivery?


A: EXW, FOB, CFR, CIF.





Q4. How about your delivery time?


A: Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the quantity of your order.





Q5. How much is the freight fee?


A: We will confirm the freight cost based on the size of the model, packing, transportation method, and delivery terms.





Q6. What are your terms of packing?


A: Generally, we use standard exported wooden cases for LCL goods and fixed well for FCL goods.





Q7. Can you customize or support ODM/OEM?


A: Yes, with sufficient quantities, we can customize unique designs and colors for you.





Q8. How do you make our business a long-term and good relationship?


A:  We keep good quality and competitive prices to ensure our customers' benefits;  We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
