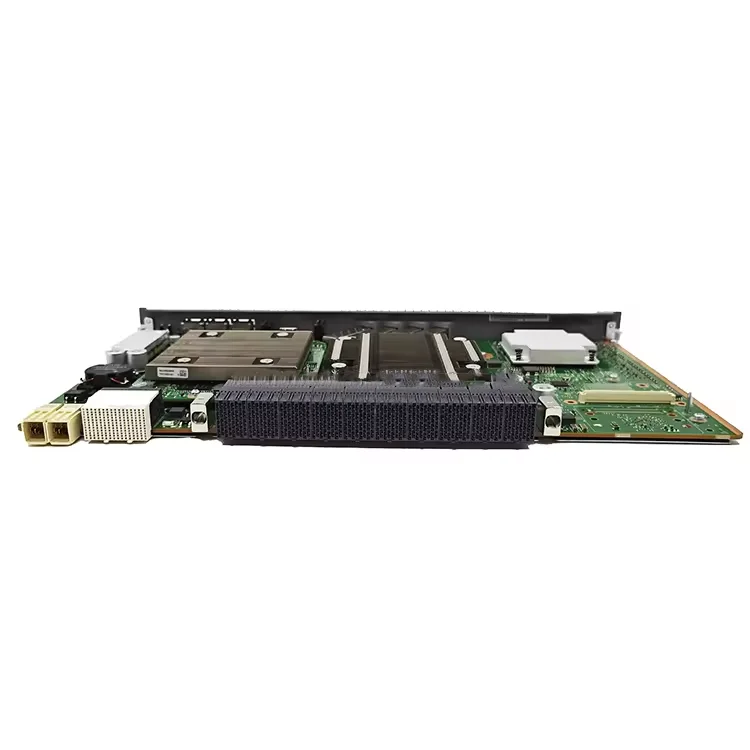

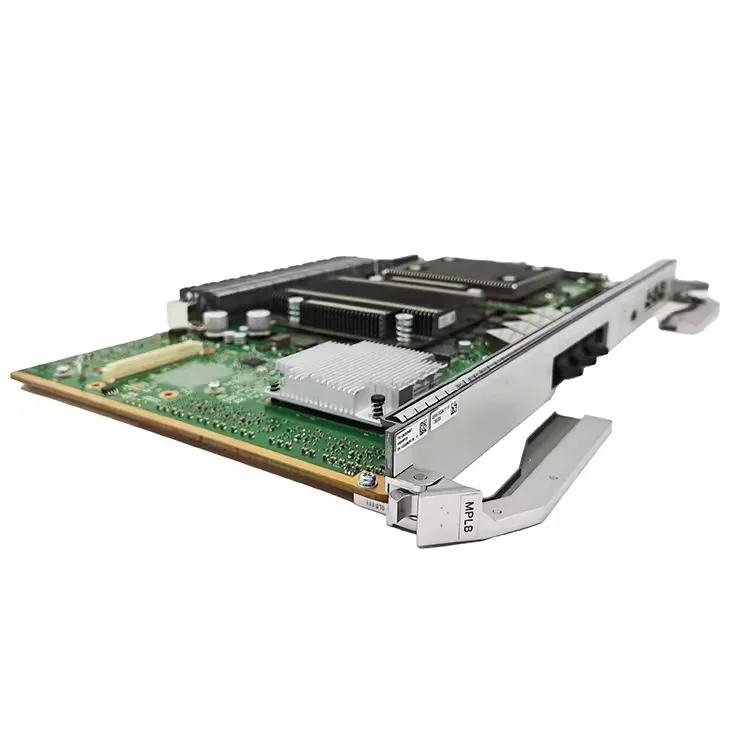

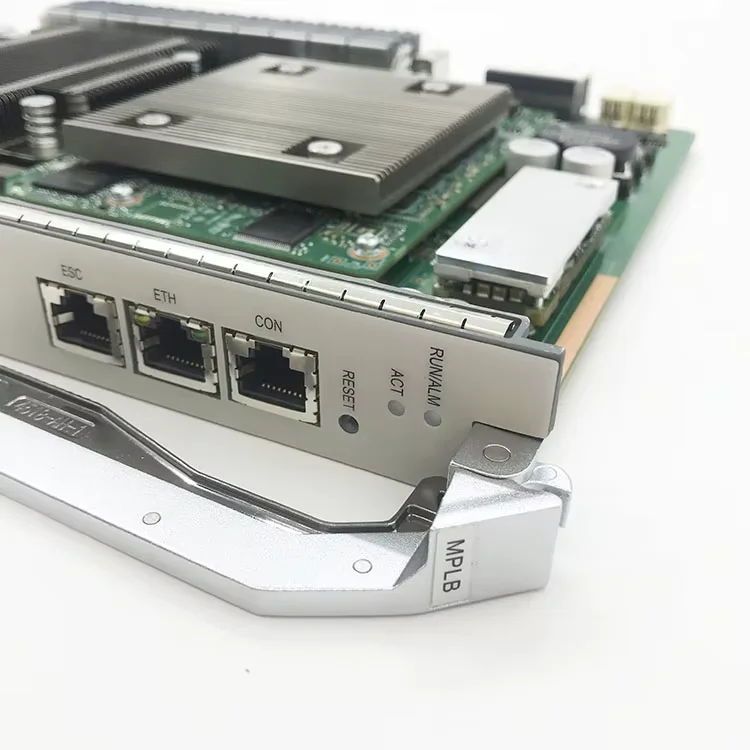

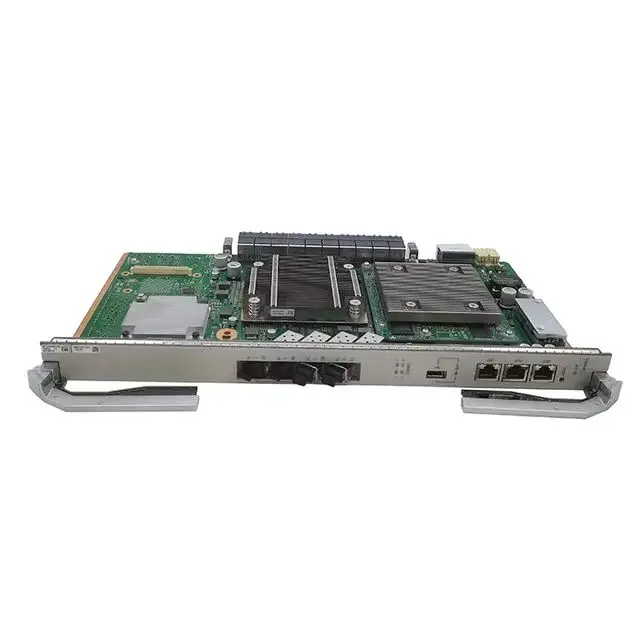

MPLB Board
MPLB Board is main control card for SmartAX MA5800 OLT. This is the core of system control and service switching and aggregation. MAX access to 17408 subscribers.
MPLB Board transmits key management and control information through the master-slave serial port, the in-band GE / 10GE channel and the service board, completes the configuration, management and control of the entire product, and at the same time implements simple routing protocols and other functions.
Specification
Brand | H--wei |
Model | MPLB |
Bandwidth per slot | 200Gbit/s (load sharing mode) |
MAC address table | 262143 |
Access ONT | 17408 |
Multicast user | 17408 |
Configurable multicast channel | 4096 |
Concurrent multicast channel | 4000 |
IPv4 routing table | 65536 |
IPv6 routing table | 16384 |
Service port | 139264 |
ARP table | 66048 (Before the V100R017C10 version) |
98816 (V100R017C10 version) | |
131072 (V100R018C00 and later version) | |
ACL rule | 1042 |
Maximum Frame Size | 2052 bytes. |
9216 bytes (jumbo frame enabled) | |
Operating temperature | -40°C to +65°C |
Power consumption | Static: 62W |
Maximum: 117 W | |
Dimensions(mm) | 31 (W)x 258.9 (D) x 399.1 (H) |
Weight(kg) | 2.2 |

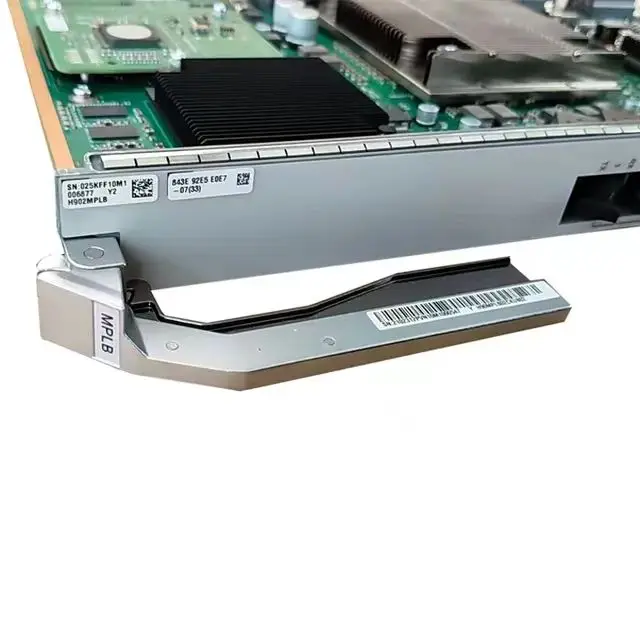

H902MPLB Board Description
The H902MPLB board is a control board. It is the core of the system control and service switching and aggregation. The H902MPLB board caralso function as the management and control core of the integrated network management system (NMS). It is applicable to the MA5800-X17/X15/X7 service subrack.
It communicates with service boards about the key management and control information through the master/slaveserial port and inband GE/10GE channel, In this manner, the H902MPlB board confiqures, managecontrolsdeyice.
