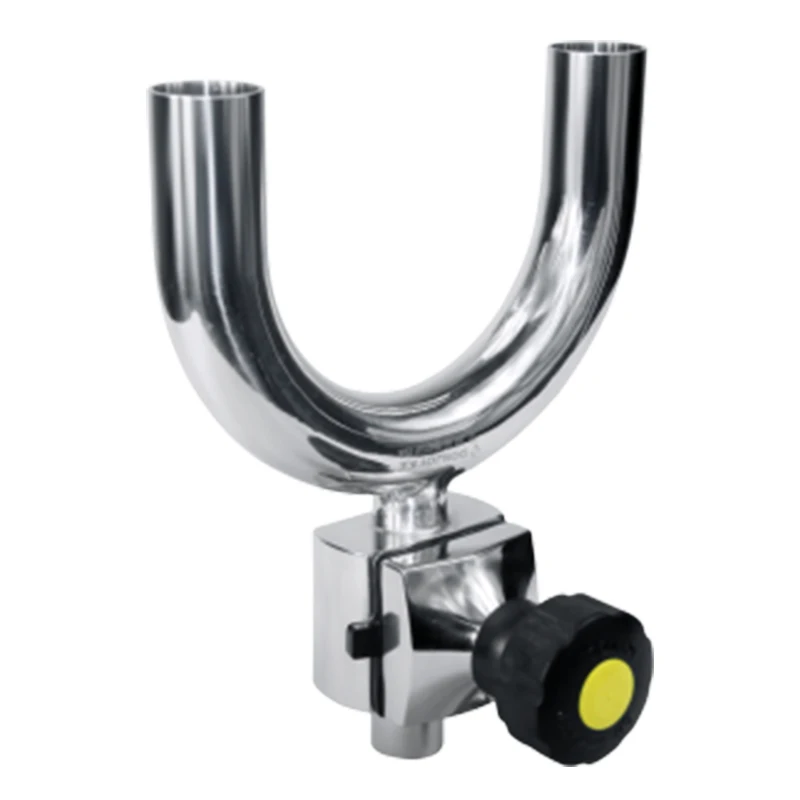

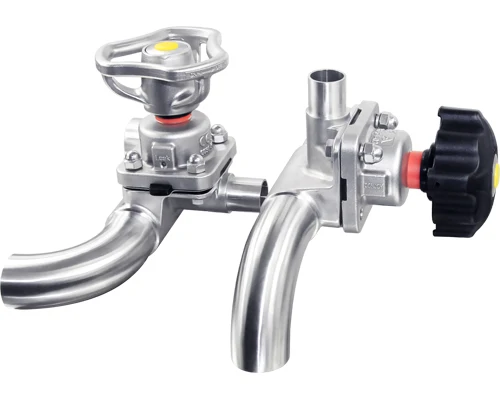

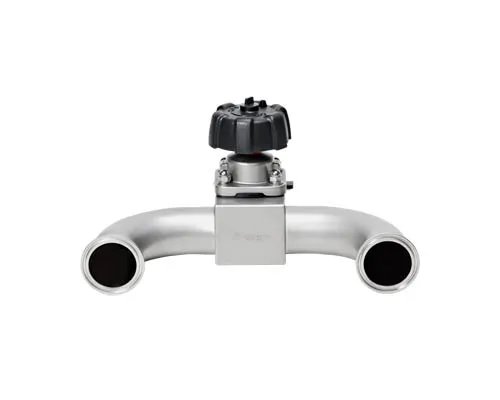

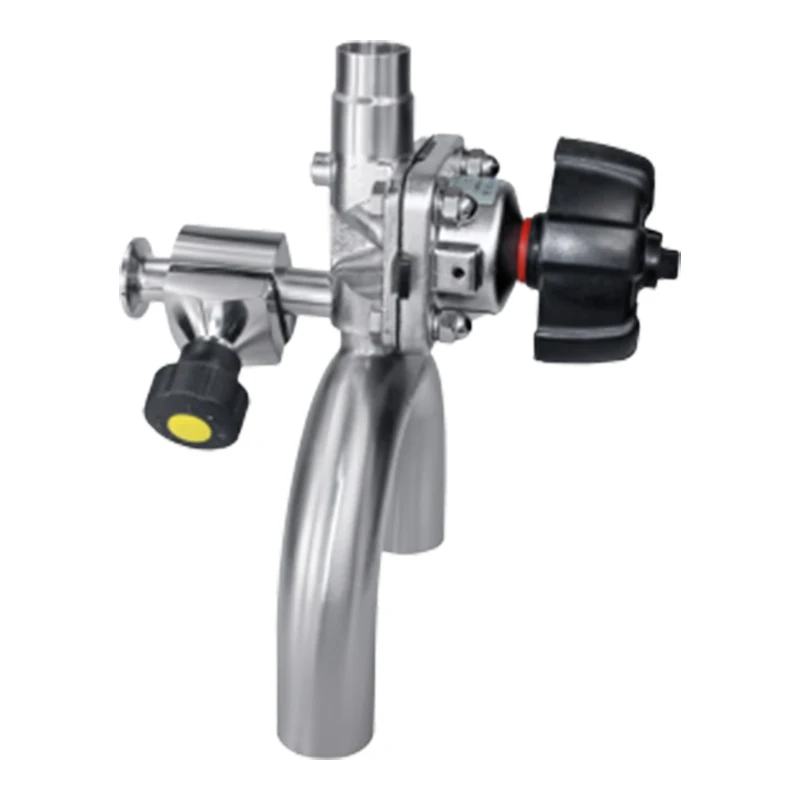

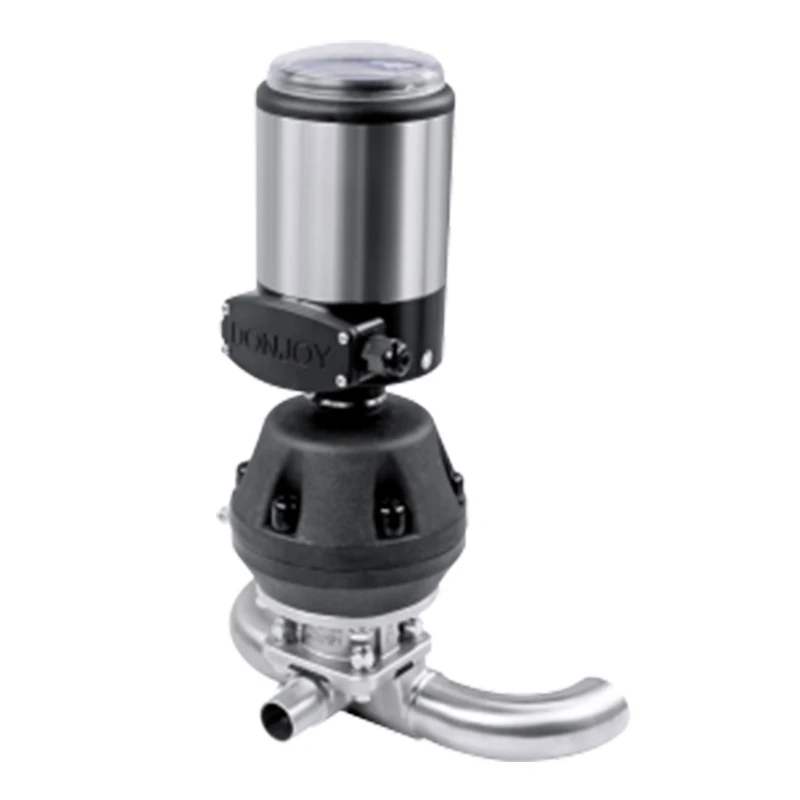

DONJOY Sanitary Stainless Steel Three Way Diaphragm Manual Pneumatic Valve GM UB/UC Factory Price Flow Control Equipment

Availably  size

1"-4", DN25-DN100

Valve body material technology

Casting/ forging

Max. temperature

-30 to 130 °C (depending on diaphragm) (plastic wheel)

Max. pressure

Normally close EPDM 8 bar,PTFE 6 bar(option)
Normally close EPDM 6 bar,PTFE 4.5 bar(standard)
And double action EPDM 8 bar,PTFE 6 bar

Part contact with medium

316L / BPE 316L

Availably connection

Clamp / weld / thread / flange

Seal Material

PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON)

Availably standard

3A/BPE/DIN/ISO/IDF

Control

Smart valve positioner / C-TOP control / position sensor

Operated

Manual/ Pneumatic

Certificate

FDA 177.2600; 3A-18-03; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC
