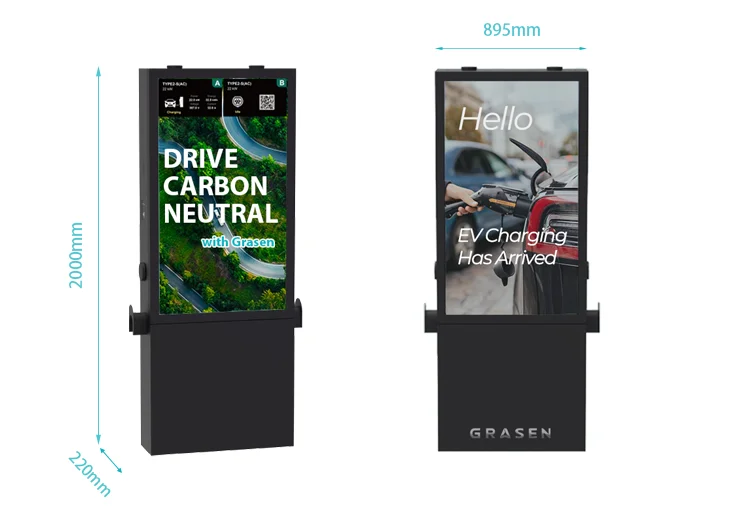

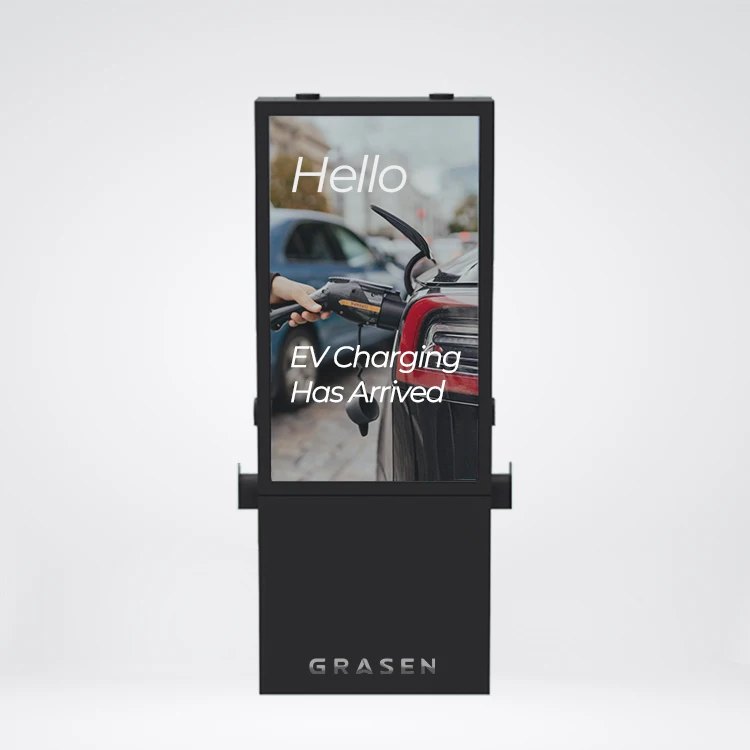

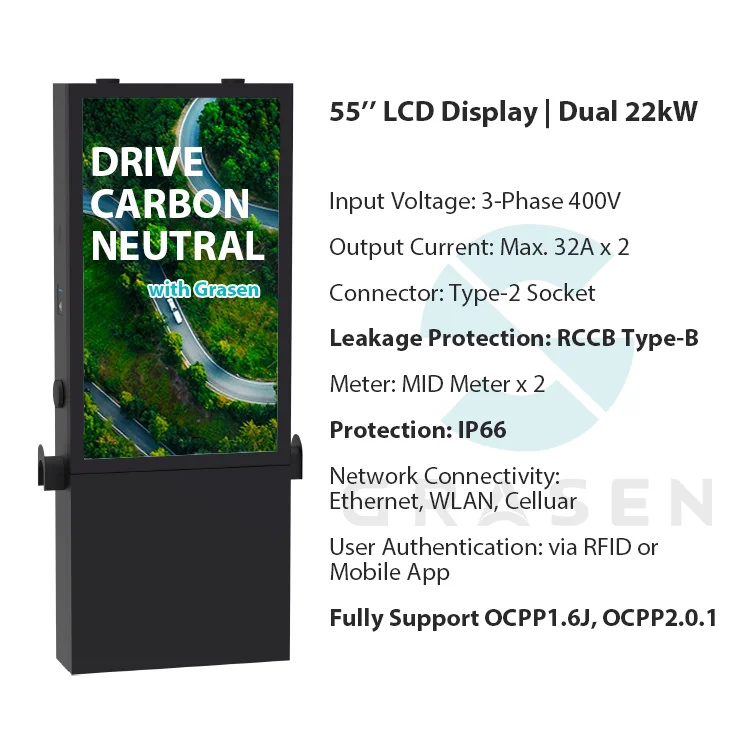

Commercial Parking Lots 55 Inch LCD Advertising Screen EV Charger Station Dual Guns DC Rapid Charging Point With LCD Display
- Category: >>>
- Supplier: Luoyang Grasen Power Technology Co. Ltd.
Share on (1601201170683):
Product Overview
Description
Products Description

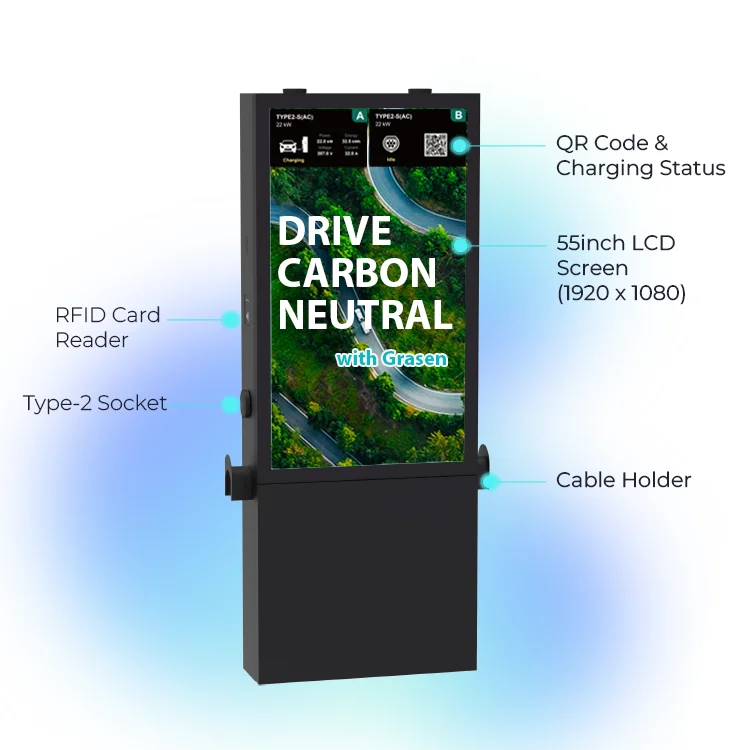

EV charger with app advertising screen 55 inch LCD type 2 22kW ev charging station with advertisement display
Power | Dual 7kw socket | Dual 22kw socket | |||||||||
Input Rating | 1-phase 230V ±20% | 3-phase 400V ±20% | |||||||||
Output Current | Max. 32A x 2 | Max. 32A x 2 | |||||||||
Working Frequency | 50~60Hz | 50~60Hz | |||||||||
Display | 55'' LCD | 55‘’ LCD | |||||||||
Resolution | 1920 x 1080 | 1920 x 1080 | |||||||||
Energy Meter | MID Certified x 2 | MID Certified x 2 | |||||||||
Mounting Type | Floor-mounted | Floor-mounted | |||||||||
Network Interface | Ethernet, Wi-FI/4G | Ethernet, Wi-FI/4G | |||||||||
Communication Protocols | OCPP1.6J, OCPP2.0 | OCPP1.6J, OCPP2.0 | |||||||||
Operating Temperature | -20°C to +45ºC | -20°C to +45ºC | |||||||||
Storage Temperature | -40°C to +70ºC | -40°C to +70ºC | |||||||||

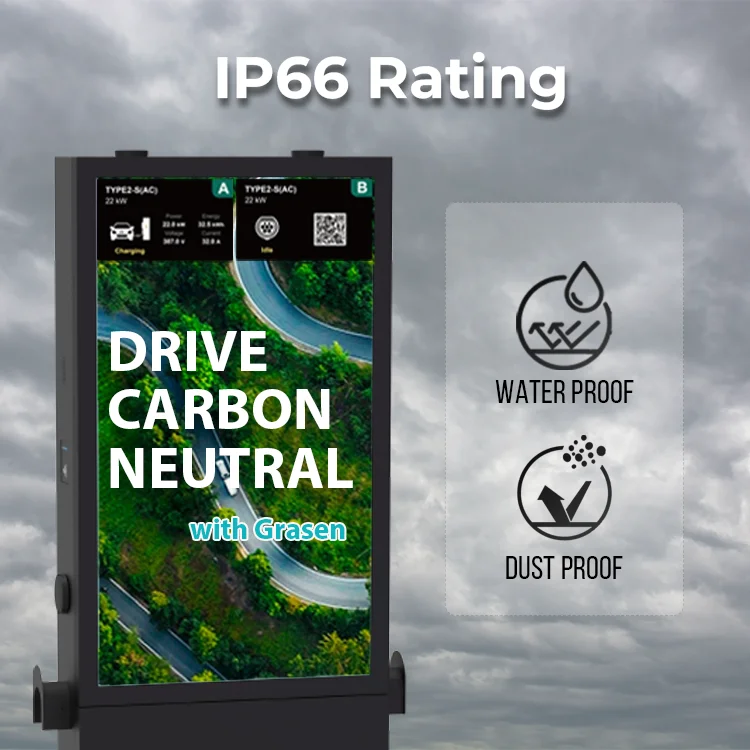

Ingress Protection | IP66 | IP66 | |||||||||
Certificate | CE, IEC 61851-1, IEC 62196-2 | ||||||||||
Features

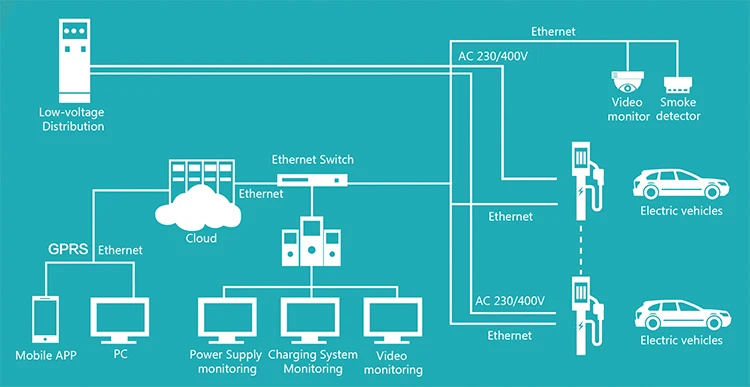

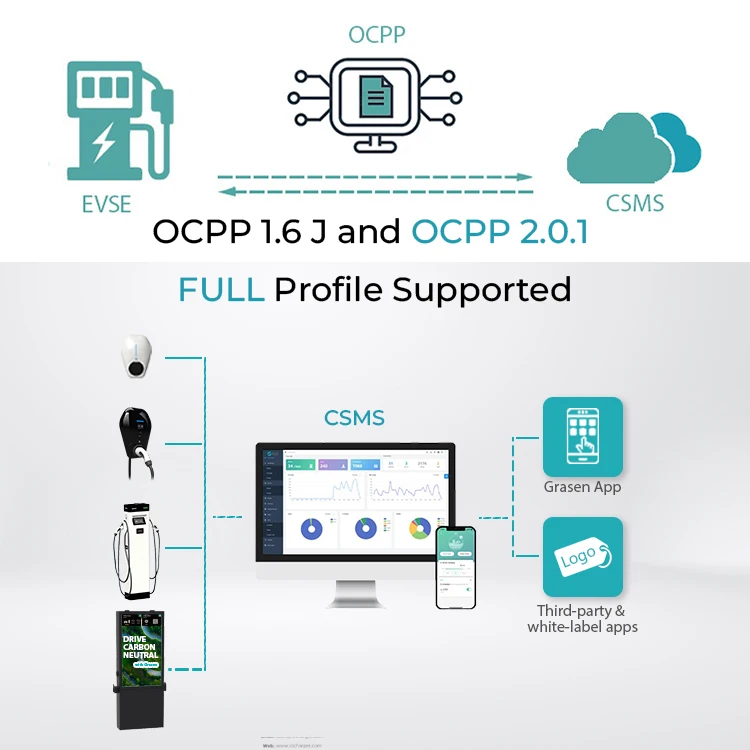

CSMS - Charging Management System
With OCPP integrated, GRASEN AC EV charger can be easily connected to our cloud charging management system for easy operation, monitoring, and maintenance.
Packing & Shipping
About Us
Product Certification
Afer-sale Service
FAQ
A: We are a professional researching&designing manufacturer, our factory has been
established for 5 years.
established for 5 years.
Q2: What are your main market?
A: Asia, Europe, America, Africa.
Q3: How long is the lead time?
A: The lead time is 30-45 working days, it depends on the quantity and production scheduling.
Q4: What kinds of payment do you accept?
A: We have T/T and L/C etc. If you need the detailed terms of payment, pls contact us.
Q5: What standards for cable connectors do you support?
A: We support Chinese national GBT standard, European CCS standard, and Japanese CHAdeMo standard. Q6: What is your warranty for EV charger?
Generally 1-2 years.If you have special requirements please contact our customer service.
Generally 1-2 years.If you have special requirements please contact our customer service.
Q7: Can you print our logo on the products? Do the color of plug and cable can be customized according to our requirements?
A: We support OEM and ODM service, but there will be a MOQ for custom design.
