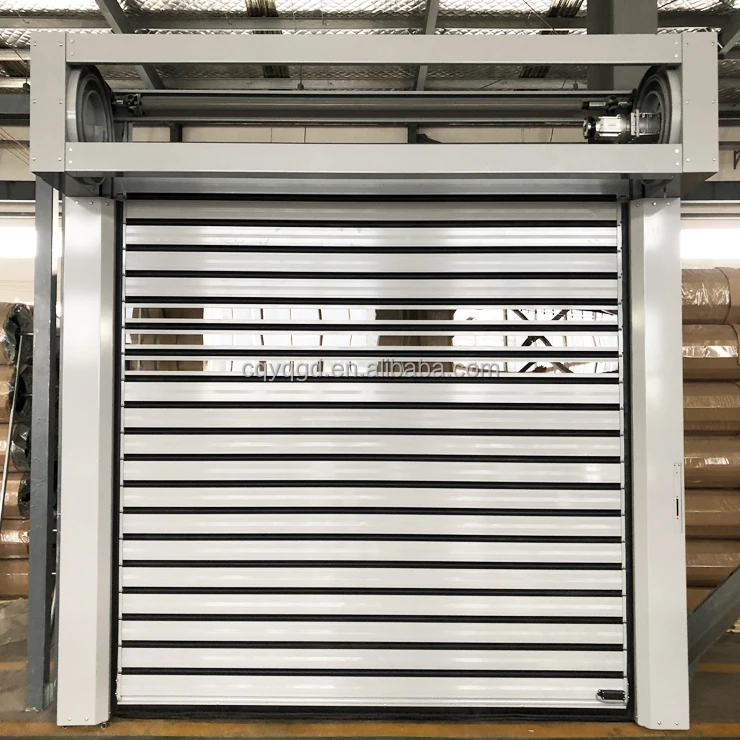

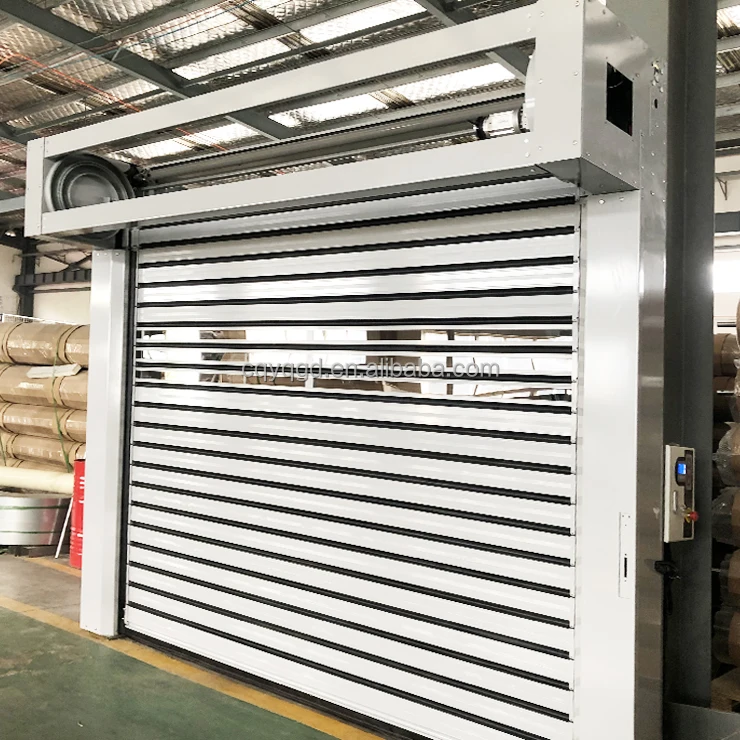

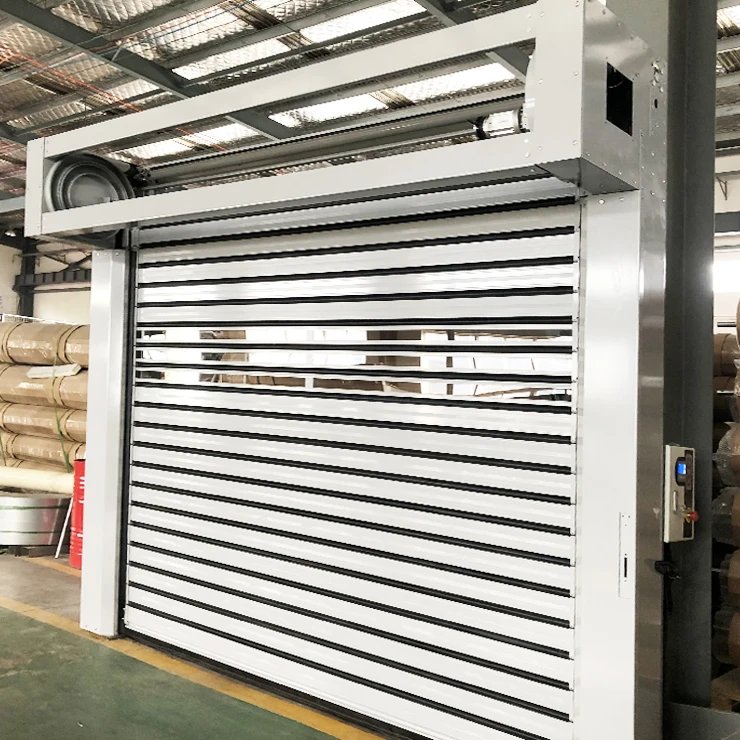

Infrared Induction Shutter Windproof Fast Automatic Spiral Aluminum Metal Insulated High Speed Rapid Rise Roll up Warehouse Door
- Category: >>>
- Supplier: Qingdao Norton Door Technology Co. Ltd.
Share on (1601201183201):
Product Overview
Description

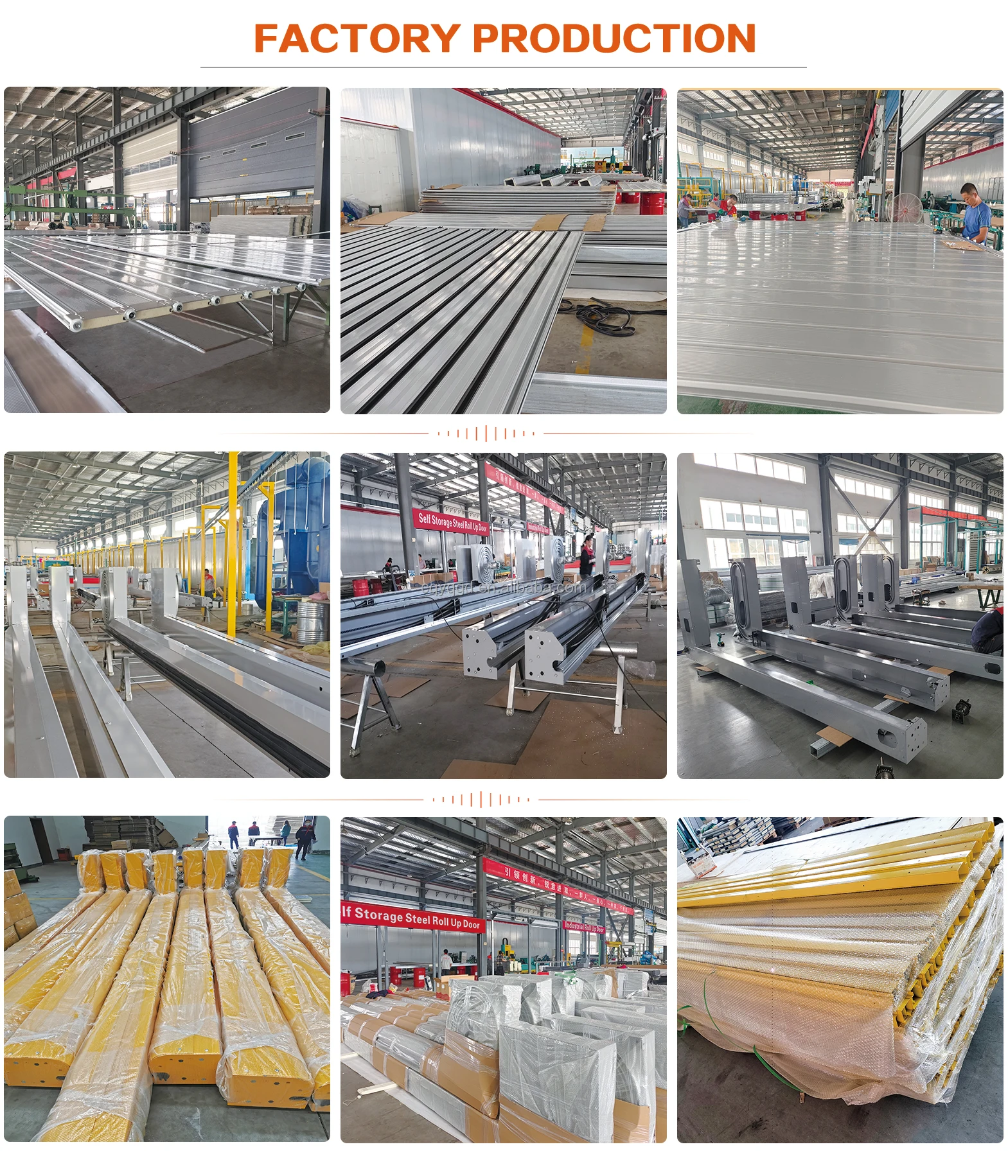

Qingdao Norton Door Technology Co., Ltd. was established in 2 0 0 5 year, specializing in the design and production of overhead garage doors, rolling shutter doors, stacking doors, industrial sectional doors and high speed doors. The company has 2 production lines for various sectional door panels, 3 production lines for rolling shutter doors, 1 production line for high speed doors. It has obtained I S O 9 0 0 1 quality certification and its products have passed European C E certification. The factory adheres to strict quality control and continuously improves product quality.
Good quality products and solid technical support can be provided by the advanced production equipment and strong technical team. Products are exported to more than 40 countries, such as United States, Canada, Netherlands, Australia, United Arab Emirates. The company is widely recognized by customers all over the world, and its good quality products have won high praise from users. For doors in each series, there are different colors and styles available. O D M / O E M services are supplied.
Norton spraying equipment sprays paint at high speed onto the surface of the object to be coated, providing anti-corrosion,wear-resistant, and aesthetic properties. It can extend the service life of products.
Product Name | High Speed Aluminum Spiral Door |
Material | Aluminum+PU foam insulation+organic glass window |
Color | White, Dark Grey, Silver Grey, Red, Yellow |
Panel thickness | 40mm |
Standard | ISO9001, CE |
Opening Speed | 1.2 to 2.5m/s, adjustable |
Closing Speed | 0.6m/s, adjustable |
Wind resistance | 3.5kPa, 120km/h |
Inverter | Taiwan Shilin Brand |
Motor Voltage | 110V,60HZ,or 220V 50HZ, or 380V 50HZ |
Motor Power Output | 0.75KW,1.5KW,2.3KW and so on |

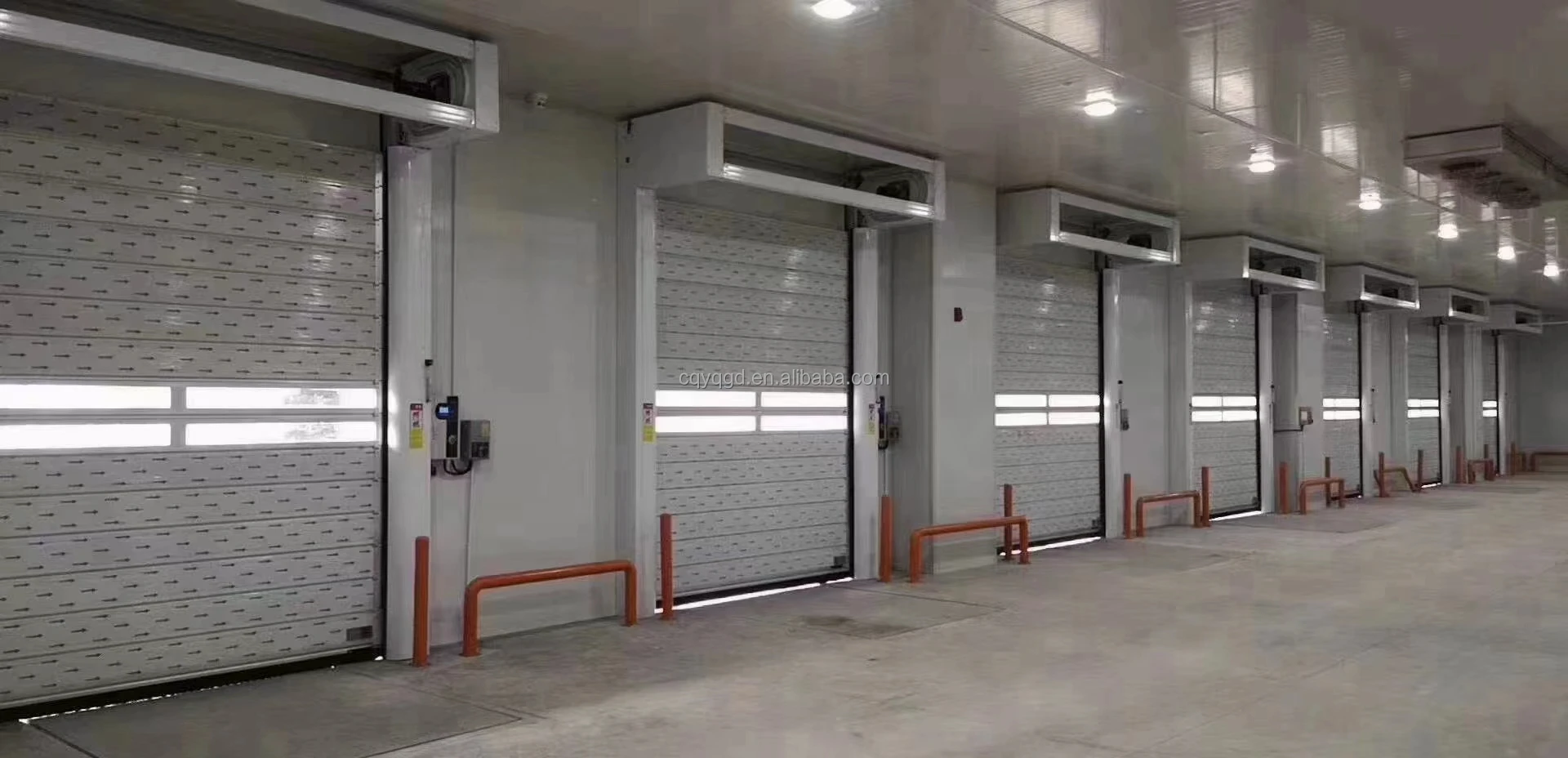

Used | building industry, logistics |
Good airtightness, heat preservation and noise prevention
Between the door panels, all sides are equipped with sealing strips, the door panels are filled with polyurethane foam material, heat insulation and noise prevention
Strong and durable, beautiful appearance
Aluminum alloy door is sturdy and durable, different colors are available; Can be equipped with aluminum transparant panels or windows.
Technical Drawing
Three lift styles
According to the door opening headroom, there are 3 lift styles optional.
Circular Spiral guide rail headroom: Min 0.85m for 3m height door. Min 1m for 5m height door
Oval Spiral guide rail headroom: Min 0.7m.
Red Color Panel
Red is our standard color
Yellow Color Panel
RAL1021 yellow color is popular
Silver Grey Color Panel
Silver Grey is our standard color

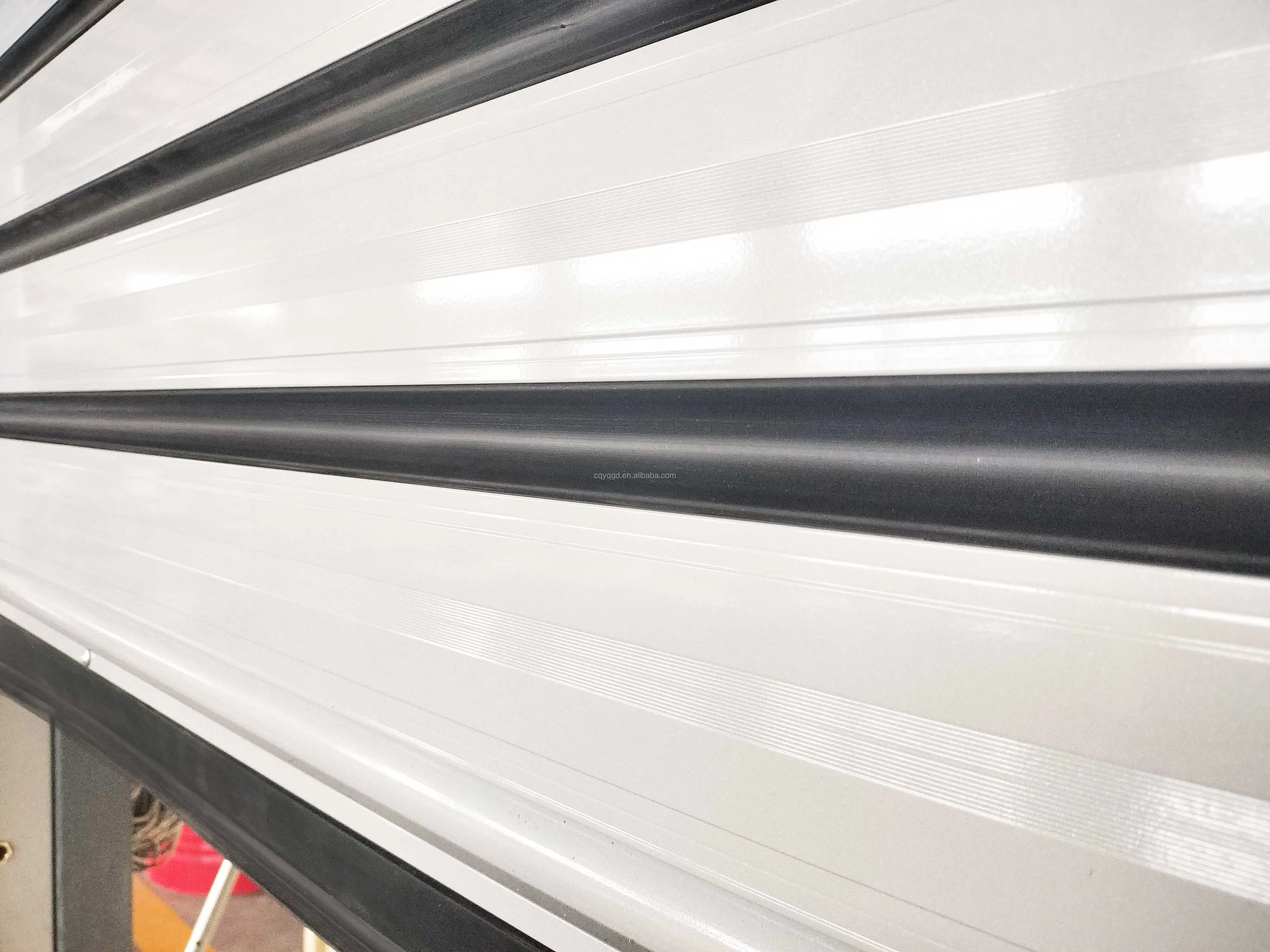

(1) Door Panel thickness is not less than 40mm.
(2)The surface is anodized and organic colored.
(3)The interior is filled with polyurethane (excluding CFC) foam.
(4)Adopt international advanced bridge insulation treatment.
(5)The hinge load-bearing design makes the curtain joints unstressed, the door panels are not in contact, and the flatness can be maintained after long-term use.
Guide Rail
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.
Oval Spiral guide rail
For headroom Min0.7m

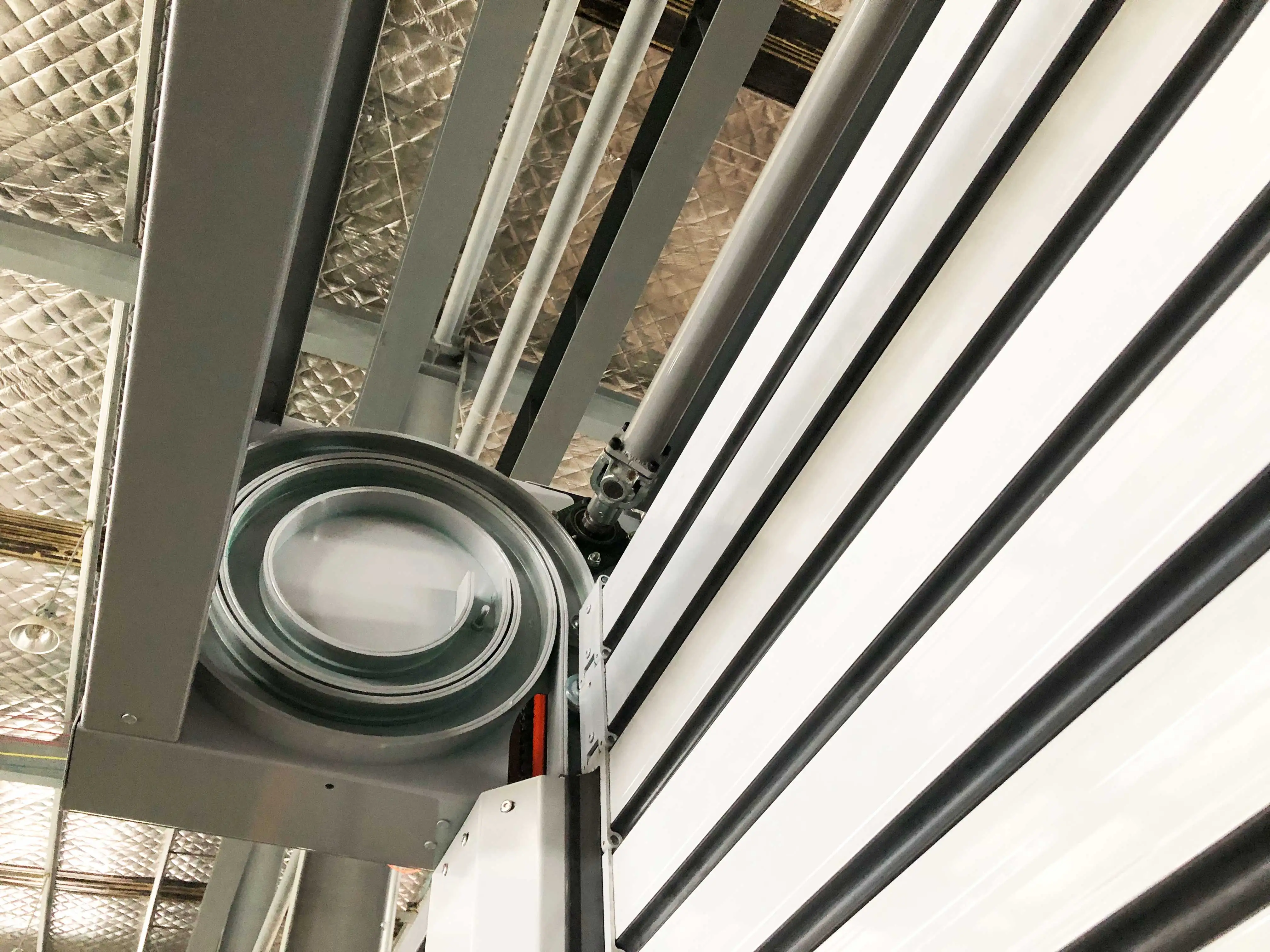

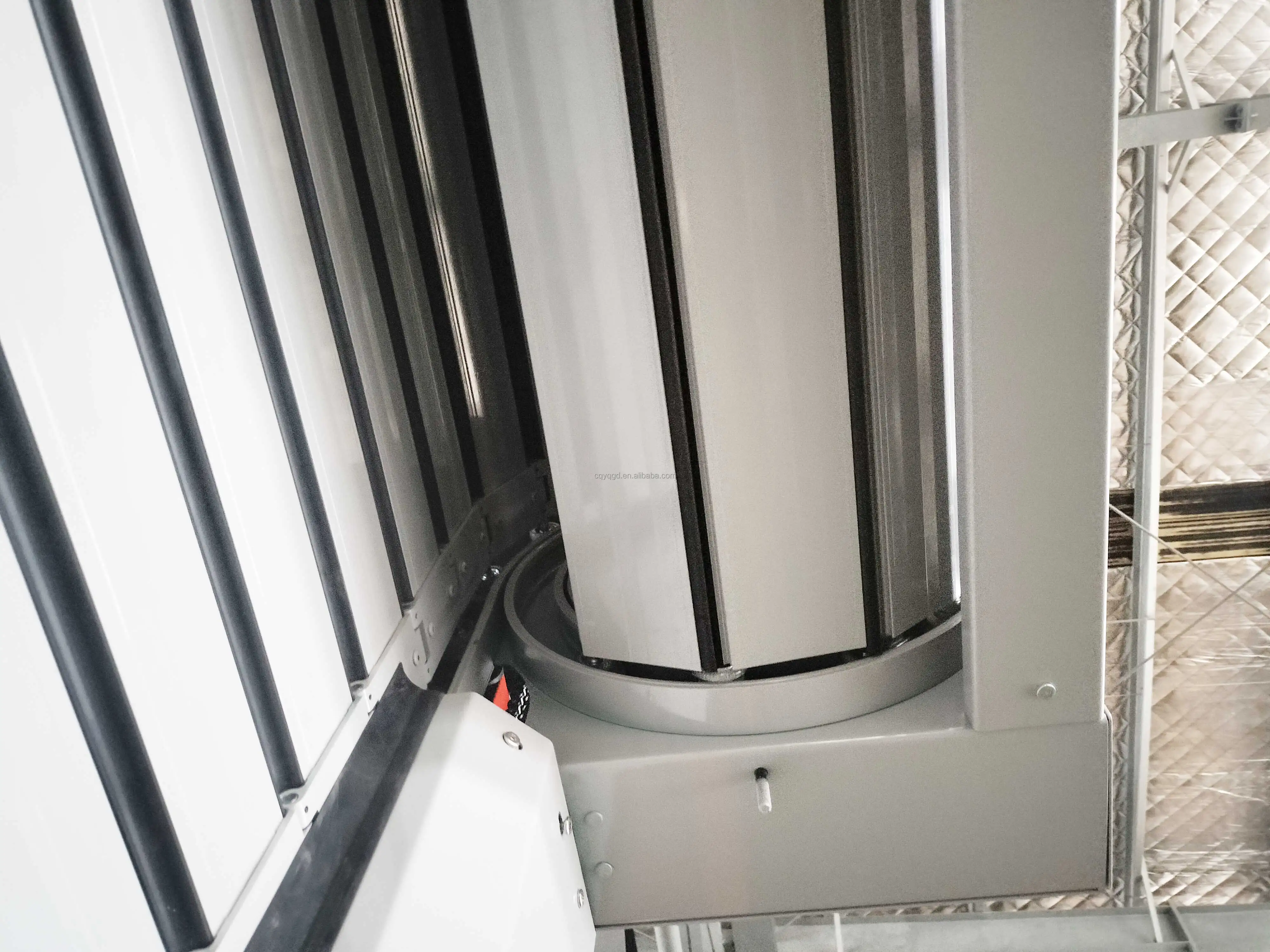

Spiral Guide Rail
For headroom Min0.7m
The spiral circular non-contact track is used, and the panels are not connected to each other when the curtain is rolled, so the panel material will not be worn, deformed.The friction is reduced and the door runs fast, and has no noise.
The door run smoothly, fast and stable. It is suitable for high frequency operation.
Multiple opening methods

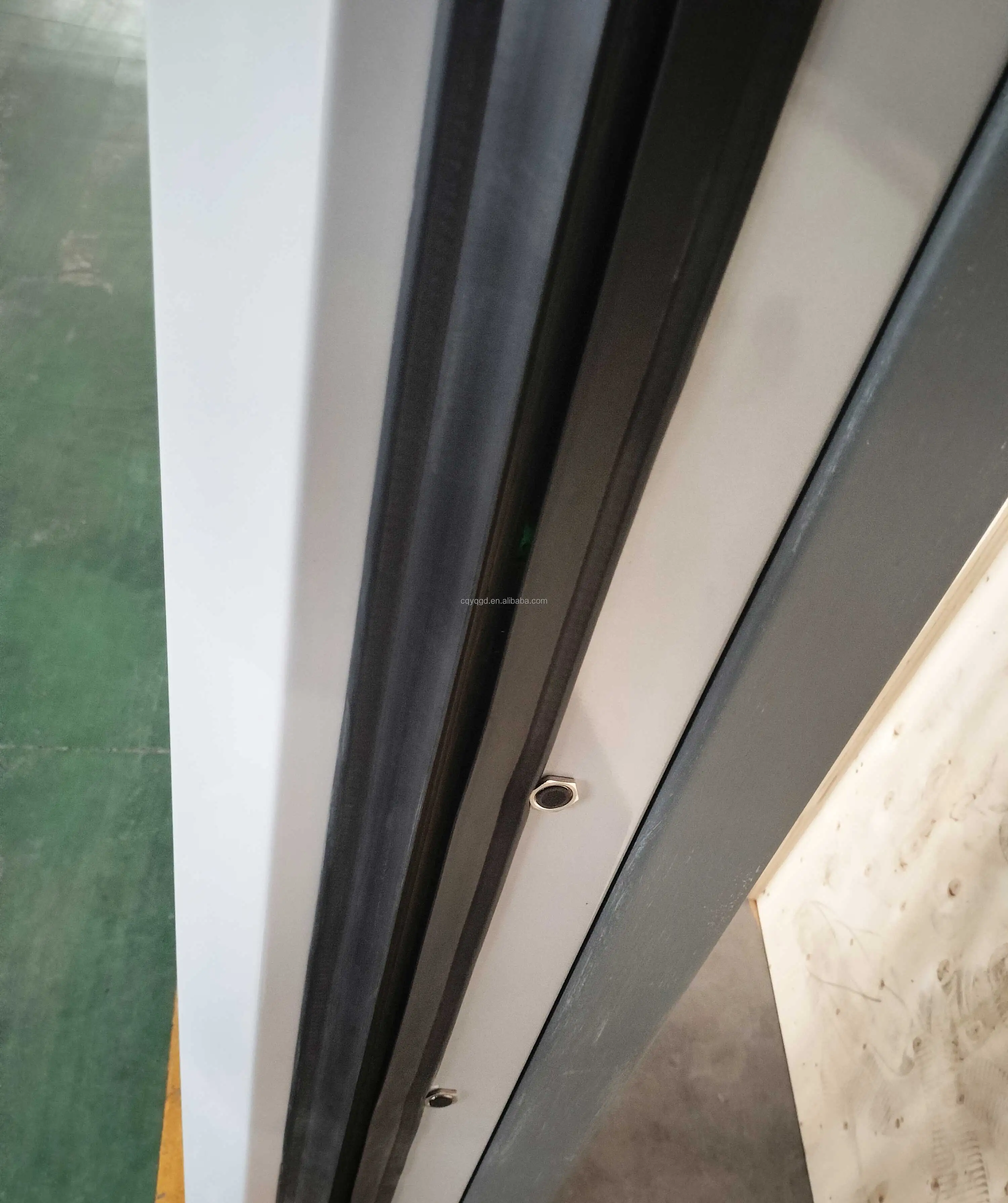

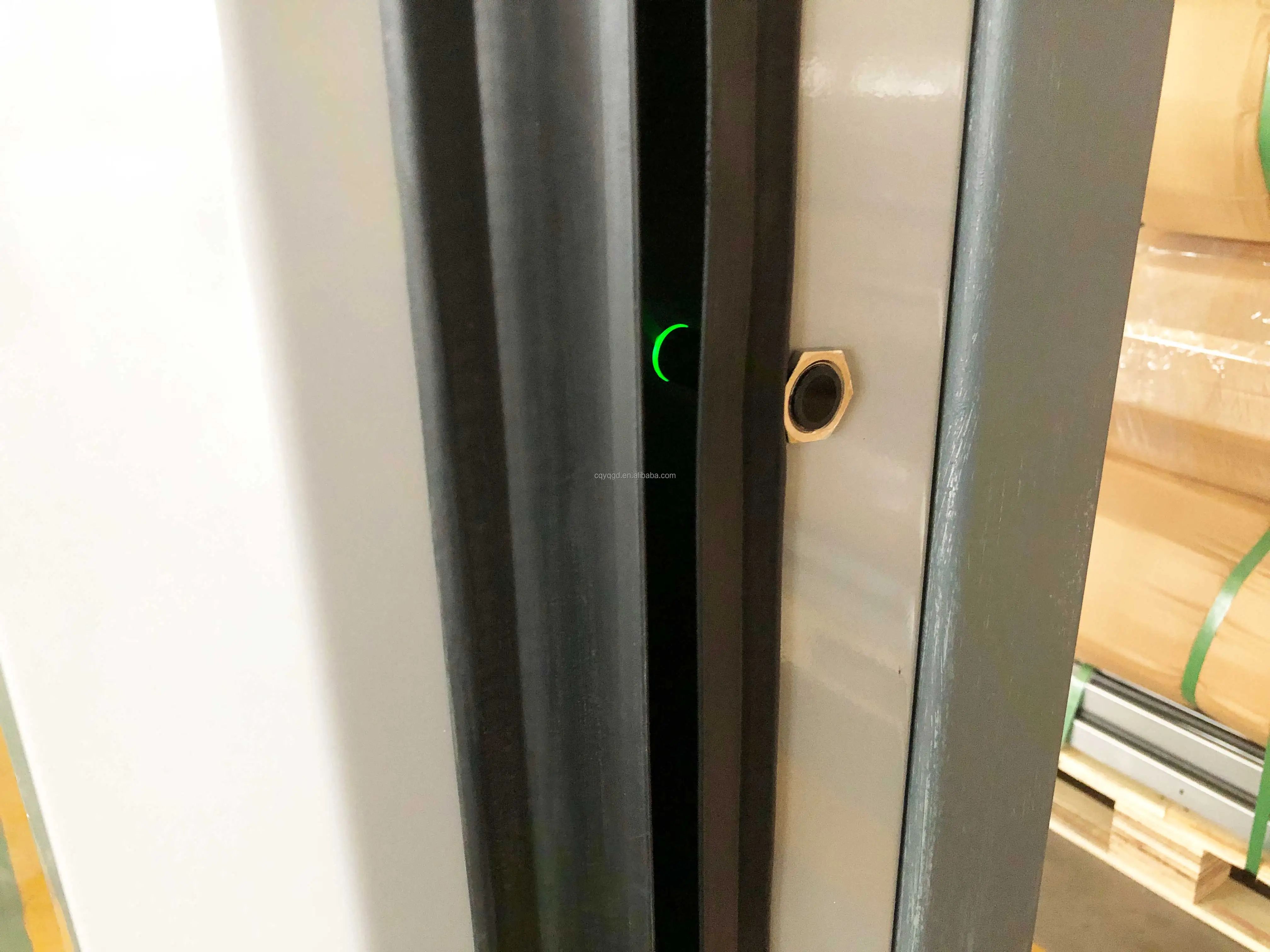

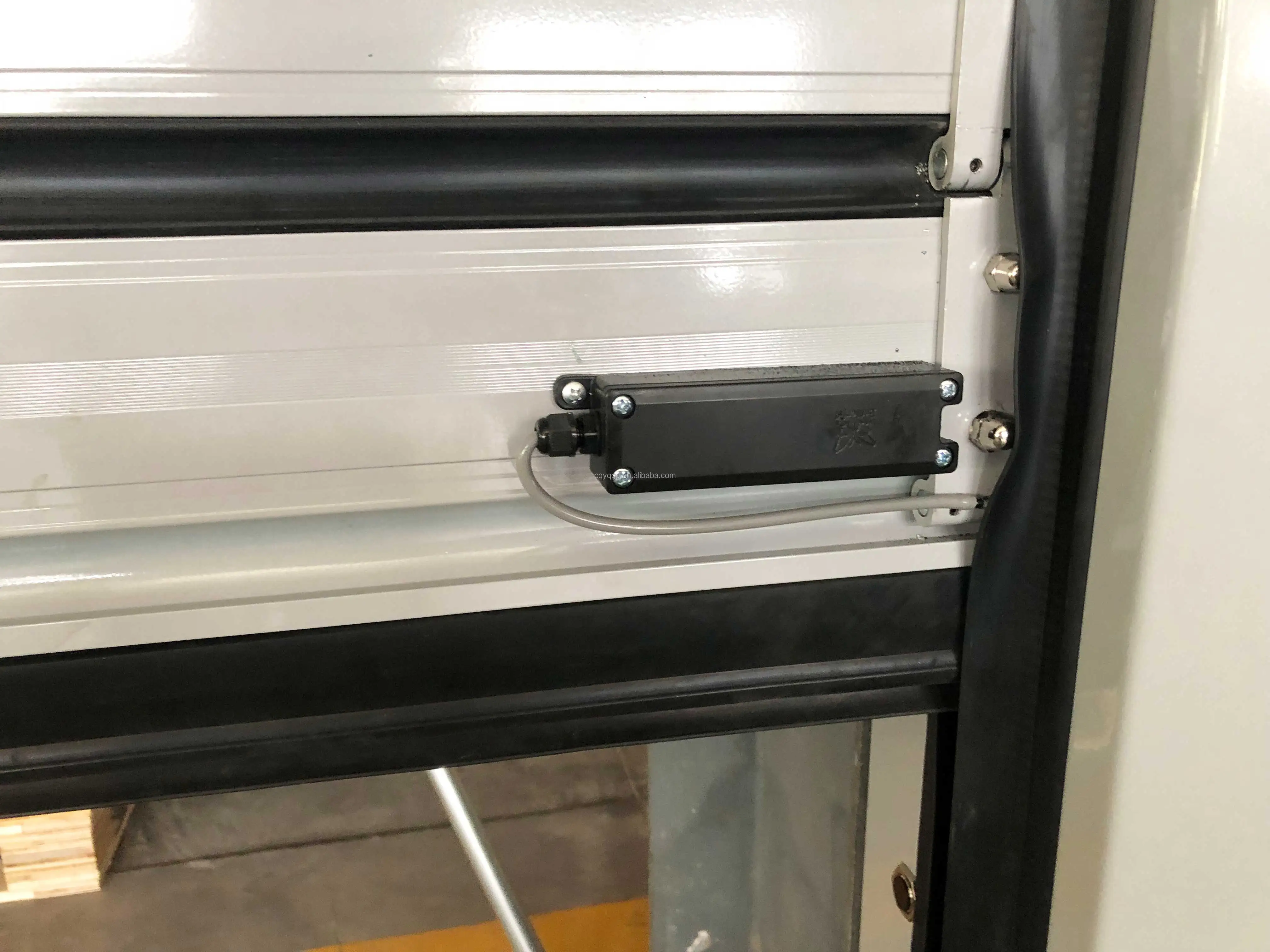

Multiple opening methods: geomagnetism, radar, mobile phone wifi, remote control, wall switch, emergency power failure to open the door, etc. Safety device Infrared, bottom side of airbag.

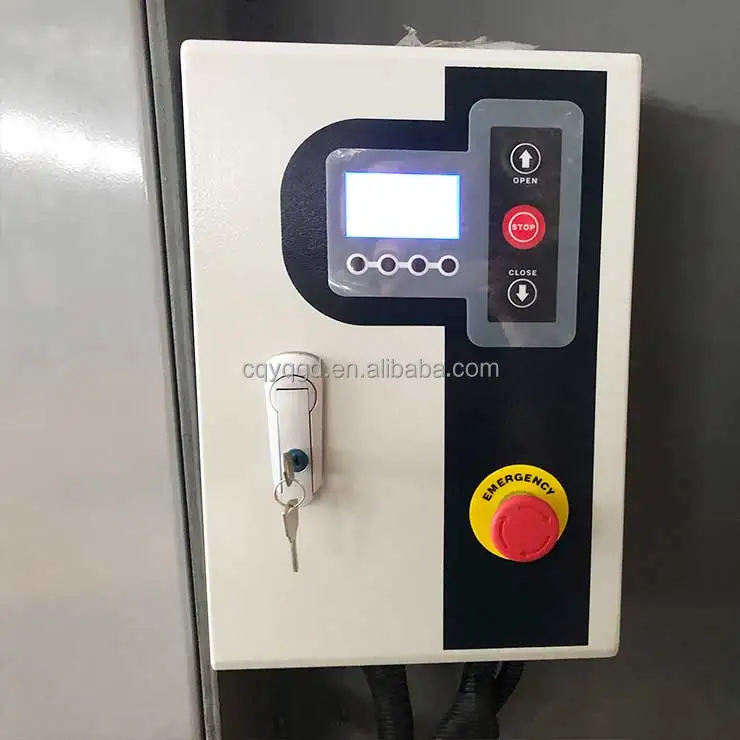

Push button switch
turbine guide track&motor

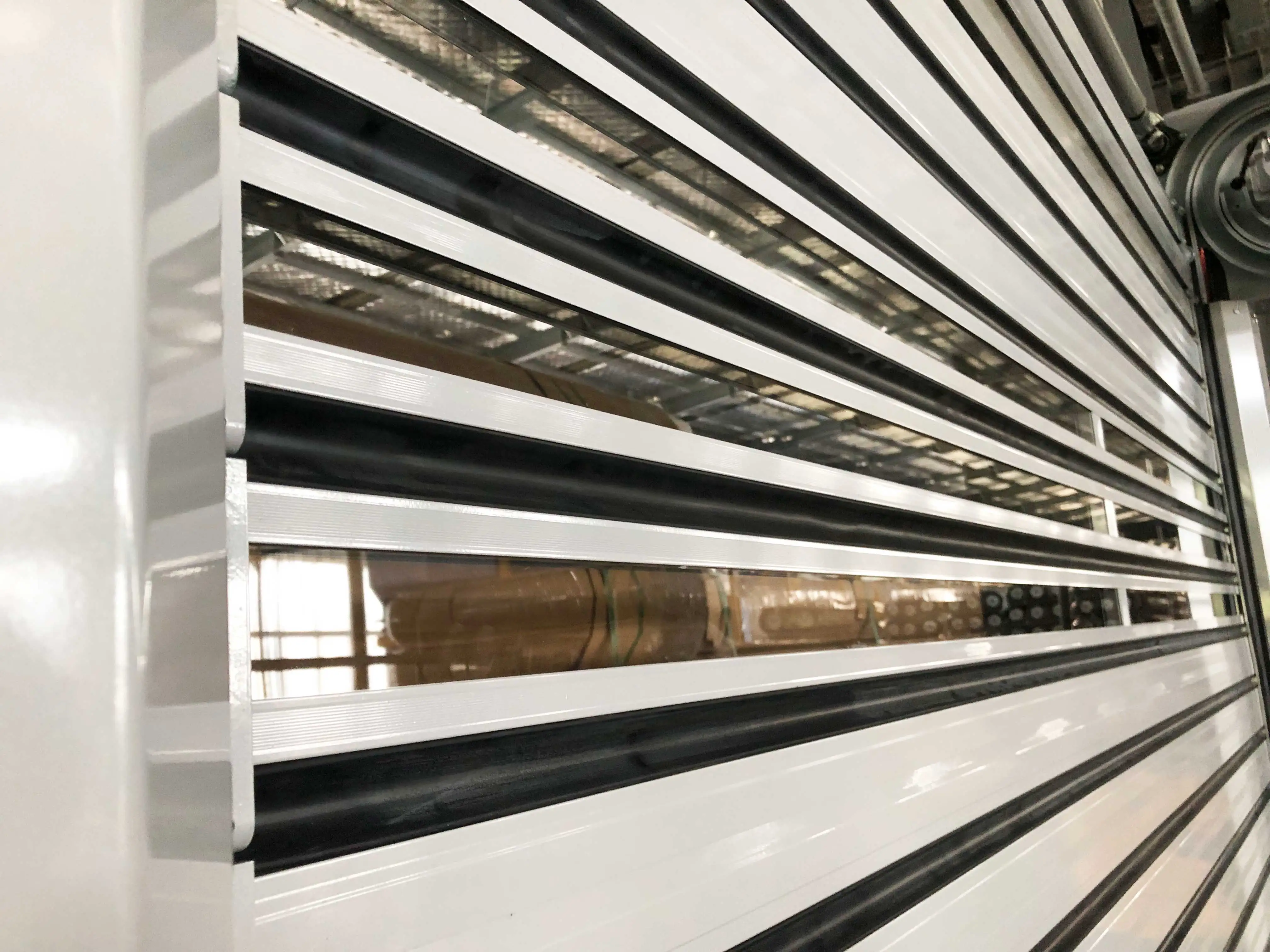

organic glass window
Good airtightness, heat preservation and noise preventionn
Between the door panels, all sides are equipped with sealing strips, the door panels are filled with polyurethane foam
material,heat insulation and noise prevention
material,heat insulation and noise prevention
