Alloy steel Double Head Stud Bolt With Metric Size
- Category: >>>
- Supplier: Henan Shenghe Pipe Industry Co. Ltd.Henan Ltd.
Share on (1601201185717):
Product Overview
Description
Stud Bolt
Henan Sheng He Pipe Industry Co., Ltd., have an experience spanning for over ten years, producing and supplying best-in-class products, minimize cost by getting manufacturing processes under one roof and delivering consignments on a daily basis only because of a diligent and dedicated team. We are manufacturers, suppliers and exporters of Stud Bolt.
What is Stud Bolt?

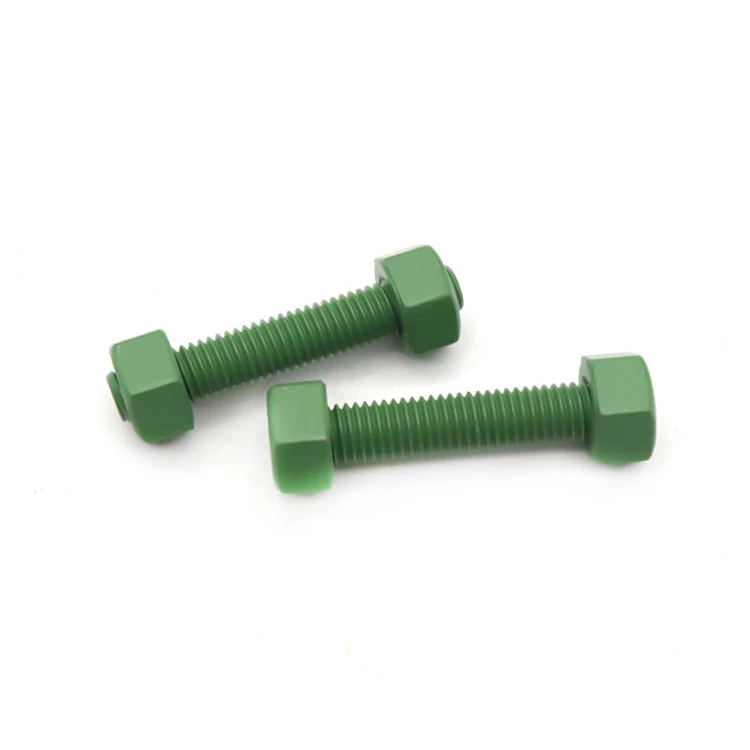

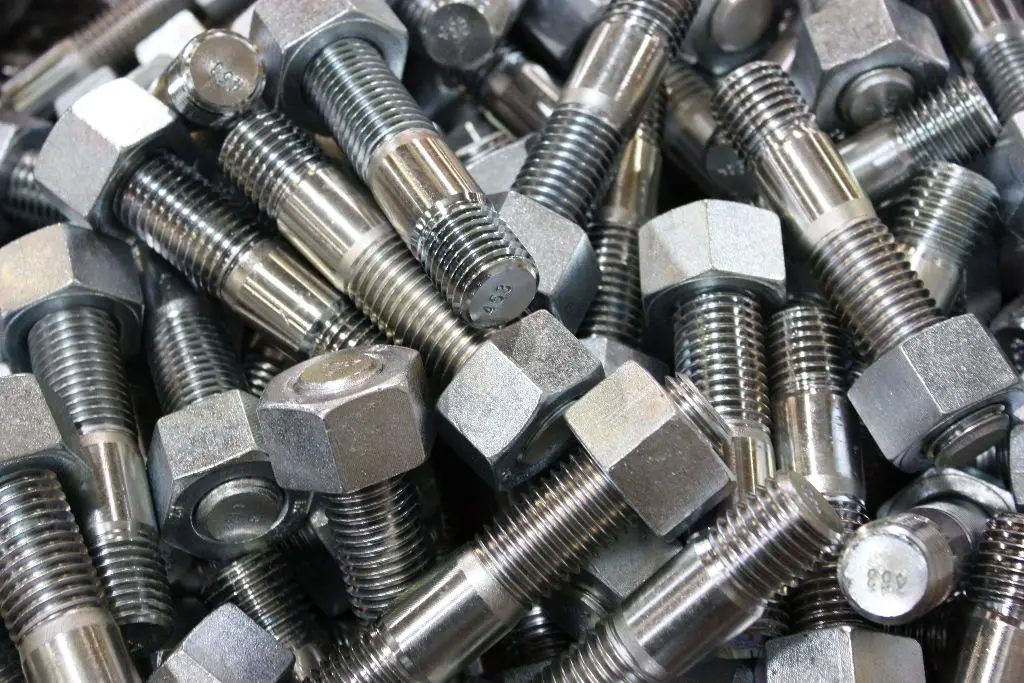

A stud bolt is an externally threaded rod with two heavy hexagon nuts. It has a plain shank, usually made from grade 4.6 carbon steel or grade 8.8 stainless steel, with rolled threads on both ends. The threading helps ensure that the nuts remain secure and prevent the bolt from breaking during installation or removal.
Stud bolts come in different lengths and diameters and are available with either metric or imperial measurements (measured in inches). The most common size for stud bolts ranges from M10 (10mm) to M48 (48mm). Larger sizes may also be available depending on your application needs.
Stud bolts come in different lengths and diameters and are available with either metric or imperial measurements (measured in inches). The most common size for stud bolts ranges from M10 (10mm) to M48 (48mm). Larger sizes may also be available depending on your application needs.
Types of Stud Bolts
Different types of stud bolts are available, depending on the threading pattern and design, as shown below:
Fully threaded stud bolt – also called as continuous threaded stud bolt with a fixed thread length
Tap ends stud bolt – with uneven threads on both ends and a non-threaded center.

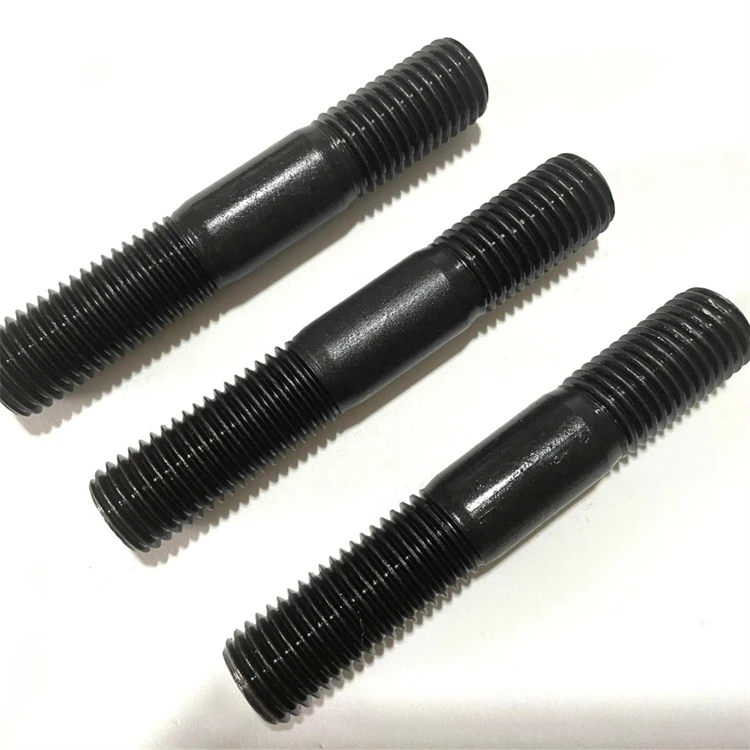

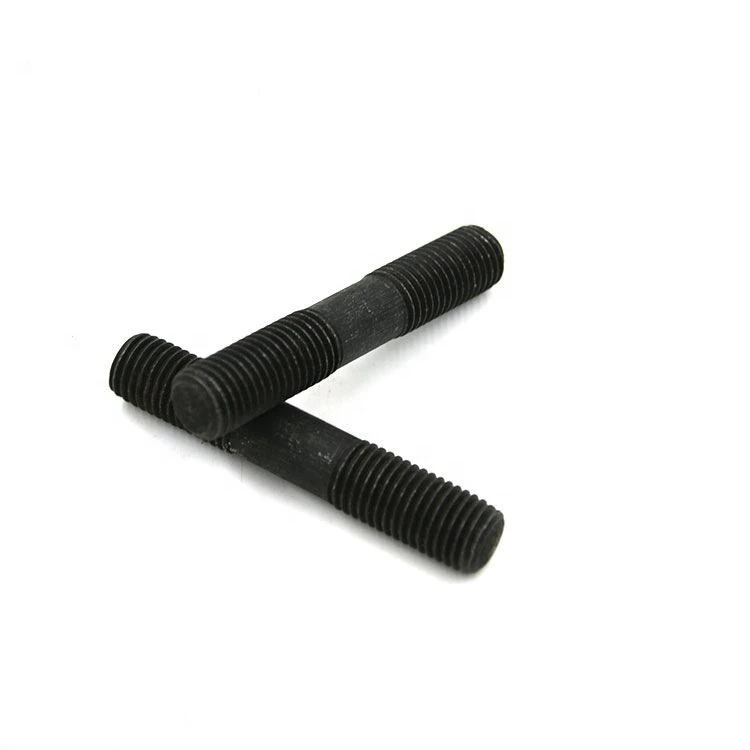

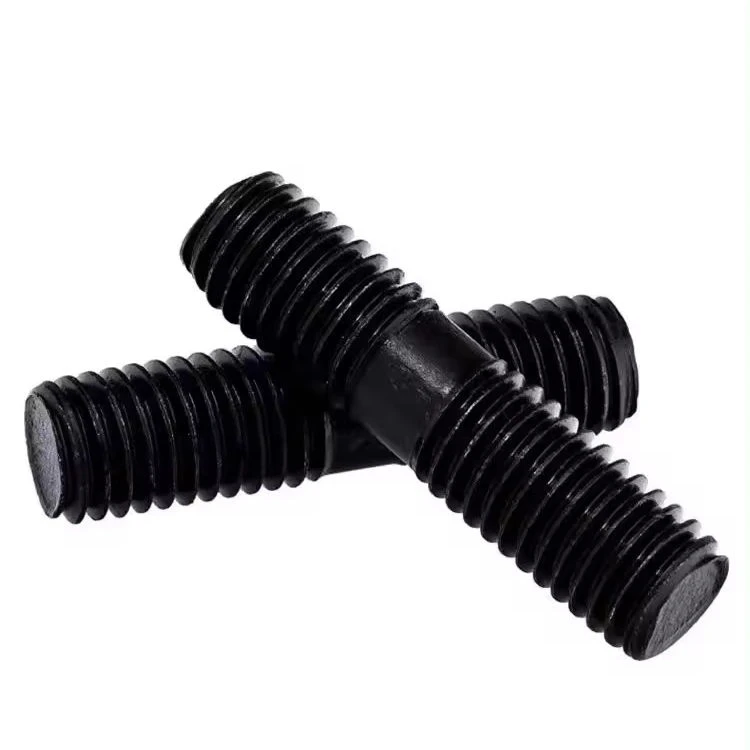

Double-end stud bolts – with threaded ends of equal length and a non-threaded center.
Flange Stud Bolts – a fully threaded stud bolt with a chamfered end, specifically designed for flanged connections.
Double-end stud bolt with reduced shank – the non-threaded center component has a smaller diameter than the actual diameter.
Fully threaded stud bolt – also called as continuous threaded stud bolt with a fixed thread length
Tap ends stud bolt – with uneven threads on both ends and a non-threaded center.
Double-end stud bolts – with threaded ends of equal length and a non-threaded center.
Flange Stud Bolts – a fully threaded stud bolt with a chamfered end, specifically designed for flanged connections.
Double-end stud bolt with reduced shank – the non-threaded center component has a smaller diameter than the actual diameter.
Stud Bolts Coating Materials

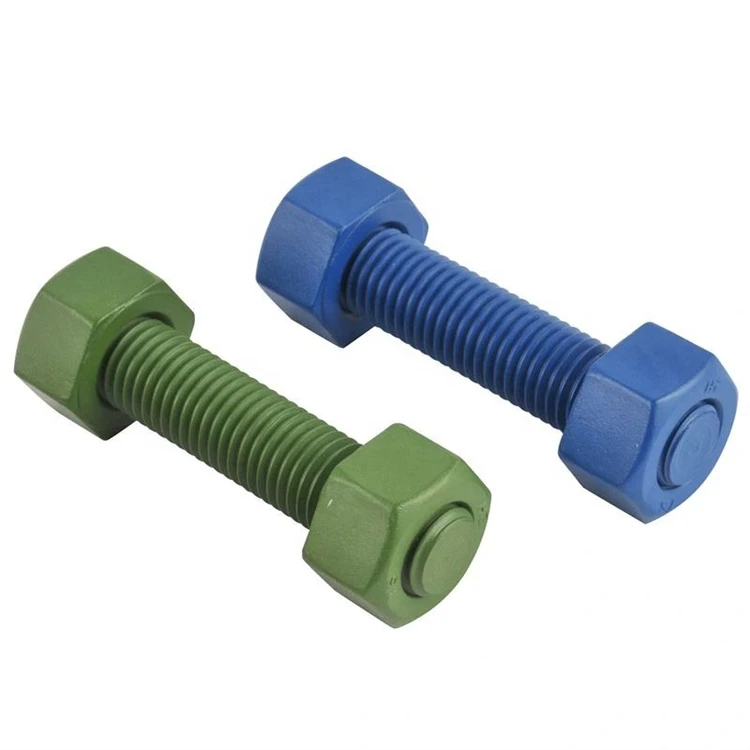

To avoid galvanic corrosion, the material of the nut and washer must be suitable for the stud-bolt material. To improve corrosion resistance, stud bolts are sometimes coated. The following are examples of common coating materials:
Electro zinc plating
Electro cadmium plating
Hot dip galvanizing
PTFE Coating
Phosphate coating
Electro less nickel plating
Zinc-nickel coating
Aluminum coating
Silver coating
Zinc/Nickel by electrode position
Dacromet
Geomet
XYLAN 1070
XYLAN 1024
Xylar 1
Electro zinc plating
Electro cadmium plating
Hot dip galvanizing
PTFE Coating
Phosphate coating
Electro less nickel plating
Zinc-nickel coating
Aluminum coating
Silver coating
Zinc/Nickel by electrode position
Dacromet
Geomet
XYLAN 1070
XYLAN 1024
Xylar 1
Stud Bolt Threads Types
Depending on the application, stud bolts utilize a range of screw thread profiles. The following are some of the most popular thread profiles:
ISO metric thread
ACME thread
UNC thread
UNF thread
UN thread
WHITWORTH thread
ISO metric thread
ACME thread
UNC thread
UNF thread
UN thread
WHITWORTH thread
Stud Bolts Standards
ASME B18.2.1 | 3/8 inch to 3 inch |
BS 1769 | ½ inch to 2 inch |
ASME B18.2.3.6M | M12 to M36 |
ASME B18.2.3.7M | M16 to M36 |
DIN 6914 | M12 to M36 |
ISO 7412 | M12 to M36 |
UNI 5712 | M12 to M36 |
DIN-EN 14399-4 | M12 to M36 |
Stud Bolts Material Grades:
ASTM/ASME B/SB 564 UNS N02200(NICKEL 200), UNS N04400, (MONEL 400), UNS N08825( INCOLOY 825), UNS N06600(INCONEL 600), UNS N06601(INCONEL 601), UNS N06625(INCONEL 625), UNS N10276(HASTELLOY C276) | |
ASTM/ASME B/SB160 UNS N02201(NICKEL 201), ASTM B/SB472 UNS N08020(Alloy 20) | |
Stainless Steel | ASTM/ASME A/SA 182 F304, 304L, 304H, 310H, 316, 316H, 316L, 316Ti, 317, 317L, 321, 321H, 347, 347H, 904L |
Duplex and Super Duplex | ASTM/ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950 |
Carbon Steel | Grade 4.8, 5.8, 6.8, 8.8, 10.8, 12.9 |
Alloy Steel | A193 B7, A194 2H, A320 L7, L7M |
Company Profile
Henan Shenghe Pipe Industry Co., Ltd., have an experience spanning for over ten years, producing and supplying best-in-class products, minimize cost by getting manufacturing processes under one roof and delivering consignments on a daily basis only because of a diligent and dedicated team. We are manufacturers, suppliers and exporters of 30°, 45°, 90°, 180° Butt Weld Elbows.
We employ high-quality materials and advanced manufacturing techniques to ensure that our products meet and exceed industry standards, including but not limited to ASTM, EN, DIN, JIS, BS/BSP, ASME, AISI, ACME, etc.
We takes great pride in maintaining a large stock of pipe fittings, branch connections, flanges, fasteners, steel pipe tubes, and bars. Our extensive inventory allows us to meet the diverse needs of our customers promptly and efficiently. Whether you require standard sizes or customized solutions, we have a wide range of products available for immediate sale.
Qualification Certificate
Customer Visit
Test high-quality products
Packing and Delivery
Fast and Safe
FAQ
1. who are we?
We are based in Henan, China, start from 2013,sell to Southeast Asia, Europe and America, the Middle East, Africa, etc. There are about 30 people in our office and factory in total.
We are based in Henan, China, start from 2013,sell to Southeast Asia, Europe and America, the Middle East, Africa, etc. There are about 30 people in our office and factory in total.
2. how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
3.what can you buy from us?
Flange, Pipe Fittings, Pipe,Tube, Round Bar, Bolt Nut and Sheet
4. why should you buy from us not from other suppliers?
The company has strong technical force, complete production equipment and perfect testing means.It is mainly engaged in processing and manufacturing pipe fittings, flange, pipe, bars, sheet plate of piping product filed.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English, Chinese,Spanish, Japanese, Portuguese, German, Arabic, French,Russian,Korean,Hindi,Italian。
Always a pre-production sample before mass production;Always final Inspection before shipment;
3.what can you buy from us?
Flange, Pipe Fittings, Pipe,Tube, Round Bar, Bolt Nut and Sheet
4. why should you buy from us not from other suppliers?
The company has strong technical force, complete production equipment and perfect testing means.It is mainly engaged in processing and manufacturing pipe fittings, flange, pipe, bars, sheet plate of piping product filed.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English, Chinese,Spanish, Japanese, Portuguese, German, Arabic, French,Russian,Korean,Hindi,Italian。
