Big paper cup ZSZB D80S automatic paper cup making Machine

Product Overview

Description

ZB-D Automatic Single-PE Coated Paper Cup Forming Machine

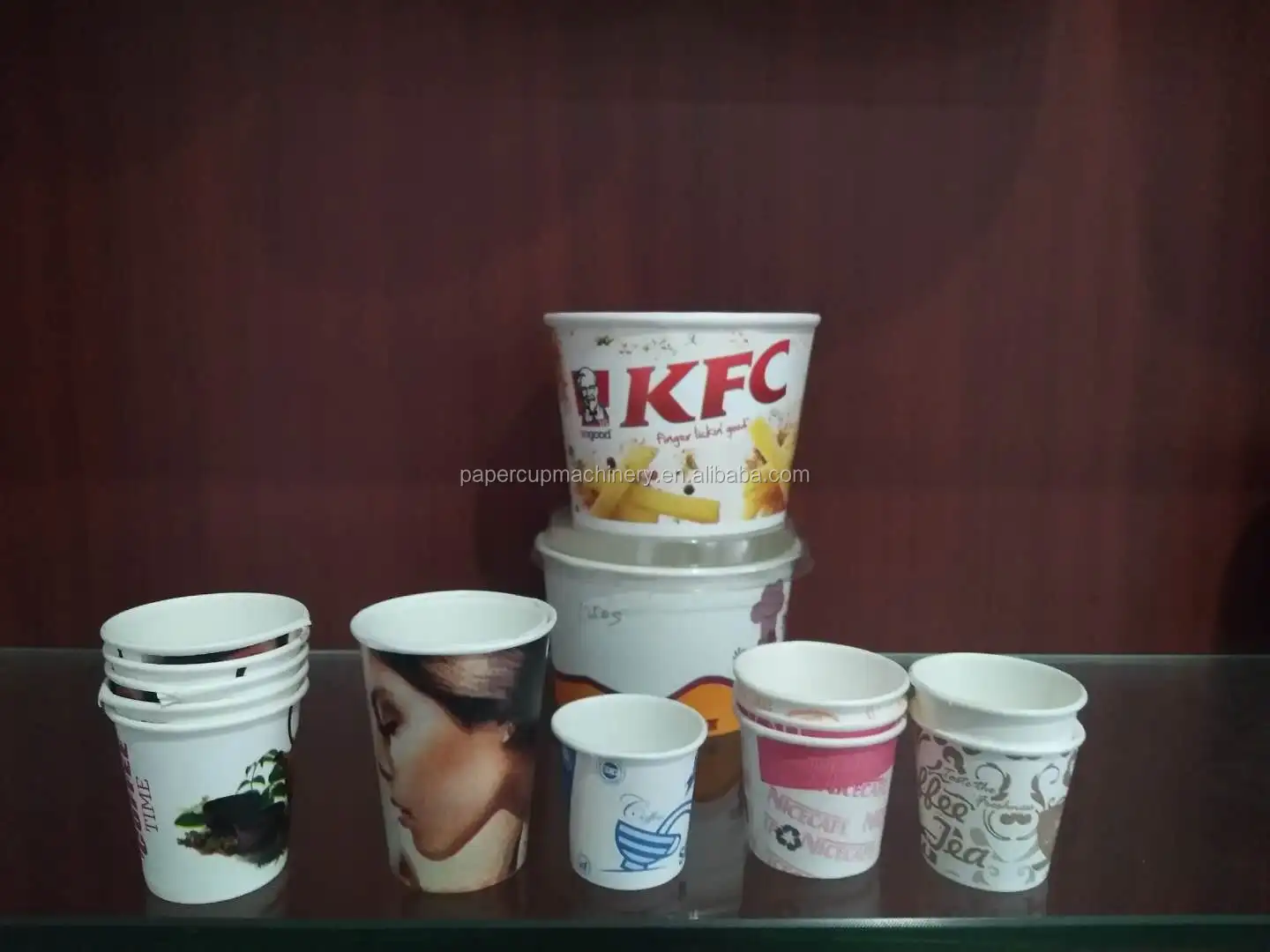

ZB-D paper cup machine is improved based on the normal chain driving type. This machine runs a whole procedure of paper-feeding, cup-fan-wall sealing, oiling, bottom punching, heating, rolling, rimming, rounding and tripping. It is an idea equipment for producing drinking cups,market cups, coffee cups, advertising cups , etc. It is widely used for hot drink and beverage.

If you need double pe coated paper cups or paper gram higher 250g/m2, we recommend you to use Ultrasonicpaper cup machine, it can produce single pe coated paper cups and double pe coated paper cups.

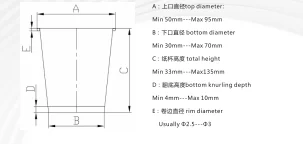

Paper Cup's General Size :

A:Top Diameter B:Bottom Diameter C:Total Height D:Stacking Increment E:Rim Thickness

Technical Specification

Type:	ZB-D
Cup size:	3-12oz(different size mold exchanged)
Suitable paper material:	150-380g/m2 (single or double PE-coated paper)
Capacity:	35-40pcs/min
Power source::	220V,380V 50HZ(please inform us your power in advanced)
Total power:	4KW
Weight:	1500KG
Package size:	2500 x 1400 x 1700 mm
Working Air Source:	Air pressure 0.4Mpa;Air out-put:0.6m3/min



Advantage and improvement:

1.Use gear driving system instead of chain,more stable running and speed up.



2.We use 125 type gear box,which is longer life and more accurate.Normally,100 type gear box is used.



3.100 type speed reducer is used instead 80 type.



4.New design knurling wheel is used to guarantee the even pressure and better bottom sealing.



5.Cup folding parts is controlled by three separate cams,and each folding clip can be adjusted by itself.



6.We use manipulator to transfer the cup body instead of falling itself by pipe,It is more stable and accurate under the fast running.



7.Change the Ø25 normal steel shaft to Ø30 imported steel shaft to be sttrengthened,longer life and more stable.

8.Organ type sucker is used for cup fan sucked to gaurantee powerful sucking and more successful.The life is much more longer than normal sucker.
