Factory Hot Sale olt gpon 16 port GPLF C C Service Card for MA5800 huawei olt Series gpon olt
- Category: >>>
- Supplier: Zhengzhou Wangmai Trading Co. Ltd.
Share on (1601201258808):
Product Overview
Description
Product Paramenters
Technical Specifications
MA5800-x2 | |
This board is applicable to | MA5800-x7 |
MA5800-x15 | |
MA5800-x17 |
Item | Specification |
Dimensions without packaging (H x W x D) [mm] | 399.20 mm x 23.30 mm x 257.90 mm |
Weight without packaging [kg] | 0.94 kg |
Static power consumption [W] | 25 W |
Maximum power consumption [W] | 50 W |
Operating temperature [°C] | -40°C to +65°C |
Maximum Frame Size of Boards (Default) [bytes] | 2052 bytes |
Maximum Frame Size of Boards (jumbo frame enabled) [bytes] | 9216 bytes |
Maximum split ratio | 1: 128 |

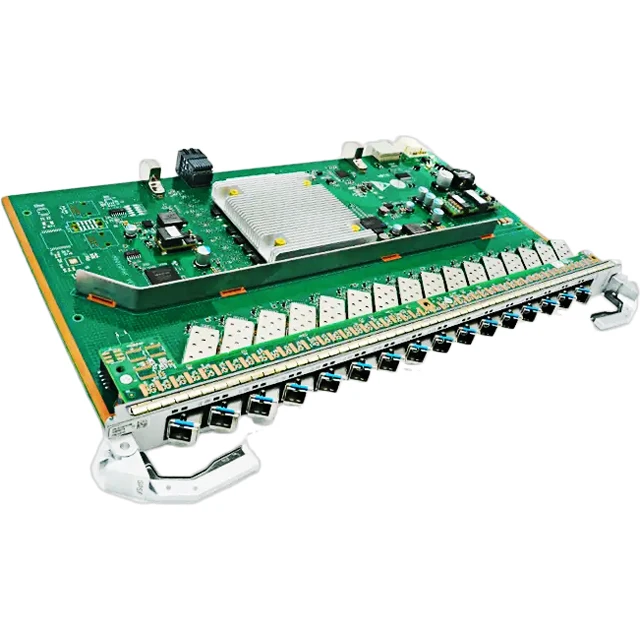

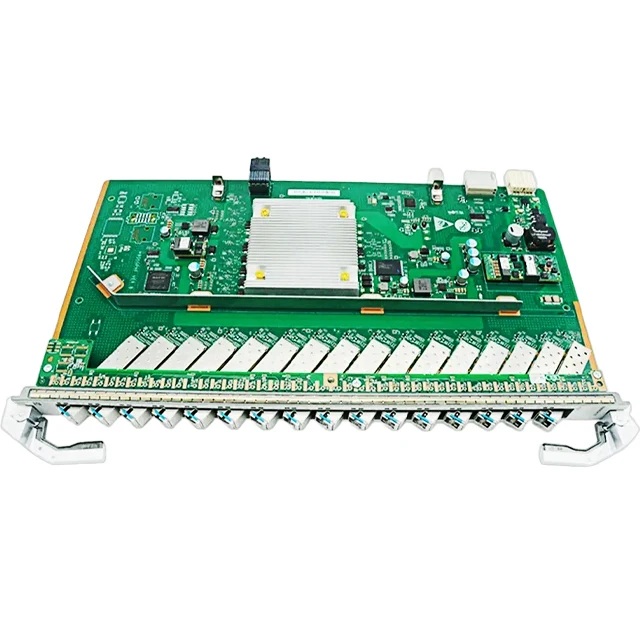

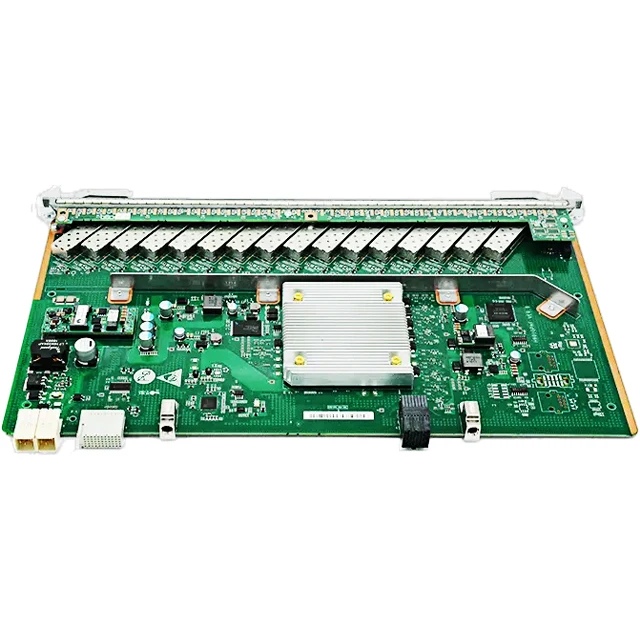

Product Picture
Typical Networking Diagram
Functions and Features
The power consumption of a board is calculated based on the following conditions:
Operating voltage: -53.5 V DC.
Ambient temperature: 25°C.
Static power consumption: All ports are idle, and no optical module is inserted to any optical port.
Maximum power consumption: Power consumption of the board and optical module when all ports are 100% loaded.
The board power consumption slightly varies with the power module configured for the board and discreteness of components.
The lowest startup temperature of a board is –25°C.
The power consumption of access devices is generally transformed into heat consumption. Therefore, heat consumption (BTU/h) and power consumption (W) can be converted to each other using this formula: 1 BTU/h = 0.2931 W.
Operating voltage: -53.5 V DC.
Ambient temperature: 25°C.
Static power consumption: All ports are idle, and no optical module is inserted to any optical port.
Maximum power consumption: Power consumption of the board and optical module when all ports are 100% loaded.
The board power consumption slightly varies with the power module configured for the board and discreteness of components.
The lowest startup temperature of a board is –25°C.
The power consumption of access devices is generally transformed into heat consumption. Therefore, heat consumption (BTU/h) and power consumption (W) can be converted to each other using this formula: 1 BTU/h = 0.2931 W.
Functions and Features | Description |
Application scenario | FTTC/B/D，D-CCAP，FTTH，FTTO/FTTM |
Port quantity | 16 |
Port rate | Upstream: 1.244 Gbit/s Downstream: 2.488 Gbit/s |
Forwarding capability [Gbit/s] | 40 Gbit/s |
Maximum number of MAC addresses | 32768 |
Maximum distance difference between 2 ONUs under the same PON port (board capability) [km] | 40km |
Assured bandwidth per port [kbit/s] | 1238784 kbit/s |
T-CONTs per port | 1024 |
Bandwidth per T-CONT | 1 Mbit/s (in the minimum delay mode) 128 kbit/s (in the maximum bandwidth usage mode) |
ONUs per port | 128 |
GEM ports per board | 16384 |
GEM ports per port | 3872 |
Service flows per board | 16368 |
Power budget of port | Class B+: (28 dB, most common) Class C+: (32 dB, long reach transmission) Class C++: 35 dB |
1588v2 Synchronization | Y |
9216-byte jumbo frames | Y |
Bidirectional FEC | Y |
Type B protection (single-homing) | Y |
Type B protection (dual-homing) | Y |
Type C protection (single-homing) | Y |
Type C protection (dual-homing) | Y |
HQoS | Y |
NTP | Y |
ONU-based shaping | Y |
PON ISSU | Y |
Y.1731 PM | Y |
Security (Anti-DoS, Anti-MAC/IP Spoofing) | Y |
Controlled optical signal transmission of the optical module | Y |
Rogue ONU detection and isolation | Y |
Automatic shutdown at high temperature | Y |
Temperature query and high-temperature alarm | Y |
Energy conservation for service boards | Y |
Why Choose Us
1、Our product quality has comprehensive certification and qualification certification, so you can buy with confidence
2、Our products are absolutely genuine, directly sold online and offline, absolutely official and genuine, and the product after-sales service is guaranteed
3、We have a lot of stock and the products are in stock. Even if you need large quantities of goods, we can deliver them immediately
4.The goods will be delivered within 1 day after the payment arrives. The tracking number will be provided after the shipment is completed.

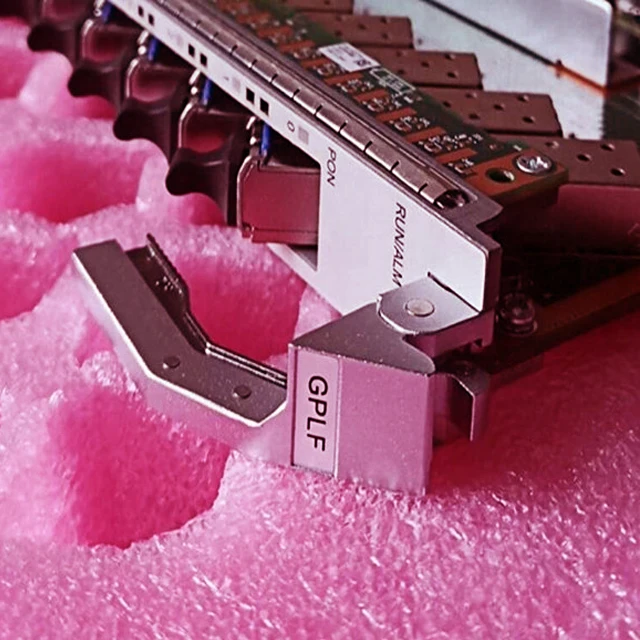

Product packaging
