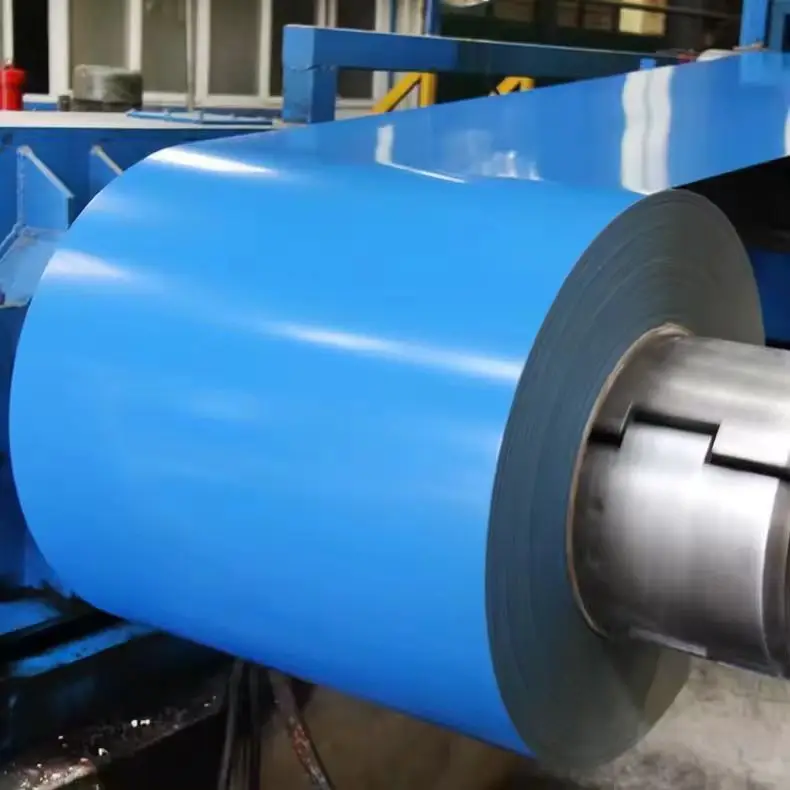

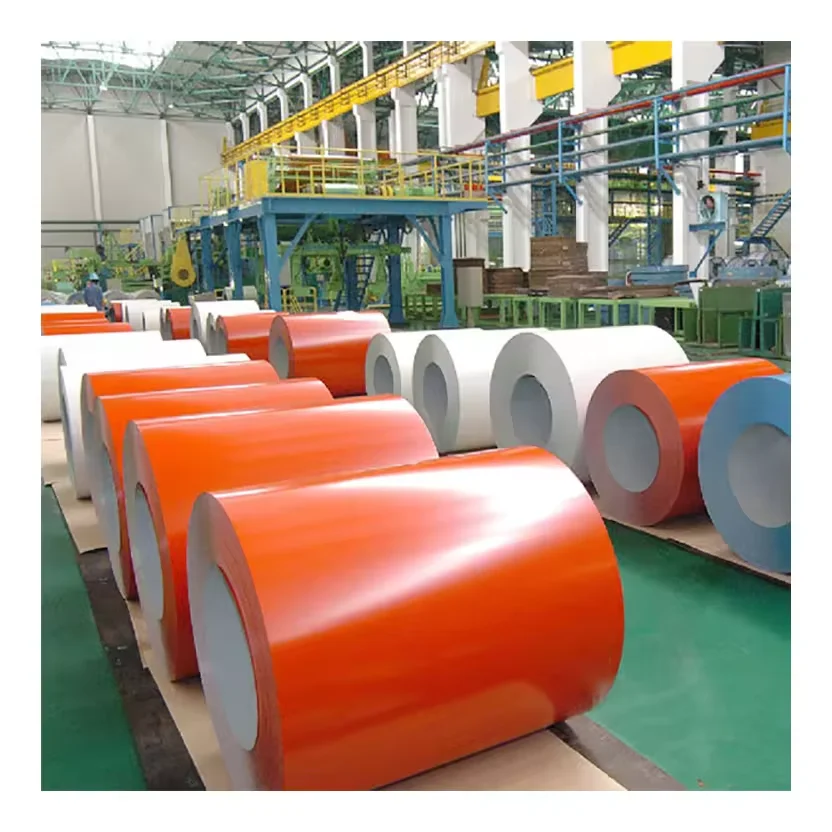

PPGI PPGL Color Coated Steel Coil Z60 Z80 Z100 Z120 Z275 DX 51d For Making Corrugated Roofing Sheet Coil
- Category: >>>
- Supplier: Shandong Chengxinying Commerce And Trade Co. Ltd.
Share on (1601201281060):
Product Overview
Description

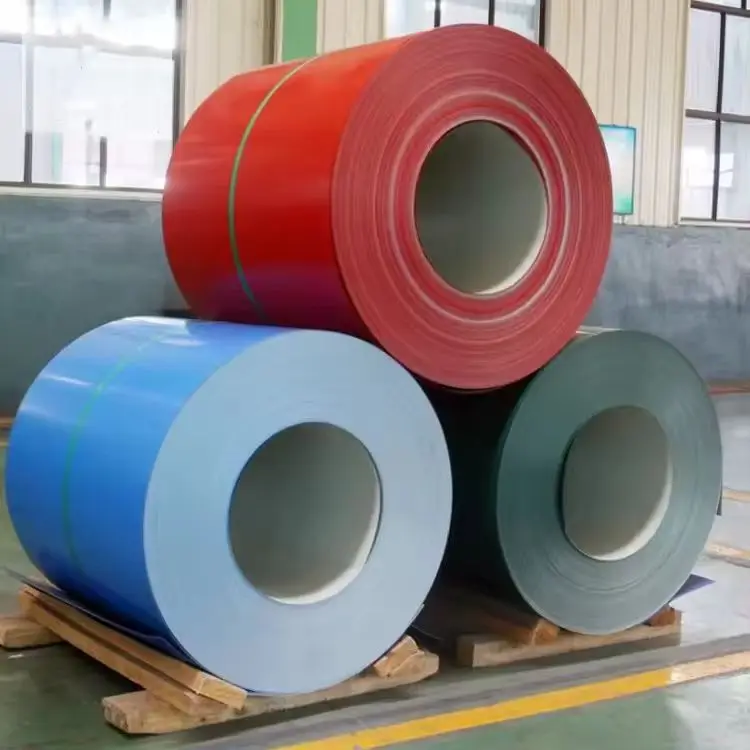

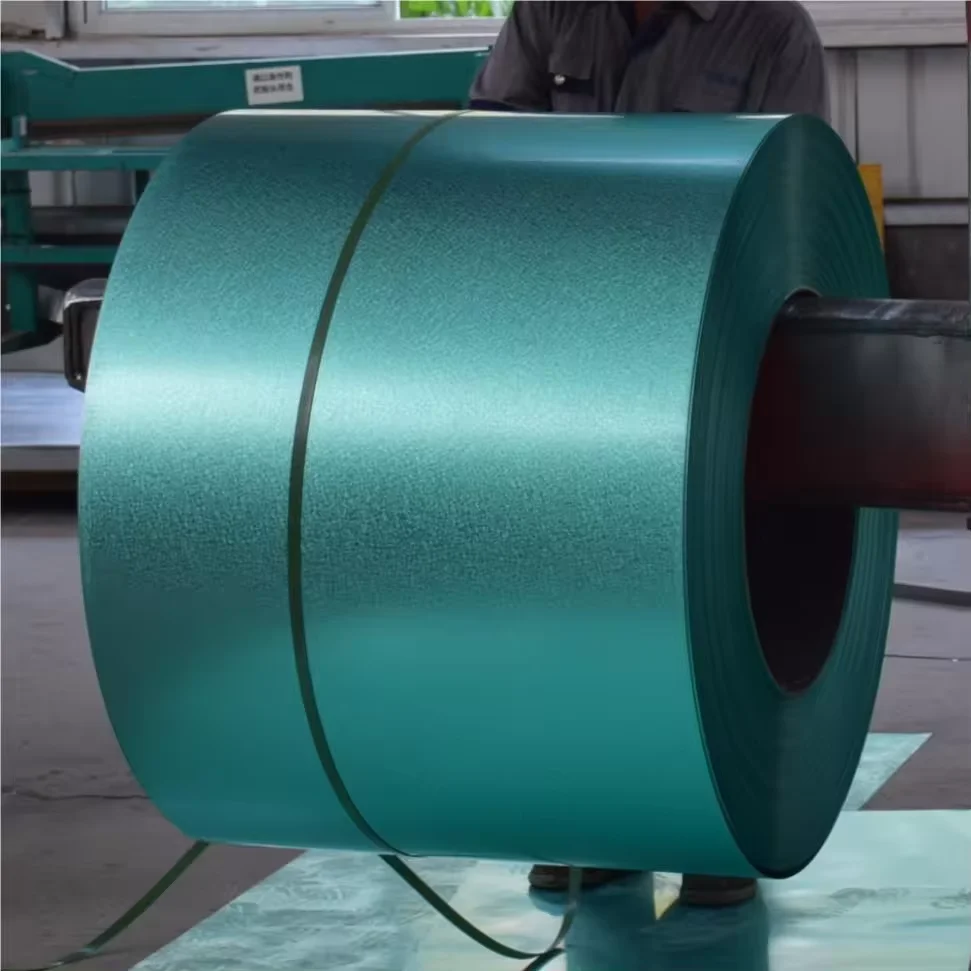

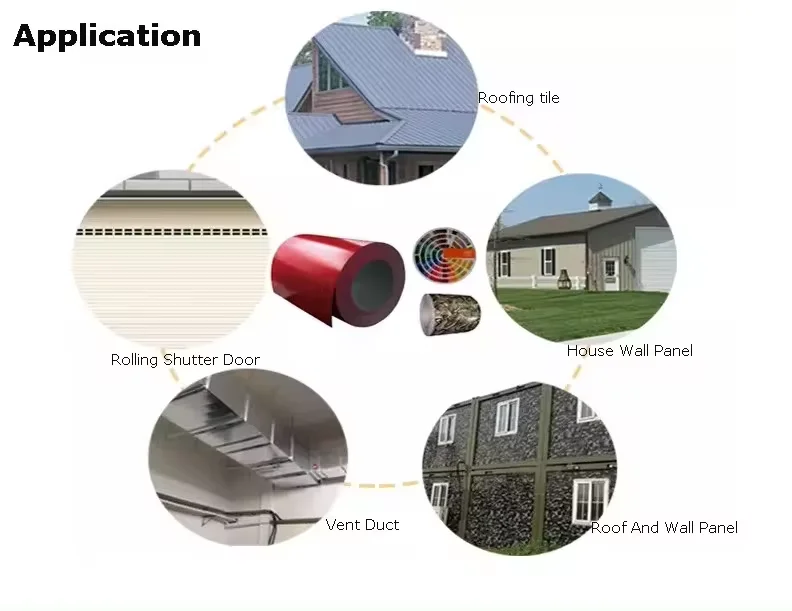

PPG| & PPGL (prepainted galvanized steel & prepainted galvalume steel) also known as pre-coated steel or color coated steel coil,lt is a product made of hot-dip galvanized steel sheet, hot-dip galvalume steel sheet, electro galvanized steel sheet, etc.After surface pretreatment, one or several layers of organic coating are applied on the surface, and then baked and solidified. The color coated steel coil is light in weight, beautiful in appearance, and has good anti-corrosion performance, and can bedirectly processed.The color is generally divided into gray, sea blue, brick red, etc. lt is mainly used in advertising, construction,decoration, home appliances, electrical appliances, Furniture industry and transportation industry. The coatings used for color coated steel coils are based on the environment in which the resin is selected such as polyester silicon modified polyester,polyvinyl chloride plastisol, polyvinylidene chloride, and the like.
Technical Standard | EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 |
Steel Grade | Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement |
Type | Coil/Sheet/Plate/Strip |
Thickness | 0.11-1.2mm,or customer's requirement |
Width | 600mm-1500mm, according to customer's requirement |
Type of Coating | Hot dipped galvanized steel coil |
Zinc Coating | 30-275g/m2 |
Surface Treatment | Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) |
Surface Structure | Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS) |

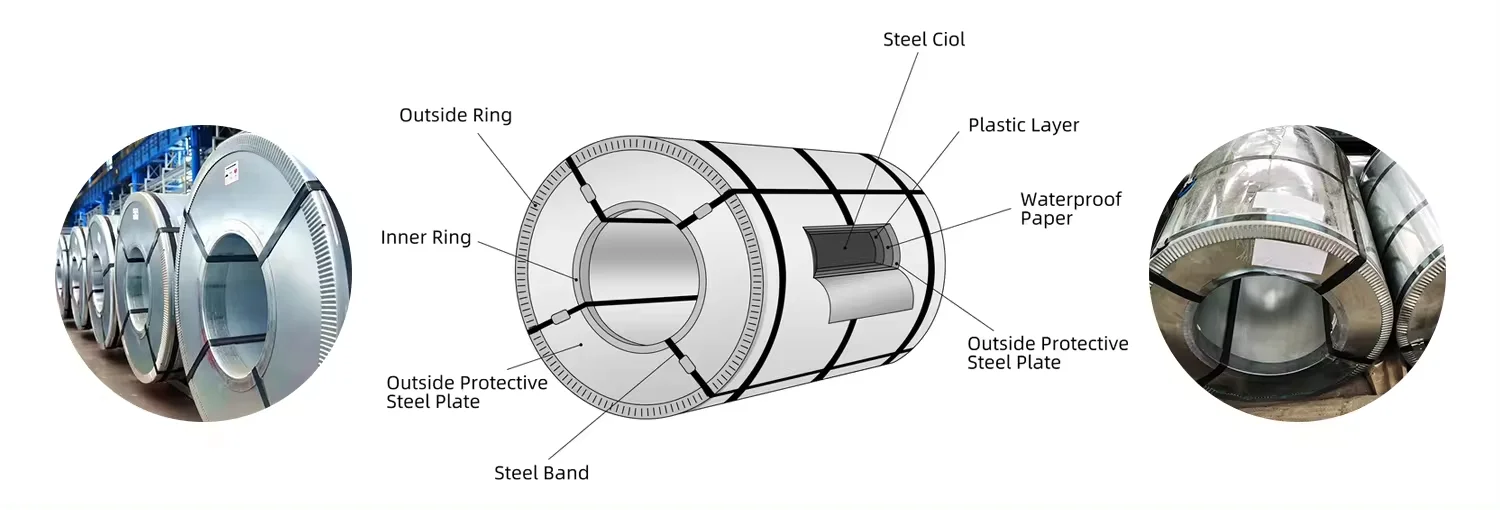

Package | Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement. |
Grade | Yield Strenath a,b MPa | Tensile strength MP | Elongation after breakingc A 80mm % not less than |
DX51D+Z | - | 270~500 | 22 |
DX52D+Z | 140-300 | 270~420 | 26 |
DX53D+Z | 140-260 | 270~380 | 30 |
DX54D+Z | 120-220 | 260~350 | 36 |

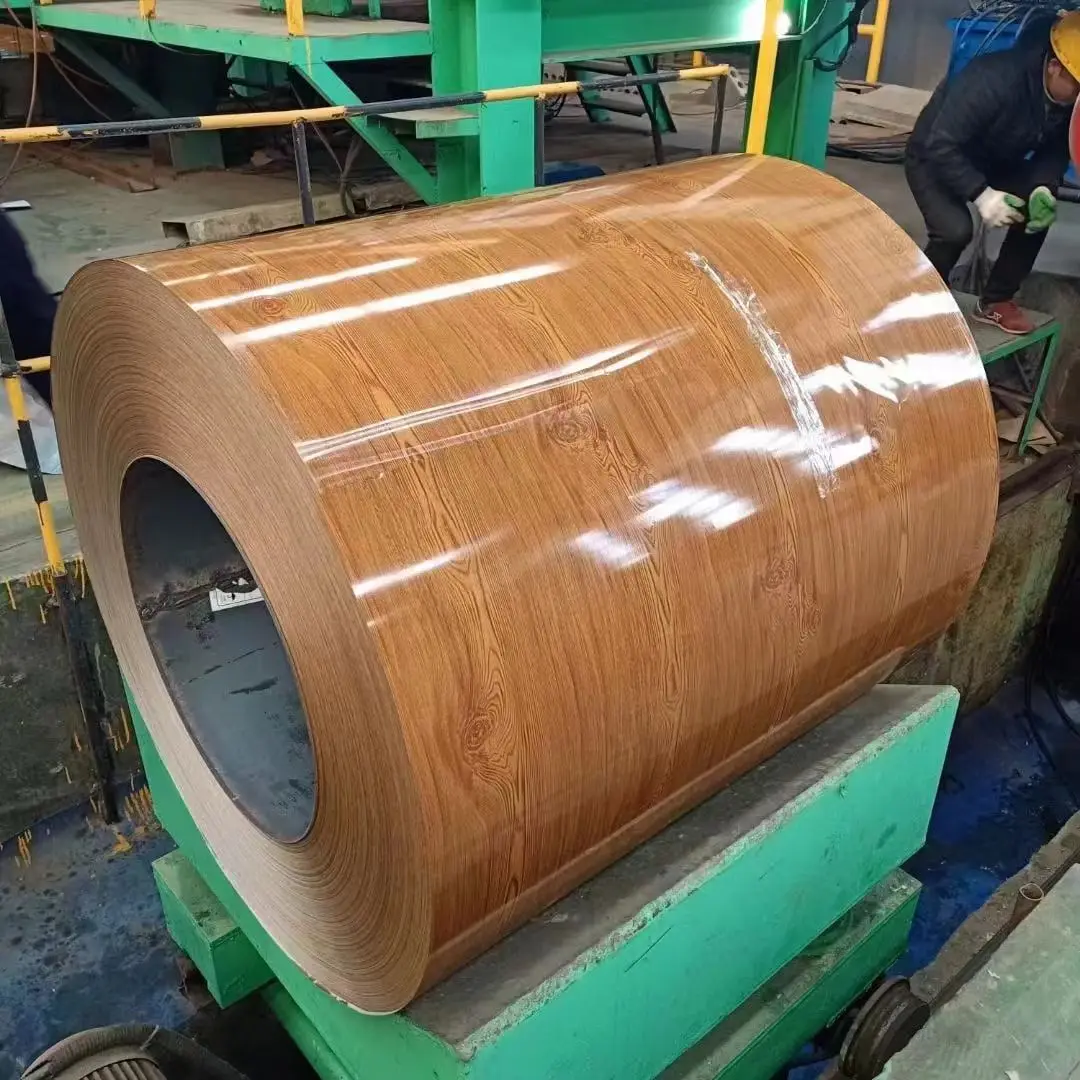

The service life of the paint film is more than 13 years. Light and beautiful,Good process ability and strong corrosion resistance.Various colors and patterns can be customized.

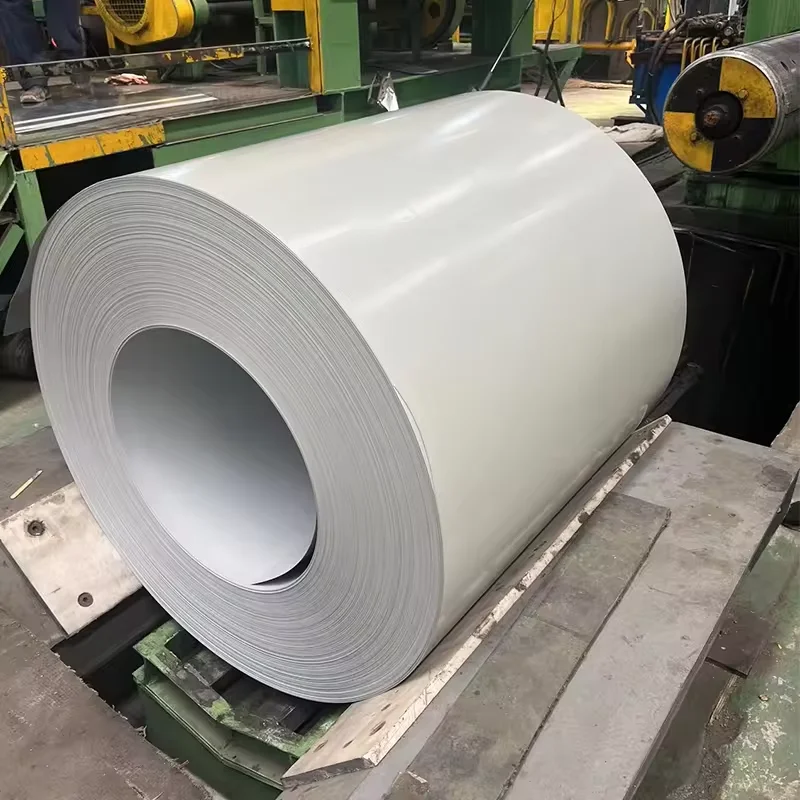

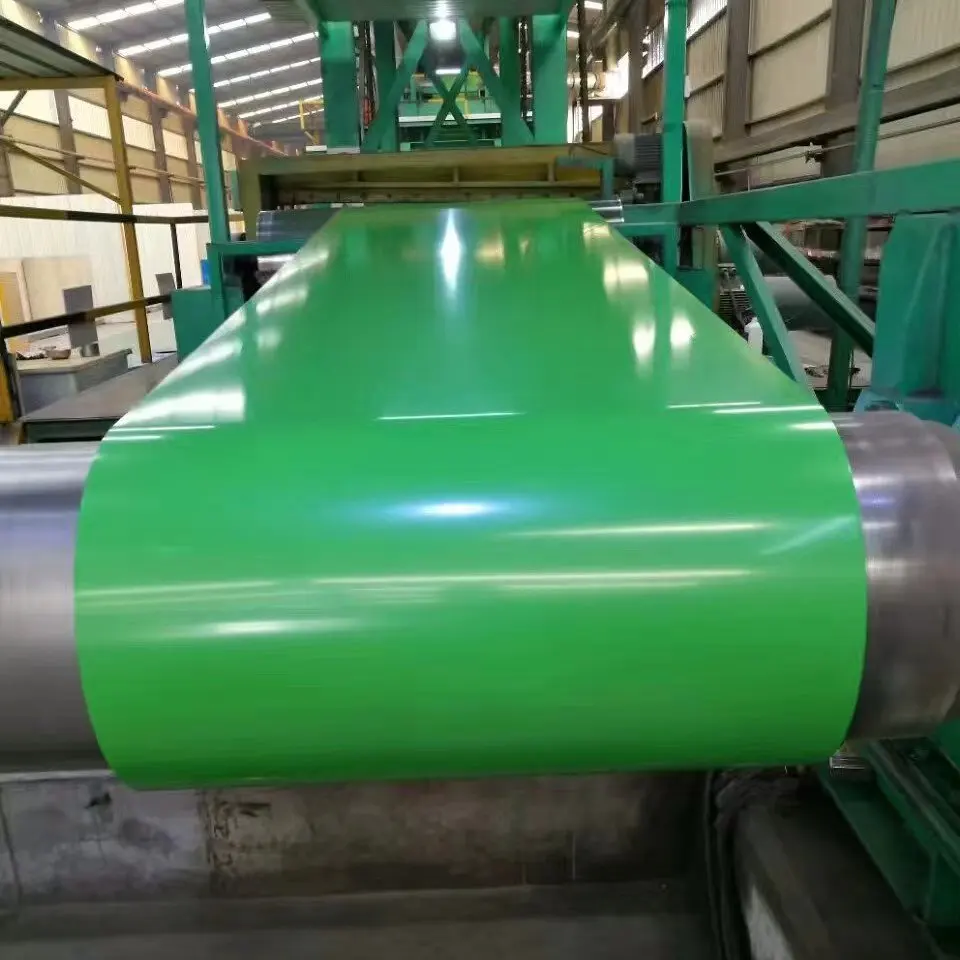

SMOOTH SURFACE
Good stability, smooth surface, no rust, no burrs. Precise cutting, smooth and neat cuts, standard specifications, and fine workmanship.

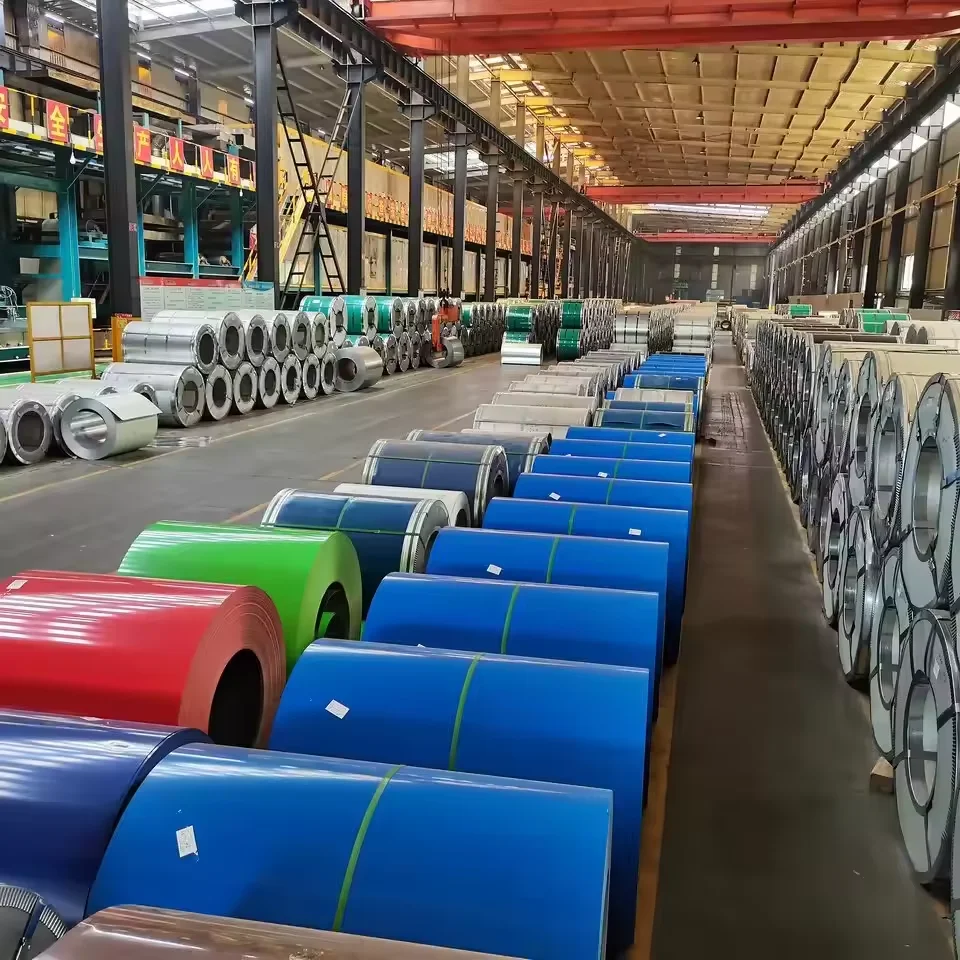

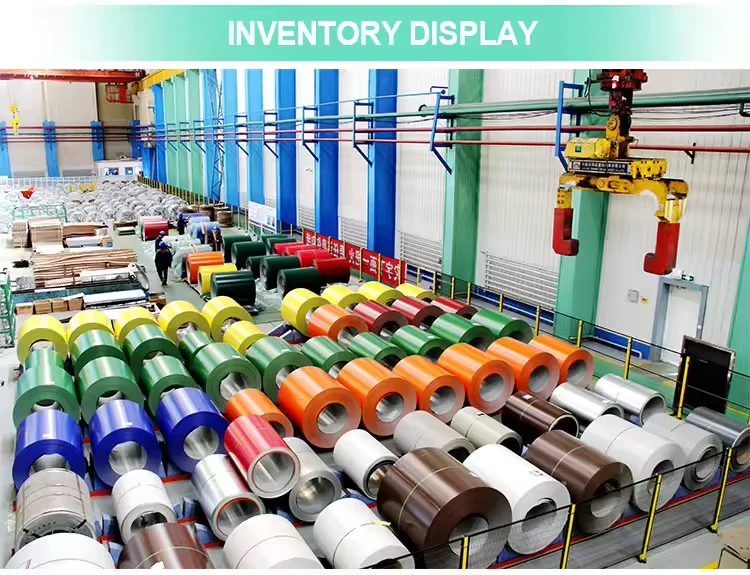

All products are packed and warehoused after passing the inspection, and delivered in one order.So as to ensure that the
customer's products can be delivered in the shortest time.

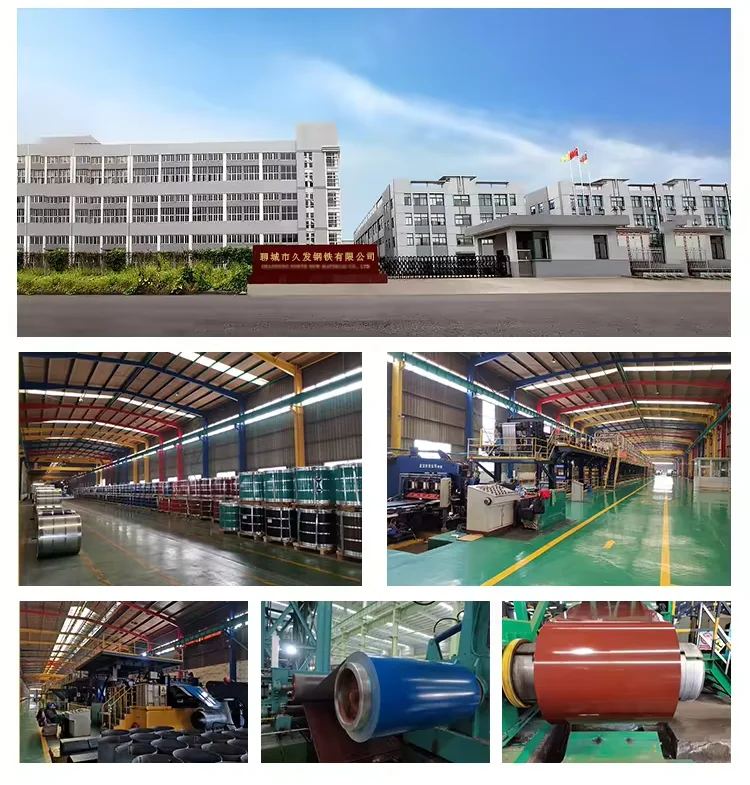

Shandong Chengxinying Commerce and Trade Co.,Ltd is a modern integrated production enterprise producing cold rolled steel,galvanized steel, aluminized zinc plated steel and color coated steel, as well as roofing panels. We have introduced advanced testing equipment and established a professional research team to strictly control all aspects of production to ensure the quality of our products. We have passed SGS, BV, ISO9001 quality management system certification, and more than 1000 enterprises at home and abroad to establish long-term cooperation, welcome friends around the world to visit our company!
Q:What about your price?
A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we
accept the third party inspection absolutely.
Q:How about the delivery time?
A:Within 15-45 days after we confirm you requirement.
Q:What is your terms of payment ?
A:T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
Q:How do we trust your company?
A:We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
A:Our price is very competitive because we are a factory. Pls feel free to contact us if you are interested in our products.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we
accept the third party inspection absolutely.
Q:How about the delivery time?
A:Within 15-45 days after we confirm you requirement.
Q:What is your terms of payment ?
A:T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
Q:How do we trust your company?
A:We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
