Product Overview

Description

Customized rgb led pcb board heatsink for cctv made by exporter manufacturer

Aluminum PCB (printed circuit board) have high thermal conductivity of metal-based insulating electronic materials research and development, Our products are widely used in telecommunications, road light, led wall washer, led highbay light led down light, tube.



No.	Items	Index
1	Surface Treatment	HASL,Immersion gold,Flash gold, plated silver, OSP
2	Layer	Single-side, Double Side
3	PCB Thickness	0.6-5mm
4	Copper Foil Sickness	0.5-4Oz
5	Min hole diameter	T/2mm
6	Min Line width	0.15mm
7	Layers	1-4 layers
8	Max board size	585mm*1185mm
9	Min board size	3mm*10mm
10	Board thickness	0.4-6.0mm
11	Min space	0.127mm
12	PTH wall thickness	>0.025mm
13	V-cut	30/45/60 degree
14	V-cut size	5mm*1200mm
15	Min.bag pad	0.35mm



Offer: single sided mcpcb, double sided mcpcb, double layer mcpcb,bendable mcpcb, direct thermal exchange mcpcb, eutectic bonding flip -chip mcpcb. Our mcpcb is customized.

1.aluminum base pcb led light
2.aluminum substrate pcb
3.aluminum base copper-clad laminate pcb
4.aluminum base pcb

 1)material: FR-4, Copper, Aluminum based

2)layer: 1-4
3)copper thickness: 0.5oz, 1.0oz, 2oz, 3oz,  4oz
4)surface finish: HASL,  OSP, Immersion Gold, Immersion silver, Flash gold, Plated silver.
5)solder mask color: Green, black, white.
6)V-cut angle: 30, 45,60 degree
7)E-test voltage: 50-250V
8)Certificate: UL, ISO9001, RoHS ,SGS,CE

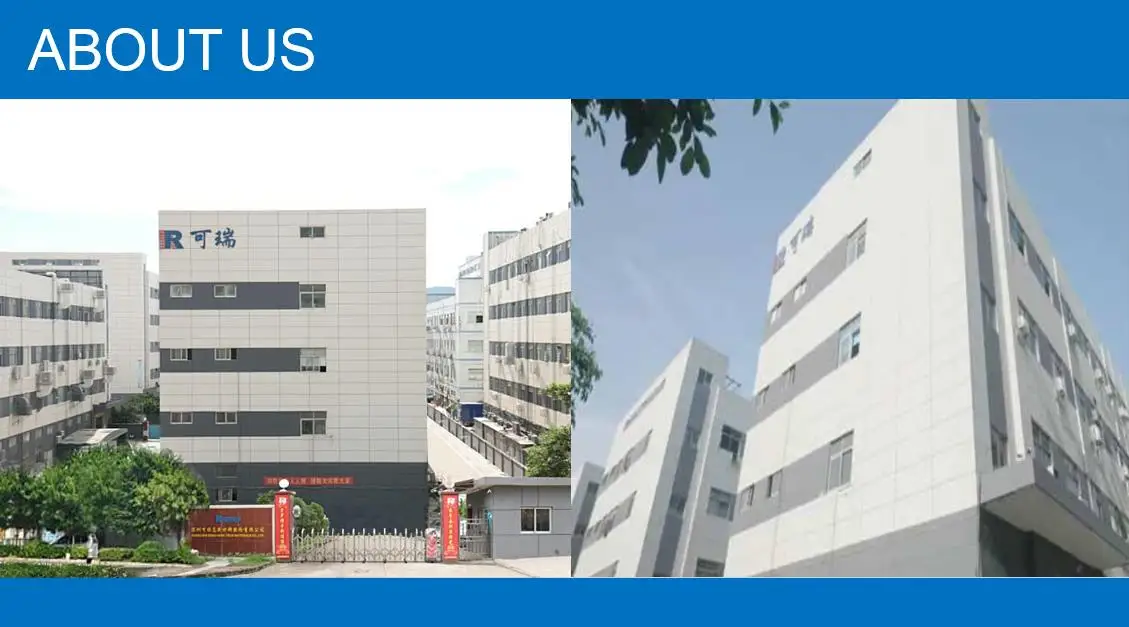

Shenzhen Kerui High-tech Materials Co., Ltd  was founded in 1995, which is a high-tech enterprise specialized in high thermal conductivity metal based insulating electronic materials research, development ,processing and development of its secondary products.

      Our products are widely used in telecommunications, electricity, electronics,  medical equipment, machinery equipment, LED lighting and other fields.
      Through years of continuous exploration and development, has accumulated a profound theoretical level and rich production experience. Our products has passed ISO9001: 2008 Quality Systems Authentication, SGS product testing, RoHS Authentication, UL Authentication & National High-tech authentication, and implemented Quality and Environmental Management System in conformance to required standard of ISO14000 and TS16949 as well as improved continuously with standard management to maintain the best competitiveness of company.
      Not only our MCPCB is provided with professional levels of development and production, but also we may provide comprehensive technical support for area of semiconductor lighting from encapsulation to heat conducting and radiating of lamps and lanterns. We may assist, participate and develop independently radiating and heat conductive plan for you according to your needs.
      Presently, our products have been applied extensively in enterprises around the world such as German, England, Italy, Spain, USA, Canada, Korea, Singapore, Malaysia, India as well as Chinese Hong Kong, Macao and Chinese Mainland etc. At the same time the professional theoretical level and rich production experience have made us win the trust of customers, and product quality has been affirmed fully in the extensive application of customers.

Experience

When it comes to your build you want a partner you can depend on. Our management team has roughly 20 years of combined industry knowledge. Our engineering team has over 15 years experience.

Protecting your interests

Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality contract and treat your important documentation as they would their own.





Flexibility

We pride ourselves on our ability to custom tailor programs around our customers' needs. We take time to listen to your unique business needs and then set out to surpass them.





Quality

Our ISO/SGS/UL/Rohs standards insure quality assemblies from start to finish. Whether it's a simple custom product or a complex turnkey production run, more than 30 engineers with professional skill will made sure we adhere to the highest quality standards.



Quality Control



Capable

Kerui offers the latest in assembly capabilities and qualifications insuring that quality is built into every product we produce. Also Kerui have all kinds of machines to produce the products you ask. (The productivity are over ten thousand square meters per month)









 FAQ

Q.1 : What information is required for a quote?
A : Please use Gerber data, PCB fabrication notes and array drawing data when you request a quote. This will give you an accurate quote in a short period of time.



 Q.2 : How long does it take to receive a quote?
A : The average time is typically 6-8 hours. If the quote is marked urgent, we can get a quote to you within 2-4 hours. The quote also depends on the technology of the PCB design. Complex designs may take up to 24 hours for an accurate quote.



 Q.3 :Q:Will all the PCBs be tested before delivery?

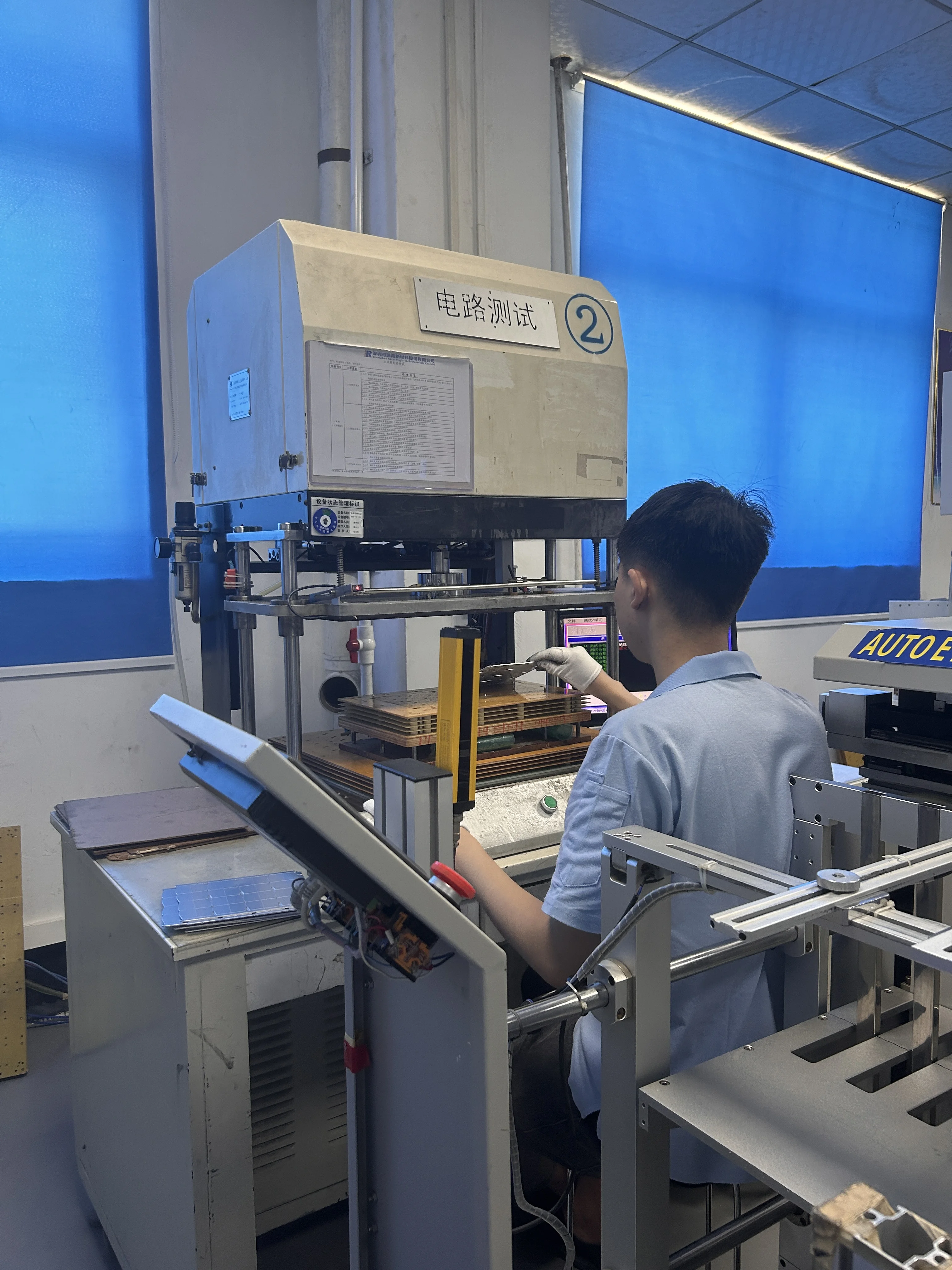

A:Yes, we ensure that every piece of PCB will be tested before shipment, and the test results will be displayed in the shipping report.



 Q.4 : What is the average lead time?
A : The lead times range from 3 days to 5 weeks, this is all depending on the product, complexity and quantity required. We advise that you contact our sales office with urgent quick turns.



 Q.5 : Are the facilities ISO certified?
A : Yes all our buildings are ISO 9001 certified and operated. See our certifications page for details.



 Q.6 : Are my design files secure when I send them to you?

 A:Your files are never shared nor will any third parties have access to your design files,since they are your property, we respect the copyright of your files. We will sign a confidentiality agreement to keep the security of customer’s files if needed.





 Delivery Detail:10days
