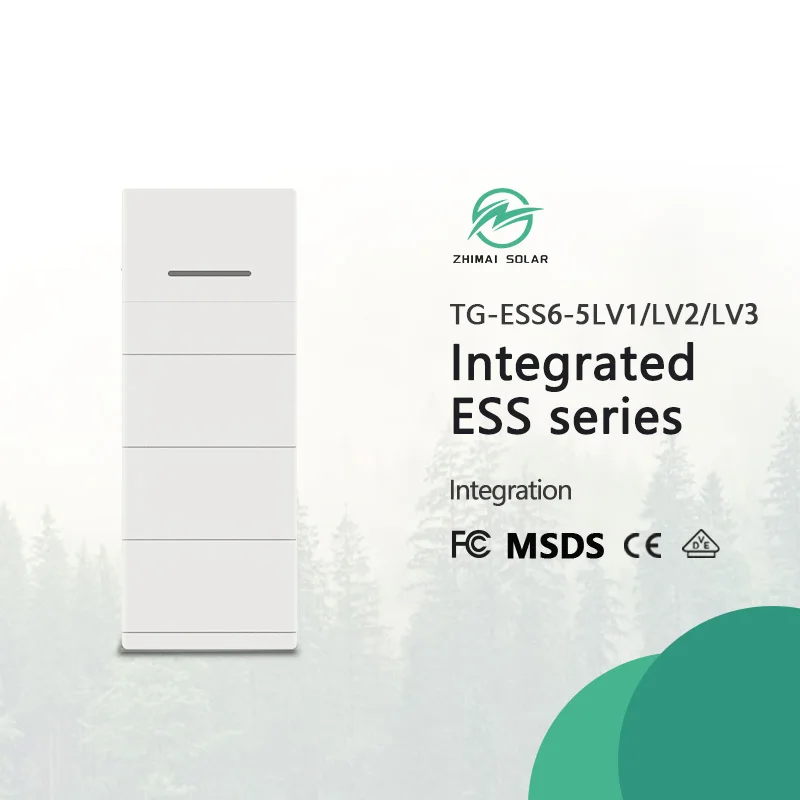

ZM All in One ESS 15.36Kwh Residential Use Integrated Solar System All In One Power Station Smart Home System
- Category: >>>
- Supplier: Zhimai (shenzhen) New Energy Co. Ltd.Zhimai Ltd.
Share on (1601201373742):
Product Overview
Description
Product Description
Product Advantages
●All in one energy storage system with modular structure. ●Range from home use to commercial use.
●Integrated with PV,AC,battery in one system with flexible settings of working principle.
●Solution is provided to meet different customer demands.
●Only Grade A cell is selected for all battery packs.

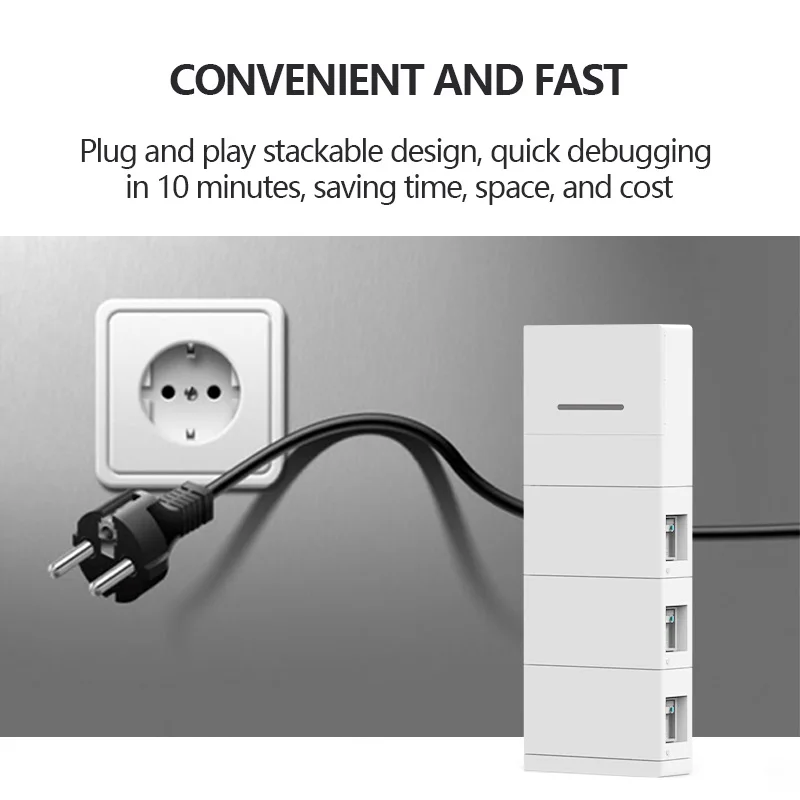

●Plug & Play
Plug & Play stackable design, 10 minutes fast ommissioning
●Active Safety
AFCI active arcing protection

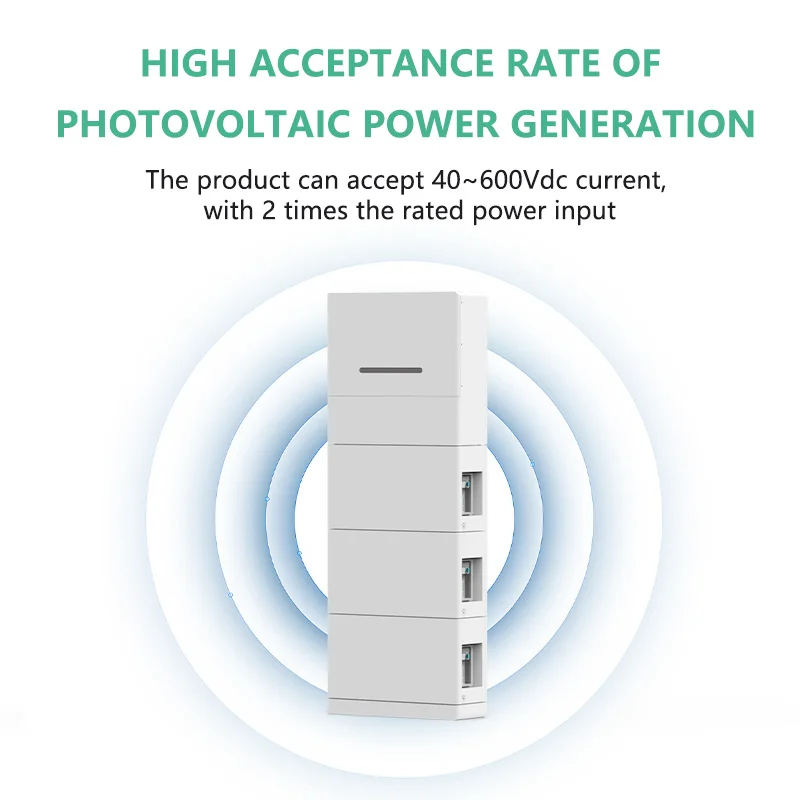

●High PV acceptance
40~600Vdc, 2X of rated power input
Plug & Play stackable design, 10 minutes fast ommissioning
●Active Safety
AFCI active arcing protection
●High PV acceptance
40~600Vdc, 2X of rated power input
●More Options
3*5.12kWH battery module + Optional battery stack
3*5.12kWH battery module + Optional battery stack
5LV1 | 5LV2 | 5LV3 | ||||
PV Specifications | ||||||
Max. PV input power | 11000W | |||||
Nominal DC voltage/ Voc | 360Vdc/600Voc | |||||
Start-up/ Min. operation voltage | 50Vdc/40Vdc | |||||
No. of MPPTs/ Strings | 2/1 | |||||
Max. PV input/ Short circuit current | 16A/ 20A | |||||
Input/ Output (AC) | ||||||
Max. AC input power from grid | 11000VA | |||||
Rated/ Max. AC output power | 6000W/6000VA | |||||
Rated AC output current (at 230V) | 26.1A | |||||
Max. AC output current | 27.3A | |||||
Rated AC voltage | 220V/230V/240V | |||||
AC voltage range | 154V~276V | |||||
Rated grid frequency | 50Hz/60Hz | |||||
Grid frequency range | 45~55Hz/ 55~65Hz | |||||
Harmonic (THD) | ＜3% | |||||
Power factor at rated power | ＞0.99 | |||||
Adjustable power factor | adj.0.8.overexcited/leading to 0.8 underexcited/lagging | |||||
Grid type | Single phase | |||||
Rated output power for backup load | 6000W | |||||
Frequency range in off grid mode | 50Hz/60Hz(±0.5%) | |||||
Battery Data | ||||||
Rate voltage(Vdc) | 51.2 | |||||
Cell combination | 16S1P*1 | 16S1P*2 | 16S1P*3 | |||
Rate capacity(AH) | 100 | 200 | 300 | |||
Energy storage(KWH) | 5.12 | 10.24 | 15.36 | |||
Cycle life | 6000 cycles @80% DOD, 0.5C | |||||
Charge voltage | 57.6V | |||||
Max. charge/discharge current(A) | 100 | |||||
Discharge cut-off voltage(VDC) | 43.2 | |||||
Charge cut-off voltage(VDC) | 58.4 | |||||
Enviornment | ||||||
Charge temperature | 0°C to 55°C@60±25% Relative Humidity | |||||
Discharge temperature | -20°C to 55°C@60±25% Relative Humidity | |||||
Storage temperature | -20°C to 55°C@60±25% Relative Humidity | |||||
