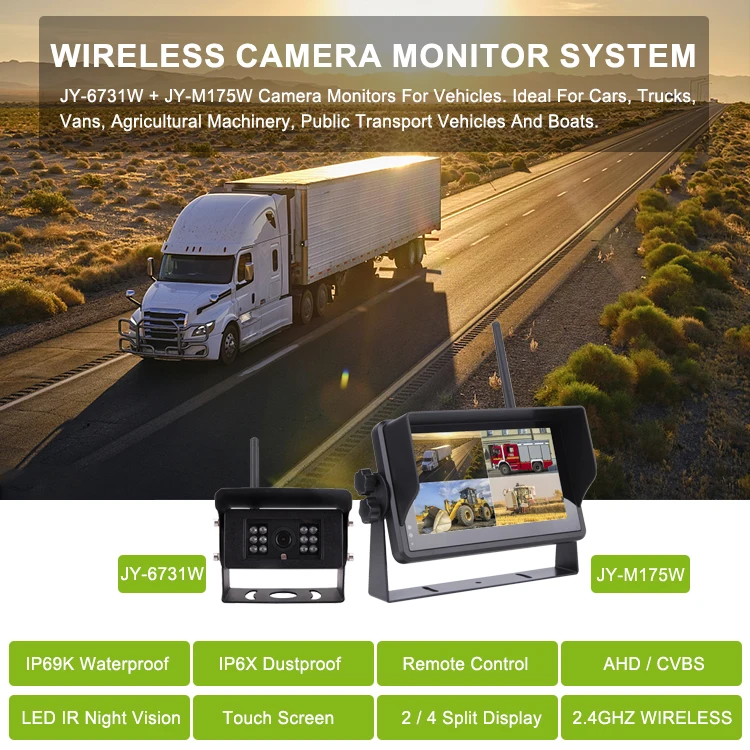

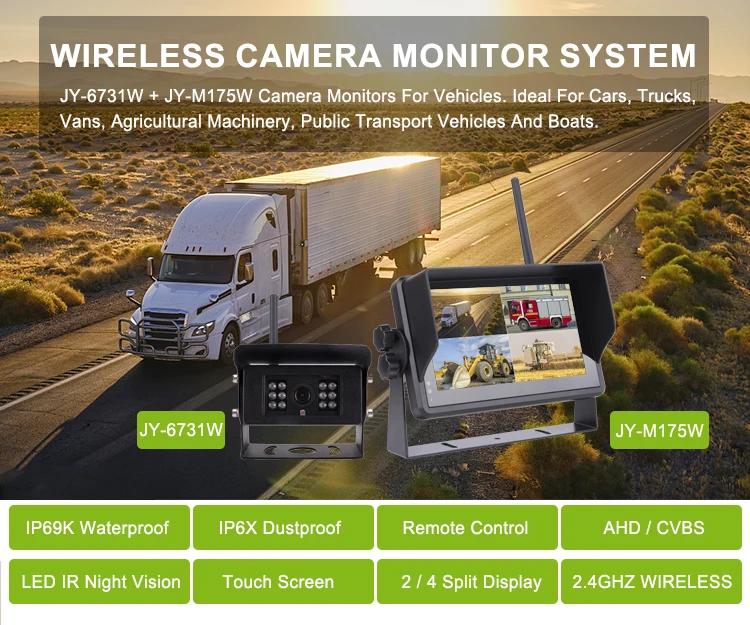

Luview Wireless Car Camera System 7 Inch Touch Screen Wireless Rear View System Wireless Reversing Camera System With Screen
JY-M175W + JY-6731W Unpacking Video | >>Play Video |
JY-M175W + JY-6731W Operation Video | >>Play Video |
| JY-6731W | JY-M175W | ||
| Image Device | CMOS | Screen size | 7"/16:9 |
| TV System | NTSC/PAL | Resolution | 1024 (W) * R.G.B * 600 (H) |
| Resolution | 700 TVL / 1280 X 960 / 720P /1920 X 1080 / 1080P | Brightness | 600cd/m² / 650cd/m² |
| Microphone | Optional / Yes | Contrast | 600:1 / 800:1 |
| IR LED Qty | 12PCS | Viewing angle | Left/right/up/down 85°/85°/85°/85° |
| White balance | AUTO | Image settings | Brightness, contrast, saturation, chroma |

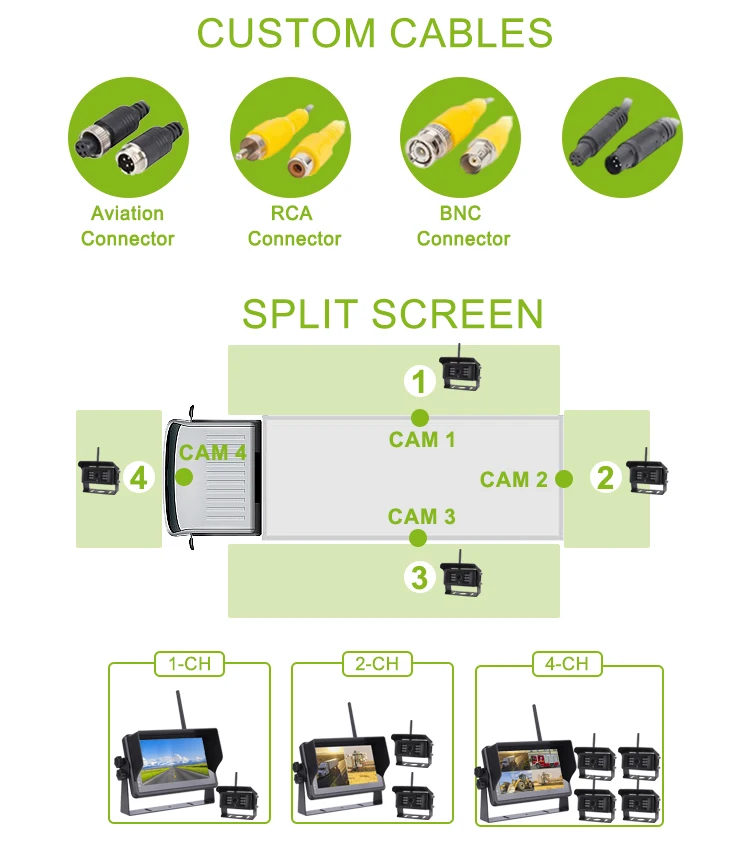

| Gamma Consumption | 0.45 | Channel | 1CH / 2CH / 4CH |
| Electronic Shutter | AUTO | Operating frequency | 2400MHZ~2483MHZ |
| Backlight Compensation | AUTO | Decompression format | H.264 |
| Power Supply | DC12V / DC 12V~24V | Transmit power | ≤20dBm |
| Lens | 2.8mm | Receive sensitivity | -78 dBm |
| Lens Angle | 115° / 105° / 110° / Customized | Spread spectrum function | FHSS |
| Waterproof level | IP69K | Time delay | 200ms |
| Night visual | 10-15M | Transmission distance | 150m / <250 |
| Effective launch distance (empty) | 200M | Micro SD card capacity | Maximum 128G |
| Operating Temperature | -20℃-70℃,RH 95% MAX | Format | PAL/NTSC |
| Storage Temperature | -30℃-80℃,RH 95% MAX | Power supply | DC 10-32V / DC 12V / DC 24V |
| Operating temperature | -20℃ to +70℃,RH 90% | ||
| Storage temperature | -30℃ to +80℃,RH 90% | ||
About Luview Factory
Q: What are your warranty terms?
A: The warranty period of our products is 1-3year, but the parts that are consumables are not covered by the wananty.
Q: Are you a real factory?
A: Yes, we are a leading professional manufacturer in China, engaged in R&D, production and sales of automotive rear-view products.
Q: How long is the delivery time?
A: Usually, the sample order is 3 to 5 days, and the custom prodtuct order is 15 to 20 working days.
Q: Does it support OEM or ODM?
A: Of course, we can accept OEM & ODM orders atany time.
Q: Does your product have a certificate?
A: Yes, our products have CE, FCC, RoHS, E-mark, ITAF16949, CCC, IP69K certificates.
Q: what are the packaging conditions?
A: Usully we pack the goods in a neutal white box When the order reaches the MOQ we can also make custmized boxes according to your requirements.
CEO: "If you want competitive products or custom designed products or OEM your own products or become an agent for a win-win situation, please contact me".
