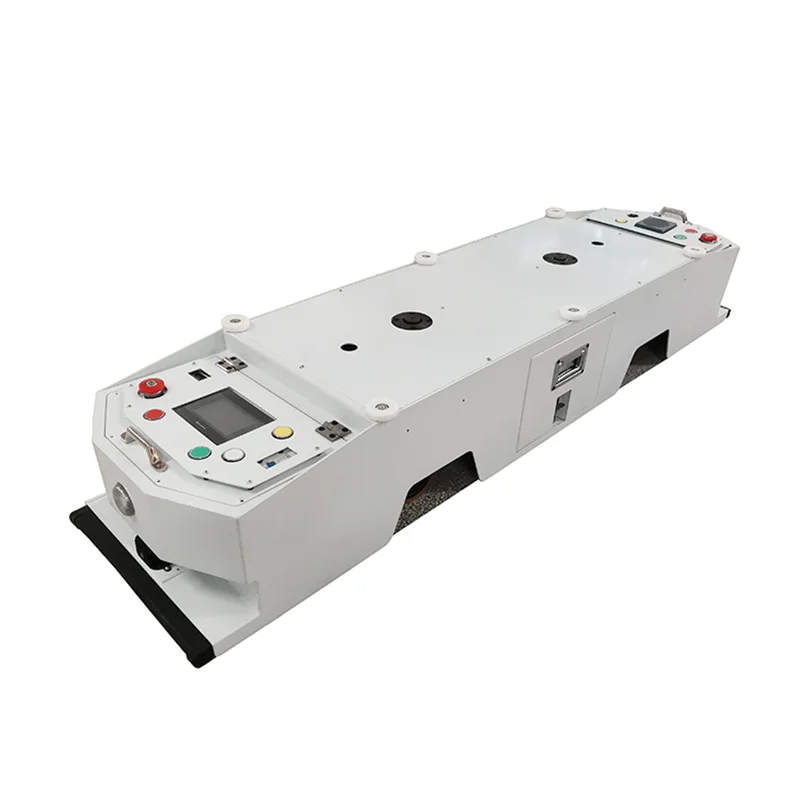

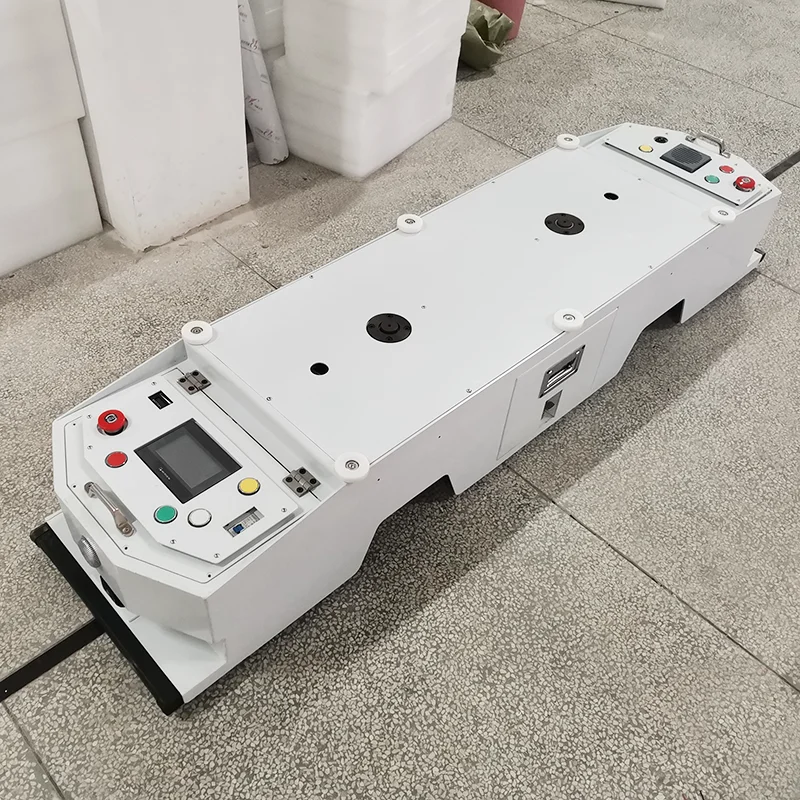

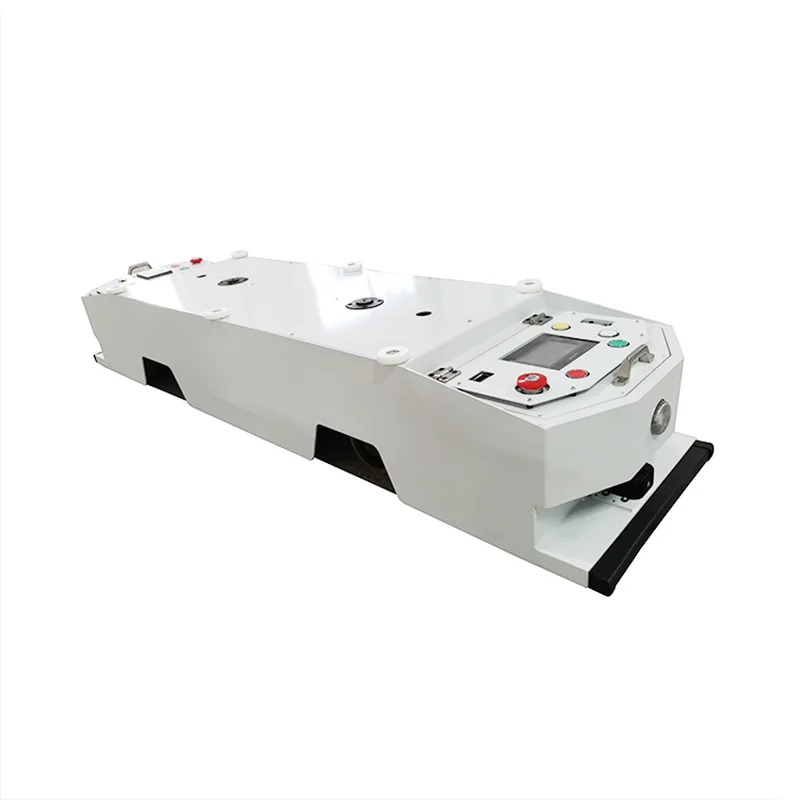

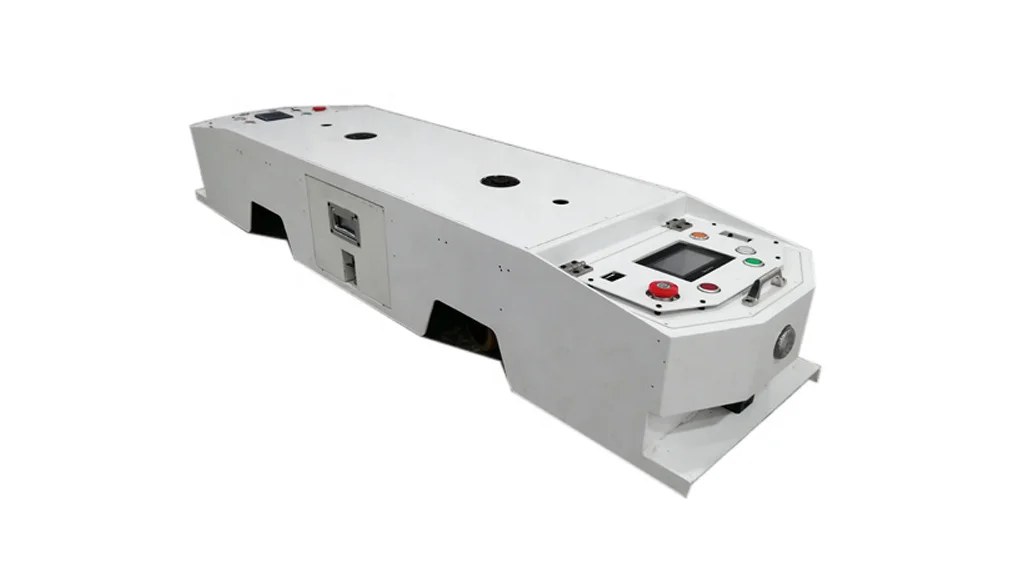

Two-way Lurking AGV TZAGV-LB01
AGV is the abbreviation of Automated Guided Vehicle. Refers to an unmanned transport vehicle equipped with electromagnetic or optical automatic navigation devices, capable of running automatically along the arranged navigation route, and with multi-level safety protection, capable of transporting, transferring, carrying materials or equipment in a variety of load forms . AGV is a category of mobile robots, which has a wide range of application prospects in factories, workshops, inspections, security and other fields.




Specification


Item
Data
Model
TZAGV-LB01
Navigation method
Magnetic navigation
Motor
BLDC motor, each motor power 100W
Drive method
Four-wheel drive two-way differential
Load method
Latent traction
Max. load
400kg
Automatic running direction
Forward, backward, left, right
Operating speed range
0.03-0.68m/s    (0.1-2.45km/h)
Minimum turning radius
0.8 m  Arc turn
Safety protection form
Laser obstacle avoidance, anti-collision strip, emergency stop button
(Three levels of protection)
Obstacle avoidance distance
3-5m
Determine the obstacle avoidance distance according to the sensor model
Warning method
Music alarm, indicator light
Stop accuracy
±10mm
Communication method
Industrial Data Transmission Module
(Configure according to requirements)
Site detection
RFID Site detection function
(Do the corresponding actions according to the site number)

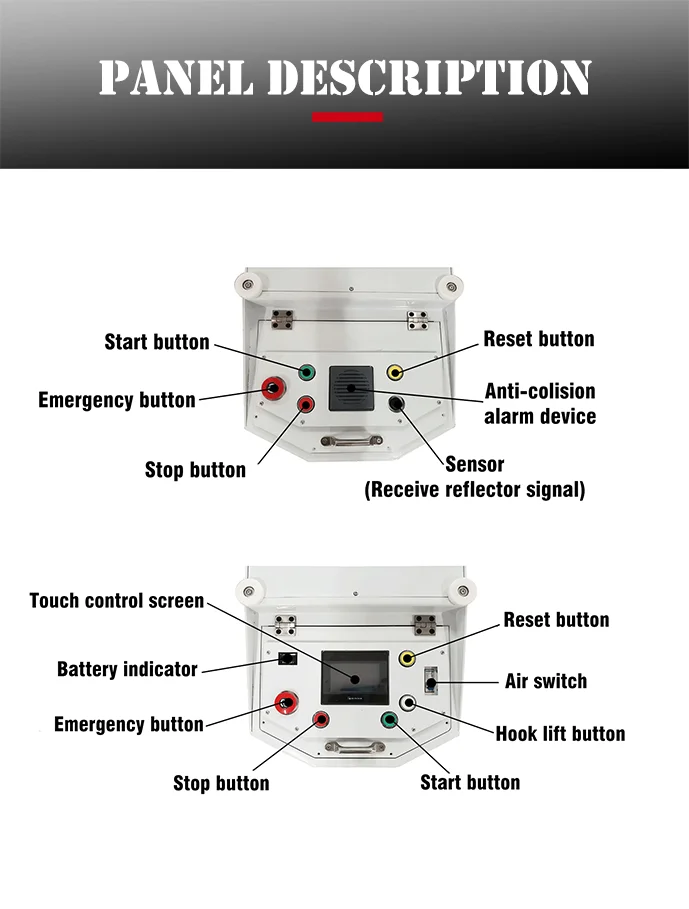

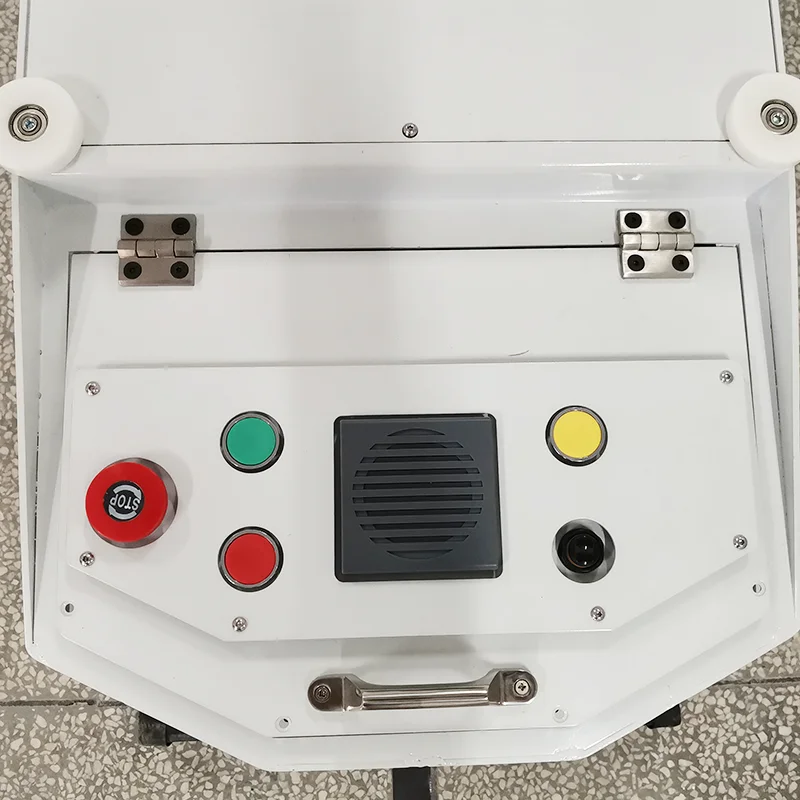

HMI
4.3 inch HMI
(Including basic display and operation, and basic settings)
Battery operating time
8 h
(Alternate full and empty load, related to use conditions and load)
Average charging time
8 h
Minimum channel width
500~1000mm
(100mm wider than the AGV)
Mount device
2 mount device
(Used for frame traction)
Body size
1704mm*434mm*285mm
Self-weight
200kg
Call system
Support(Optional, multipoint call)

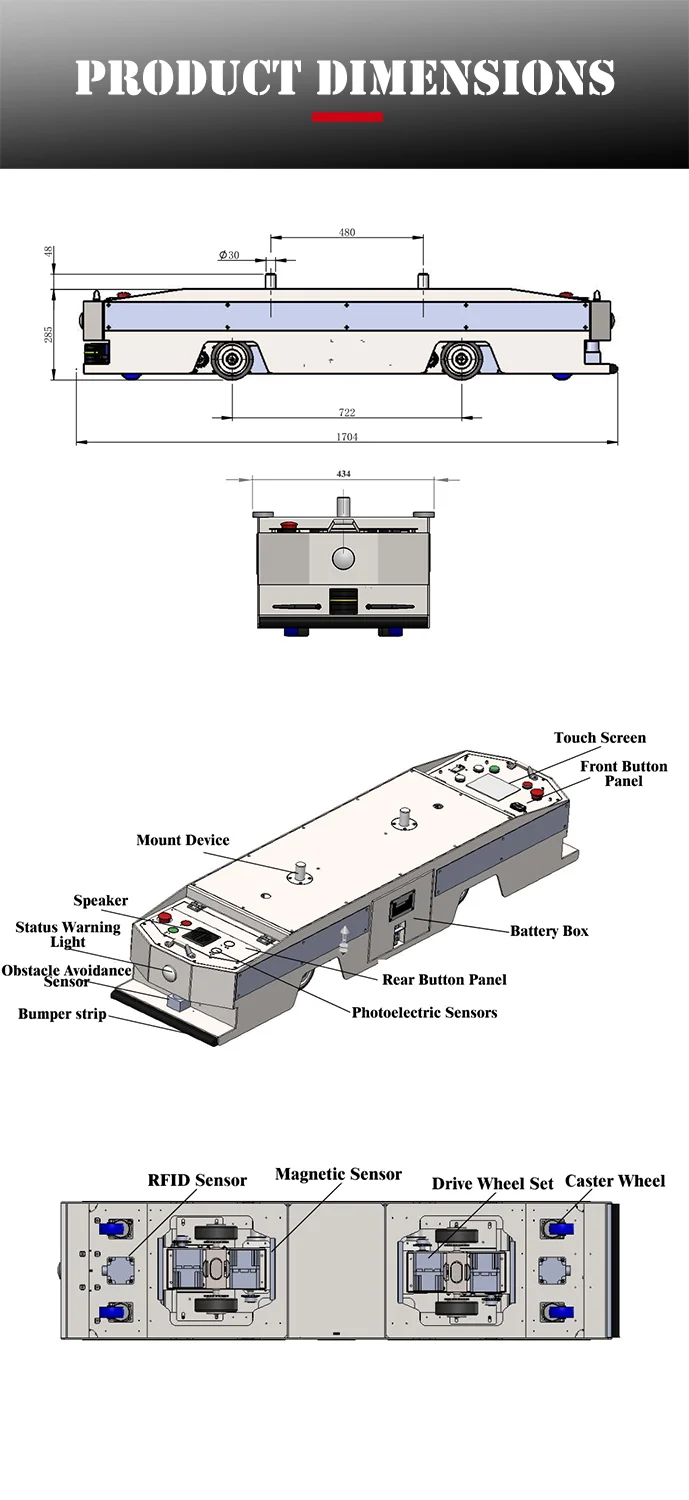

Dimensions






Product Advantages




Recommend Products




Tips

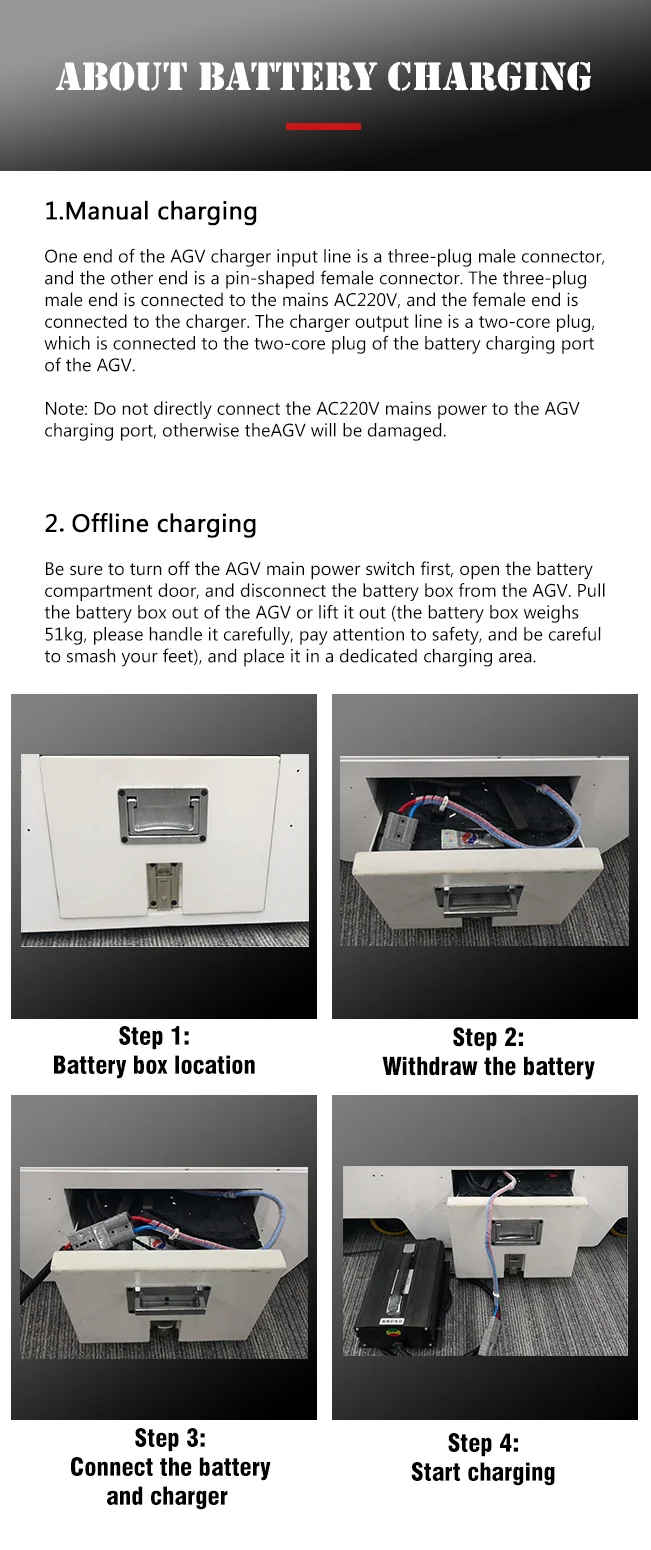

When the AGV power indicator turns yellow, it means that the battery is undervoltage. Please stop using the AGV at this time, and plug the dedicated charger into the charging port of the AGV, and then connect it to the 220V mains. If you continue to use it, the battery indicator will display red. At this time, the battery output voltage has reached the warning value, and the AGV will not operate normally (the line patrol is unstable or even unable to start).

Note:
1.Over-discharge or long-term over-charge will replace the battery.
2.When the battery is undervoltage, that is, when the display turns red, the AGV will limit the automatic line-following function and can only be manually operated to the charging area.
