Test Probe 41 of IEC 61032 Test Cone for Access Probes to Hazardous Hot or Glowing Parts

IEC61032 Figure 16 Test Cone for Access Probes to Hazardous Hot or Glowing Parts

This probe is intended to verify the basic protection against access to glowing heating elements.

Conforms to:
Standard IEC61032-1997, IEC60529-2001 and UL

Access probes to hazardous hot or glowing parts.

Probes intended to verify the protection of persons against access to hazardous hot or glowing parts.
This probe es intended to verify the protection against access to glowing heating elements (Incandescent heating elements).

The Test Cone is made in stainless steel.

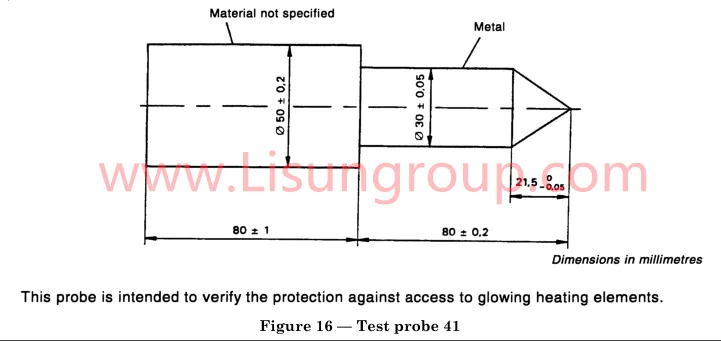

Technical Parameter:
Handle length 80mm
Handle diameter 50mm
Test probe length 80mm
Test probe diameter 30mm
Test thorn length 21.5mm

Devices Specifications:
Material:Stainless Steel.
Finish: Polished.
According to:Figure 16 of IEC61032.
