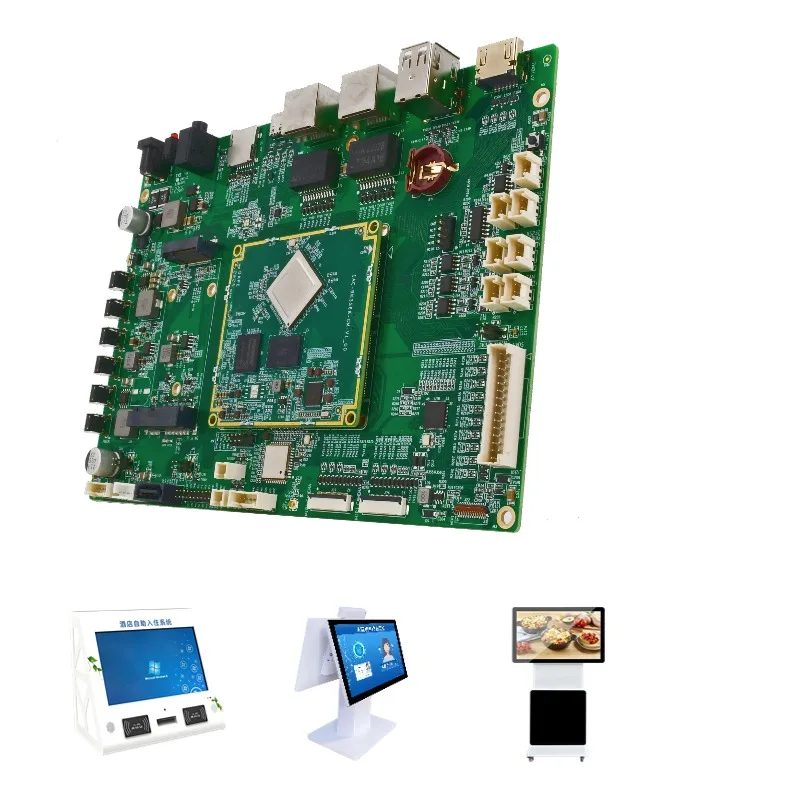

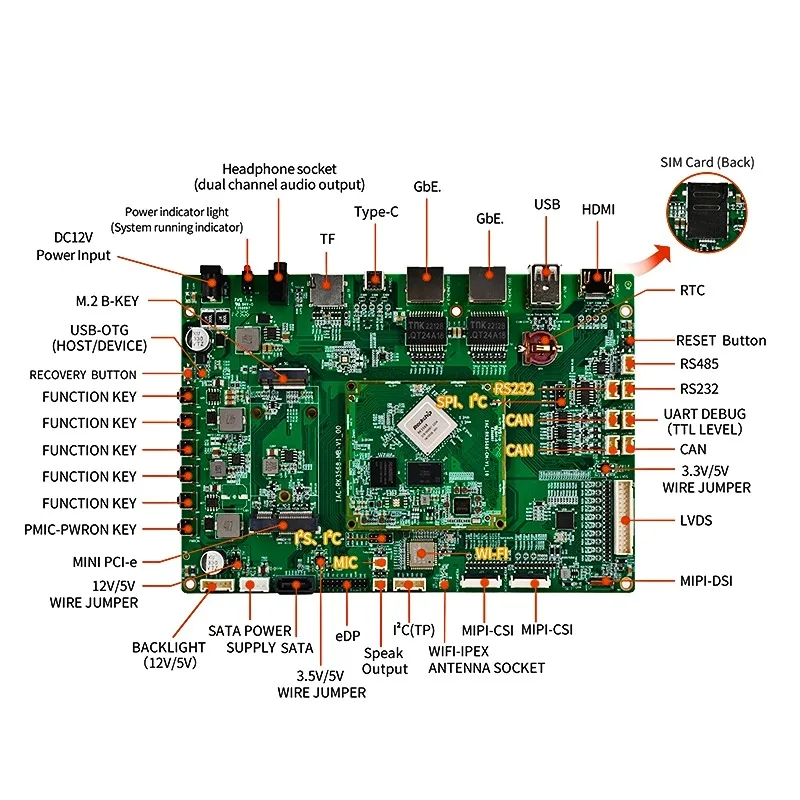

2024 AI Rockchip RK3288,RK3568,RK3588 Linux Android motherboard for Vending, ESOP, Industrial control computer, etc

RockChip RK3568 Quad ARM® Cortex™-A55

2.0 GHz

Mali-G52-2EE supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 Embedded high performance 2D acceleration hardware

4K 60fps H.265/H.264/VP9 video decoding 1080P 60fps H.265/H.264 video encoding 8-meter ISP supports HDR

1TOPS

2GB LPDDR4

8GB eMMC，(16GB eMMC、32GB eMMC option)

2 *10M/100M/1000M

Onboard WiFi module, support 2.4GHz/5GHz dual-band WiFi, 802.11a/b/g/n/ac protocol

1 *UART debugging serial port; 2 * RS232 serial port; 1 * RS485

3 * CAN

2 * MIPI_DSI display interface (1 multiplexing LVDS), resolution up to 1920x1080@60Hz 1 * LVDS display interface, resolution up to
1280x800@60Hz 1 * HDMI display interface (HDMI2.0), resolution up to 4096x2160@60Hz 1 * eDP display interface, resolution up to
2560x1600@60Hz

Audio (power amplifier) output interface; Dual channel audio output (headphone socket); Single channel MIC audio input

2 * USB2.0 HOST ; 1 * USB Type-c

2* MIPI-CSI (4 channels), support two cameras input at the same time, resolution support 2*1080p@80Hz

Standard I2C capacitor screen interface

8* GPIO (1.8 v)；MINI-PCIE port (USB2.0) connects to 4G modules. M.2 B-KEY ports for connecting to 5G modules and SIM cards; (one
of two options)

1 * TF card; 1 * SATA

Reset circuit, watchdog circuit, real-time clock

+12V

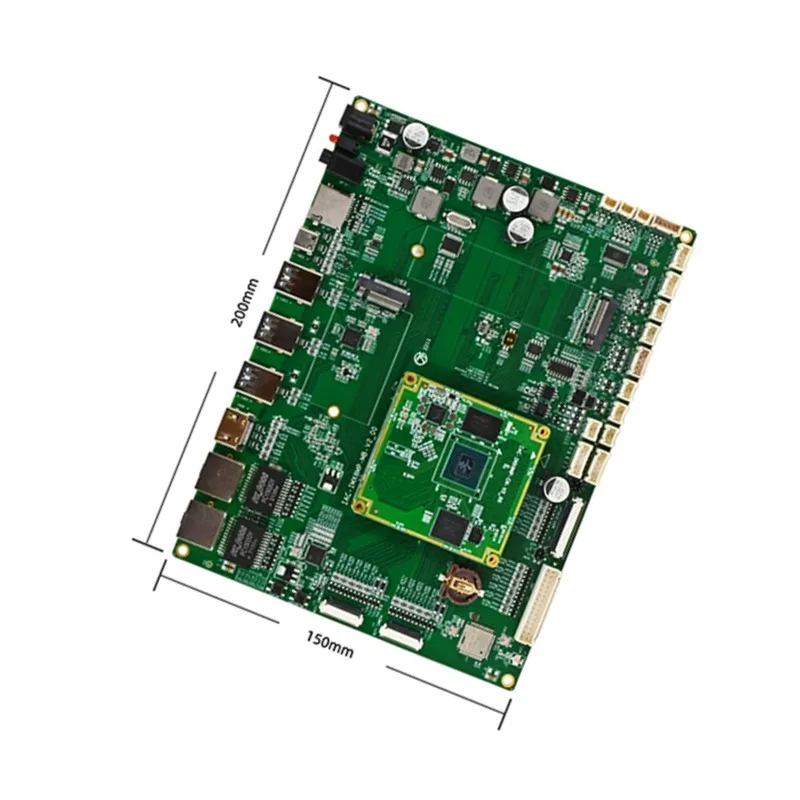

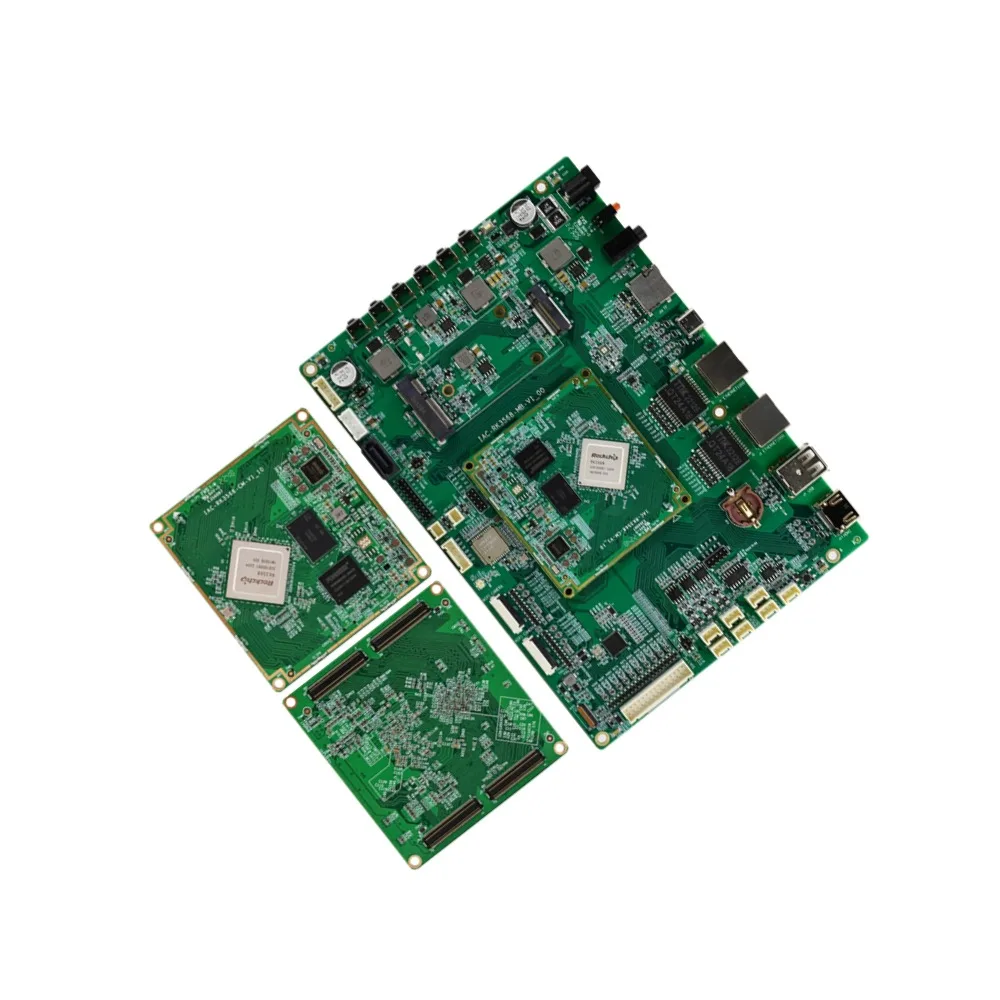

Core board: 65mm*70mm, 8 layer；Carrier board: 200mm*140mm, 4 layers

＜3W

0°C ~ +70°C（-40°C ~ +85°C optional）

10%~ 90%, non-condensation

Android 11, Debian10
