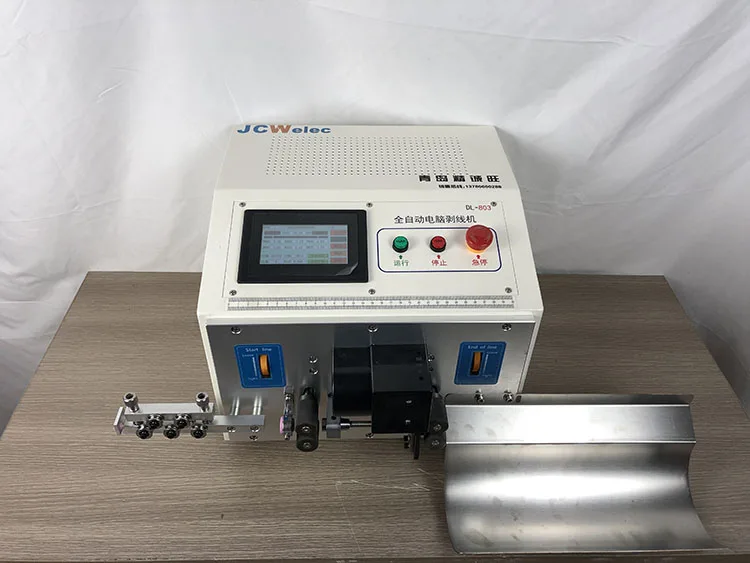

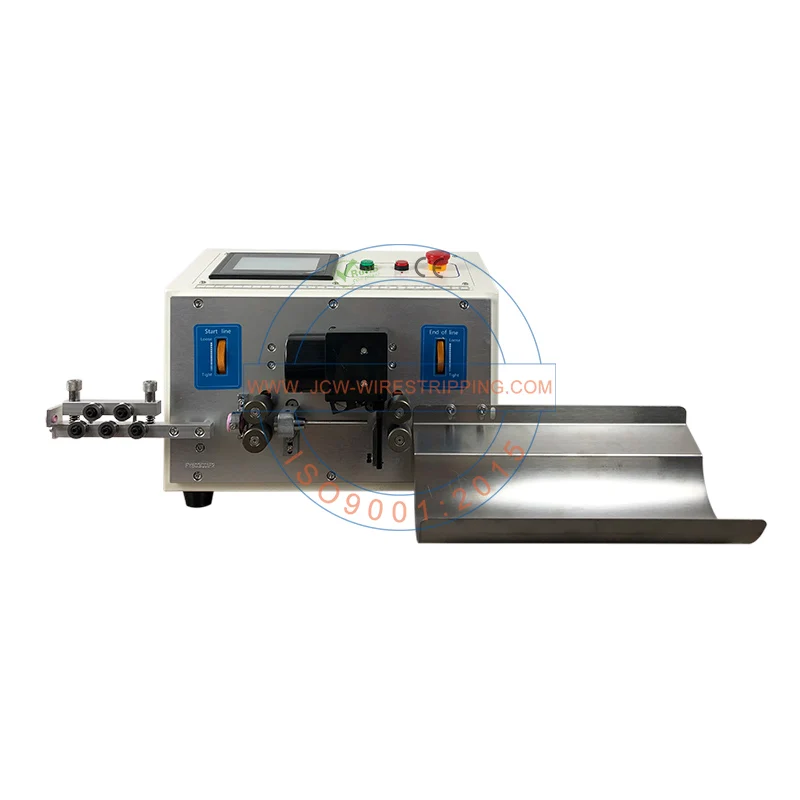

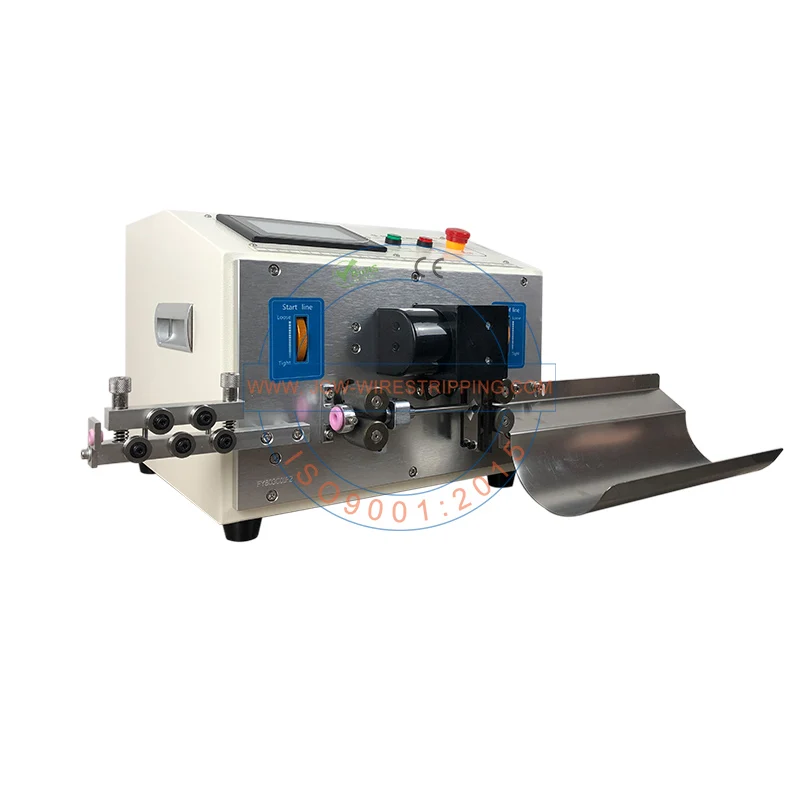

JCW CS02 ECO Auto wire cutting and stripping machine small roller wire stripper machine
- Category: >>>
- Supplier: Qingdao Titan Lansheng Trading Co. Ltd.
Share on (1601201415464):
Product Overview
Description
Model | CS02 ECO | CS02 | CS03 | CS04 | |||
Function | Wire measuring, Cut into length, Full stripping, Partial stripping, Length correction | Wire measuring, Cut into length, Full stripping, Partial stripping, Length correction,Thermal transfer printer | |||||
Raw material | PVC, Teflon, Silicone, Low halogen, Fiberglass | ||||||
Conductor cross-sections | 0.03 - 4.5 mm² | 0.03 - 6 mm² | 0.1 - 16 mm² | ||||
Cutting length(L) | 0.1 - 999999 mm | ||||||
Cutting length accuracy | 0.002 x L | ||||||
Stripping length | Front(right)side:35mm Rear(left)side:15mm | Front ( right ) side: 50 mm Rear ( left ) side: 30mm | |||||
Middle strip | 16 sections | 13 sections | |||||
Power supply | AC 220 V ± 10%, 50 / 60 Hz [110V on request] | ||||||
Air supply | 0.4 - 0.7 MPa ( clean and dry air ) | ||||||
Dimensions | L370xW420xH300 mm | Machine: L 420 x W 400 x H 320 mm Straightener: 250 mm | L 460 x W 470 x H 350 mm | ||||
Weight | 22KG | 28KG | 35KG | ||||
JCW-CS02/03/04 Automatic Wire Cutting and Stripping Machine
Q1: Are you a factory or a trading company?
A: We started trading 13 years ago and started production 10 years ago. Now we have complete production equipment and experienced team of engineers.
Q2: Do your products have CE certification?
A: We have formal CE certification, test report, and declaration of conformity. We have ISO9001:2015 certification as factory.
A: We started trading 13 years ago and started production 10 years ago. Now we have complete production equipment and experienced team of engineers.
Q2: Do your products have CE certification?
A: We have formal CE certification, test report, and declaration of conformity. We have ISO9001:2015 certification as factory.
Q3:Can you customize the machine?
A: Yes, we can customize the machine according to your requirements, and we can also provide you with a complete set of wire harness production solution.
Q4: Can I get some samples?
A: We are honored to offer you samples to test and check quality. Customers should pay for the shipping freight. The samples’leading time will be 7-10 days.
Q5: What's your delivery time?
A: It usually take 1-2 days for small orders and 10-15 days for big order.s
Q6: Do you have the products in stock?
A: Depends on your request, we have standard models in stock. Some special products and big orders will be newly produced by your requirements.
Q7: What's your warranty time?
A: We offers 12 months warranty time since.
A: Yes, we can customize the machine according to your requirements, and we can also provide you with a complete set of wire harness production solution.
Q4: Can I get some samples?
A: We are honored to offer you samples to test and check quality. Customers should pay for the shipping freight. The samples’leading time will be 7-10 days.
Q5: What's your delivery time?
A: It usually take 1-2 days for small orders and 10-15 days for big order.s
Q6: Do you have the products in stock?
A: Depends on your request, we have standard models in stock. Some special products and big orders will be newly produced by your requirements.
Q7: What's your warranty time?
A: We offers 12 months warranty time since.
