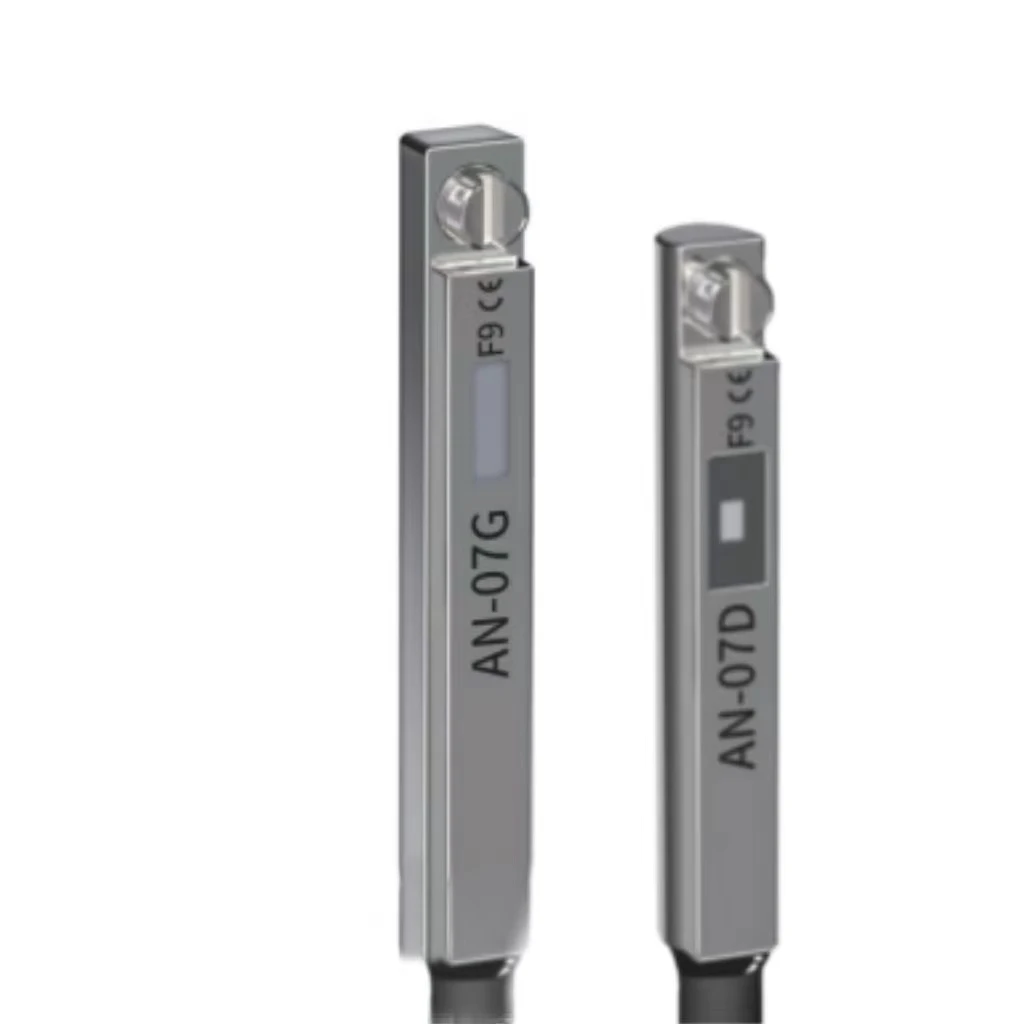

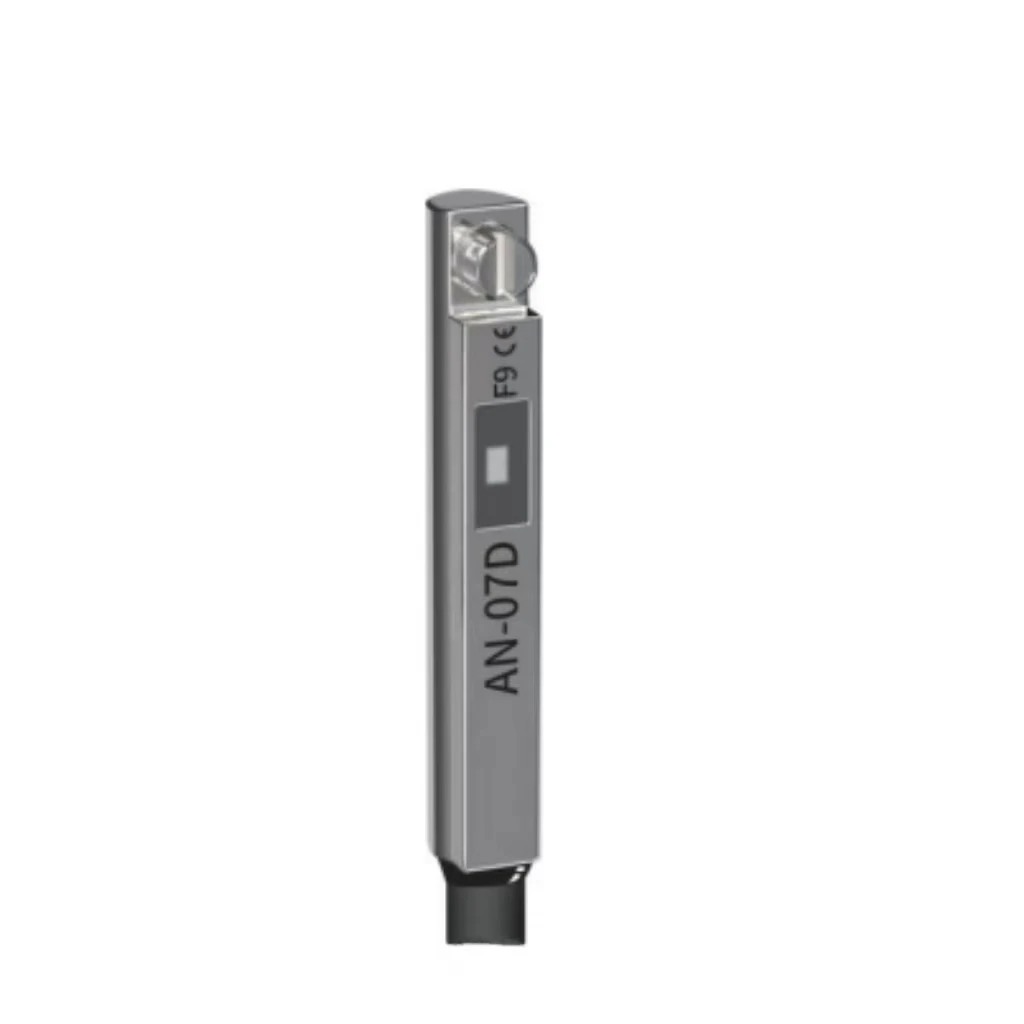

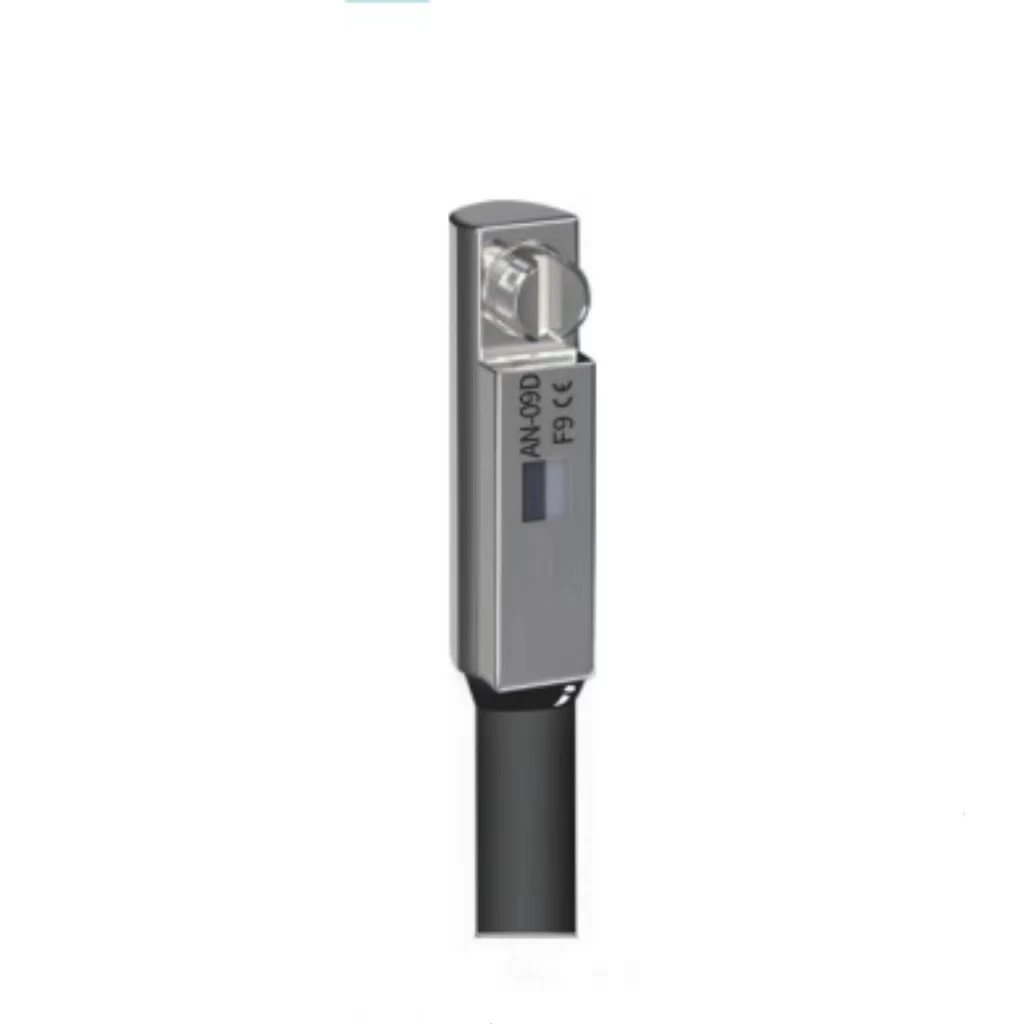

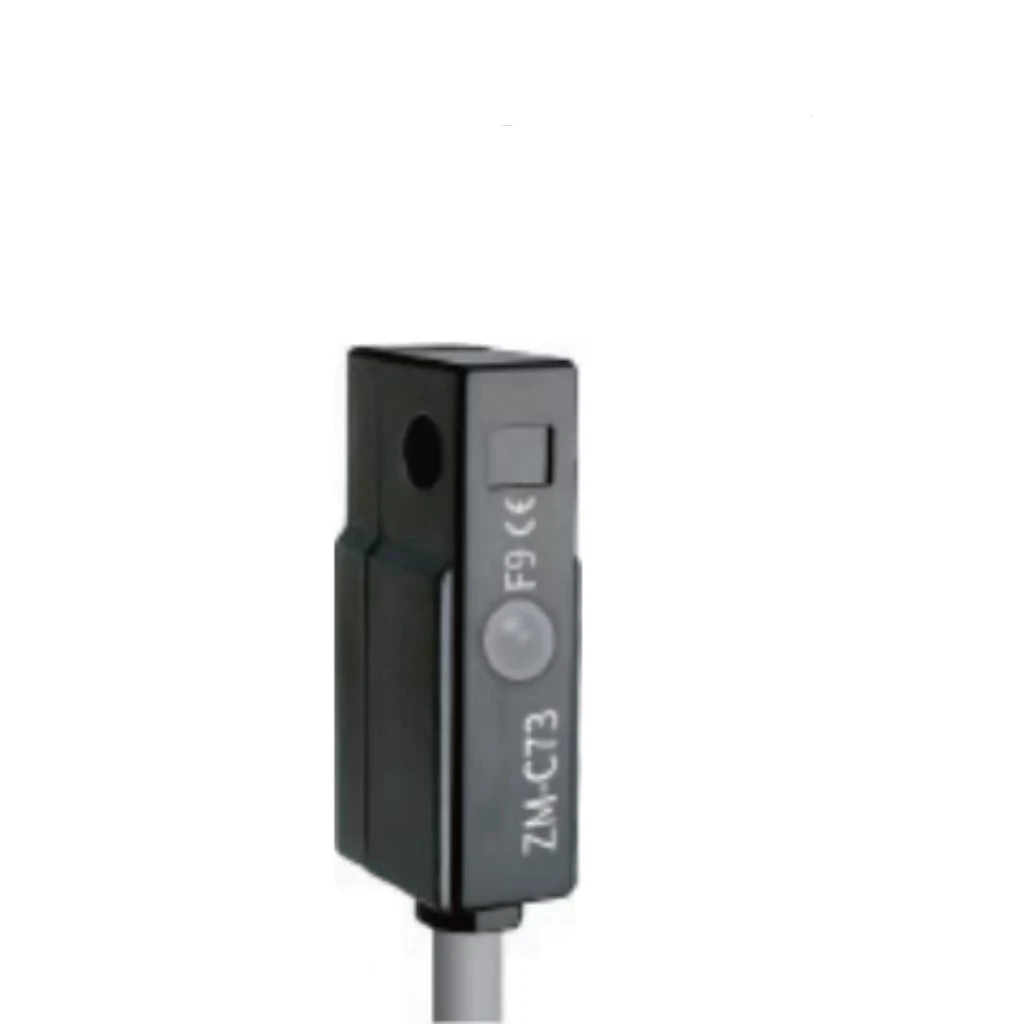

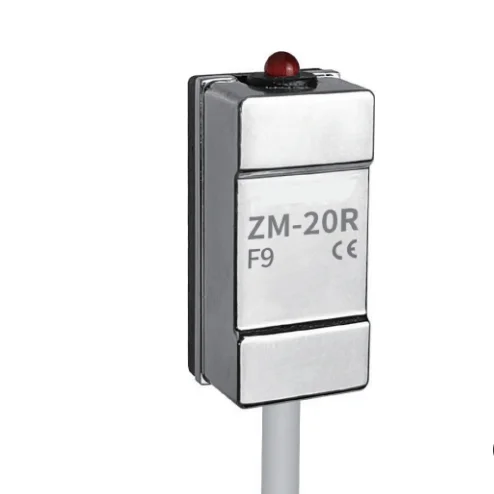

Magnetic Reed Switch Proximity Switch Sensor for Security and Safety Equipment
- Category: >>>
- Supplier: Hunan Guanghe Electronic Technology Co. Ltd.
Share on (1601201458324):
Product Overview
Description
Details Images
Detection method | Polarized reflection | Circuit protection | Short circuit protection, overload protection, | |||
Rated distance | 5m | reverse polarity protection, zener protection | ||||
Output type | NPN NO+NC Or PNP NO+NC | Indicator | Green light: power indicator | |||
Distance adjustment | Knob adjustment | Yellow light: output, overload or short circuit(flicker) | ||||
Light spot size | 10mm@5m(Main Light spot) | Anti ambient light | Anti-sunlight interference ≤10,000lux; | |||
Output state | Black line NO, white line NC | Incandescent light interference ≤3,000lux | ||||
Supply voltage | 10...30 VDC, Ripple<10%Vp-p | Operating temperature | -10ºC ...50ºC(no icing, no condensation) | |||
Consumption current | ≤20mA | Storage temperature | -40ºC …70ºC | |||
Load current | ≤100mA | Humidity range | 35%~85%(no icing, no condensation) | |||
Voltage drop | ≤1.5V | Protection degree | IP67 | |||
Light source | Red laser(650nm) Class1 | Certification | CE | |||
Response time | T-on: ≤0.5ms; T-off: ≤0.5ms | Production standard | EN60947-5-2:2012、IEC60947-5-2:2012 | |||
Response frequency | ≤1000Hz | Material | Housing: PC+ABS; Optical elements: Plastic PMMA | |||
Dead zone | <20cm | Weight | 50g | |||
Smallest detector | ≥φ3mm@0~2m, ≥φ6mm@2~5m | Connection | 2m PVC cable | |||
Products Description
♦Universal housing, an ideal replacement for a variety of sensors.
♦Conform to IP67 and is suitable for harsh environments.
♦Sensitivity can be set by one key, accurate and fast. High detection accuracy and stable performance.
♦Laser spot, high positioning accuracy.
♦NO/NC switchable.
♦Conform to IP67 and is suitable for harsh environments.
♦Sensitivity can be set by one key, accurate and fast. High detection accuracy and stable performance.
♦Laser spot, high positioning accuracy.
♦NO/NC switchable.
Application Case
Why Choose Us
Company Profile
The company has accumulated rich experience in research and development and manufacturing. Based on the deep understanding of intelligent information technology and the Internet of everything, we stay committed to the sensor industry with the spirit of originality. We fully implements the ISO9001:2015 quality management system, continuously optimizes management, and takes zero defects as the goal of quality management. We have strict product development and verification process, as well as efficient management to meet customer product function, quality and delivery.
Our company has always adhered to the principle of people-oriented, extensive talents recruitment, to maintain new forces at any time, build an sensor enterprise with international standard, and produce more value for customers!
FAQ
Q: Can I customize a special sensor?
A: Sure, we also offer customized services.
A: Sure, we also offer customized services.
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger size orders, please contact us and we will give you a quotation.
A : Yes, Cheaper prices with bigger size orders, please contact us and we will give you a quotation.
Q: If I need a sample for pretest, do you sale sample for this inquiry?
A: Yes, we can sale sample for pretest. If you need, please contact us.
A: Yes, we can sale sample for pretest. If you need, please contact us.
Q : When will you ship my order?
A : 48 hours shipping guarantee for stock items and 10-15 days for non-stock items.
A : 48 hours shipping guarantee for stock items and 10-15 days for non-stock items.
