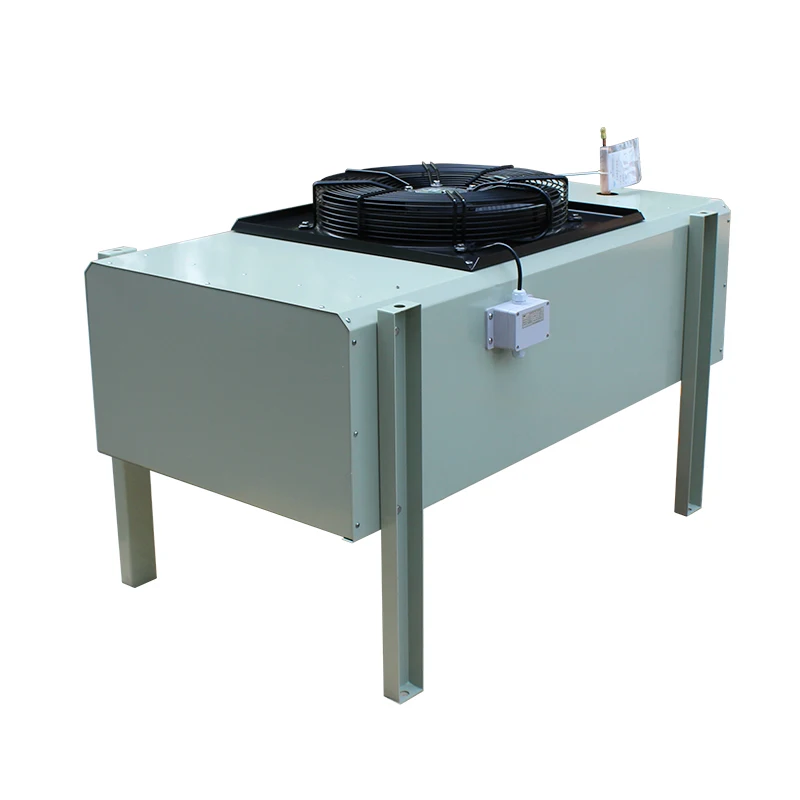

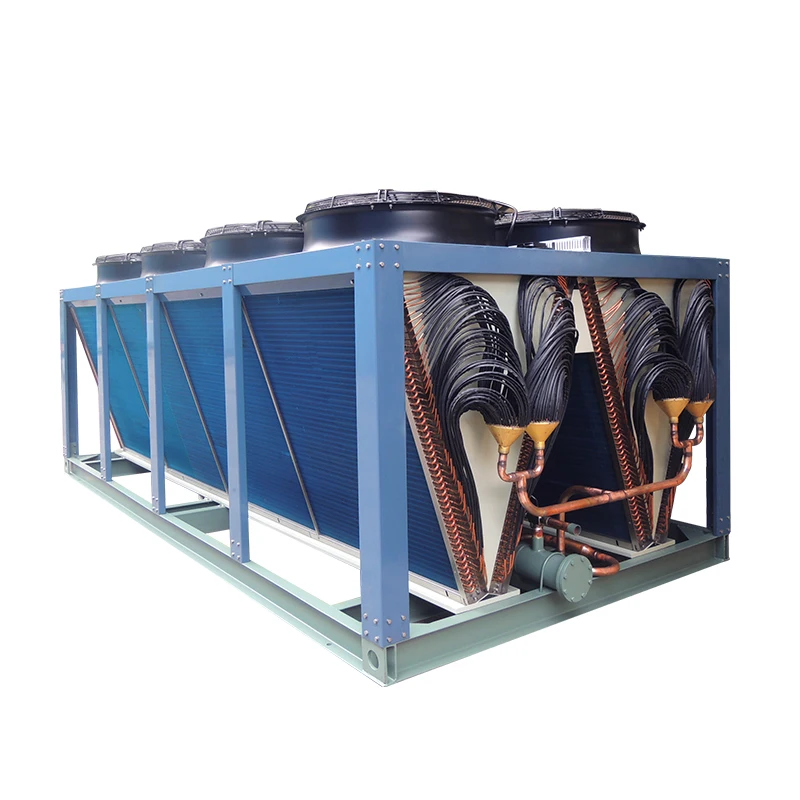

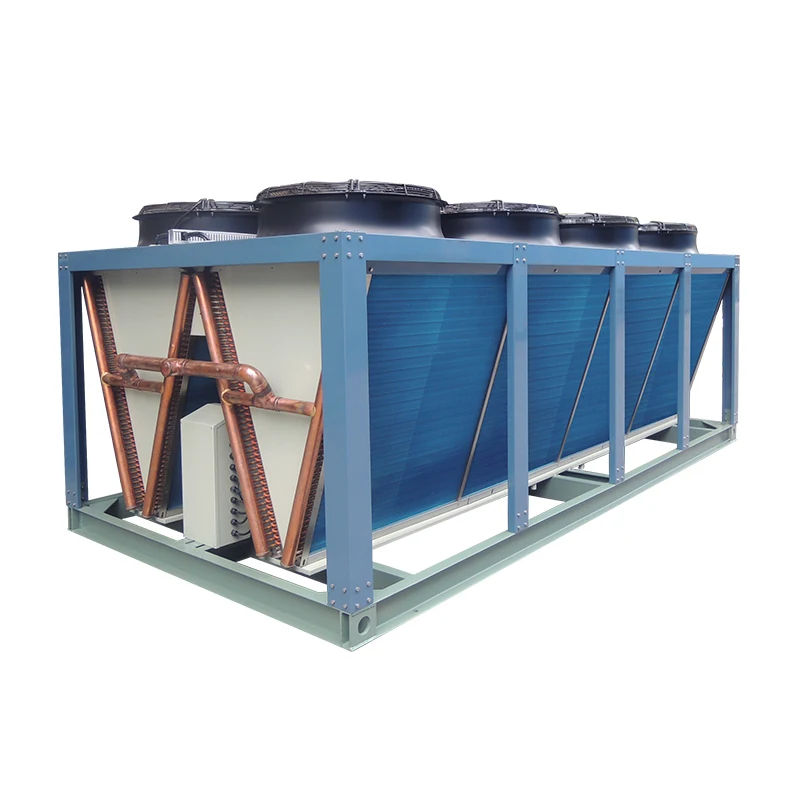

Custom W type Industrial Fin Heat Exchanger for Air cooled Condenser Evaporator Dry air Cooler

Product Overview

Description

Specifications

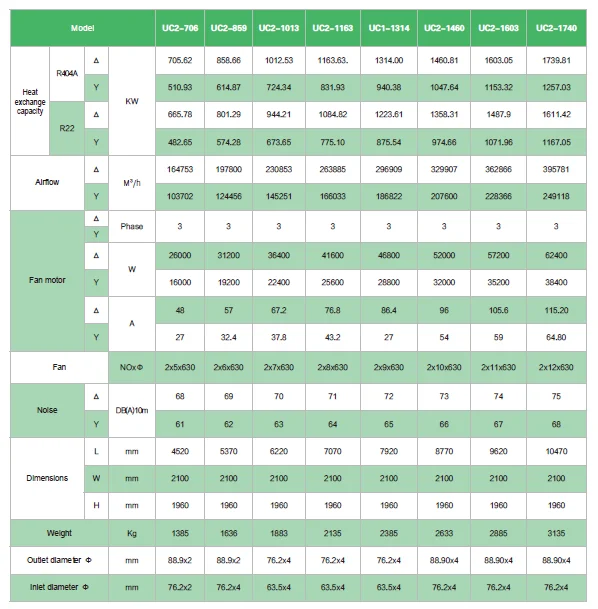

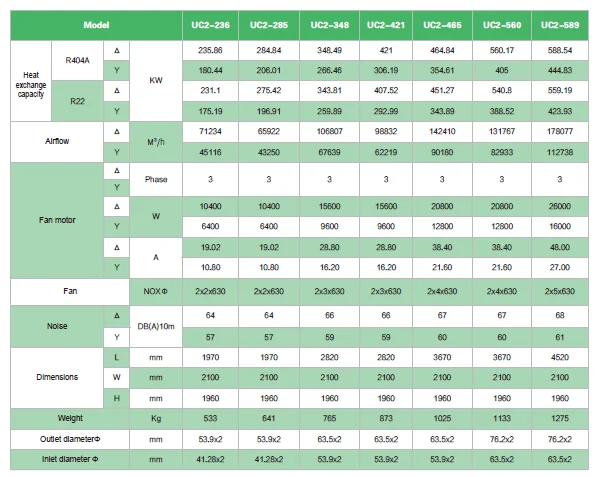

UC2 Series Air-cooled Condenser, with fin spacing of 2.2mm

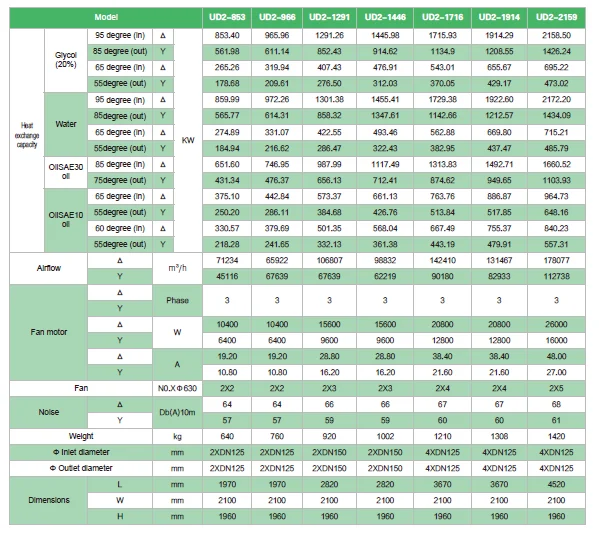

UD2 Series Dry-air Cooler, with fin spacing of 2.2mm



Benefits



Fin heat exchangers have been widely used in different projects in recent years.



There are mainly 3 applications as follows:



Air-cooled condenser: with the condenser placed outdoor, and the evaporator and compressor indoor, the damage rate of the original electrical components of the unit is reduced, and hence lower maintenance costs.



Air-cooled evaporator: its application in a dual-source heat pump system can effectively reduce the average energy consumption of the system.



Dry-air cooler: also known as winter economizer, in which high temperature water and low temperature air exchange heat directly without using a cooling medium. The whole cooling system has only two energy consuming parts, the fan and the pump; as a result, the energy consumption of the system is gre atly reduced.

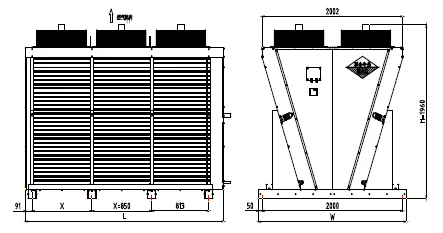

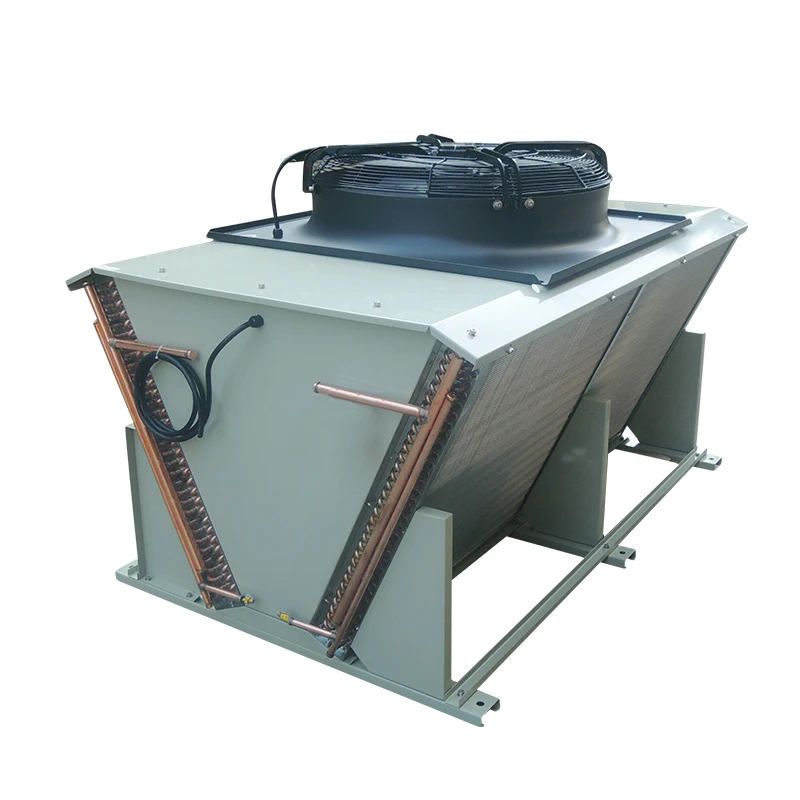

Optional structures: Plate type, V type, and W type.



The use of low-consumption, low-noise fan, proper fannozzle, and reasonable fin structure can maximize air flow and reduce noise. With IP54 protection and F insulation class, the fan runs stably and has a longer service life. Available for different working environment and operating conditions: explosion-proof fan, copper foil, anti-corrosion coating, stainless steel heat exchange tube, stainless steel plate, etc.
