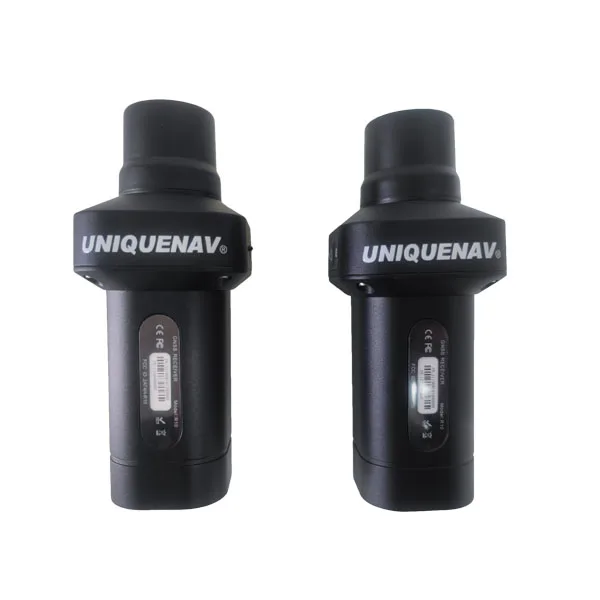

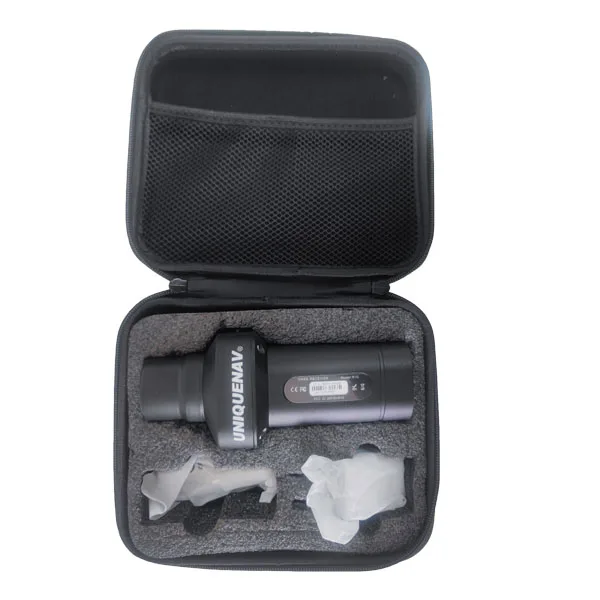

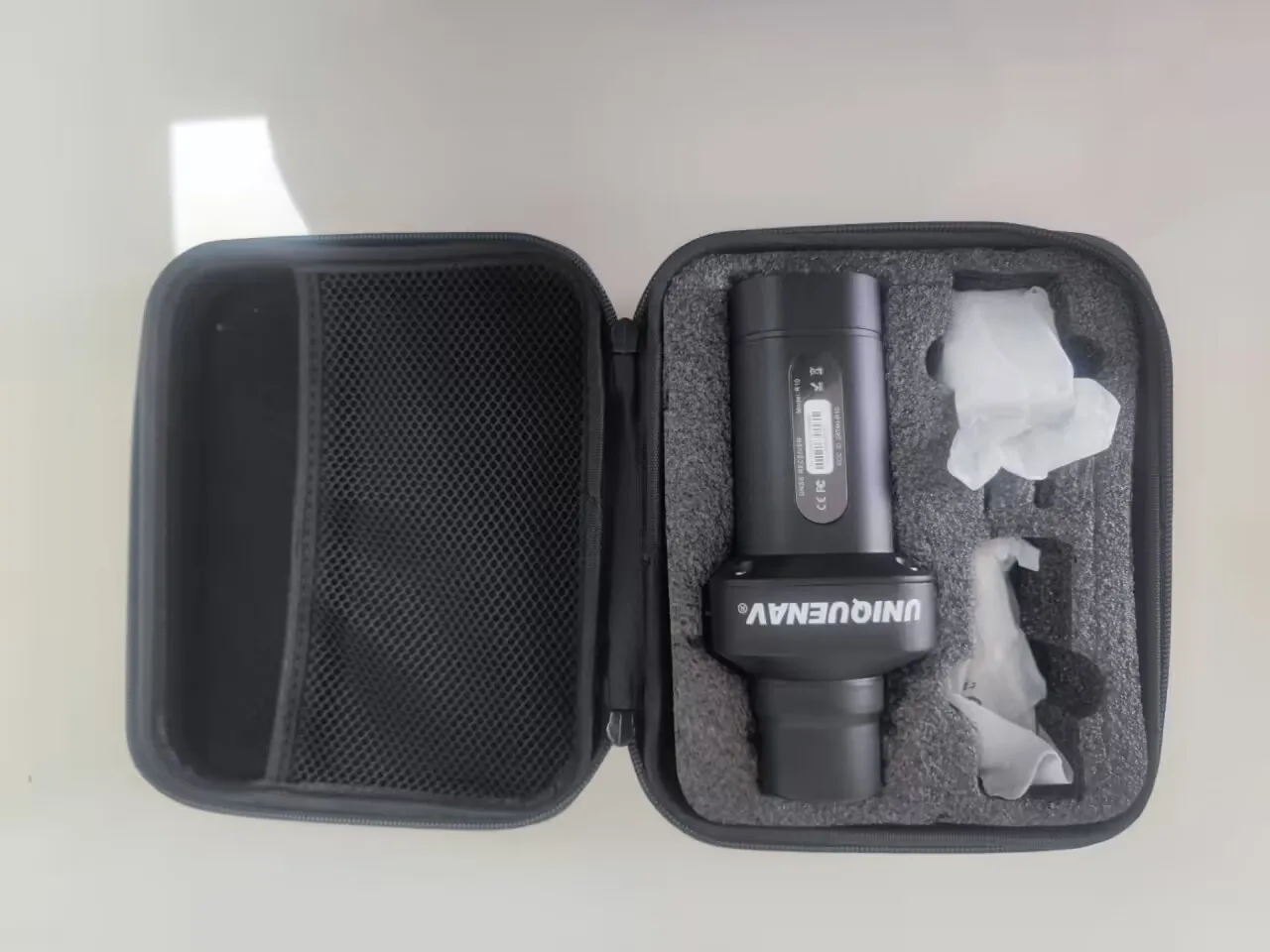

Portable High accuracy gps handheld gnss receiver RTK R10
- Category: >>>
- Supplier: Tianjin Unique Technology Co. Ltd.
Share on (1601201539045):
Product Overview
Description
Specification
CHANNEL | 1408 channels, based on NebulasIV | ||
SIGNAL | BDS | B1I/B2I/B3I/ B1C/B2a | |
TRACKING | GPS | L1C/A/L2P（Y）/L2C | |
GLONASS | L1/L2 | ||
Galileo | E1/E5a/E5b | ||
QZSS | L1/L2/L5 | ||
Cold start time | ＜25s | ||
Initialization time | ＜5s（typ.） | ||
RTK initialization reliability | ＞99.9% | ||
Recapture | ＜1s | ||
ACCURACY | Single point positioning | Plane：1.5m | |
INDEX | Elevation | 2.5m | |
RTK Accuracy | Plane：±（10+1.0×10-6×D）mm(D is the baseline distance, the unit is mm) | ||
Elevation：±（20+1.0×10-6×D）mm | |||
DATA | Differential data | RTCM3.3/3.2/3.1/3.0 | |
OUTPUT | Positioning data | NMEA-0183 | |
PHYSICAL | Physical size | Φ165mm×70mm | |
PROPERTIES | Working temperature | -45℃～+75℃ | |
Storage temperature | -55℃～+85℃ | ||
Protection class | IP54 | ||
Shock and Vibration | 2m drop resistance | ||
Buttons | 1button | ||
Indicator lights | 2 LED indicators | ||
Weight | 0.55kg | ||
DATA | Data refresh rate | 1Hz | |
INTERFACE | Baud rate | 115200 | |
Interface mode | standard TYPE-C interface | ||
Bluetooth | B T4.0 | ||
ELECTRICAL | Endurance time | ≥16h | |
PARAMETERS | Input voltage | DC5V ≤1A | |
Battery capacity | 4800mAh | ||
Power consumption | 1w | ||
Product Description
Features
1. The R10 portable high-precision locator is a lightweight, simple, and practical highprecision full-constellation GNSS RTK receiver independently developed and produced by UNIQUENAV.
2.The total weight of the device is 0.55kg .
3. It is small, light, and easy to carry. Integrated large-capacity battery, GNSS antenna, satellite positioning module , Bluetooth , etc.
Application
Company Profile
After Sales Service |

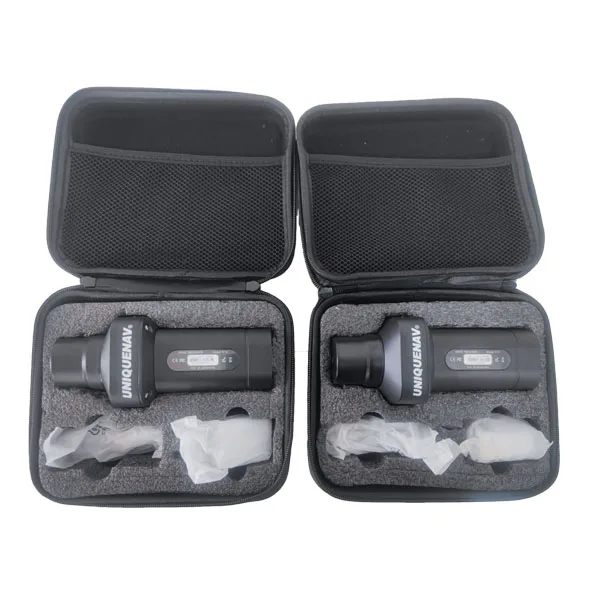

Package/Delivery |
FAQ
1. Who are we?
We are based in Tianjin, China, start from 2017,sell to Africa(30.00%),South America(10.00%),Domestic Market(5.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Mid East(5.00%),Oceania(5.00%),North America(5.00%),Southeast Asia(5.00%),Eastern Europe(5.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production.
Always final Inspection before shipment.
3.What can you buy from us?
GNSS RTK Receiver, GIS handheld GPS, GNSS Receiver for machine control,Total Station, Theodolite, GNSS Board
4. Why should you buy from us not from other suppliers?
Tianjin Unique Technology Co., Ltd is an professional supplier for GIS data collector, Handheld GPS, GNSS RTK Receiver, GNSS for machine control, Total station, Theodolite, and other Surveying equipments. Supply the best products and services to customers.
We are based in Tianjin, China, start from 2017,sell to Africa(30.00%),South America(10.00%),Domestic Market(5.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Mid East(5.00%),Oceania(5.00%),North America(5.00%),Southeast Asia(5.00%),Eastern Europe(5.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production.
Always final Inspection before shipment.
3.What can you buy from us?
GNSS RTK Receiver, GIS handheld GPS, GNSS Receiver for machine control,Total Station, Theodolite, GNSS Board
4. Why should you buy from us not from other suppliers?
Tianjin Unique Technology Co., Ltd is an professional supplier for GIS data collector, Handheld GPS, GNSS RTK Receiver, GNSS for machine control, Total station, Theodolite, and other Surveying equipments. Supply the best products and services to customers.
