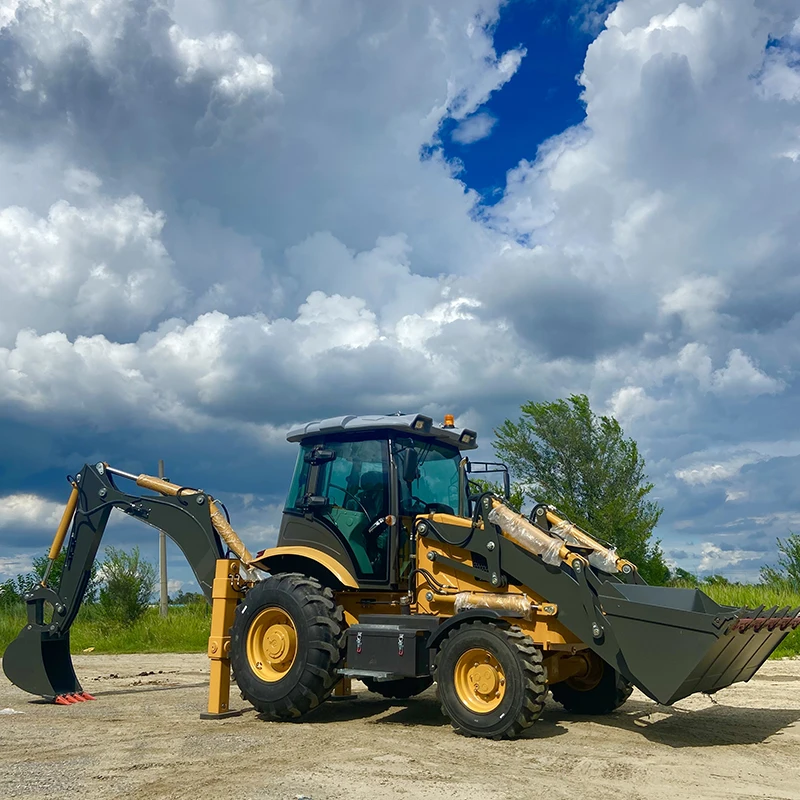

Shipping 7 10 days 2500kg Excavator Backhoe Loader 388 in Stock Ready For Shipment
- Category: >>>
- Supplier: Shandong Ltmg Heavy Machinery Co. Ltd.
Share on (1601201559458):
Product Overview
Description

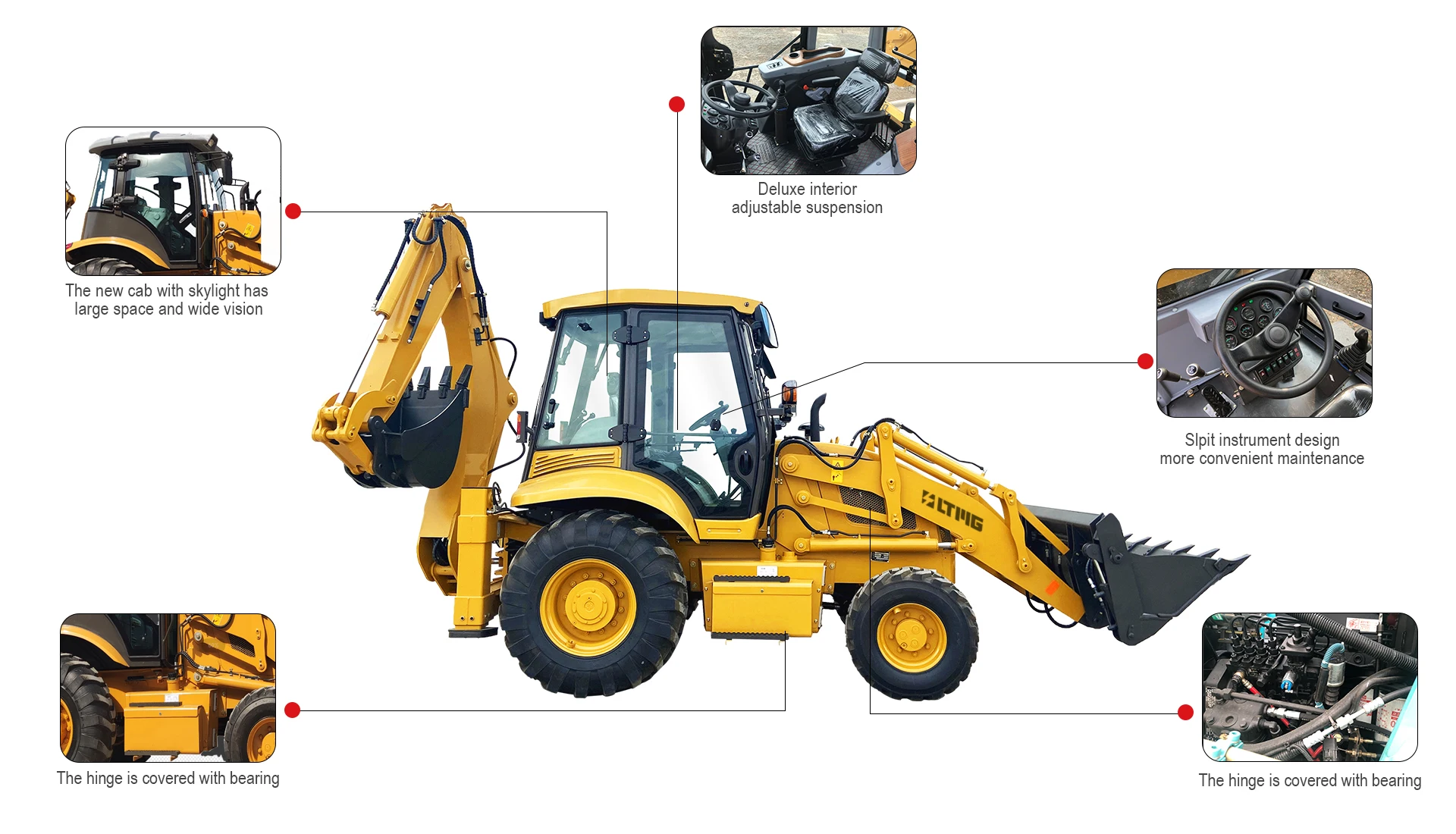

Advantages

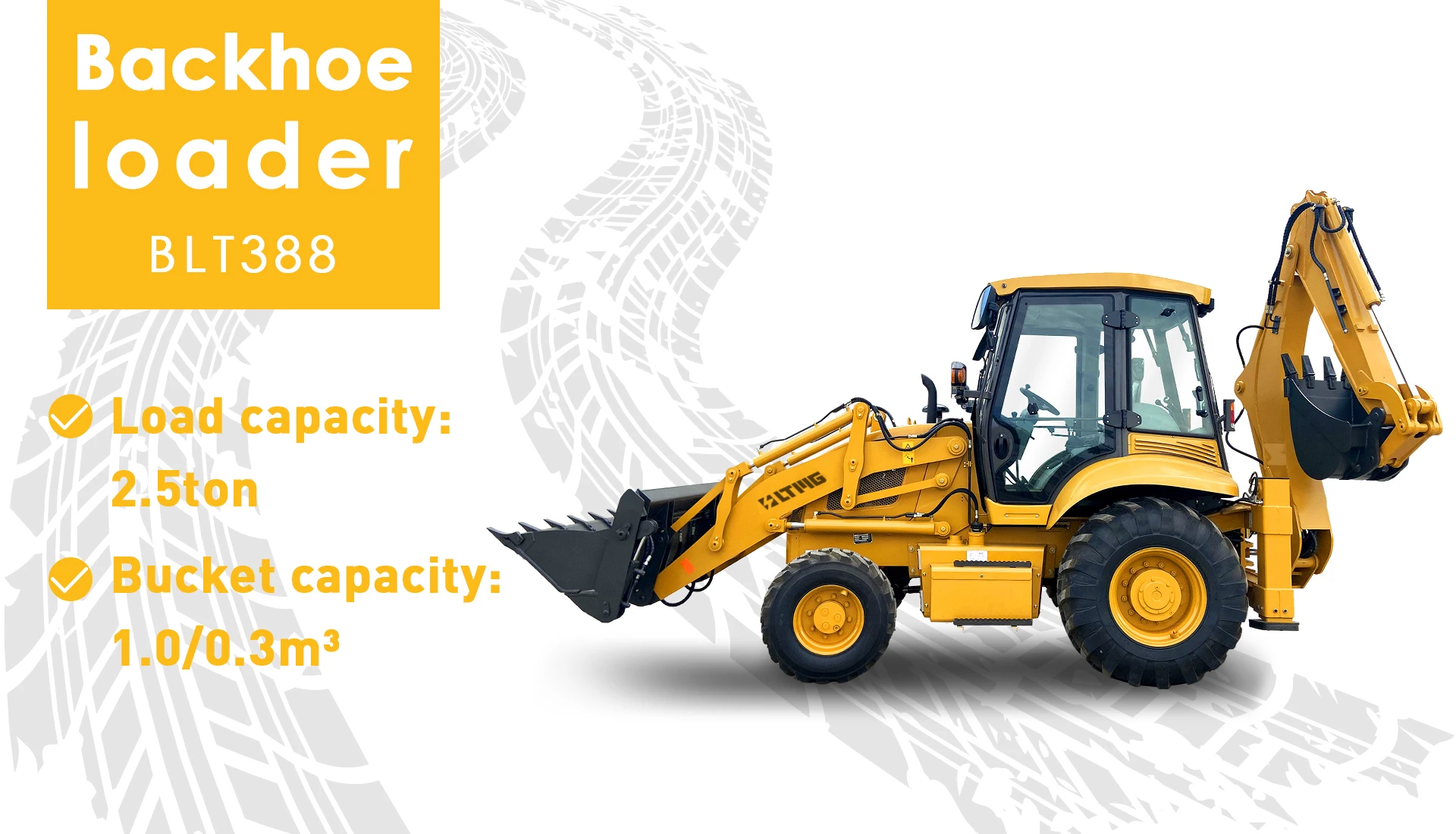

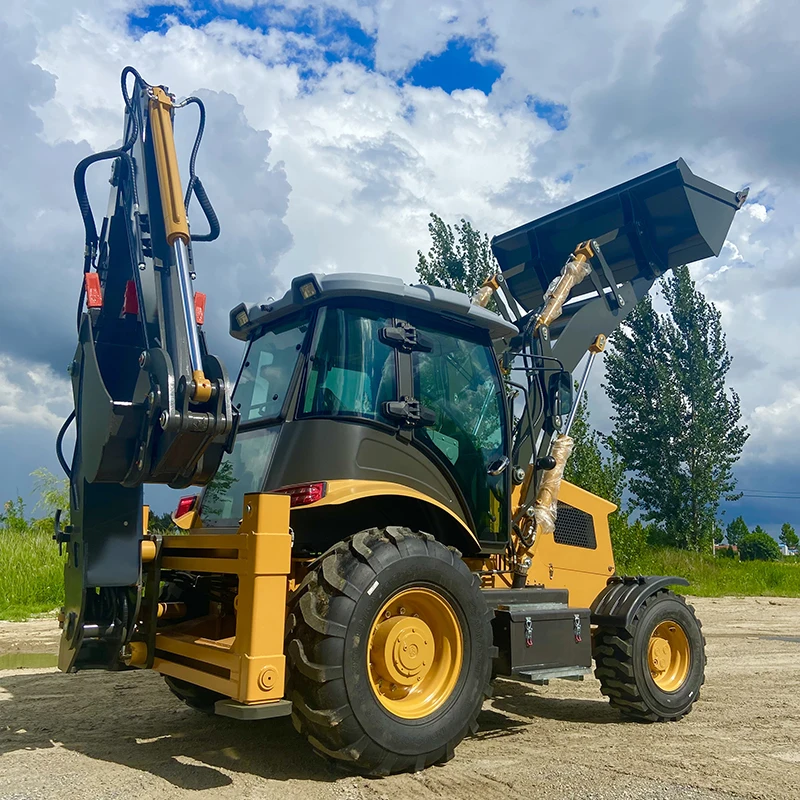

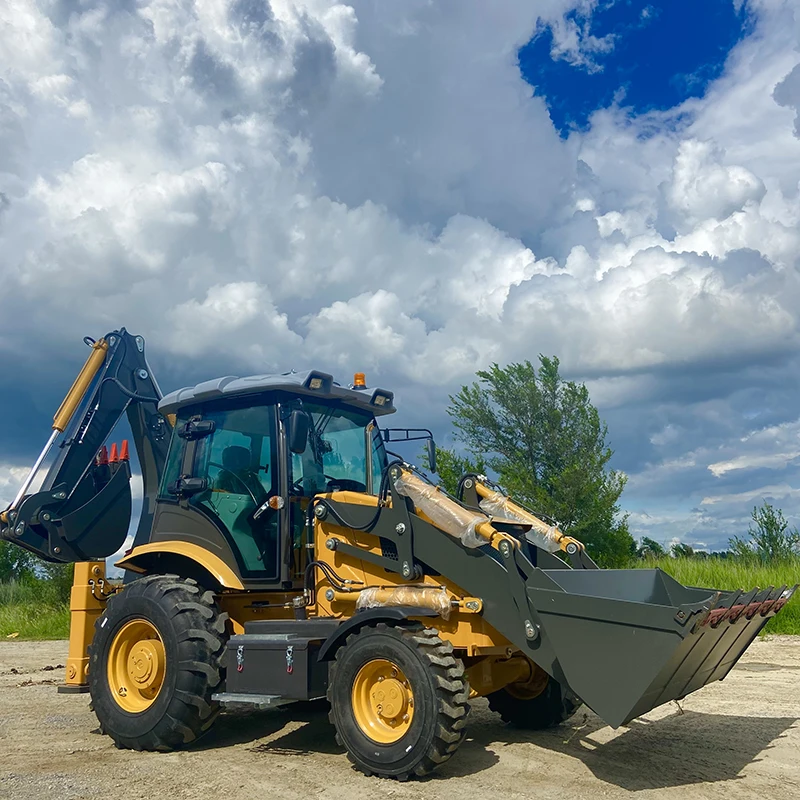

The specification of 2.5ton backhoe loader 388 Mini Excavator | ||||
Transport Dimension | Overall Operating Weight | 8200KG | ||
mm L*W*H | 6230×2365×3752 | |||
Wheel base | 2200mm | |||
Min. Ground Clearance | 300mm | |||
Bucket Capacity | 1.0m3 | |||
Breakout Force | 38KN | |||
Loading Lifting Capacity | 2500KG | |||
Bucket Dumping Height | 2650mm | |||
Bucket Dumping Distance | 1025mm | |||
Digging Depth | 52mm | |||
Backhoe Capacity | 0.3 m3 | |||
Max. Digging Depth | 4085mm | |||
Swing Angle of Excavator Grab | 190o | |||
Max. Pulling Force | 39KN | |||
Engine | Model | YC4A105Z-T20 | ||
Type | turbocharging four-stroke | |||
Cylinder-Inside Diameter*Stroke | 4—105 | |||
Rated Power | 75KW/100HP | |||
Rated Speed | 2400r/min | |||
Min. Fuel Consumption | 235g/kw.h | |||
Max.Torque | 310NM | |||
Displacement | 4.3L | |||
Steering System | Model of Steering Device | BZZ5-250 | ||
Steering Angle | ±36 o | |||
Min. turning radius | 6581mm | |||
Pressure of the system | 12Mpa | |||
Hydraulic System | Digging Power of Excavator Grab | 46.5KN | ||
Digging Power of Dipper | 31KN | |||
Bucket Lifting Time | 5.4S | |||
Bucket Lowering Time | 3.1S | |||
Bucket Discharge Time | 2.0S | |||
OEM/ODM

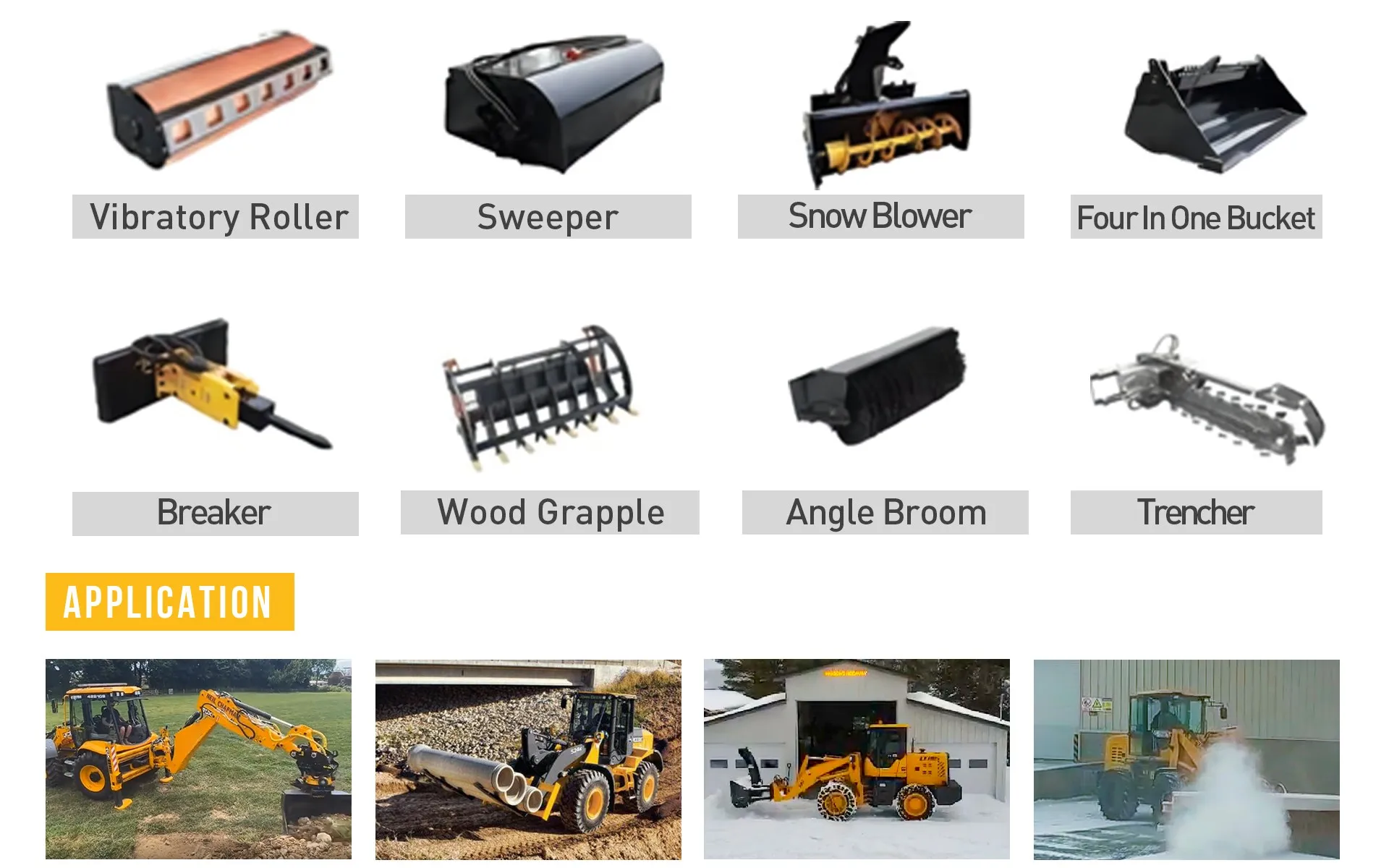

Optional Attachment
Shipping Plan
Factory Introduction

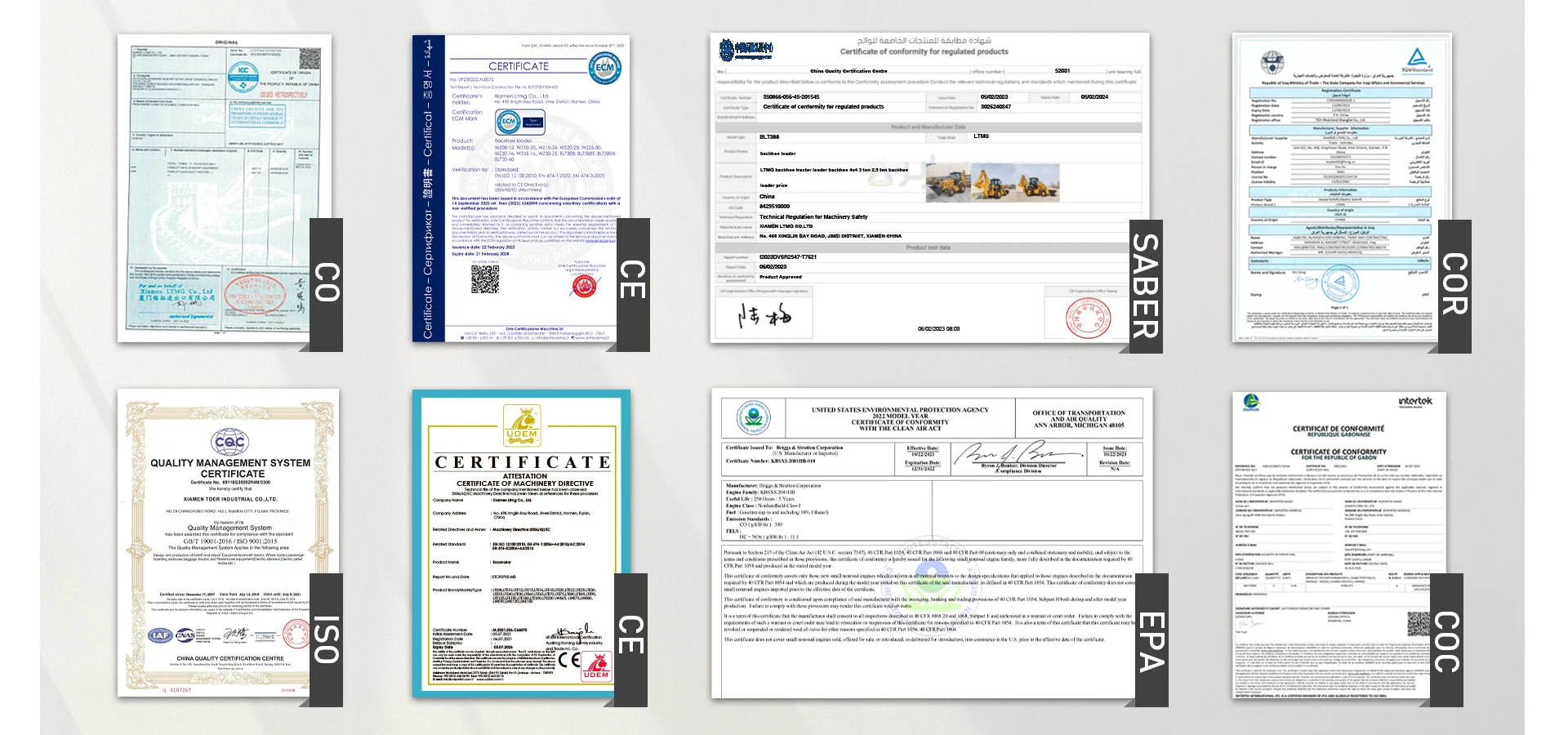

Certificate

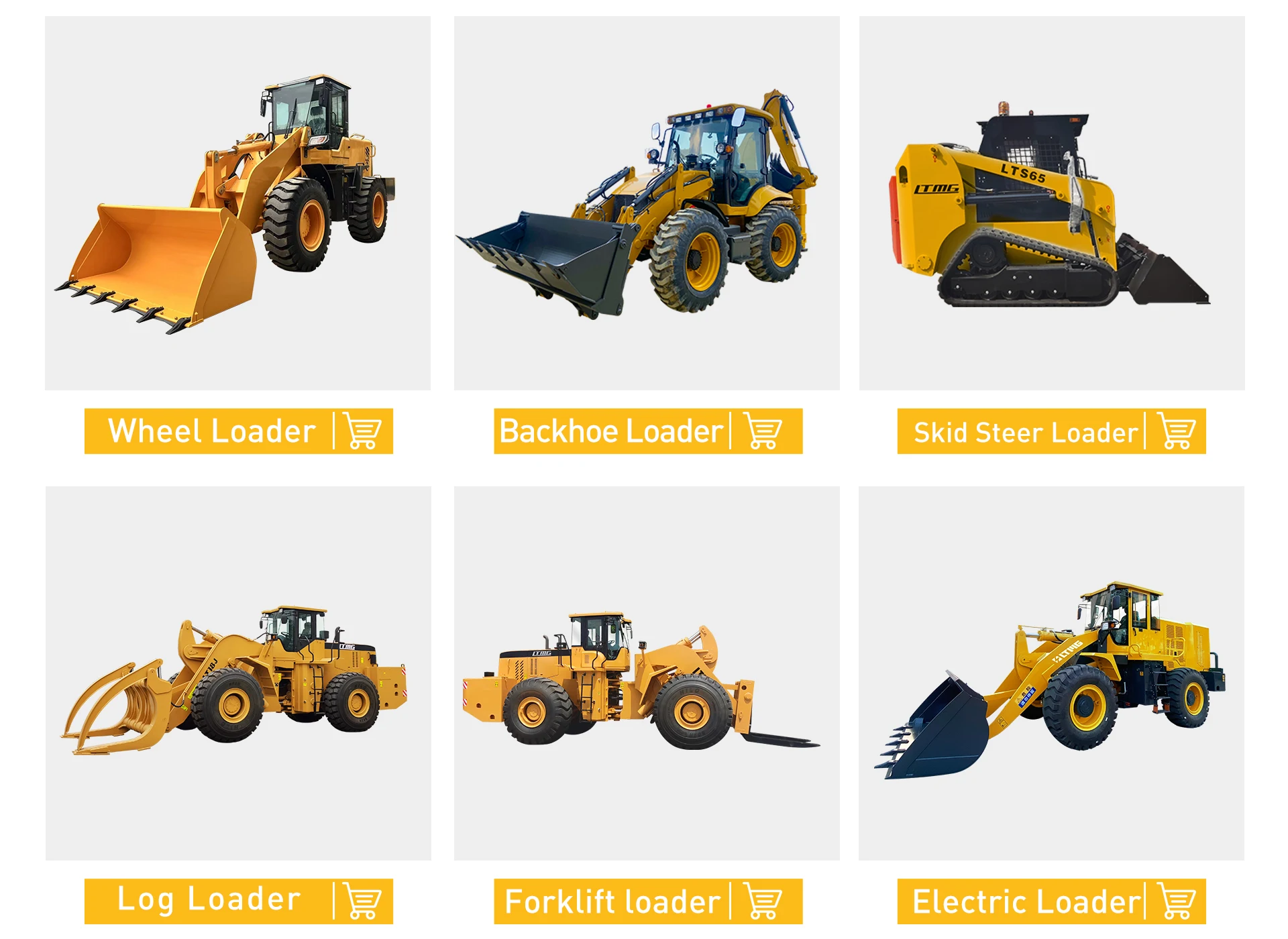

Hot Products
Customer Feedback
Customer Reviews
FAQ
1. Why choose us?
As a manufacturer, LTMG industrial is committed to offer not only high quality product and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory?
LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying loaders, forklift trucks, excavator, articulating boom lift and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
LTMG industrial can provide customized products according to customers'
requirements,both OEM and ODM are acceptable.
As a manufacturer, LTMG industrial is committed to offer not only high quality product and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory?
LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying loaders, forklift trucks, excavator, articulating boom lift and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
LTMG industrial can provide customized products according to customers'
requirements,both OEM and ODM are acceptable.
