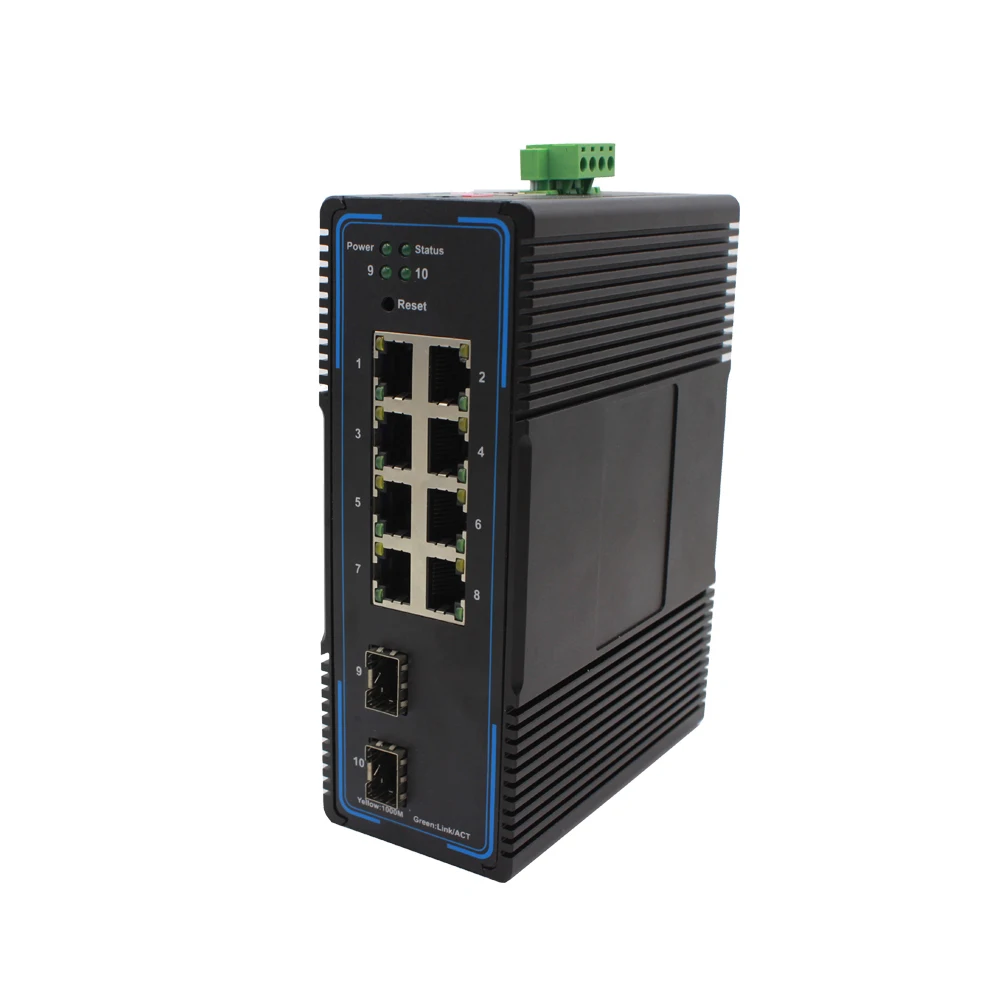

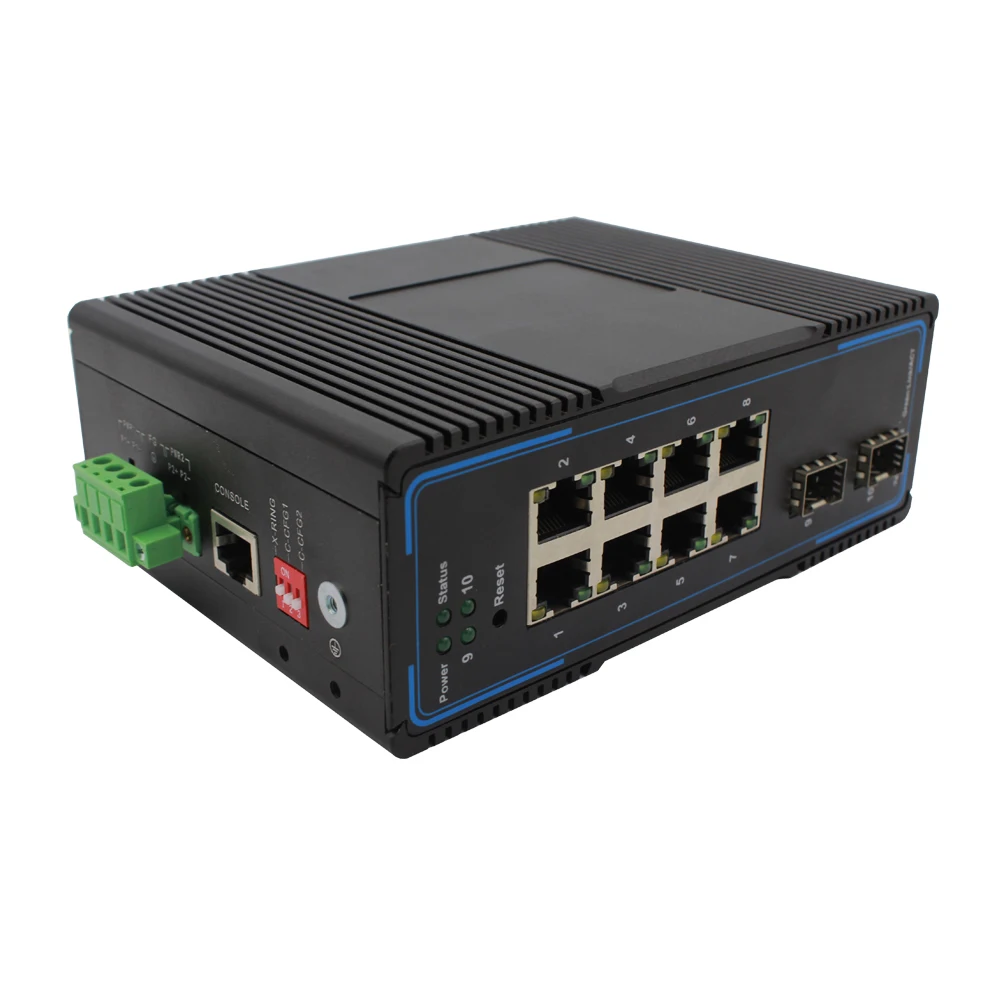

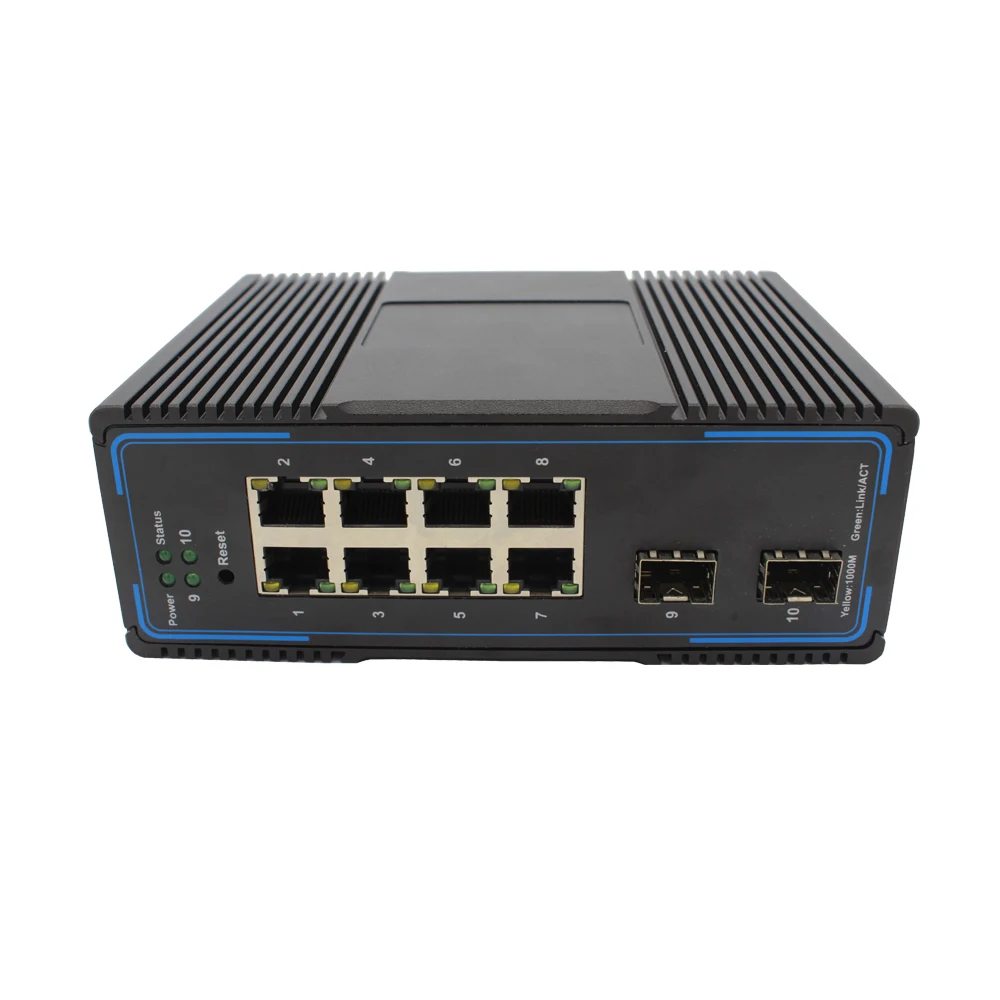

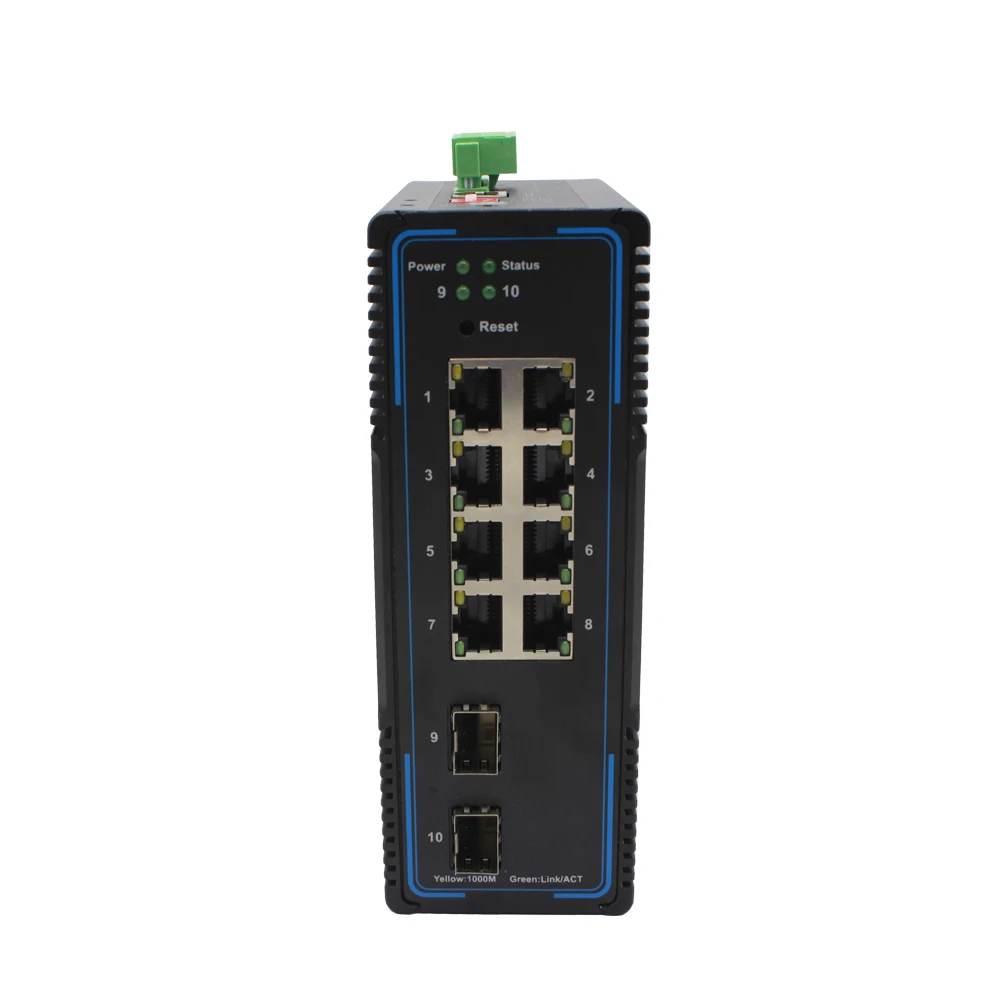

Outdoor Managed Industrial POE SFP Ethernet Switch 2*1000Mbps to 8*10/100/1000Mbps POE Gigabit SFP Switch DC48V

8 x 10/100/1000Mbps Auto-sensing RJ45 ports

4 x 1000Mbps SFP fiber ports

4 KV Ethernet surge protection, adapt to a harsh outdoor environment

Support Auto MDI/MDIX

Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard

IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant

A store-and-forward switching mechanism

Operating environment temperature:-40 ° ~85 ° c

Intelligent power consumption detection and classification

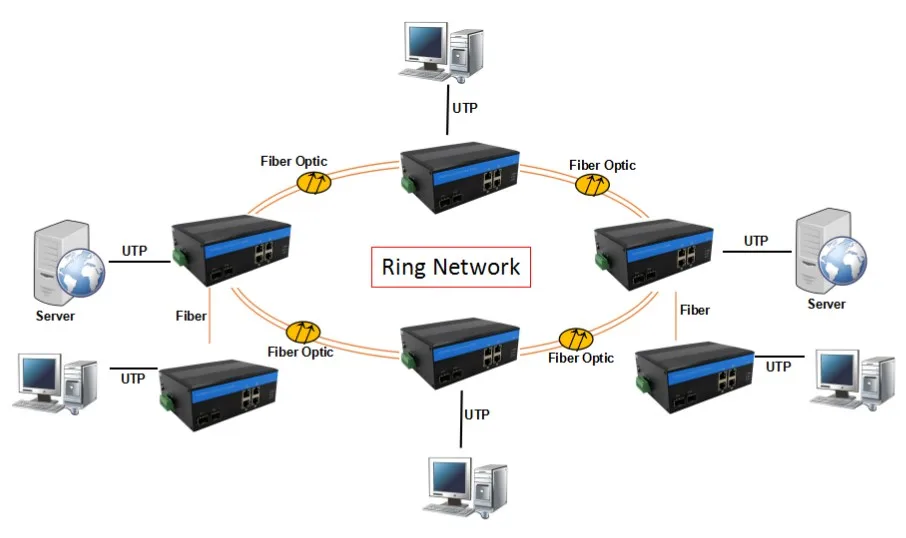

SW-Ring ring network patent technology (Fault recovery time<20ms)

IGMP Snooping, GMRP and static IGMP

Port trunking, rate control, broadcast storm control

SNMP, Telnet, WEB

SSH,SSL,ACL, automatic MAC address bounding

Alarming: support ARP listening, power down, and ring-alarm

Support link monitoring

Product Name

10/100/1000Mbps managed Industrial Fiber Switch (4F+8TP)

Model No.

NF648GMP-SFP

Port

4 x 1000Mpbs SFP ports

SM:1310nm/1550nm,20Km

     1490nm/1550nm,40~120Km

MM:1310nm,2Km

8 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Switching features

Transmission mode:storage and forward

System bandwidth:24Gbps (non-traffic jam)

Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs

Power, network, fiber

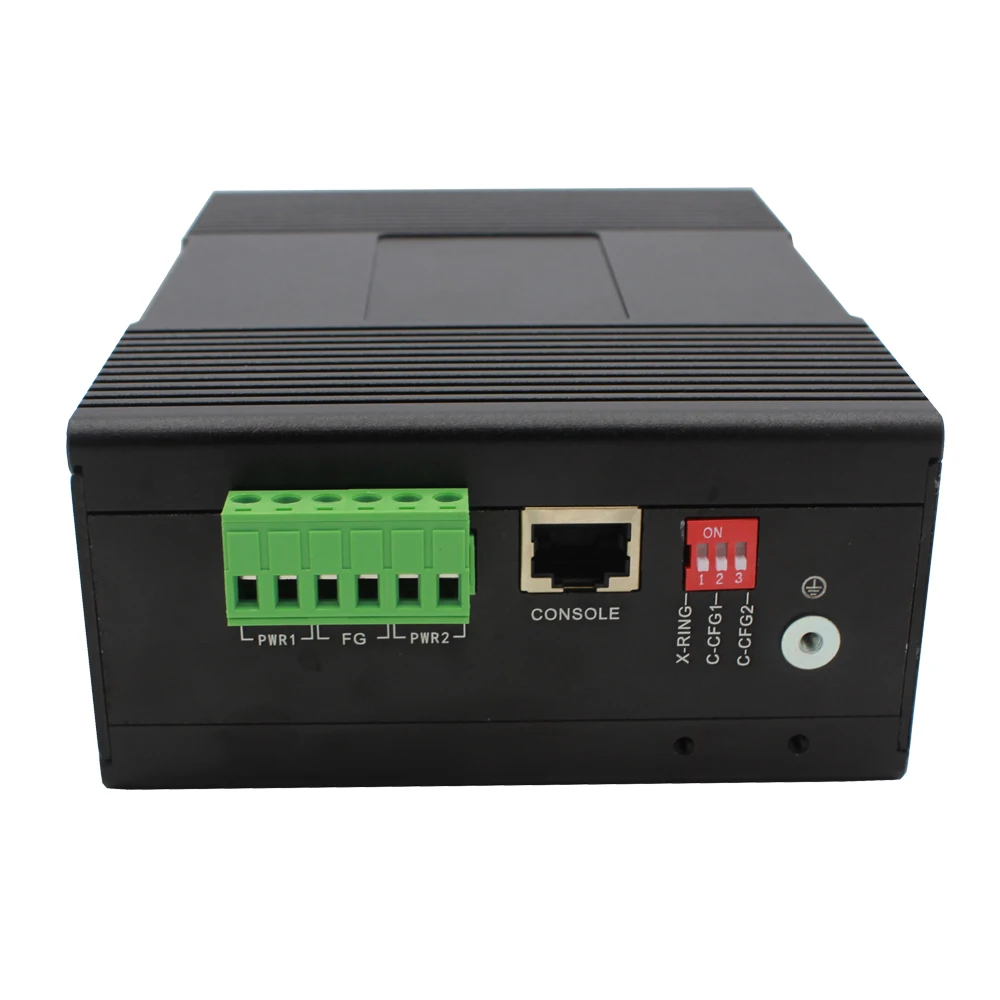

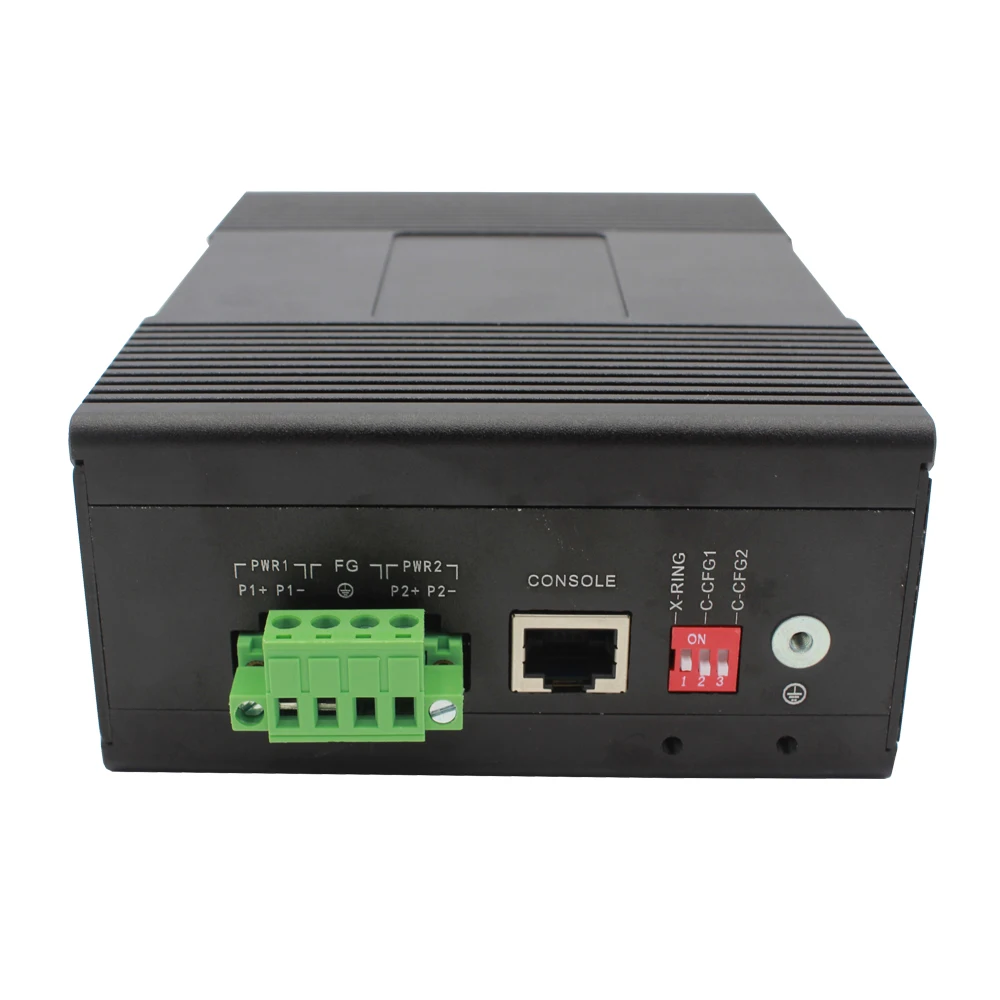

Power supply

Input voltage: DC 12-36V

No-load power consumption: 5W

Reverse polarity protection: support

Environment

Working temperature:-40°~ 85°C

Storage temperature:-40°~ 85°C

Working humidity:10%~90%,non-condensing

Storage humidity:10%~95%,non-condensing

Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control:NEMA-TS2

Vibration:IEC 60068-2-6

Freefall:IEC 60068-2-32

Shock:IEC 60068-2-27

Rail Traffic:EN 50121-4

Safety

CE Mark ,commercial

CE/LVD EN60950

Mechanical information

Shell:Corrugated metal shell

Safety class:IP40

Dimension:158 x 114.8 x 60mm

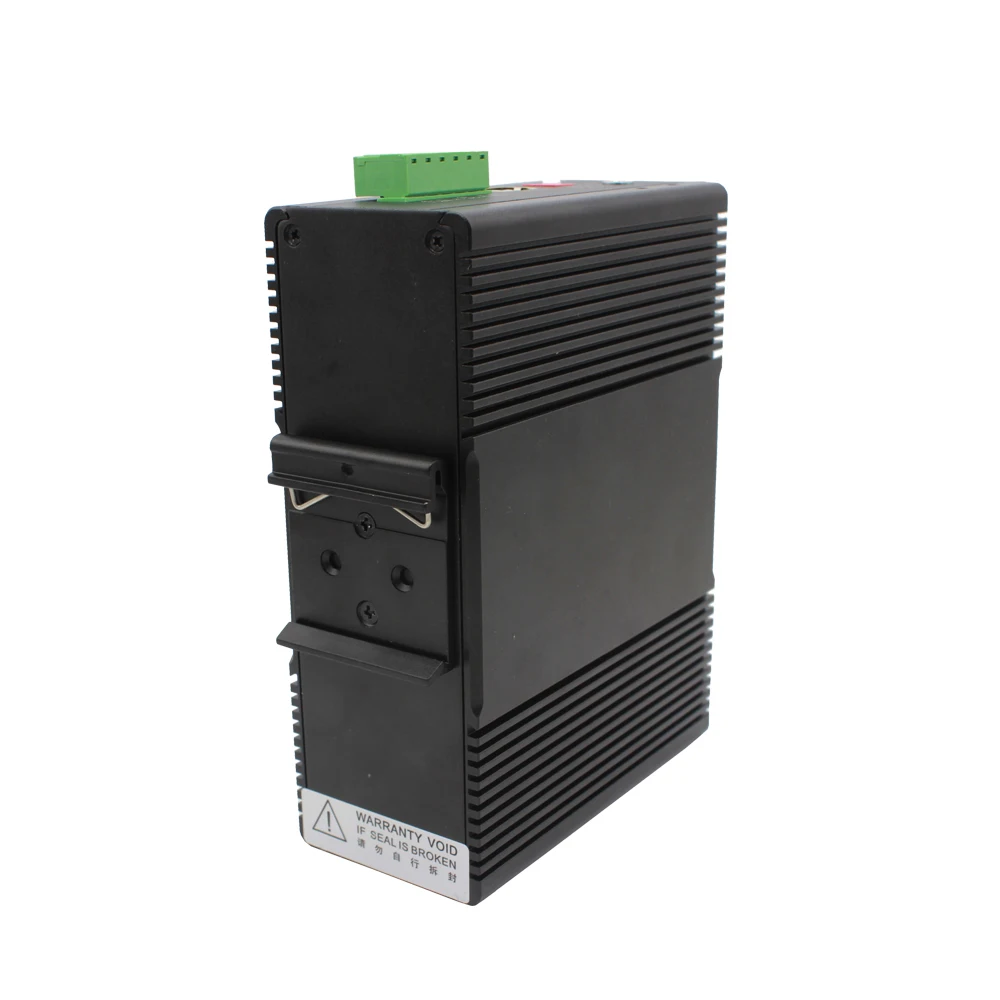

Mounting method:Din-rail mounting

Warranty

Replacement within 1 year; 5 years repairing
