Adjustable Base Solar Mounting System Solar Panel Roof Structure for Home Rooftop Solar Carport Panel Mounting
- Category: >>>
- Supplier: Xiamen Rineng Solar Energy Technology Co. Ltd.
Share on (1601201592167):
Product Overview
Description
Product Description
Wholesale Adjustable Base Solar Panel Roof Strurcture OF Home Rooftop Solar Panel Mounting System
1.Specification of adjustable base solar roof mounting system
| Applicable roof cladding | metal roof |
| Applicable Module | framed or frameless |
| Module Orientation | horizontal or vertical |
| Wind load | 60m/s |
| Snow load | 1.5KN/M² |
| Material | aluminum AL6005-T5(anodized),stanless steel 304,410 |
| Standard | AS/NZS 1170 and other international standards |
| Warranty | 10years |
2.Features of adjustable base solar roof mounting system
- Easy cost-effective installation
- Fasteners and rail nut configured fully

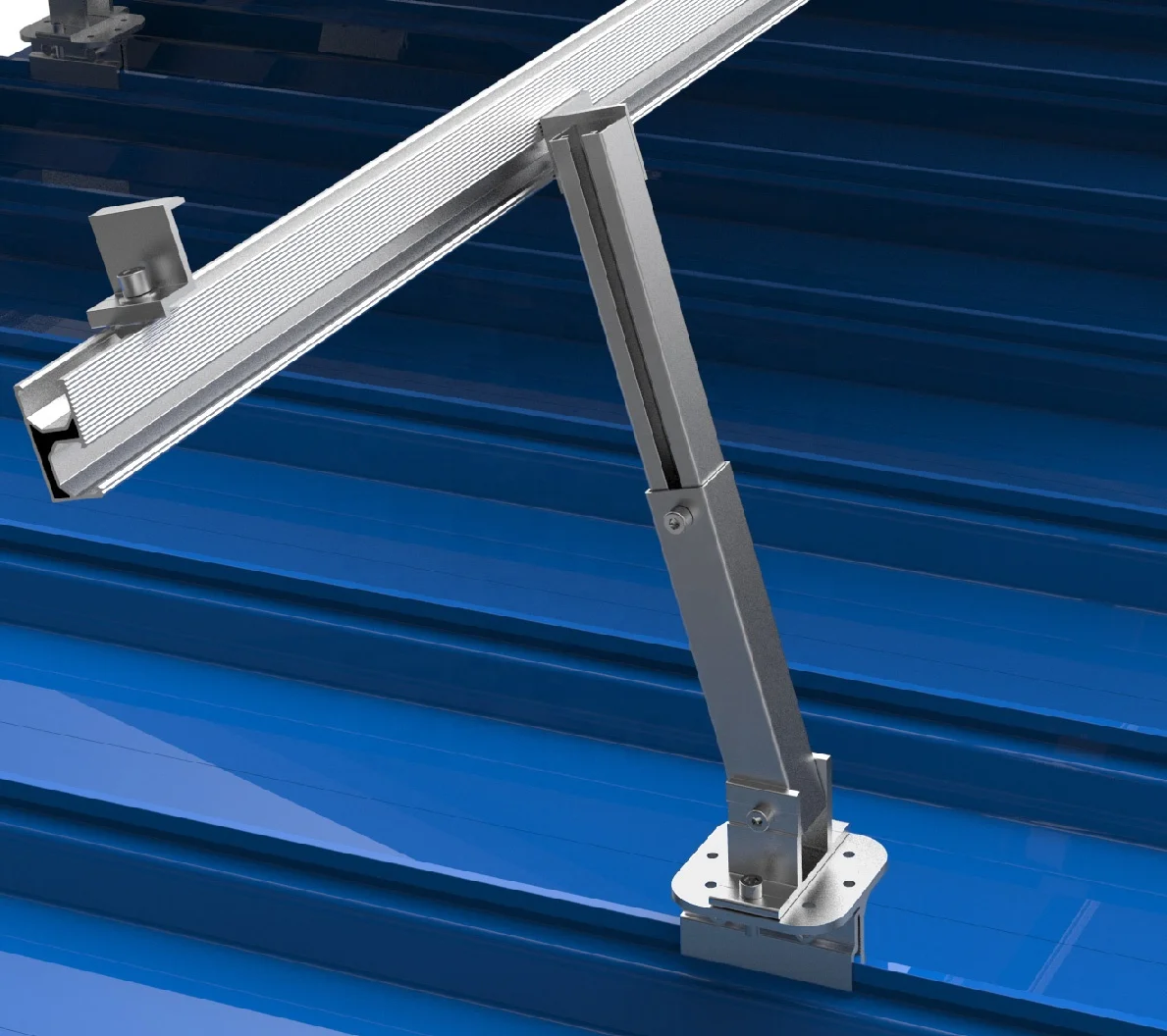

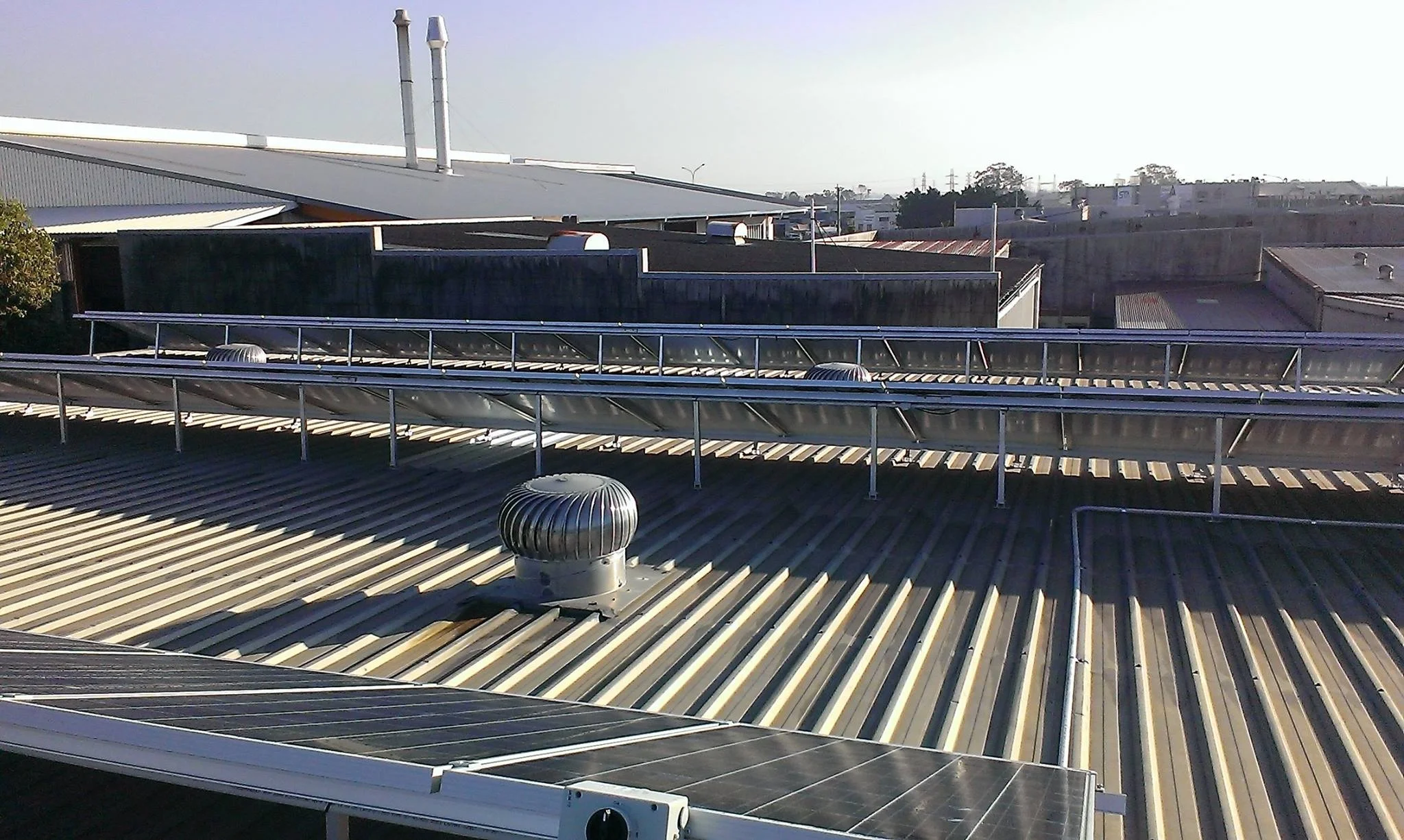

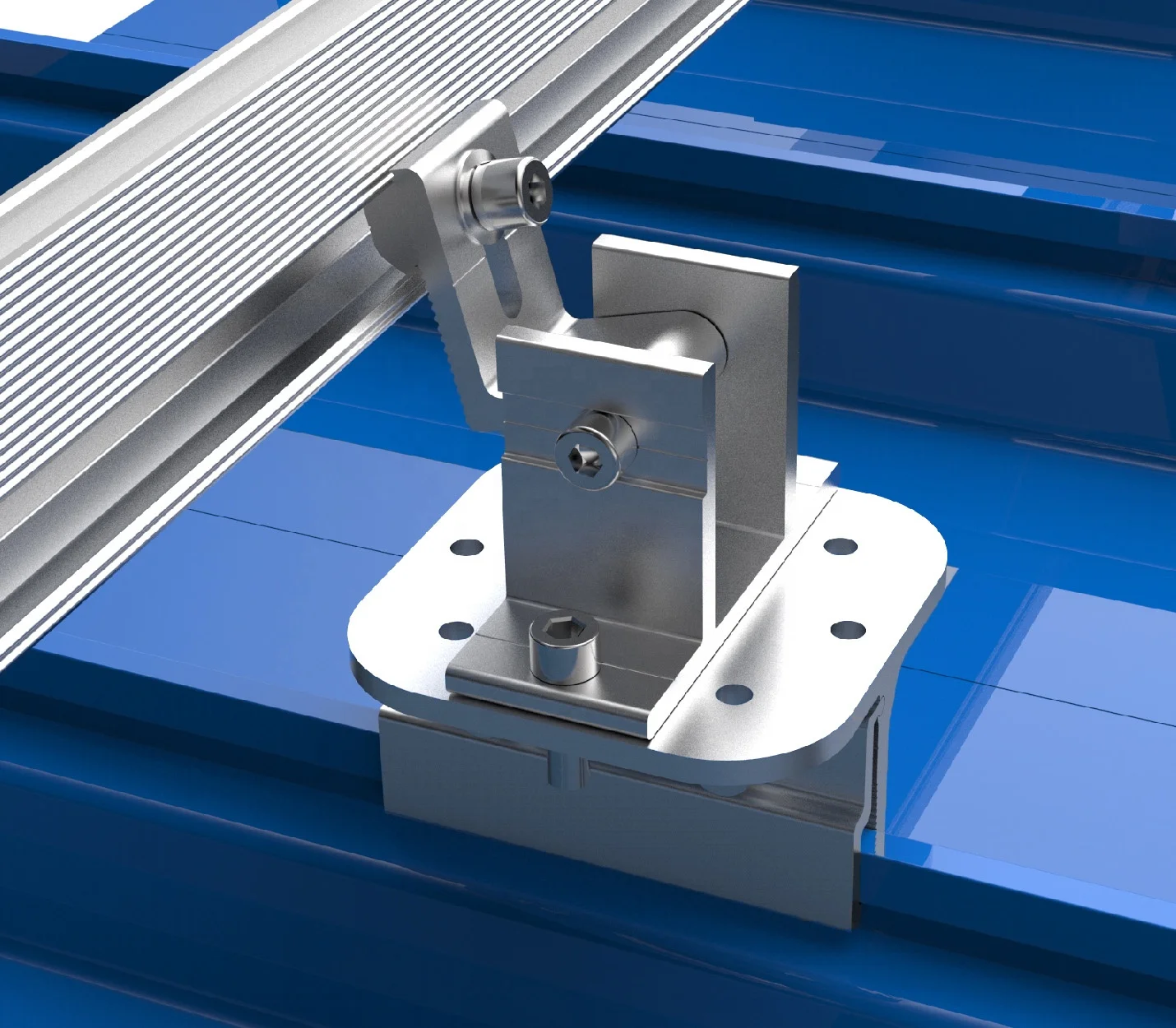

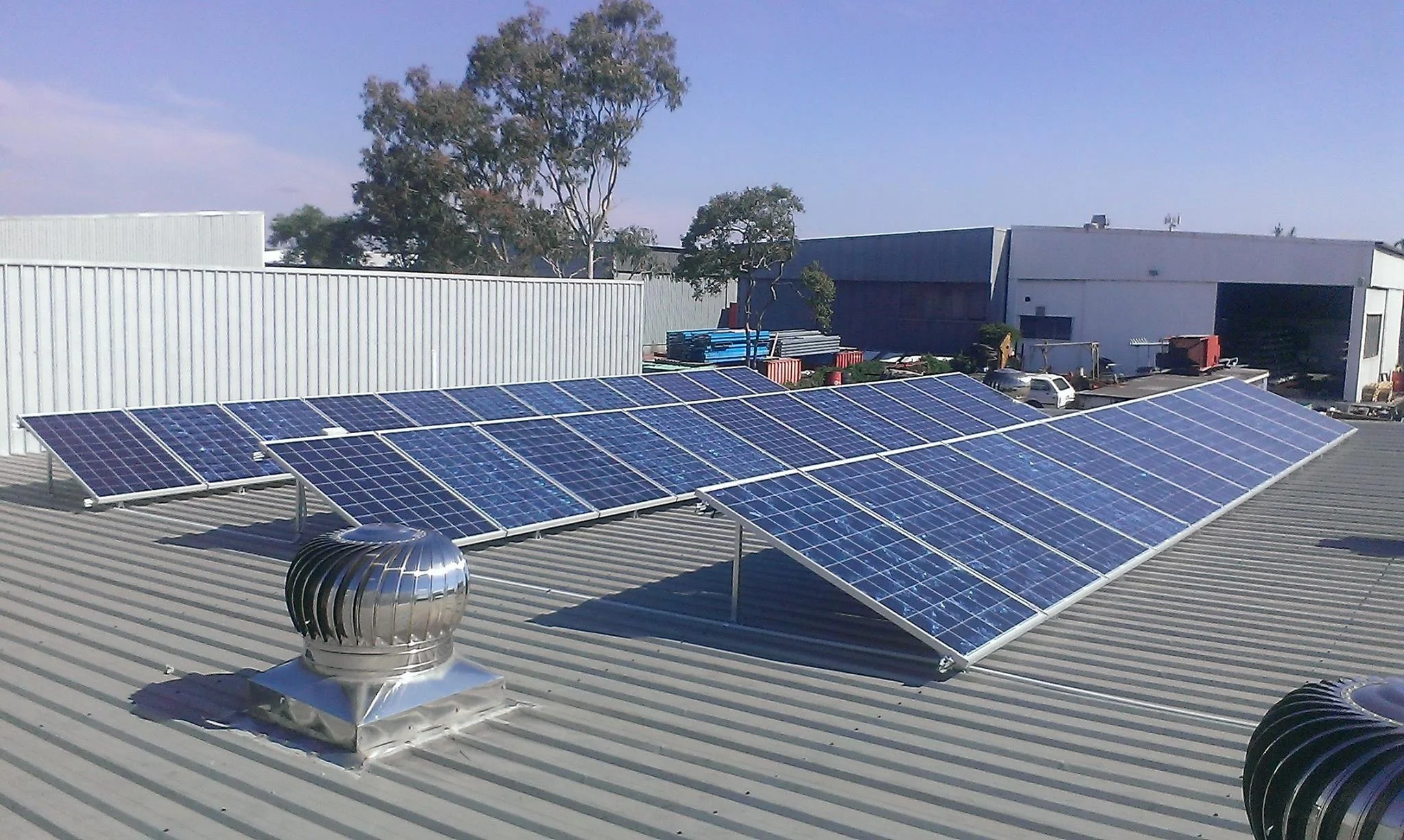

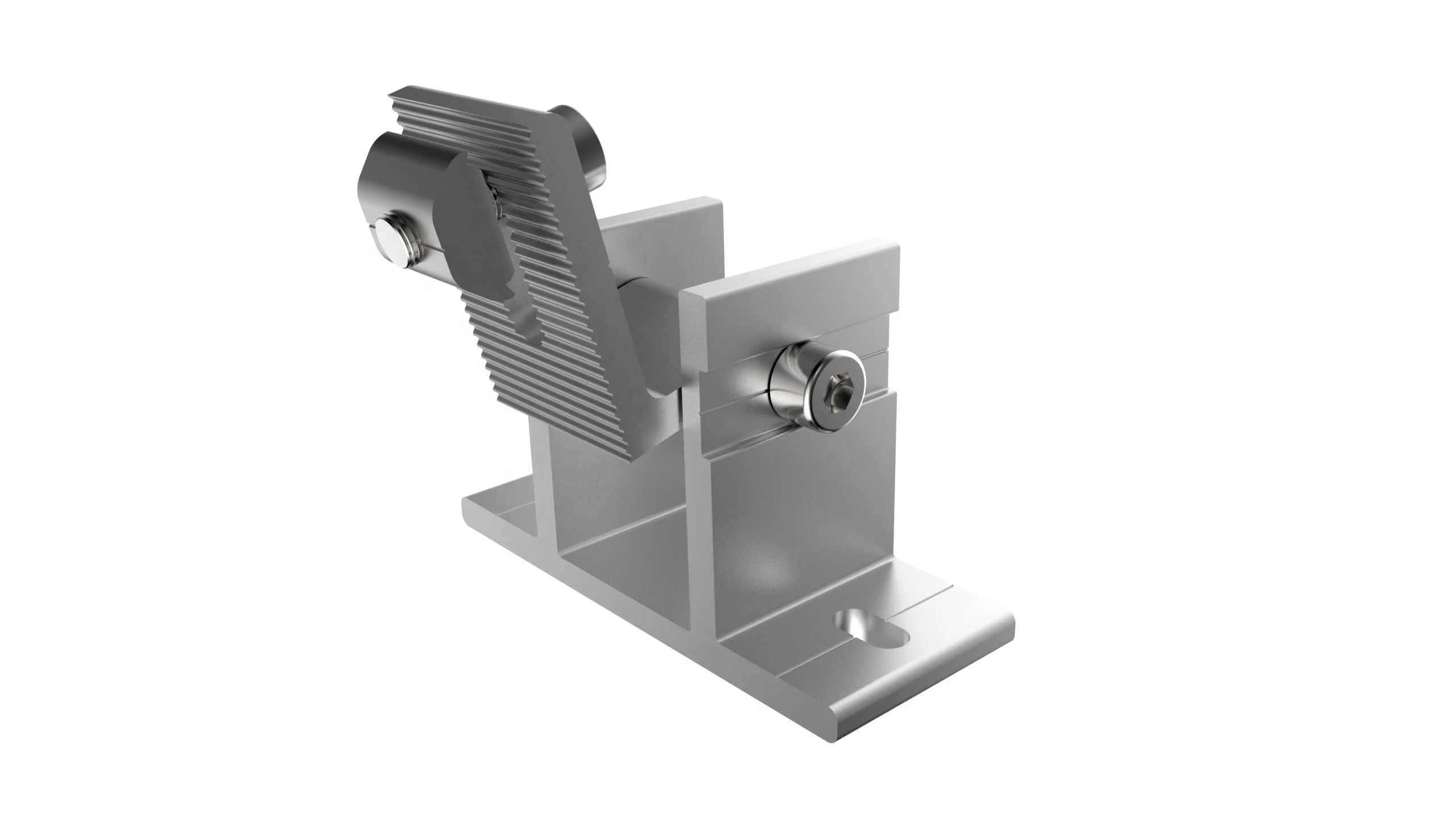

3.Photo Show of adjustable base solar roof mounting system
Company Information
Packaging & Shipping
FAQ
Necessary information for us to design and quote
1.The dimension of the solar panel: _________(Length*Width*Thickness)
2.How many solar panels do you plan to install for the project?______pcs.
3.What is the tilt angle for solar panel?: _______degree.
4.Could you pls give us the layout of solar panel array? if not, pls tell us the size (Length and Width) of your installation site?
5.How tall is the lowest height from the solar panel to the ground? _______mm
6.What installation orientation for solar panel?_______(Horizontal or Vertical).
7.What's wind speed and snow load?___m/s anit-wind speed and____KN/m2 snow load.
8.Which foundation you need for your coming ground mounting system? ______( ground screw/concrete/pile/pole )
9.If you can, plese tell me Latitude and longitude of your installation site.
