cone and cup tapper roller bearing 498 495A 492A inch taper bearing 495A/492A for cars
- Category: >>>
- Supplier: Shandong Bohong Bearing Co. Ltd.
Share on (1601201593218):
Product Overview
Description
cone and cup tapper roller bearing 498 495A 492A inch taper bearing 495A/492A for cars
Product Description

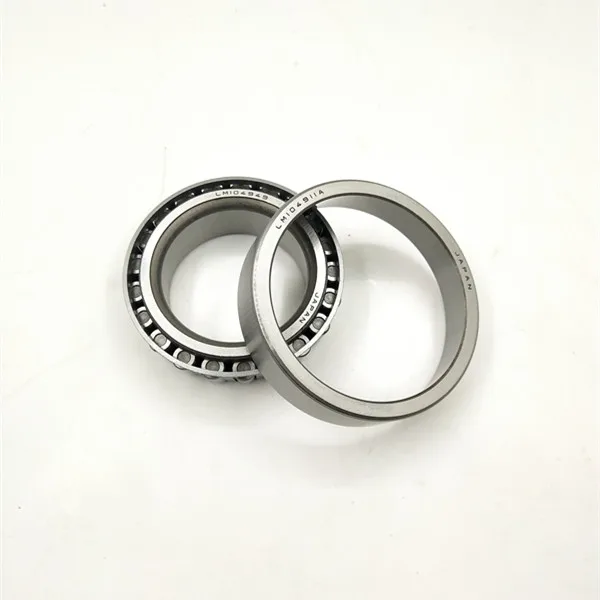

tapered roller bearings consist of four interdependent components: the cone (inner ring), the cup (outer ring), the tapered rollers (rolling elements) and the cage (roller retainer). Tapered roller bearings are uniquely designed to manage both thrust and radial loads between a rotating and non-rotating member. The steeper the cup angle, the greater the ability of the bearing to handle thrust loads.
Industries:
Aerospace, agriculture, automotive, heavy truck, cement, aggregate, coal, oil and gas, construction, gear drives, machine tools, mining, paper, metals, rail and wind.
Benefits:
Enhanced performance in demanding applications.
Types of tapered roller bearing:
single row tapered roller bearing
double row tapered roller bearing
four row tapered roller bearing
tapered roller wheel bearing
inch series tapered roller bearing
Specification: 495A/492A bearing inch tapered roller bearing 495A 492A | |
Series | inch bearing |
Roller bearing types | taper roller bearing |
Number of row | single row |
Cone part number | 495A bearing cone |
Cup part number | 492A bearing cup |
Cage type | stamped steel |
Precision rate | grade p4 p5 p6 p0 abec5 |
Bearing weight | 1.7 Kg |
Dimensions: | |
d - Bore | 76.200 mm |
D - Cup outer diameter | 133.35 mm |
B - Cone width | 29.769 mm |
C - Cup width | 22.225 mm |
T - Bearing width | 30.163 mm |
tapered roller bearing size chart:
| Cone Cup Bearing Assemblies | d(mm) | D(mm) | T(mm) | |
| HM535349 | HM535310 | 171.45 | 260.35 | 66.675 |
| 67787 | 67720 | 174.625 | 247.65 | 47.625 |
| 67786 | 67720 | 174.625 | 247.65 | 47.625 |
| M236845 | M236810 | 174.625 | 260.35 | 53.975 |
| 94687 | 94113 | 174.625 | 288.925 | 63.5 |
| EE219068 | 219117 | 174.625 | 298.45 | 82.55 |
| EE219068 | 219122 | 174.625 | 311.15 | 82.55 |
| H238148 | H238110 | 174.625 | 311.15 | 82.55 |
| LL735449 | LL735410 | 177.8 | 215.9 | 20.638 |
| 67790 | 67720 | 177.8 | 247.65 | 47.625 |
| 67791 | 67720 | 177.8 | 247.65 | 47.625 |
| M236849 | M236810 | 177.8 | 260.35 | 53.975 |
| M236848 | M236810 | 177.8 | 260.35 | 53.975 |
| M238840 | M238810 | 177.8 | 269.875 | 55.562 |
| 94700 | 94113 | 177.8 | 288.925 | 63.5 |
| HM237545 | HM237510 | 177.8 | 288.925 | 63.5 |
| 94700 | 94118 | 177.8 | 298.45 | 63.5 |
| H239640 | H239610 | 177.8 | 319.964 | 88.9 |
| H239640 | H239612 | 177.8 | 320.675 | 88.9 |
| EE470078X | 470128 | 177.8 | 327.025 | 90.488 |
| EE470078X | 470130 | 177.8 | 330.2 | 90.488 |
| EE470073 | 470130 | 177.8 | 330.2 | 90.488 |
| EE470073 | 470132 | 177.8 | 336.55 | 90.488 |
| EE780705 | 781400 | 177.8 | 355.6 | 61.912 |
| EE420701 | 421417 | 177.8 | 360 | 92.075 |
| EE420701 | 421437 | 177.8 | 365.049 | 92.075 |
| EE420701 | 421450 | 177.8 | 368.3 | 92.075 |
| EE350701 | 351687 | 177.8 | 428.625 | 106.362 |
| 93708 | 93125 | 179.975 | 317.5 | 63.5 |
| JM736149 | JM736110 | 180 | 250 | 47 |
| JM736149A | JM736110 | 180 | 250 | 47 |
| LM236749 | LM236710 | 184.15 | 234.95 | 34 |
| LM236749 | LM236710A | 184.15 | 235.229 | 34 |
| LL537649 | LL537610 | 184.15 | 236.538 | 26.193 |
| 67883 | 67820 | 184.15 | 266.7 | 47.625 |
| 67884 | 67820 | 187.325 | 266.7 | 47.625 |
| M238849 | M238810 | 187.325 | 269.875 | 55.562 |
| 87737 | 87111 | 187.325 | 282.575 | 50.8 |
| H239649 | H239612 | 187.325 | 320.675 | 88.9 |
| JM738249 | JM738210 | 190 | 260 | 46 |
| JM238848 | M238810 | 190 | 269.875 | 55.563 |
| 67886 | 67835 | 190.078 | 289.992 | 46 |
| 67885 | 67820 | 190.5 | 266.7 | 47.625 |
| 87750 | 87111 | 190.5 | 282.575 | 50.8 |
| 82788 | 82722 | 190.5 | 284.162 | 55.562 |
| 82788 | 82720 | 190.5 | 288.925 | 55.562 |
| 93750 | 93125 | 190.5 | 317.5 | 63.5 |
| EE470075 | 470128 | 190.5 | 327.025 | 90.488 |
| EE210753 | 211300 | 190.5 | 330.2 | 63.5 |
| EE470075 | 470132 | 190.5 | 336.55 | 90.488 |
| HH840249 | HH840210 | 190.5 | 336.55 | 98.425 |
