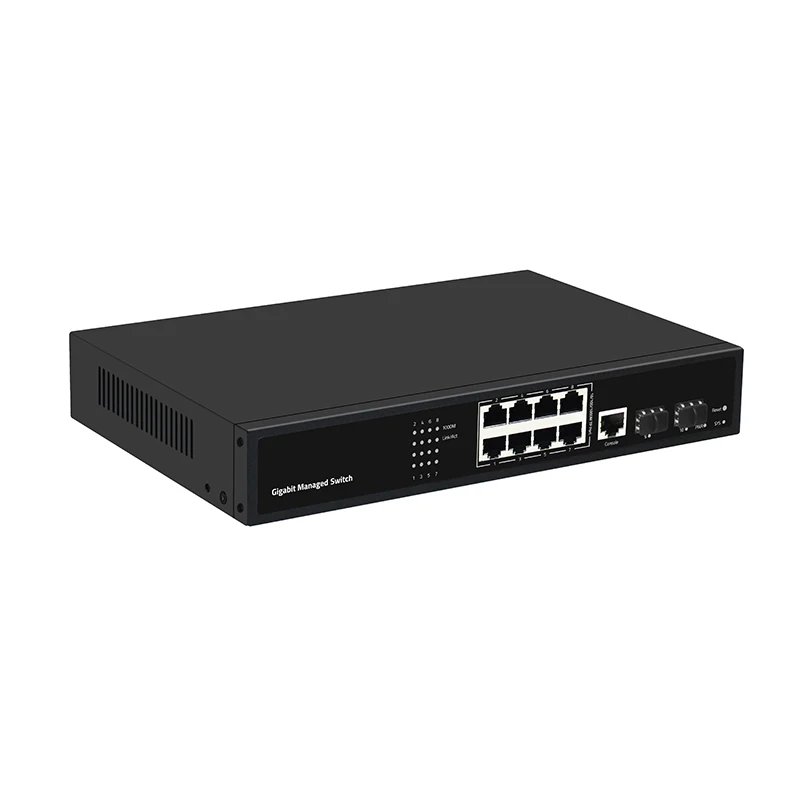

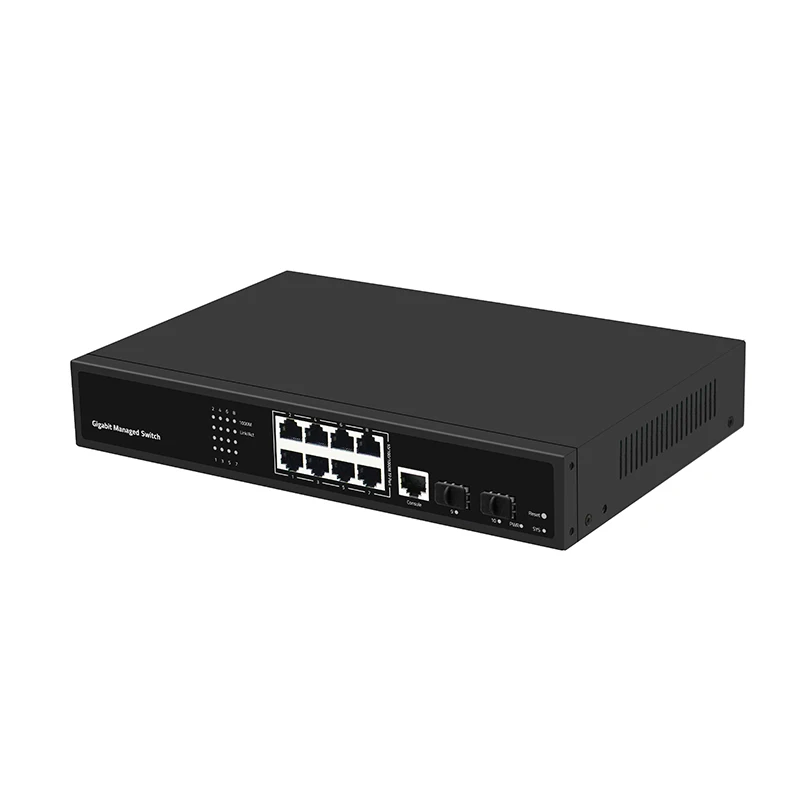

gigabit 8 ports CCTV Managed Network Ethernet Switch For Hikvision Ip Camera
- Category: >>>
- Supplier: Shenzhen Sunsoont Technology Co. Ltd.
Share on (1601201615702):
Product Overview
Description
Product Description

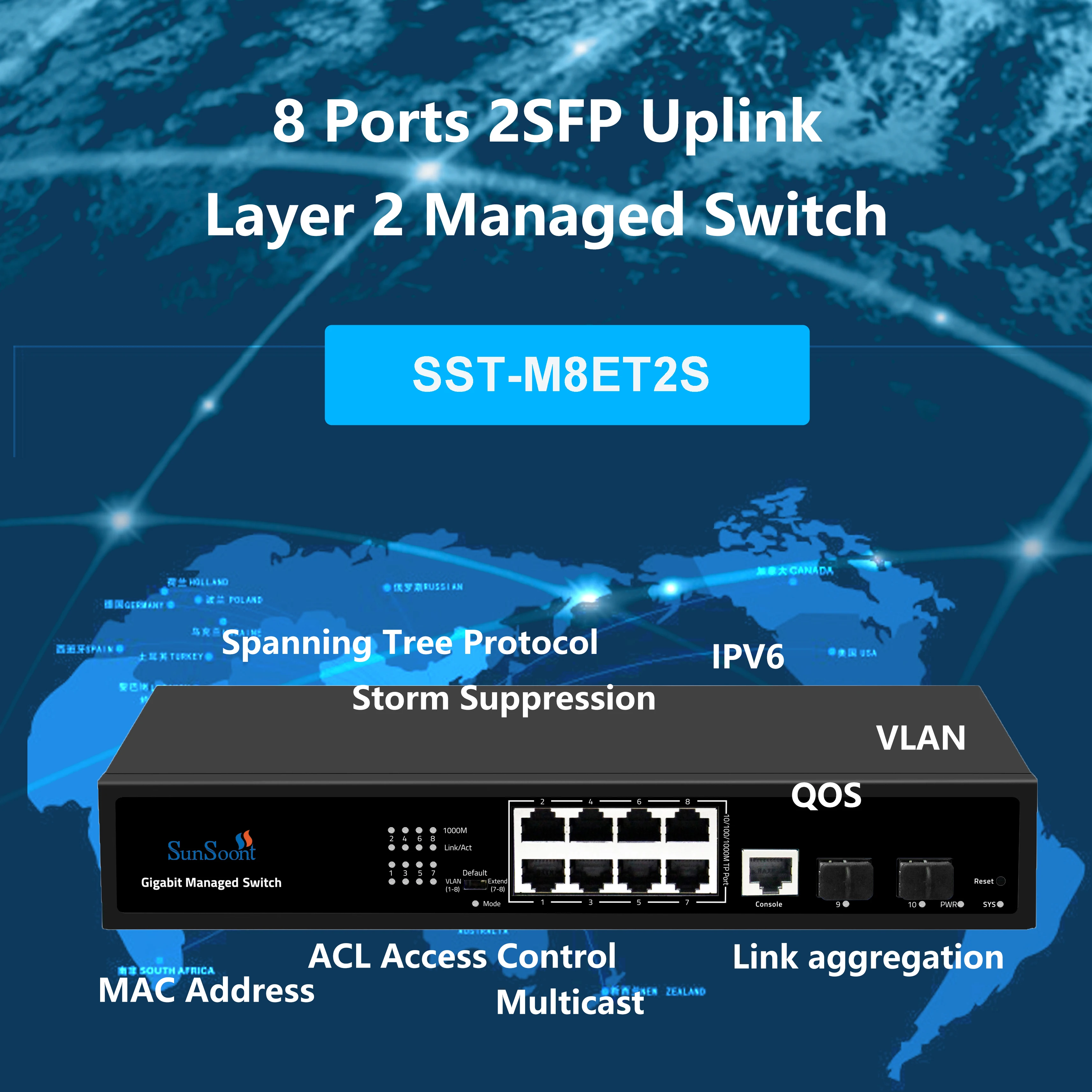

Layer 2 Managed Gigabit 8 ports Ethernet Switch
10-Port Managed Gigabit Intelligent Ethernet Switch, Support 8 * 10/100/1000 adaptive electrical ports, 2 * 1
Gb SFP ports, 1 console port, black iron shell design, DC 12V Power supply, light and simple, with LED indicator on
the panel, can dynamically display the connection and operation of equipment, provide simple fault detection
methods, and facilitate maintenance and management; this series of switches provide advanced network
management functions: redundant ring network, VLAN, cluster, QoS, speed control, port image, fault alarm and
firmware online upgrade.
Gb SFP ports, 1 console port, black iron shell design, DC 12V Power supply, light and simple, with LED indicator on
the panel, can dynamically display the connection and operation of equipment, provide simple fault detection
methods, and facilitate maintenance and management; this series of switches provide advanced network
management functions: redundant ring network, VLAN, cluster, QoS, speed control, port image, fault alarm and
firmware online upgrade.
The adaptive port can automatically adapt to the 10m, 100m and 1000m networks, and can automatically adapt to the full duplex or half duplex mode; the MAC address self-learning function ensures error free data transmission; the store and forward mode prevents the damaged packets from flooding in the network; the flow
control function can prevent the impact of a large amount of instantaneous data on the network; the port
supports MDI/ Mdix auto flip function, non blocking line speed transmission of all ports.
It is mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, community broadband, etc.; it can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, schools, etc.
control function can prevent the impact of a large amount of instantaneous data on the network; the port
supports MDI/ Mdix auto flip function, non blocking line speed transmission of all ports.
It is mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, community broadband, etc.; it can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, schools, etc.
Feature
8 x 10/100/1000Mbps auto-sensing Ports, 2x 1000Mbps SFP Ports, 1 x Console Port;
Support IEEE802.3/IEEE802.3u/IEEE802.3ab/IEEE802.3z, store-and-forward;Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard；
Support port auto flip (Auto MDI/MDIX)；
Panel indicator monitoring the status and help failure analysis;
Support 802.1x port authentication, support AAA authentication, support TACACS+ authentication;
Support WEB, TELNET, CLI, SSH, SNMP, RMON management;
Surge Protection: General 4KV(level B), ESD 8KV air, 6KV contact(level C)

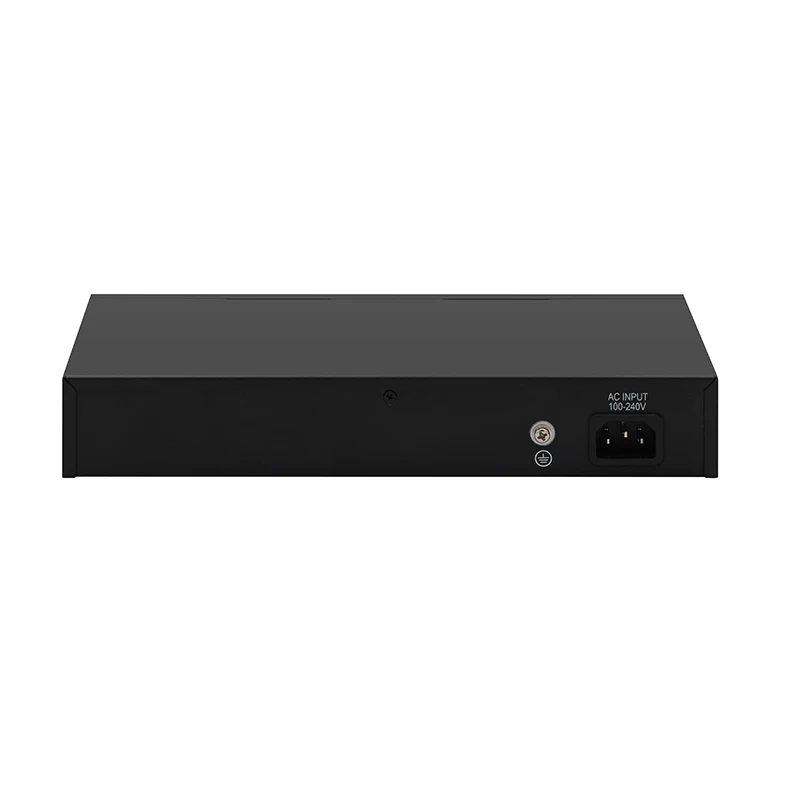

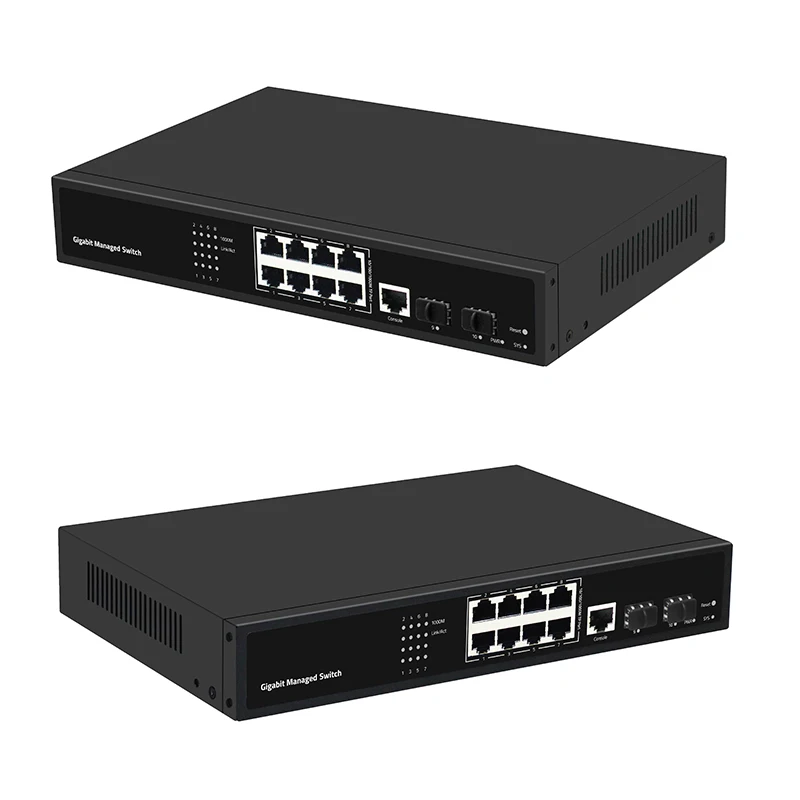

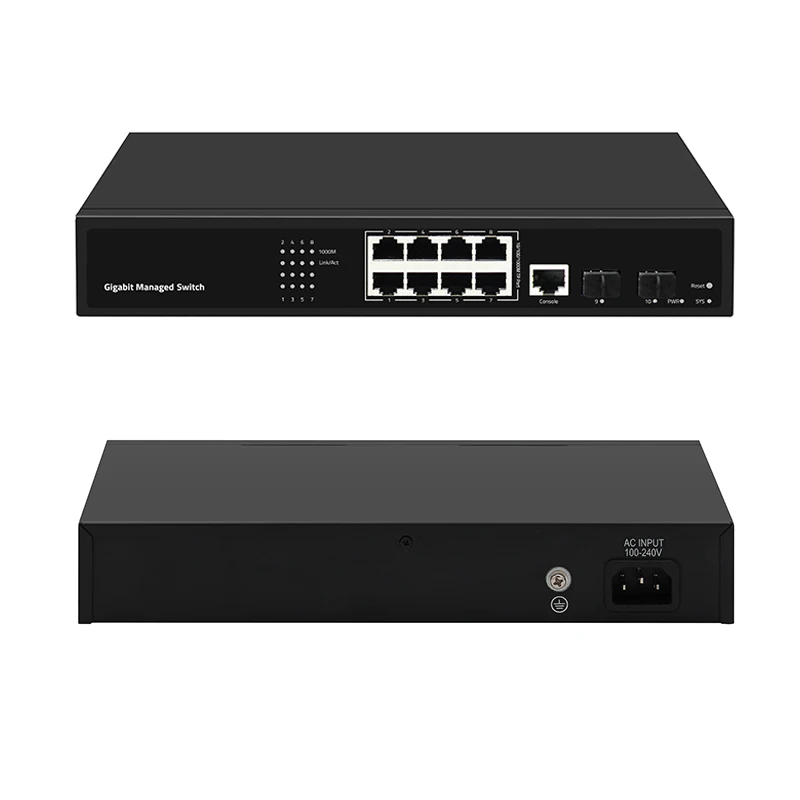

Details Images

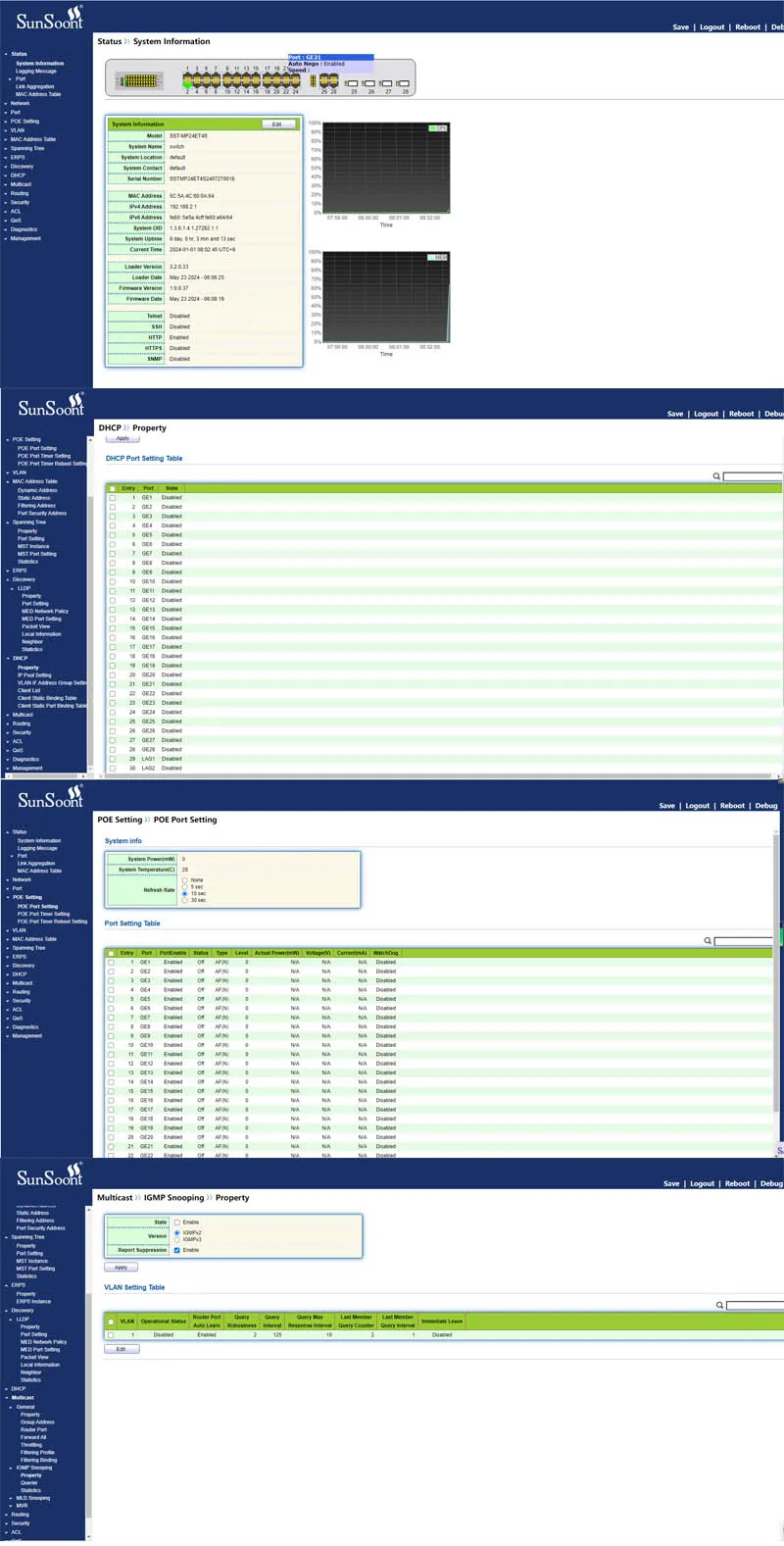

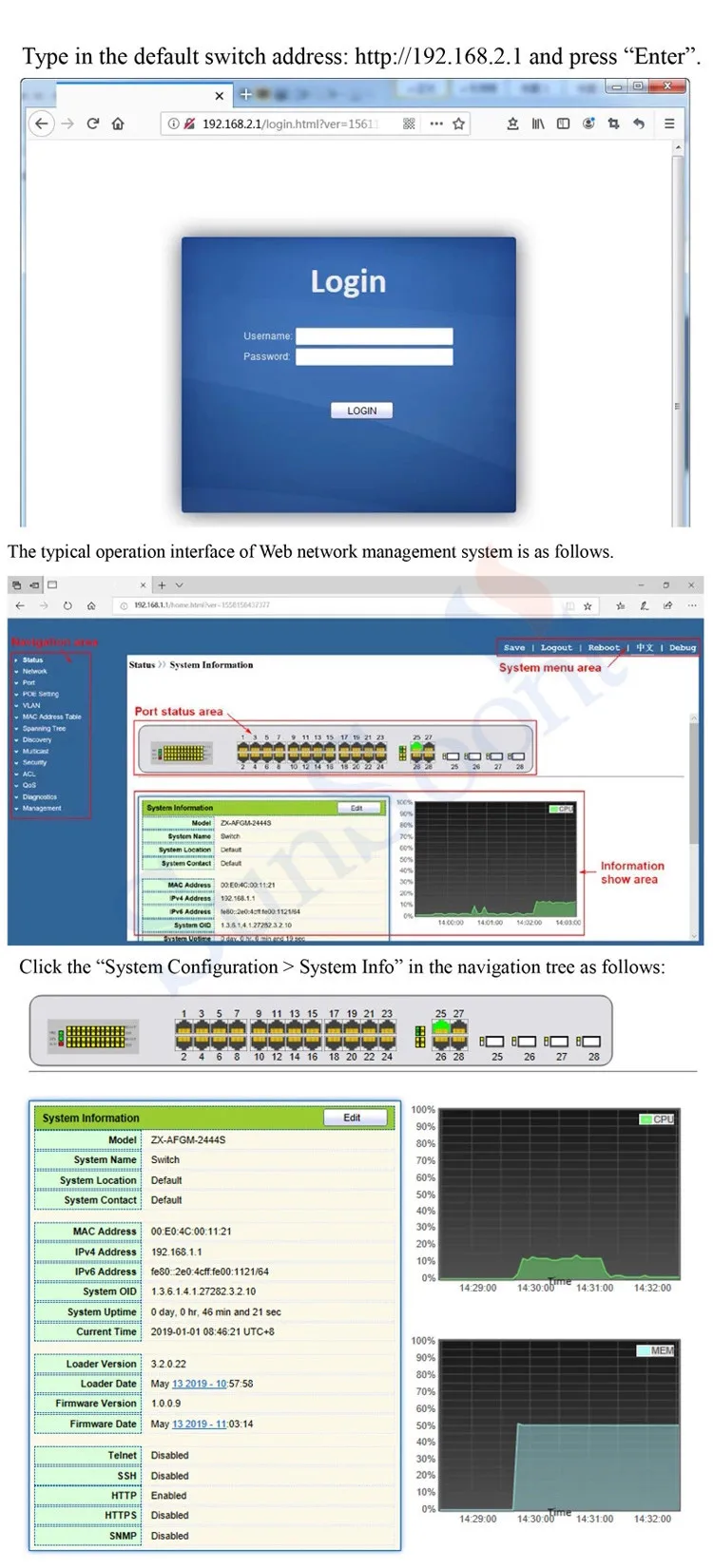

System Infomation
Specification
General Performance Indicator | ||
Product Name | 10 Port Gigabit Managed POE Switch | |
Product Model | SST-MP8ET2S | |
Interface | 8*10/100/1000M POE Ports + 2*Gigabit SFP Ports + 1*Console Port | |
Network Protocols | IEEE802.3 IEEE802.3u IEEE802.3ab IEEE802.3x IEEE802.3z IEEE802.3af/at | |
PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w) | ||
PoE compatibility: IEEE 802.3af/at adaptive | ||
POE port output: DC48-55V | ||
Power Pin Assignment: Power over spare pairs 1/2(+) and 3/6 (-) | ||
Port Lightning Protection | General Mode 6KV, Differential Mode 4KV, ESD 15KV. | |
Network Transmission Medium | 10BASE-T: Cat3, 4, 5 UTP (≤ 100 m) 100BASE-TX: UTP (≤100 m) above Cat5 1000BASE-TX: UTP (≤100 m) above Cat5 | |
Optical | MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km | |
DIP Definition | VLAN: 1-8 ports are isolated from each other, and only connect Uplink with 9、10 Port; Default: 1-10 port is standard, all ports can communication; Extend: 7-8 port supports 250m link extension at a rate of 10M. | |
Power Supply | Input Voltage: AC110-264V; POE Output: DC52V 2A Total power: 104W | |
POWER | Lighting：Powered Un-Light：No Power | |
SW | Lighting: VLAN Un-Light: Default Flashing: Extend | |
SYS | Flashing: System Start-up Lighting: System Running | |
9-10 | Lighting: Link connection Flashing: Data transmission Un-Light: Link disconnect | |
POE/ACT (1-8 Port) | Lighting：Powered Un-Light：No Power | |
Link/ACT (1-8 Port) | Lighting: Link connection Flashing: Data transmission Un-Light: Link disconnect | |
Physical Dimension | Product size (L×W×H): 270mm×180mm×45mm Package size (L × W × H): 312mm × 262mm × 84mm | |
Working Environment | Operating Temperature: -20℃ ~ 50℃; Storage Temperature: -40℃ ~ 85℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 95%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters) | |
Package Contents | 1. Switch: 1 set 2. Instruction manual: 1 3. Certificate of conformity: 1 4. Warranty card: 1 5. AC power cord 1 6. A pair of hanging ears | |
Certification | CE, FCC, RoHs, 3C | |
MTBF: | 100,000 hours | |
Warranty | 3 years warranty | |
Technical Indicators | ||
Bandwidth | 20Gbps | |
Packet Forwarding rate | 14.88Mpps | |
Flash Capacity | 16M | |
Memory Capacity | 1024M(1G) | |
MAC | 8K | |
Packet Forwarding Rate | 0.9Mpps | |
Forwarding Mode | Store-And-Forward | |
Layer 2 Software Function | ||
Enable/Disable Port | ||
Speed、Duplex、MTU Setting | ||
Flow-control | ||
Port Information Check | ||
Port Mirroring | Supports both side-way port mirroring | |
Port Speed Limit | Supports port speed limit, speed limit granularity 32Kbps | |
Port Isolation | Support the downlink port isolation, and can communicate with the uplink port | |
Storm Suppression | Supports unknown unicast, multicast, unknown multicast, broadcast type storm suppression Storm suppression based on bandwidth regulation and storm filtering | |
Link Aggregation | Support static manual aggregation Support LACP dynamic aggregation | |
Static router | ||
RIP（V1/V2）/ OSPF(V2) / | ||
RIP/OSPF/ Support route authentication function | ||
RIP/OSPF/ Support route import, filter function | ||
Access | ||
Trunk | ||
Hybrid | ||
Support port, protocol, MAC-based VLAN partitioning | ||
Support GVRP dynamic VLAN registration | ||
Voice VLAN | ||
Support static addition, deletion | ||
MAC address learning limit | ||
Support dynamic aging time setting | ||
Support STP spanning tree protocol Supports RSTP Rapid Spanning Tree Protocol Supports MSTP Rapid Spanning Tree Protocol | ||
Support static addition, deletion IGMP-snooping | ||
Support MLD-Snooping | ||
Support v1/2/3 dynamic multicast monitor | ||
DDM | Support SFP/SFP+DDM | |
Extended Function | ||
ACL | Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port | |
Based on 802.1p (COS) classification | ||
Based on DSCP classification | ||
Classification based on source IP, destination IP, and port number | ||
Support SP, WRR scheduling strategy | ||
Support flow rate limit CAR | ||
LLDP | Support LLDP link discovery protocol | |
User settings | Add / delete users | |
Log | User login, operation, status, events | |
Anti-attack | DOS defense | |
Support CPU protection and limits the rate of sending cpu packets | ||
ARP binding (IP, MAC, PORT binding) | ||
Certification | Support 802.1x port authentication | |
Support AAA certification | ||
Network diagnosis | Support ping、telnet、trace | |
System Management | Device reset, configuration save/restore, upgrade management, time setting, etc. | |
Management function | ||
CLI | Support serial port command line management | |
SSH | Support SSHv1/2 remote management | |
TELNET | Support telnet remote management | |
WEB | Support Layer 2 settings, Layer 2 and Layer 3 monitor | |
SNMP | SNMP V1/V2/V3 | |
Support trap：ColdStart、WarmStart、LinkDown、LinkUp | ||
RMON | Support RMON v1 | |
Other functions | Support POE configuration, POE scheduling management, etc | |

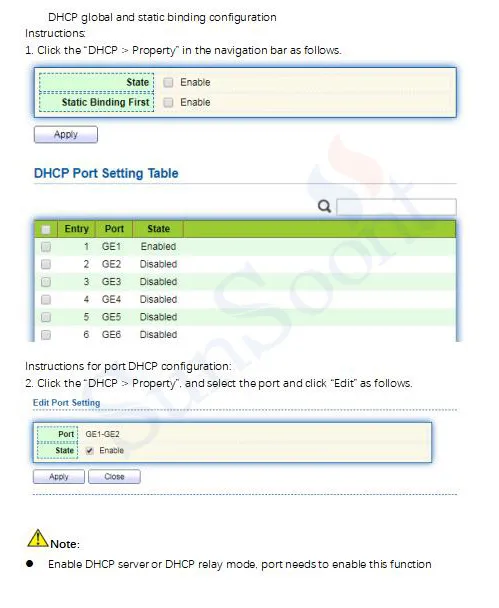

Support DHCP Snooping、Option82 | ||
Support Ring-Network Protection | ||
Support dynamic ARP detection | ||
Support TACACS+ certification | ||
Support DNS certification | ||
Support port security settings | ||
Support MVR protocol | ||
Support cable detection VCT function | ||
Support UDLD protocol | ||

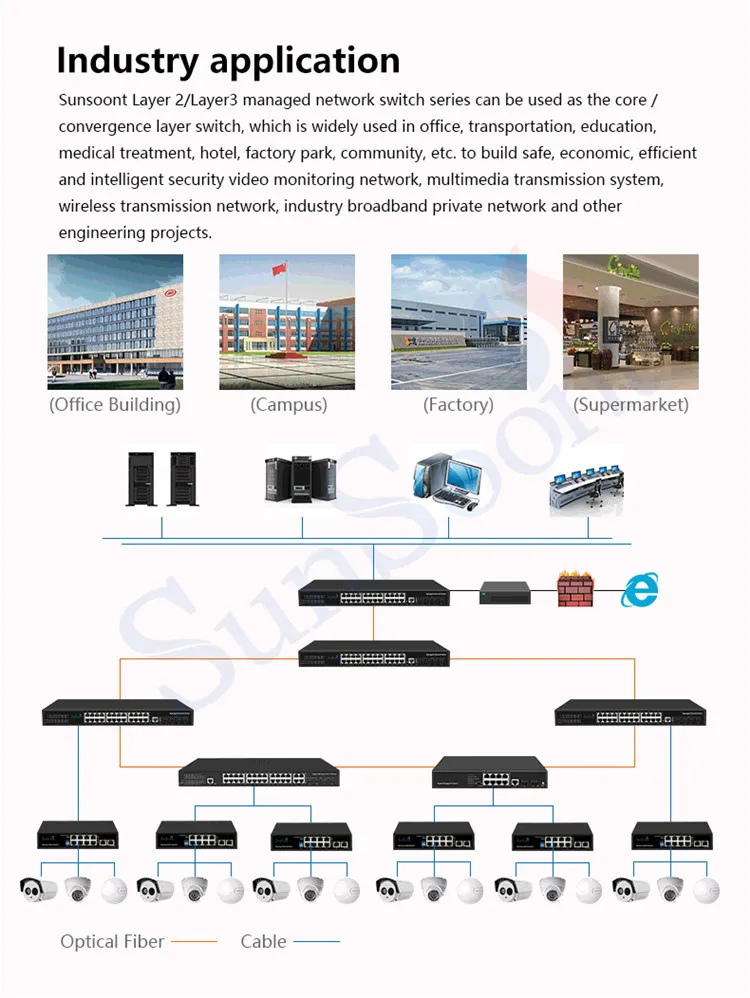

Product Application
