Filmbase Flexible Smart Glass Film With Peel and stick Convenience Pdlc Magic Window Film
- Category: >>>
- Supplier: Shenzhen Yuguang New Material Co. Ltd.
Share on (1601201619006):
Product Overview
Description
Product Description
FILMBASE PDLC Smart Film

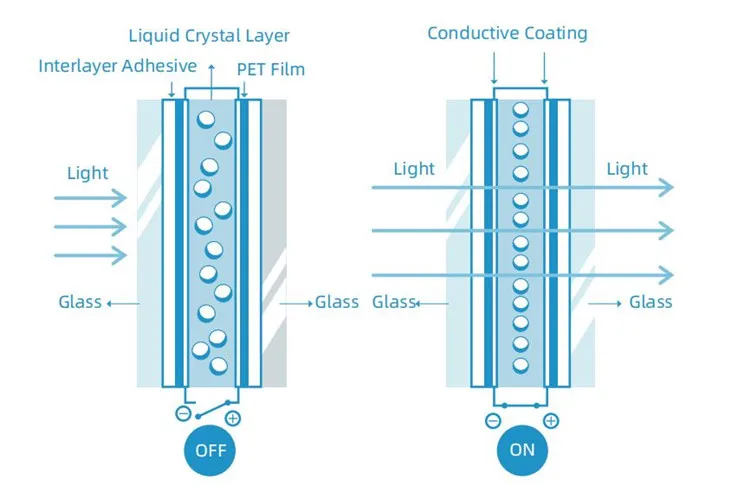

Smart Film is a new type of electronic light conrol product.The electronically controlled smart film is a liquid crystal/polymer hybrid material injected in the middle of two transparent conductive films.
PDLC film in the absence of an electric field,the electronically controlled smart film is in an opaque state.
When an alternating current is applied,the liquid crystal molecules are arranged in an orderly manner,at which point the electrically controlled dimming film changes from an opaque state (OFF) to a transparent state (ON).

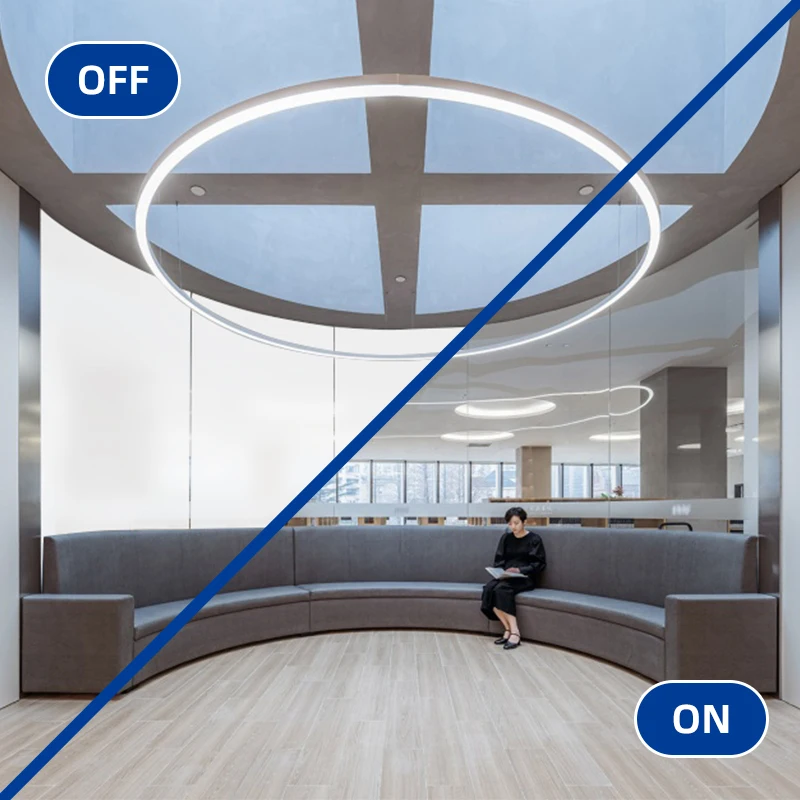

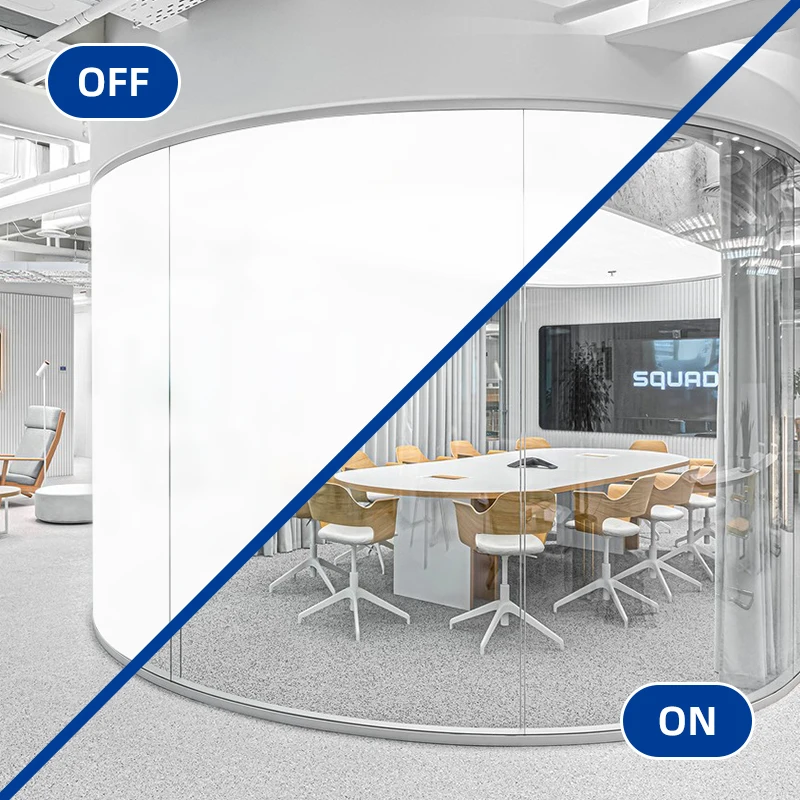

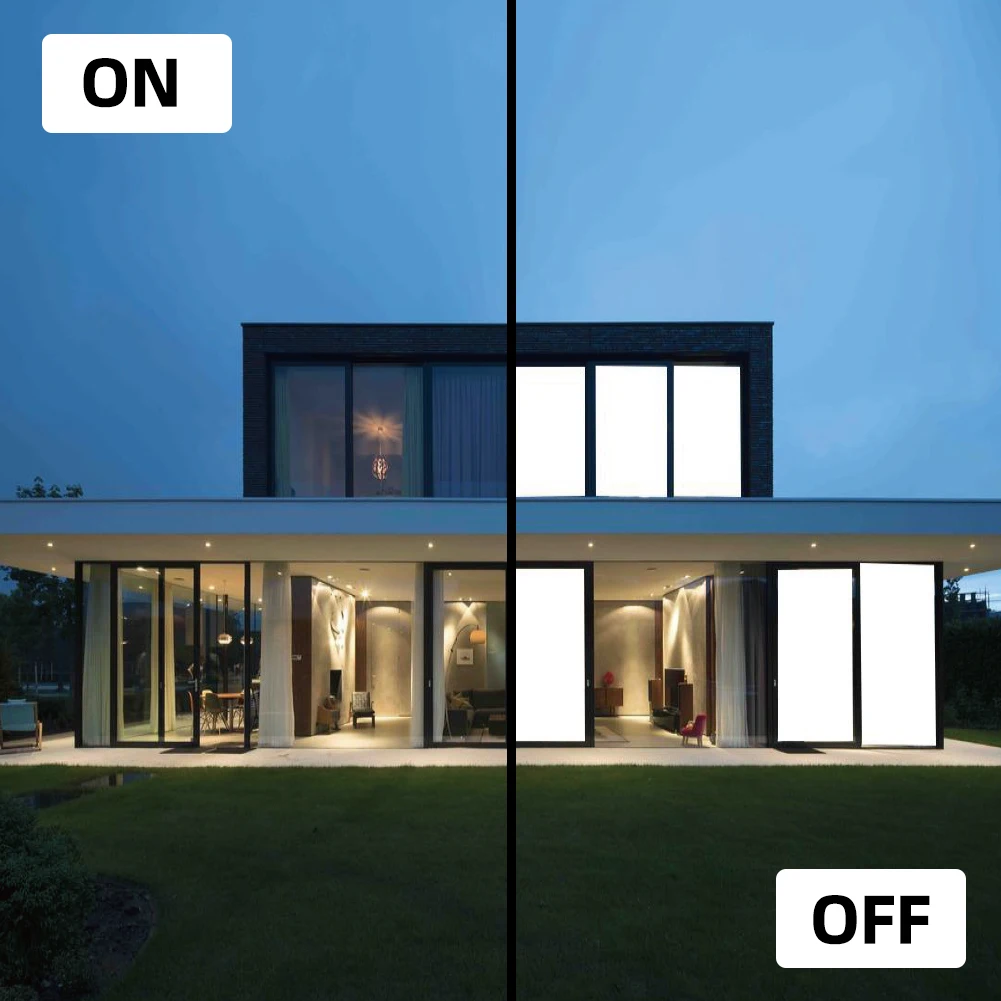

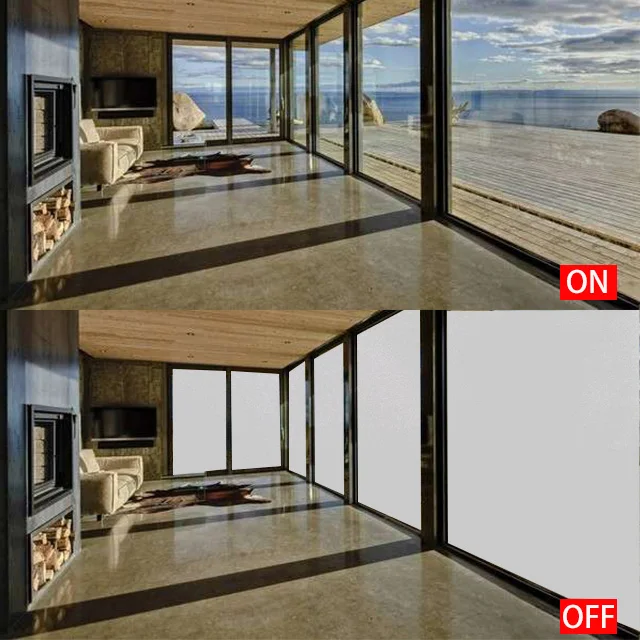

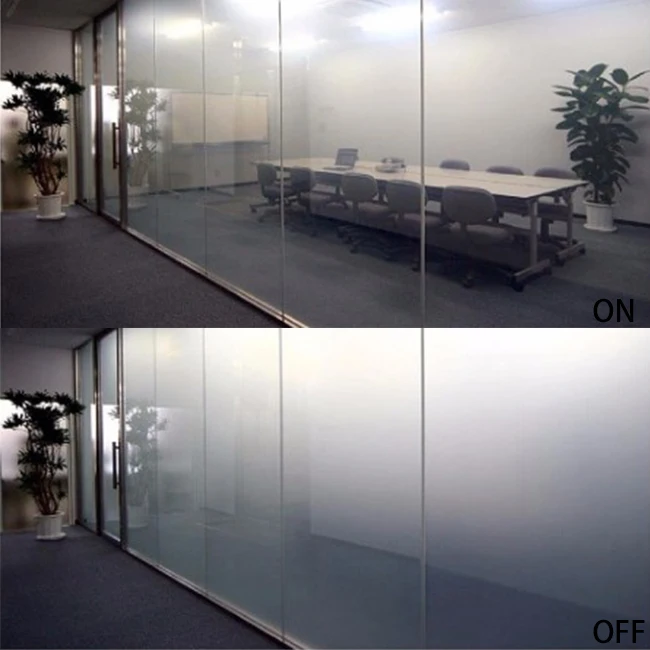

OFF-Opaque On-Transparent
Application
Rear Projection
Rear Projection Function
When the smart glass power is off, control the ambient light and project it through a projector can make the smart glass display high pixel, and combined with the infrared touch frame to form a large-sized "tablet computer" (can be made up to 130 inches). Created a new field of projection. Suitable for meeting, science and education configuration.
Product Parameters
Item | Mode | Specification | |||
Optical Parameter | Visible Light Transmittance | Power on | >83% | ||
Power off | >53% | ||||
Parallel Light Tansmittance | Power on | 75% | |||
Power off | <2% | ||||
Haze | Power on | <4% | |||
Power off | >95% | ||||
Viewangle | Power on | >150° | |||
Electrical Parameter | Operating Voltage | Power on | AC48V-65V/ 50Hz | ||
Response Time | Power off-on | <200ms | |||
Power Dissipation | Power on-off | 6-8 W/㎡ | |||
Size Parameter | Thickness | 0.38mm | 0.38mm | ||
Maximum Size | 6000mm*2000mm | 50m*1.86m | |||
Operating Parameter | Operating Temperature | -30°C-50°C | -20°C-70°C | ||
Storage Temperature | -40°C-70°C | -20°C-70°C | |||
Service Times | Power on | >12 years | |||
Switching Times | >2 millions | ||||

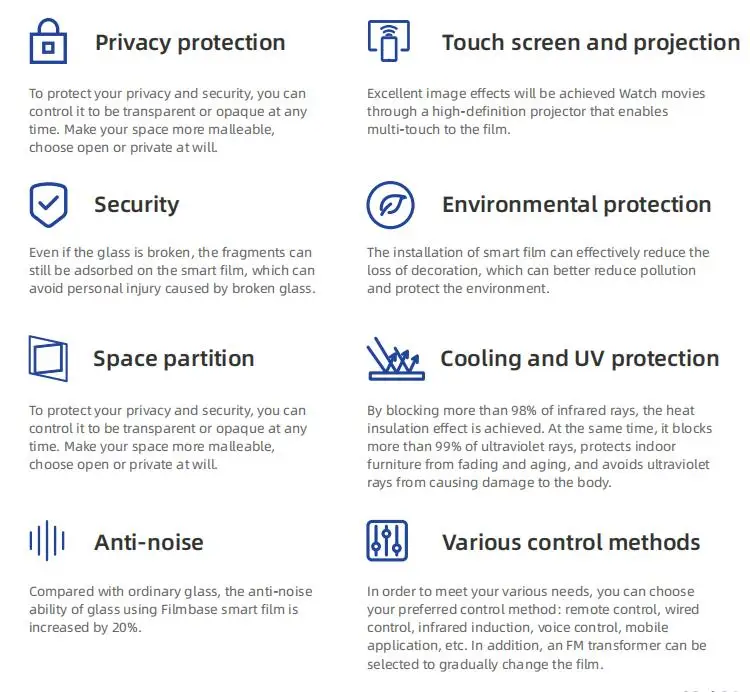

1. Privacy Protection
2. Sound Insulation
3. An End of a Intelligent System
4. Energy Saving and Environmental Protection
5. Safety
5. Safety
6. Diversified Control Methods
7. Rear Projection
Our Company
Shenzhen Yuguang New Material Co., Ltd
Shenzhen Yuguang New Material Co.,Ltd was established in Shenzhen,China in 2017.20000 square meters of headquarters office and production base.Shenzhen Yuguang New Material Co.,Ltd(Filmbase) is a national high-tech enterprise,integrating R&D,production,sales,installation and service of smart dimming products,photoelectric glass transparent led display,silent pod & other smart light control integrated products.
Yugang(Filmbase) focus on strictly quality control and perfect customer service,experienced R&D techicians provide customers with various solutions to ensure project implementation & customer's satisfaction.
Yuguang(Filmbase) products have passed the RoHS test & obtained CE,ISO9001,FCC & other certifications,and have independent innovation capabilities & a number of products with independent intellectual property rights.The company's marketing network covers the whole world, and its products are exported to Europe,the Middle East, United States and many other countries. The country's full range of products are sold well in both domestic & foreign markets, and are well received by customers.
"Should the mission of science and technology,build an intelligent era, and focus on user experience " is Yuguang's unswerving development strategy. In the future,Yuguang is committed to providing customized smart light control solutions for smart buildings, smart homes, smart media & other fileds, to make our smart control solution omnipresent.
Yuguang (Filmbase) welcome new & old customers from all industries & contact us to establish future cooperation relationships and achieve win-win business.
Showroom

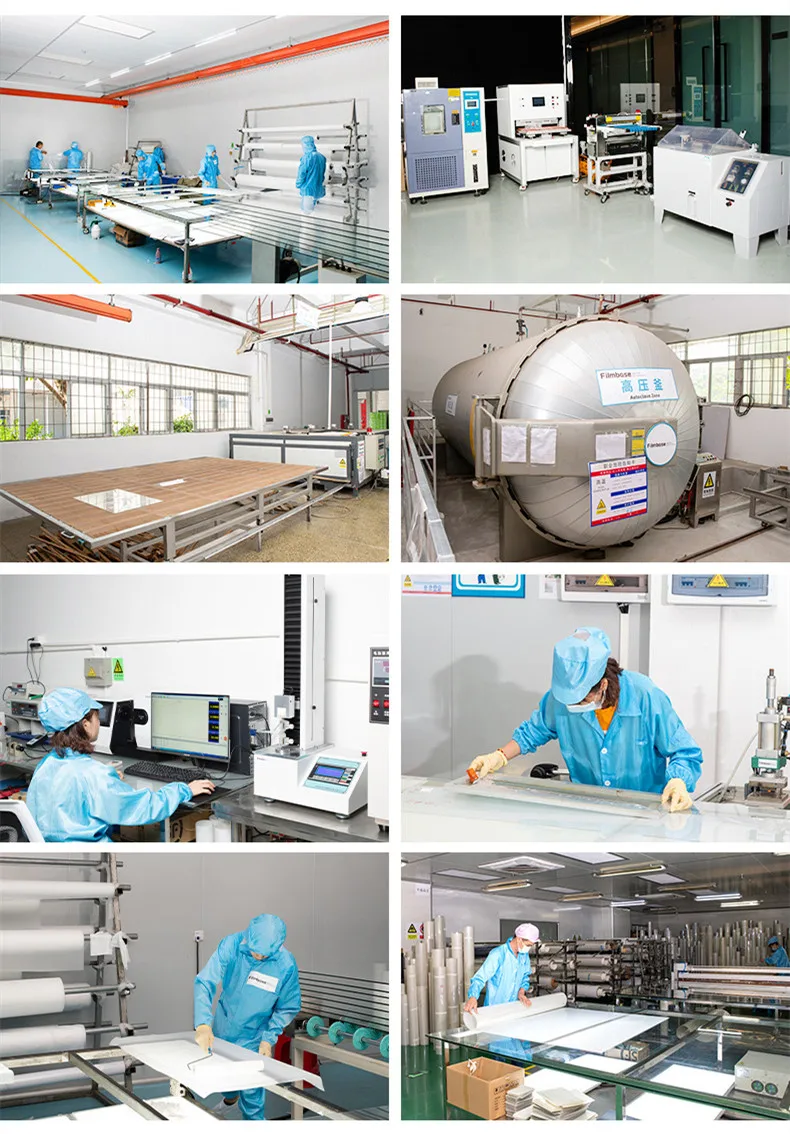

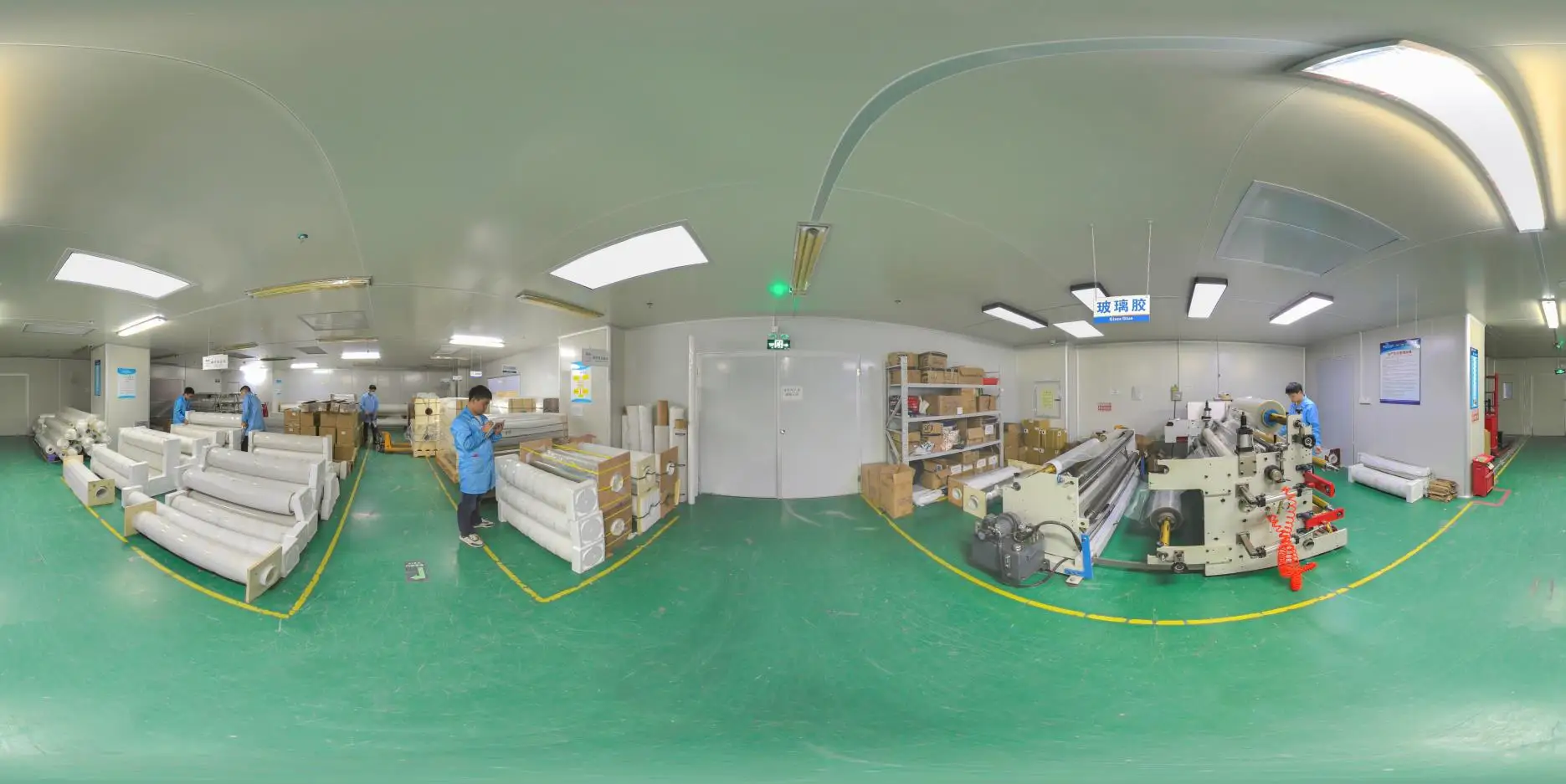

Factory
Our International Team
Our Exhibition
Certifications
FAQ
1. How can I purchase or get a quote?
Please send inquiries to us. You can also contact us through Skype/WeChat/WhatsApp: +86 135 1027 1971 Grace.
2. Does smart film block harmful UV rays?
Yes, it can block over 98% of the harmful UV rays.
3. Is smart film energy efficient?
Yes, it's a green product that only consumes 6-8 W/㎡.
4. Can customers install smart film by themselves?
Yes, we offer a complete installation kit as well as instruction video and document.
5. What is the difference between self-adhesive smart film and non-adhesive smart film?
Self-adhesive smart film can be applied onto the existing glass directly, allowing any piece of existing glass to become smart glass. Non-adhesive smart film is laminated between 2 pieces of tempered glasses to achieve smart glass.
6. Do you offer smart glass?
Yes.
7. Can you project on smart film/glass?
Yes, smart film and smart glass can be used as a rear projection screen, perfect for rear projection.
Please send inquiries to us. You can also contact us through Skype/WeChat/WhatsApp: +86 135 1027 1971 Grace.
2. Does smart film block harmful UV rays?
Yes, it can block over 98% of the harmful UV rays.
3. Is smart film energy efficient?
Yes, it's a green product that only consumes 6-8 W/㎡.
4. Can customers install smart film by themselves?
Yes, we offer a complete installation kit as well as instruction video and document.
5. What is the difference between self-adhesive smart film and non-adhesive smart film?
Self-adhesive smart film can be applied onto the existing glass directly, allowing any piece of existing glass to become smart glass. Non-adhesive smart film is laminated between 2 pieces of tempered glasses to achieve smart glass.
6. Do you offer smart glass?
Yes.
7. Can you project on smart film/glass?
Yes, smart film and smart glass can be used as a rear projection screen, perfect for rear projection.
