Toilet Paper Large Roll Slitting Rewinding Vertical Electric Perforating Machine Paper Perforating Machine

Share on (1601201642936):


Price:$7,000.00 - $8,000.00

Quantity:


Product Overview

Description



Product Description


Choose the machine you need and ask for the price!

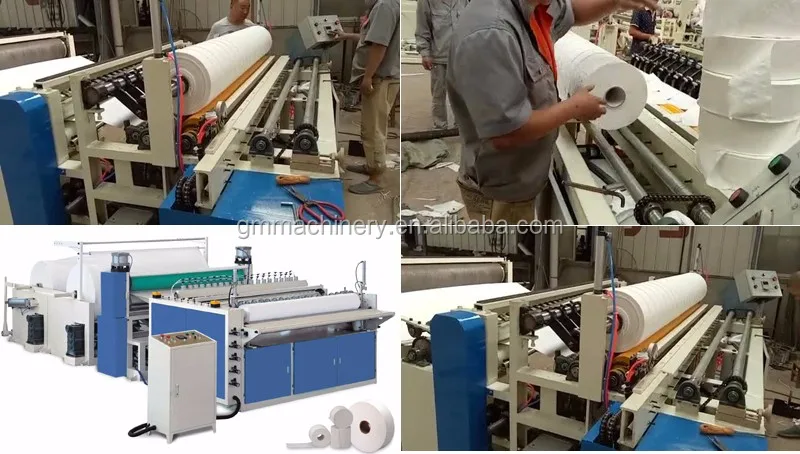

1. Toilet Tissue Paper Rewinding & Embossing & Perforating Machine

the tissue paper rewinding machine can rewind jumbo tissue paper roll into various small diameters without changing its width. This rewinding machine has perforating unit, embossing unit and 1-3 ply unwinding unit. the output paper roll is ready for cutter and toilet paper packing sealing machine. The capacity of rewinding machine can be 4-10 tons/day, labor needed is 1-3 people.
This equipment can process raw paper of 1.2m, 1.75m, 1.95m, 2.15m, 2.35m, 2.55m, 2.75m etc in width. There are two types of this model: one is ordinary type, it used one embossed unit for 2 ply paper, and the other is dot-by-dot type, it used embossed units respectally for each one.

advatages:
1. automatically change jumbo roll
2. trimming paper precisely
3. automatically sray glue
4. automatically perforating
5. easy to operate and maintain
6. low noisy


machinne model
1575
2000
2200
2600
2800
2900
3000
raw material width
1750
1950
2150
2550
2750
2850
2950
finished roll diameter
 Ø70-150mm (tightness adjustable)
finished roll core diameter
 Ø32-50mm
raw material diameter
Ø1100mm (other size depends on your requirement)
core size of jumbo roll
Ø76mm (other size depends on your requirement)
perforated pitch (mm)(optional)
4 perforating blade 110mm; 2 perforating blade 220mm
machine speed
200m/min
parameter setting
 LCD screen operation panel
programmable controller
MITSUBISHI programmable controller (PLC)
nwinding unit
1-3 ply 15-30gsm (ply to be specified)
pneumatic system
3HP air compressor, mini pressure 5kgM2 pa (provided by clients)
power
 frequency conversion speed regulator, 7.5-15kw
finished roll rewinding
coreless rewinding system
embossing unit
single ply embossing, double ply embossing, steel to steel embossing

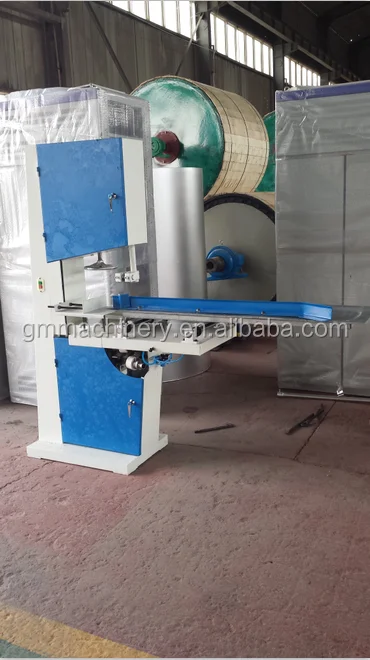

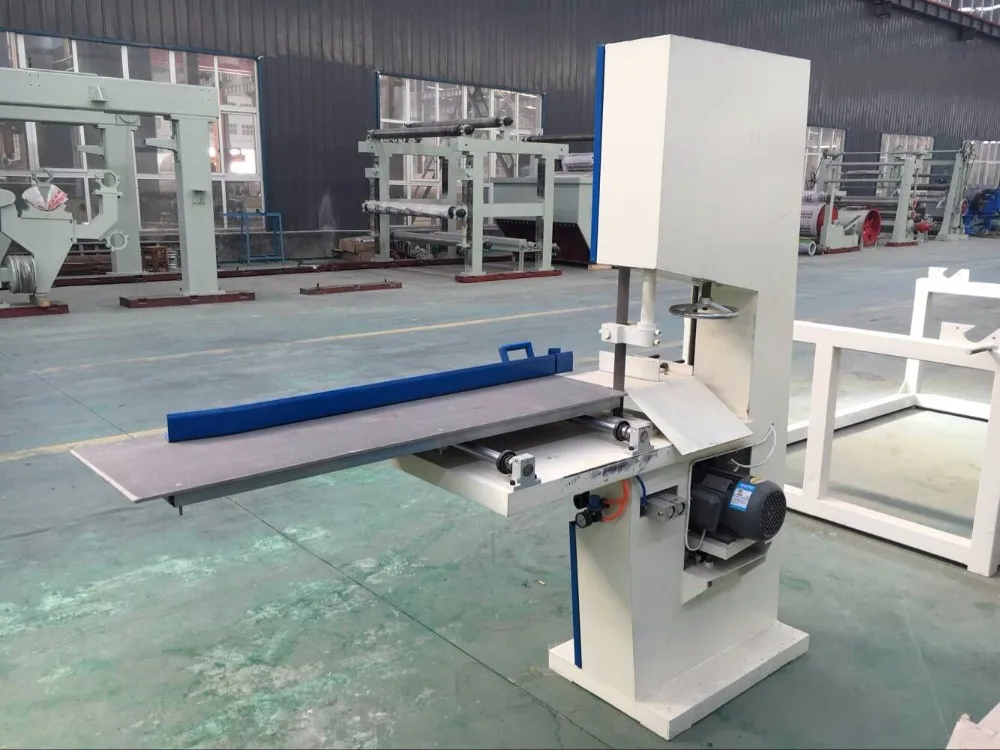

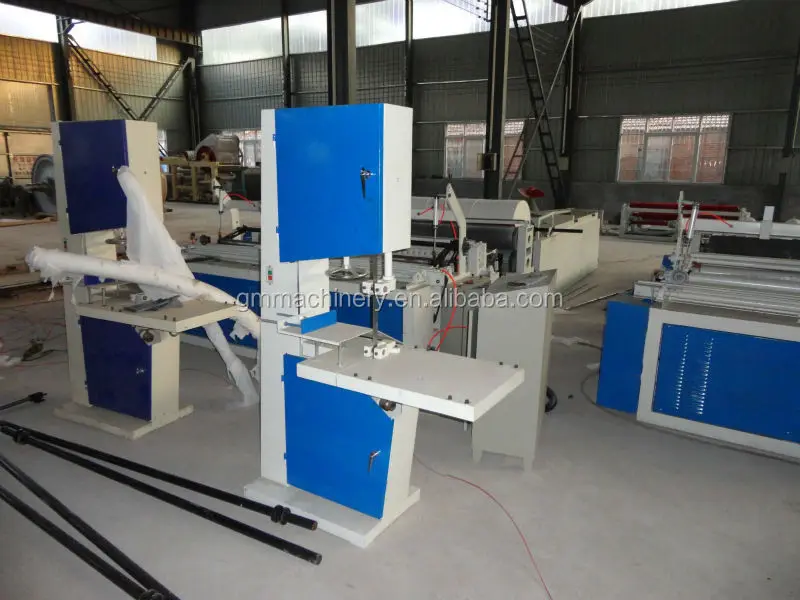

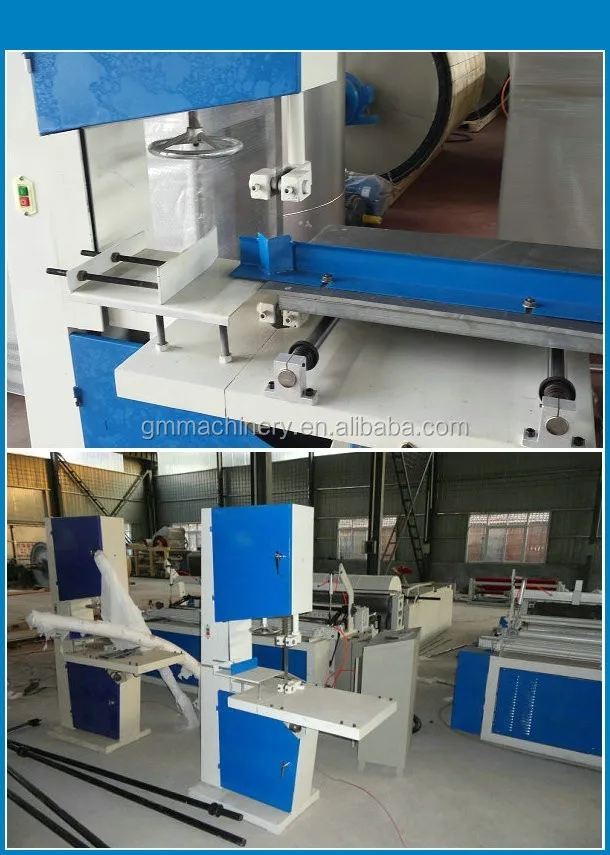

2. bandsaw toilet roll cutter

the bandsaw toilet roll cutter can cut the rewinded toilet toll into various widths. the output paper roll is ready for plastic sealing machine. The machine is able to automatically sharpen the blade, and the cutting table is movable to facilitate the cutting, making it a stable running and high efficiency machine for the production of toilet rolls and facials. This machine use beeline bearing and make worker operation it can save labour and more easy. At the same time this machine use the guard unit and improve the machine security.


Type
CV-450
Product size (mm)
≤200ר180mm (adjustable)
Raw paper size (mm)
<Ø180×1800mm
Capacity
1800kg/shift
Power
2.2kw
Dimension(L×W×H)
1330×800×1800mm
Weight
460kg

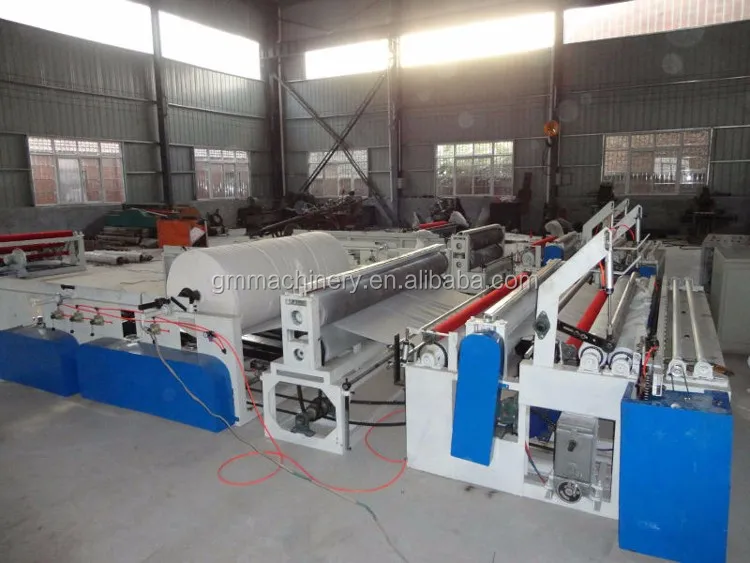

3. Jumbo Roll Tissue Rewinding Slitting Machine

The jumbo roll tissue rewinding and slitting machine can slit the jumbo parent roll into bobbin paper, with embossing and calendering function as well. the finished product is kitchen towel paper roll and bathroom toilet roll.



model
1575
2000
2200
2600
2800
2900
3000
raw material width
1750
1950
2150
2550
2750
2850
2950
finished products diameter (mm)
 Ø90-300 (tightness adjustable)
raw material diameter (mm)
Ø1100 (other size are available)
core size of jumbo roll
 Ø76mm (other size are available)
machine speed
2200 m/min
unwinding unit
1-3 layer
pneumatic system
3HP air compressor. mini air pressure 5kg/cm² pa (provided by customer)
power
7.5-15kw
calendering unit
steel to steel, steel to rubber
embossing unit
single ply embossing, double ply embossing, steel to steel embossing
edge embossing unit
steel to steel

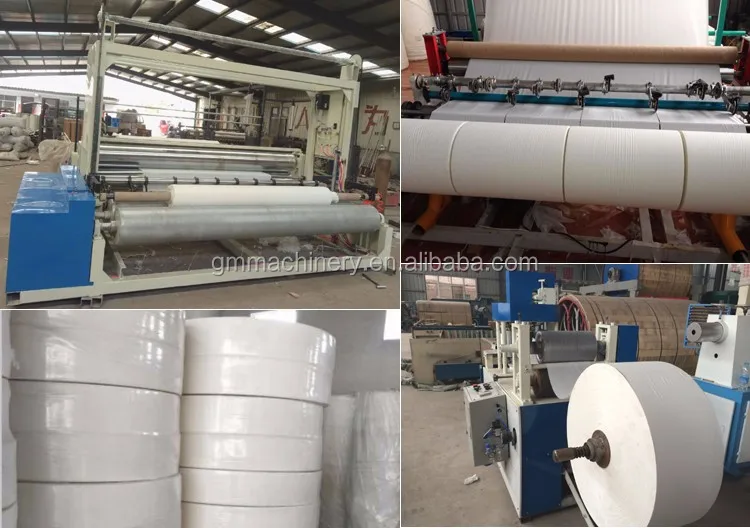

4. Jumbo Tissue Roll Slitting Machine

the jumbo roll slitting machine is used to cut parent jumbo roll into small roll in ideal width without changing its diameter. the output paper roll can be used for napkin tissue folding machine for further processing.



model
1575
1092
2000
2200
2900
raw material width
1330
1750
1950
2150
2850
finished products diameter (mm)
≤Ø1200
core size of jumbo roll
Ø76mm (other size are available)
machine speed
260-300 m/min
unwinding unit
1-3 layer (can be appointed)
calendering
steel to steel or steel to rubber (optional)
pneumatic system
3HP air compressor. mini air pressure 5kg/cm² pa (provided by customer)
power
5.5-11kw
dimension (L×W×H)(mm)
 6200×2600×1800-6200×4000×1800
weight
3800-7000kg
rewinding unit
air-shaft
transmission system
frequency conversion speed regulator
calendering system
calendering system

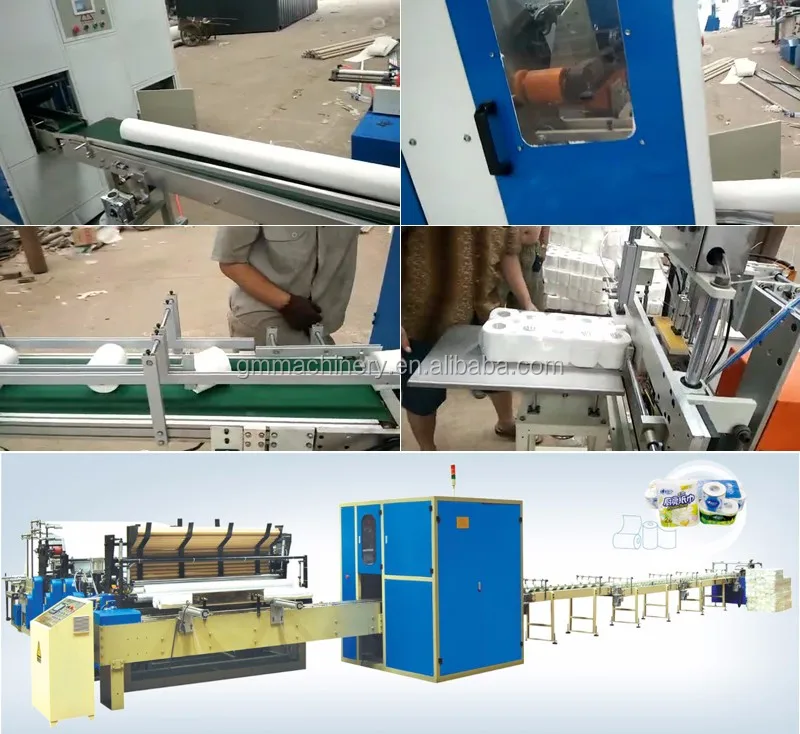

5. log saw cutting machine

log saw cutting machine has the same function as bandsaw cutter, but it is highly automatic and efficiency. it is mainly used in high speed toilet tissue converting line.


jumbo roll width
1500-2700mm
log convey
adopt serve motor system control pusher log location
machine speed
160 cuts/min
number of line
2/3 lines
grinding wheel system
pneumatic sharpen, the sharpen parameter can adjust in touch panel
circular blade diameter
Ø610mm
cutting mistake
±1mm
roll size
Ø90-135mm, the standard size is Ø110mm
suction dust system
the unit can suction dust for grinding knife place
cooling system
adopt the compress air and cooling the grinding knife place
control system
PLC
power
main motor 10.5kw/set




Packing & Delivery


packaging of all in one paper rolling winding machine embossing machine slitter machine :
1. fixed all the movable parts with plastic films.
2. polystyrene foam plate wrapped around.
3. wrapped with tighted plastic films several circles.
4. fixed machine on the fumigated plywood pallet with iron wire.
5. wrapped with wooden board around and nailed on.
shipment of all in one paper rolling winding machine embossing machine slitter machine :
1. shipment can be by sea, by train, by truck;
2. delivery time: within 40 days after first payment or L/C.


Clients check their machinery in our factory:

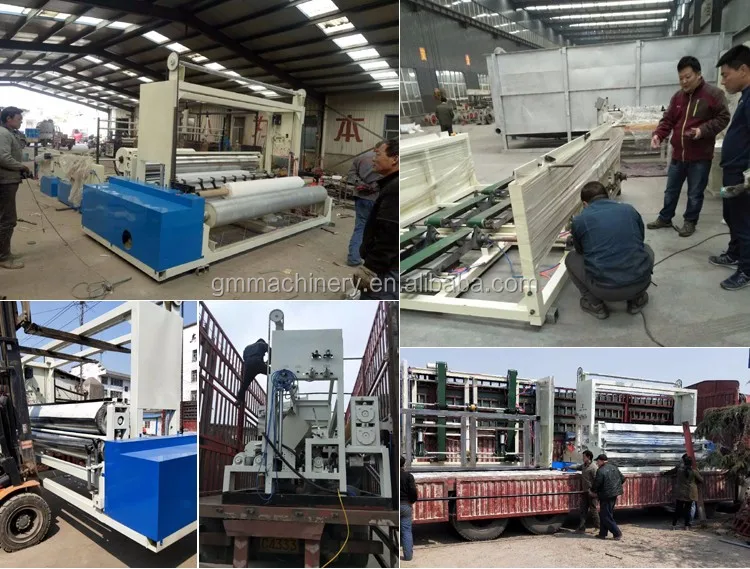

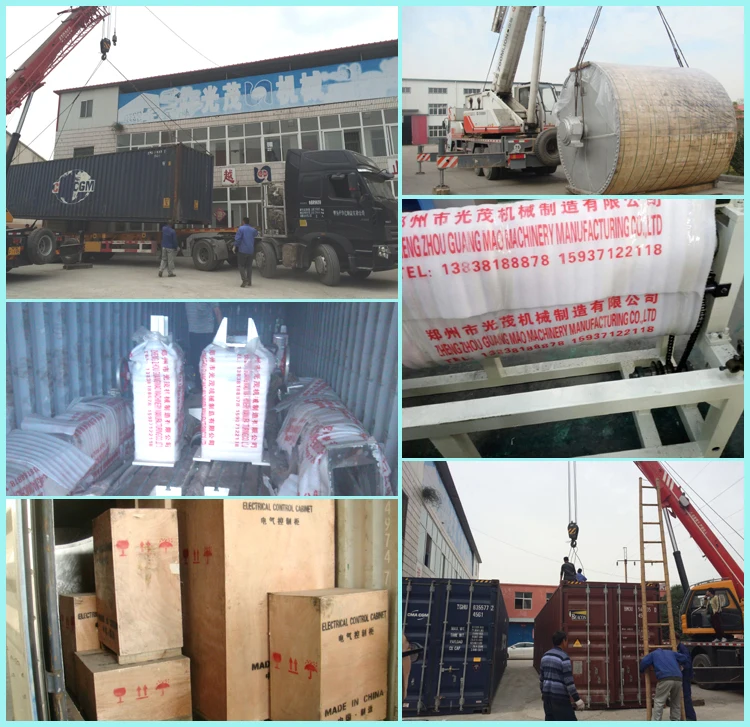

Well packed machinery are delivered to clients from our warehouse:

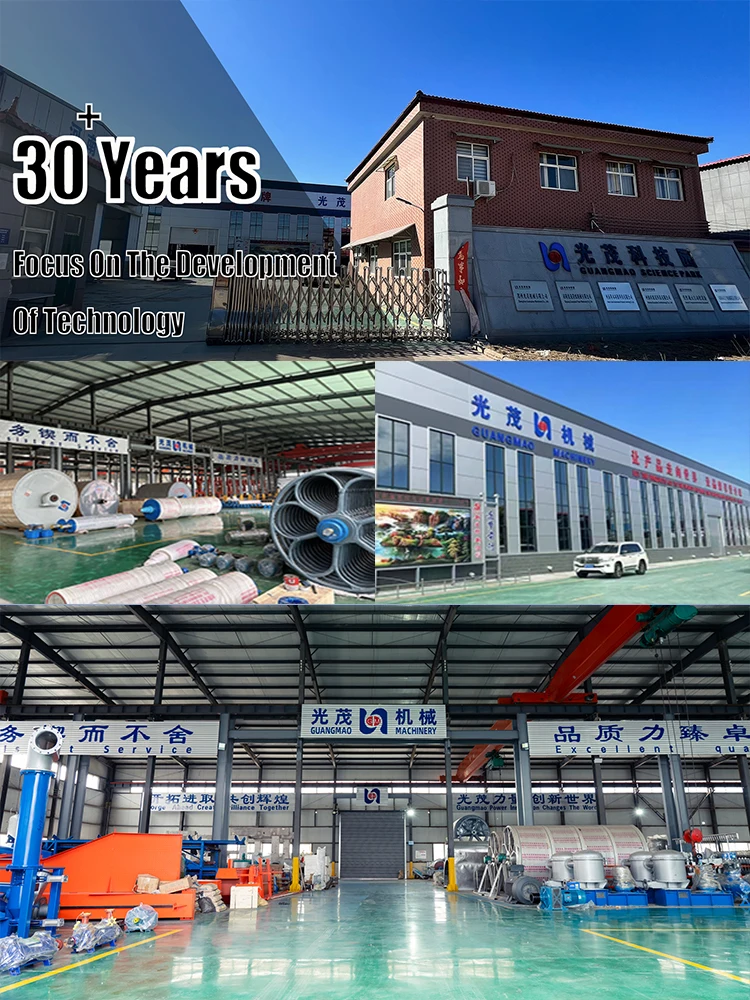

Our Company


Brief introduction to Zhengzhou Guangmao Machinery Co. Ltd. (OEM):
Founded in 1982, Zhengzhou Guangmao Machinery Co. Ltd. is a professional paper machinery manufacturer that specialized in manufacturing and exporting paper machine over the past 30 years.
Our products are all ISO9001:2000 and CE qualified, and have been exported to more than 30 countries. Our high quality products and perfect service have won customers' praise and more and more orders.



Business scope:
Various pulp making machines;
Various paper making machines;
Various paper processing machines;
Various spare parts.

Company scale:
Four branch factories;
One International Trade Department;
Total area is 96,000 square meters.



Technology strength:
One professional technician team of 116 engineers and 12 experts;
32 years rich practice experience.
One innovation research team, always follow the advanced technology of Finland, Denmark and Italy;
Skilled and careful workers.

Our market:
our machines sells well in more than 30 countries and regions, such as Russia, Indonesia, Uzbekistan, Tajikstan, Nigeria, Uganda, Pakistan, Egypt, Bhutan, Fiji, Brazil, Paraguay, Syria, Libya, Turkey, Canada etc. High quality and perfect service have reserved customers' praise and more orders. we have established good strategic cooperation with local distributor.







\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t


1.Why we choose your company?
(1)more than 30 years experience of manufacture paper machine and pulp making machine;
(2)professional engineer team ensure latest and best design;
(3)professional project manager ensure perfect service for whole procedure,such as quotation preparation,arrange shipment,customs clearance;

2.How to visit your factory and what is visiting schedule?
(1)Our company located in ZHENGZHOU city, HeNan province,
From Beijing to our city,it will take 1.5hours by flight or 3 hours by high speed train;
From Guangzhou to our city,it will take 2 hours and 20minutes by flight or 6.5hours by high speed train;
From Shanghai to our city,it will take 2hours by flight or 7hours by high speed train;
(2)after you confirm visiting plan,please inform us,we will arrange picking up and also booking hotel for you;
(3)welcome to visit our factory,you can check our factory facility,machine manufacturing ability,machine quality,we will also show you same working machine,you can check working performance and get necessary information of whole project,this can help you know well about this project;

3.How about technical service?
(1)we will send engineer to check your land condition and make precise design of whole factory;
(2)we will send engineers to make installation for you. After installation, they will teach your workers how to operation, maintain machine and also how to make paper;
(3)if you need, we can also keep some engineer working for you until you completely know well about machine, but the salary is paid by you;

4.what document we provide?
(1)complete set drawing of whole machine;
(2)detail manual for operation and maintain in English;
(3)commercial invoice, packing list, Bill of lading, CE certificate, CIQ certificate, SONCAP certificate etc, we can prepare different kind of document according to special requirement;


5.Payment terms
(1)30% T/T within 7days after sign contract;
(2)70% T/T before shipment ;
(3)100% L/C is also acceptable ;
(4) The payment way can be negotiated.
