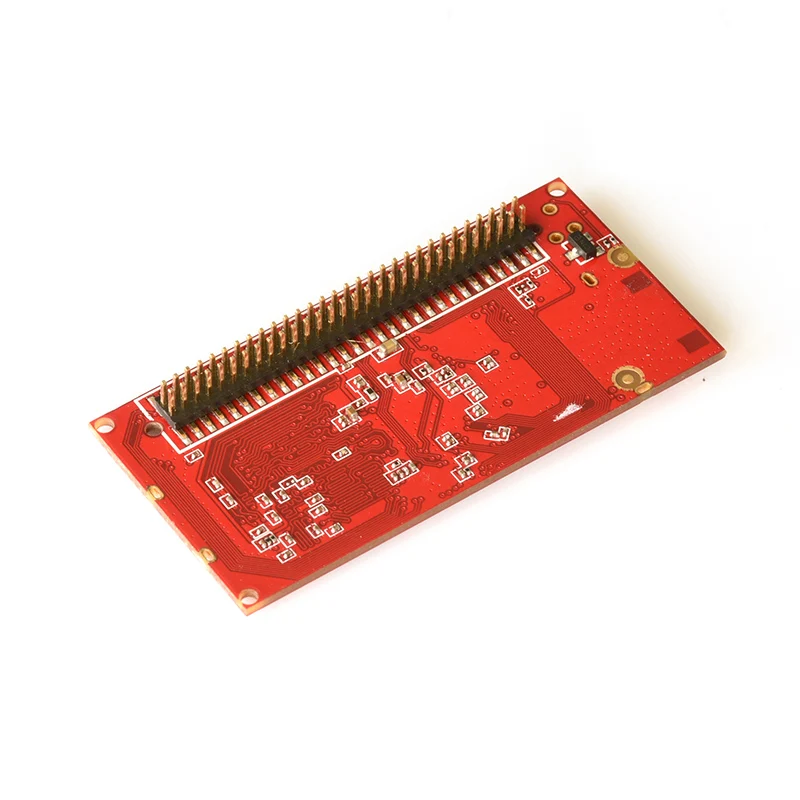

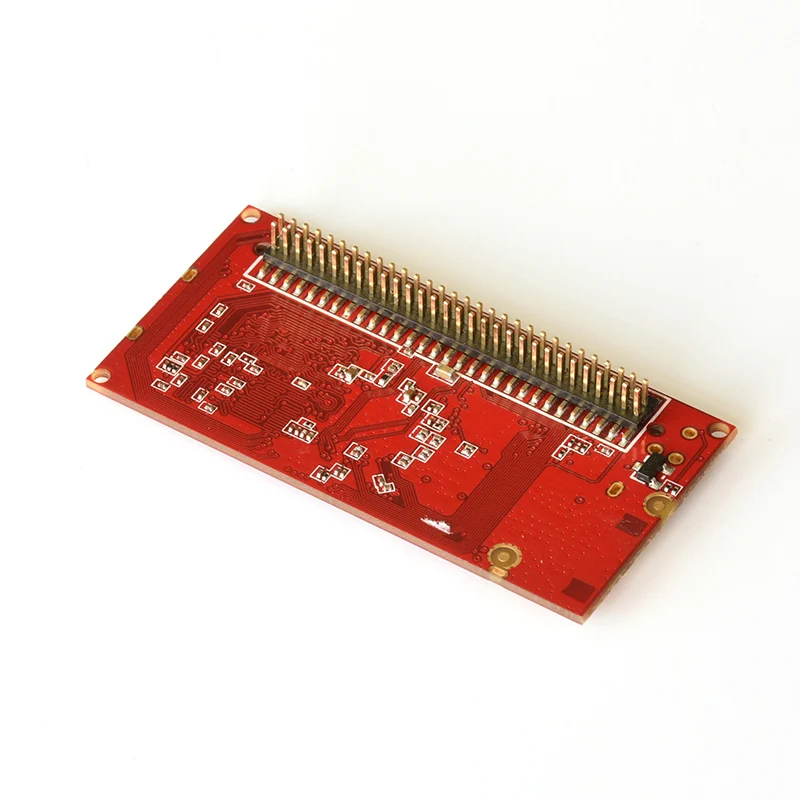

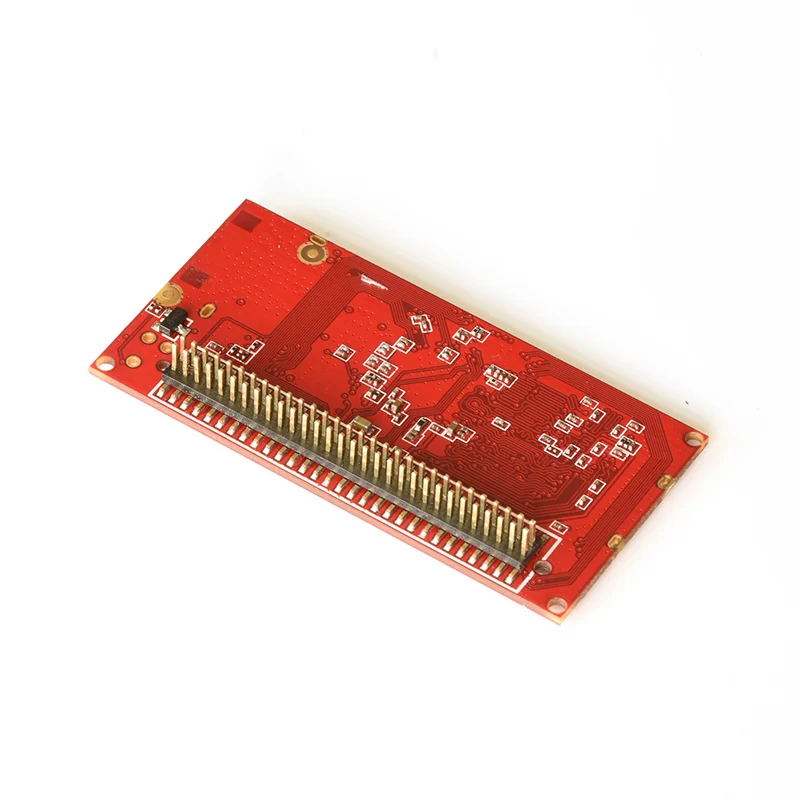

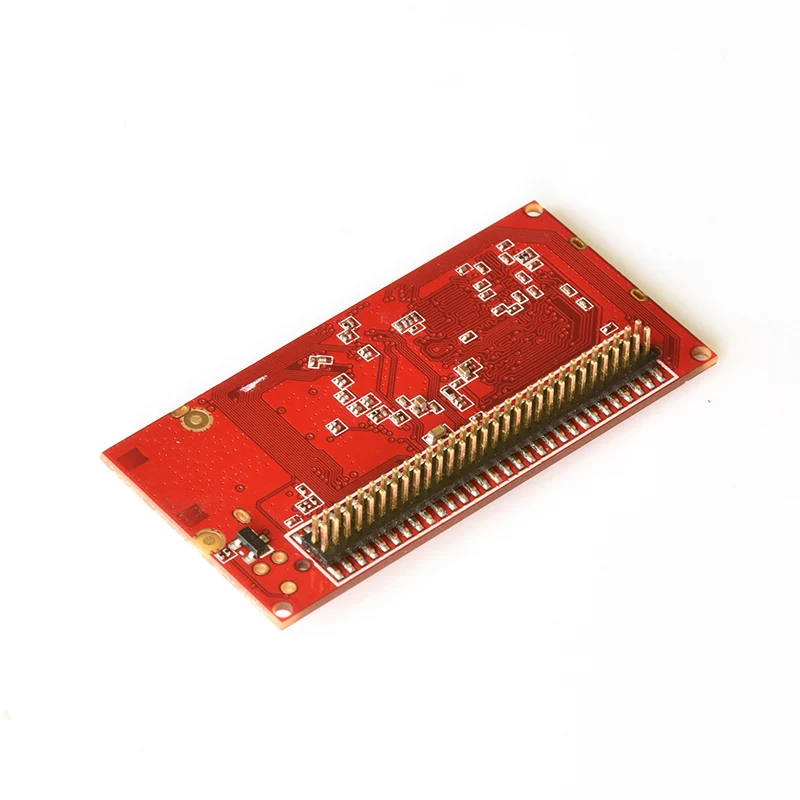

Gainstrong High Performance MT7688AN wifi halow module with eMMC Support for Enhanced Storage Options
- Category: >>>
- Supplier: Shenzhen Gainstrong Technology Co. Ltd.
Share on (1601201682068):
Product Overview
Description
Specification
item | value |
Model Number | Oolite V3.3S |
Type | WiFi Module |
Country of Origin | China |
Brand | Oolite |
MT7688ANChipset | MT7688AN |
Application | enhancing the performanceof memory access intensive tasks |
CPU | MT7628AN with 580/575 MHz MIPS 24KEc |
RAM | 64MB DDR2 RAM (maximum 256MB optional) |
Flash | 64MB SPI NOR Flash ROM(8/16/32/64M option) |
Wireless speed | 300Mbps |
GPIO | 46(total), High-speed UART for console support |
USB | Usb 2.0 master interface, support USB hub extension |
Power supply voltage | 3.3V |
Debug | serial debugging interface has lead out |
Product Description
Company Profile
INTRODUCTION
RAM: 64MB DDR2 RAM (maximum 256MB optional)
Flash: 64MB SPI NOR Flash ROM(8/16/32/64M option)
Wireless speed: 300Mbps
GPIO:42(total), High-speed UART for console support
USB: Usb 2.0 master interface, support USB hub extension
Power supply voltage: 3.3V.
Port: 1×WAN+ 4×LAN ( IOT mode 1×port)
1×PCIE interface
Antenna:2× IPeX external antenna.
Debug: serial debugging interface has lead out.
Supports 16 DMA channels and 32 bit address.
8 channel QoS Arbiter with Configurable Bandwidth and Duedate for each agent.
Supports the Synchronous Inter-Integrated Circuits (I2C) serial protocol
Supports up to 2 SPI master operations and Extends the addressable range from 24 bits to 32 bits for memory size
larger than 128 Mb.

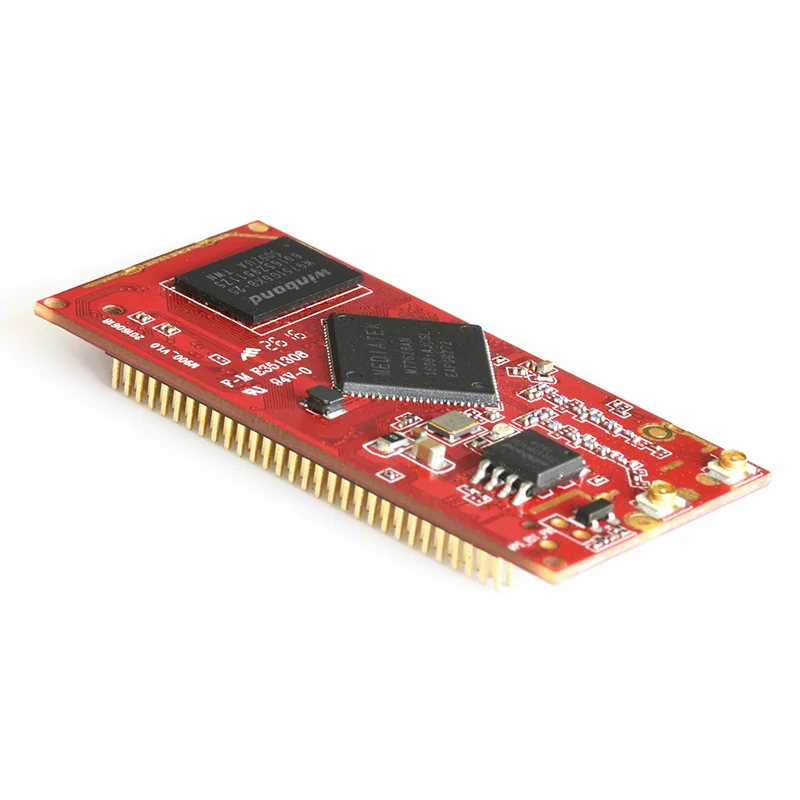

The Oolite V3.3D module use the MT7628AN chipset.The MT7628AN includes a high performance 580/575 MHz MIPS 24KEc CPU core and high speed USB2.0/PCIe interfaces, which is designed to enable a multitude of high performance, cost-effective IEEE 802.11n applications with a MediaTek WiFi client card.There are several masters (MIPS 24KEc, USB, PCI Express, SDXC, FE) in the MT7628 SoC on a high performance,low latency Rbus. In addition, the MT7628 SoC supports lower speed peripherals such as UART Lite, GPIO, I2C and SPI via a low speed peripheral bus (Pbus). The DDR/DDR2 controller is the only bus slave on the Rbus. It includes an Advanced Memory Scheduler to arbitrate the requests from bus masters, enhancing the performance of memory access intensive tasks.
Features
CPU: MT7628AN with 580/575 MHz MIPS 24KEc
RAM: 64MB DDR2 RAM (maximum 256MB optional)
Flash: 64MB SPI NOR Flash ROM(8/16/32/64M option)
Wireless speed: 300Mbps
GPIO:42(total), High-speed UART for console support
USB: Usb 2.0 master interface, support USB hub extension
Power supply voltage: 3.3V.
Port: 1×WAN+ 4×LAN ( IOT mode 1×port)
1×PCIE interface
Antenna:2× IPeX external antenna.
Debug: serial debugging interface has lead out.
Supports 16 DMA channels and 32 bit address.
8 channel QoS Arbiter with Configurable Bandwidth and Duedate for each agent.
Supports the Synchronous Inter-Integrated Circuits (I2C) serial protocol
Supports up to 2 SPI master operations and Extends the addressable range from 24 bits to 32 bits for memory size
larger than 128 Mb.
