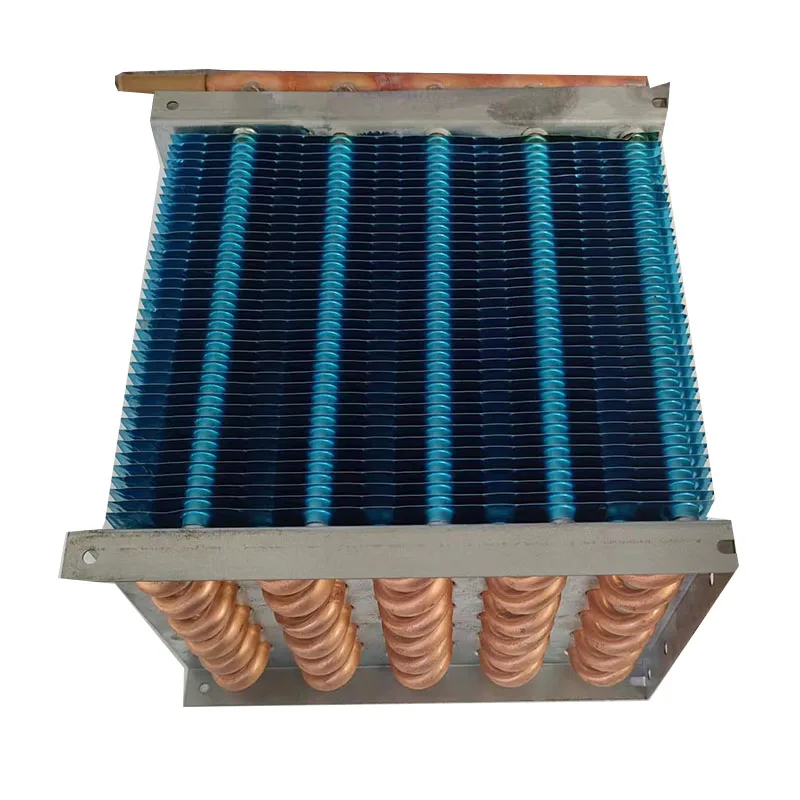

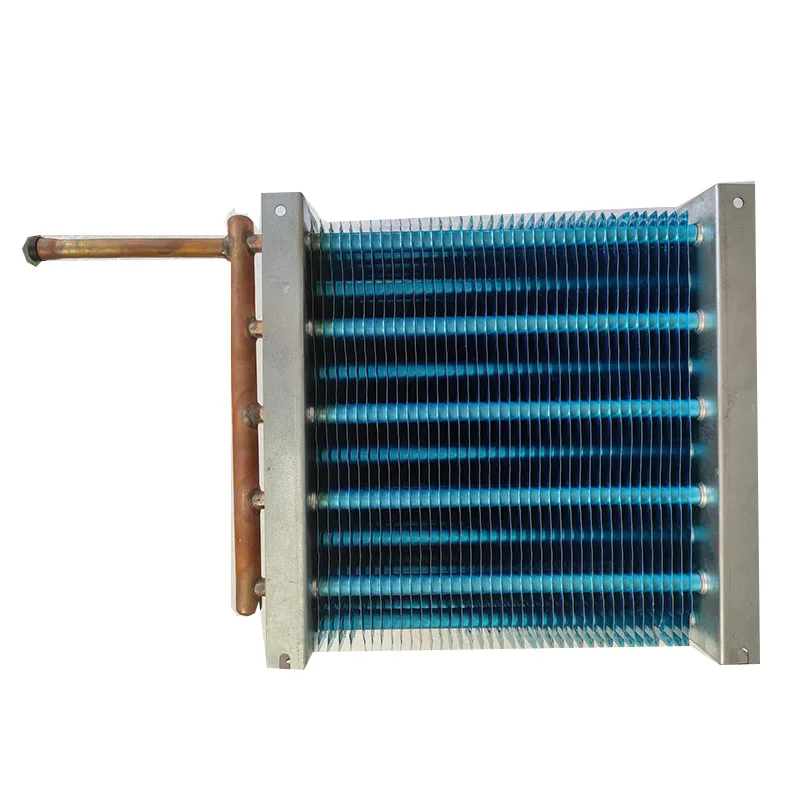

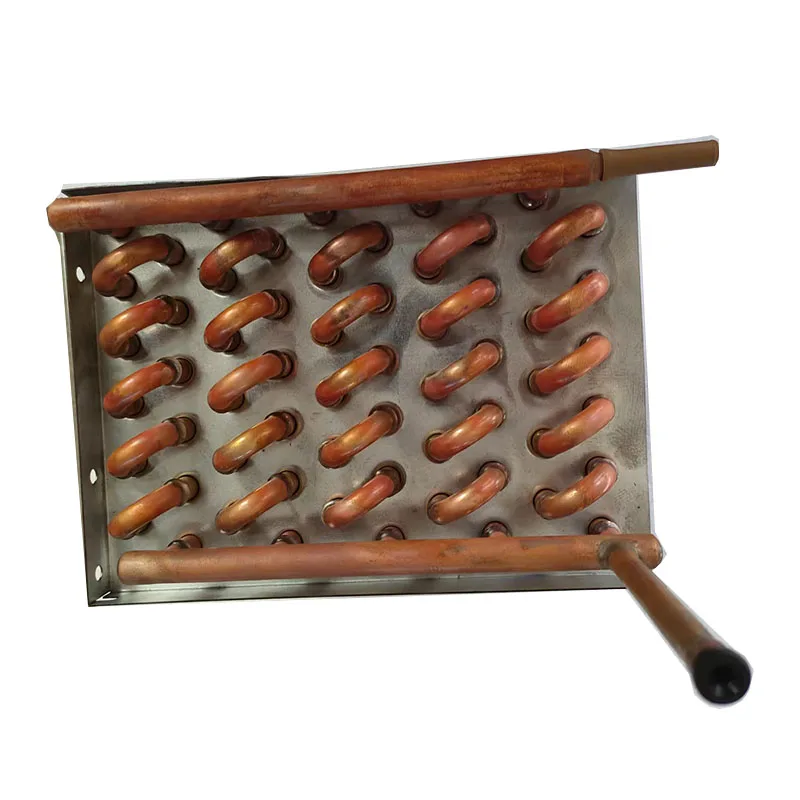

Manufacturer sells copper tube condenser blue fin plate heat exchanger
- Category: >>>
- Supplier: Huixian Tianyang Electric Appliance Co. Ltd.
Share on (1601201697791):
Product Overview
Description
Condenser coil refrigeration equipment for harvesters
Picture&Models
Custom Mould
Dimensions:
1. Length between end plates? 2.Wide? 3.Height? 4. Pipe diameter? 5.Fin Wide? 6.Fin Height? 7. Fin spacing?
1. Length between end plates? 2.Wide? 3.Height? 4. Pipe diameter? 5.Fin Wide? 6.Fin Height? 7. Fin spacing?
Materials:
1. Tube: copper or aluminum 2. Fin: hydrophilic foil or aluminum foil 3. Shell: aluminum plate, galvanized plate, stainless steel plate
1. Tube: copper or aluminum 2. Fin: hydrophilic foil or aluminum foil 3. Shell: aluminum plate, galvanized plate, stainless steel plate
Design:
1. Drawings 2. Samples 3. Photos (please provide three photos, both sides of the copper pipe layout and the front photo)
1. Drawings 2. Samples 3. Photos (please provide three photos, both sides of the copper pipe layout and the front photo)
NO. | OD(mm） | Hole（mm） | Row（mm） | Fin spacing（mm） |
1 | Ф5 | 21 | 18.2 | 1.5-4 |
2 | Ф7 | 19.1 | 16 | 1.5-2.5 |
3 | Ф7 | 21 | 12.7 | 1.5-2.5 |
4 | Ф7 | 20.8 | 20 | 2.2-4 |
5 | Ф7 | 17 | 14 | 2.5 |
6 | Ф9.52 | 25 | 21.65 | 2.2-8 |
7 | Ф9.52 | 25.4 | 22 | 1.8-2 |
8 | Ф9.52 | 25 | 25 | 3.5-4.5 |
9 | Ф12 | 38 | 32.91 | 5-8.5 |
10 | Ф12.7 | 35 | 35 | 5-8 |
11 | Ф12.7 | 31.75 | 27.5 | 3-7 |
12 | Ф15.88 | 38 | 32.91 | 4.5-8 |
12A | Ф15.88 | 55 | 27.5 | 5-7.5 |
Product Advantages
Production Process
Tip：Quality inspection
Before leaving the factory, we will carry out nitrogen pressure protection for the product (except for special welded joints),
please check when receiving the goods. If you find pressure leakage after receiving the goods, .Please contact the logistics side
as soon as possible and inform our customer service.
please check when receiving the goods. If you find pressure leakage after receiving the goods, .Please contact the logistics side
as soon as possible and inform our customer service.
Packing & Delivery
Small Sample Package
Packing: carton + filler
Logistics: DHL, federal, Ups, and other international logistics
Packing: carton + filler
Logistics: DHL, federal, Ups, and other international logistics
Bulk Packing
Packing: carton + base. Or a foundation
Logistics: Air to port, Air to door, Buyers pick up, Sea to port
Logistics: Air to port, Air to door, Buyers pick up, Sea to port
Bulk Packing
Packing: wooden cases + cartons
Logistics: Air to port, Air to door, Buyers pick up, Sea to port
Logistics: Air to port, Air to door, Buyers pick up, Sea to port
More Products
Choose us
FAQ
Q1:Where is your factory located?
A1:Plant 3, Industrial Cluster, Xueyuan Road, Huixian City, Xinxiang City, Henan Province, China
Q2：Whether sample service is supported？
A2:Yes.
Q3:How long is your production schedule?
A3:The normal construction period is 7-15working days after the arrival of the payment, and it will be postponed under special circumstances
Q4：What is your logisticspackaging method?
A4: Express or air: carton + stuffing Shipping: Wooden case or carton + base
Q5:Price description
A5:All products in this link are customized products for manufacturers, all pictures are sample layout, not for sale; All prices are for the convenience of payment, not the actual price of the product, please do not place orders directly
Q6：Pressure leakage
A6:Before leaving the factory, we will carry out nitrogen pressure protection for the product (except for special
welded joints), please check when receiving the goods. If you find pressure leakage after receiving the goods, .Please contact the logistics side as soon as possible and inform our customer service.
A6:Before leaving the factory, we will carry out nitrogen pressure protection for the product (except for special
welded joints), please check when receiving the goods. If you find pressure leakage after receiving the goods, .Please contact the logistics side as soon as possible and inform our customer service.
Q7:Transport causes the fin to deform
A7.:Please contact the logistics party for claim immediately after receiving the goods.The fin texture is soft, bump in transportation may cause the fin to overwhelm the deformation, (Fin deformation is a normal phenomenon, you can contact the customer service to inform the solution, if there is no damage, it does not affect the use, non-product quality problems, do not support return and replacement.
